DEV340 Visual Basic Tips and Tricks for Optimizing Your Applications

1. DEV340 Visual BasicTips and Tricks for Optimizing Your Applications Brian A. Randell Senior Consultant MCW Technologies, LLC

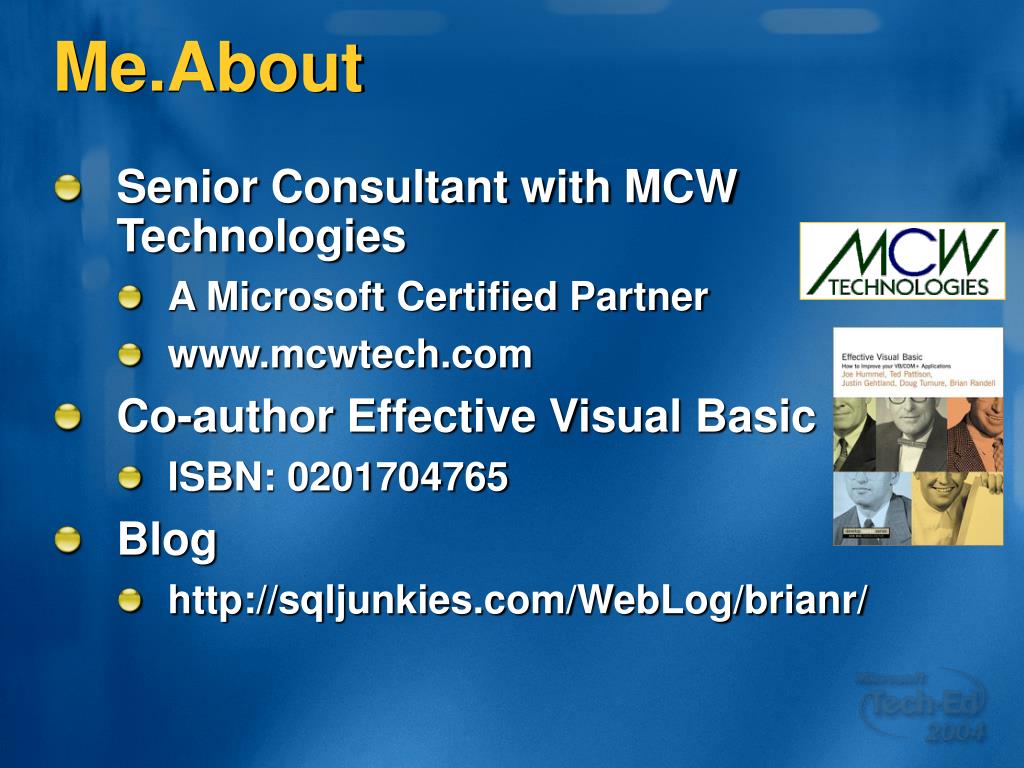

2. Me.About • Senior Consultant with MCW Technologies • A Microsoft Certified Partner • www.mcwtech.com • Co-author Effective Visual Basic • ISBN: 0201704765 • Blog • http://sqljunkies.com/WebLog/brianr/

3. Thanks to • Paul VickDevelopment Lead, CompilerVisual BasicMicrosoft Corporation • Mahesh PrakriyaLead Program ManagerCommon Language RuntimeMicrosoft CorporationThey wrote most of this talk.

4. Outline • Introduction • Tips and tricks for • All applications • Windows Forms applications • ASP.NET applications • Tools/Resources

5. Remember There are three kinds of lies: lies, damn lies, and statistics. Benjamin DisraeliPrime Minister of the British Empire1874-1880

6. Introduction • VB.NET and Visual Basic 6.0 • Different platforms, different performance • .NET is a great platform for performance • Just don’t make assumptions! • VB.NET and C# • Same platform, same performance • But different language features can perform differently • The key: Understand what you’re doing

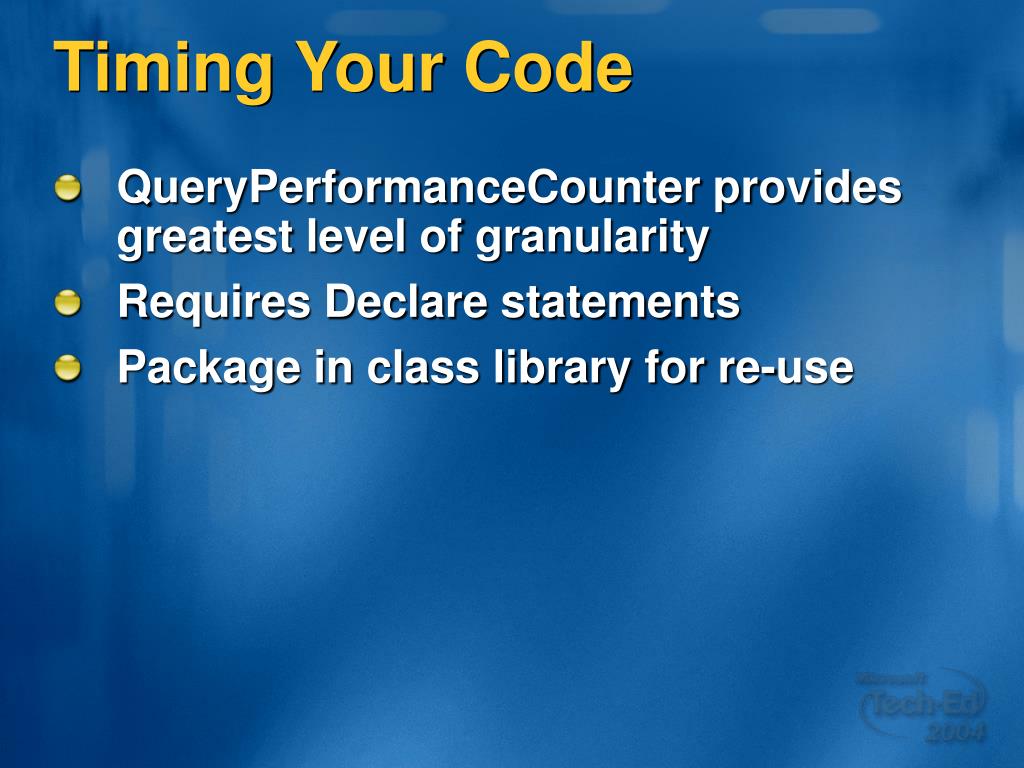

7. Timing Your Code • QueryPerformanceCounter provides greatest level of granularity • Requires Declare statements • Package in class library for re-use

8. Maximizing PerformanceAll Applications

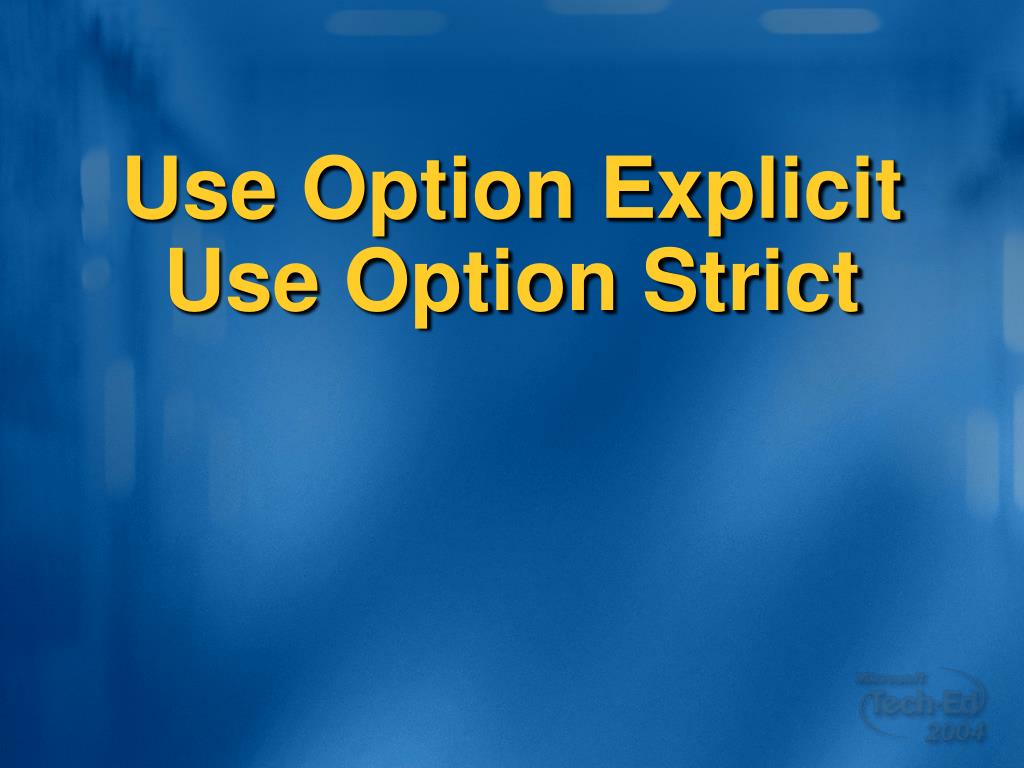

9. Use Option ExplicitUse Option Strict

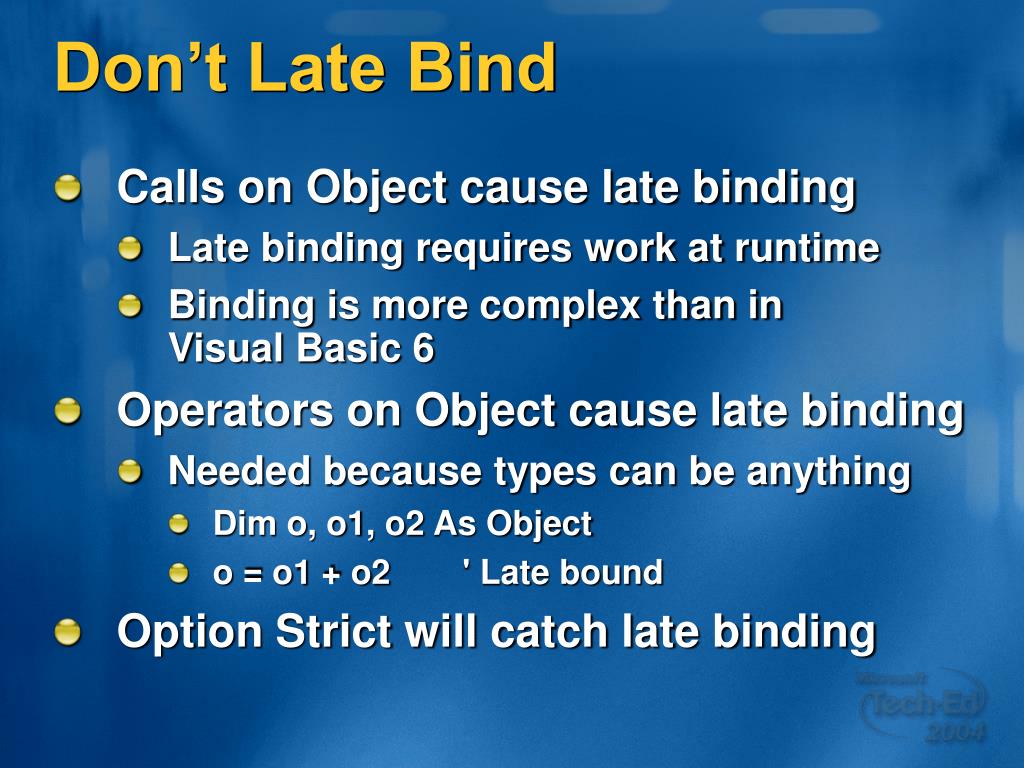

10. Don’t Late Bind • Calls on Object cause late binding • Late binding requires work at runtime • Binding is more complex than in Visual Basic 6 • Operators on Object cause late binding • Needed because types can be anything • Dim o, o1, o2 As Object • o = o1 + o2 ' Late bound • Option Strict will catch late binding

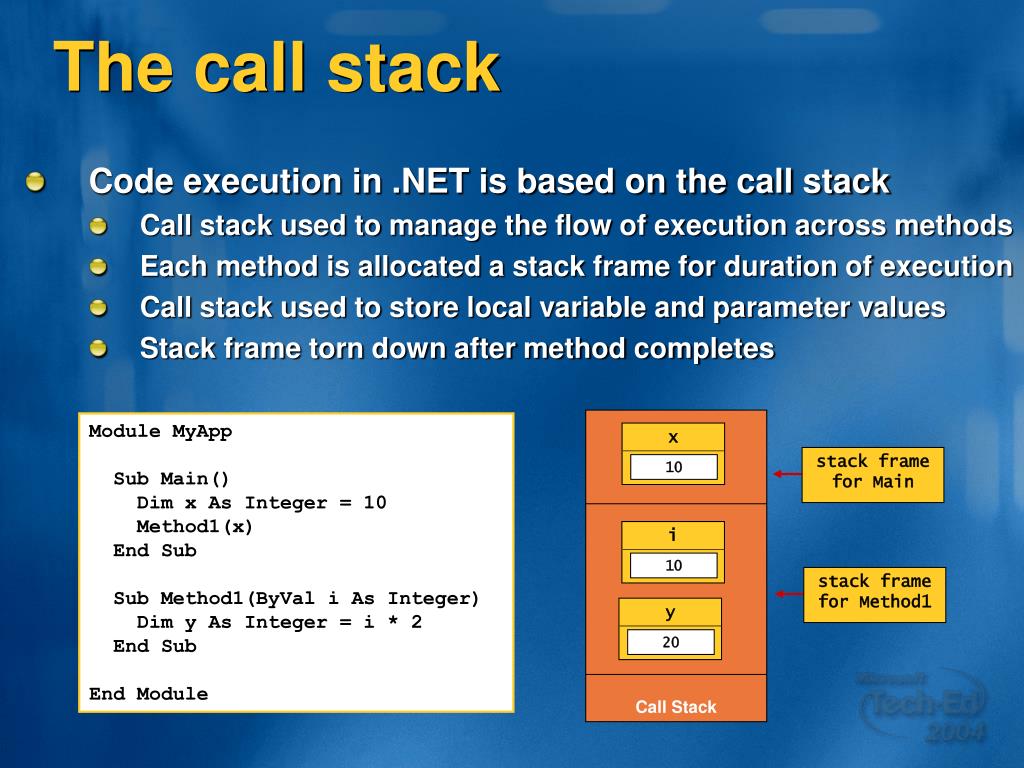

11. The call stack • Code execution in .NET is based on the call stack • Call stack used to manage the flow of execution across methods • Each method is allocated a stack frame for duration of execution • Call stack used to store local variable and parameter values • Stack frame torn down after method completes Call Stack Module MyApp Sub Main() Dim x As Integer = 10 Method1(x) End Sub Sub Method1(ByVal i As Integer) Dim y As Integer = i * 2 End Sub End Module x stack frame for Main 10 i 10 stack frame for Method1 y 20

12. Value types vs. reference types • CTS supports two fundamentally different kinds of types • value types (e.g. primitive types, structures, enumerations) • reference types (e.g. classes) • CLR manages memory one way for value types • instances of value types are simple values • variables based on value types contain actual values • typically instantiated without using New operator • CLR manages memory a different way for reference types • instances of reference types are first-class objects • variables based on reference types hold logical pointers to objects • typically instantiated using New operator

13. ref CLR Memory management • Memory for value type allocated where variable is declared • variable and value type instance are one and the same • Memory for reference type instance always allocated on heap • variable and reference type instance are distinct • variable either points to heap-based object or equals Nothing Module MyApp Sub Main() ' explicitly initialized value type instance Dim var1 As Integer = 34 ' auto-initialized value type instance Dim var2 As Integer ' explicitly initialized ref type variable Dim var3 As New Person() ' auto-initialized ref type variable Dim var4 As Person End Sub End Module Stack var1 Heap 34 var2 Person Instance 0 var3 var4 Nothing

14. Use The Right Types • Understand the two kinds of types • Reference types = Class • Allocated on the heap, copies are free • Value types = Structure, Integer, etc • Allocated on the stack, copies can have a cost • “General” Recommendation • Value types = small objects (Point, Size) • Reference types = bigger objects (Form) • There is no “one size fits all!”

15. Avoid Slow Conversions • Value types to Object are “boxed” • Involves a heap allocation and copy • Conversions from Object call a helper • DirectCast can avoid the helper call, but only if the type is exactly right! Dim x As Integer = DirectCast(o, Integer) • Casts to/from String also call helpers • Option Strict will catch slow casts

16. Old vs. New • CInt, CLng, CStr, etc. vs. CType • No difference • Cxxx are not functions, they’re intrinsic parts of the language • Cxxx vs System.Convert.xxx • Can be a measurable difference • Be careful what you ask for … Cxxx preserve “classic” VB semantics

17. DirectCast • VB.NET language supplies DirectCast conversion operator • syntax for converting with DirectCast same as with CType • DirectCast can be faster than CType • CType often results in implicit calls to Microsoft.VisualBasic.dll • DirectCast never results in calls to Microsoft.VisualBasic.dll • When is DirectCast faster? • when converting from the Object type to the String type • when converting from the Object type to the numeric types Dim x As Object = CInt(2) Dim y As Integer = CType(x, Integer) Dim z As Object = DirectCast(x, Object) Dim obj1 As Object = CInt(77) Dim obj2 As Object = "Hello world" ‘ *** fastest VB.NET conversion techniques Dim o As object = DirectCast(obj1, Object) Dim s As String = DirectCast(obj2, String)

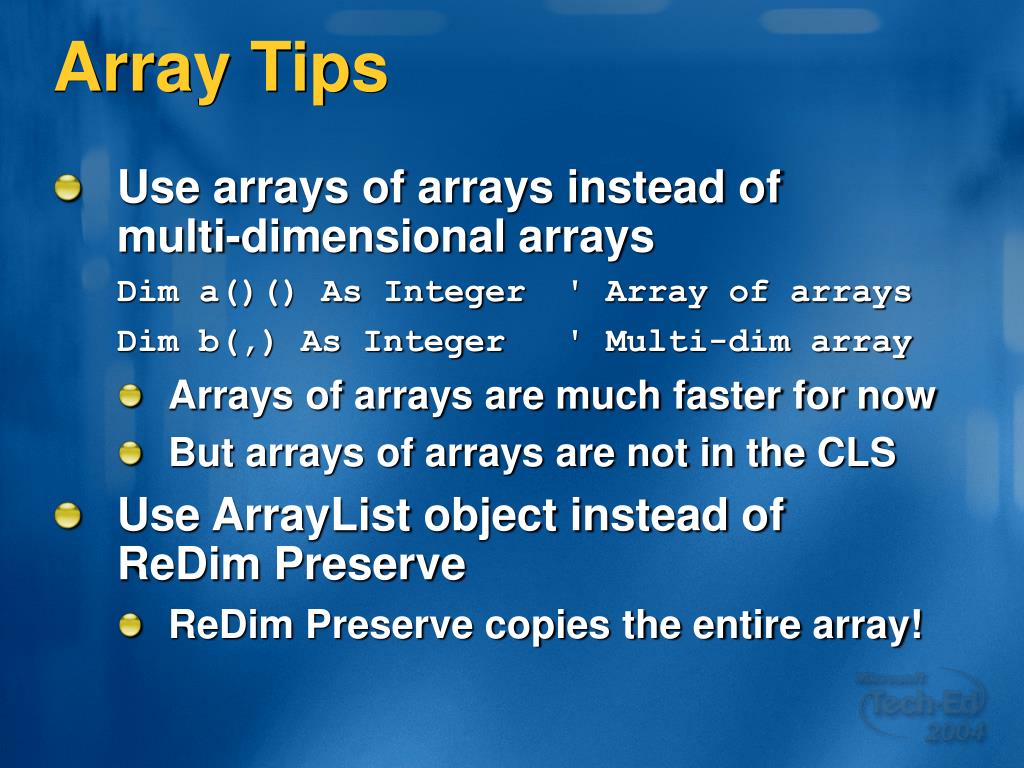

18. Array Tips • Use arrays of arrays instead of multi-dimensional arrays Dim a()() As Integer ' Array of arrays Dim b(,) As Integer ' Multi-dim array • Arrays of arrays are much faster for now • But arrays of arrays are not in the CLS • Use ArrayList object instead of ReDim Preserve • ReDim Preserve copies the entire array!

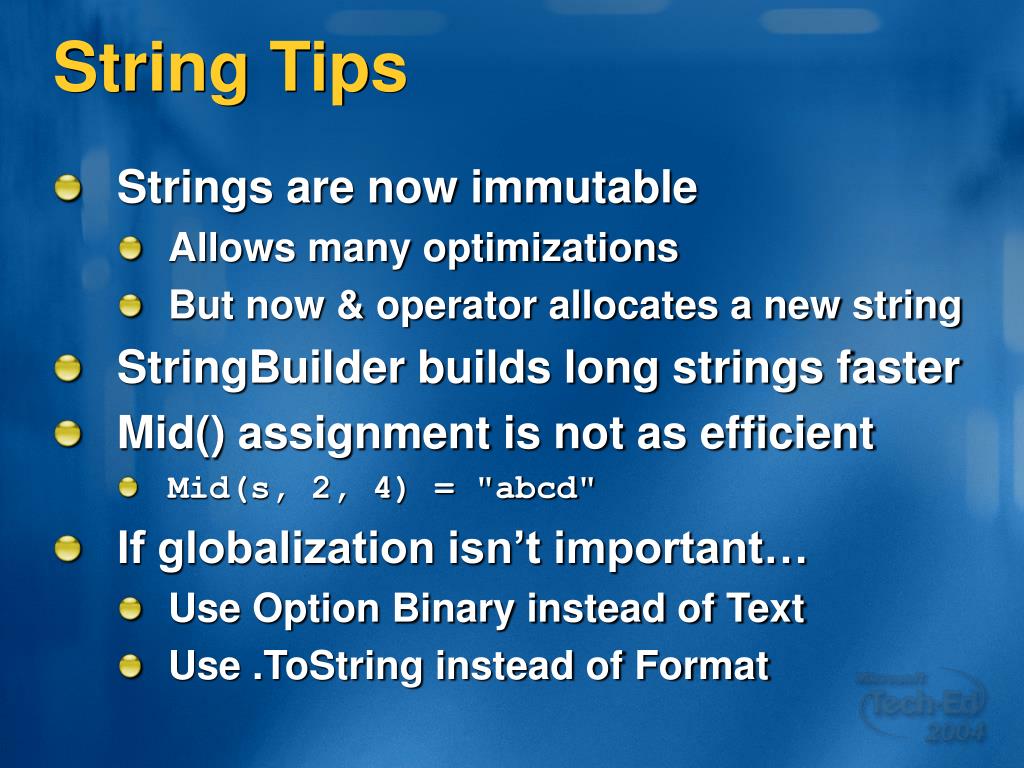

19. String Tips • Strings are now immutable • Allows many optimizations • But now & operator allocates a new string • StringBuilder builds long strings faster • Mid() assignment is not as efficient • Mid(s, 2, 4) = "abcd" • If globalization isn’t important… • Use Option Binary instead of Text • Use .ToString instead of Format

20. Use String Constants • String constants are much faster now • Concatenation of string constants is done at compile time when possible • Don’t split across multiple statements s = "a" & "b" ' Optimized s = "a" : s &= "b" ' Not optimized

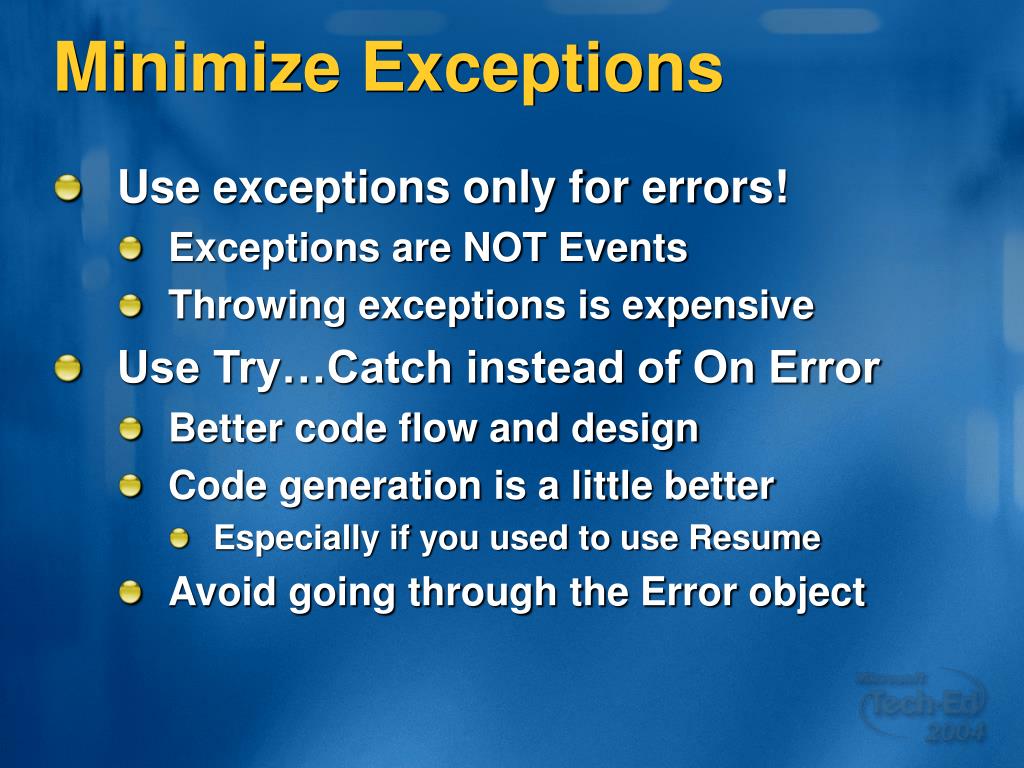

21. Minimize Exceptions • Use exceptions only for errors! • Exceptions are NOT Events • Throwing exceptions is expensive • Use Try…Catch instead of On Error • Better code flow and design • Code generation is a little better • Especially if you used to use Resume • Avoid going through the Error object

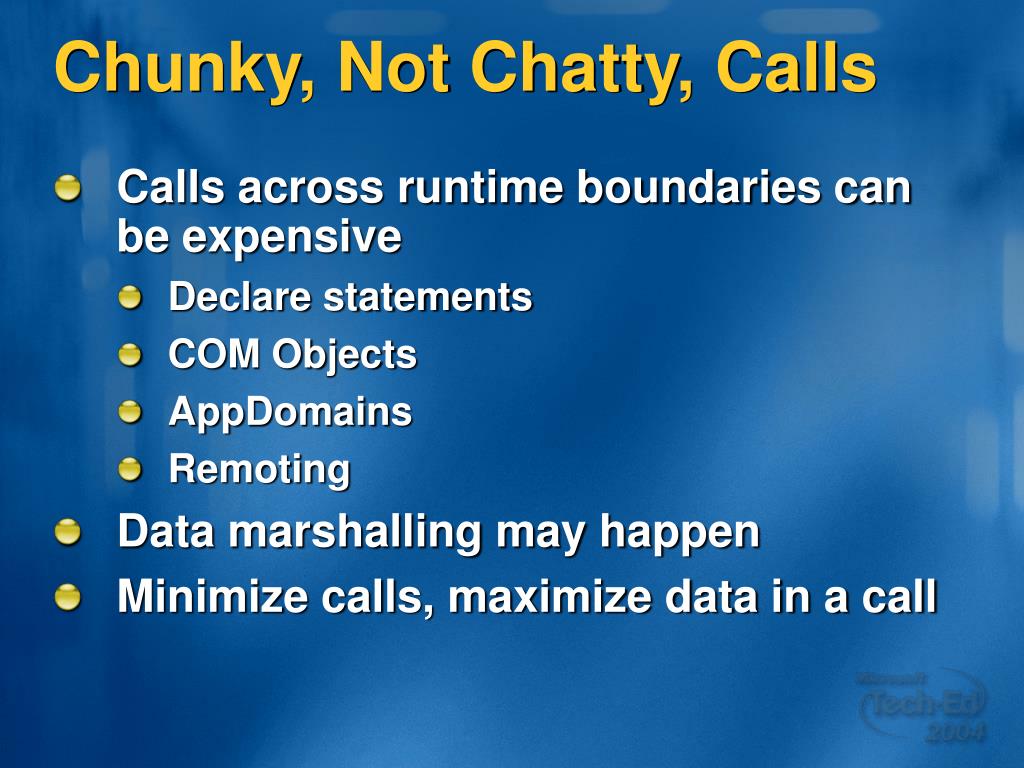

22. Chunky, Not Chatty, Calls • Calls across runtime boundaries can be expensive • Declare statements • COM Objects • AppDomains • Remoting • Data marshalling may happen • Minimize calls, maximize data in a call

23. General Tips • Don’t… • allocate memory you don’t need • have large numbers of locals • write really large methods • Use Overridable methods only when really needed • Calls to Overridable methods are a little more expensive • Use the Return statement • You’ll get slightly better code generation

24. Use Optimal Project Options • Use Release Builds! • Debug = asserts, PDB, easily debuggable • Release = optimized, less debuggable • You can set finer grain options in the project properties • Remove integer overflow checks • Can speed up computationally intensive applications • But you lose overflow checking – be careful!

25. Maximizing PerformanceWindows Forms Apps

26. General Tips And Tricks • Pay attention to application startup • The more code you load, the more time it takes • Minimize the number of assemblies loaded • If there’s no need for data connection pooling, don’t use it • you can save ~1 MB in working set mySqlConnection = new SqlConnection("server=(local)\NetSDK; …; database=northwind; Pooling = false") • Use AddRange instead of Add • Instead of iteratively Add’ing each item use AddRange – for example, treeView1.Nodes.AddRange(treeNodes)

27. Ngen To Start Up Faster • A “pre-JITed” assembly (via ngen.exe) is a persisted form of JITed MSIL • Reduces start-up time by • Compiling methods (JIT’ing) and doing class/v-table layout ahead of time • Eliminating mscorjit.dll from working set • SDK contains several “pre-JITed” assemblies • mscorlib, windows forms, drawing, etc. • Native code has version checks and reverts to run-time JIT if they fail

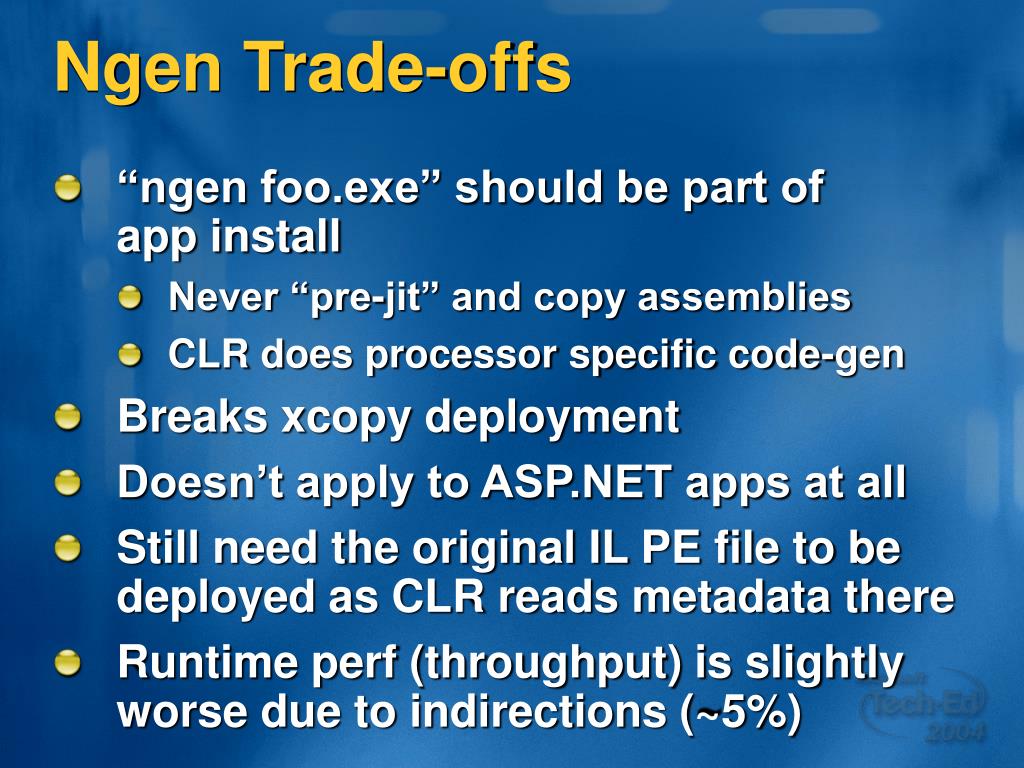

28. Ngen Trade-offs • “ngen foo.exe” should be part of app install • Never “pre-jit” and copy assemblies • CLR does processor specific code-gen • Breaks xcopy deployment • Doesn’t apply to ASP.NET apps at all • Still need the original IL PE file to be deployed as CLR reads metadata there • Runtime perf (throughput) is slightly worse due to indirections (~5%)

29. Maximizing PerformanceASP.NET Applications

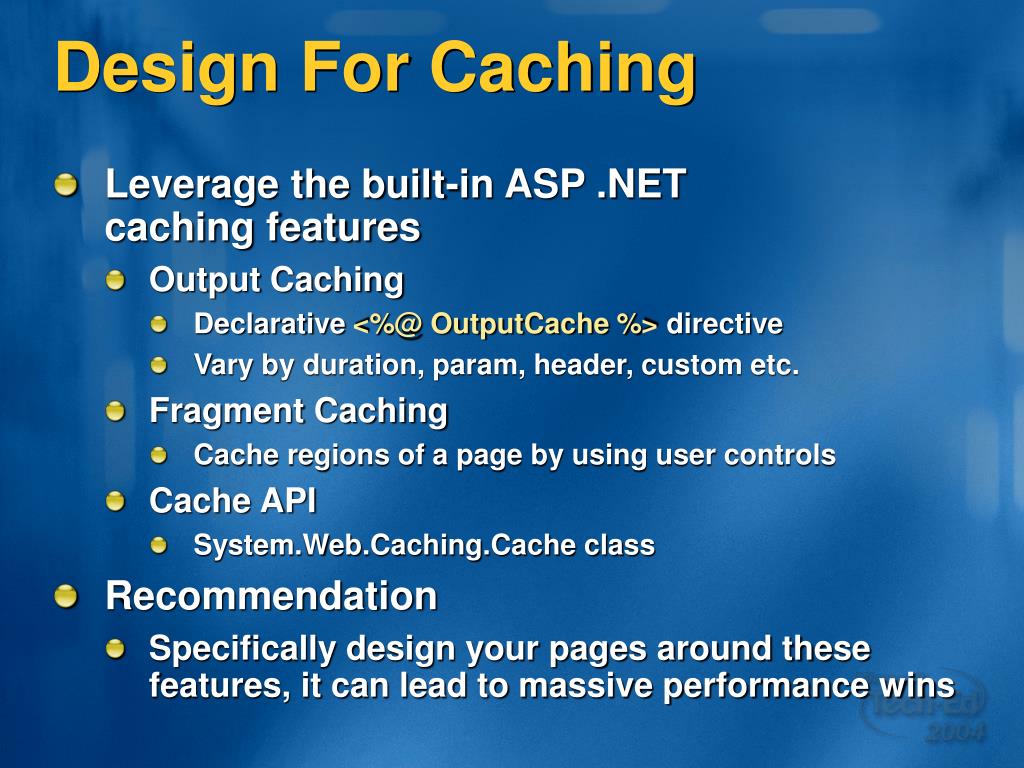

30. Design For Caching • Leverage the built-in ASP .NET caching features • Output Caching • Declarative <%@ OutputCache %> directive • Vary by duration, param, header, custom etc. • Fragment Caching • Cache regions of a page by using user controls • Cache API • System.Web.Caching.Cache class • Recommendation • Specifically design your pages around these features, it can lead to massive performance wins

31. Use The Lowest Level Of Data Access In ADO.NET • Multiple ways to do data access • SQL versus OLEDB ADO.NET Provider • DataReaders versus DataSets • Recommendations • Use System.Data.SqlClient for SQL Server • Use DataReaders for ASP.NET data access when caching is not necessary • Avoid using unmanaged ADO • Use stored procedures

32. Avoid Apartment Transition • Managed code is free threaded • Optimized for new .NET components • Very sub-optimal for apartment-threaded components (for example, STA COM objects) • Recommendations • Enable the <%@ AspCompat=“true” %> directive for pages that use STA COM objects • If possible, upgrade (STA) COM components to .NET (from Visual Basic 6.0 to Visual Basic .NET) • Always generate early-bound managed wrappers for COM components (avoid late bound hit) • Reference the COM object in Visual Studio project (or tlbimp) • Minimize use of Server.CreateObject

33. Maximizing PerformanceTools / Resources

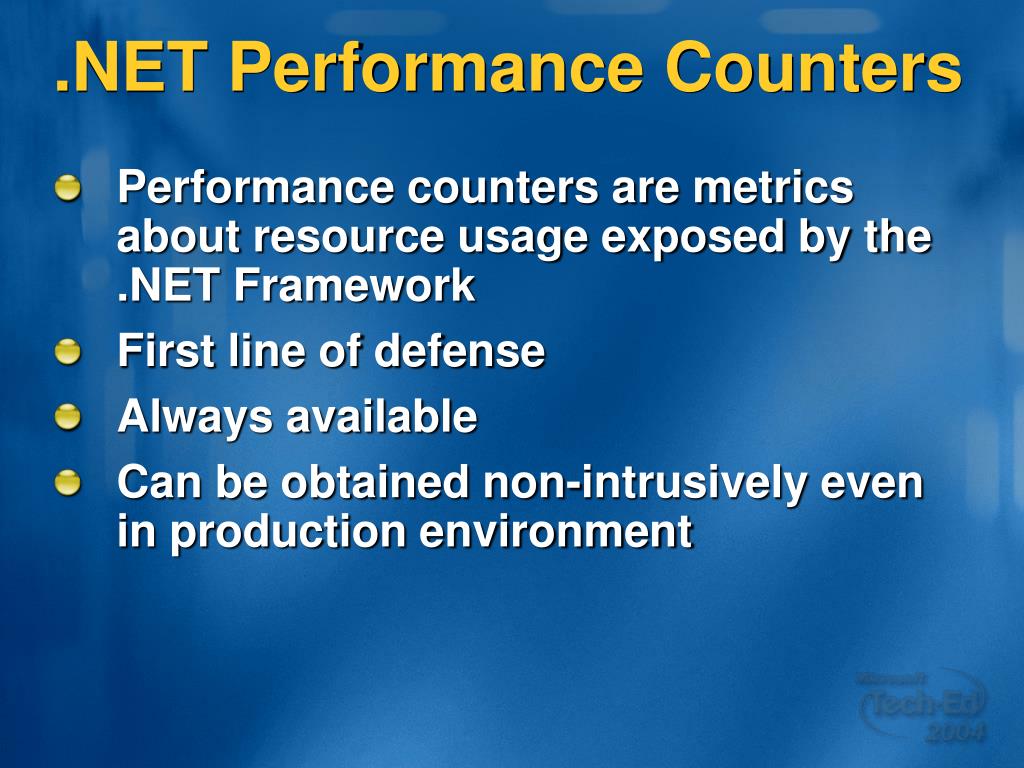

34. .NET Performance Counters • Performance counters are metrics about resource usage exposed by the .NET Framework • First line of defense • Always available • Can be obtained non-intrusively even in production environment

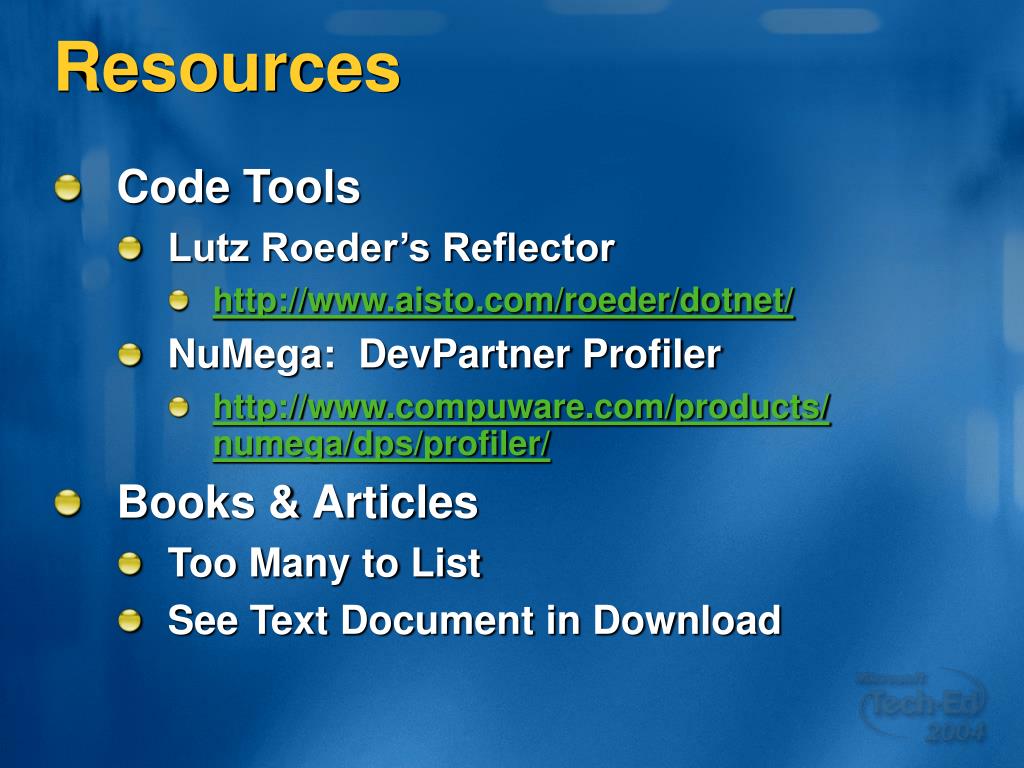

35. Resources • Code Tools • Lutz Roeder’s Reflector • http://www.aisto.com/roeder/dotnet/ • NuMega: DevPartner Profiler • http://www.compuware.com/products/numega/dps/profiler/ • Books & Articles • Too Many to List • See Text Document in Download

36. Samples • Later today, code I wrote will be on CommNet —Or— • http://www.mcwtech.com/2004/teched/us/

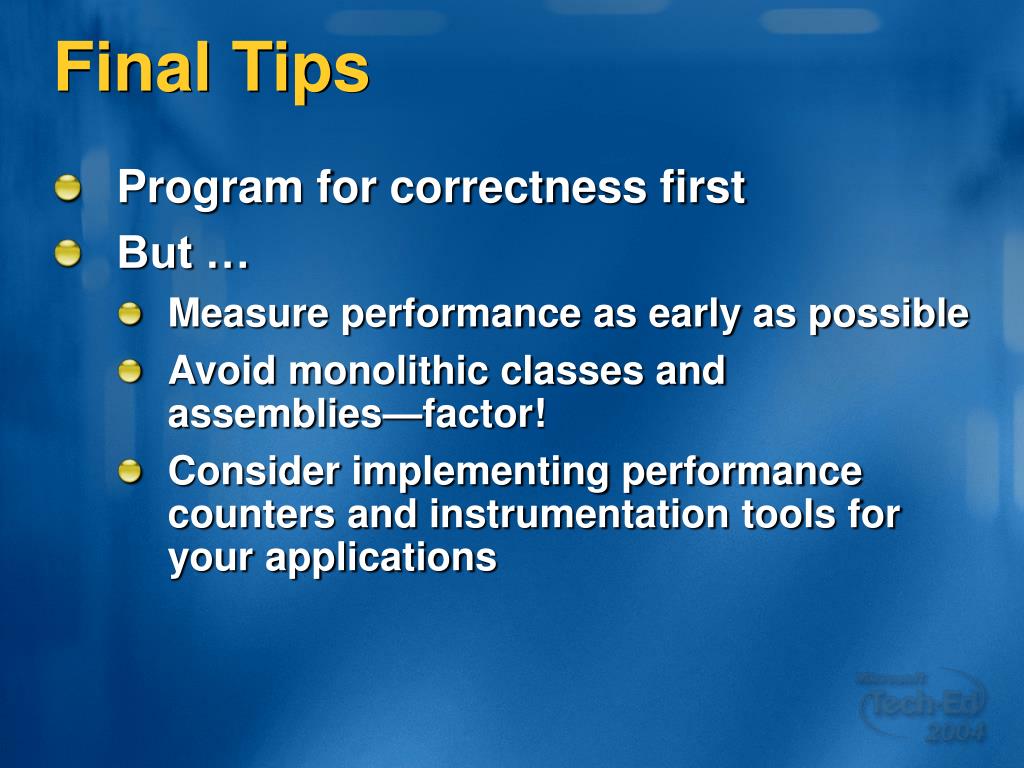

37. Final Tips • Program for correctness first • But … • Measure performance as early as possible • Avoid monolithic classes and assemblies—factor! • Consider implementing performance counters and instrumentation tools for your applications

38. Thank You! • Enjoy the rest of the show! • Please fill out your evaluations • Questions? • See me after the talk • See me later this week • E-mail: • To: brianr AT mcwtech DOT com • Subject: TECH ED 2004 DEV340

39. © 2004 Microsoft Corporation. All rights reserved. This presentation is for informational purposes only. Microsoft makes no warranties, express or implied, in this summary.
