  1. Short course on space-time modeling Instructors:Peter Guttorp Johan Lindström Paul Sampson

  2. Schedule 9:10 – 9:50 Lecture 1: Kriging 9:50 – 10:30 Lab 1 10:30 – 11:00 Coffee break 11:00 – 11:45 Lecture 2: Nonstationary covariances 11:45 – 12:30 Lecture 3: Gaussian Markov random fields 12:30 – 13:30 Lunch break 13:30 – 14:20 Lab 2 14:20 – 15:05 Lecture 4: Space-time modeling 15:05 – 15:30 Lecture 5: A case study 15:30 – 15:45 Coffee break 15:45 – 16:45 Lab 3

  3. Kriging

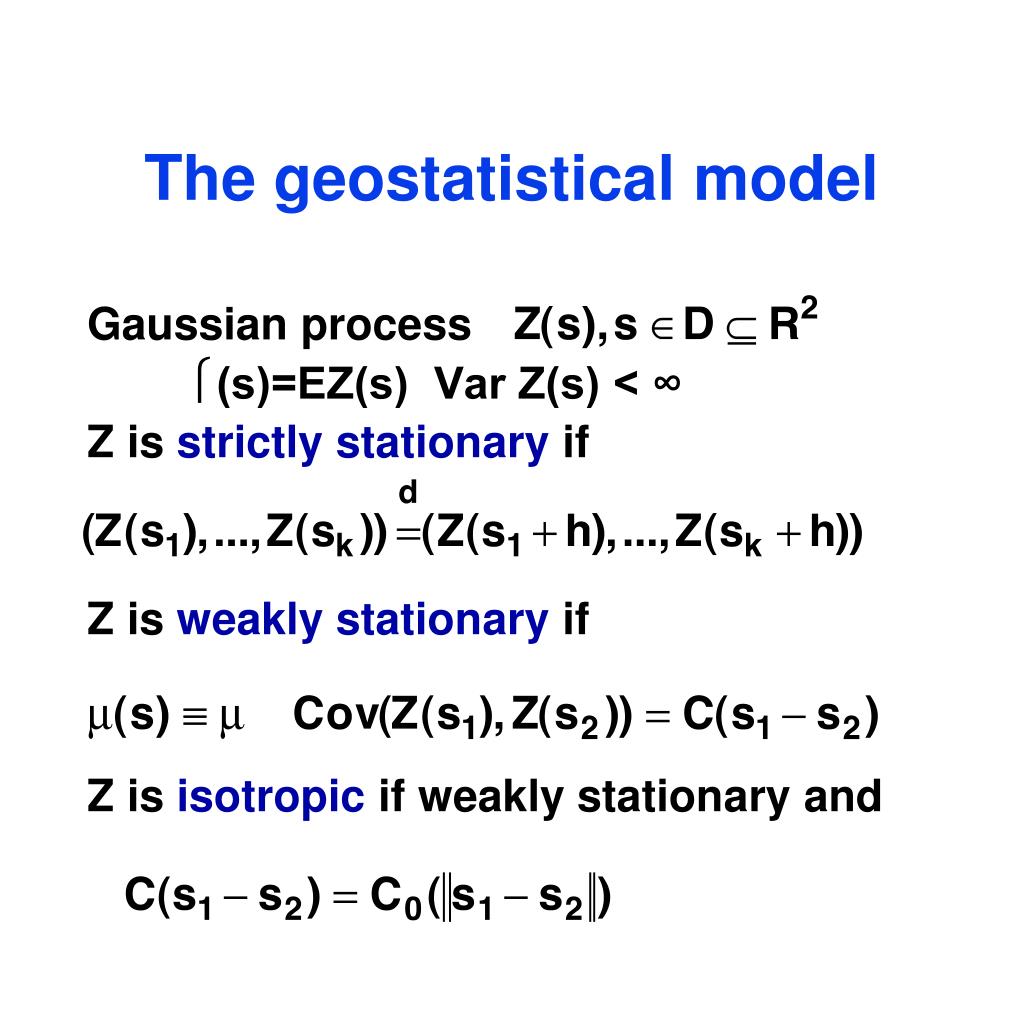

  4. The geostatistical model Gaussian process μ(s)=EZ(s) Var Z(s) < ∞ Z isstrictly stationary if Z isweakly stationary if Z isisotropic if weakly stationary and

  5. The problem Given observations at n locations Z(s1),...,Z(sn) estimate Z(s0) (the process at an unobserved location) (an average of the process) In the environmental context often time series of observations at the locations. or

  6. Some history Regression (Bravais, Galton, Bartlett) Mining engineers (Krige 1951, Matheron, 60s) Spatial models (Whittle, 1954) Forestry (Matérn, 1960) Objective analysis (Gandin, 1961) More recent work Cressie (1993), Stein (1999)

  7. A Gaussian formula If then

  8. Simple kriging Let X = (Z(s1),...,Z(sn))T, Y = Z(s0), so that μX=μ1n, μY=μ, ΣXX=[C(si-sj)], ΣYY=C(0), and ΣYX=[C(si-s0)]. Then This is the best unbiased linear predictor whenμ and C are known (simple kriging). The prediction variance is

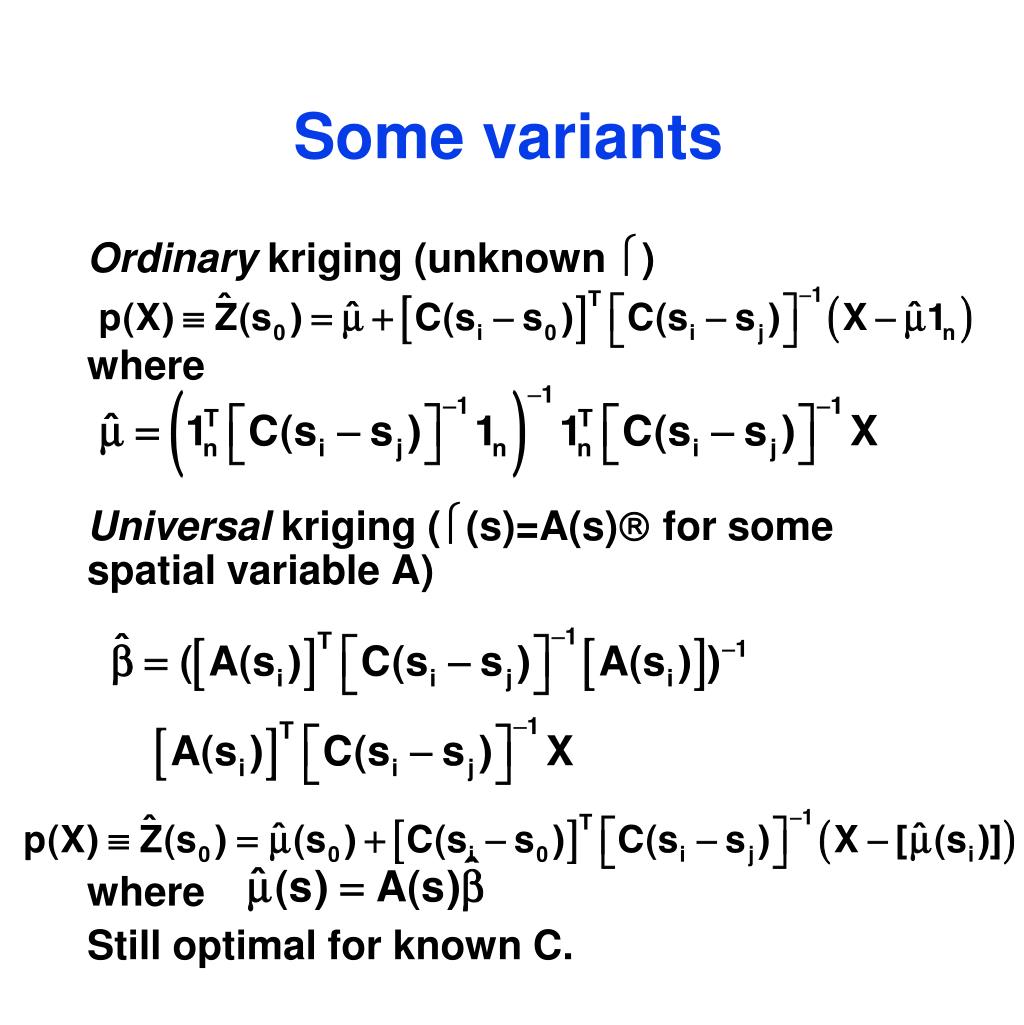

  9. Some variants Ordinary kriging (unknown μ) where Universal kriging (μ(s)=A(s)β for some spatial variable A) where Still optimal for known C.

  10. Universal kriging variance simple kriging variance variability due to estimating μ

  11. The (semi)variogram Intrinsic stationarity Weaker assumption (C(0) needs not exist) Kriging predictions can be expressed in terms of the variogram instead of the covariance.

  12. The exponential variogram A commonly used variogram function is γ (h) = σ2 (1 – e–h/ϕ). Corresponds to a Gaussian process with continuous but not differentiable sample paths. More generally, has a nugget τ2, corresponding to measurement error and spatial correlation at small distances.

  13. Sill Nugget Effective range

  14. Ordinary kriging where and kriging variance

  15. An example Precipitation data from Parana state in Brazil (May-June, averaged over years)

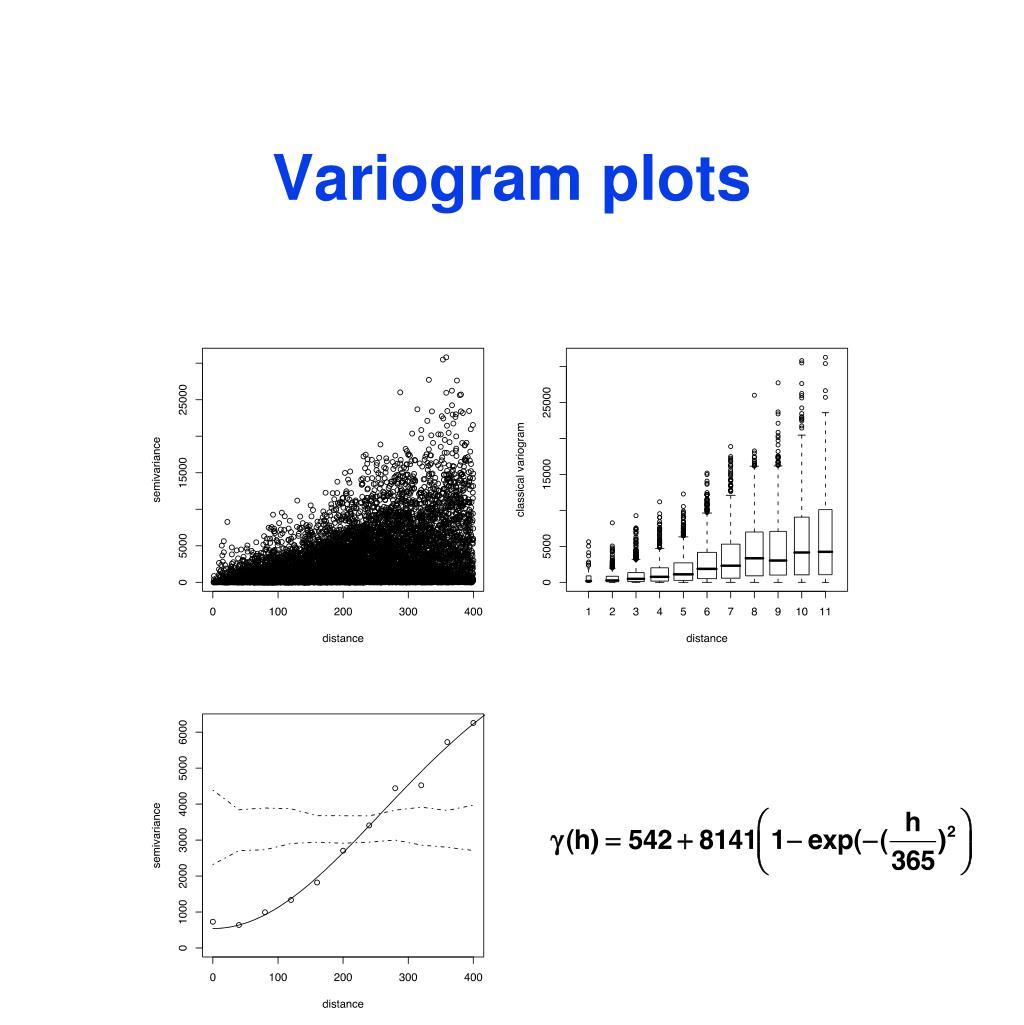

  16. Variogram plots

  17. Kriging surface

  18. Bayesian kriging Instead of estimating the parameters, we put a prior distribution on them, and update the distribution using the data. Model: (Z(s1)...Z(sn))T measurement error Matrix with i,j-element C(si-sj; φ) (correlation) θ=(β,σ2,φ,τ2)T

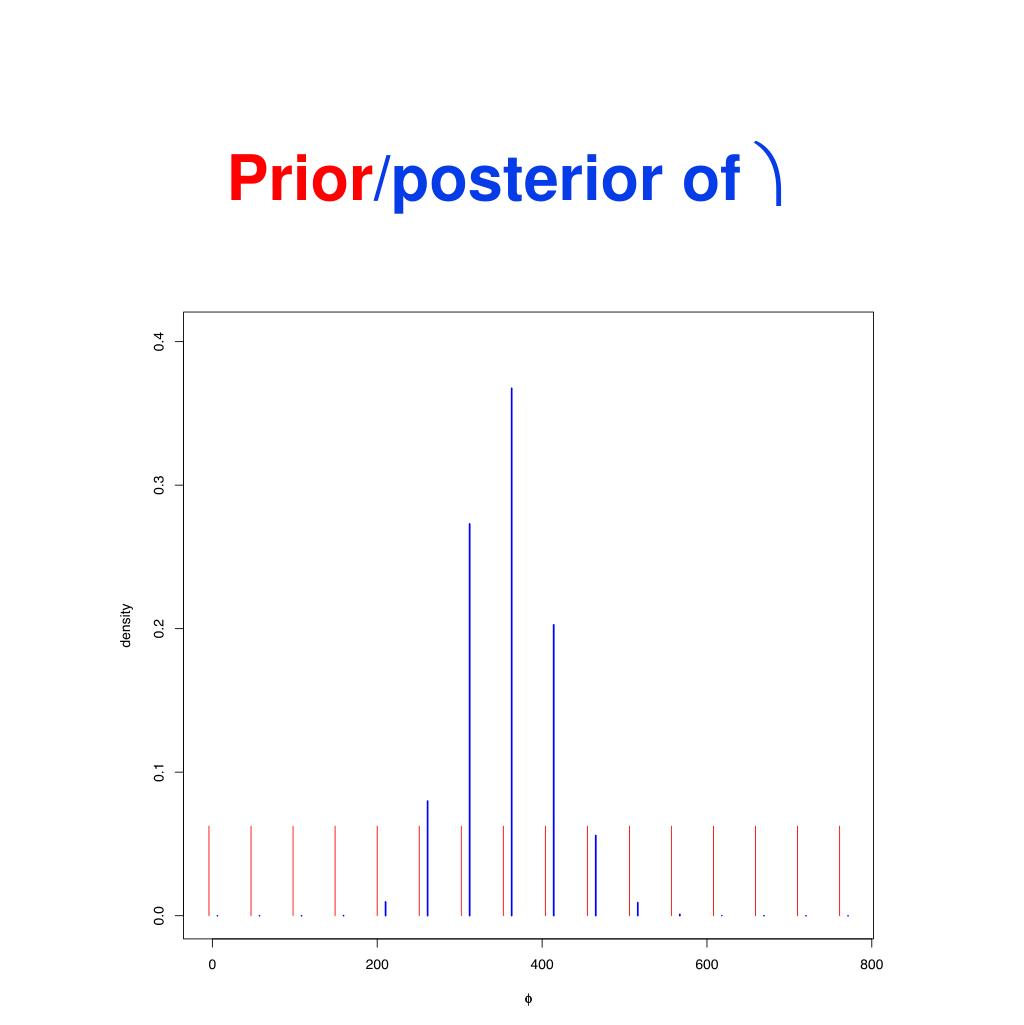

  19. Prior/posterior of φ

  20. Estimated variogram Bayes ml

  21. Prediction sites 1 3 2 4

  22. Predictive distribution

  23. References A. Gelfand, P. Diggle, M. Fuentes and P. Guttorp, eds. (2010): Handbook of Spatial Statistics. Section 2, Continuous Spatial Variation. Chapman & Hall/CRC Press. P.J. Diggle and Paulo Justiniano Ribeiro (2010): Model-based Geostatistics. Springer.
