  1. D0 RunIIb Silicon Measurements on L2 Test Structures Sergey Korjenevski Christopher Borjas Kansas State University February 6, 2003

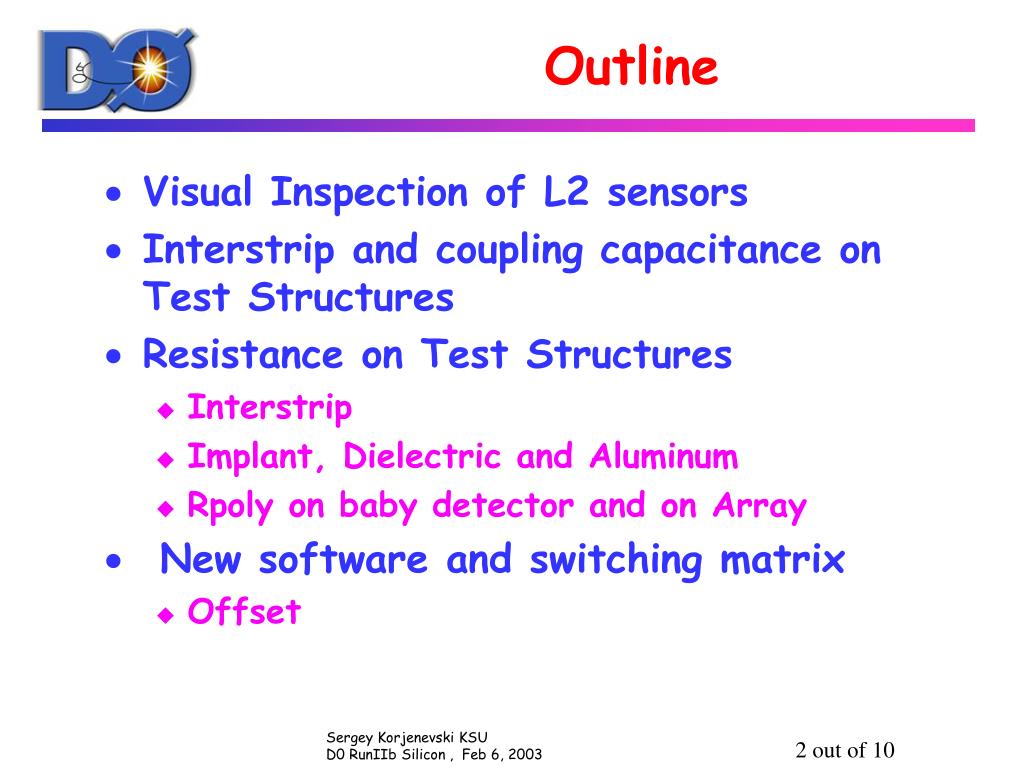

  2. Outline • Visual Inspection of L2 sensors • Interstrip and coupling capacitance on Test Structures • Resistance on Test Structures • Interstrip • Implant, Dielectric and Aluminum • Rpoly on baby detector and on Array • New software and switching matrix • Offset

  3. Found broken implant Visual inspection

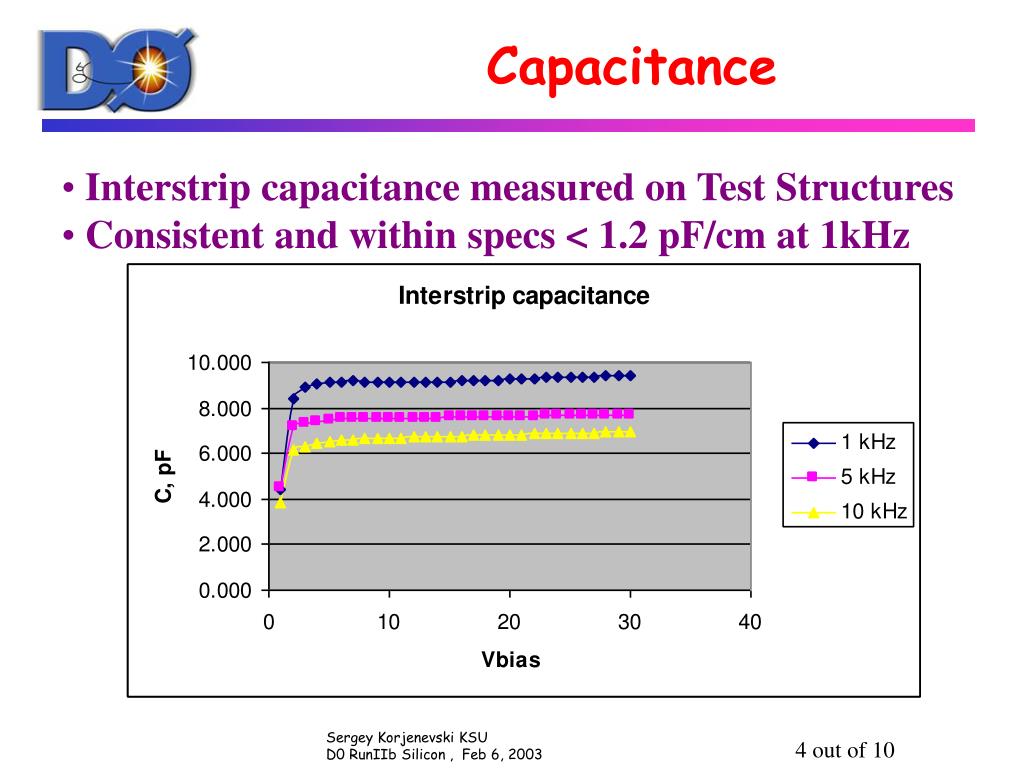

  4. Capacitance • Interstrip capacitance measured on Test Structures • Consistent and within specs < 1.2 pF/cm at 1kHz

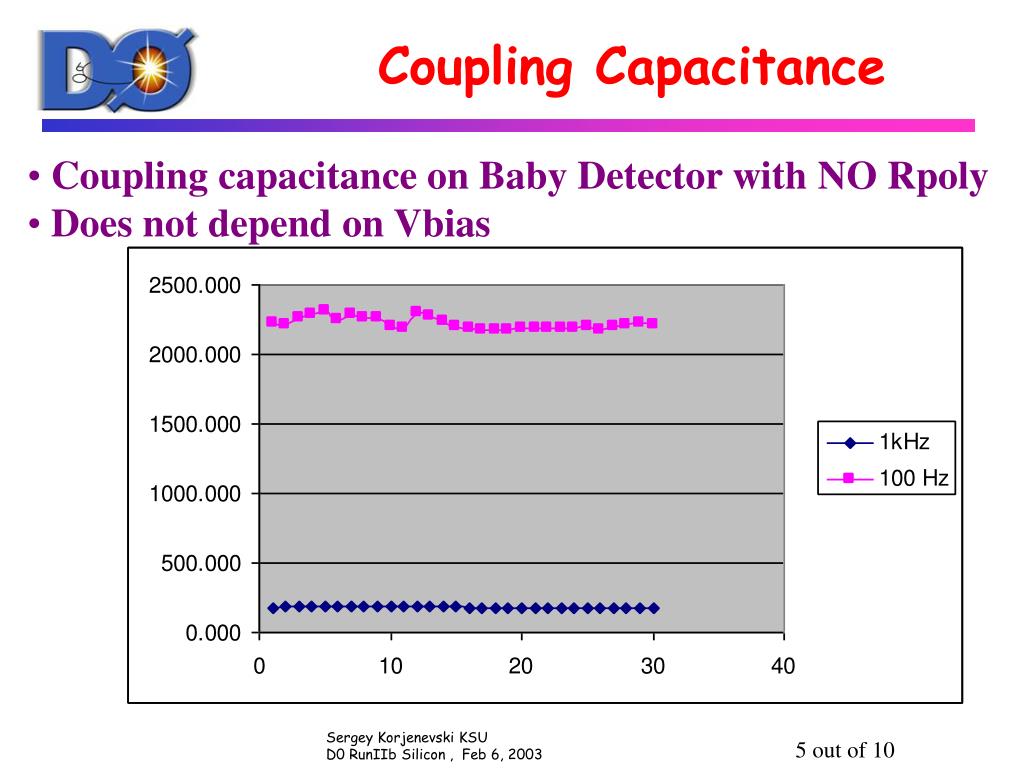

  5. Coupling Capacitance • Coupling capacitance on Baby Detector with NO Rpoly • Does not depend on Vbias

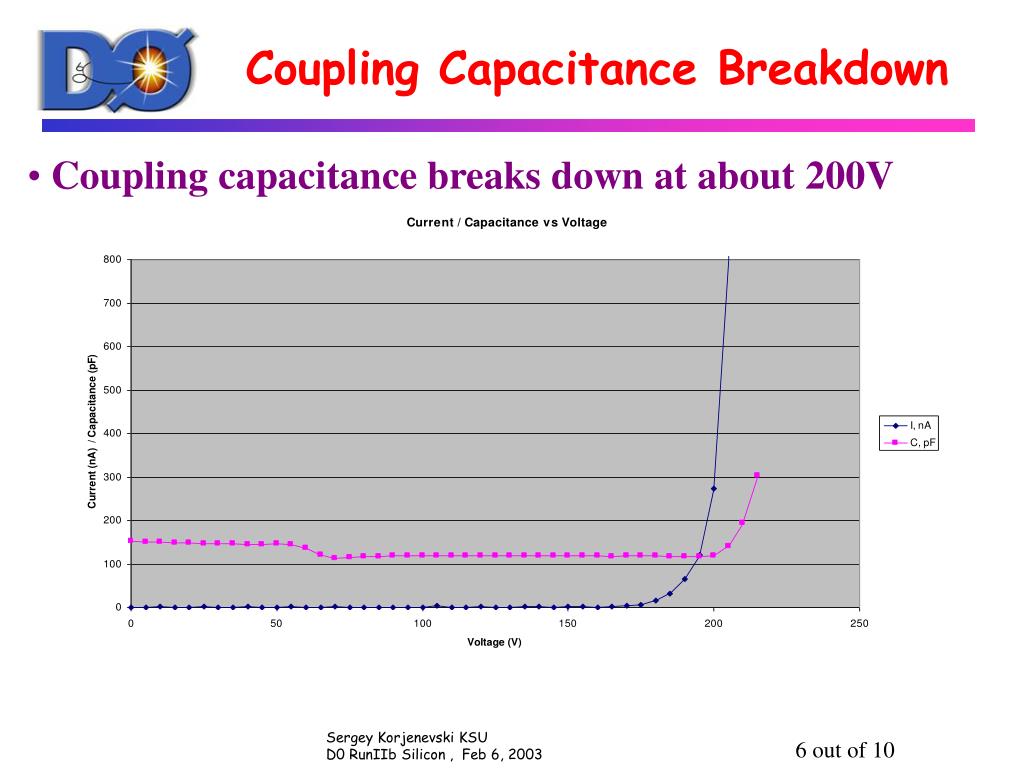

  6. Coupling Capacitance Breakdown • Coupling capacitance breaks down at about 200V

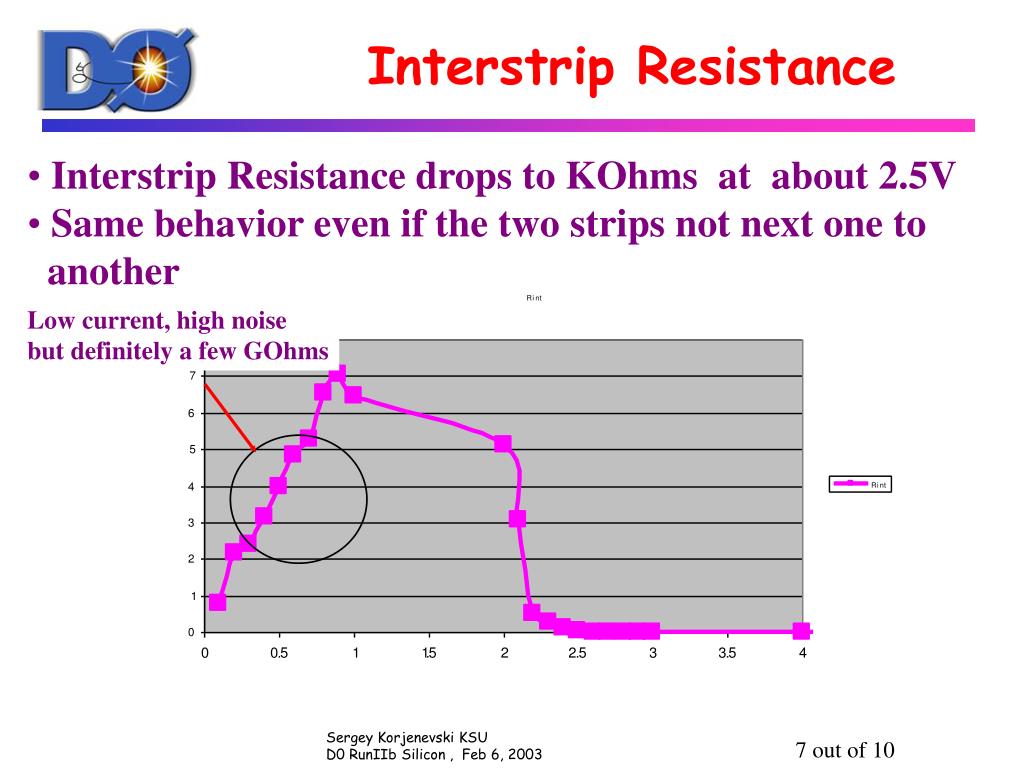

  7. Interstrip Resistance • Interstrip Resistance drops to KOhms at about 2.5V • Same behavior even if the two strips not next one to • another Low current, high noise but definitely a few GOhms

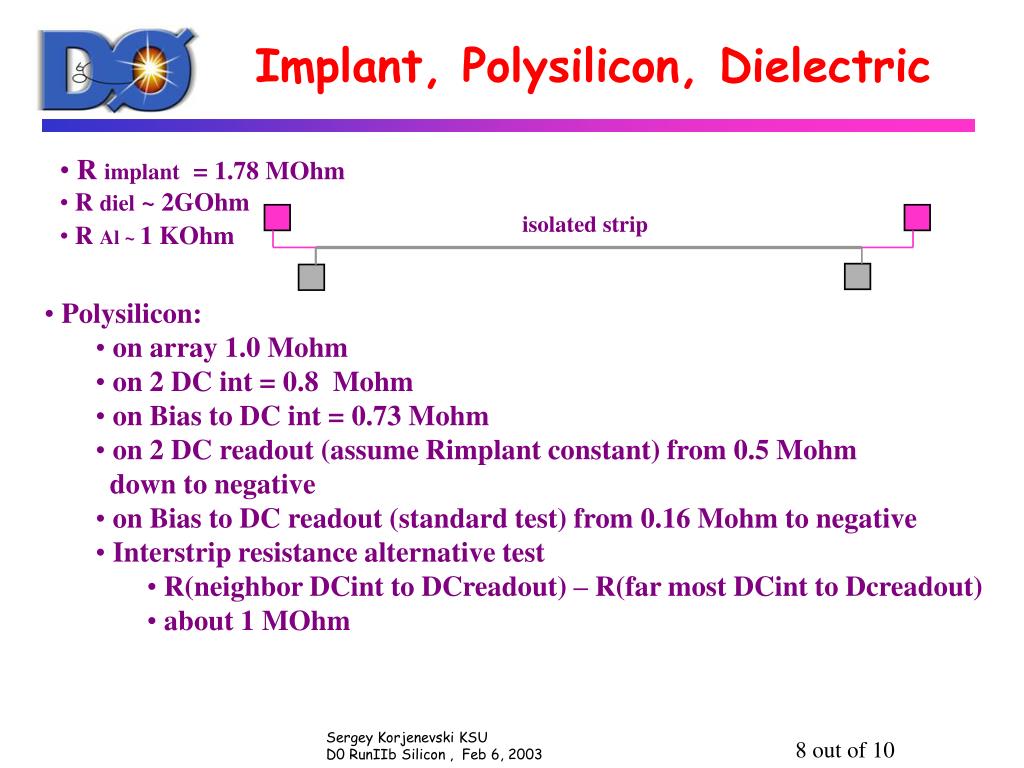

  8. Implant, Polysilicon, Dielectric • R implant = 1.78 MOhm • R diel ~ 2GOhm • R Al ~ 1 KOhm isolated strip • Polysilicon: • on array 1.0 Mohm • on 2 DC int = 0.8 Mohm • on Bias to DC int = 0.73 Mohm • on 2 DC readout (assume Rimplant constant) from 0.5 Mohm • down to negative • on Bias to DC readout (standard test) from 0.16 Mohm to negative • Interstrip resistance alternative test • R(neighbor DCint to DCreadout) – R(far most DCint to Dcreadout) • about 1 MOhm

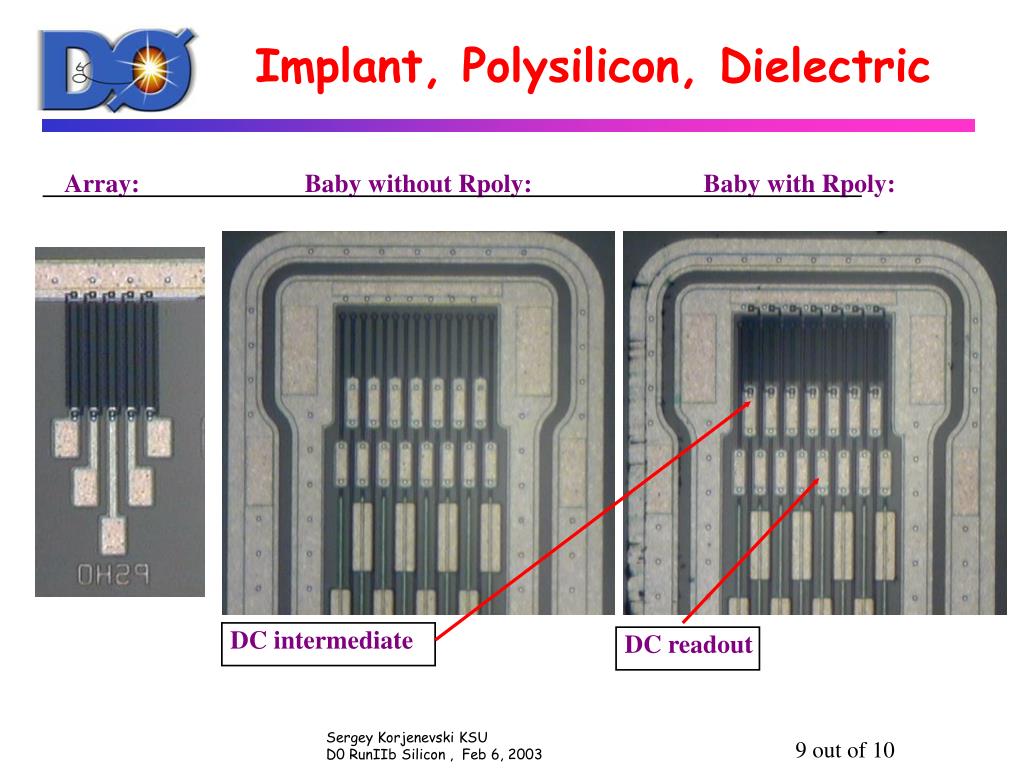

  9. Implant, Polysilicon, Dielectric Array: Baby without Rpoly: Baby with Rpoly: DC intermediate DC readout

  10. Last Slide • Visual inspection maybe performed before and after testing. For instance open strip detection could be confirmed visually. • Interstrip resistance drops from few Gohms to Kohms at 2.5V. • PolySi resistor value setup could be changed (use of DCint). Rpoly consistency test should probably stay.
