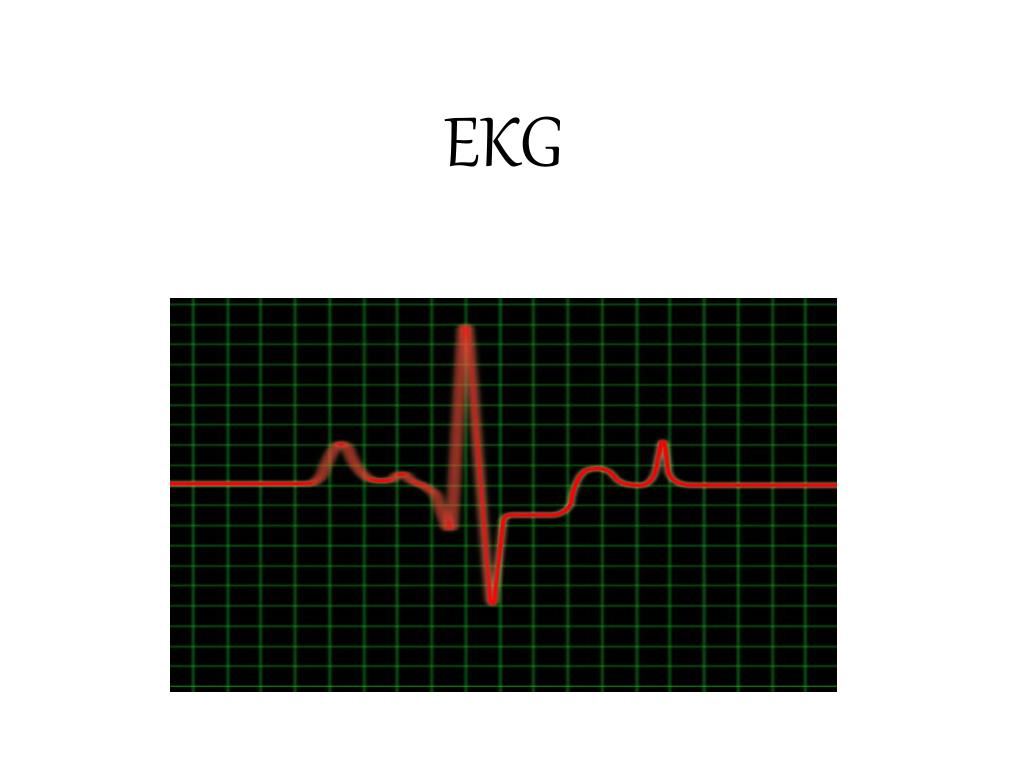

  1. EKG

  2. Objective: • The student will become familiar with an EKG and how it works to record the electrical activity of the heart • The student will become familiar with how to read an EKG and what the significance of the EKG is

  3. Question of the day: • What do all of those lines mean anyway?

  4. What is an EKG? • An EKG also known as an electrocardiogram, is used for recording the electrical activity of the heart.

  5. How is an EKG performed? • This test is performed by placing electrodes on the arms, legs, and chest. • The electrodes monitor the electrical activty of the heart and records it onto EKG graph paper where one large block equals .20 seconds (each small block is .04 seconds and 5 small blocks make up one large block) • There are 4 lead EKGs and 12 lead EKGs

  6. 4 lead EKG vs. 12 lead EKG • Electrode placement http://www.biolog3000.com/electrodepl.jpg

  7. Reading a 12 lead EKG http://www.ems1.com/data/images/EKG_Case4_Large1.jpg

  8. Just in case you were wondering .. • Einthenoven was the first person to label the different waves (P, Q, R, S, T) that the ECG showed, and was also the first person to actually describe what each wave sequence of a certain heart disorder looked like.

  9. Early ECG Machines

  10. EKG: http://www.msjc.edu/pic/224/ekg.gif

  11. What do all those lines mean? • The P wave and QRS complex both demonstrate depolarization. • Depolarization initiates contraction of resting myocytes as the charge within each cell changes to positive • The P wave represents atrial depolarization • The QRS complex represents ventricular depolarization. • The T wave demonstrates recovery or repolarization of the myocytes

  12. Please note: • These “waves” are NOT heart muscle contractions! • They are the electrical events that precede muscle contraction/heart beat!!

  13. Sinus Rhythm: • “Normal” Heart Rhythm between 60-100 bpm with a slight irregularity of rhythm due to normal breathing

  14. Bradycardia: • Described as a resting heart rate less than 60 bpm • Usually not problematic unless HR falls below 50 bpm • Common “condition among endurance athletes

  15. Tachycardia • Cardiac Arrhythmia that refers to a rapid beating of the heart usually over 100 bpm • This can be considered normal if it is as a result of exercise or stress

  16. Complications of Tachycardia: • if the heart is pumping too rapidly for an extended period of time it will change the balance of oxygen and carbon dioxide in the blood • When the heart beats too rapidly, it may pump blood less efficiently by not allowing the atria and ventricles to fill completely before contracting • Also, the faster the heart beats, the more oxygen and nutrients the heart requires which takes those much needed nutrients away from other parts of the body

  17. Atrial Fibrillation • Irregularly irregular arrhythmia • In atrial fibrillation, the electrical impulses that are normally generated by the SA node are replaced by disorganized activity in the atria resulting in irregular conduction of impulses to the ventricles that generate the heartbeat

  18. Ventricular Tachycardia (V-tach): Tachycardia that begins in the ventricles, may lead to ventricular fibrillation.

  19. Uncoordinated contraction of the cardiac muscle of the ventricles of the heart, making them tremble rather than contract properly

  20. Myocardial Infarction: • More commonly known as a heart attack occurs when blood supply to the heart is interrupted and results in an ischemic injury

  21. Asystole: • You tell me …..

  22. EKG game www.nobelprize.org
