  1. Low-Power and Area-Efficient Carry Select Adder on Reconfigurable Hardware Presented by V.Santhosh kumar , B.Tech ,ECE ,4th Year, GITAM University Under the guidance of Mr. M. Raghupathy Assistant Professor Dept. of ECE GITAM University

  2. CONTENTS • ABSTRACT • INTRODUCTION • EXISTING SYSTEM • PROBLEMS IN EXISTING SYSTEM • PROPOSED SYSTEM • SOLUTION OF THE PROBLEM • SIMULATION RESULTS OF REGULAR CSLA • ADVANTAGES & APPLICATIONS • CONCLUSION

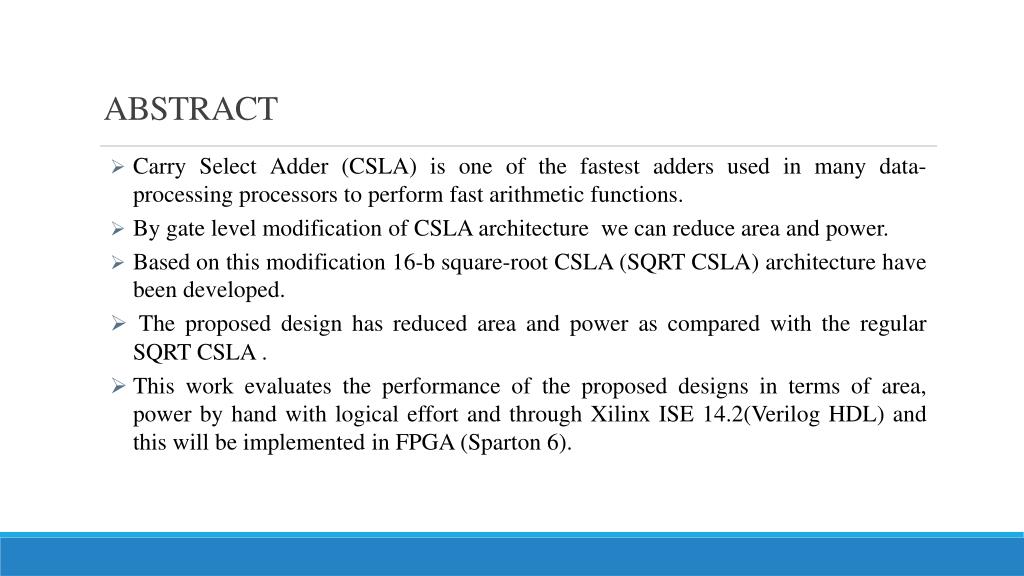

  3. ABSTRACT • Carry Select Adder (CSLA) is one of the fastest adders used in many data-processing processors to perform fast arithmetic functions. • By gate level modification of CSLA architecture we can reduce area and power. • Based on this modification 16-b square-root CSLA (SQRT CSLA) architecture have been developed. • The proposed design has reduced area and power as compared with the regular SQRT CSLA . • This work evaluates the performance of the proposed designs in terms of area, power by hand with logical effort and through Xilinx ISE 14.2(Verilog HDL) and this will be implemented in FPGA (Sparton 6).

  4. INTRODUCTION • In electronics, an adder or summer is a digital circuit that performs addition of numbers. • Adders can be constructed for many numerical representations, such as BCD or Excess-3, the most common adders operate on binary numbers. • Adders plays Major role in Multiplications and other advanced processers designs

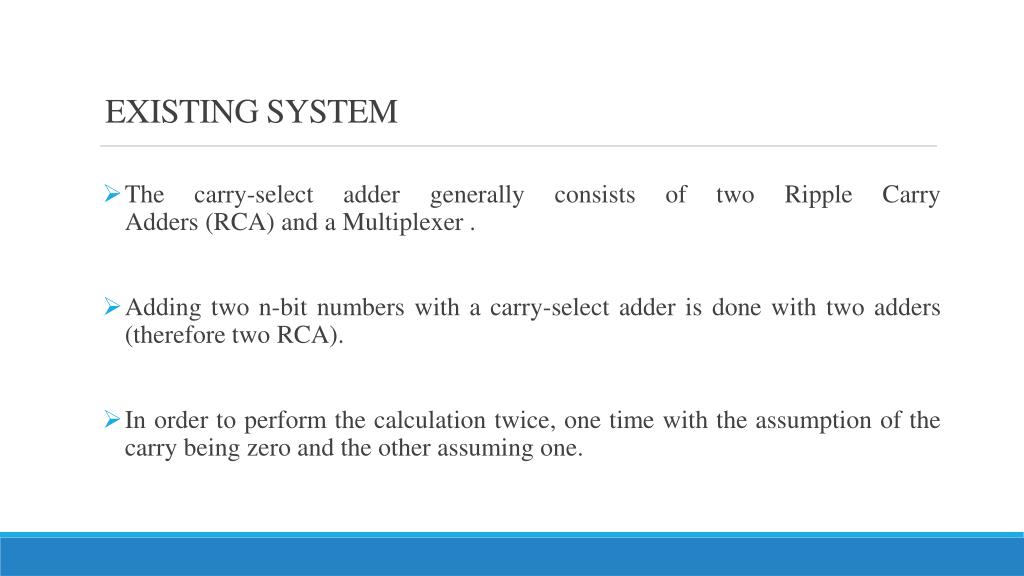

  5. EXISTING SYSTEM • The carry-select adder generally consists of two Ripple Carry Adders (RCA) and a Multiplexer . • Adding two n-bit numbers with a carry-select adder is done with two adders (therefore two RCA). • In order to perform the calculation twice, one time with the assumption of the carry being zero and the other assuming one.

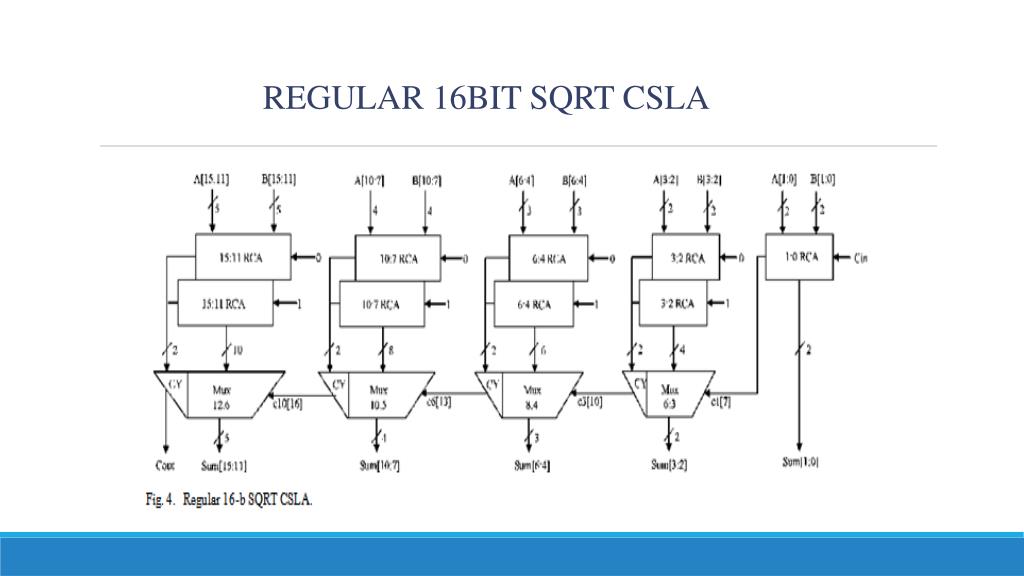

  6. REGULAR 16BIT SQRT CSLA

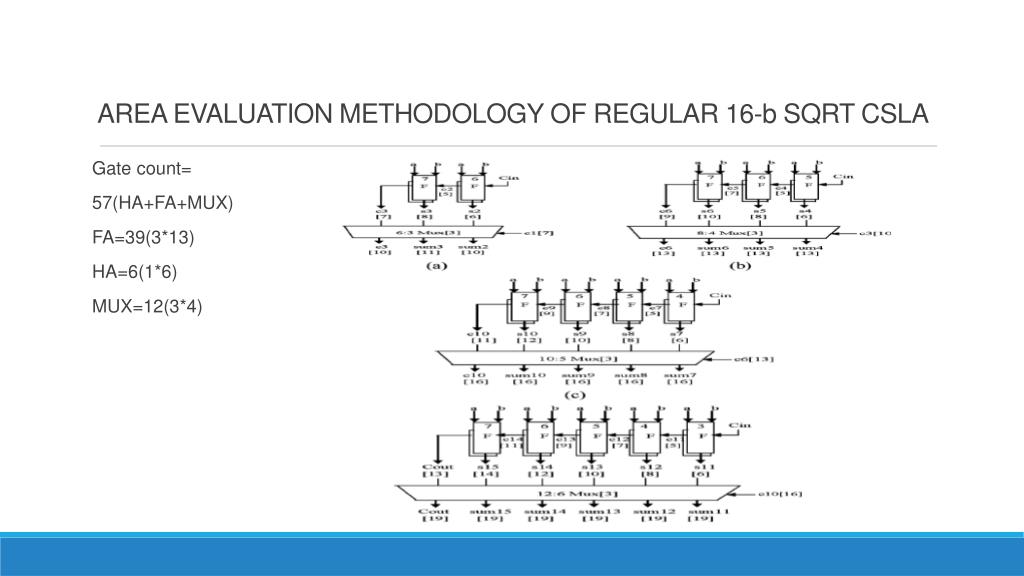

  7. AREA EVALUATIONMETHODOLOGY OF REGULAR16-b SQRT CSLA Gate count= 57(HA+FA+MUX) FA=39(3*13) HA=6(1*6) MUX=12(3*4)

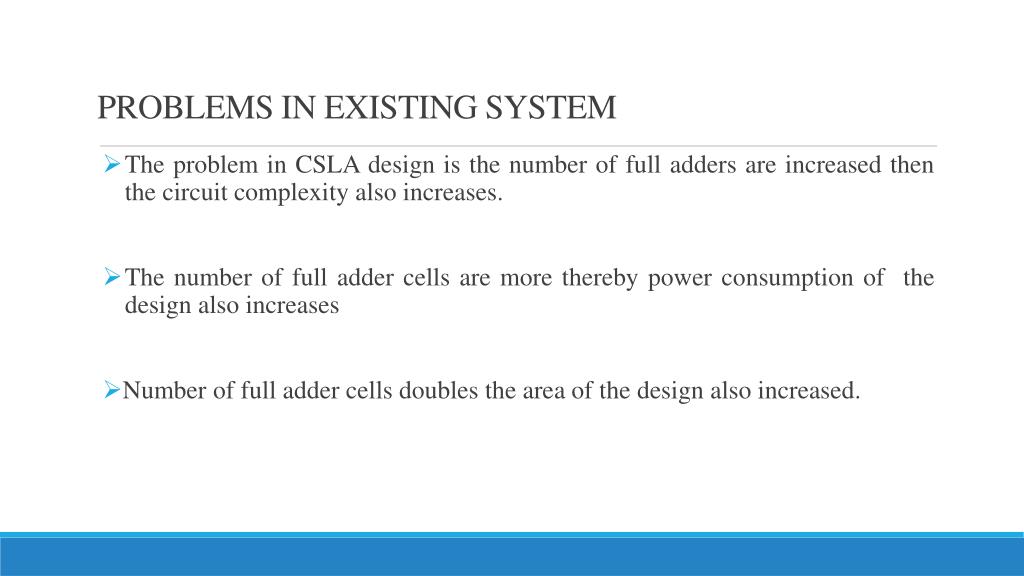

  8. PROBLEMS IN EXISTING SYSTEM • The problem in CSLA design is the number of full adders are increased then the circuit complexity also increases. • The number of full adder cells are more thereby power consumption of the design also increases • Number of full adder cells doubles the area of the design also increased.

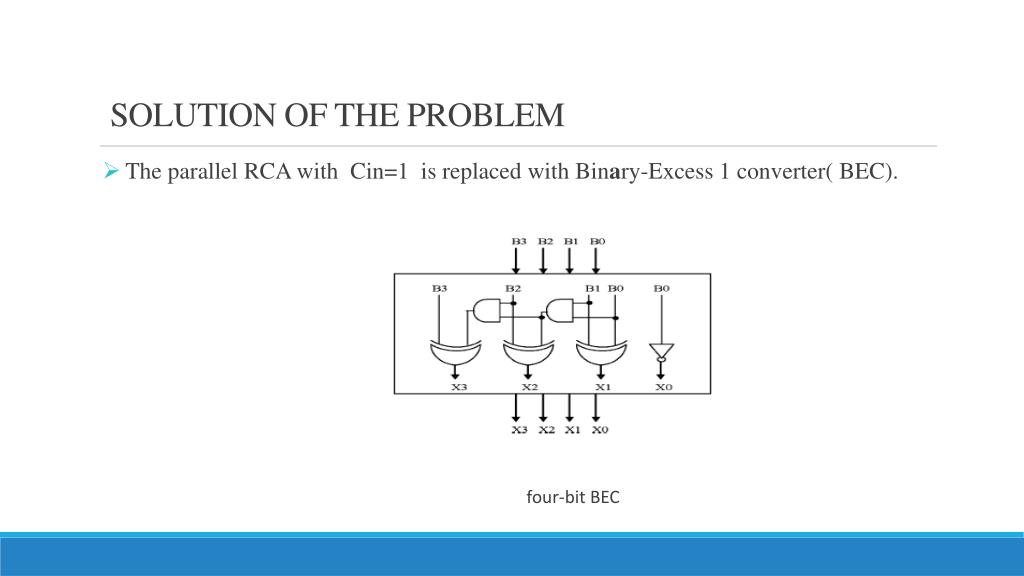

  9. SOLUTION OF THE PROBLEM • The parallel RCA with Cin=1 is replaced with Binary-Excess 1 converter( BEC). four-bit BEC

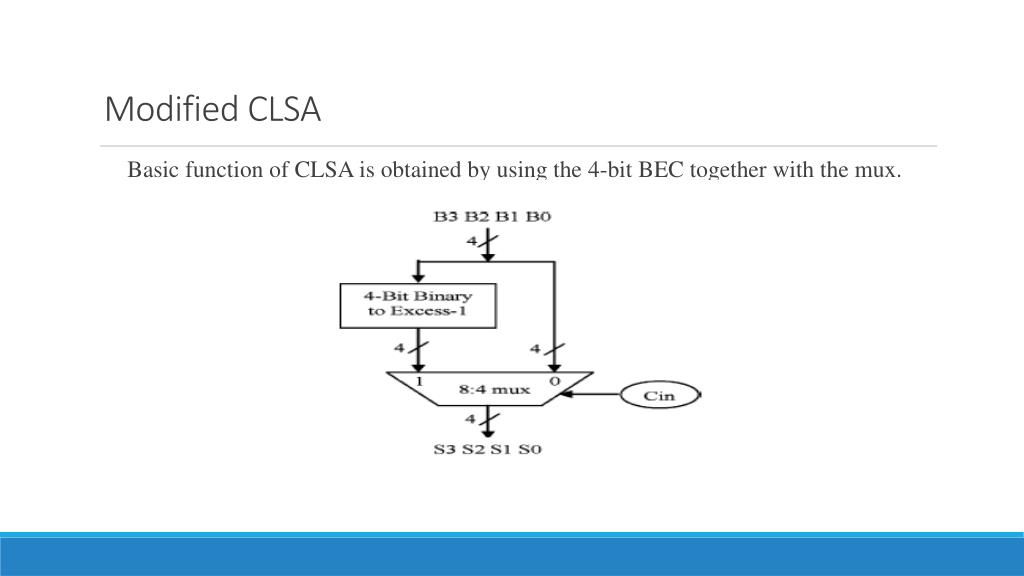

  10. Modified CLSA Basic function of CLSA is obtained by using the 4-bit BEC together with the mux.

  11. PROPOSED SYSTEM(16-b CLSA)

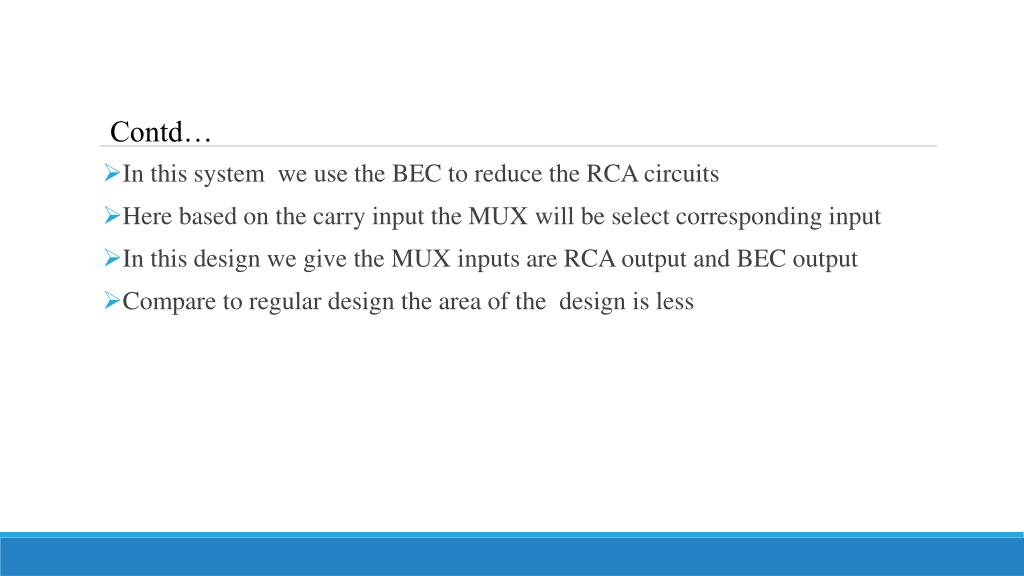

  12. Contd… • In this system we use the BEC to reduce the RCA circuits • Here based on the carry input the MUX will be select corresponding input • In this design we give the MUX inputs are RCA output and BEC output • Compare to regular design the area of the design is less

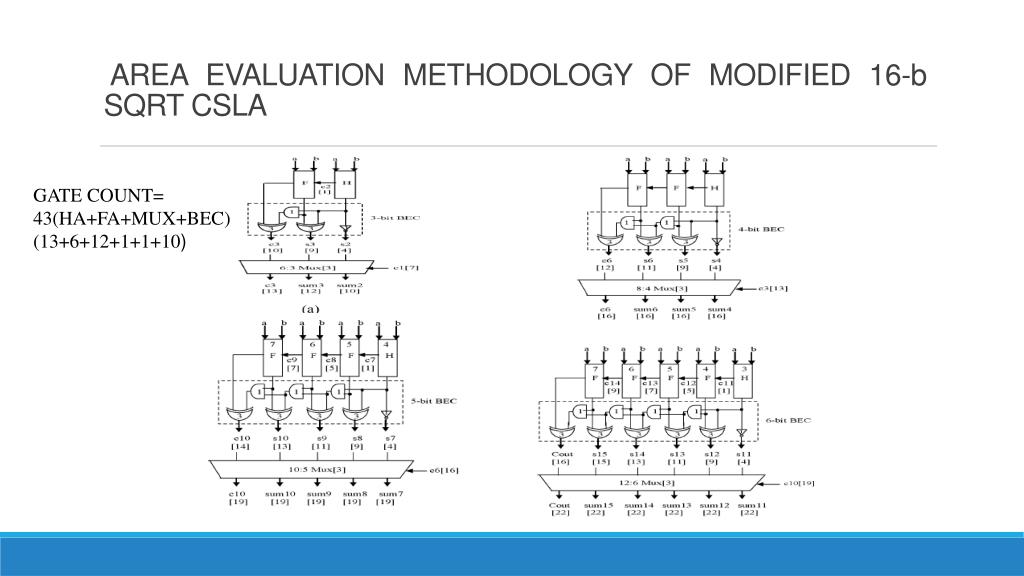

  13. AREA EVALUATIONMETHODOLOGY OF MODIFIED 16-b SQRT CSLA GATE COUNT= 43(HA+FA+MUX+BEC) (13+6+12+1+1+10)

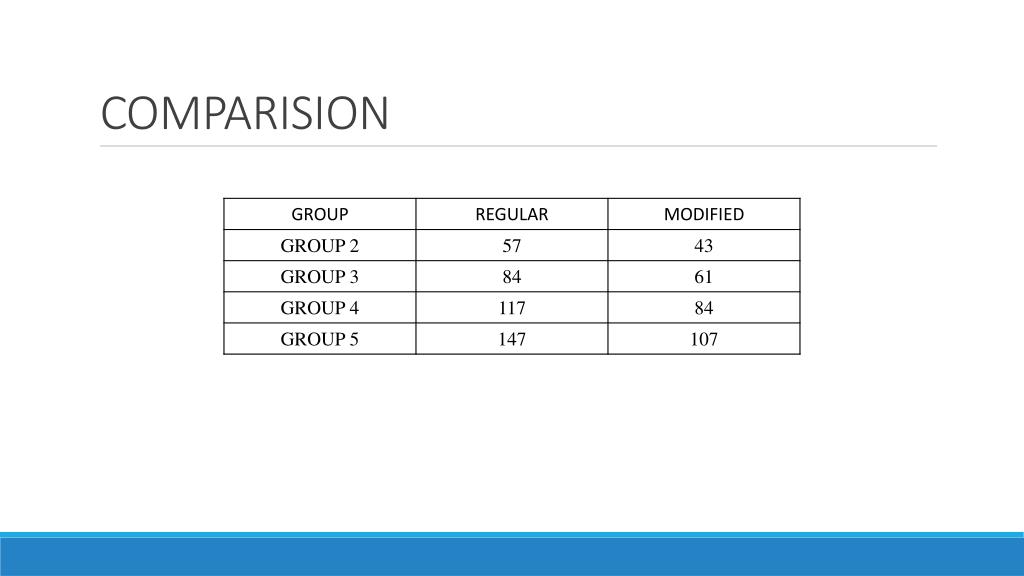

  14. COMPARISION

  15. RTL SCHEMATIC

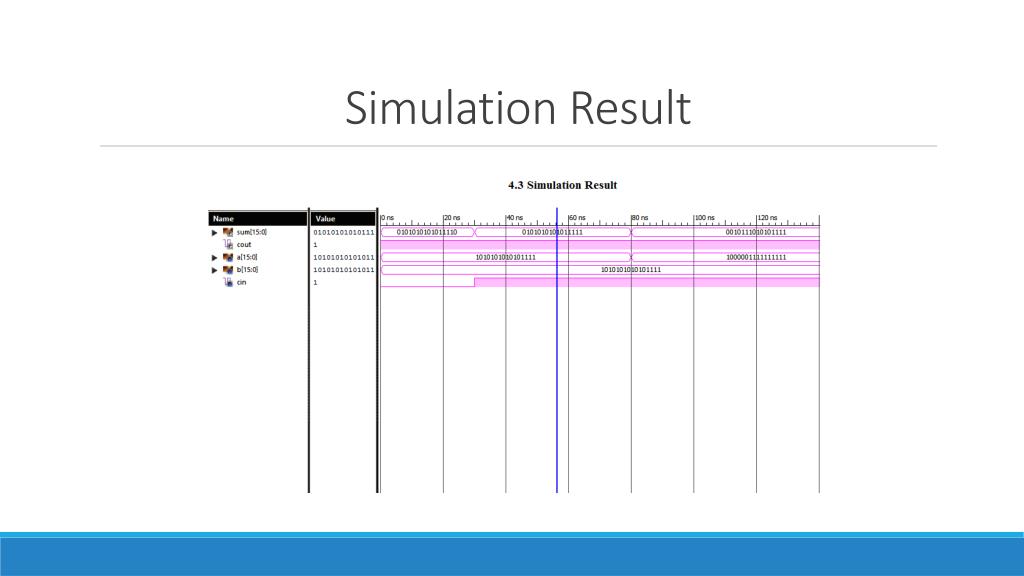

  16. Simulation Result

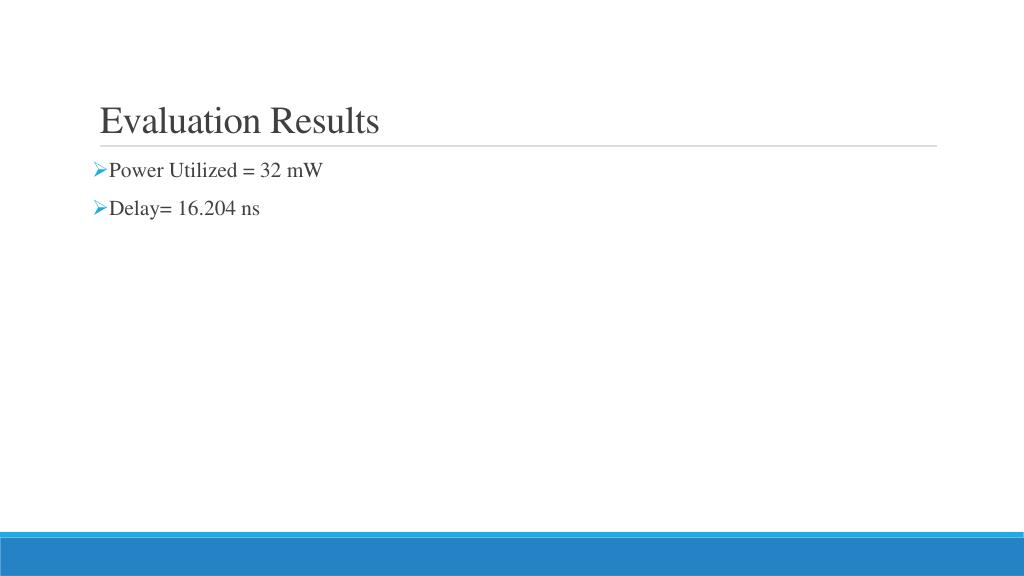

  17. Evaluation Results • Power Utilized = 32 mW • Delay= 16.204 ns

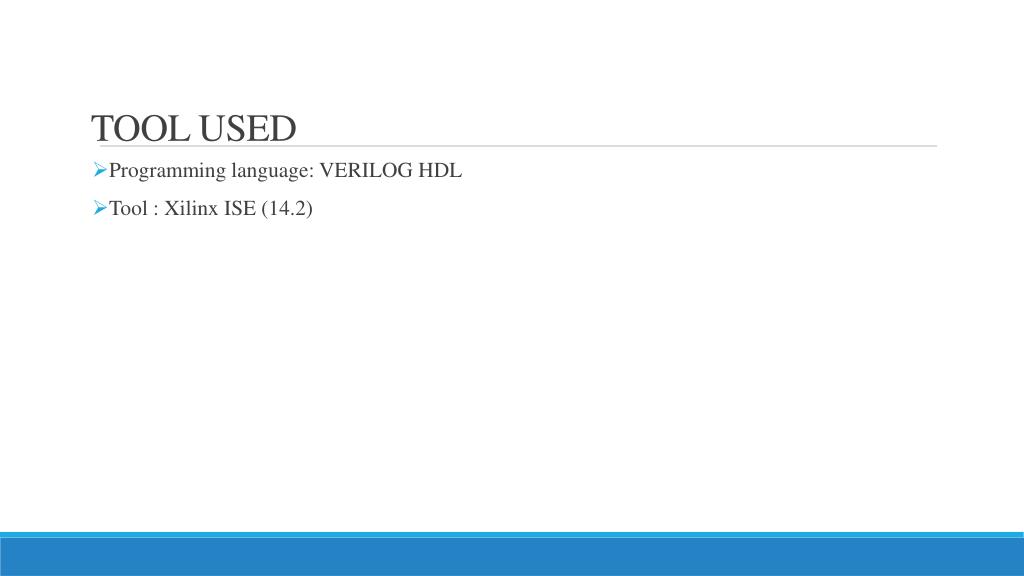

  18. TOOL USED • Programming language: VERILOG HDL • Tool : Xilinx ISE (14.2)

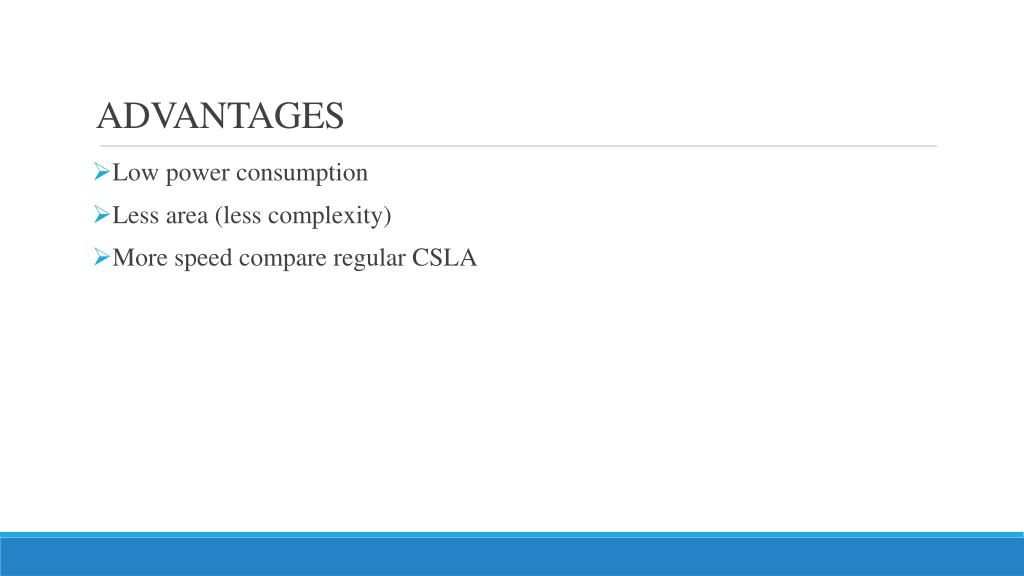

  19. ADVANTAGES • Low power consumption • Less area (less complexity) • More speed compare regular CSLA

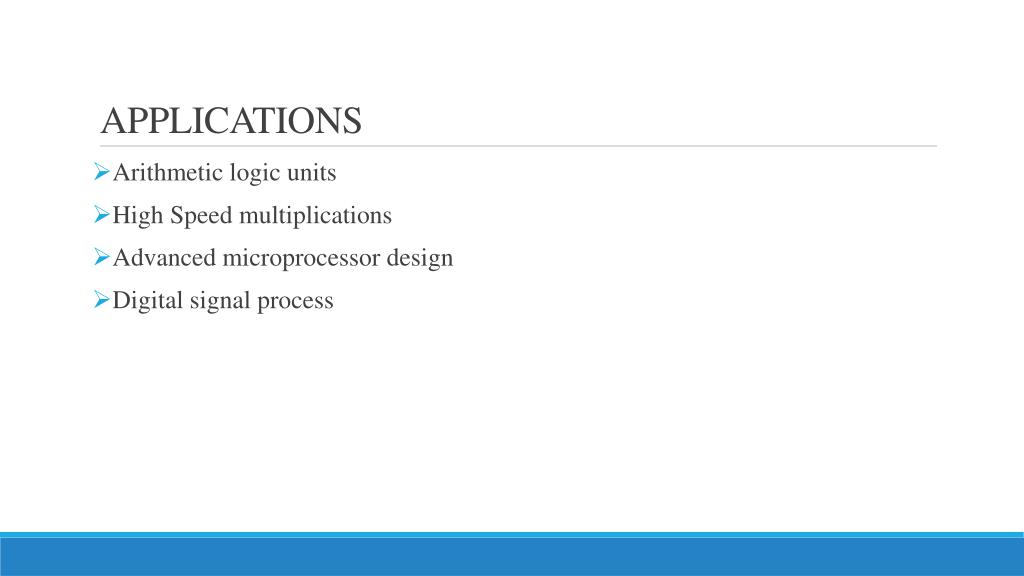

  20. APPLICATIONS • Arithmetic logic units • High Speed multiplications • Advanced microprocessor design • Digital signal process

  21. CONCLUSION A simple approach is proposed in this paper to reduce the area and power of SQRT CSLA architecture. The reduced number of gates of this work offers the great advantage in the reduction of area and also the power. The modified CSLA architecture is therefore, low area, low power, simple and efficient for VLSI hardware implementation.

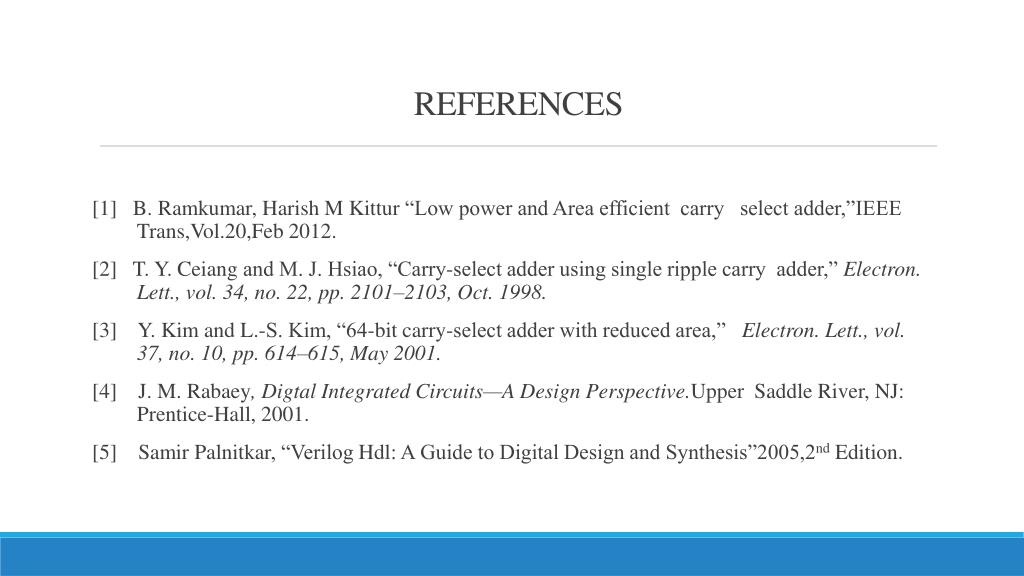

  22. REFERENCES [1] B. Ramkumar, Harish M Kittur “Low power and Area efficient carry select adder,”IEEE Trans,Vol.20,Feb 2012. [2] T. Y. Ceiang and M. J. Hsiao, “Carry-select adder using single ripple carry adder,” Electron. Lett., vol. 34, no. 22, pp. 2101–2103, Oct. 1998. [3] Y. Kim and L.-S. Kim, “64-bit carry-select adder with reduced area,” Electron. Lett., vol. 37, no. 10, pp. 614–615, May 2001. [4] J. M. Rabaey, Digtal Integrated Circuits—A Design Perspective.Upper Saddle River, NJ: Prentice-Hall, 2001. [5] Samir Palnitkar, “Verilog Hdl: A Guide to Digital Design and Synthesis”2005,2nd Edition.
