  1. XML Verification • Well-formed XML document • conforms to basic XML syntax • contains only built-in character entities • Validated XML document • conforms to the grammar of a specific data type • uses any predeclared entities • specified by Document Type Declaration

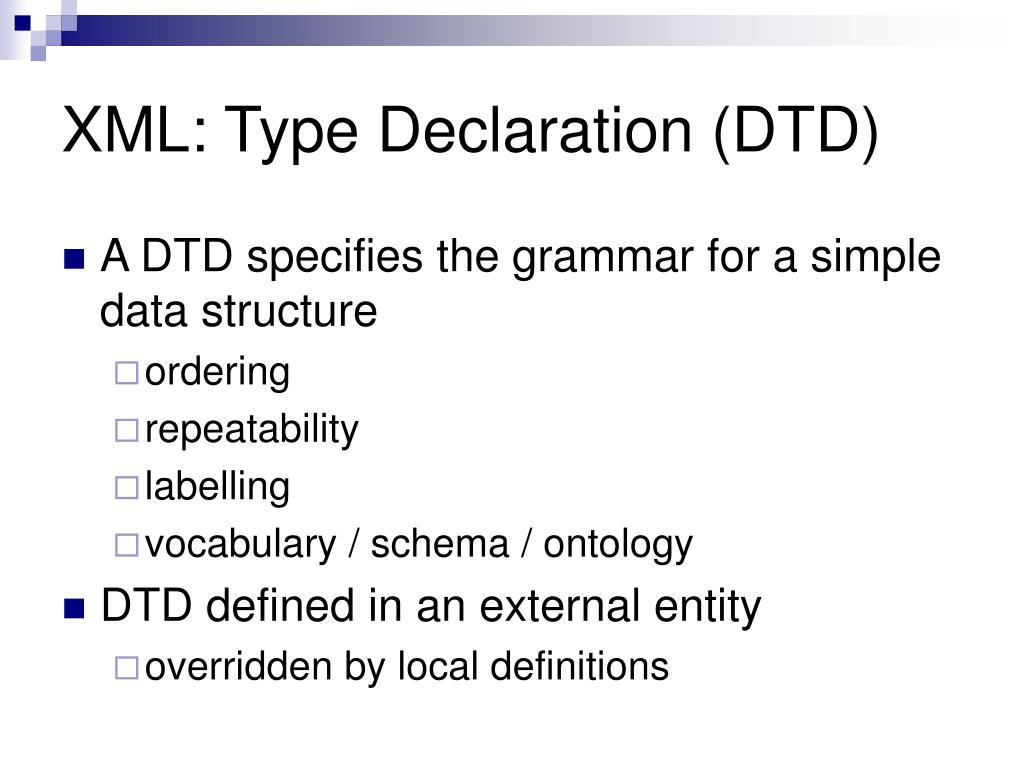

  2. XML: Type Declaration (DTD) • A DTD specifies the grammar for a simple data structure • ordering • repeatability • labelling • vocabulary / schema / ontology • DTD defined in an external entity • overridden by local definitions

  3. DTD: elements (text) • Element declarations <!ELEMENT para contents of para> • just text <!ELEMENT para (#PCDATA)> <para>Here is some text. No italics allowed.</para>

  4. DTD: elements (sequences) • just a sequence of elements <!ELEMENT person (name, email, phone)> ... <person> <name>Les</name> <email>lac@ecs.soton.ac.uk</email> <phone>+44 23 8067 5145</phone> </person>

  5. DTD: elements (alternatives) • just a choice of elements <!ELEMENT person (name | email | staffno)> ... <person> <name>Les</name> </person>

  6. DTD: elements (repetition) • element repetition can be controlled ? optional + required and repeatable * optional and repeatable • element can be grouped with ( ) <!ELEMENT customer ( ((surname, initials) | custid), purchases* , visits+ )>

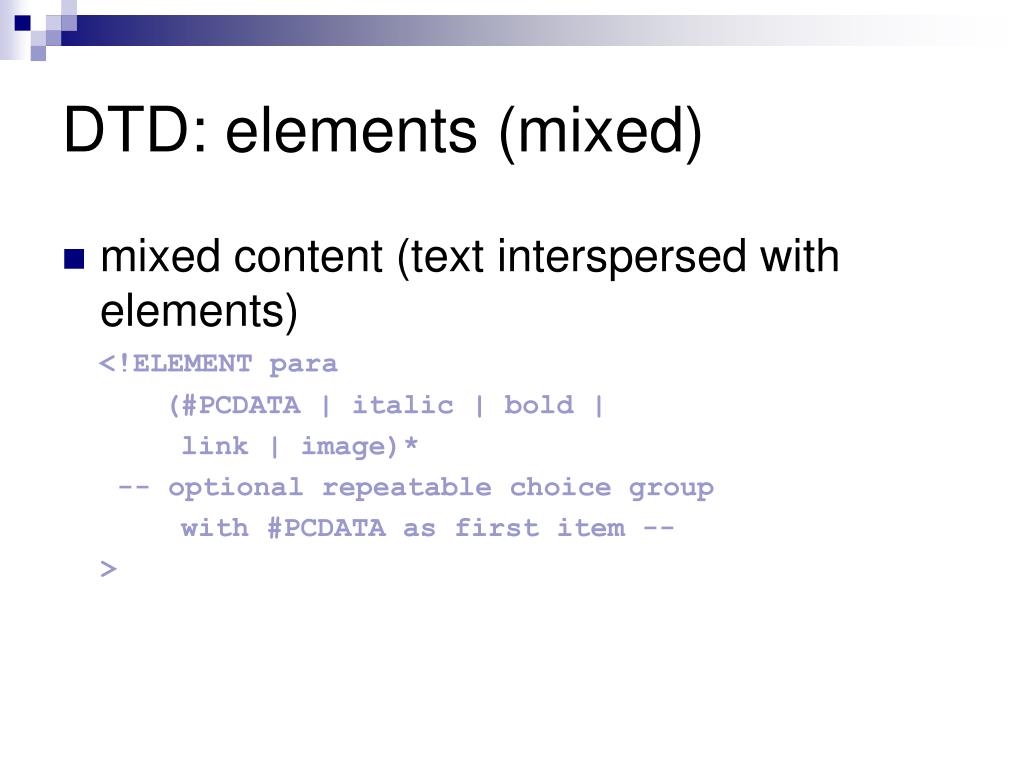

  7. DTD: elements (mixed) • mixed content (text interspersed with elements) <!ELEMENT para (#PCDATA | italic | bold | link | image)* -- optional repeatable choice group with #PCDATA as first item -- >

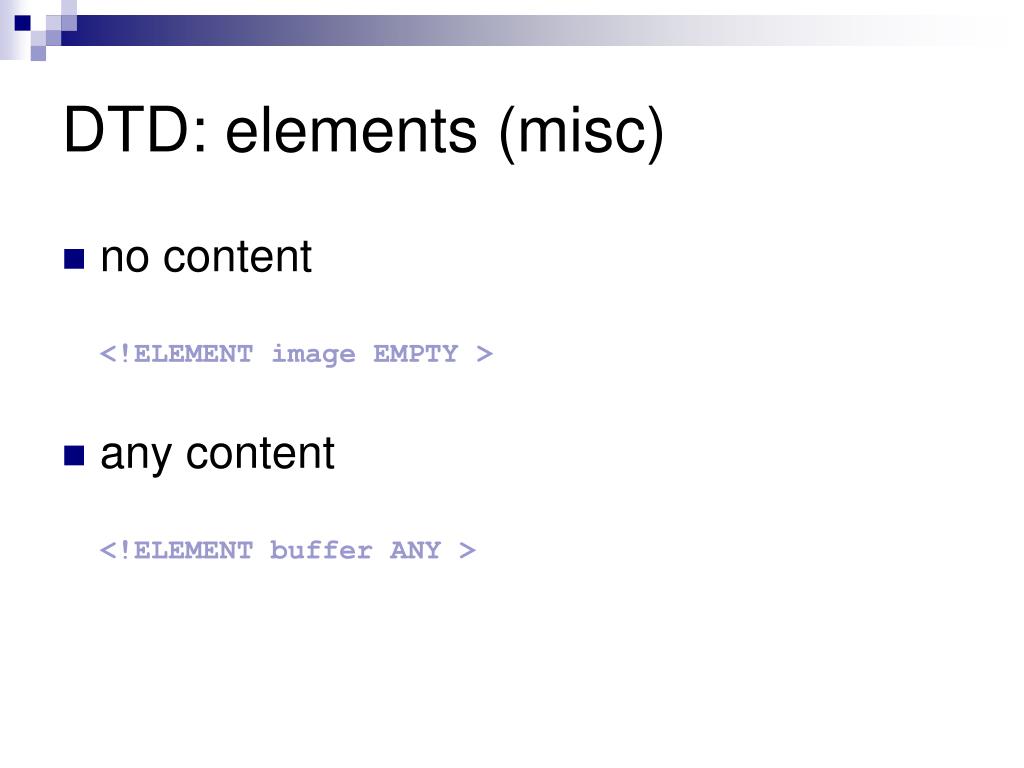

  8. DTD: elements (misc) • no content <!ELEMENT image EMPTY > • any content <!ELEMENT buffer ANY >

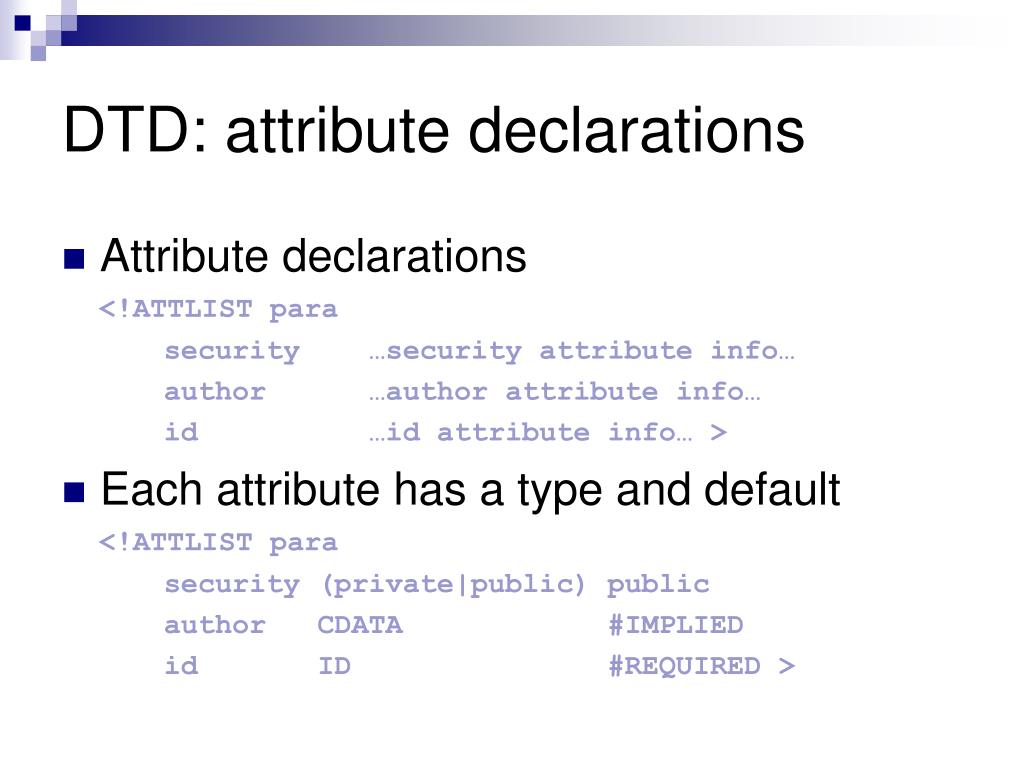

  9. DTD: attribute declarations • Attribute declarations <!ATTLIST para security …security attribute info… author …author attribute info… id …id attribute info… > • Each attribute has a type and default <!ATTLIST para security (private|public) public author CDATA #IMPLIED id ID #REQUIRED >

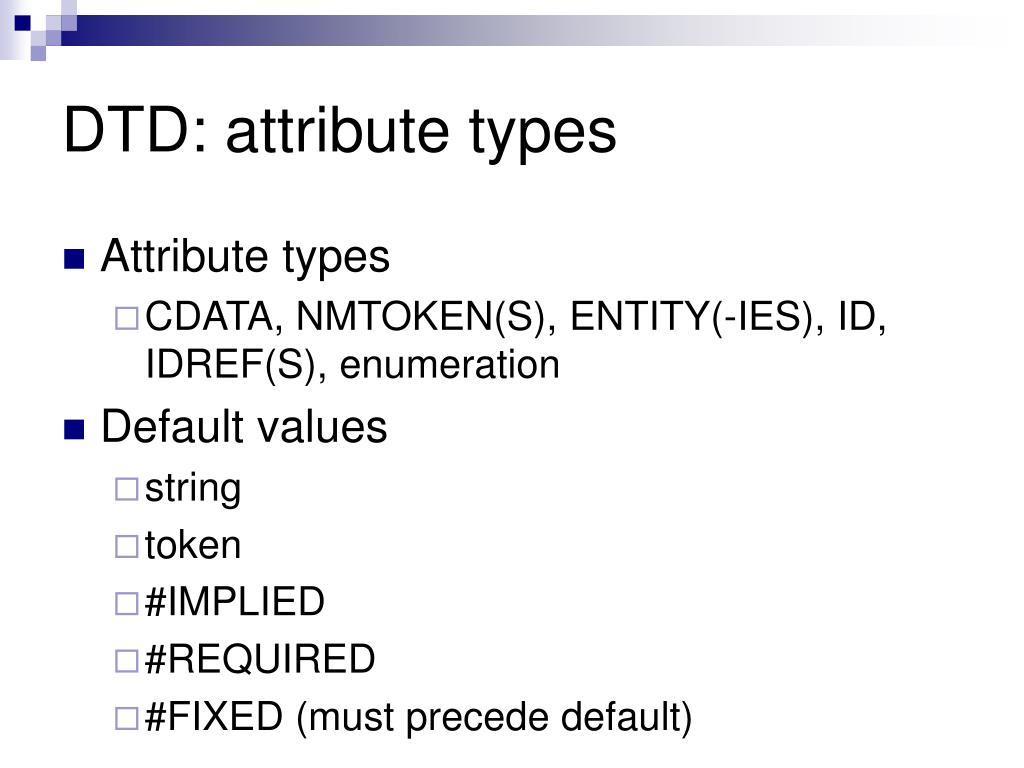

  10. DTD: attribute types • Attribute types • CDATA, NMTOKEN(S), ENTITY(-IES), ID, IDREF(S), enumeration • Default values • string • token • #IMPLIED • #REQUIRED • #FIXED (must precede default)

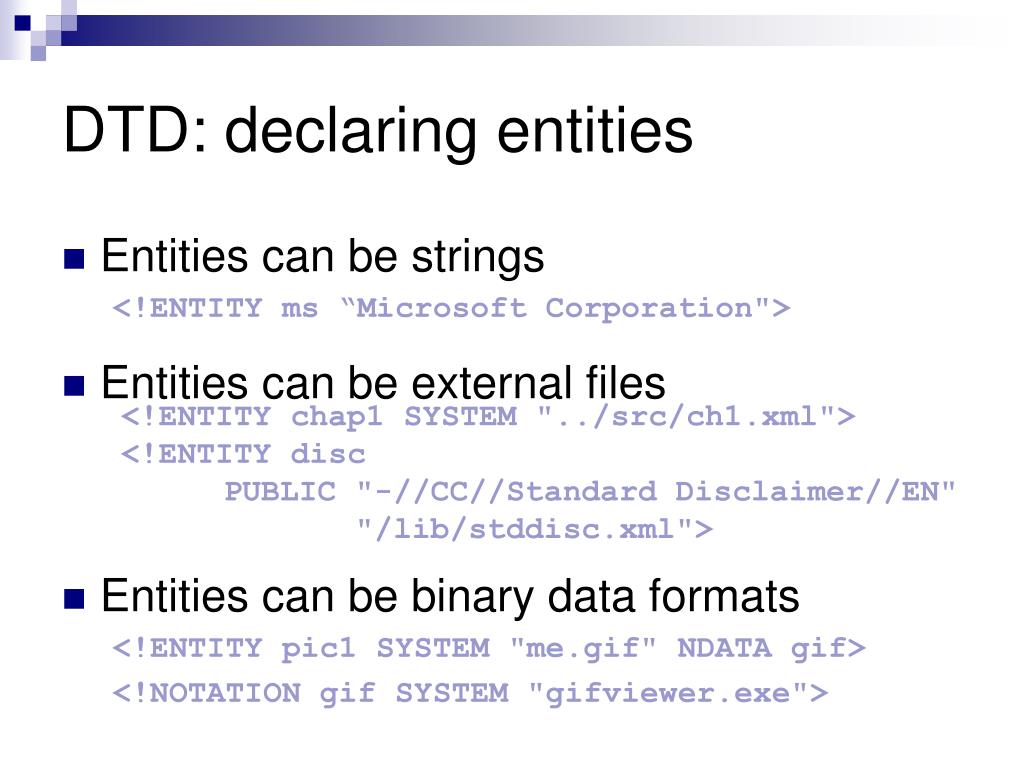

  11. DTD: declaring entities • Entities can be strings <!ENTITY ms “Microsoft Corporation"> • Entities can be external files • Entities can be binary data formats <!ENTITY pic1 SYSTEM "me.gif" NDATA gif> <!NOTATION gif SYSTEM "gifviewer.exe"> <!ENTITY chap1 SYSTEM "../src/ch1.xml"> <!ENTITY disc PUBLIC "-//CC//Standard Disclaimer//EN" "/lib/stddisc.xml">

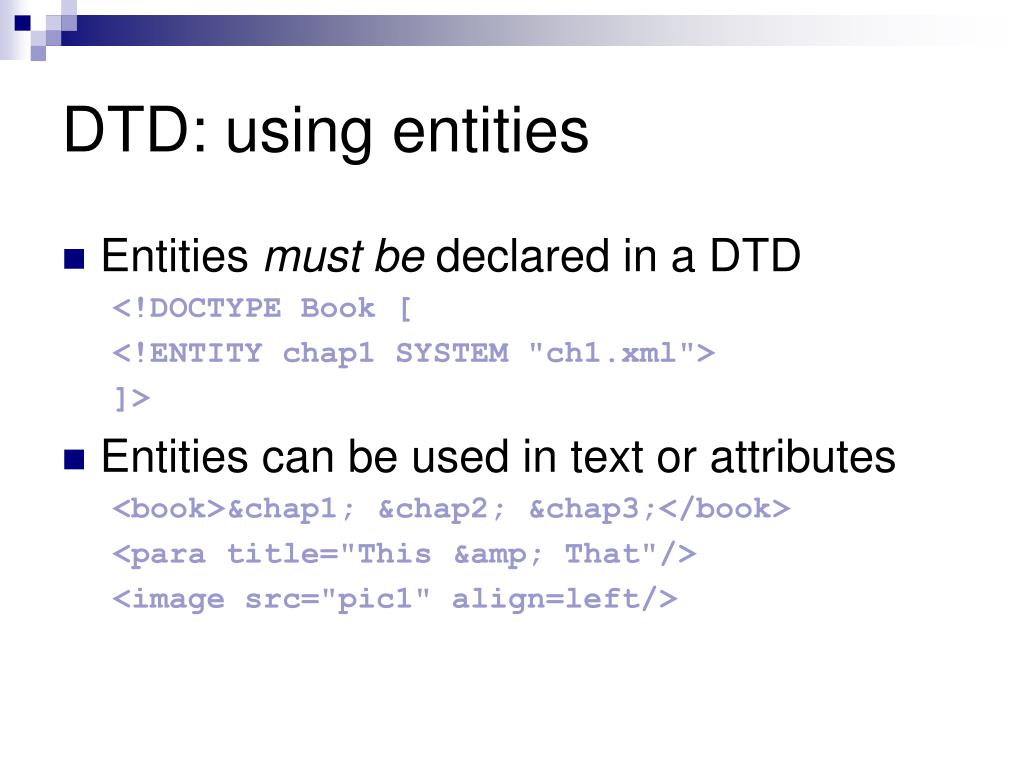

  12. DTD: using entities • Entities must be declared in a DTD <!DOCTYPE Book [ <!ENTITY chap1 SYSTEM "ch1.xml"> ]> • Entities can be used in text or attributes <book>&chap1; &chap2; &chap3;</book> <para title="This &amp; That"/> <image src="pic1" align=left/>

  13. DTD: entities for DTDs • Parameter entities provide macro expansion within a DTD • use '%' instead of '&' • prefix name by '%' in declaration <!ENTITY % common "name | address | phone"> <!ELEMENT stuff ( %common; | email )

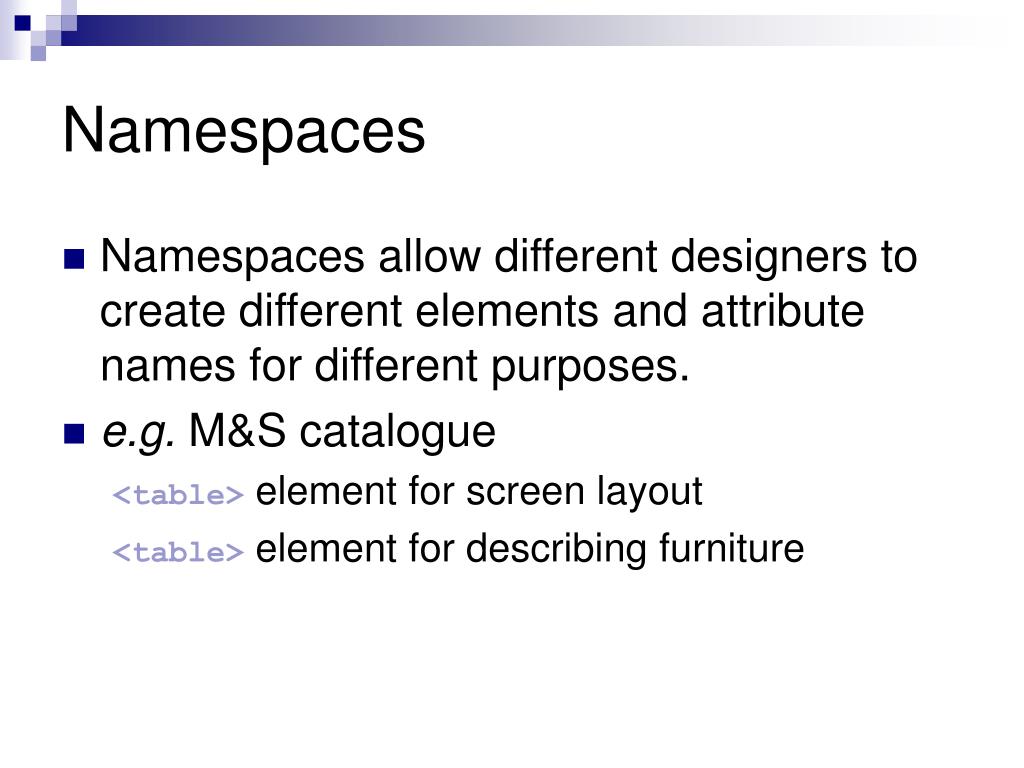

  14. Namespaces • Namespaces allow different designers to create different elements and attribute names for different purposes. • e.g. M&S catalogue <table> element for screen layout <table> element for describing furniture

  15. Namespaces (2) • Namespace is identified with a URL • Namespace is referred to by a prefix • Any name from that namespace is referred to by a qualified name • prefix:name • e.g.<html:table> • or<para MoD:classification=restricted>

  16. Namespaces (3) • Namespace is defined • at the document root • by the xmlns: attribute prefix <catalog xmlns:html="http://www.w3c.org/TR/REC-html40"> <html:table>… <table material=pine><price>120</price></table> <chair material=pine><price>34</price></chair> </html:table> </catalog>
