  1. Experimental Design All experiments consist of two basic structures: Design structure Method of grouping EU’s into homogenous groups or blocks Treatment structure Consists of the set of treatments

  2. Experimental Design Choosing the design and treatment structure Design structure - chosen using all available knowledge of the experimental material Set of treatments - determined by the objectives of the experiment.

  3. Experimental Design Choice of experimental design is very important!

  4. Experimental Design Primary objectivewhen choosing a design structure: Reduction of experimental error Do this by grouping EU’s so that conditions as uniform as possible. Grouping must occur BEFORE treatments are assigned!

  5. Experimental Design Types of Design Structures Completely Randomized (CR) Randomized Complete Block (RCB) Latin Square (LS)

  6. Experimental Design Completely Randomised • Simplest and most powerful • Treatments assigned randomly • Randomisation not restricted in any way

  7. D A D C C B A A C A B D B B C A D B D C Experimental Design EXAMPLE • 20 cows – same age, weight, breed • Objectives of study: effects of vitamin supply • Treatments: 4 different vitamins (A, B, C, D)

  8. Experimental Design Randomised Complete Block • EU’s arranged in homogenous groups (= blocks) • Grouping based on a single outside source of variability • One restriction on randomisation • Treatments assigned randomly to EU’s within a block • Every treatment occurs same number of times within each block • Each block contains each treatment

  9. Block 1 Block 3 A B C D E A B C D E Block 2 A B C D E Experimental Design EXAMPLE • 5 different soya bean cultivars (A – E) • 3 different planting locations • Source of variation = location = block

  10. Experimental Design Latin Square • Blocking occurs in two different ways, so two restrictions on randomisation. • Each row and each column is a complete block • Treatments assigned so each treatment once in each column, and once in each row

  11. A B C D 3 1 2 4 B A D C 1 C D B A 2 D C A B 3 4 Experimental Design EXAMPLE • Objective: To determine the effects of 4 different diets on liver cholesterol in sheep (A – D) • Sources of variability: • body weight • (groups 1 - 4) • Age • (groups 1 – 4)

  12. Experimental Design Treatment Structures • Determined by objectives • Imposed (controllable) eg type of protein in diet • Uncontrollable eg gender of animal

  13. Experimental Design Types of Treatments Define either: Unstructured populations - compare sets of unrelated, qualitative treatments eg yield of maize hybrids

  14. Experimental Design Types of Treatments or: structured populations – compare related populations May have a group or gradient structure eg Diet contents or levels of exercise

  15. Experimental Design Types of Treatment Structures Two most common: One-way treatment classification Factorial treatment arrangement

  16. Experimental Design Types of Treatment Structures • One-way treatment classification • Simplest type • Unstructured or structured • Observations – based on one set

  17. Experimental Design Types of Treatment Structures • Factorial treatment arrangement • Set of treatment combinations • Qualitative or quantitative • Each factor occurs in combination with every other factor • Provide information about interactions among factors

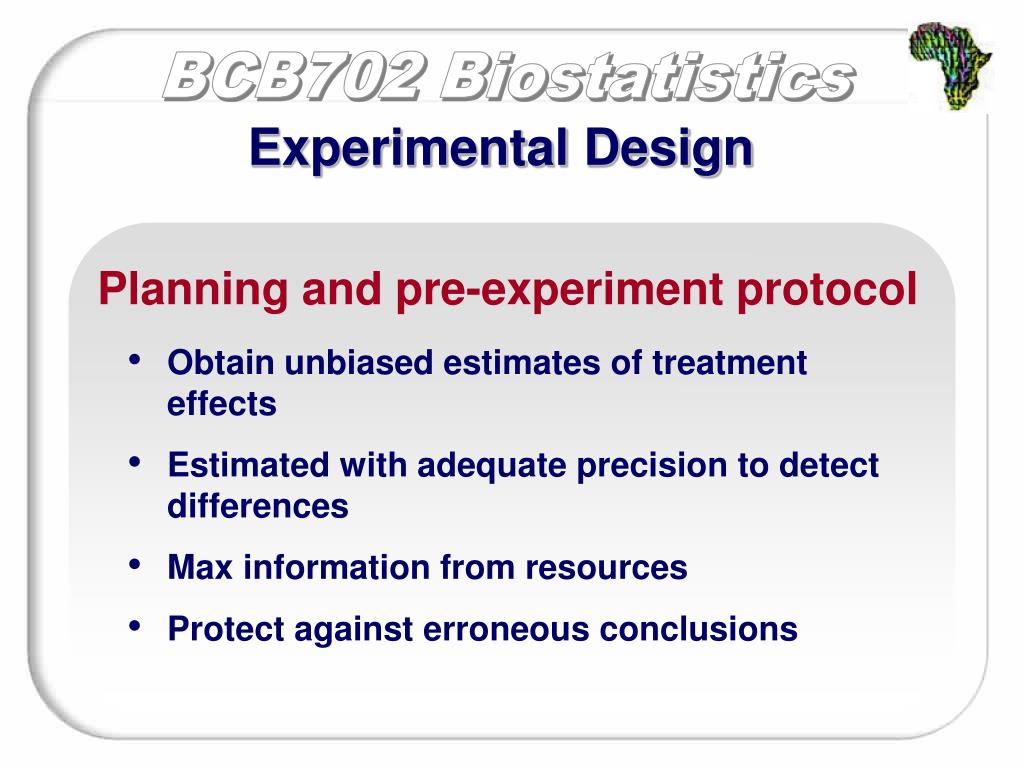

  18. Experimental Design Planning and pre-experiment protocol • Obtain unbiased estimates of treatment effects • Estimated with adequate precision to detect differences • Max information from resources • Protect against erroneous conclusions

  19. Experimental Design Planning and pre-experiment protocol • Preliminary questions: • What is to be accomplished? • What variables will be measured? • What is the population involved? • How many treatments and how arranged? • Controls to be included?

  20. Experimental Design Planning and pre-experiment protocol • Preliminary questions cont: • What are the EU’s? • What is the design structure? • Replication? • Variability among EU’s? • Type of data? • Can the desired comparisons be made?
