Styrofoam Cornice Installation Guide for Parapet Walls

Learn how to install a decorative Styrofoam cornice on parapet walls using plywood sheets and support braces. Create striking overhangs of 10-16 inches seamlessly with this step-by-step guide.

yoshio-castaneda
Télécharger la présentation

Styrofoam Cornice Installation Guide for Parapet Walls

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

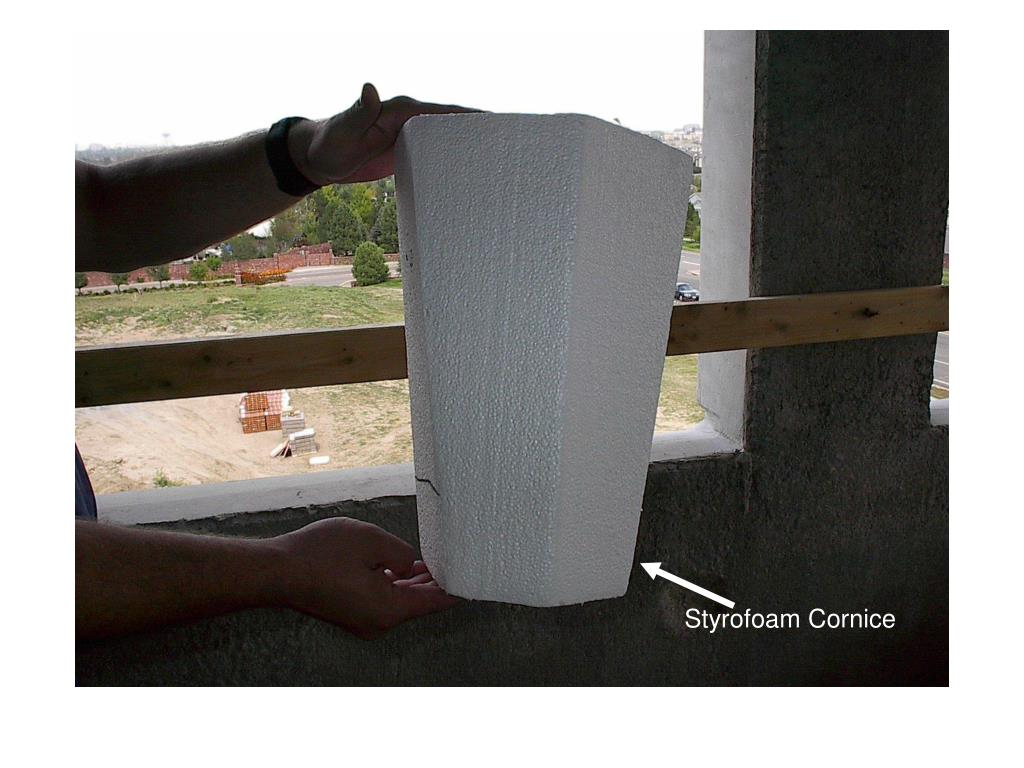

  1. Styrofoam Cornice

  2. (2) ¾” Plywood sheets, (apprx. 18-24”wide) are glued and attached to the top of parapet wall with a support brace every 6 to 8 ft Support Brace

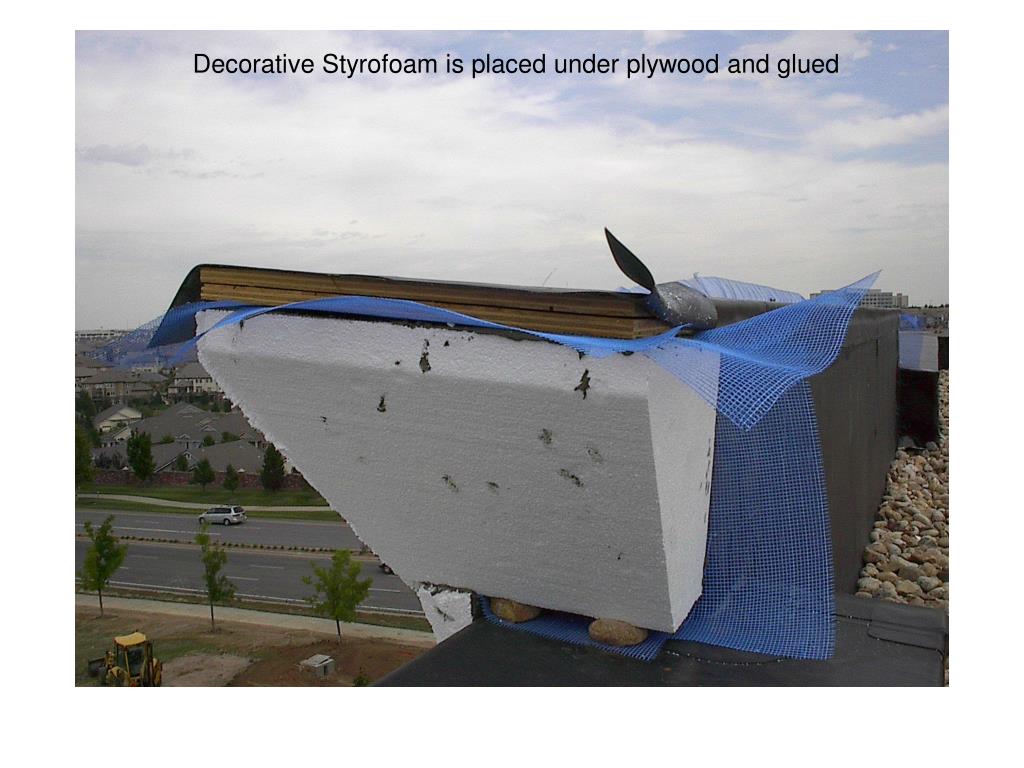

  3. Decorative Styrofoam is placed under plywood and glued

  4. Then Sealed

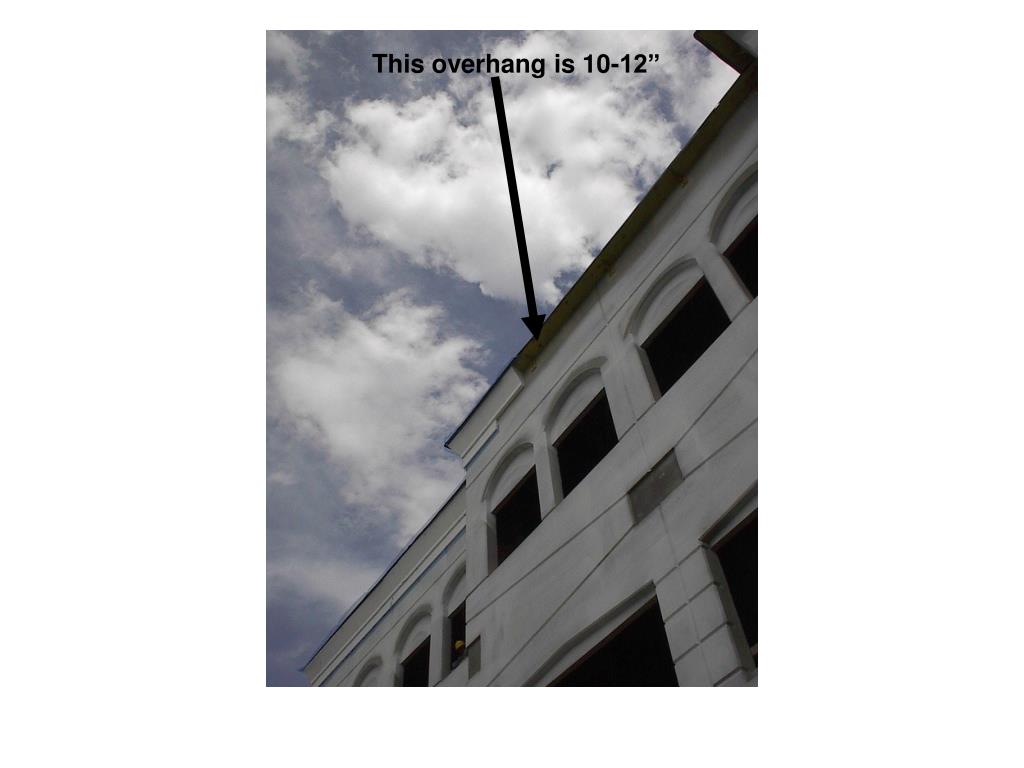

  5. This overhang is 10-12”

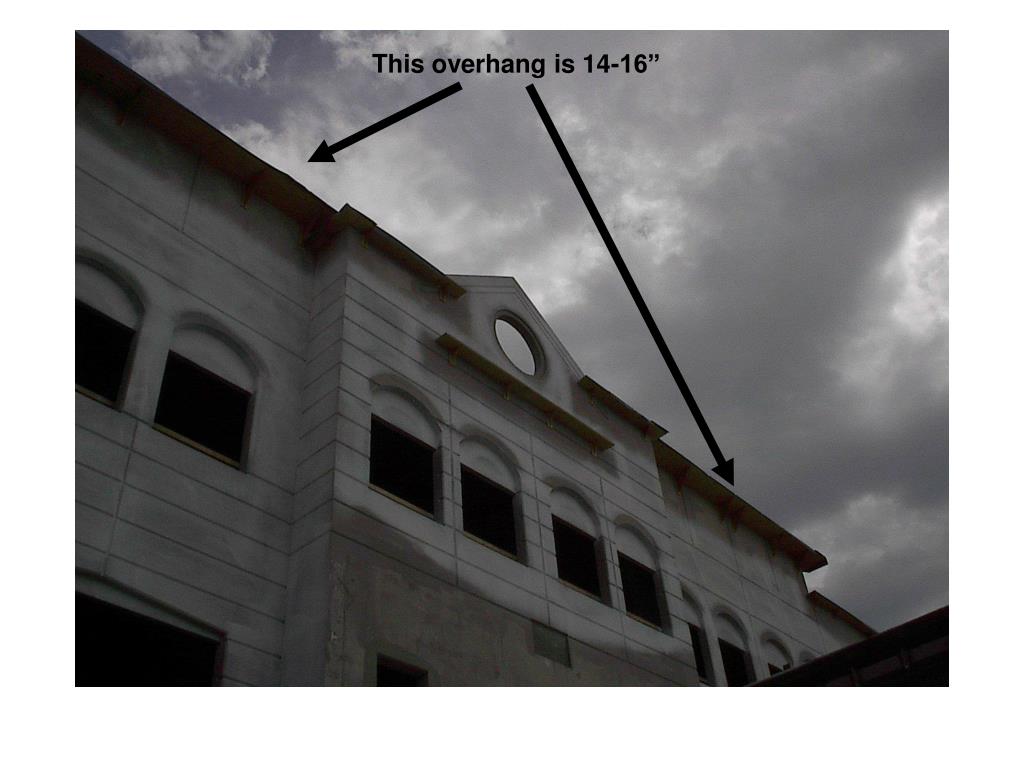

  6. This overhang is 14-16”
