  1. Frame and Cornice Construction Sequence

  2. Frame and Cornice Construction Sequence Walls & Partitions Framed (Cut-away view of corner of a larger structure) Double Plate Top Plate Wall Stud (top half) Corner Post

  3. Frame and Cornice Construction Sequence Exterior Sheathing Applied Wall Sheathing

  4. Frame and Cornice Construction Sequence Ceiling Joists Placed Ceiling Joist

  5. Frame and Cornice Construction Sequence Roof Rafters – Gable Lookouts Installed Common Rafter (bottom half) Lookout RafterTail Barge Rafter (sometimes called a Fly Rafter)

  6. Frame and Cornice Construction Sequence False Facia Installed False Facia (Sometimes called Rough Facia)

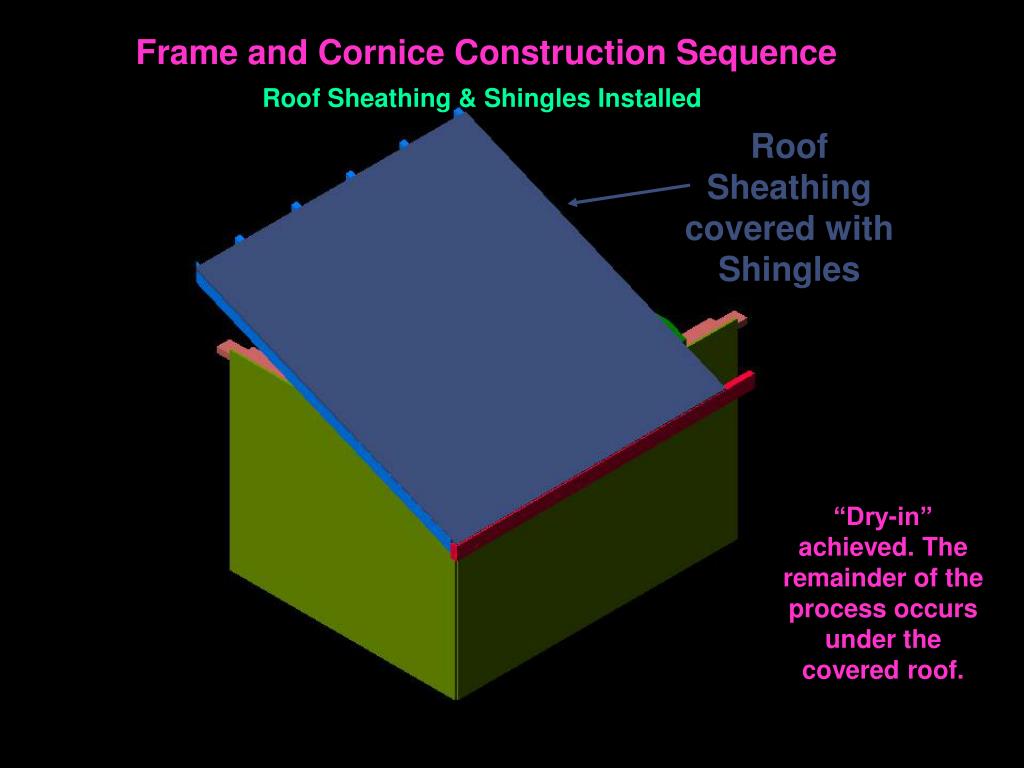

  7. Frame and Cornice Construction Sequence Roof Sheathing & Shingles Installed Roof Sheathing covered with Shingles “Dry-in” achieved. The remainder of the process occurs under the covered roof.

  8. Frame and Cornice Construction Sequence Lookouts –Lookout Ledger – Gable Studs – Gable Sheathing Installed Lookout Ledger Roof covering removed for clarity Gable Studs Lookouts

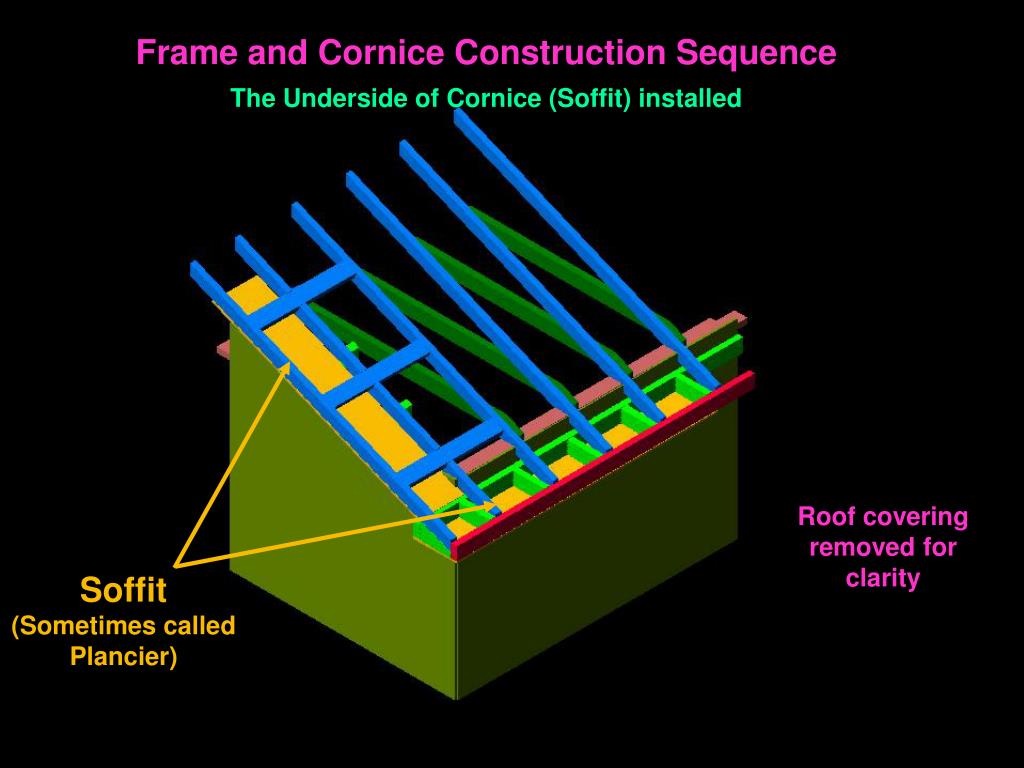

  9. Frame and Cornice Construction Sequence The Underside of Cornice (Soffit) installed Roof covering removed for clarity Soffit (Sometimes called Plancier)

  10. Frame and Cornice Construction Sequence Facia Installed Roof covering removed for clarity Finish Facia

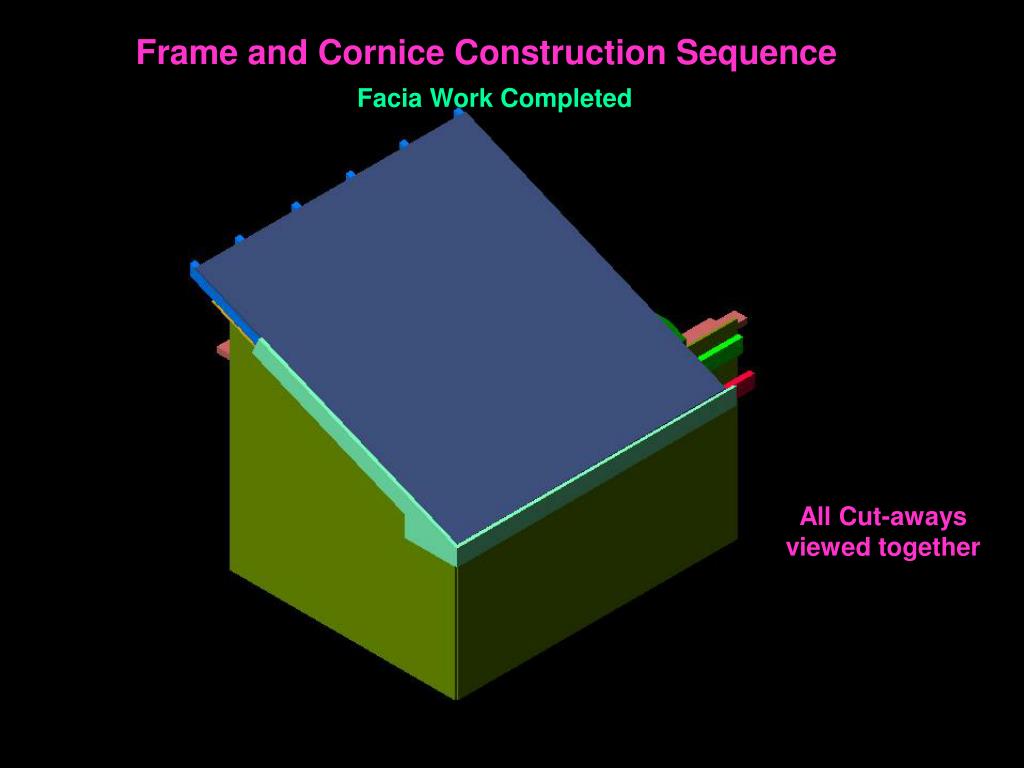

  11. Frame and Cornice Construction Sequence Facia Work Completed All Cut-aways viewed together

  12. Frame and Cornice Construction Sequence Presentation Complete
