Lesson 4.1 Classifying Triangles

Lesson 4.1 Classifying Triangles. Today, you will learn to… * classify triangles by their sides and angles * find measures in triangles.  ABC. A. B. C. Equilateral Triangle. 3 congruent sides. Isosceles Triangle. 2 congruent sides. Scalene Triangle. no congruent sides.

yul
Télécharger la présentation

Lesson 4.1 Classifying Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lesson 4.1Classifying Triangles Today, you will learn to… * classify triangles by their sides and angles * find measures in triangles

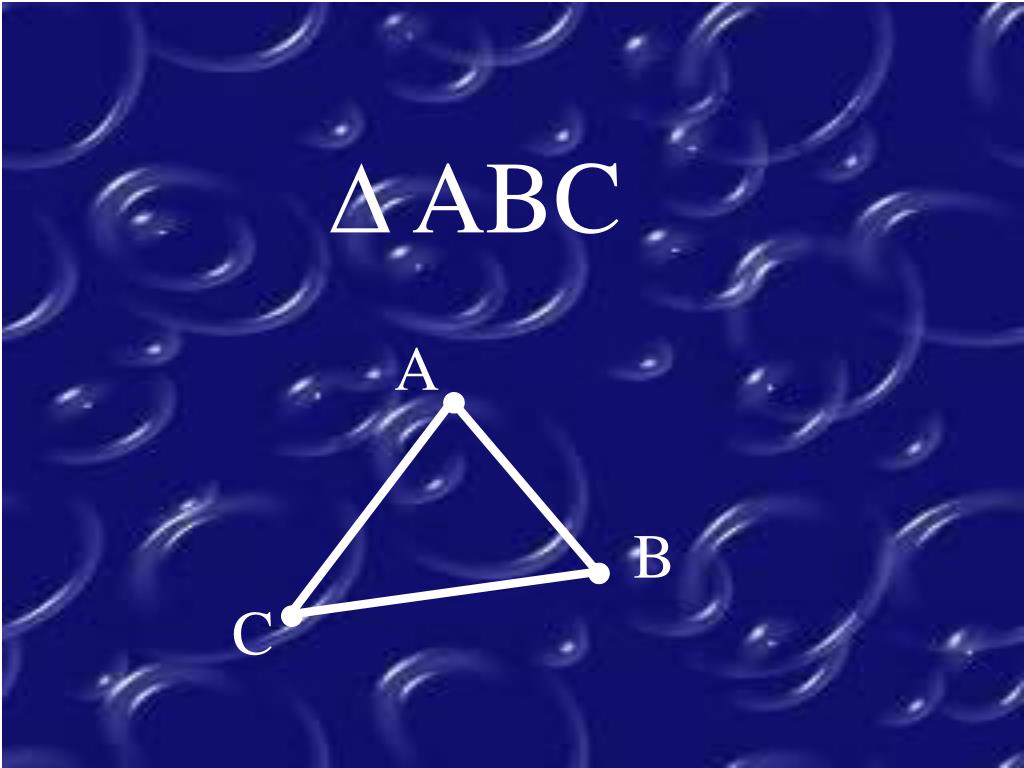

  2.  ABC A B C

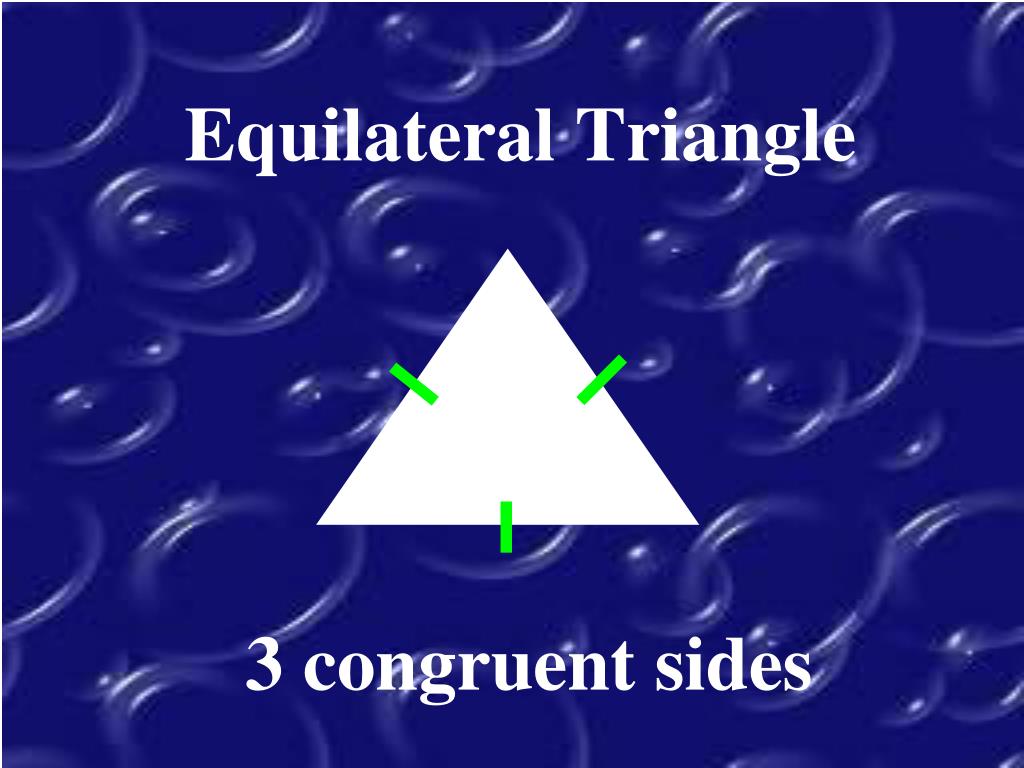

  3. Equilateral Triangle 3 congruent sides

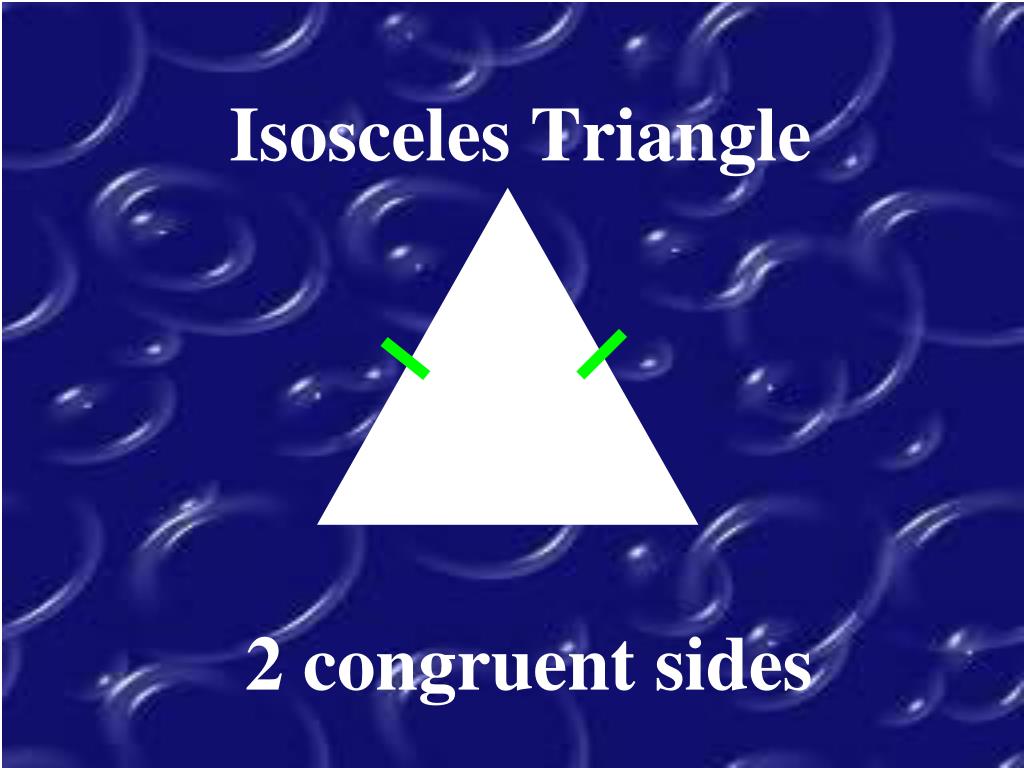

  4. Isosceles Triangle 2 congruent sides

  5. Scalene Triangle no congruent sides

  6. Equiangular Triangle 3 congruent angles

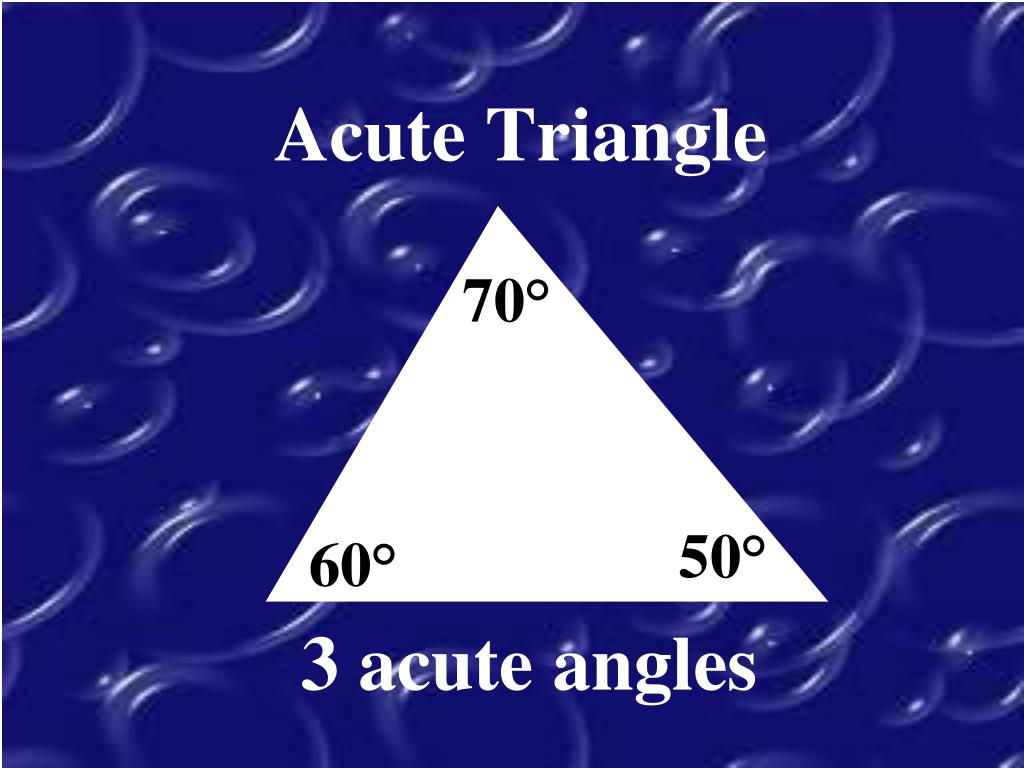

  7. Acute Triangle 70° 50° 60° 3 acute angles

  8. Obtuse Triangle 95° 25° 60° 1 obtuse angle

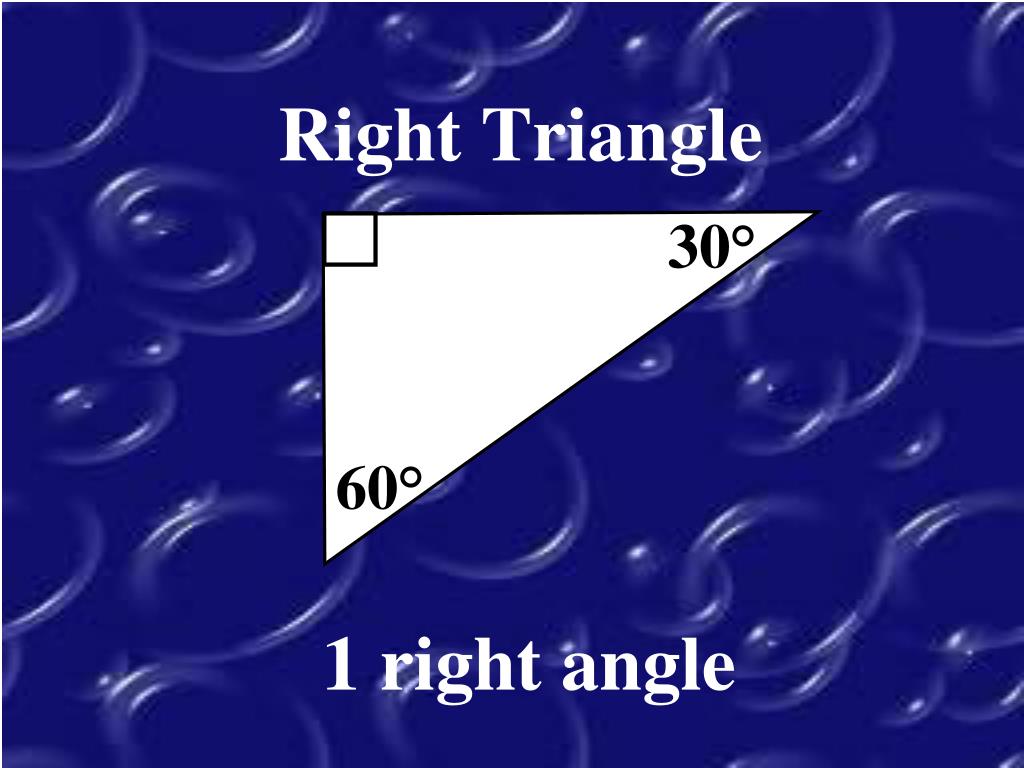

  9. Right Triangle 30° 60° 1 right angle

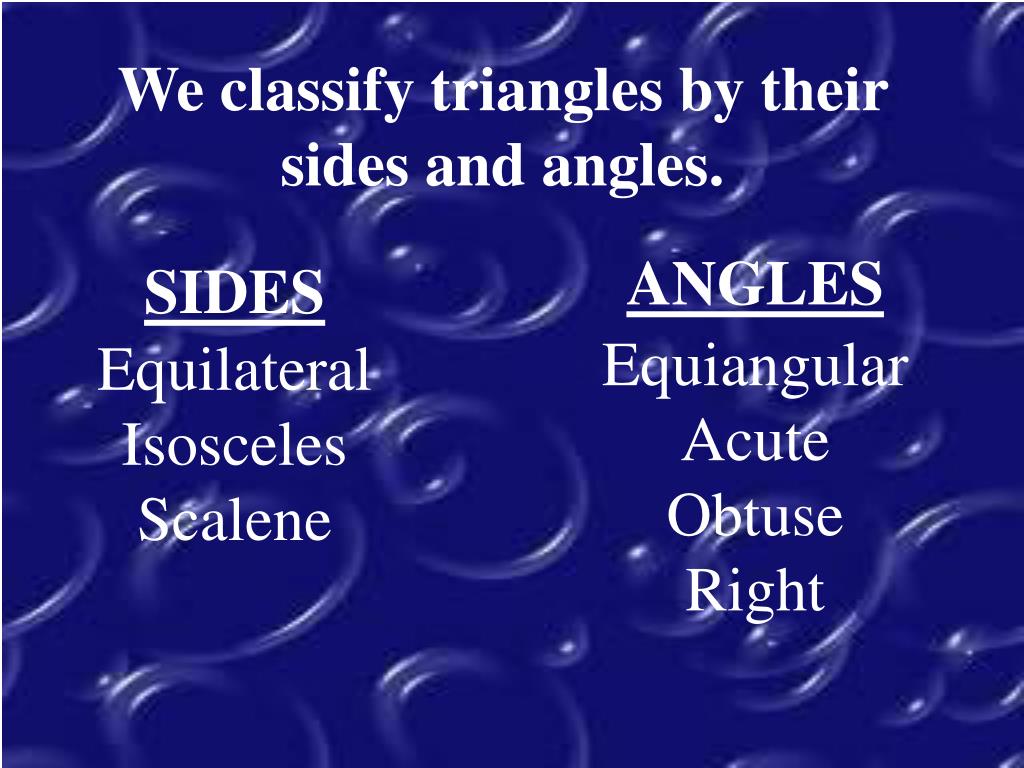

  10. We classify triangles by their sides and angles. ANGLES SIDES Equiangular Acute Obtuse Right Equilateral Isosceles Scalene

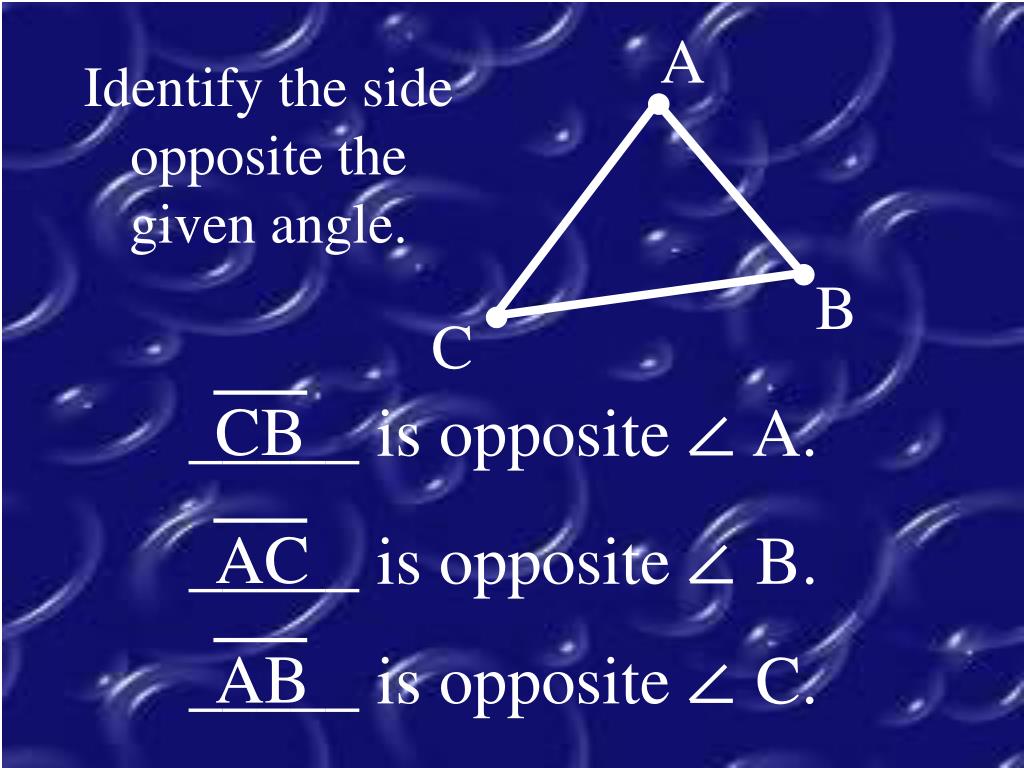

  11. A CB AC AB B _____ is opposite A. _____ is opposite B. _____ is opposite C. C Identify the side opposite the given angle.

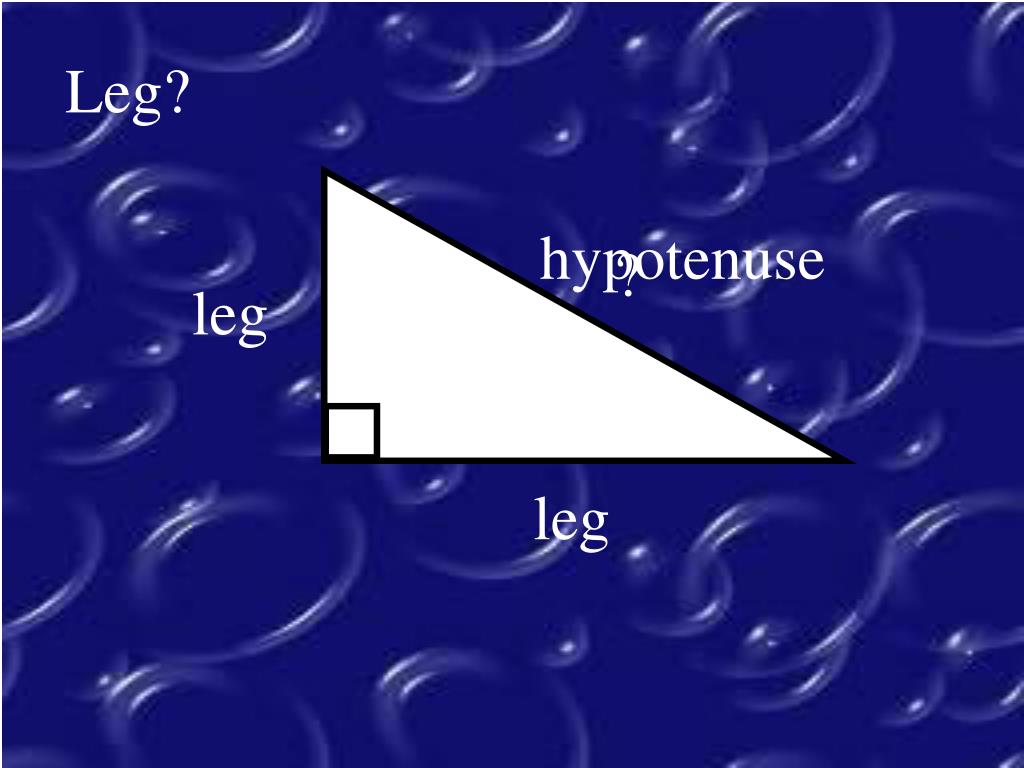

  12. Leg? hypotenuse ? leg leg

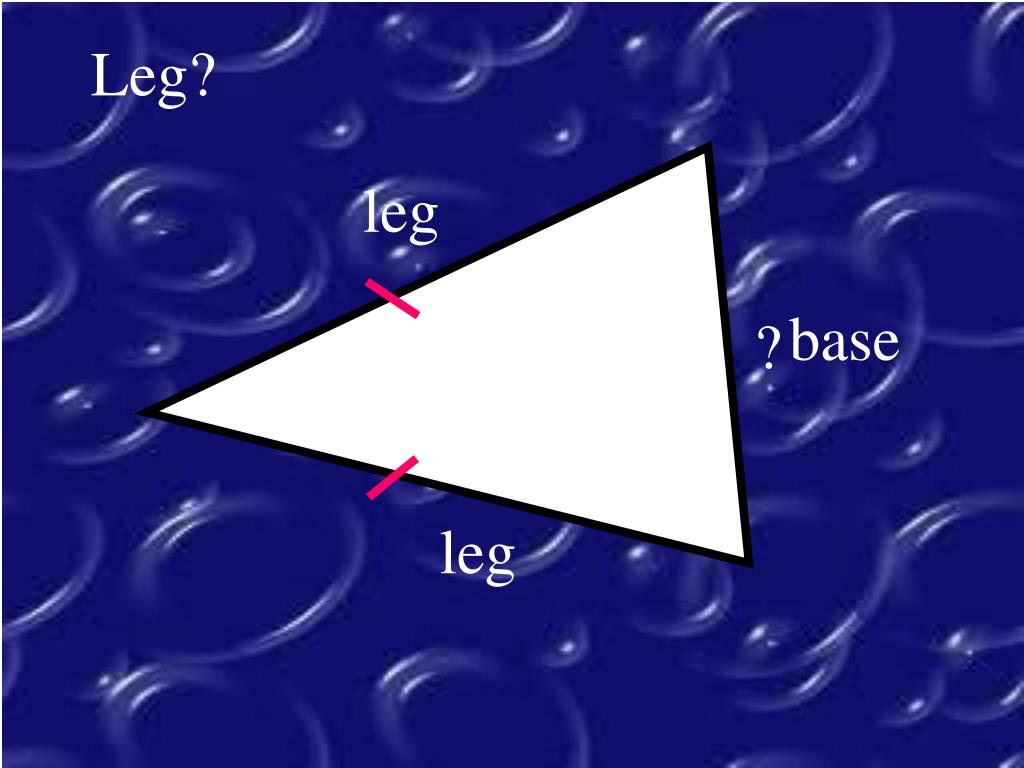

  13. Leg? base leg ? leg

  14. Theorem 4.1Triangle Sum TheoremThe sum of the measures of the interior angles of a triangle is ________ 180°

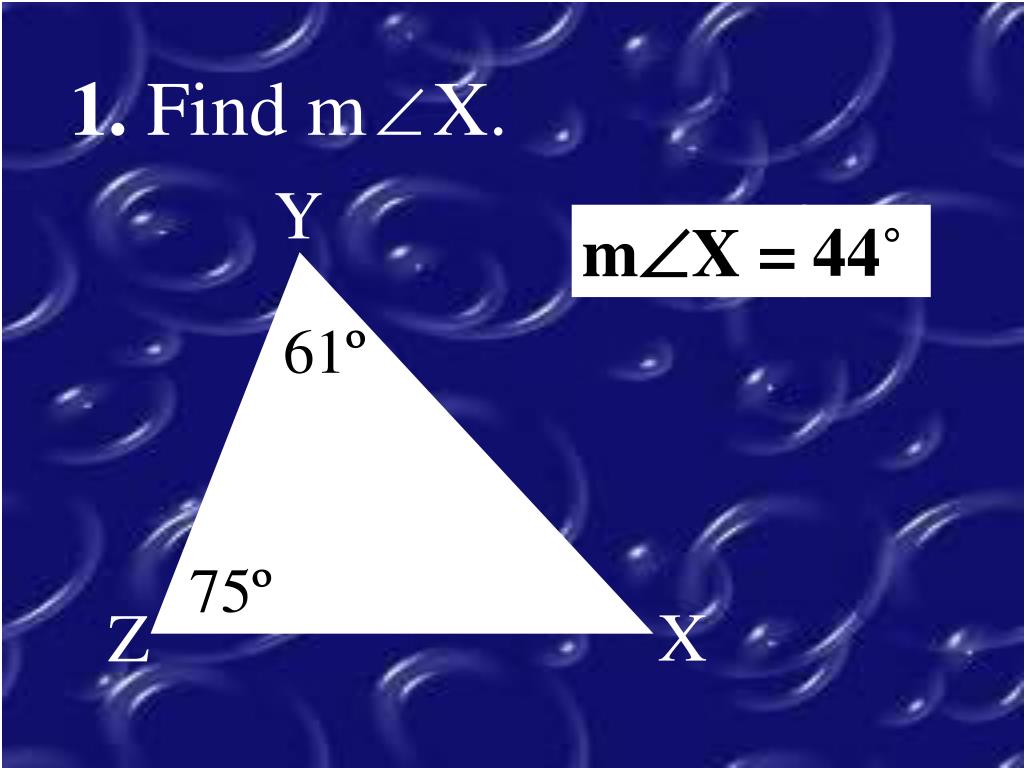

  15. 1. Find mX. Y mX = 44˚ 61º 75º X Z

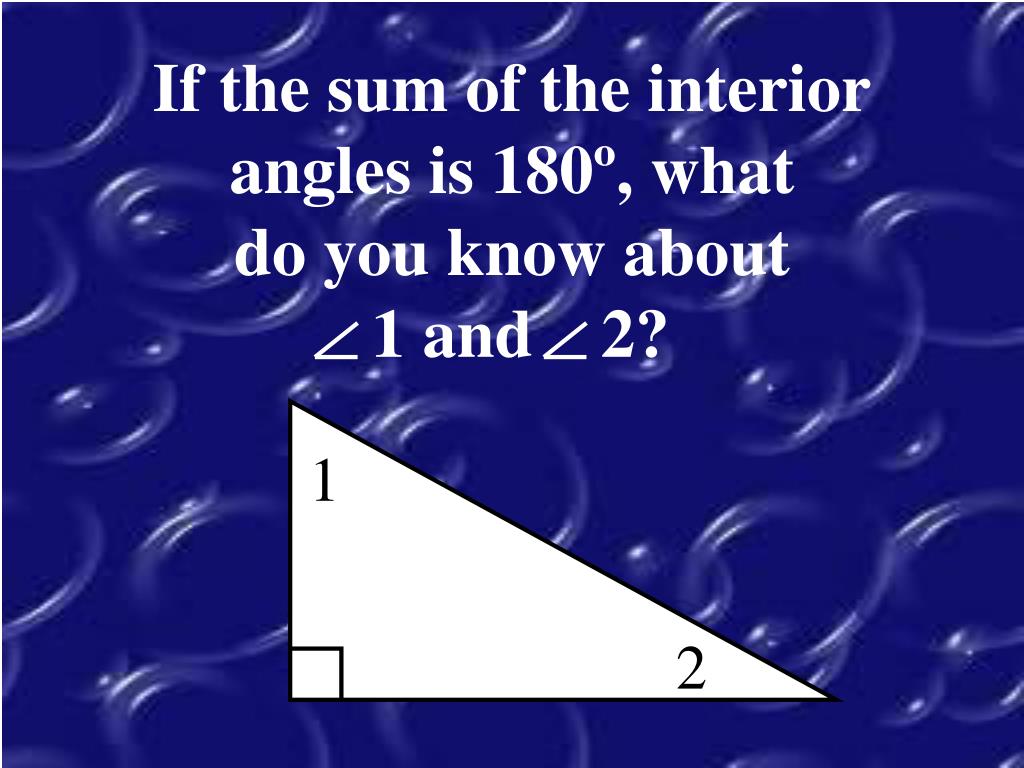

  16. 1 2 If the sum of the interior angles is 180º, what do you know about 1 and 2?

  17. Corollary to the Triangle Sum TheoremThe acute angles of a right triangle are _________________. complementary

  18. 2. Find mF. D 54˚ + mF = 90˚ 54˚ mF = 36˚ F E

  19. 3. Find m1 and m2. m1 = 60˚ m2 = 120˚ 50º exterior angle 2 70º 1 adjacent angles

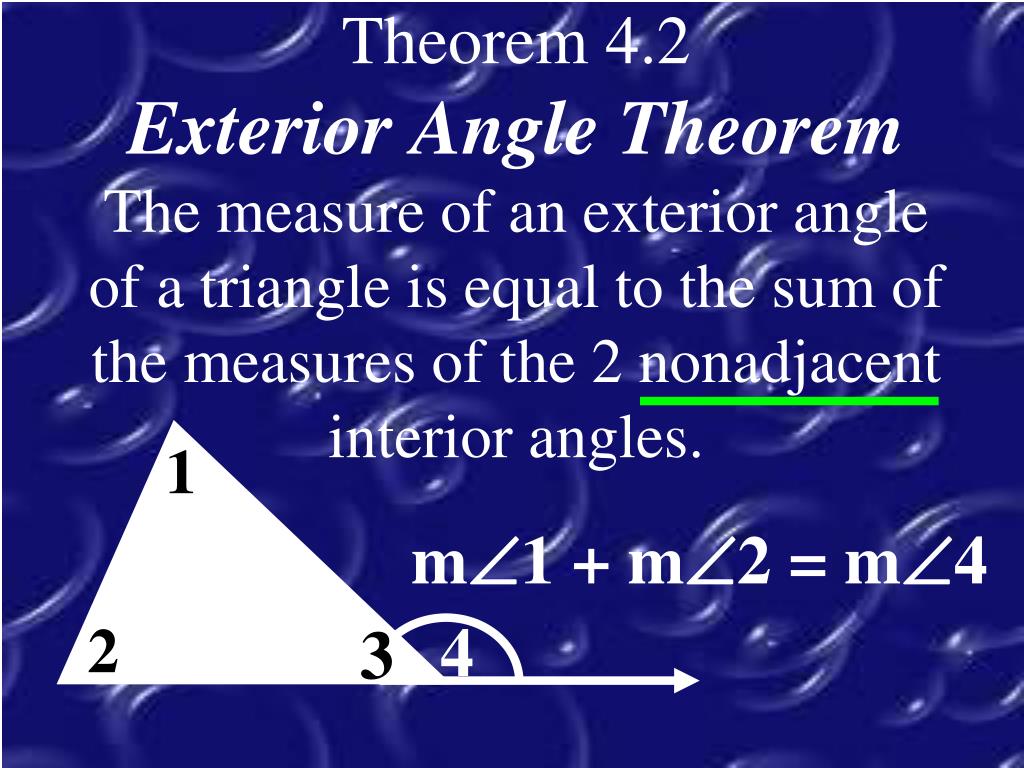

  20. 1 4 2 3 Theorem 4.2Exterior Angle TheoremThe measure of an exterior angle of a triangle is equal to the sum of the measures of the 2 nonadjacent interior angles. m1 + m2 = m4

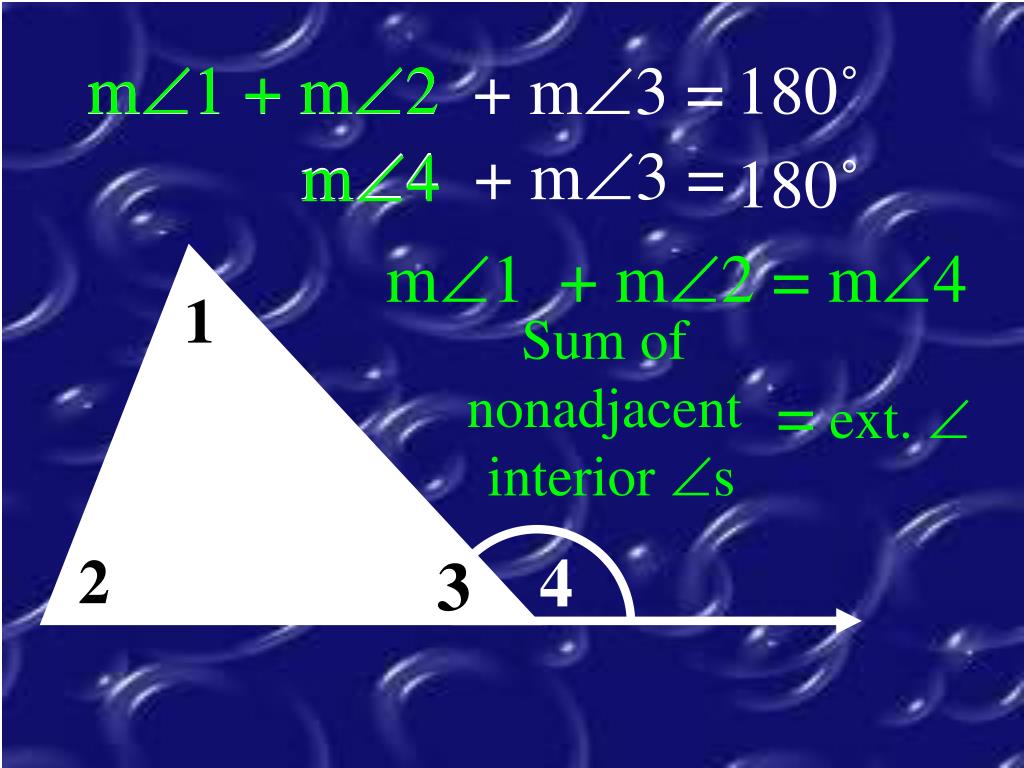

  21. 1 Sum of nonadjacent interior s = ext.  4 2 3 m1 + m2 m1 + m2 + m3 = 180˚ m4 + m3 = m4 180˚ m1 + m2 = m4

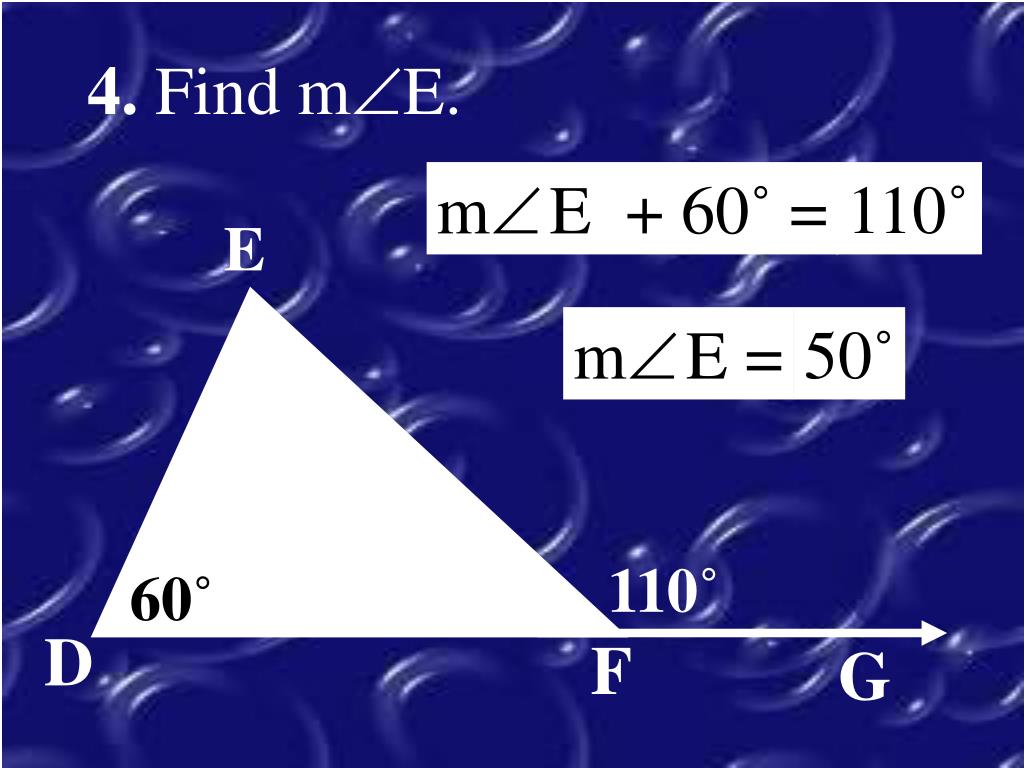

  22. 4. Find mE. mE + 60˚ = 110˚ E mE = 50˚ 110˚ 60˚ D F G

  23. 5. Find x. x + 60 = 3x + 10 E x = 25 x˚ (3x + 10)˚ 60˚ D F G

  24. Lesson 4.2Congruence and Triangles Today, you will learn to… * identify congruent figures and corresponding parts * prove that 2 triangles are congruent

  25. Def. of Congruent Figures Figures are congruent if and only if all pairs of corresponding angles and sides are congruent.

  26. Ð @ XY A Ð @ B YZ Ð @ C XZ Statement of Congruence Δ ABC Δ XYZ vertices are written in corresponding order  X  Y  Z

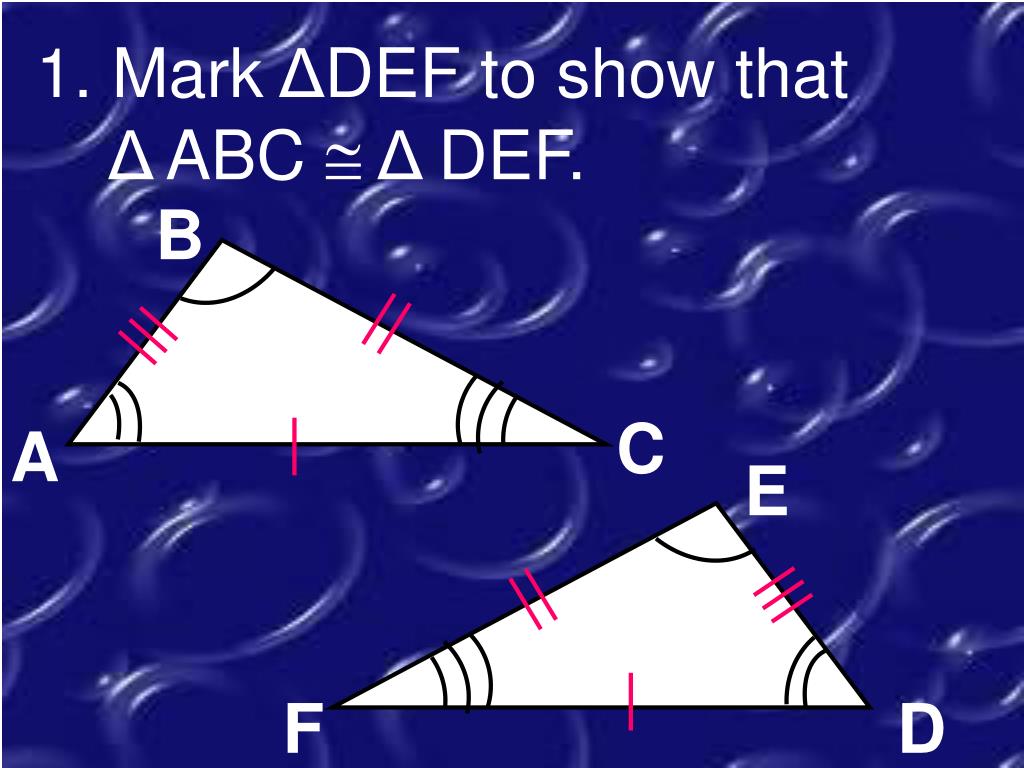

  27. B C A 1. Mark ΔDEF to show that Δ ABC  Δ DEF. E F D

  28. B D E 35˚ 8.2 5.7 10 A C F 2. Find all missing measures. 8.2 ? B ? ? 35˚ 10 ? ? 55˚ ? 55˚ 5.7 ?

  29. K A J B 93˚ L (3y)˚ 85˚ (4x – 3) cm D H 75˚ 9 cm C 3. In the diagram, ABCD  KJHL. Find x and y. 3y = 75˚ 9 4x-3 = y = 25 x = 3

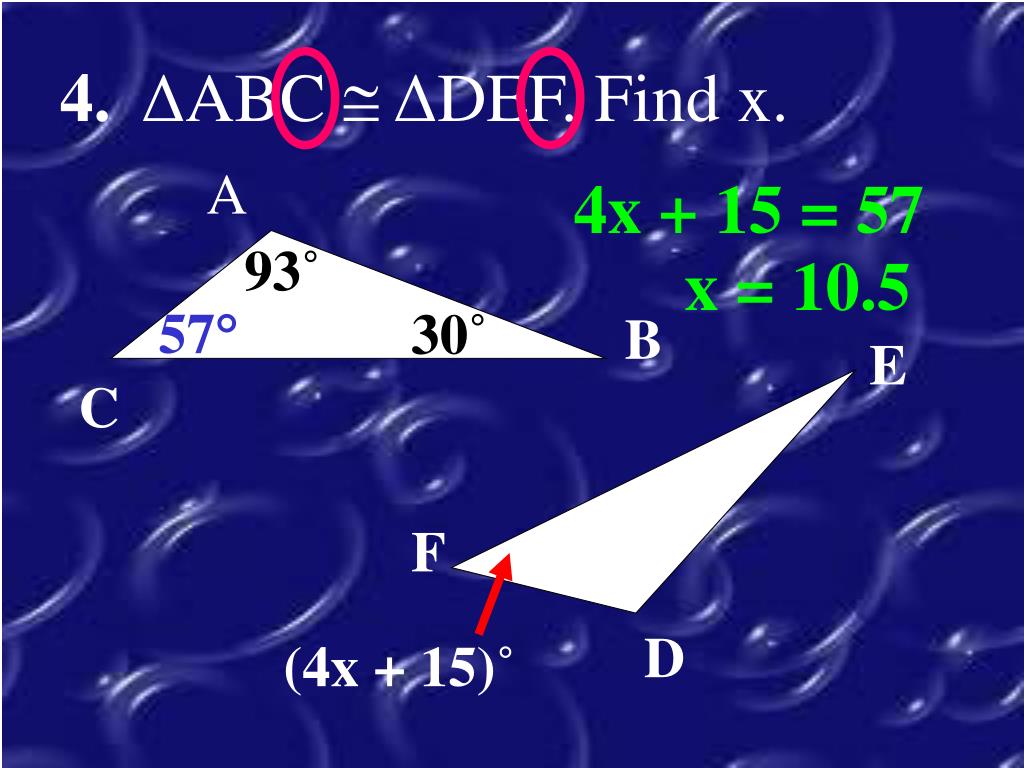

  30. A 93˚ 30˚ B E C F D (4x + 15)˚ 4.ΔABC ΔDEF. Find x. 4x + 15 = 57 x = 10.5 57

  31. D C O G A T Theorem 4.3Third Angles TheoremIf 2 angles of one triangle are congruent to 2 angles of another triangle, then… 60˚ the third angles are also congruent. ? 70˚ 60˚ 70˚ ?

  32. 5. Decide if the triangles are congruent. Justify your reasoning. H Vertical Angles Theorem E 58° G 58° J F Third Angles Theorem ΔEFG  Δ______ H G J

  33. 1 2 3 4 5 6 W X 6. M Y Z 1)WX  YZ , WX | | YZ, M is the midpoint of WY and XZ 2) 3) 4) 5) ΔWXM  ΔYZM 1) Given and 2  5 1  6 2) Alt. Int. s Theorem 3  4 3) Vertical Angles Th. 4) Def. of midpoint WM  MY and ZM  MX 5) Def. of  figures

  34. 7. Identify any figures you can prove congruent & write a congruence statement. B A C D C ACD   A B Alt. Int.  Th. Reflexive Property Third Angle Th.

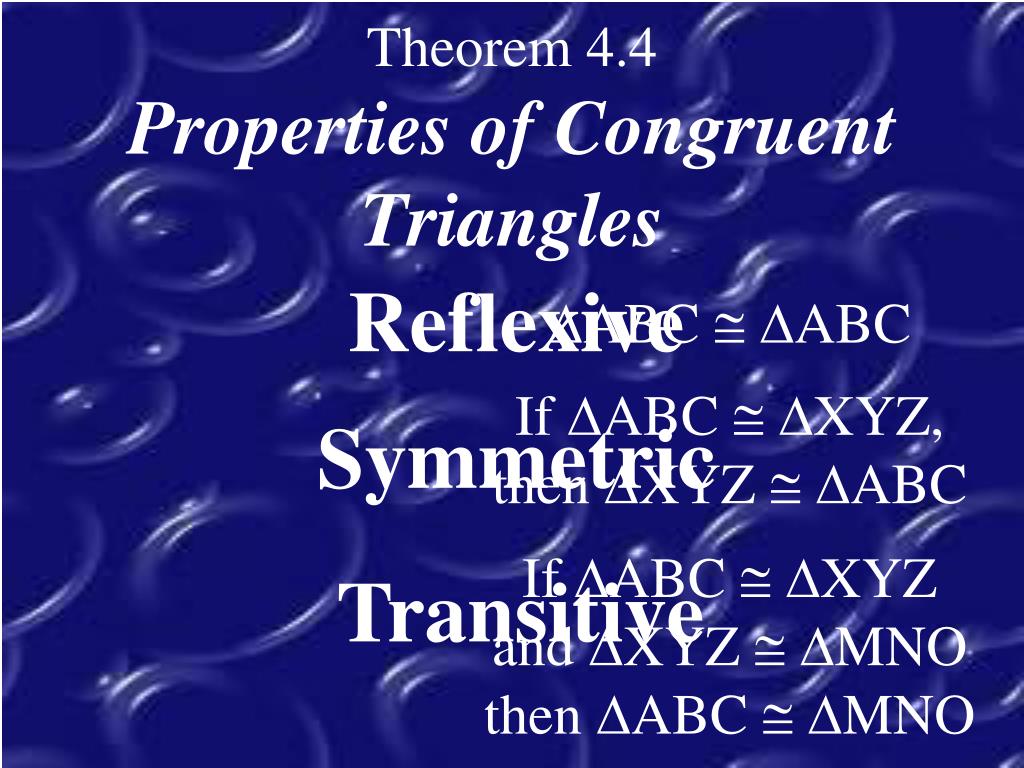

  35. Theorem 4.4Properties of Congruent Triangles ABC  ABC Reflexive If ABC  XYZ, then XYZ  ABC Symmetric Transitive If ABC  XYZ and XYZ  MNO then ABC  MNO

  36. Lesson 4.3Proving Triangles are Congruent Today, you will learn to… * prove that triangles are congruent * use congruence postulates to solve problems

  37. SSS Experiment Using 3 segments, can you ONLY create 2 triangles that are congruent?

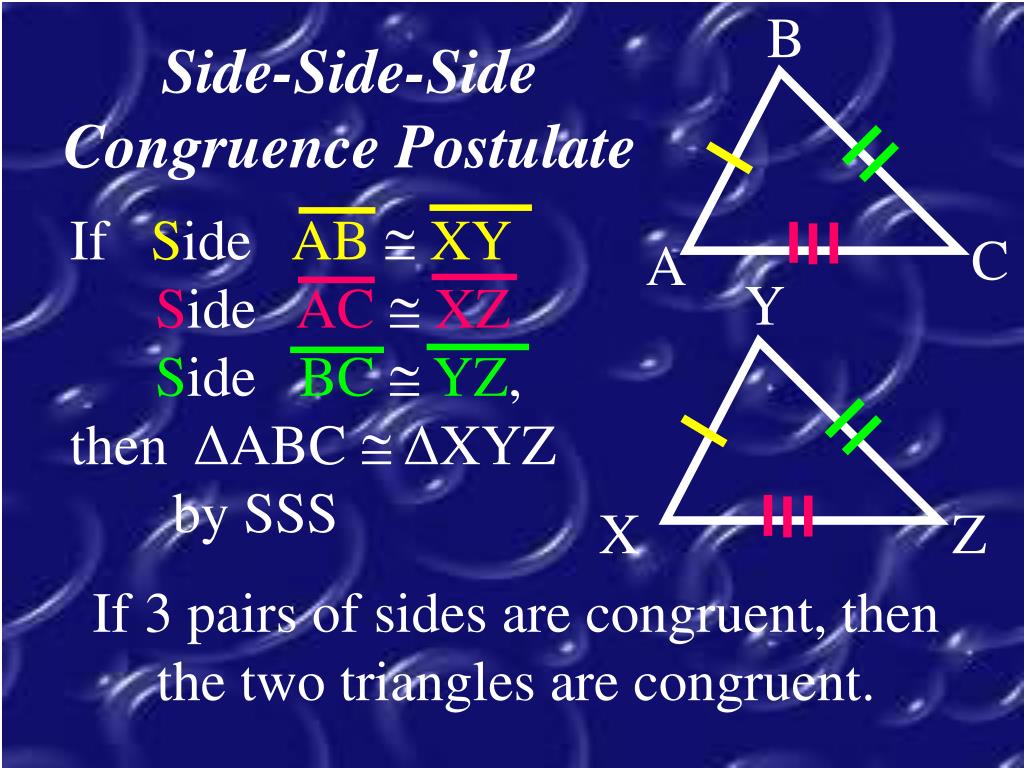

  38. B C A Y X Z Side-Side-Side Congruence Postulate If Side AB XY Side AC  XZ Side BC  YZ, then ΔABC  ΔXYZ by SSS If 3 pairs of sides are congruent, then the two triangles are congruent.

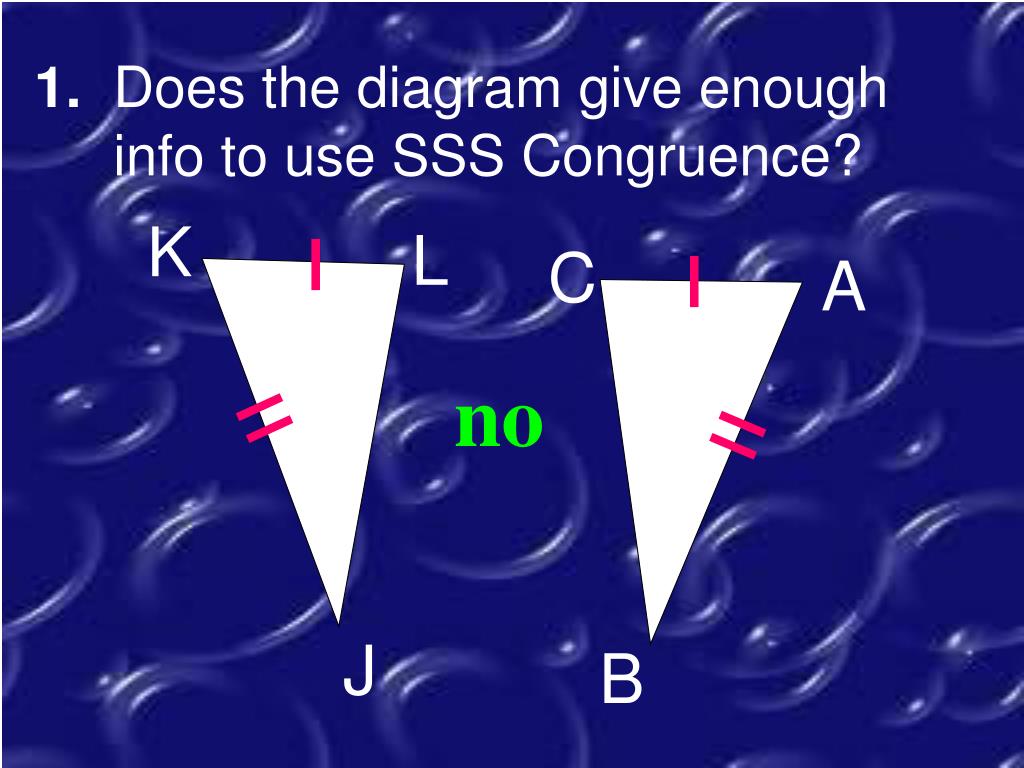

  39. 1. Does the diagram give enough info to use SSS Congruence? K L C A no J B

  40. Given: LN  NP and M is the midpoint of LP Prove:ΔNLM ΔNPM LM  MP NM  NM 2. N L P M Def of midpoint Reflexive Property NLM  NPM SSS Congruence

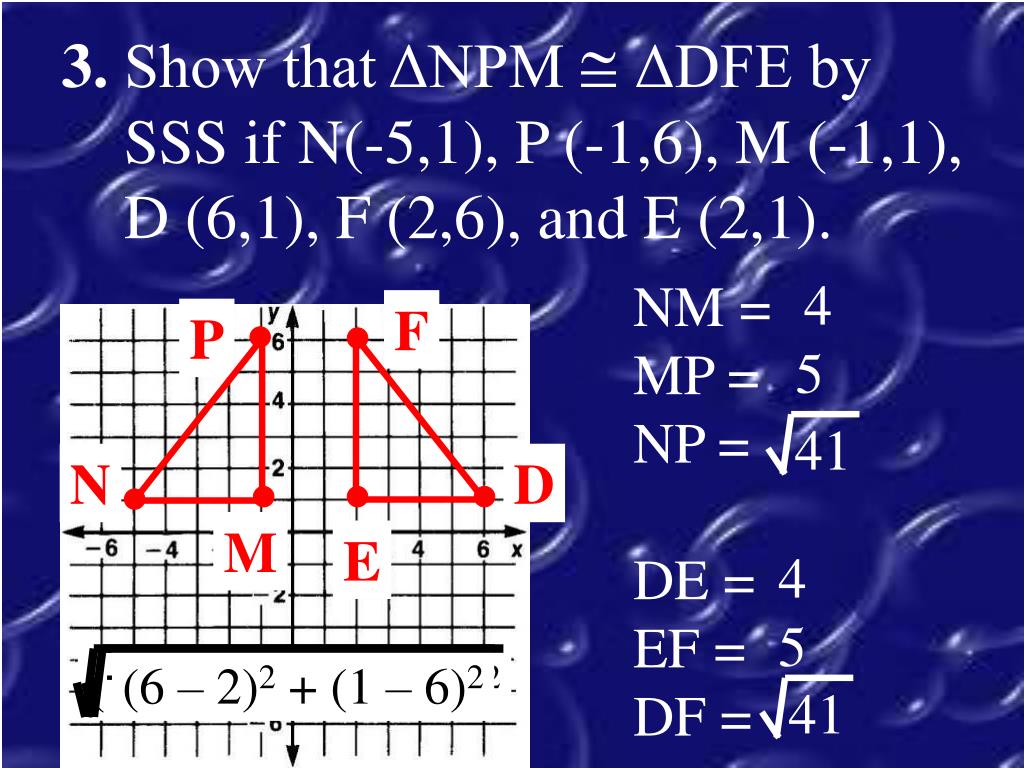

  41. F P 41 41 N D M E (- 5 – - 1)2 + (1 – 6)2 (6 – 2)2 + (1 – 6)2 3. Show that ΔNPM  ΔDFE by SSS if N(-5,1), P (-1,6), M (-1,1), D (6,1), F (2,6), and E (2,1). 4 NM = MP = NP = DE = EF = DF = 5 4 5

  42. SAS Experiment Using 2 congruent segments and 1 included angle, can you ONLY create 2 triangles that are congruent?

  43. B If Side AB XY Angle B  Y Side BC  YZ, then ΔABC  ΔXYZ by SAS C A Y X Z Side-Angle-Side Congruence Postulate If 2 pairs of sides and their included angle are congruent, then the two triangles are congruent.

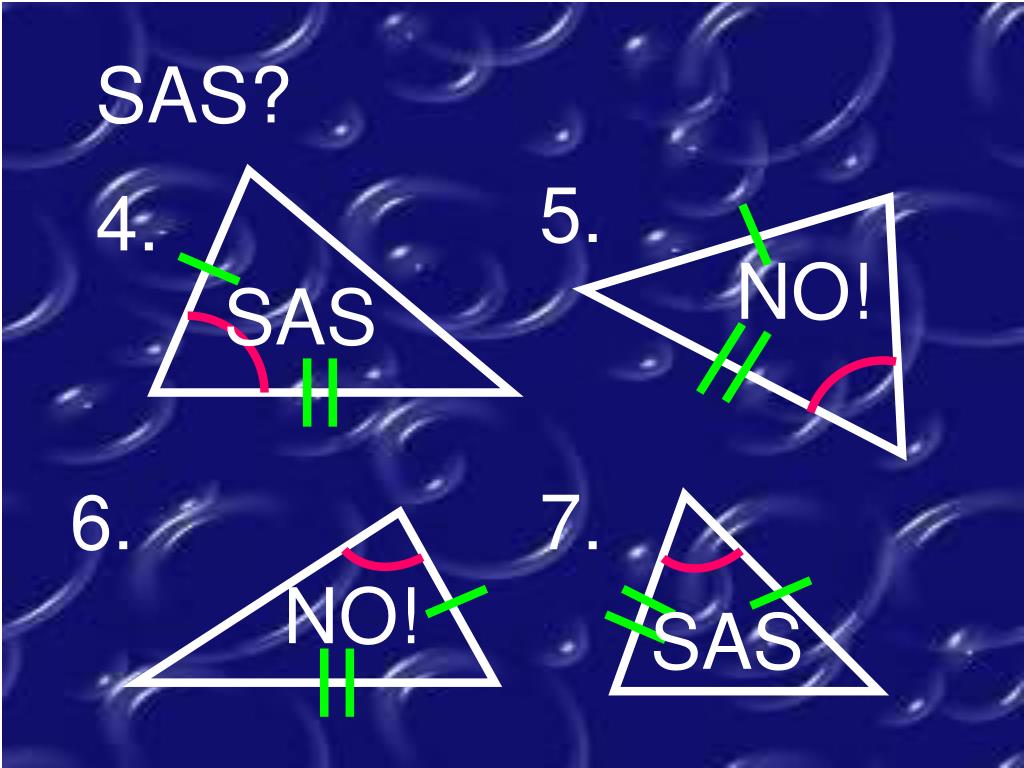

  44. SAS? 5. 4. NO! SAS 6. 7. NO! SAS

  45. A B C D 8. Does the diagram give enough info to use SAS Congruence? A C D

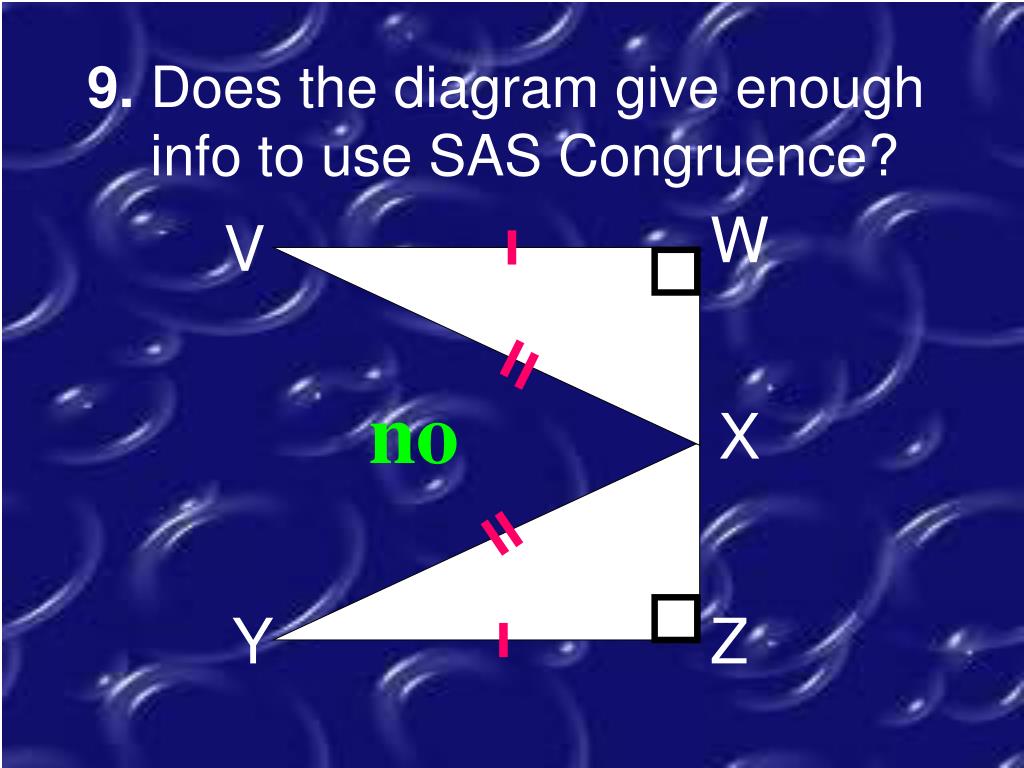

  46. 9. Does the diagram give enough info to use SAS Congruence? W V no X Y Z

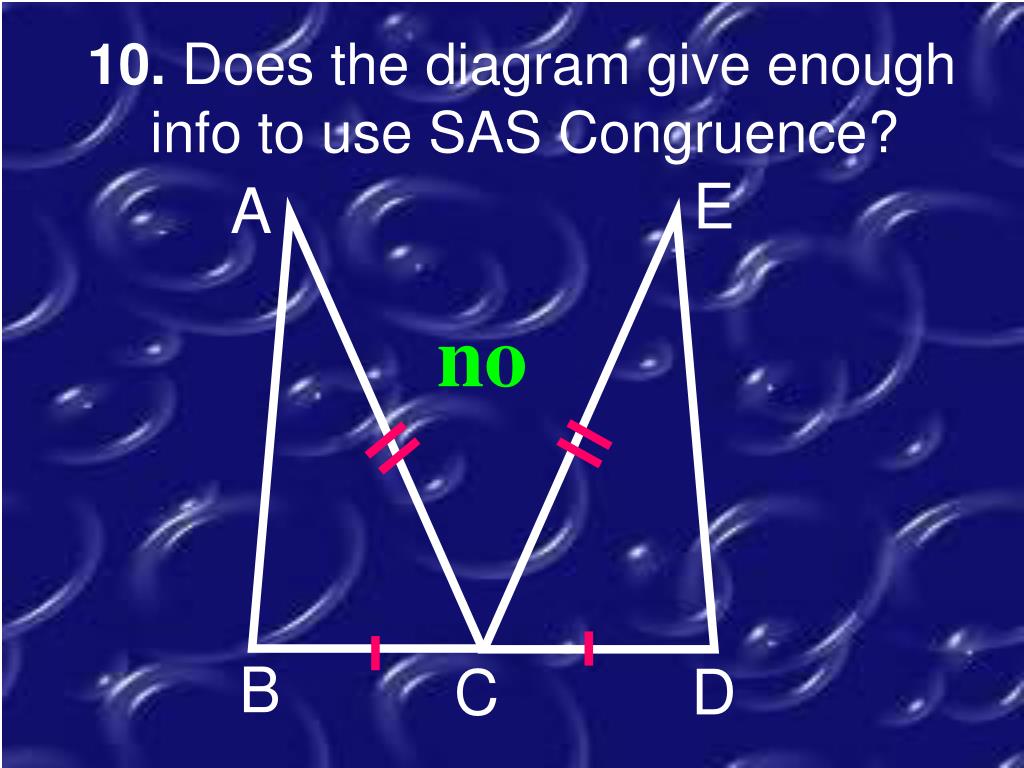

  47. 10. Does the diagram give enough info to use SAS Congruence? E A no B D C

  48. V X W Z VW  WY and ZW  WX Y 11. Given: W is the midpoint of VY and the midpoint of ZX Prove:ΔVWZ ΔYWX Def. of midpoint VWZ YWX Vertical Angles Th VWZ  YWX SAS Congruence

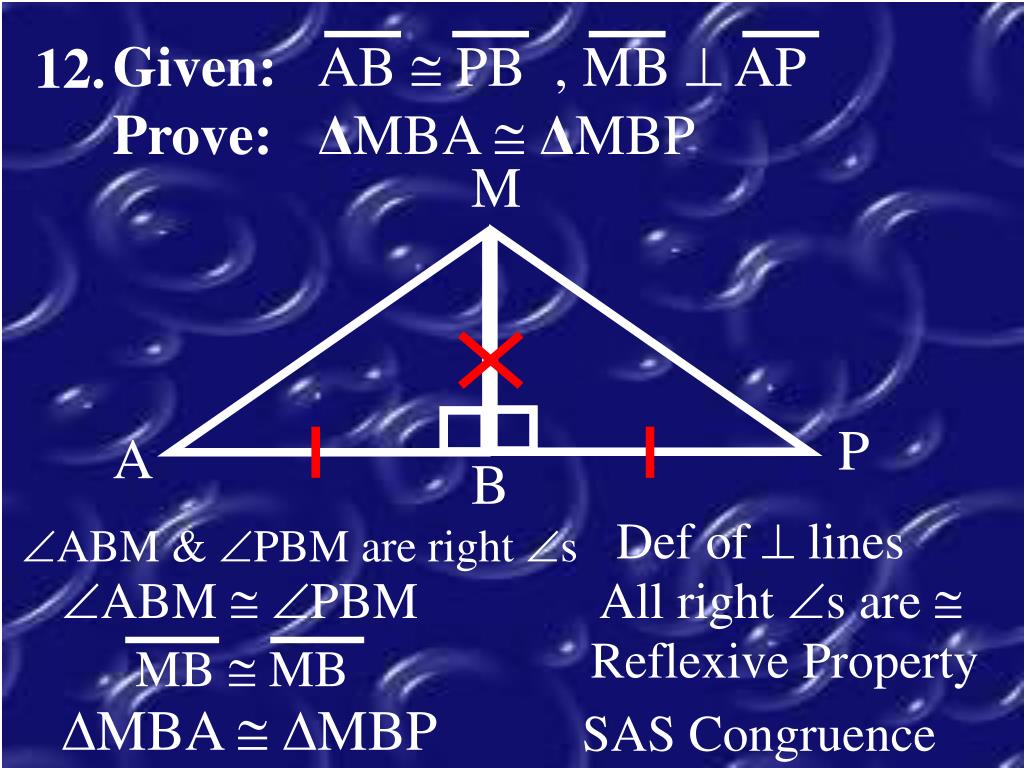

  49. Given: AB  PB , MB  AP Prove:ΔMBA ΔMBP MB  MB 12. M P A B Def of  lines ABM & PBM are right s ABM  PBM All right s are  Reflexive Property MBA  MBP SAS Congruence
