Spark: A Parallelizing Compiler Framework for High-Level System Synthesis

Spark is a compiler framework developed at the University of California, Irvine, that focuses on parallelizing code motions to significantly reduce schedule length. It includes techniques such as hierarchical code motions, reverse speculation, resource-directed loop pipelining, and more, aimed at extracting parallelism and improving throughput in high-level system synthesis tasks. The framework also studies the effects of code motions on various metrics and aims to reduce controller complexity. Spark has been prototyped with real-life applications and supports synthesizable RTL VHDL outputs.

yuli-davidson
Télécharger la présentation

Spark: A Parallelizing Compiler Framework for High-Level System Synthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

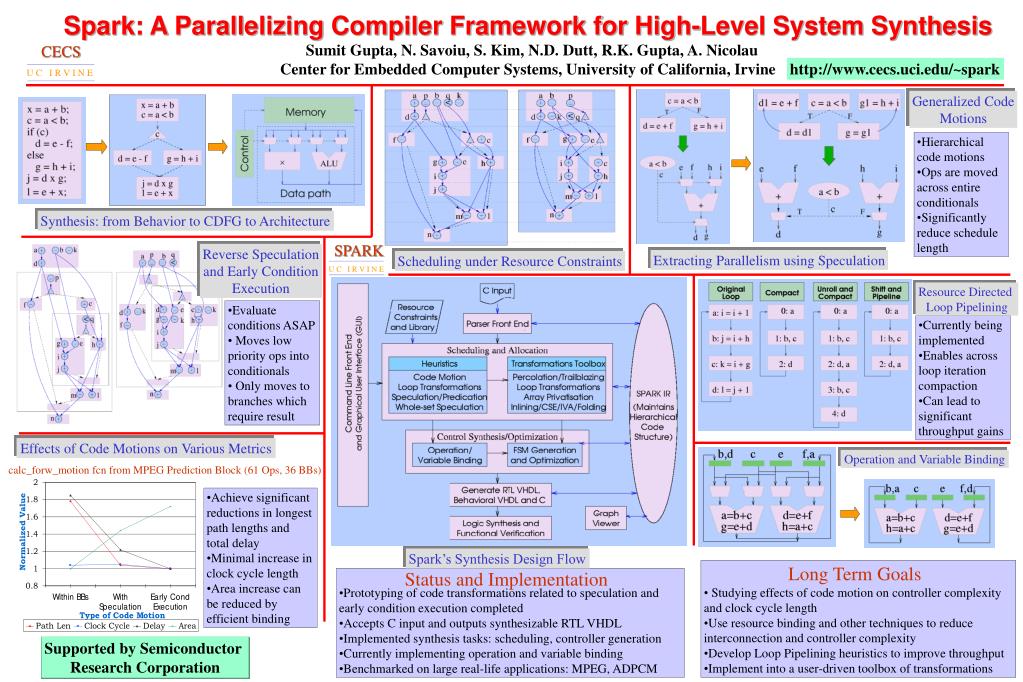

  1. SPARK U C I R V I N E CECS U C I R V I N E Spark: A Parallelizing Compiler Framework for High-Level System Synthesis Sumit Gupta, N. Savoiu, S. Kim, N.D. Dutt, R.K. Gupta, A. Nicolau Center for Embedded Computer Systems, University of California, Irvine http://www.cecs.uci.edu/~spark Generalized Code Motions • Hierarchical code motions • Ops are moved across entire conditionals • Significantly reduce schedule length Synthesis: from Behavior to CDFG to Architecture Reverse Speculation and Early Condition Execution Extracting Parallelism using Speculation Scheduling under Resource Constraints Resource Directed Loop Pipelining • Evaluate conditions ASAP • Moves low priority ops into conditionals • Only moves to branches which require result • Currently being implemented • Enables across loop iteration compaction • Can lead to significant throughput gains Effects of Code Motions on Various Metrics Operation and Variable Binding calc_forw_motion fcn from MPEG Prediction Block (61 Ops, 36 BBs) • Achieve significant reductions in longest path lengths and total delay • Minimal increase in clock cycle length • Area increase can be reduced by efficient binding Spark’s Synthesis Design Flow • Studying effects of code motion on controller complexity and clock cycle length • Use resource binding and other techniques to reduce interconnection and controller complexity • Develop Loop Pipelining heuristics to improve throughput • Implement into a user-driven toolbox of transformations Long Term Goals Status and Implementation • Prototyping of code transformations related to speculation and early condition execution completed • Accepts C input and outputs synthesizable RTL VHDL • Implemented synthesis tasks: scheduling, controller generation • Currently implementing operation and variable binding • Benchmarked on large real-life applications: MPEG, ADPCM Supported by Semiconductor Research Corporation
