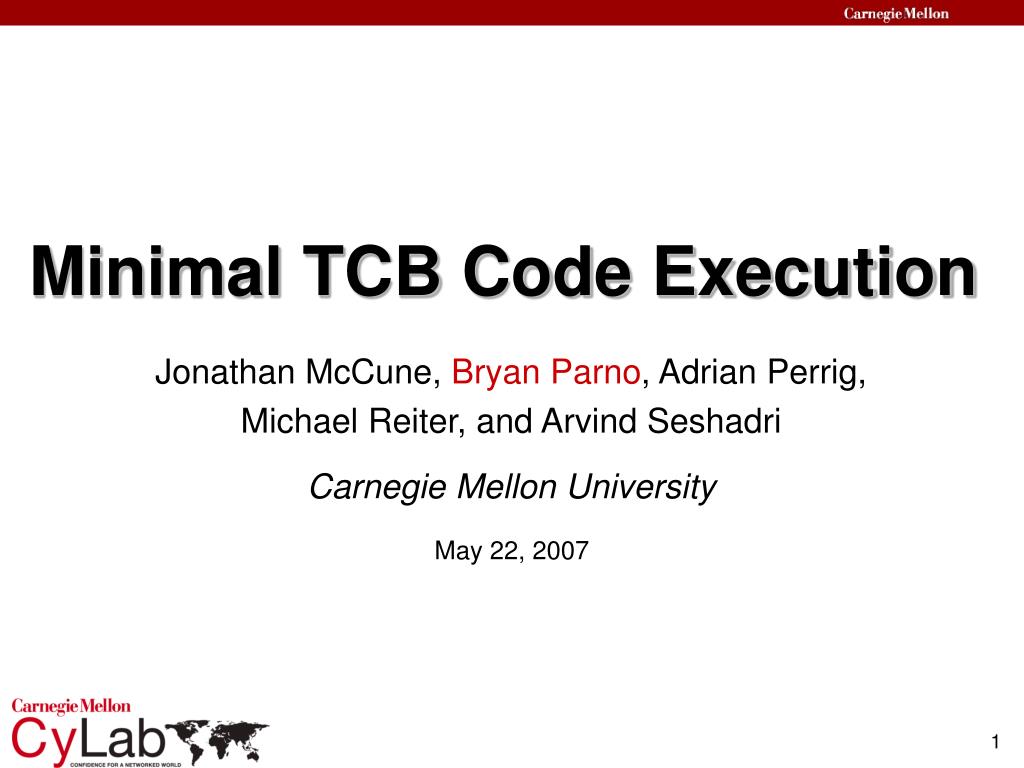

  1. Minimal TCB Code Execution Jonathan McCune, Bryan Parno, Adrian Perrig, Michael Reiter, and Arvind Seshadri Carnegie Mellon University May 22, 2007

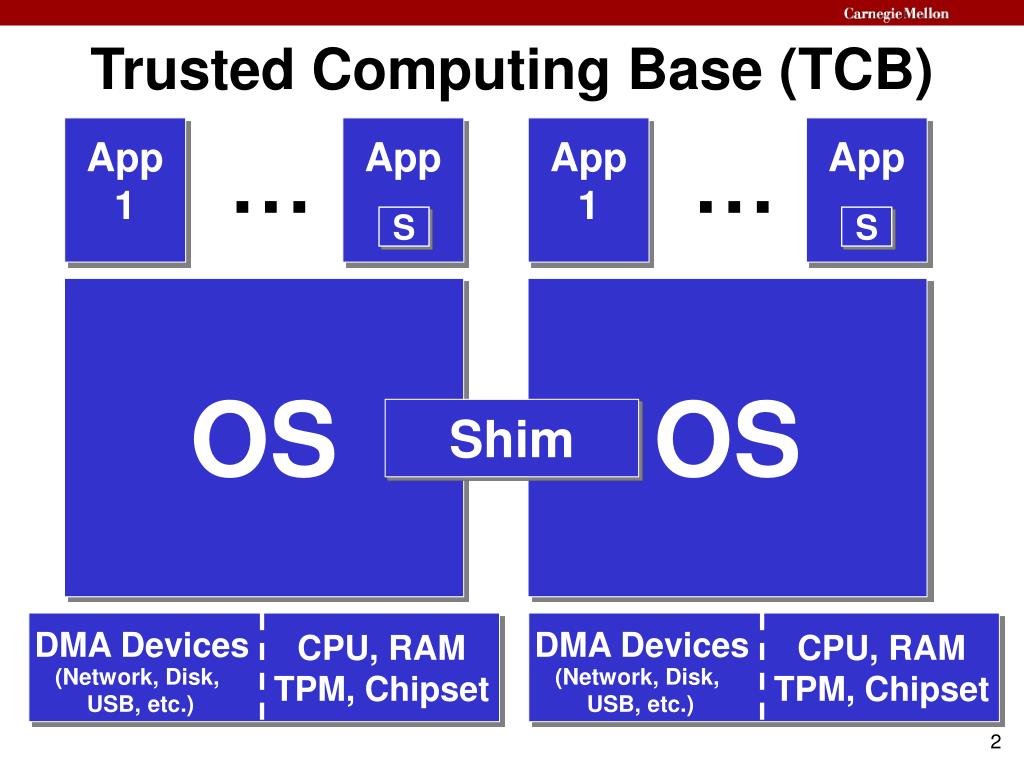

  2. Trusted Computing Base (TCB) … … App 1 App App 1 App S S OS OS Shim DMA Devices DMA Devices CPU, RAM TPM, Chipset CPU, RAM TPM, Chipset (Network, Disk, USB, etc.) (Network, Disk, USB, etc.)

  3. Contributions • Isolate security-sensitive code execution from all other code and devices • Attest to security-sensitive code and its arguments and nothing else • Convince a remote party that security-sensitive code was protected • Add < 250 LoC to the software TCB S Software TCB < 250 LoC Shim

  4. TPM Background • The Trusted Platform Module (TPM) is a dedicated security chip • It can provide an attestation to remote parties • Platform Configuration Registers (PCRs) summarize the computer’s software state • TPM provides a signature over PCR values • TPM spec v1.2 includes dynamic PCRs • Values can be reset without a reboot

  5. Late Launch Background • Supported by new commodity CPUs • SVM for AMD • TXT (formerly LaGrande) for Intel • Designed to launch a VMM without a reboot • Hardware-based protections ensure launch integrity • New CPU instruction (SKINIT/SENTER) accepts a memory region as input and atomically: • Resets dynamic PCRs • Disables interrupts • Extends a measurement of the region into PCR 17 • Begins executing at the start of the memory region

  6. Adversary Capabilities … App 1 App • Run arbitrary code with maximum privileges • Subvert any DMA-enabled device • E.g., network cards, USB devices, hard drives • Perform limited hardware attacks • E.g., power cycle the machine • Excludes physically monitoring/modifying CPU-to-RAM communication OS S Shim DMA Devices CPU, RAM TPM, Chipset (Network, Disk, USB, etc.)

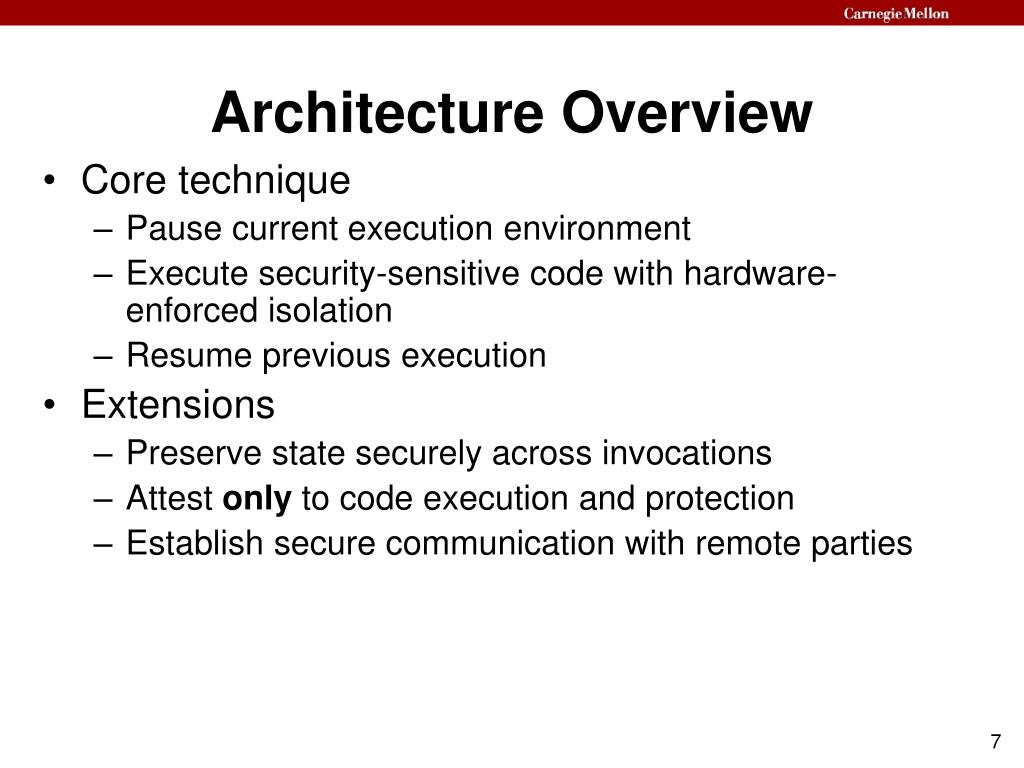

  7. Architecture Overview • Core technique • Pause current execution environment • Execute security-sensitive code with hardware-enforced isolation • Resume previous execution • Extensions • Preserve state securely across invocations • Attest only to code execution and protection • Establish secure communication with remote parties

  8. App RAM OS Module S Shim SKINIT Reset Execution Flow App OS Outputs Inputs 0 0 0 Module Module S Shim TPM … PCRs: CPU K-1

  9. S Shim Attestation TPM PCRs: Inputs … Outputs K-1 TPM … PCRs: K-1

  10. App App 1 App 2 App 3 App 4 App 5 … S OS TPM PCRs: 0 0 0 Inputs What code are you running? S … Shim Outputs Inputs Outputs K-1 S ( ) Shim Sign , K-1 ( ) Sign , K-1 Attestation Versus

  11. Potential Applications • Server applications • Password authentication, SSL keys, Certificate Authority (CA), etc. • Verifiable distributed computing • SETI@Home, Folding@Home, distcc, etc. • Client-side applications • Secure password entry

  12. Ongoing Work • Extracting security-sensitive code from existing applications • Containing malicious or malfunctioning security-sensitive code • Coping with slow security-sensitive code • Creating a trusted path to the user

  13. Related Work • Secure coprocessors • Dyad [Yee 1994], IBM 4758 [JiSmiMi 2001] • System-wide attestation • Secure Boot[ArFaSm 1997],IMA [SaZhJaDo 2004],Enforcer [MaSmWiStBa 2004] • VMM-based isolation • BIND[ShPeDo2005],AppCores [SiPuHaHe 2006],Trustworthy Kiosks [GaCáBeSaDoZh 2006],Proxos [TaLiLi 2006]

  14. Conclusions • Explore how far an application’s TCB can be minimized • Isolate security-sensitive code execution • Provide fine-grained attestations • Allow application writers to focus on the security of their own code

  15. Thank you! parno@cmu.edu
