  1. Cisco Unified AccessCisco Mobility Vision, Strategy, and Portfolio JeevanPatil Senior Product Line Manager Wireless Networking Group

  2. Agenda 1 Cisco’s Mobility Vision 2 Mobility Differentiators 3 Mobility Roadmap 4 Controller and Access Point Portfolio 5 Mobility Services Portfolio

  3. Cisco Mobility Innovation LeadershipLed Every Major Change in Mobility/WLAN for 15 Years 802.11ac Wave 2 802.11ad Hotspot 2.0 Local Services Discovery IPv6 802.11ac Virtualization App visibility Unified Policy and Network Management 802.11n and Spectrum Intelligence Controller and Coordinated Access Points Autonomous Access Points RF resiliency, WLAN Scale, High Client Density Standards Leadership (IEEE, WFA, WBA) AP Mechanical Design 2015 1997 Wi-Fi Requirements

  4. Cisco Mobility Differentiators Policy and Network Management Mobility/RF Innovation Predictability and Reliability • Award Wining Design Purpose-Built Wi-Fi Chipset with 4x4 MIMO, with robust platform No Open Vents Who? What? When? Where? How? • ClientLink Best-in-class performance to a/g/n clients Chip level proactive and automatic interference mitigation • CleanAir ISE Control First to introduce 802.11r, 802.11wand 802.11ac • Standards • VideoStream Optimized multicast to unicast Stateful fail-over Sub second failover to hot standby controller • AVC Classification andpolicies on 1000+ Apps Prime Infrastructure Visibility MSE and Thinksmart Analytics that aid business decisions Meaningful Interaction with your customers

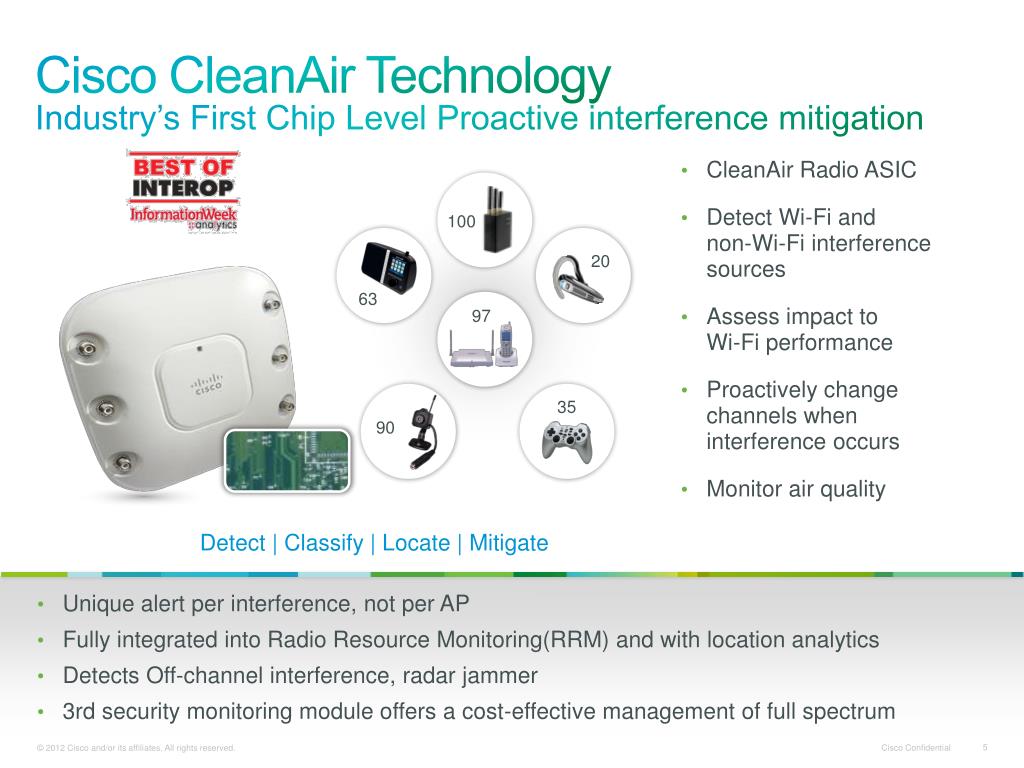

  5. Cisco CleanAir TechnologyIndustry’s First Chip Level Proactive interference mitigation • CleanAir Radio ASIC • Detect Wi-Fi and non-Wi-Fi interference sources • Assess impact to Wi-Fi performance • Proactively change channels when interference occurs • Monitor air quality 100 20 63 97 35 90 Detect | Classify | Locate | Mitigate • Unique alert per interference, not per AP • Fully integrated into Radio Resource Monitoring(RRM) and with location analytics • Detects Off-channel interference, radar jammer • 3rd security monitoring module offers a cost-effective management of full spectrum

  6. Cisco ClientLink 2.0 TechnologyAdvanced BeamForming improves wireless client performance AFTER Beam Directed Towards Client Resulting in a Consistent Experience and Better Performance BEFORE Manual RF Management Beacon Rate 6 Mbps 6 Mbps 65 Mbps 65 Mbps 150 Mbps 150 Mbps 300 Mbps 300 Mbps Connection Rate 450 Mbps 450 Mbps • Highest data-rates for 802.11a/g/11n clients over the coverage area leads to: • Lower coverage holes • Transferring data at higher throughput conserves client battery life of smartphone • 100+ clients supported per radio in hardware

  7. Cisco VideoStream TechnologyWired-Like Video Delivery over Wireless BEFORE Manual RF Management AFTER Dynamic RF Management GlobalEnterprise CEOMeeting CEOMeeting SportsEvent SportsEvent M&ANegotiation M&ANegotiation • Cisco supports 40+ Videostream sessions per Access Point 2600, 3600 (2x competition) • Tested for 30x Less Bandwidth Consumed

  8. Availability in1HCY13 AP3600: Investment Protection802.11ac Wave 1 Module • Field upgradable 802.11ac module • 5 GHz radio module, 802.11ac Wave 1 • 1.3 Gbps PHY/~900 Mbps MAC (throughput) • Three spatial streams, 80 MHz, 256 QAM • AP3600 maintains dual-band support 2.4 and 5 GHz • Supporting b/g/n on 2.4 GHz base radio, a/n on 5 GHz base radio, and AC on 5 GHz module radio • CleanAir and ClientLink 2.0 maintained • 15.4W < Power requirement with the 802.11ac module installed < 20W

  9. 802.11ac Dx.0 ratified 802.11ac D3.0 balloted Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 2011 2012 2013 2014 80 MHz 256QAM 1-3 SS Estimates only Wave 1certified 160 MHz 1-4 SS MU-MIMO? Wave 2certified 9

  10. Cisco Aironet 802.11n + 802.11ac Access Point Portfolio Bestin Class Mission Critical 3600 Enterprise Ready 2600 • High Client Density • HD Video/VDI • Investment Protection • 11ac Migration • ComprehensiveSecurity TELEWORKERReady • Any Device / BYOD Optimized • Client Scalability • RF Interference Mitigation 1600 600 • Enterprise-class Performance • Voice/Video/Multimedia • Basic Connectivity • Deployment Flexibility • SP WiFi, Emerging, Teleworker

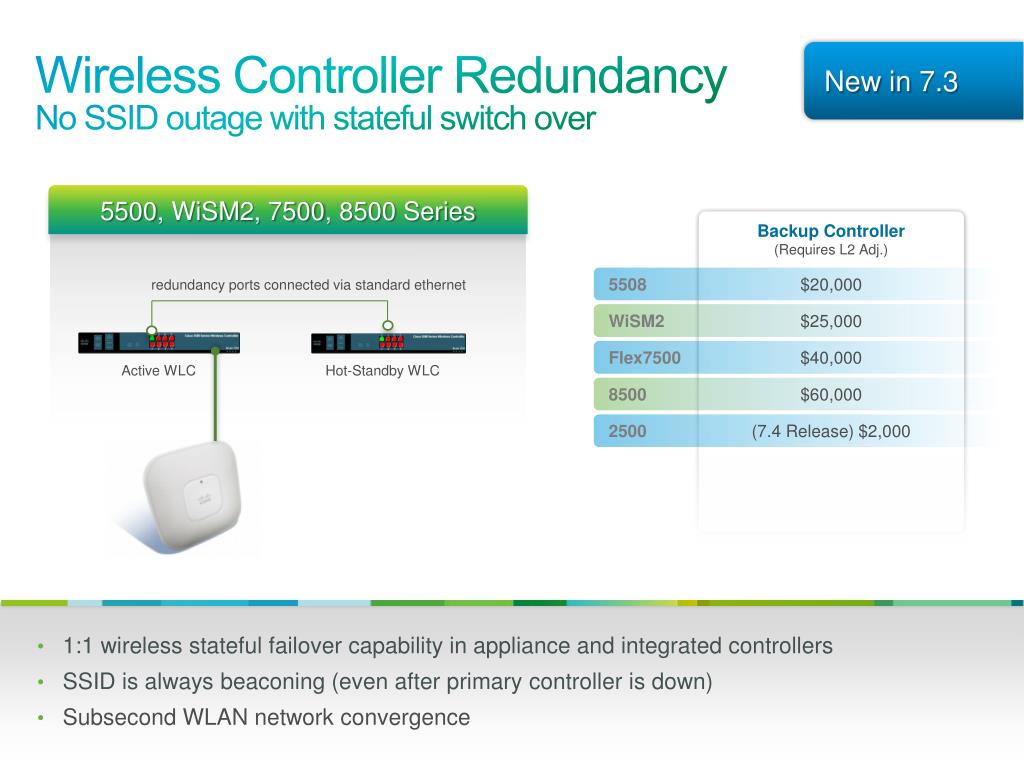

  11. Wireless Controller RedundancyNo SSID outage with stateful switch over New in 7.3 5500, WiSM2, 7500, 8500 Series Backup Controller (Requires L2 Adj.) 5508 $20,000 redundancy ports connected via standard ethernet WiSM2 $25,000 Flex7500 $40,000 Active WLC Hot-Standby WLC 8500 $60,000 2500 (7.4 Release) $2,000 • 1:1 wireless stateful failover capability in appliance and integrated controllers • SSID is always beaconing (even after primary controller is down) • Subsecond WLAN network convergence

  12. Cisco’s Application Visibility & Control New in 7.4 Identify standard ports, L7 Deep Packet Inspection and Heuristics AFTER Network Based Application Recognition - NBAR2Deep Packet Inspection and App ID BEFORE Application View & Control based on Firewall sessions Wireless LAN Controller Visibility to the port level interaction but not the applications running within the port Netflix = 50% YouTube = 15% WebEx = 10% Citrix = 9% exchange= 8% HTTP = 75% SMTP = 15% FTP = 2% Telnet = 1% SNMP = 3% Traffic NBAR2 LIBRARY Deep Packet inspection First Generation Firewall POLICY Packet Mark and Drop Netflow v9 export • Classify 1000+ applications with sub-classification within applications: e.g. Lync– desktop share, video/voice, file transfer • Apply Granular policies - Per SSID, Device, Campus, Building, Floor • Real-time troubleshooting on the Wireless LAN Controller • Wired-wireless consistent export to standard netflow collectors

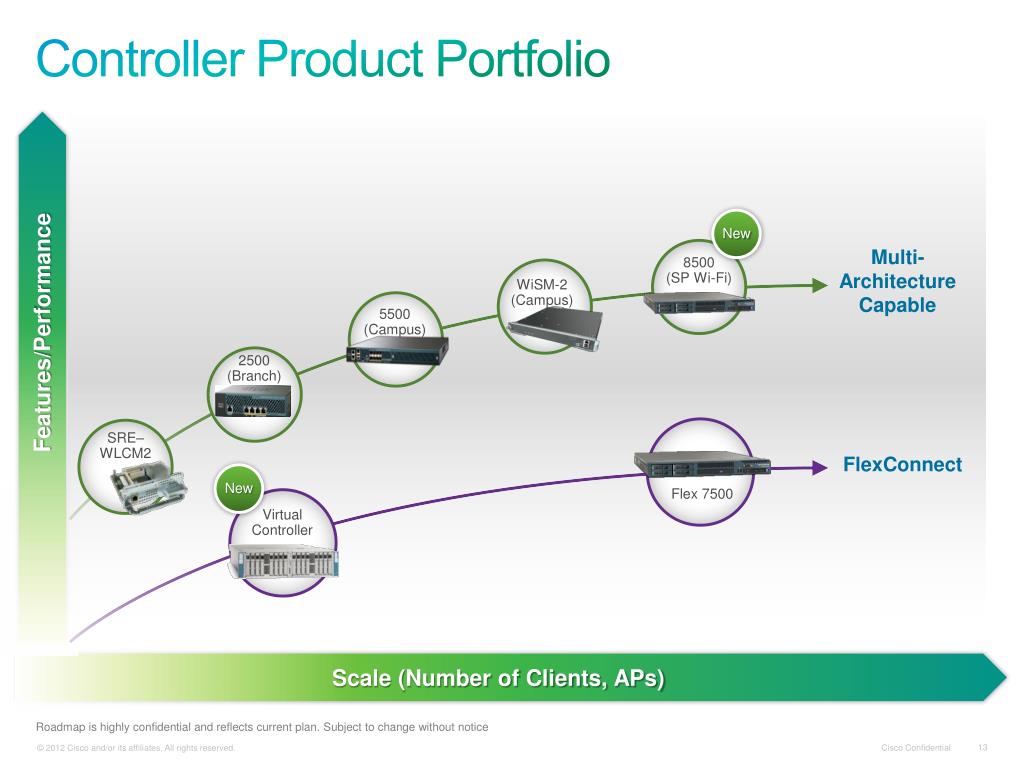

  13. Controller Product Portfolio New Multi-Architecture Capable 8500 (SP Wi-Fi) WiSM-2 (Campus) 5500 (Campus) Features/Performance 2500 (Branch) SRE–WLCM2 FlexConnect New Flex 7500 VirtualController Scale (Number of Clients, APs) Roadmap is highly confidential and reflects current plan. Subject to change without notice

  14. Mobility Services Engine (MSE) Overview Advanced Spectrum Capability Indoor Location / Context-Aware • Real time location tracking • Tracking probing & associated clients, RF tags & wired endpoints • Geo fencing / Zone based alerts • Location Analytics • System wide Interferer details • Event correlation • Visualization of interferer zone of impact • Interferer notification • Track & Trace interferers & Layer 1 threats Mobile Concierge* Wireless Intrusion Prevention Physical & Virtual Appliance MSE tracks up to 50,000 endpoints & supports 10,000 Monitor Mode or ELM AP • Detection & Mitigation of security penetration attacks • Detection & Mitigation of denial of service attacks • Capability supported in Monitor Mode & data serving AP (Enhanced Local Mode -ELM) • Detecting Presence • Delivering location based services * Roadmap

  15. Analytics that aid business decisions New in 7.3 Which area did people spend time at? Peak times in the store? New or repeat customers? Most frequently used paths in the venue % of shoppers who walk by without entering

  16. Cisco Confidential—NDA Only In Planning Committed FY13 Roadmap - WNGWLAN Infrastructure September 2012 May 2012 Q1 CY13 Q2 CY13 Release 7.3 7.2MR1 7.4 8.0 AP1600 802.11n G2 AP 2600 802.11n G2 AP3600 11ac module Outdoor AP Internal Antenna AP3600 Security Module Outdoor AP Uni Band Antenna Mid-Market 1 Box Solution WLC 8500 Target customer - SP Application visibility and control (AVC) Outdoor AP Honeywell integration IPv6 infrastructure Profiling and Policy on WLC Virtual Controller Bonjour Gateway 802.11r L2 Fast Roaming Scale Flex7500 6K APs HA – Client SSO Unified Access WLAN Infrastructure Voice Enterprise Certification** HA SSO over any L2 connection HA - AP SSO HA Licensing Scale WLC 2500 ISE -Flex integration Flex / Local Mode parity with ISE FlexConnect Split Tunneling AP-based firewall HA Licensing, N:1 802.11r – Flex Modes 802.11w Mgmt Frame Protection LAG on Flex7500, WLC 8500, WLC 2500 Bi-directional rate-limiting Local andFlexConnect support on RAP PMIPv6 – AP-Based Guest Anchor on WLC2500 Voice/Video: 11n CAC FIPS, CC, UCAPL PMIPv6 on WLC **Voice Enterprise Certification targeted on a special release – FCS beyond 7.4

  17. Cisco Confidential—NDA Only In Planning Committed FY13 Roadmap - WNGMobility Services September 2012 May 2012 Q1 CY13 Q2 CY13 S/WRelease 7.3 7.2MR1 7.4 8.0 Improved location accuracy for CleanAir High Availability aWIPS Prevention Mobile Concierge Unified Access – WLAN Infrastructure Location Analytics II Virtual Appliance MSE 3355 Scaling Location Analytics I Scalability Improvements FIPS, CC, UCaPL Automated Switched port tracing MSE ELM Signature Parity Global Forensics Location Support for FLEX Better Rogue Classification, Containment, Detection AP 3600 Security Module Rogue Contain Enhancements II Rogue Detection Enhancements aWIPS Rogue Contain Enhancements Better Attack Mitigation for aWIPS (Location) Channel Scanning Optimization WiFi Direct detection & Classification New Signatures PI 2.1 (7.4 Support) PI 1.2 (7.3 Support) NCS 1.1 (7.2, 7.2 MR1) PI 2.2 (8.0 Support) PI releases AVC, Day 1 Device Support Northbound REST API Branch Router Mgmt (ISR / ASR) Prime 3rd Party Support IPv6 Support Mobile Concierge Support IPv6 Support Prime 360 Experience Guest Services Wired Config & Image Management Rougue Rules Customization FIPS, CC, DoD Certification ISR / ASR Mgmt Integration Reporting Enhancements Next Gen GUI FIPS Certification Support One Box Solution
