Section 4.3 – Riemann Sums and Definite Integrals

Section 4.3 – Riemann Sums and Definite Integrals. Riemann Sums. The rectangles need not have equal width, and the height may be any value of f ( x ) within the subinterval . 1. Partition (divide) [ a,b ] into N subintervals. 2. Find the length of each interval:.

yuma
Télécharger la présentation

Section 4.3 – Riemann Sums and Definite Integrals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

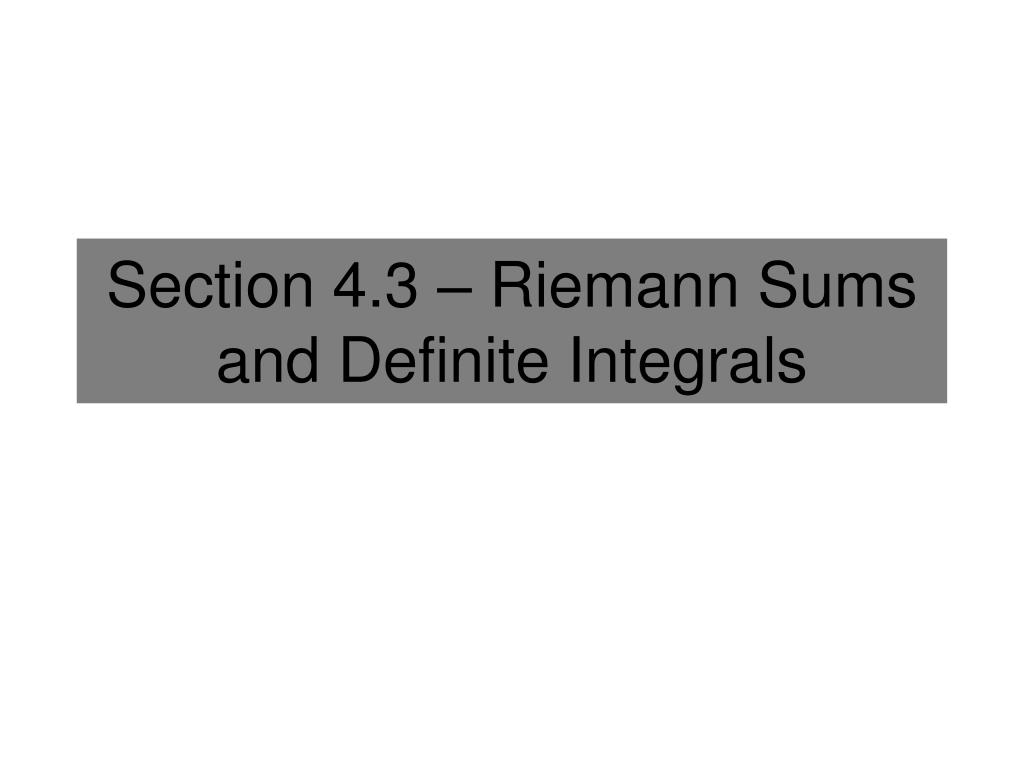

  1. Section 4.3 – Riemann Sums and Definite Integrals

  2. Riemann Sums The rectangles need not have equal width, and the height may be any value of f(x) within the subinterval. 1. Partition (divide) [a,b] into N subintervals. 2. Find the length of each interval: 3. Find any point ci in the interval [xi,xi-1]. ci cN c2 c1 c3 x2 a =x0 x3 x1 xi =xN 4. Construct every rectangle of height f(ci) and base Δxi. b 4. Find the sum of the areas.

  3. Riemann Sums The norm of P, denoted ││P││, is the maximum of the lengths Δxi. a b As ││P││ gets closer to 0, the sum of the areas of the rectangles is closer to the actual area under the curve

  4. Riemann Sums The norm of P, denoted ││P││, is the maximum of the lengths Δxi. a b As ││P││ gets closer to 0, the sum of the areas of the rectangles is closer to the actual area under the curve

  5. Definite Integral The definite integral of f(x) over [a,b], denoted by the integral sign, is the limit of Riemann sums: Where the limit exists, we say that f(x) is integrable over [a,b]. Upper limit of integration Lower limit of integration

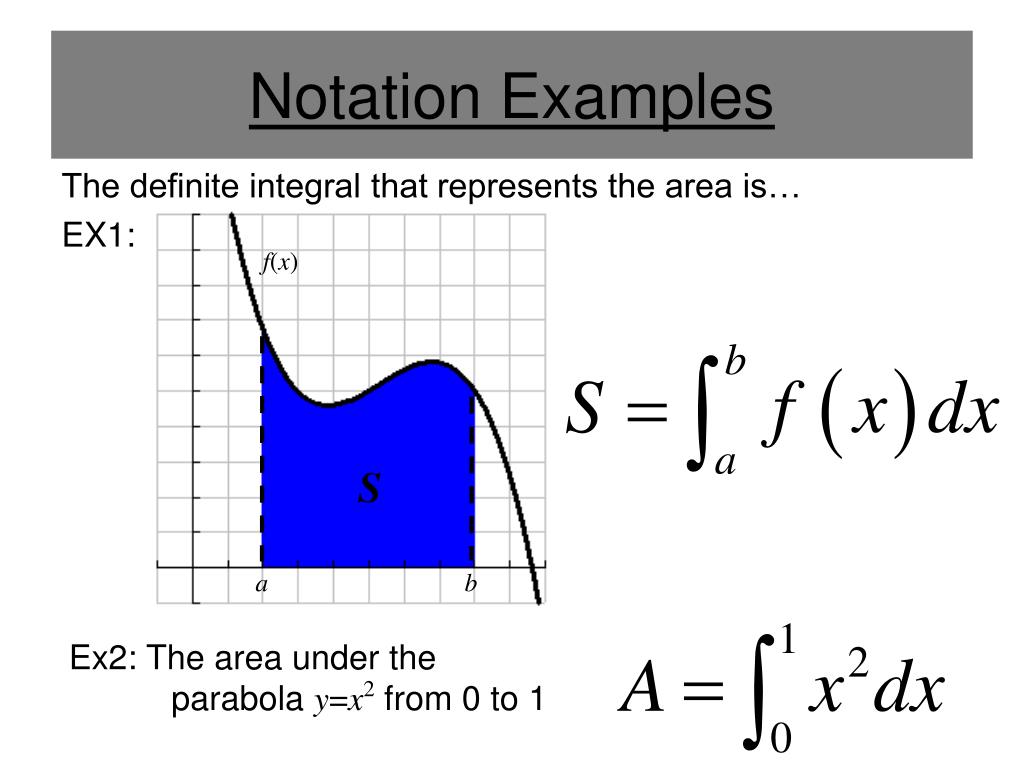

  6. Notation Examples The definite integral that represents the area is… EX1: f(x) S a b Ex2: The area under the parabola y=x2 from 0 to 1

  7. Theorem: The Existence of Definite Integrals If f(x)is continuous on [a,b], or if f(x) is continuous with at most finitely many jump discontinuities (one sided limits are finite but not equal), then f(x) is integrable over [a,b]. a b

  8. Negative Area or “Signed” Area If a function is less than zero for an interval, the region between the graph and the x-axis represents negative area. Positive Area Negative Area

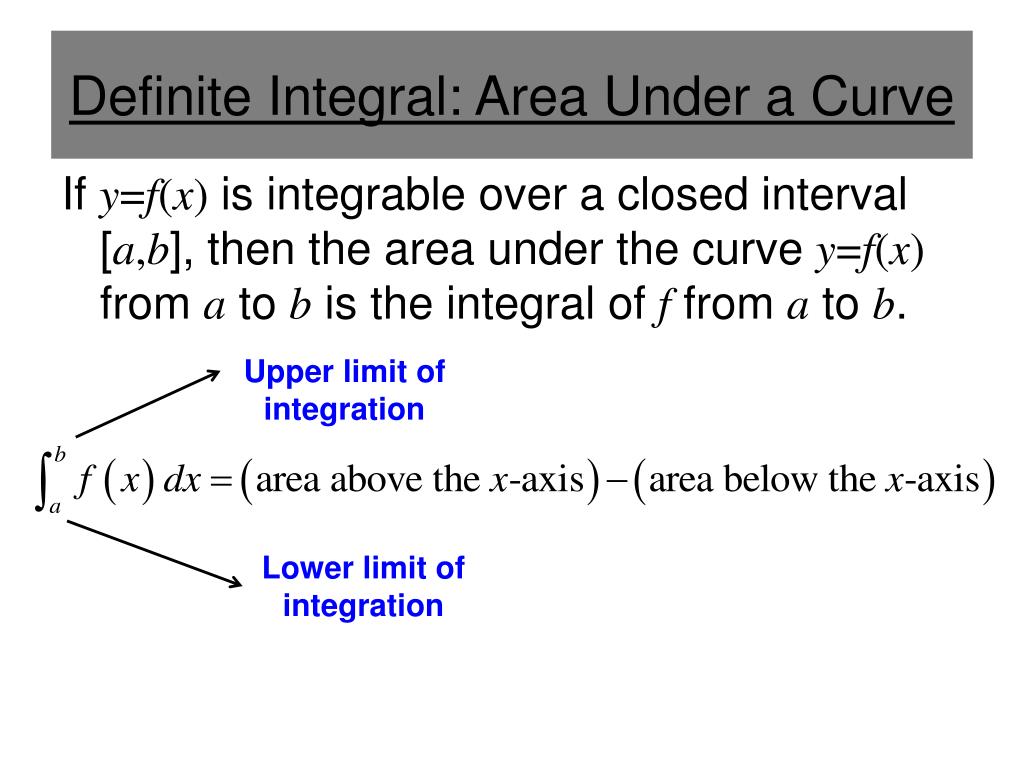

  9. Definite Integral: Area Under a Curve If y=f(x) is integrable over a closed interval [a,b], then the area under the curve y=f(x) from a to b is the integral of f from a to b. Upper limit of integration Lower limit of integration

  10. Example 1 Calculate .

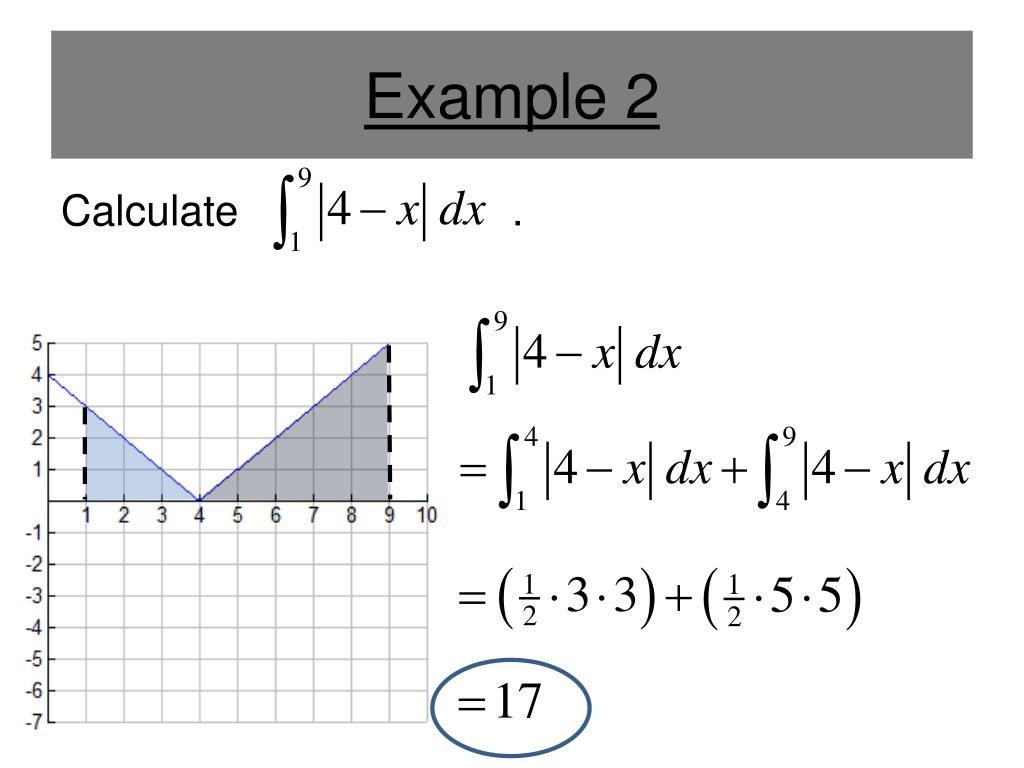

  11. Example 2 Calculate .

  12. Rules for Definite Integrals Let f and g be functions and x a variable; a, b, c, and k be constant.

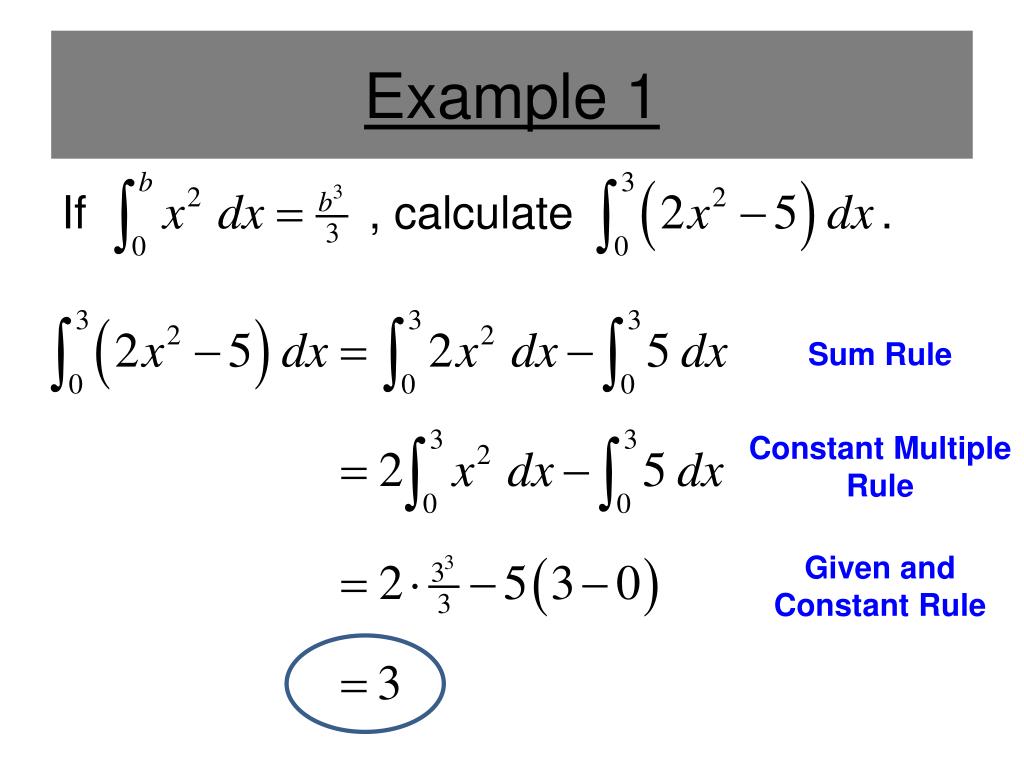

  13. Example 1 If , calculate . Sum Rule Constant Multiple Rule Given and Constant Rule

  14. Example 2 If , calculate . Additivity Rule Given
