Section 7.6 – Numerical Integration

Section 7.6 – Numerical Integration. I can integrate definite integrals using Left Hand Sum, Right Hand Sum, Midpoint Sum, and Trapezoidal Rule. Day 5:. Fill in the blank (try to do it using your memory):. 1. 2. 3. represents the area between the curve 3/x and the x-axis

aure
Télécharger la présentation

Section 7.6 – Numerical Integration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

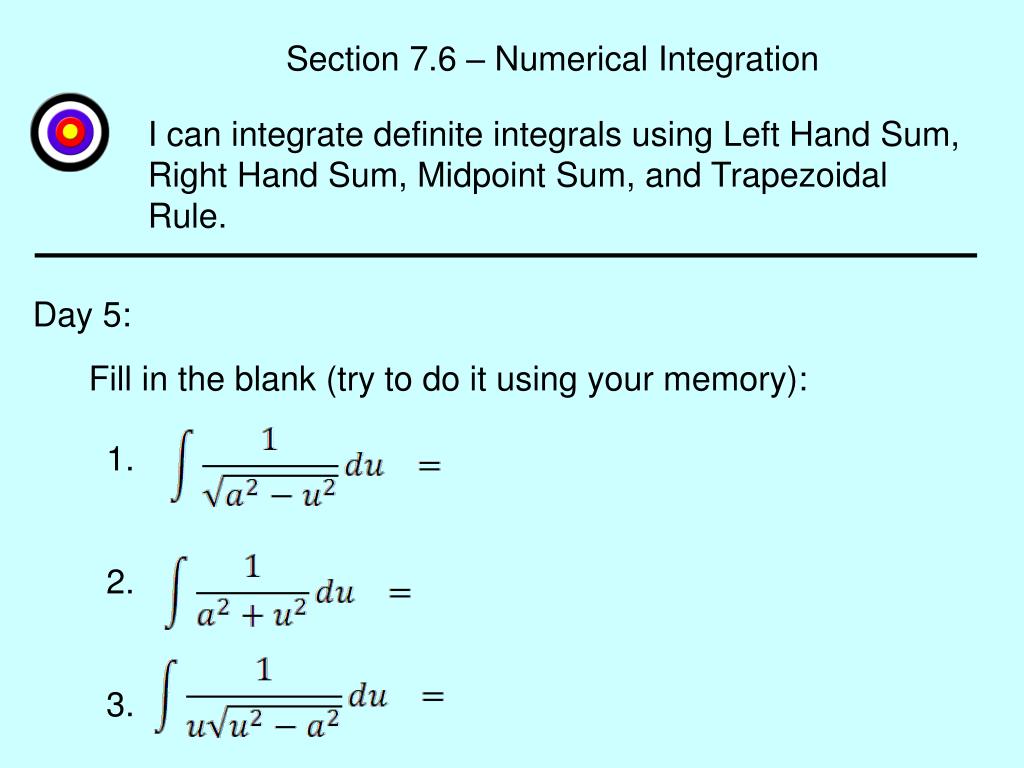

  1. Section 7.6 – Numerical Integration I can integrate definite integrals using Left Hand Sum, Right Hand Sum, Midpoint Sum, and Trapezoidal Rule. Day 5: Fill in the blank (try to do it using your memory): 1. 2. 3.

  2. represents the area between the curve 3/x and the x-axis from x = 4 to x = 8

  3. Four Ways to Approximate the Area Under a Curve With Riemann Sums Left Hand Sum Right Hand Sum Midpoint Sum Trapezoidal Rule

  4. Approximate using left-hand sums of four rectangles of equal width • Enter equation into y1 • 2nd Window (Tblset) • Tblstart: 4 • Tbl: 1 • 2nd Graph (Table)

  5. Approximate using right-hand sums of four rectangles of equal width • Enter equation into y1 • 2nd Window (Tblset) • Tblstart: 5 • Tbl: 1 • 2nd Graph (Table)

  6. Approximate using midpoint sums of four rectangles of equal width • Enter equation into y1 • 2nd Window (Tblset) • Tblstart: 4.5 • Tbl: 1 • 2nd Graph (Table)

  7. Approximate using trapezoidal rule with four equal subintervals • Enter equation into y1 • 2nd Window (Tblset) • Tblstart: 4 • Tbl: 1 • 2nd Graph (Table)

  8. Approximate using left-hand sums of four rectangles of equal width

  9. Approximate using trapezoidal rule with n = 4

  10. For the function g(x), g(0) = 3, g(1) = 4, g(2) = 1, g(3) = 8, g(4) = 5, g(5) = 7, g(6) = 2, g(7) = 4. Use the trapezoidal rule with n = 3 to estimate

  11. If the velocity of a car is estimated at estimate the total distance traveled by the car from t = 4 to t = 10 using the midpoint sum with four rectangles

  12. The graph of f is shown to the right. Which of the following Statements are true? A. I only B. II only C. I and II only D. II and III only E. I, II, III

  13. Consider the function f whose graph is shown below. Use the Trapezoid Rule with n = 4 to estimate the value of X X X X X A. 21 B. 22 C. 23 D. 24 E. 25

  14. A graph of the function f is shown to the right. Which of the statements are true? A. I only B. II only C. I and II only D. II and III only E. I, II, III

  15. CALCULATOR REQUIRED A. 22.6 B. 22.9 C. 23.2 D. 23.5 E. 23.8

  16. The graph of f over the interval [1, 9] is shown in the figure. Find a midpoint approximation with four equal subdivisions for X X X X A. 20 B. 21 C. 22 D. 23 E. 24

  17. CALCULATOR REQUIRED Let R be the region in the first quadrant enclosed by the x-axis and the graph of y = ln x from x = 1 to x = 4. If the Trapezoid rule with three subdivisions is used to approximate the area of R, the approximation is A. 1.242 B. 2.485 C. 4.970 D. 7.078 E. 14.156

  18. Trapezoidal Rule: Midpoint Rule

  19. CALCULATOR REQUIRED Determine how many subdivisions are required with the Midpoint Rule to approximate the integral below with error less than 0.001 152

  20. CALCULATOR REQUIRED Determine how many subdivisions are required with the Trapezoid Rule to approximate the integral below with error less than 0.01 26
