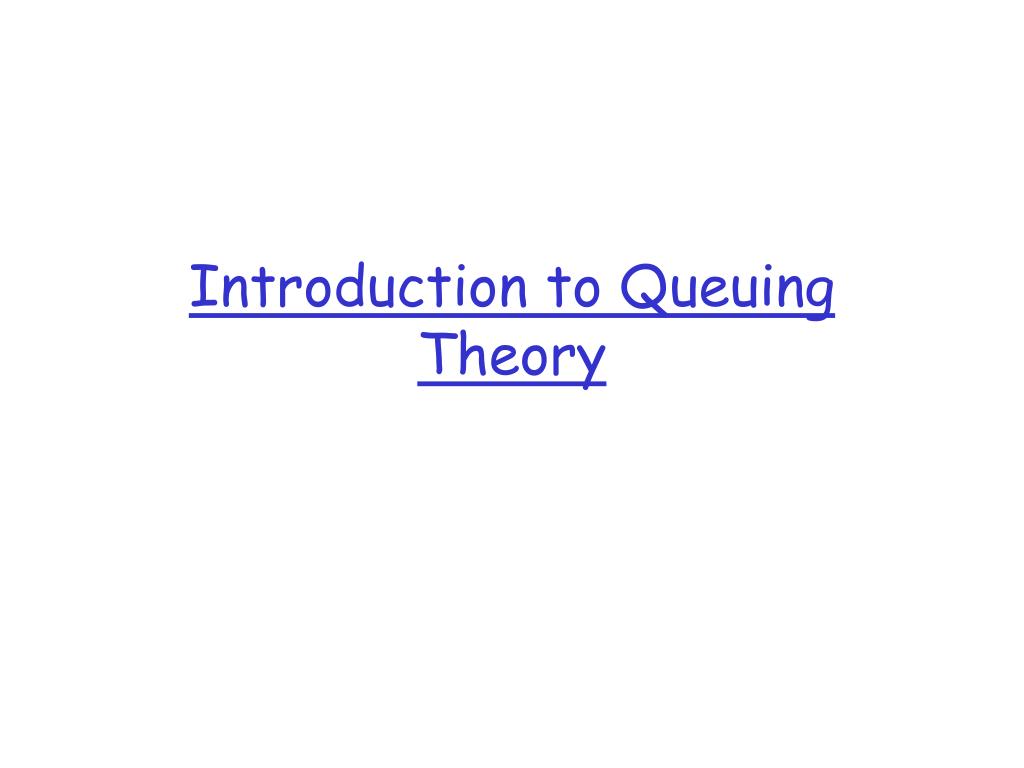

  1. Introduction to Queuing Theory

  2. Queuing theory definitions • (Kleinrock) “We study the phenomena of standing, waiting, and serving, and we call this study Queueing Theory." • (Mathworld) “The study of the waiting times, lengths, and other properties of queues.” http://www2.uwindsor.ca/~hlynka/queue.html

  3. Queuing theory for studying networks • View network as collections of queues • FIFO data-structures • Queuing theory provides probabilistic analysis of these queues • Examples: • Average length • Average waiting time • Probability queue is at a certain length • Probability a packet will be lost

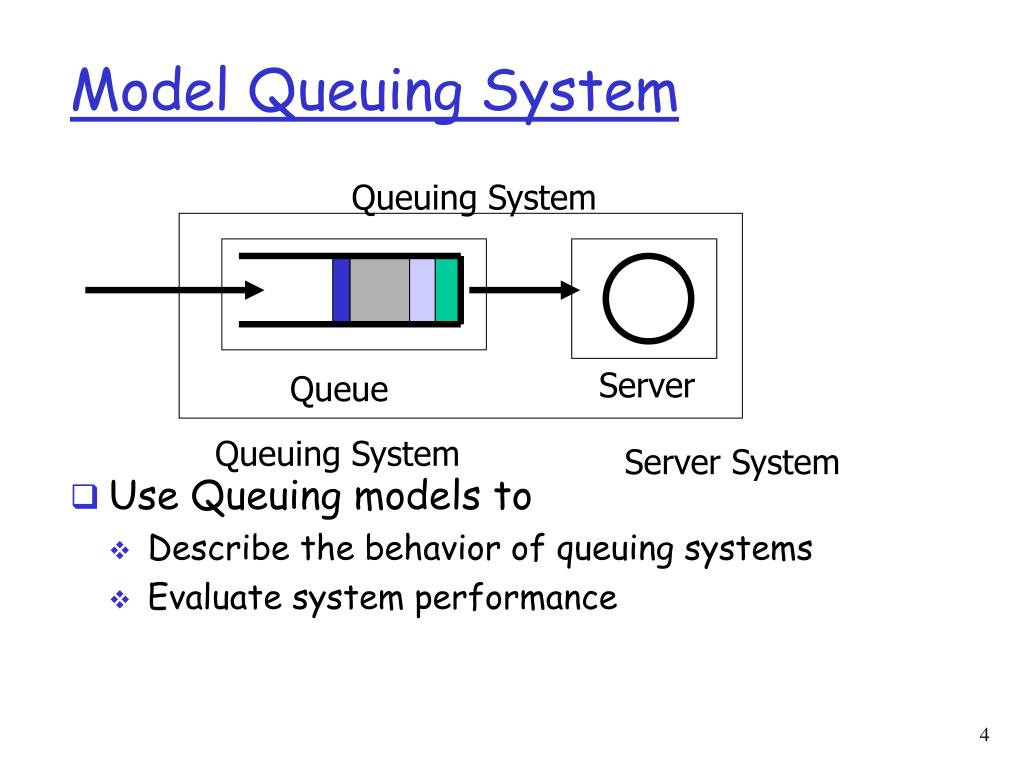

  4. Queuing System Server Queue Queuing System Server System Model Queuing System • Use Queuing models to • Describe the behavior of queuing systems • Evaluate system performance

  5. Characteristics of queuing systems • Arrival Process • The distribution that determines how the tasks arrives in the system. • Service Process • The distribution that determines the task processing time • Number of Servers • Total number of servers available to process the tasks

  6. Kendall Notation 1/2/3(/4/5/6) • Six parameters in shorthand • First three typically used, unless specified • Arrival Distribution • Service Distribution • Number of servers • Total Capacity (infinite if not specified) • Population Size (infinite) • Service Discipline (FCFS/FIFO)

  7. Arrival time distributions • M: stands for "Markovian“, Poisson arrivials • D: Deterministic (e.g. fixed constant) • G: General (anything)

  8. Kendall Notation Examples • M/M/1: • Poisson arrivals and exponential service, 1 server, infinite capacity and population, FCFS (FIFO) • the simplest ‘realistic’ queue • M/M/m • Same, but M servers • G/G/3/20/1500/SPF • General arrival and service distributions, 3 servers, 17 queue slots (20-3), 1500 total jobs, Shortest Packet First

  9. Analysis of M/M/1 queue • Given: • l: Arrival rate of jobs (packets on input link) • m: Service rate of the server (output link) • Solve: • L: average number in queuing system • Lq average number in the queue • W: average waiting time in whole system • Wq average waiting time in the queue

  10. M/M/1 queue model L Lq l m Wq W

  11. Little’s Law • Little’s Law: Average number of jobs in system = average arrival rate of jobs × average service time • Observed before, Little was first to prove • Applies to any system in equilibrium, as long as nothing in black box is creating or destroying jobs System Arrivals Departures

  12. Formally, Little’s Law is L = lW Average number of jobs in system = average arrival rate ×average service time for each job • l: Average arrival rate • W: Average time job is in the system (average service time) • L: Average number of jobs in the system

  13. = = J ( )( ) N J l ( ) W T T N = ( ) W N T Proof of Little’s Law: Let J be the sum of all service time, that is, the sum of time spent on each job. E.g., J = j1+j2+j3…., where j1 is the service time of job 1, and so on. Let N be the number of jobs (packets). Let T be the total service time of the system on the jobs. Note that T ≤ J. We know l is the average arrival rate, W is the average service time of jobs, and L is the average number of jobs in the system. On the right-hand side, by definitions, in a stable system we have By definition, J is the sum of service time for all jobs, T is the total service time of the system. Thus, J/T is the average number of jobs in the system, which is L. Therefore, the Little’s Law holds.

  14. 3 3 3 # in System 2 2 2 1 1 1 1 2 3 4 5 6 7 8 Time Time in System 1 2 3 Packet # An example of J Arrivals Packet # Departures 1 2 3 4 5 6 7 8 Time J = Shaded area = 9 Same in all cases!

  15. M/M/1 queue model • l: Arrival rate of jobs (packets on input link) • m: Service rate of the server (output link) • L: average number in queuing system • Lq average number in the queue • W: average waiting time in whole system • Wq average waiting time in the queue L Lq l m Wq W • L=λW • Lq=λWq

  16. Poisson process • Used to model random events in time that are largely independent of one another • E.g., a event may be that a customer arrives at the ice cream shop • E.g., or you see a roadkill when driving • E.g., or a packet arrives at the router

  17. Poisson Process • For a poisson process with average arrival rate , the probability of seeing n arrivals in time interval Δt

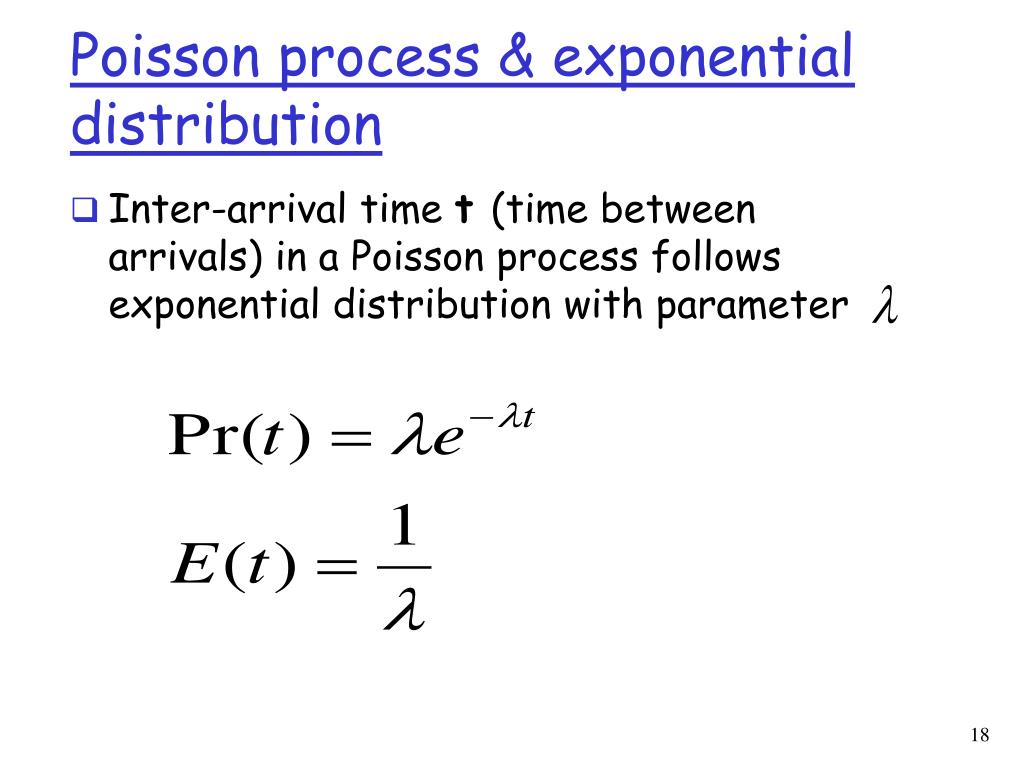

  18. Poisson process & exponential distribution • Inter-arrival time t (time between arrivals) in a Poisson process follows exponential distribution with parameter

  19. L Lq l m Wq W M/M/1 queue model • l: Arrival rate of jobs (packets on input link) • m: Service rate of the server (output link) • L: average number in queuing system • Lq average number in the queue • W: average waiting time in whole system • Wq average waiting time in the queue • L=λW • Lq=λWq • W = Wq + (1/μ)

  20. Solving queuing systems • 4 unknowns: L, Lq W, Wq • Relationships: • L=lW • Lq=lWq • W = Wq + (1/m) • If we know any 1, can find the others

  21. Analysis of M/M/1 queue • Goal: A closed form expression of the probability of the number of jobs in the queue (Pi) given only l and m • Online M/M/1 animation • http://www.dcs.ed.ac.uk/home/jeh/Simjava/queueing/mm1_q/mm1_q.html

  22. l l l l n-1 n n+1 m m m m Equilibrium conditions Pn is the probability that in equilibrium the system has n number of jobs l l 0 1 m m

  23. Solving for P0 and Pn at equilibrium • Step 1 • Step 2 Verify this after class

  24. Solving for P0 and Pn at equilibrium • Step 3 • Step 4 Pn: probability of n jobs in the system

  25. Solving for L

  26. Solving W, Wq and Lq

  27. Response time vs. utilization (ρ)

  28. Stable Region linear region

  29. An example • On a network gateway, measurements show that the packets arrive at a mean rate of 125 packets per second (pps) and the gateway takes about 2 millisecs to forward them. Assuming an M/M/1 model. • Measurement of a network gateway: • mean arrival rate (l): 125 Packets/s • mean response time (m): 2 ms • Assuming exponential arrivals: • What is the gateway’s utilization? • What is the probability of n packets in the gateway? • mean number of packets in the gateway?

  30. Example cont’d • Arrival rate λ = 125 pps • Service rate μ = 1/0.002 = 500 pps • Gateway utilization ρ = λ/μ = 0.25 • Prob. of n packets in gateway = Pn = • Mean number of packets in gateway = L =
