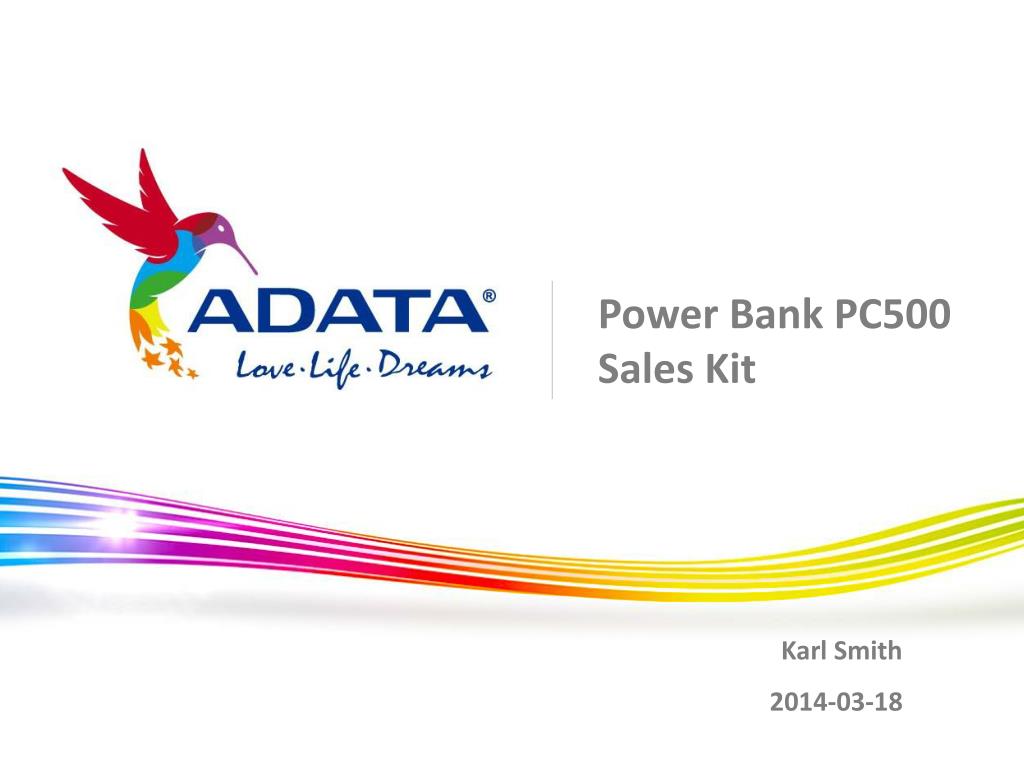

  1. Power Bank PC500 Sales Kit Karl Smith 2014-03-18

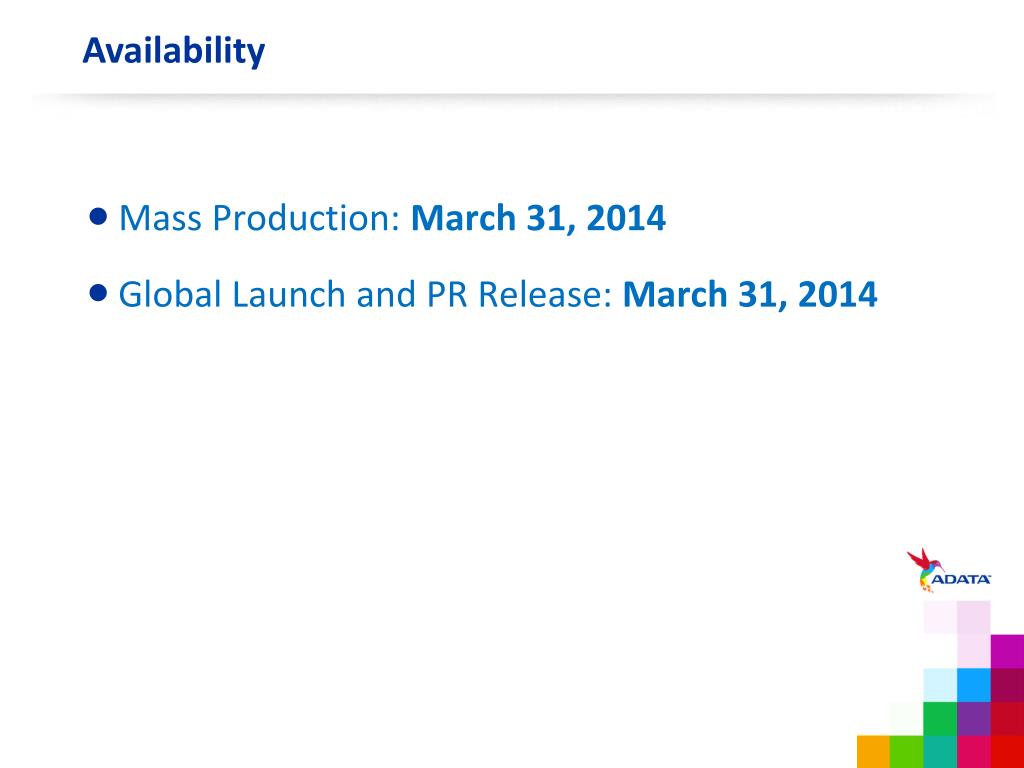

  2. Availability • Mass Production: March 31, 2014 • Global Launch and PR Release: March 31, 2014

  3. PC500 Selling Points

  4. Product Overview The Choice series PC500 is the second dedicated power bank offered by ADATA. It combines 2.1 Ampere output with a stylish patterned exterior. Micro-USB Input Power Indicator Output Power/Indicator button

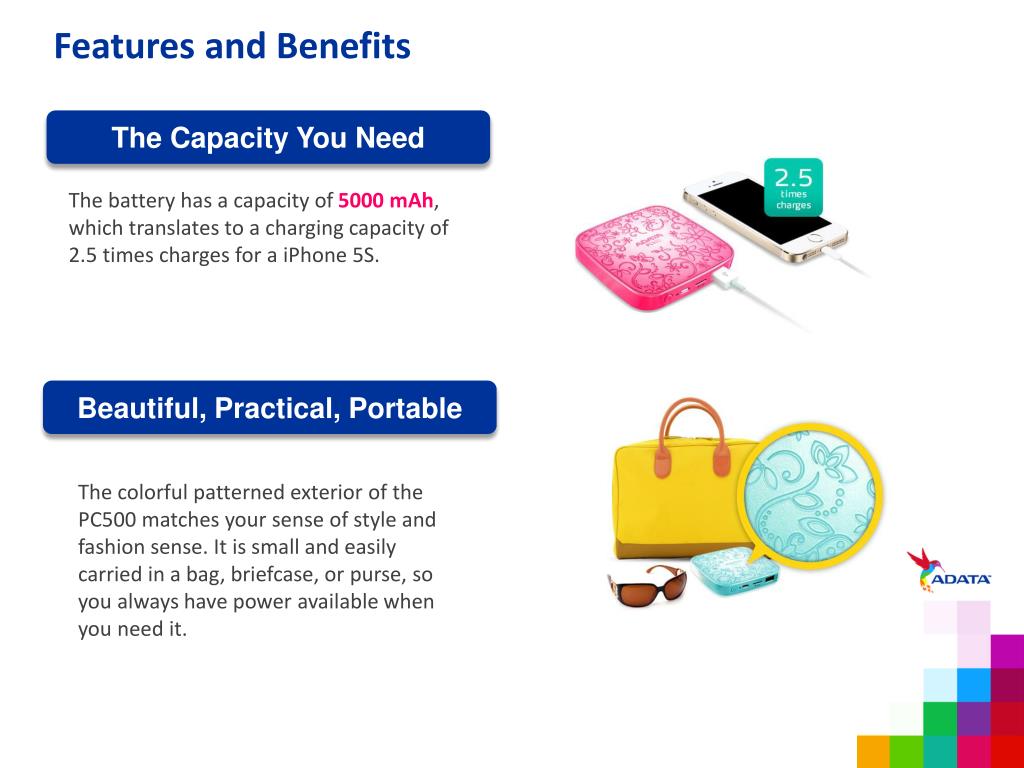

  5. Features and Benefits The Capacity You Need The battery has a capacity of 5000 mAh, which translates to a charging capacity of 2.5 times charges for a iPhone 5S. • Beautiful, Practical, Portable The colorful patterned exterior of the PC500 matches your sense of style and fashion sense. It is small and easily carried in a bag, briefcase, or purse, so you always have power available when you need it.

  6. Features and Benefits • Patterned Carrying Pouch The PC500 comes with a beautiful carry bag that is durable and great-looking. 80cm Long Cable An extra-long USB charging cable allows you to charge your phone while carrying the PC500 in a purse or bag.

  7. Features and Benefits • Power Level Indicator Check the remaining power at any time by pressing the button for the LED power indicator. "10 seconds" Smart Energy Saving The PC500 will automatically turn off when disconnected from the charging device, the device is fully charged, or it is idle for 10 seconds.

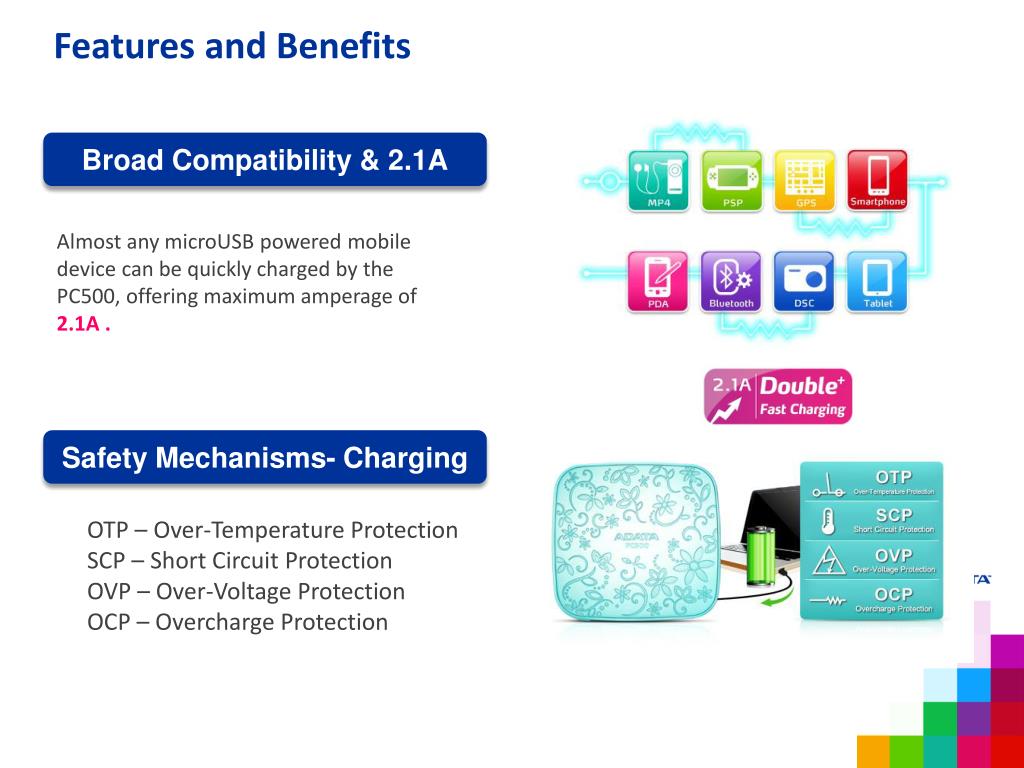

  8. Features and Benefits Broad Compatibility & 2.1A Almost any microUSBpowered mobile device can be quickly charged by the PC500, offering maximum amperage of 2.1A . Safety Mechanisms- Charging OTP – Over-Temperature Protection SCP – Short Circuit Protection OVP – Over-Voltage Protection OCP – Overcharge Protection

  9. Features and Benefits Safety Mechanisms- Discharging 70 Test Items ensure quality In order to ensure reliability, ADATA implements approximately 70 test items throughout the various stages of development to ensure functionality and protection mechanisms all operate normally. ADATA also conducts environmental testing to ensure that the power bank works in both high and low temperature, and high humidity environments.

  10. SPEC • Battery Type: Li-Polymer • Battery Capacity: 5000mAh(18.5Wh) • Rated Capacity:3350mAh(16.75Wh) • Rated voltage: • Input DC 5V /1A (Micro-USB) • Output DC 5V /2.1A (Type-A USB) • LED Indicator • Temperature : • Operating 0°C ~45°C • Storage -10°C ~60°C • Dimensions: • 88 x 83 x 15mm / 3.5 x 3.3 x 0.6in • Weight:130g (4.6oz)

  11. Product and Package Images

  12. Key Visual with Tagline

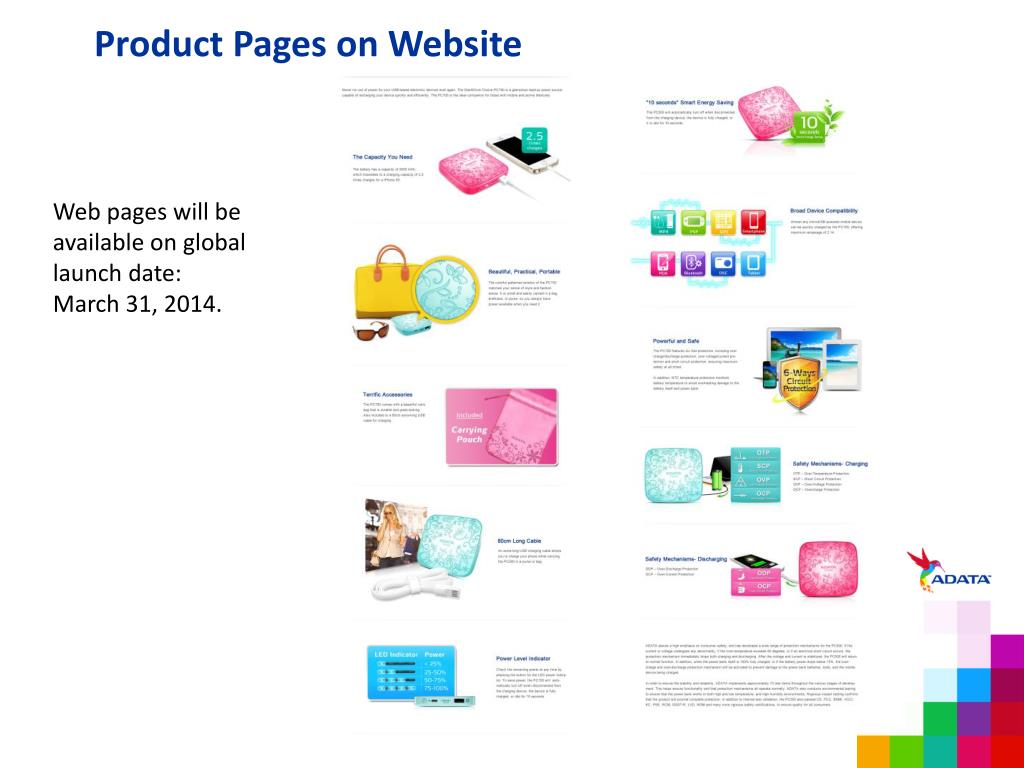

  13. Product Pages on Website Web pages will be available on global launch date: March 31, 2014.

  14. Appendix (For internal use only)

  15. Li-ion(18650) &Li-Polymer Batteries 65 mm 18 mm

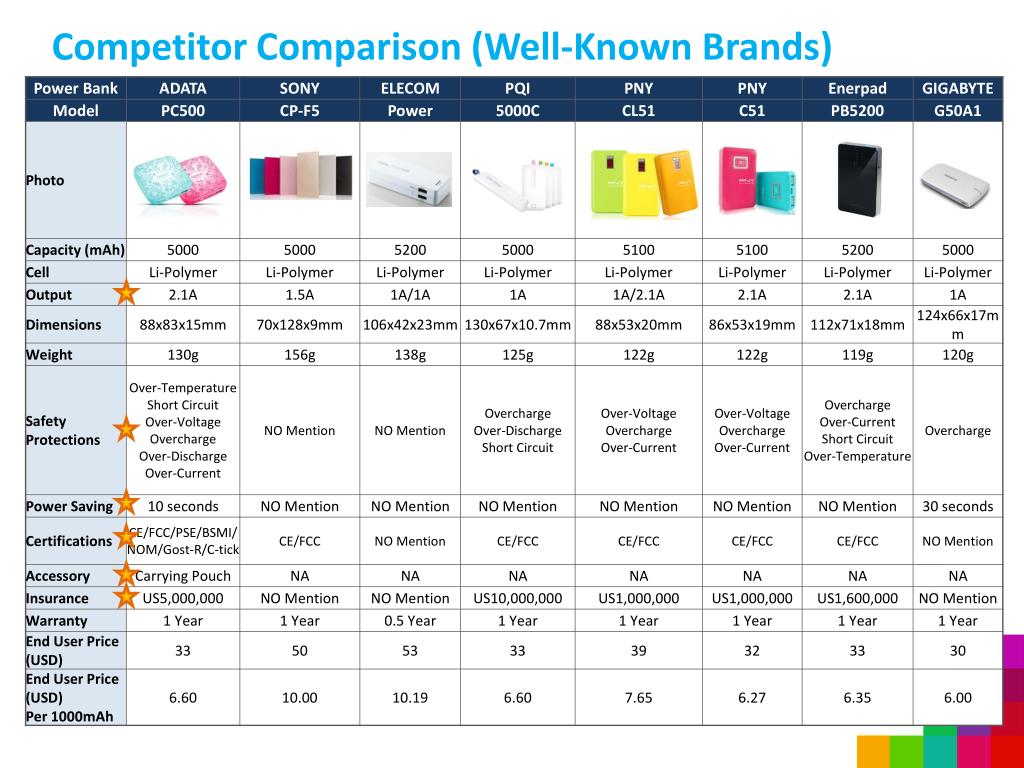

  16. Competitor Comparison (Well-Known Brands)

  17. Pricing & Freight Cost • Forpricing, • Please contactNatasa Chen at ext. #12218 • Forfreight cost, • Please emailtheImport & Export Department (關務暨進出口部), • Provide the below information, and they will reply to you promptly. • Product / Model • Departure & Destination • Delivery method – UPS or Air or Others • Unit QTY / Carton QTY • Total Cubic Feet • Gross Weight • Package – Retail

  18. Safety Certificates FCC / CE / C-Tick / NOM / Gost-R / PSE / KCC Access : Oasis > Quality System > Technical Document > Product Data Sheet MISP-REM-A99-APV100

  19. Retail Packing Dimensions & Weight

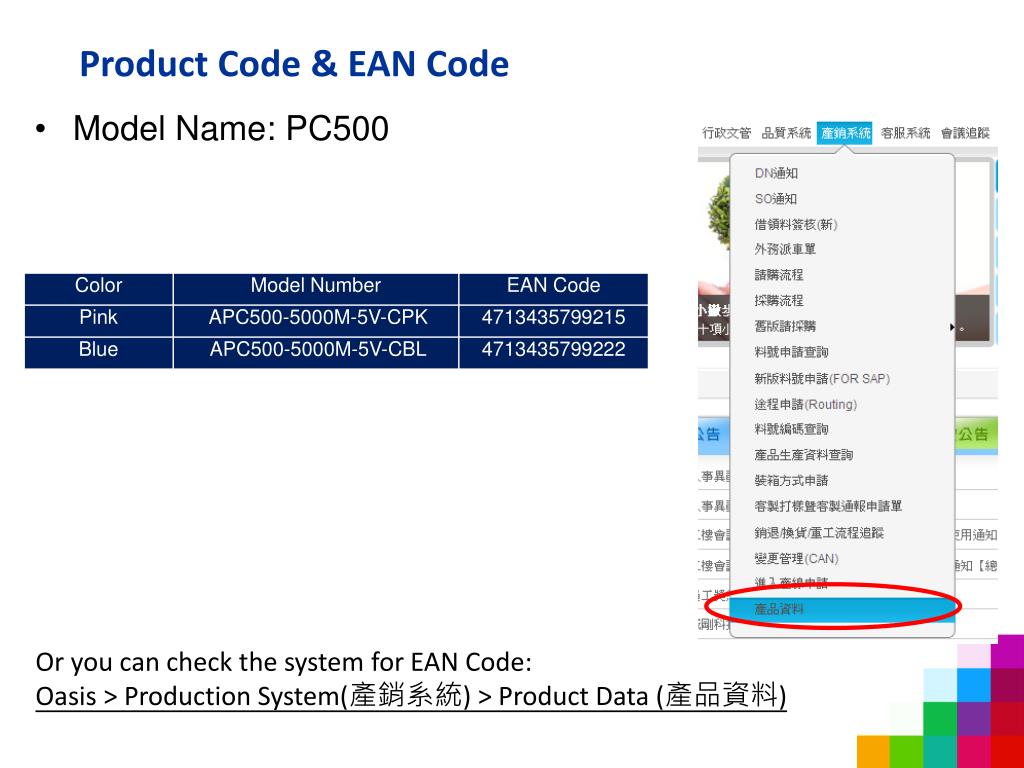

  20. Product Code & EAN Code • Model Name: PC500 Or you can check the system for EAN Code: Oasis > Production System(產銷系統) > Product Data (產品資料)
