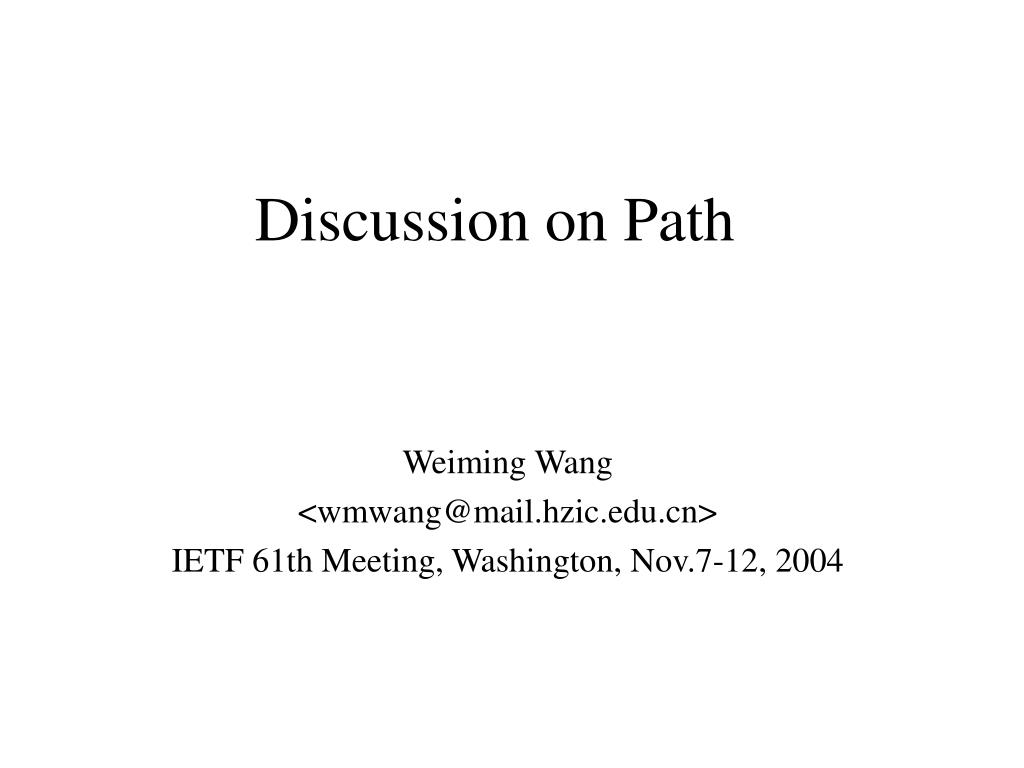

  1. Discussion on Path Weiming Wang <wmwang@mail.hzic.edu.cn> IETF 61th Meeting, Washington, Nov.7-12, 2004

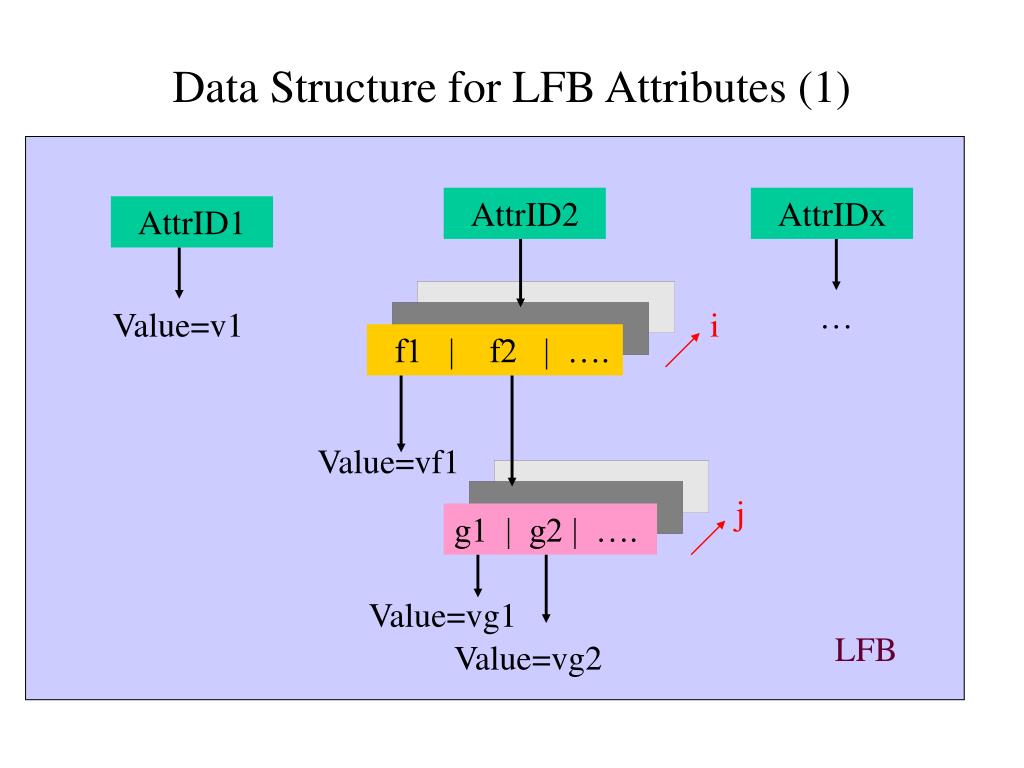

  2. Data Structure for LFB Attributes (1) AttrID2 AttrIDx AttrID1 … Value=v1 i f1 | f2 | …. Value=vf1 j g1 | g2 | …. Value=vg1 LFB Value=vg2

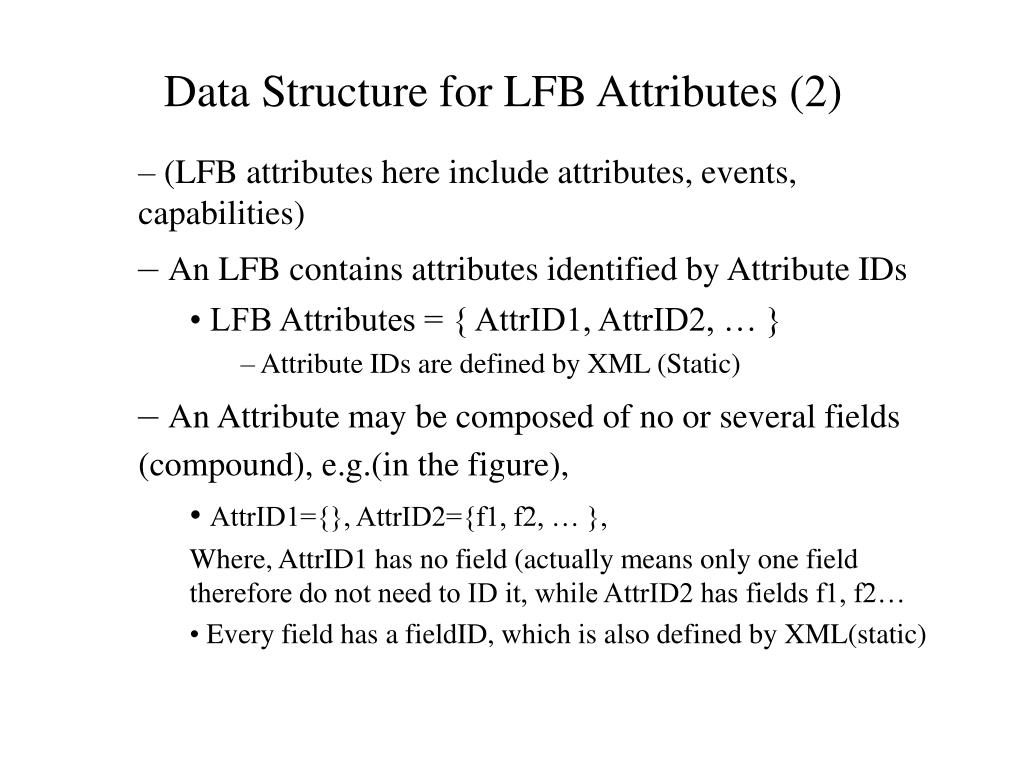

  3. Data Structure for LFB Attributes (2) (LFB attributes here include attributes, events, capabilities) An LFB contains attributes identified by Attribute IDs LFB Attributes = { AttrID1, AttrID2, … } Attribute IDs are defined by XML (Static) An Attribute may be composed of no or several fields (compound), e.g.(in the figure), AttrID1={}, AttrID2={f1, f2, … }, Where, AttrID1 has no field (actually means only one field therefore do not need to ID it, while AttrID2 has fields f1, f2… Every field has a fieldID, which is also defined by XML(static)

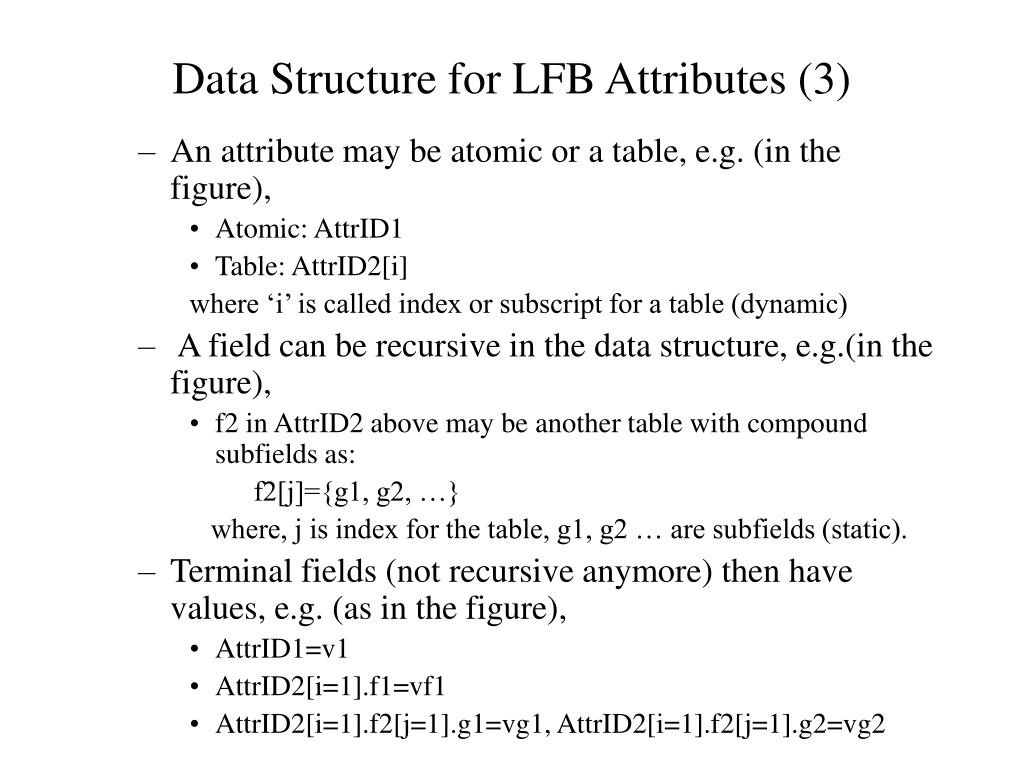

  4. Data Structure for LFB Attributes (3) • An attribute may be atomic or a table, e.g. (in the figure), • Atomic: AttrID1 • Table: AttrID2[i] where ‘i’ is called index or subscript for a table (dynamic) • A field can be recursive in the data structure, e.g.(in the figure), • f2 in AttrID2 above may be another table with compound subfields as: f2[j]={g1, g2, …} where, j is index for the table, g1, g2 … are subfields (static). • Terminal fields (not recursive anymore) then have values, e.g. (as in the figure), • AttrID1=v1 • AttrID2[i=1].f1=vf1 • AttrID2[i=1].f2[j=1].g1=vg1, AttrID2[i=1].f2[j=1].g2=vg2

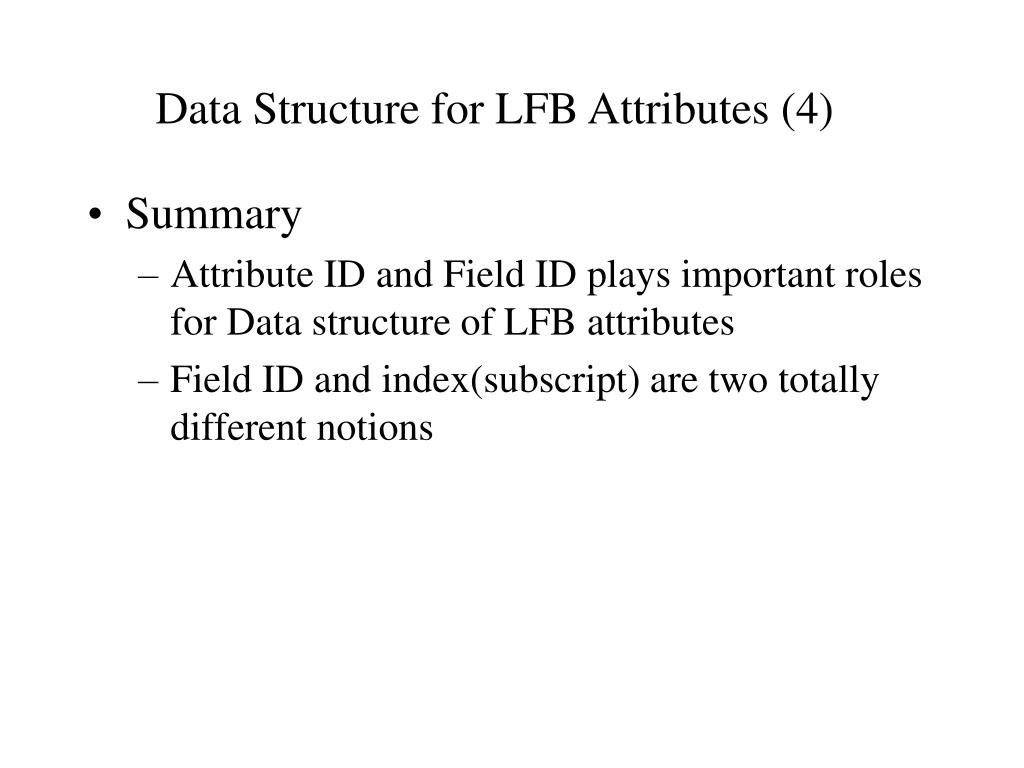

  5. Data Structure for LFB Attributes (4) • Summary • Attribute ID and Field ID plays important roles for Data structure of LFB attributes • Field ID and index(subscript) are two totally different notions

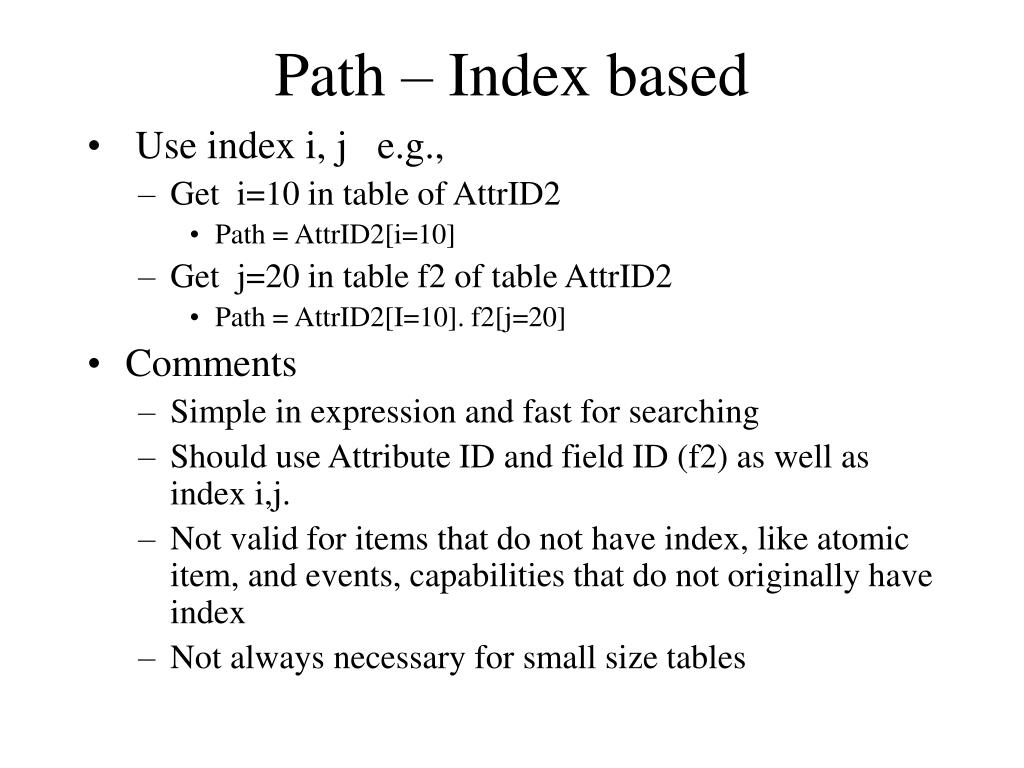

  6. Path – Index based • Use index i, j e.g., • Get i=10 in table of AttrID2 • Path = AttrID2[i=10] • Get j=20 in table f2 of table AttrID2 • Path = AttrID2[I=10]. f2[j=20] • Comments • Simple in expression and fast for searching • Should use Attribute ID and field ID (f2) as well as index i,j. • Not valid for items that do not have index, like atomic item, and events, capabilities that do not originally have index • Not always necessary for small size tables

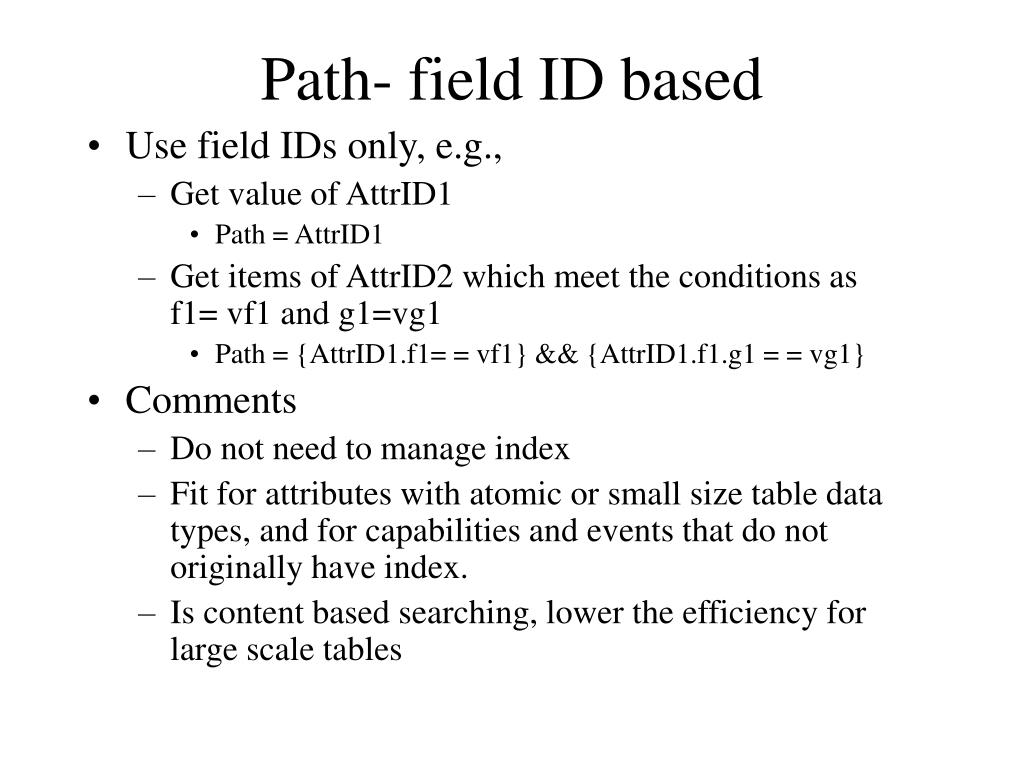

  7. Path- field ID based • Use field IDs only, e.g., • Get value of AttrID1 • Path = AttrID1 • Get items of AttrID2 which meet the conditions as f1= vf1 and g1=vg1 • Path = {AttrID1.f1= = vf1} && {AttrID1.f1.g1 = = vg1} • Comments • Do not need to manage index • Fit for attributes with atomic or small size table data types, and for capabilities and events that do not originally have index. • Is content based searching, lower the efficiency for large scale tables

  8. Path • Conclusion • Index based and field ID (content) based addressing are all necessary • The Attribute ID part is always needed for both ways, therefore can be pulled out, as • Path := AttributeID <Index or Field Ids>+ • Suggestion • The followed <Index or field Ids> part be included in the Data field rather than in the PL layer for the protocol to define the complex structure like [I=10]. f2[j=20] {AttrID1.f1= = vf1} && {AttrID1.f1.g1 = = vg1} The End
