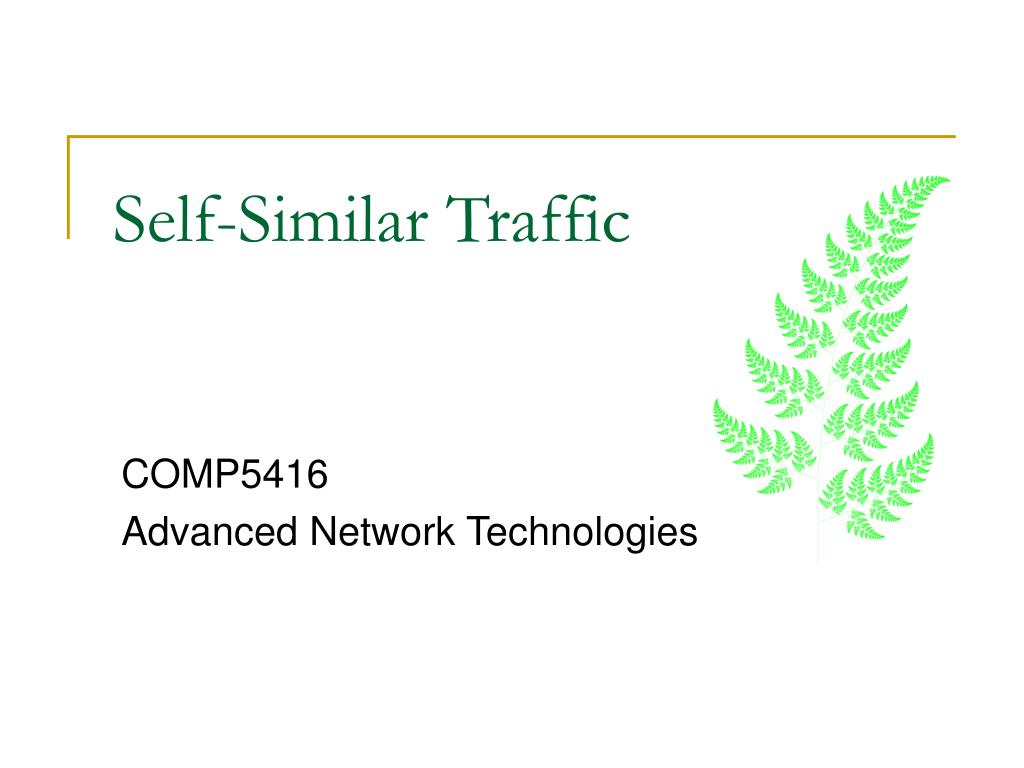

  1. Self-Similar Traffic COMP5416 Advanced Network Technologies

  2. Why Self-Similarity? • Trace data not consistent with queueing models Courtesy of Ashish Gupta (cs.northwestern.edu)

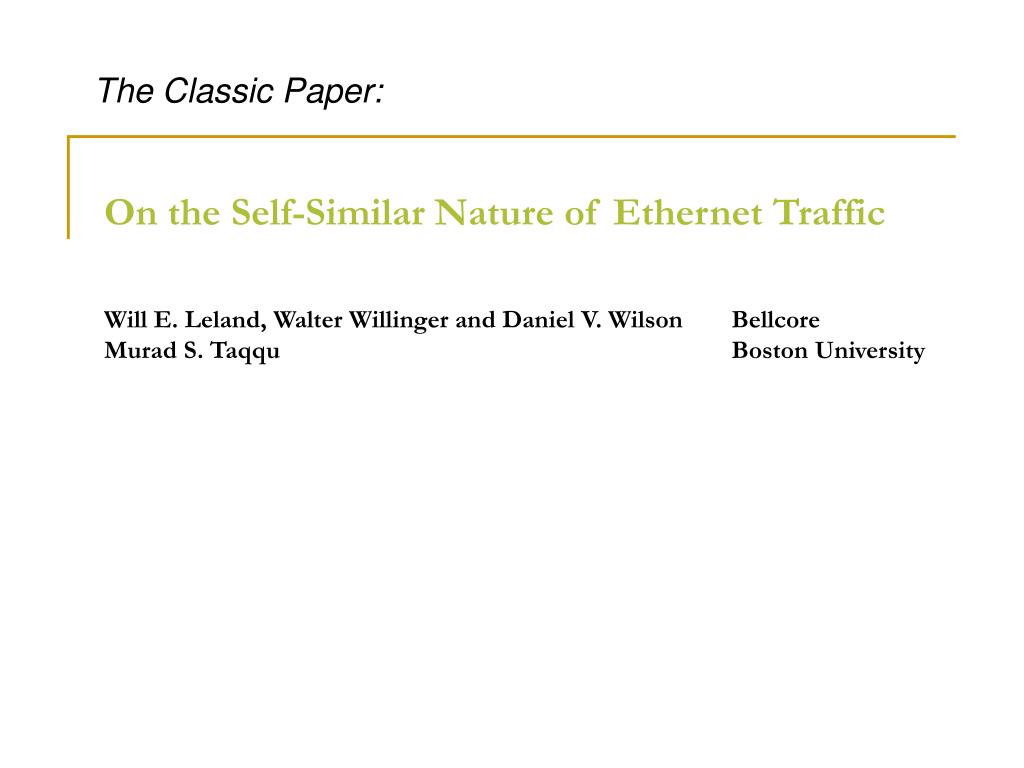

  3. The Classic Paper: On the Self-Similar Nature of Ethernet TrafficWill E. Leland, Walter Willinger and Daniel V. Wilson BellcoreMurad S. Taqqu Boston University

  4. Overview • What is Self Similarity? • Ethernet Traffic is Self-Similar • Source of Self Similarity • Implications of Self Similarity Courtesy of Ashish Gupta (cs.northwestern.edu)

  5. Intuition of Self-Similarity • Something “feels the same” regardless of scale Courtesy of Ashish Gupta (cs.northwestern.edu)

  6. Courtesy of Ashish Gupta (cs.northwestern.edu)

  7. Courtesy of Ashish Gupta (cs.northwestern.edu)

  8. Stochastic Objects In case of stochastic objects like time-series, self-similarity is used in the distributional sense • their mean, variance, correlation etc. Courtesy of Ashish Gupta (cs.northwestern.edu)

  9. Pictorial View of Self-Similarity Courtesy of Ashish Gupta (cs.northwestern.edu)

  10. Why is Self-Similarity Important? • Recently, some network packet traffic has been identified as being self-similar • Current network traffic modeling using Poisson distributing (etc.) does not take into account the self-similar nature of traffic • This leads to inaccurate modeling of network traffic • Is self-similarity relevant everytime? • remains a hot research area! Courtesy of Ashish Gupta (cs.northwestern.edu)

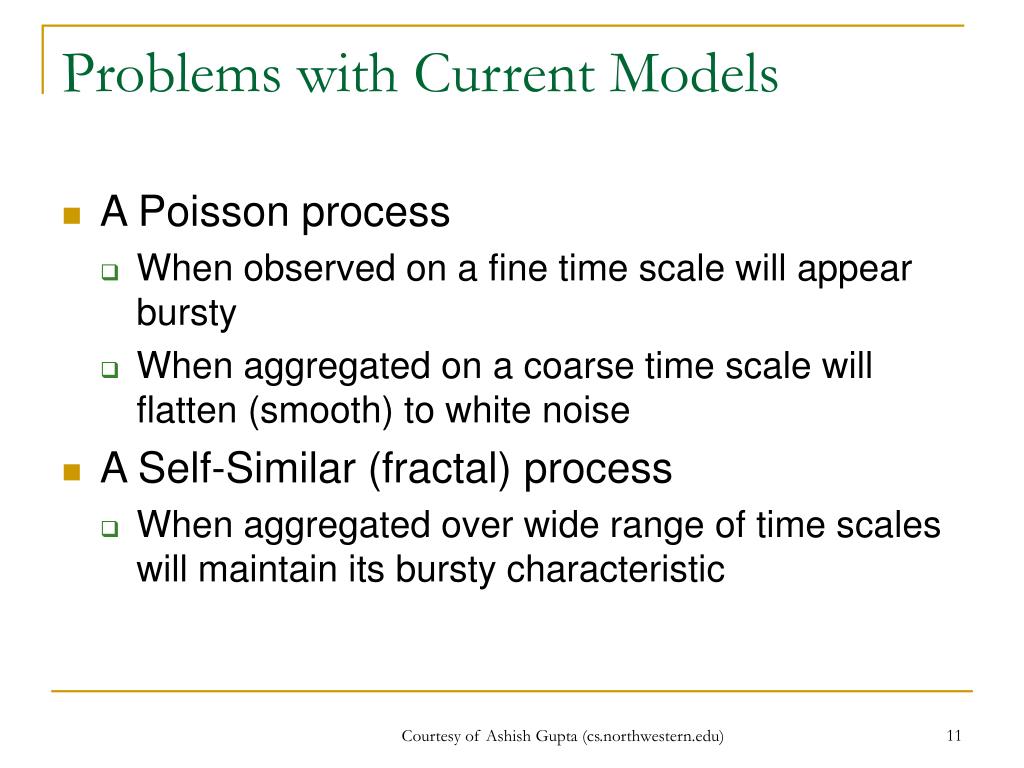

  11. Problems with Current Models • A Poisson process • When observed on a fine time scale will appear bursty • When aggregated on a coarse time scale will flatten (smooth) to white noise • A Self-Similar (fractal) process • When aggregated over wide range of time scales will maintain its bursty characteristic Courtesy of Ashish Gupta (cs.northwestern.edu)

  12. Pictorial View of Current Modeling Courtesy of Ashish Gupta (cs.northwestern.edu)

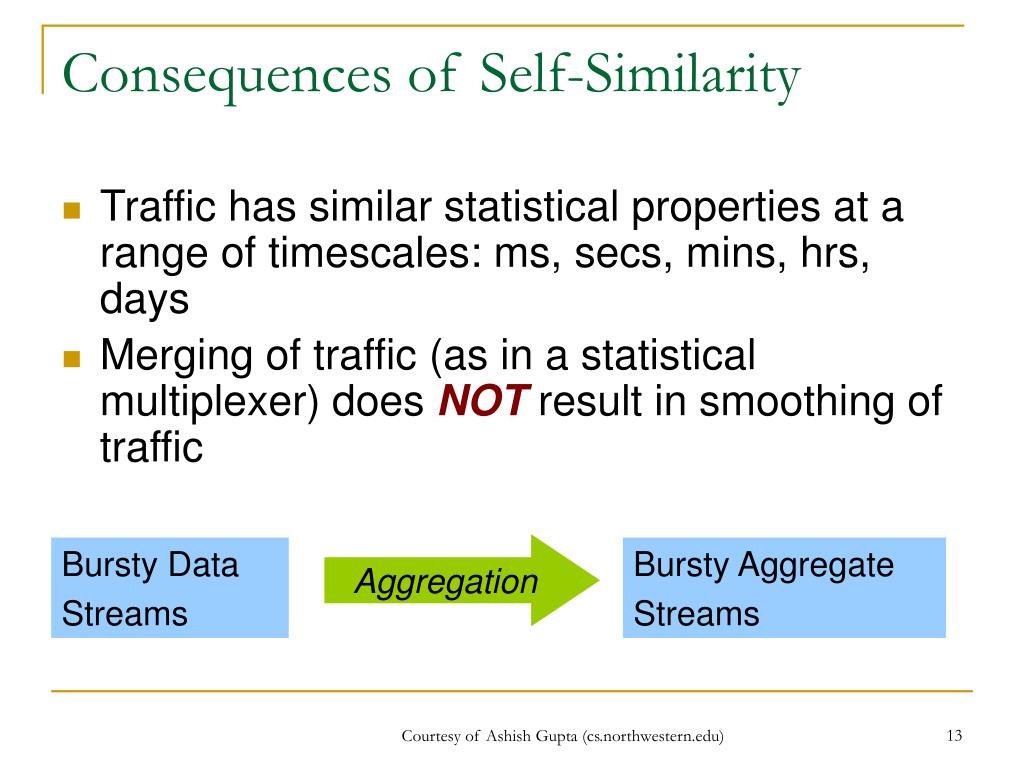

  13. Consequences of Self-Similarity • Traffic has similar statistical properties at a range of timescales: ms, secs, mins, hrs, days • Merging of traffic (as in a statistical multiplexer) does NOT result in smoothing of traffic Aggregation Bursty Data Streams Bursty Aggregate Streams Courtesy of Ashish Gupta (cs.northwestern.edu)

  14. Side-by-side View Courtesy of Ashish Gupta (cs.northwestern.edu)

  15. Definitions and Properties • Long-Range Dependence • Autocorrelation {Rx(t1,t2) = E[X(t1)X(t2)]} decays slowly • Hurst Parameter • Developed by Harold Hurst (1965) • Studies of Nile River flooding over 800 year period • H is a measure of “burstiness” • also considered a measure of self-similarity • 0.5 < H < 1.0 Courtesy of Ashish Gupta (cs.northwestern.edu)

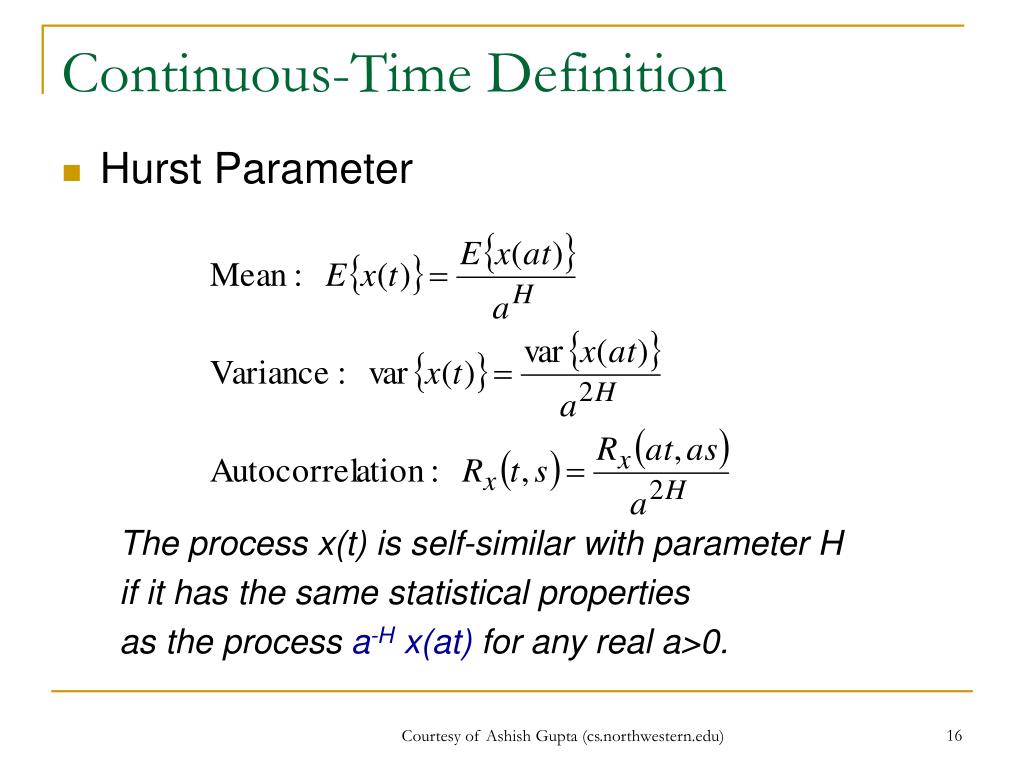

  16. Continuous-Time Definition • Hurst Parameter The process x(t) is self-similar with parameter H if it has the same statistical properties as the process a-H x(at) for any real a>0. Courtesy of Ashish Gupta (cs.northwestern.edu)

  17. Discrete-Time Definition • X = (Xt : t = 0, 1, 2, ….) is random process defined at discrete points in time • Let X(m)={Xk(m)} denote the new process obtained by averaging the original series X in non-overlapping sub-blocks of size m. E.g. X(1)= 4,12,34,2,-6,18,21,35Then X(2)=8,18,6,28X(4)=13,17 Courtesy of Ashish Gupta (cs.northwestern.edu)

  18. Auto-correlation Definition • X is exactly self-similar if • The aggregated processes have the same autocorrelation structure as X. i.e. • r (m) (k) = r(k), k0 for all m =1,2, … • X is asymptotically self-similar if the above holds when[ r (m) (k)  r(k), m  ] Courtesy of Ashish Gupta (cs.northwestern.edu)

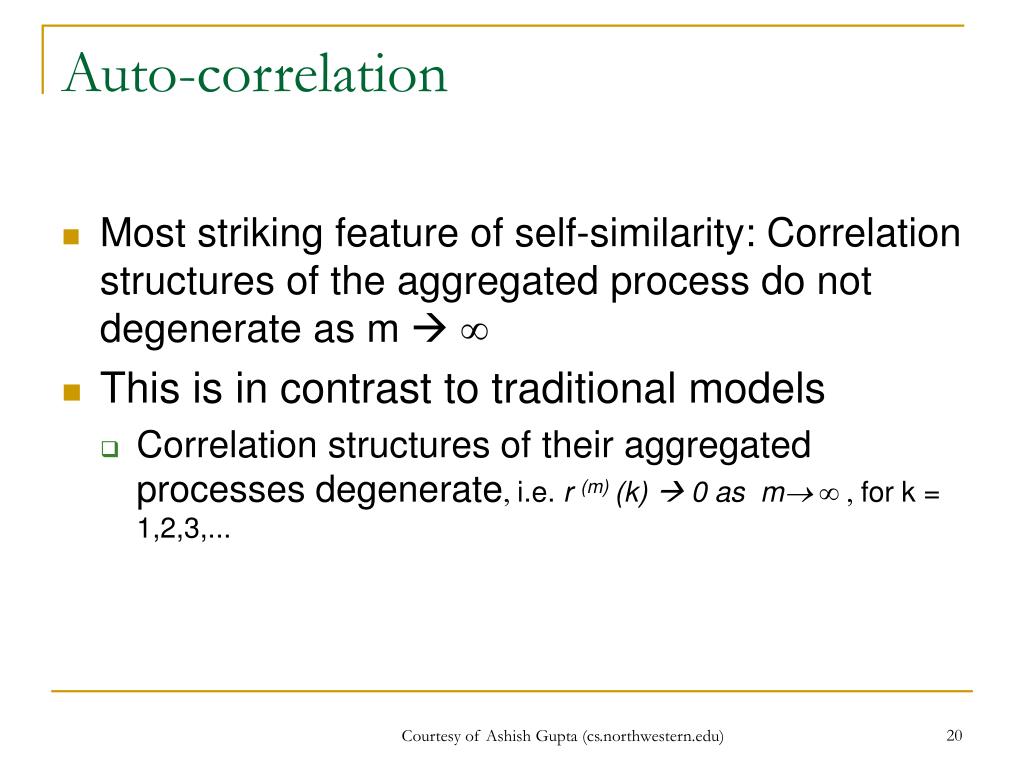

  19. Auto-correlation • Most striking feature of self-similarity: Correlation structures of the aggregated process do not degenerate as m   • This is in contrast to traditional models • Correlation structures of their aggregated processes degenerate, i.e. r (m) (k)  0 as m , for k = 1,2,3,... Courtesy of Ashish Gupta (cs.northwestern.edu)

  20. Courtesy of Ashish Gupta (cs.northwestern.edu)

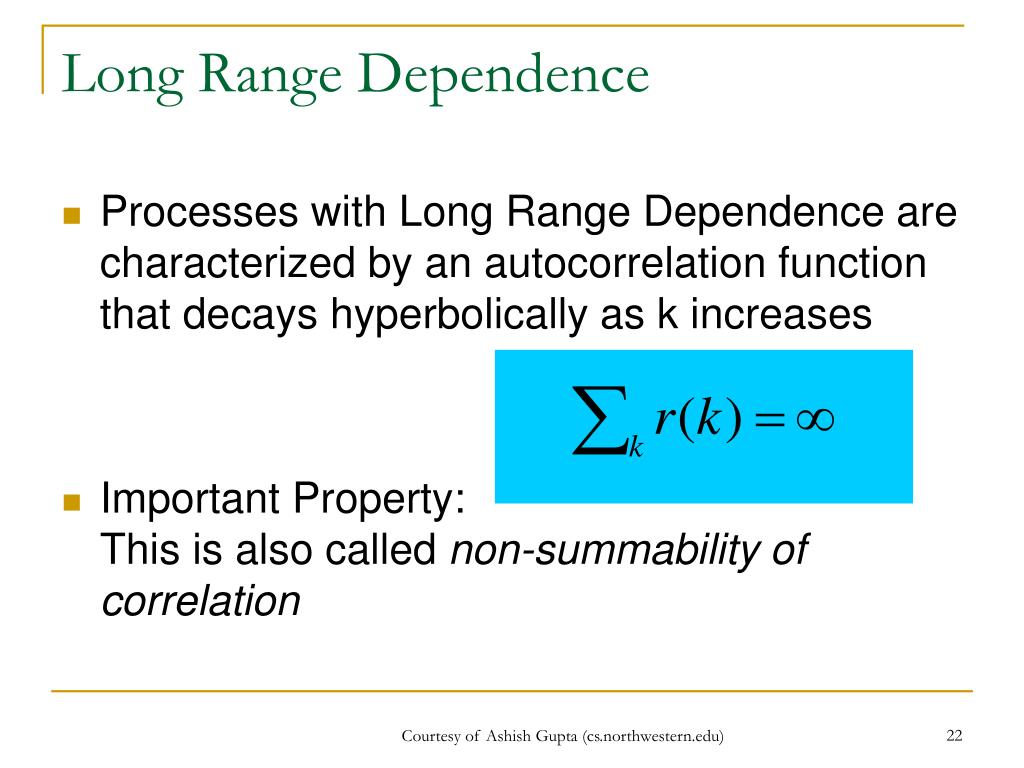

  21. Long Range Dependence • Processes with Long Range Dependence are characterized by an autocorrelation function that decays hyperbolically as k increases • Important Property: This is also called non-summability of correlation Courtesy of Ashish Gupta (cs.northwestern.edu)

  22. Recap • Self-similarity manifests itself in several equivalent fashions: • Non-degenerate autocorrelations • Slowly decaying variance • Long range dependence • Hurst effect Courtesy of Ashish Gupta (cs.northwestern.edu)

  23. The Famous Data • Leland and Wilson collected hundreds of millions of Ethernet packets without loss and with recorded time-stamps accurate to within 100µs. • Data collected from several Ethernet LAN’s at the Bellcore Morristown Research and Engineering Center at different times over the course of approximately 4 years. Courtesy of Ashish Gupta (cs.northwestern.edu)

  24. Plots Showing Self-Similarity (Ⅱ) High Traffic 5.0%-30.7% Mid Traffic 3.4%-18.4% Low Traffic 1.3%-10.4% Higher Traffic, Higher H! Courtesy of Ashish Gupta (cs.northwestern.edu)

  25. Crucial Findings • Ethernet LAN traffic is statistically self-similar • H : the degree of self-similarity  • H : a function of utilization  • H : a measure of “burstiness”  • Models like Poisson are not able to capture self-similarity • As number of Ethernet users increases, the resulting aggregate traffic becomes burstier instead of smoother!! Courtesy of Ashish Gupta (cs.northwestern.edu)

  26. Discussions • How to explain self-similarity ? • Heavy tailed file sizes • How this would impact existing performance? • Limited effectiveness of buffering • Effectiveness of FEC • error control for data transmission, whereby the sender adds redundant data to its messages, which allows the receiver to detect and correct errors without the need to ask the sender Courtesy of Ashish Gupta (cs.northwestern.edu)

  27. Explaining Self-Similarity • The superposition of many ON/OFF sources whose ON-periods and OFF-periods exhibit the Noah Effect produces aggregate network traffic that features the Joseph Effect • Noah Effect: • High variability or infinite variance Joseph Effect: Self-similar or long-range dependent traffic Also known as packet train models Courtesy of Ashish Gupta (cs.northwestern.edu)

  28. The Noah Effect • Noah Effect is the essential point of departure from traditional to self-similar traffic modeling • Results in highly variable ON-OFF periods : Train length and inter-train distances can be very large with non-negligible probabilities • Infinite Variance Syndrome : Many naturally occurring phenomenon can be well described with infinite variance distributions • Heavy-tail distributions,  parameter Courtesy of Ashish Gupta (cs.northwestern.edu)

  29. Traditional Models • Traditional traffic models: finite variance ON/OFF source models • Superposition of such sourcesbehaves like white noise, with only short range correlations Courtesy of Ashish Gupta (cs.northwestern.edu)

  30. The heavy-tail distribution • A distribution is said to be heavy-tailed if: • Property (1) is the infinite variance syndrome or the Noah Effect. •   2 implies E(U2) =  •  > 1 ensures that E(U) <  • The asymptotic shape of the distribution is hyperbolic • The simplest heavy-tail distribution is the Pareto distribution • For example, we consider the sizes of files transferred from a web-server • Heavy-tail  A large number of small files transferred but, crucially, the number of very large files transferred remains significant. Courtesy of Ashish Gupta (cs.northwestern.edu)

  31. http://statistik.wu-wien.ac.at/cgi-bin/anuran.pl Courtesy of Ashish Gupta (cs.northwestern.edu)

  32. Important Findings • Most surprising result: Noah Effect is extremely widespread , regardless of source machine (fileserver or client machine) • Explanations: • Hyperbolic tail behavior for file sizes residing in file sizes • Pareto-like tail behavior for UNIX processes run time • Human-computer interactions occur over a wide range of timescales • Although network traffic is intrinsically complex, parsimonious modeling is still possible. • Estimating a single parameter  (intensity of the Noah Effect) is enough Courtesy of Ashish Gupta (cs.northwestern.edu)

  33. An example File size Distribution on a Win2000 machine Courtesy of Ashish Gupta (cs.northwestern.edu)

  34. Impact of Self Similarity Courtesy of Ashish Gupta (cs.northwestern.edu)

  35. Conclusion • The presence of the Noah Effect in measured Ethernet LAN traffic is confirmed • The superposition of many ON/OFF models with Noah Effect results in aggregate packet streams that are consistent with measured network traffic, and exhibits the self-similar or fractal properties • Self-similarity in packetised data networks caused by the distribution of file sizes, human interactions and/or Ethernet dynamics Spawned research around the network community Courtesy of Ashish Gupta (cs.northwestern.edu)

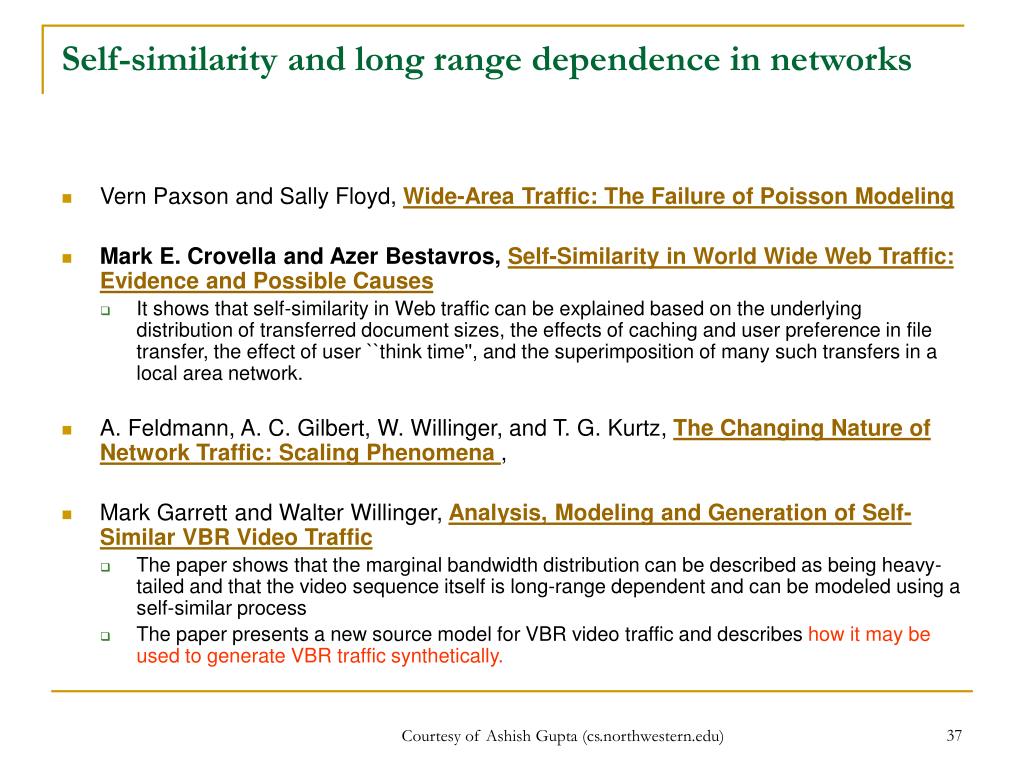

  36. Self-similarity and long range dependence in networks • Vern Paxson and Sally Floyd, Wide-Area Traffic: The Failure of Poisson Modeling • Mark E. Crovella and Azer Bestavros, Self-Similarity in World Wide Web Traffic: Evidence and Possible Causes • It shows that self-similarity in Web traffic can be explained based on the underlying distribution of transferred document sizes, the effects of caching and user preference in file transfer, the effect of user ``think time'', and the superimposition of many such transfers in a local area network. • A. Feldmann, A. C. Gilbert, W. Willinger, and T. G. Kurtz, The Changing Nature of Network Traffic: Scaling Phenomena , • Mark Garrett and Walter Willinger, Analysis, Modeling and Generation of Self-Similar VBR Video Traffic • The paper shows that the marginal bandwidth distribution can be described as being heavy-tailed and that the video sequence itself is long-range dependent and can be modeled using a self-similar process • The paper presents a new source model for VBR video traffic and describes how it may be used to generate VBR traffic synthetically. Courtesy of Ashish Gupta (cs.northwestern.edu)
