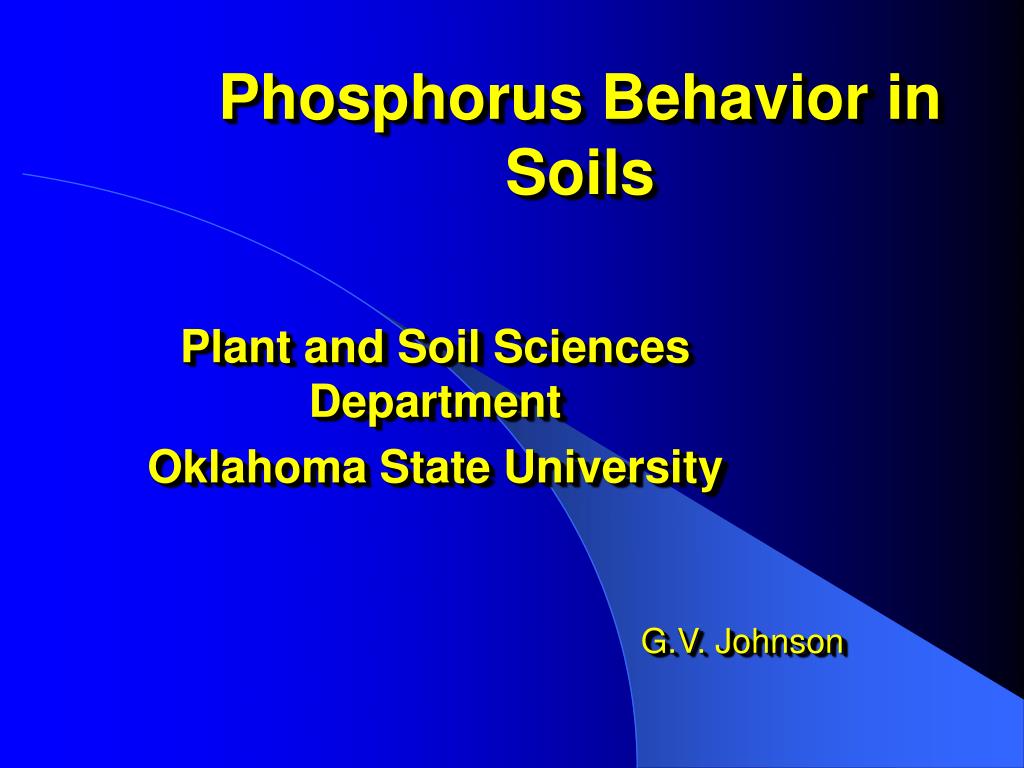

  1. Phosphorus Behavior in Soils Plant and Soil Sciences Department Oklahoma State University G.V. Johnson

  2. Understanding phosphorus behavior in soils • Start with “stripped” down, bare P. • “P” stands for Norwegian Goddess Phyllis. • Like elemental phosphorus, we remember the ancient story of Phyllis, and how violent she reacted when she swam to shore and, as she stepped onto the beach, found herself naked! • P

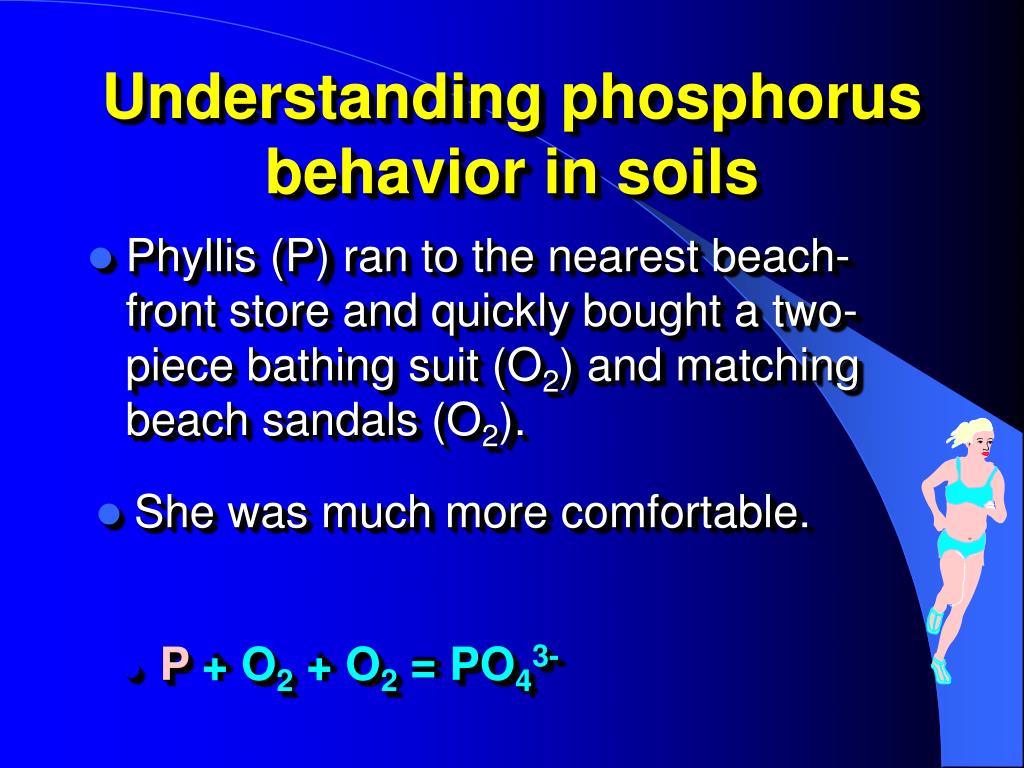

  3. Understanding phosphorus behavior in soils • Phyllis (P) ran to the nearest beach-front store and quickly bought a two-piece bathing suit (O2) and matching beach sandals (O2). • She was much more comfortable. • P + O2 + O2 = PO43-

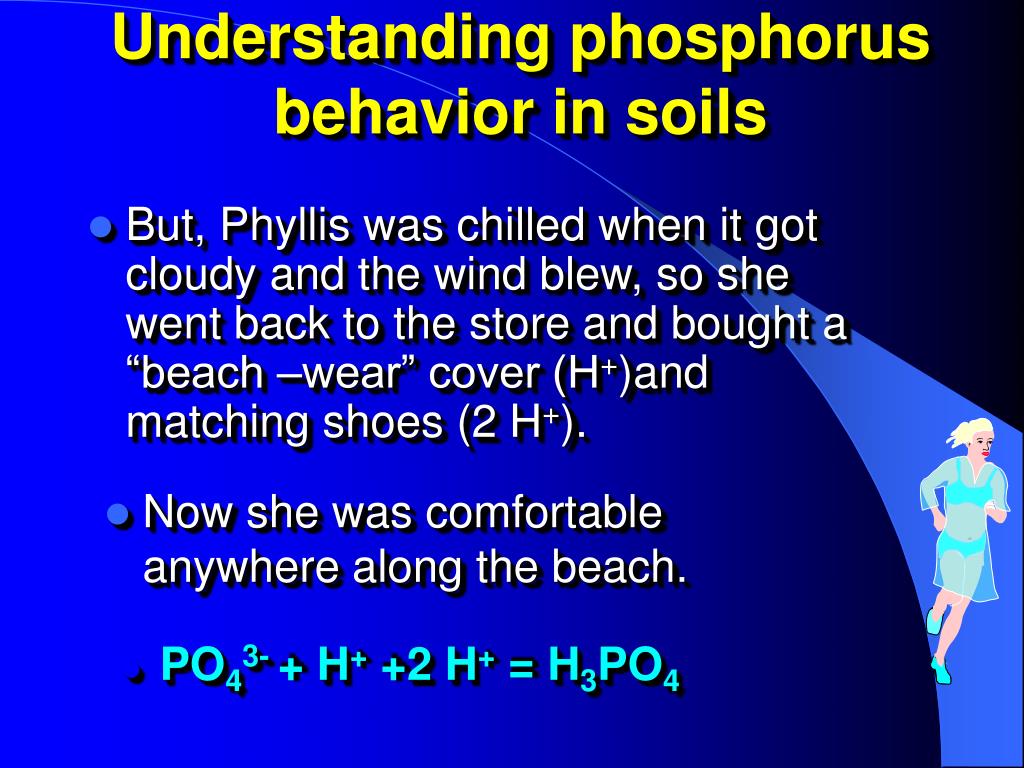

  4. Understanding phosphorus behavior in soils • But, Phyllis was chilled when it got cloudy and the wind blew, so she went back to the store and bought a “beach –wear” cover (H+)and matching shoes (2 H+). • Now she was comfortable anywhere along the beach. • PO43- + H+ +2 H+ = H3PO4

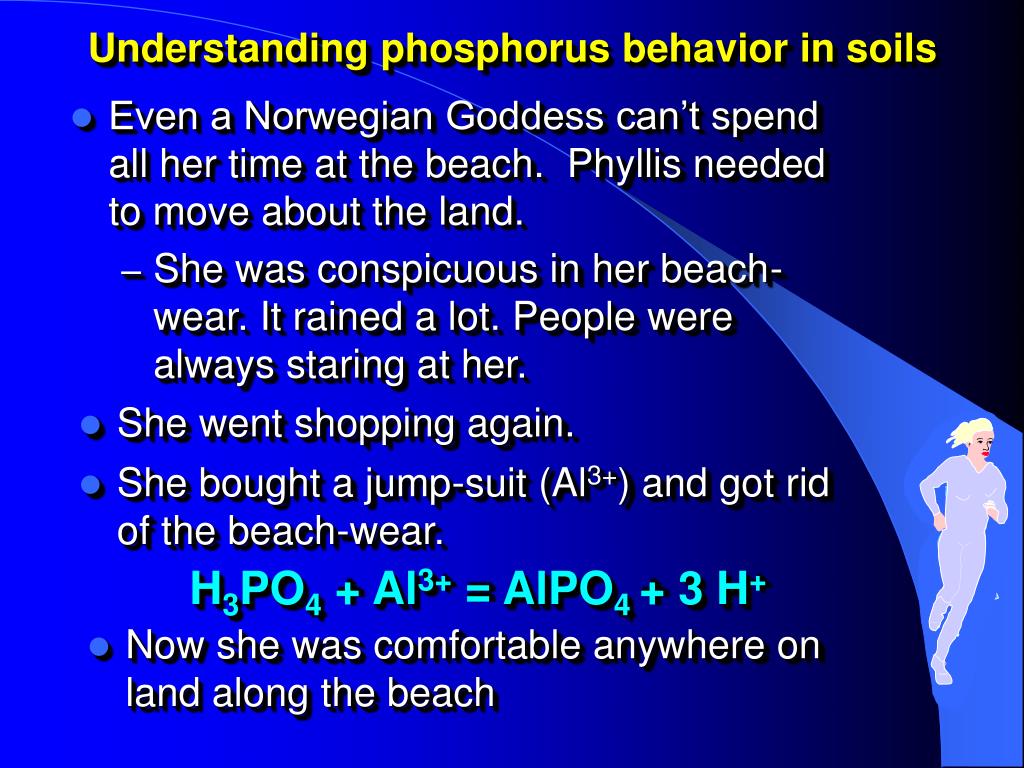

  5. Understanding phosphorus behavior in soils • Even a Norwegian Goddess can’t spend all her time at the beach. Phyllis needed to move about the land. • She was conspicuous in her beach-wear. It rained a lot. People were always staring at her. • She went shopping again. • She bought a jump-suit (Al3+) and got rid of the beach-wear. • H3PO4 + Al3+ = AlPO4 + 3 H+ • Now she was comfortable anywhere on land along the beach

  6. Understanding phosphorus behavior in soils • In time Phyllis became lonely, she missed her family, especially her twin sister Phylline. • Phylline lived in dry, southern California, but not too far from the beach. • She was quite stylish, but unstable, and wore OSU sweats (Ca2+) and OU running shoes (H+). • CaHPO4

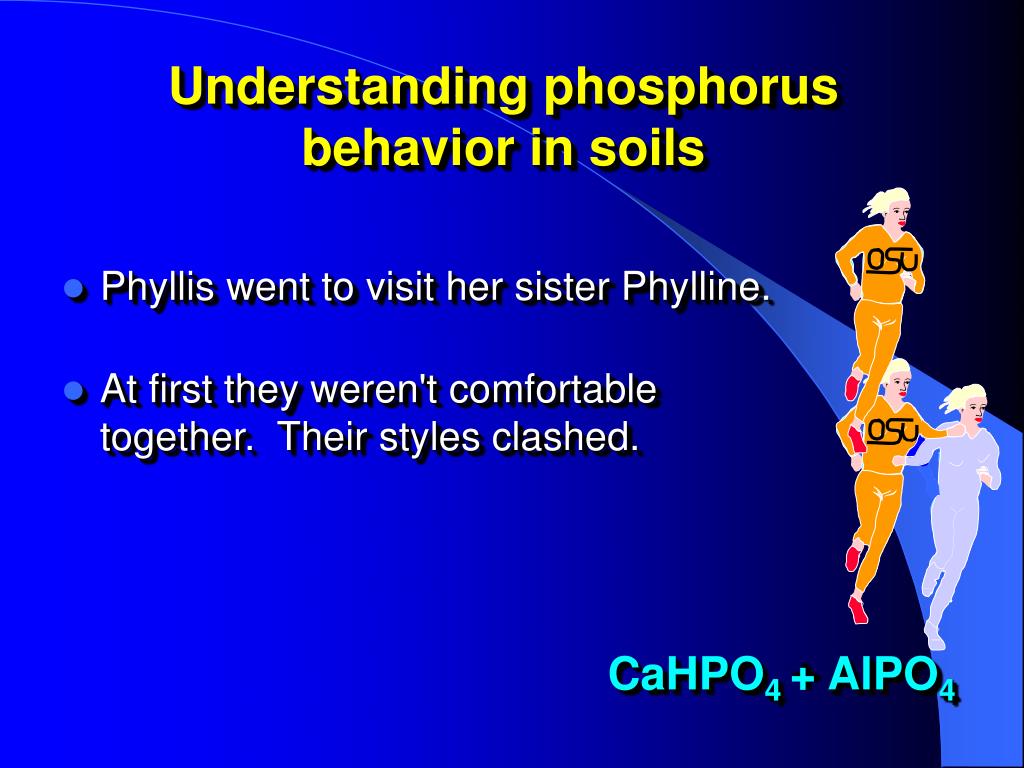

  7. Understanding phosphorus behavior in soils • Phyllis went to visit her sister Phylline. • At first they weren't comfortable together. Their styles clashed. • CaHPO4 + AlPO4

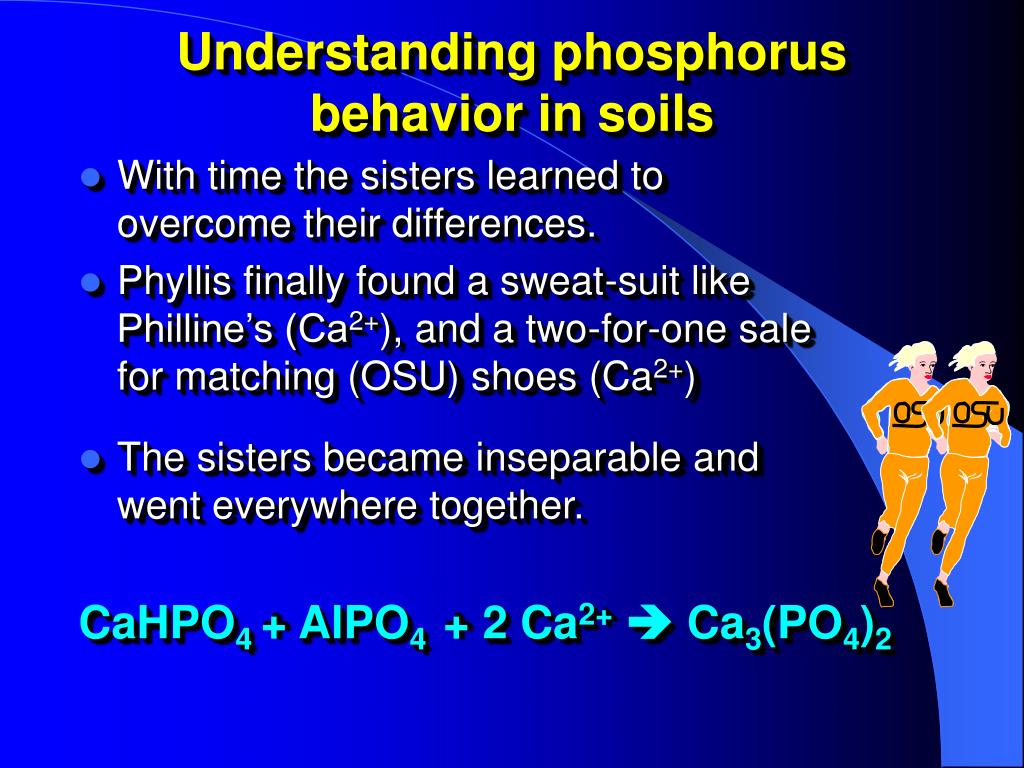

  8. Understanding phosphorus behavior in soils • With time the sisters learned to overcome their differences. • Phyllis finally found a sweat-suit like Philline’s (Ca2+), and a two-for-one sale for matching (OSU) shoes (Ca2+) • The sisters became inseparable and went everywhere together. • CaHPO4 + AlPO4 + 2 Ca2+ Ca3(PO4)2

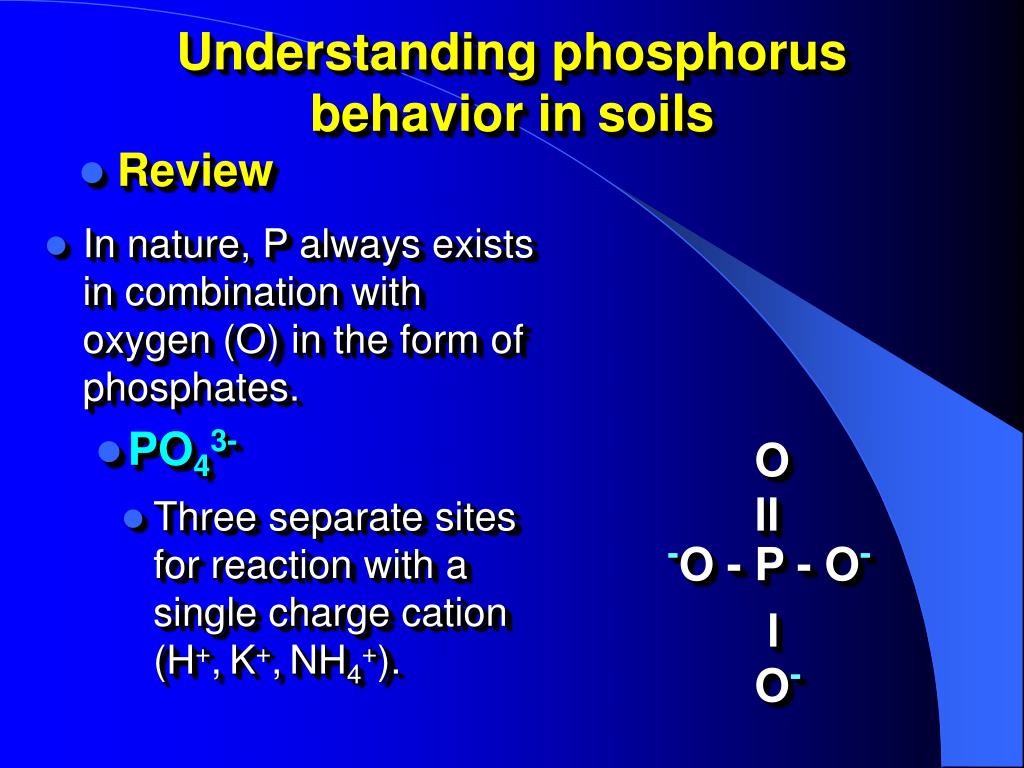

  9. O ll -O - P - O- l O- Understanding phosphorus behavior in soils • Review • In nature, P always exists in combination with oxygen (O) in the form of phosphates. • PO43- • Three separate sites for reaction with a single charge cation (H+,K+,NH4+).

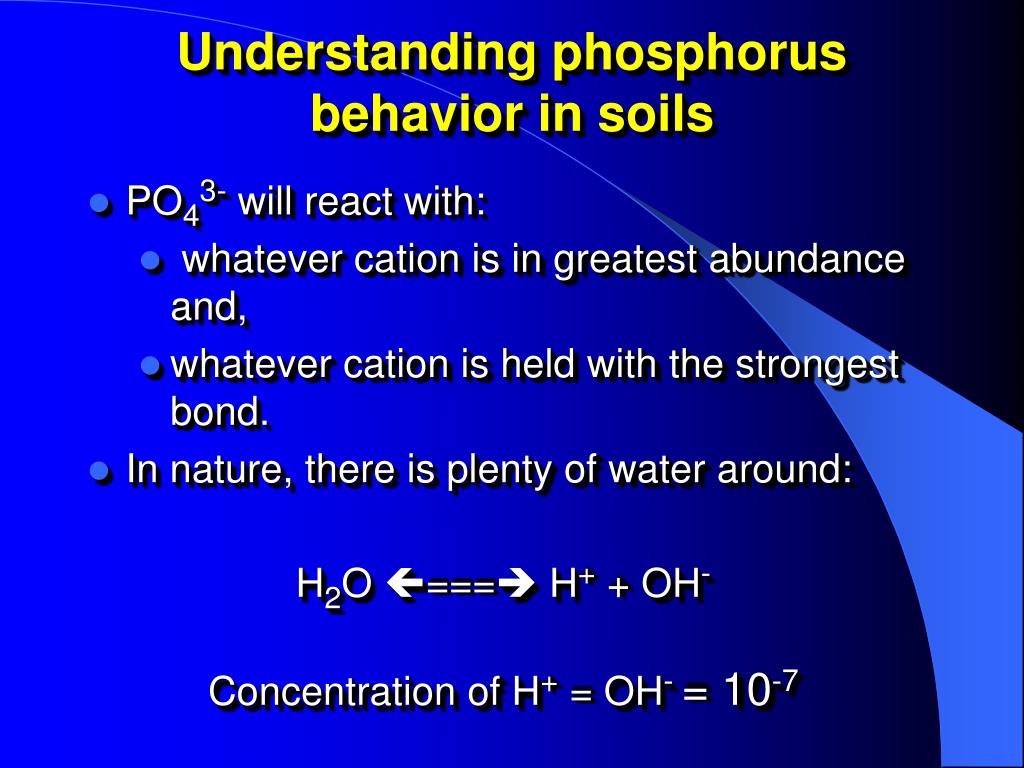

  10. Understanding phosphorus behavior in soils • PO43- will react with: • whatever cation is in greatest abundance and, • whatever cation is held with the strongest bond. • In nature, there is plenty of water around: H2O === H+ + OH- Concentration of H+ = OH- = 10-7

  11. O ll HO - P - OH l OH Understanding phosphorus behavior in soils • Review • When the charges on phosphate are all satisfied by H+, in the laboratory, the compound phosphoric acid is formed. • H3PO4

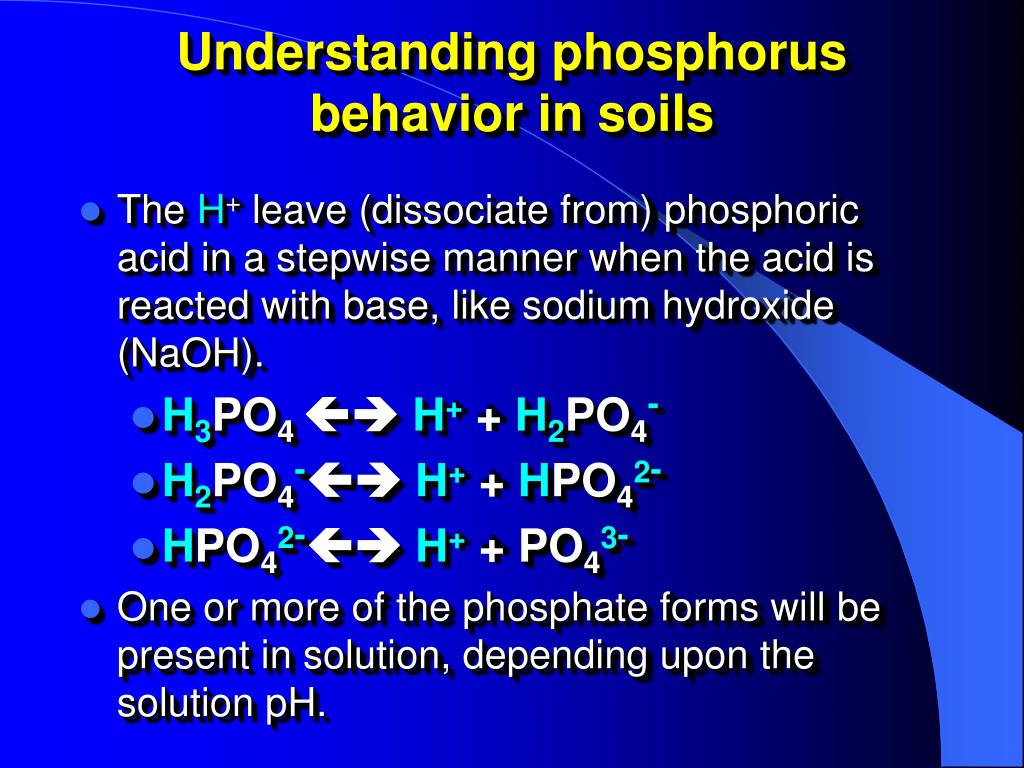

  12. Understanding phosphorus behavior in soils • The H+ leave (dissociate from) phosphoric acid in a stepwise manner when the acid is reacted with base, like sodium hydroxide (NaOH). • H3PO4  H++ H2PO4- • H2PO4- H++HPO42- • HPO42- H++PO43- • One or more of the phosphate forms will be present in solution, depending upon the solution pH.

  13. Understanding phosphorus behavior in soils • One or more of the phosphate forms will be present in solution, depending upon the solution pH.

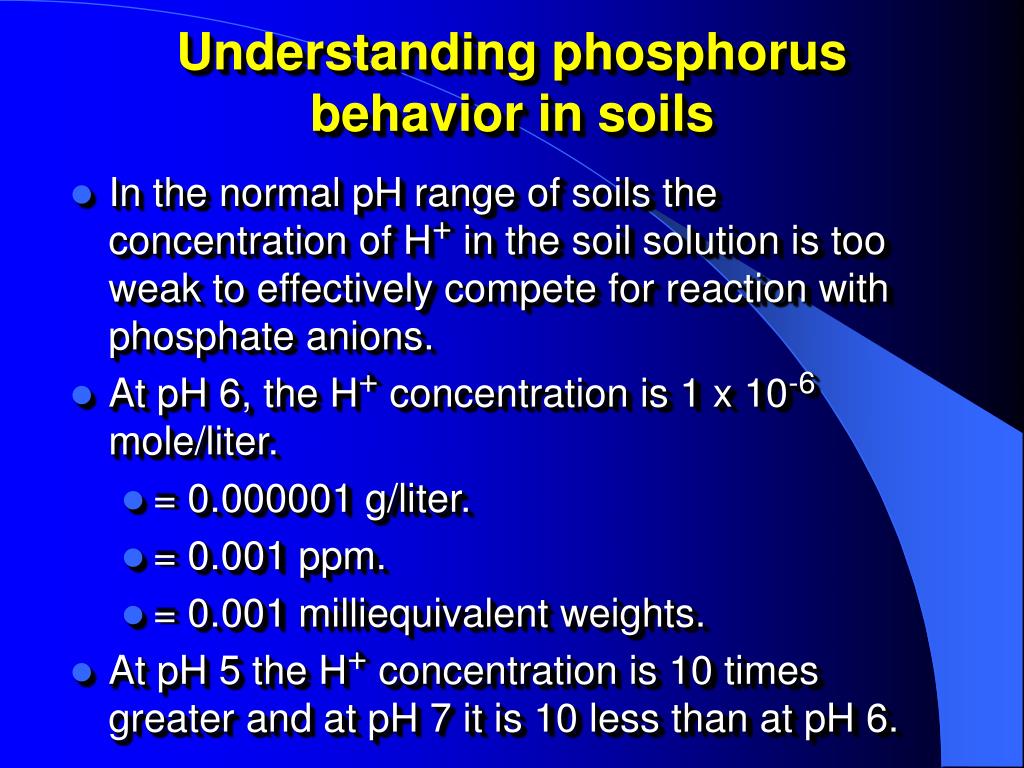

  14. Understanding phosphorus behavior in soils • In the normal pH range of soils the concentration of H+ in the soil solution is too weak to effectively compete for reaction with phosphate anions. • At pH 6, the H+ concentration is 1 x 10-6 mole/liter. • = 0.000001 g/liter. • = 0.001 ppm. • = 0.001 milliequivalent weights. • At pH 5 the H+ concentration is 10 times greater and at pH 7 it is 10 less than at pH 6.

  15. Understanding phosphorus behavior in soils • Since the H+ concentration is so low in the normal pH range of soils, the concentration of H2PO4- and HPO42- might also be expected to be low. • If there is not enough H+ to react with PO43- in the soil, what else can PO43- react with? • Consider the lyotropic series and the relationship of soil pH and percent base saturation.

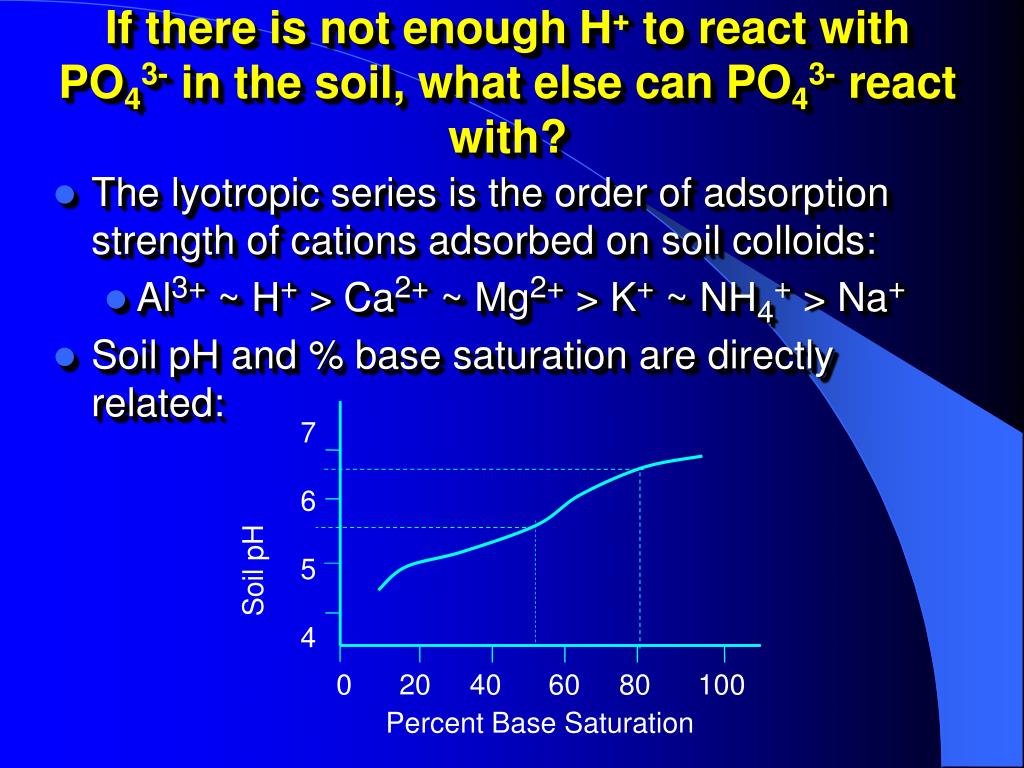

  16. 7 6 5 4 Soil pH 0 20 40 60 80 100 Percent Base Saturation If there is not enough H+ to react with PO43- in the soil, what else can PO43- react with? • The lyotropic series is the order of adsorption strength of cations adsorbed on soil colloids: • Al3+~ H+ > Ca2+ ~ Mg2+ > K+ ~ NH4+ > Na+ • Soil pH and % base saturation are directly related:

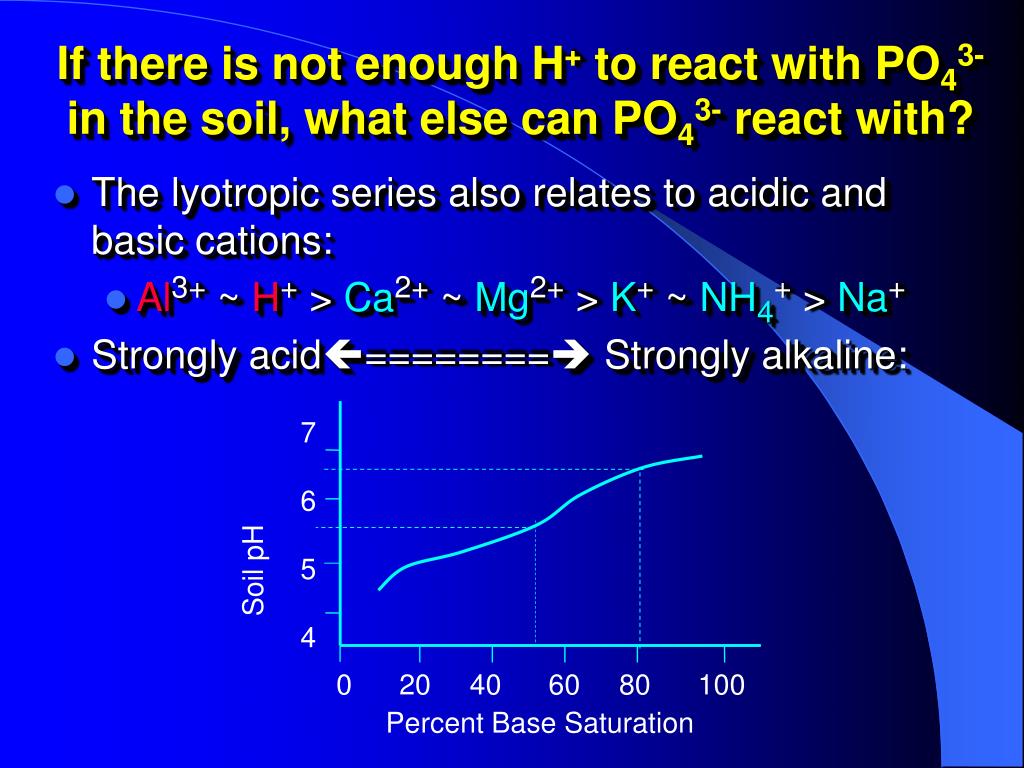

  17. 7 6 5 4 Soil pH 0 20 40 60 80 100 Percent Base Saturation If there is not enough H+ to react with PO43- in the soil, what else can PO43- react with? • The lyotropic series also relates to acidic and basic cations: • Al3+~ H+ > Ca2+ ~ Mg2+ > K+ ~ NH4+ > Na+ • Strongly acid======== Strongly alkaline:

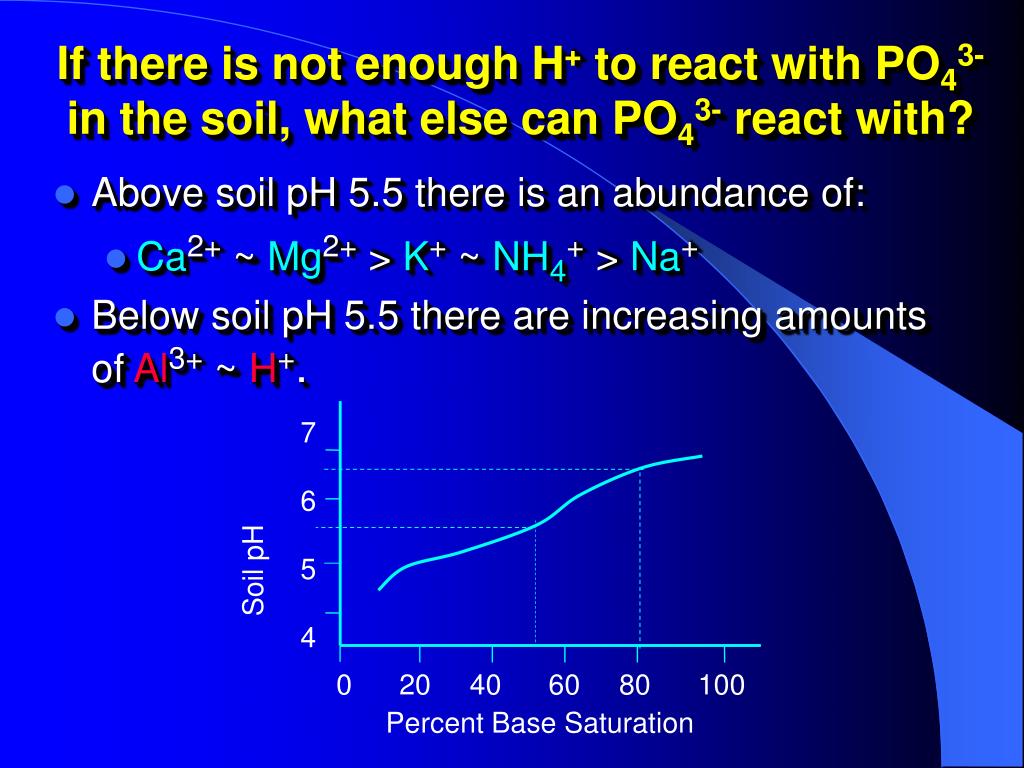

  18. 7 6 5 4 Soil pH 0 20 40 60 80 100 Percent Base Saturation If there is not enough H+ to react with PO43- in the soil, what else can PO43- react with? • Above soil pH 5.5 there is an abundance of: • Ca2+ ~ Mg2+ > K+ ~ NH4+ > Na+ • Below soil pH 5.5 there are increasing amounts of Al3+~ H+.

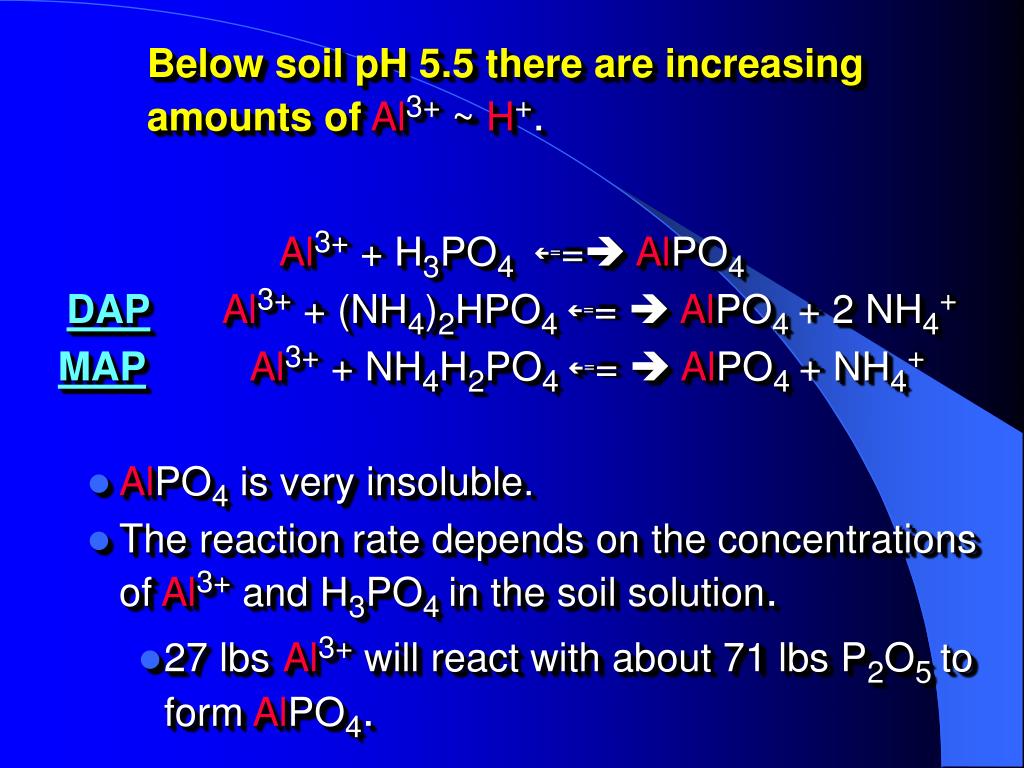

  19. Below soil pH 5.5 there are increasing amounts ofAl3+~ H+. Al3+ + H3PO4 == AlPO4 DAPAl3+ + (NH4)2HPO4 ==  AlPO4 + 2 NH4+ MAPAl3+ + NH4H2PO4 ==  AlPO4 + NH4+ • AlPO4is very insoluble. • The reaction rate depends on the concentrations of Al3+ and H3PO4 in the soil solution. • 27 lbsAl3+ will react with about 71 lbs P2O5 to form AlPO4.

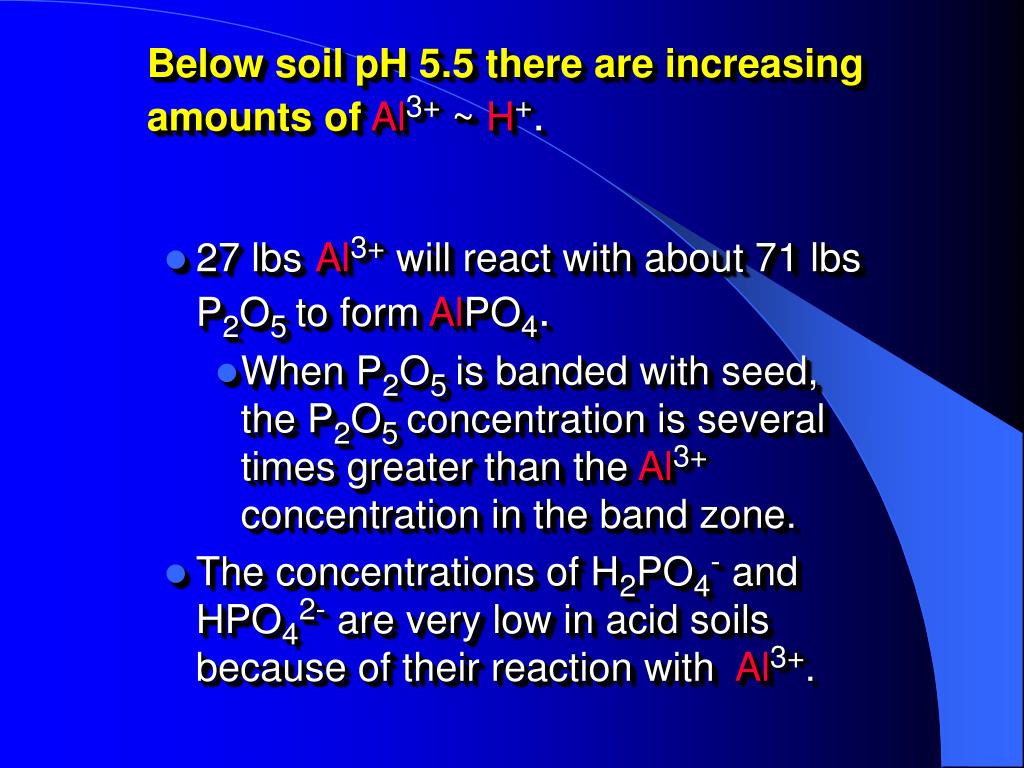

  20. Below soil pH 5.5 there are increasing amounts ofAl3+~ H+. • 27 lbsAl3+ will react with about 71 lbs P2O5 to form AlPO4. • When P2O5 is banded with seed, the P2O5 concentration is several times greater than the Al3+ concentration in the band zone. • The concentrations of H2PO4- and HPO42- are very low in acid soils because of their reaction with Al3+.

  21. 7 6 5 4 Soil pH 0 20 40 60 80 100 Percent Base Saturation Above soil pH 5.5 there is an abundance of:Ca2+ ~ Mg2+ > K+ ~ NH4+ > Na+ Ca2++ H3PO4  Ca(H2PO4)2 (0-46-0) DAPCa2++ (NH4)2HPO4  CaHPO4 + 2 NH4+ MAPCa2++ NH4H2PO4  Ca(H2PO4)2 + NH4+ • Ca(H2PO4)2 and CaHPO4 are “highly” water soluble.

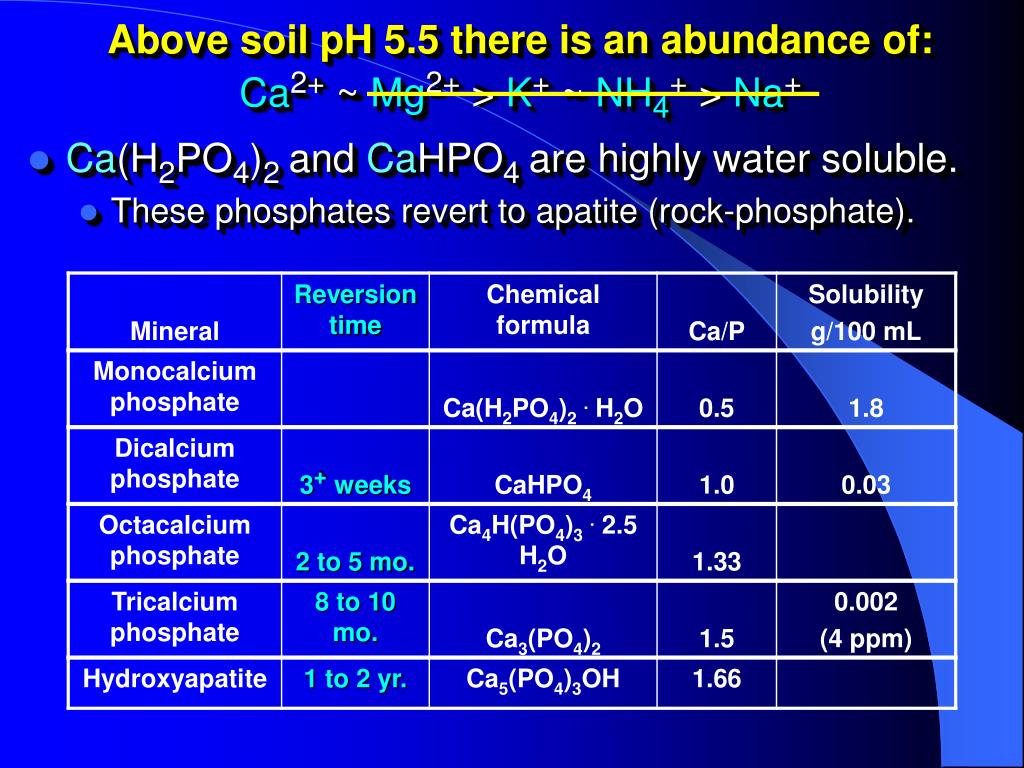

  22. Above soil pH 5.5 there is an abundance of:Ca2+ ~ Mg2+ > K+ ~ NH4+ > Na+ • Ca(H2PO4)2 and CaHPO4 are highly water soluble. • These phosphates revert to apatite (rock-phosphate).

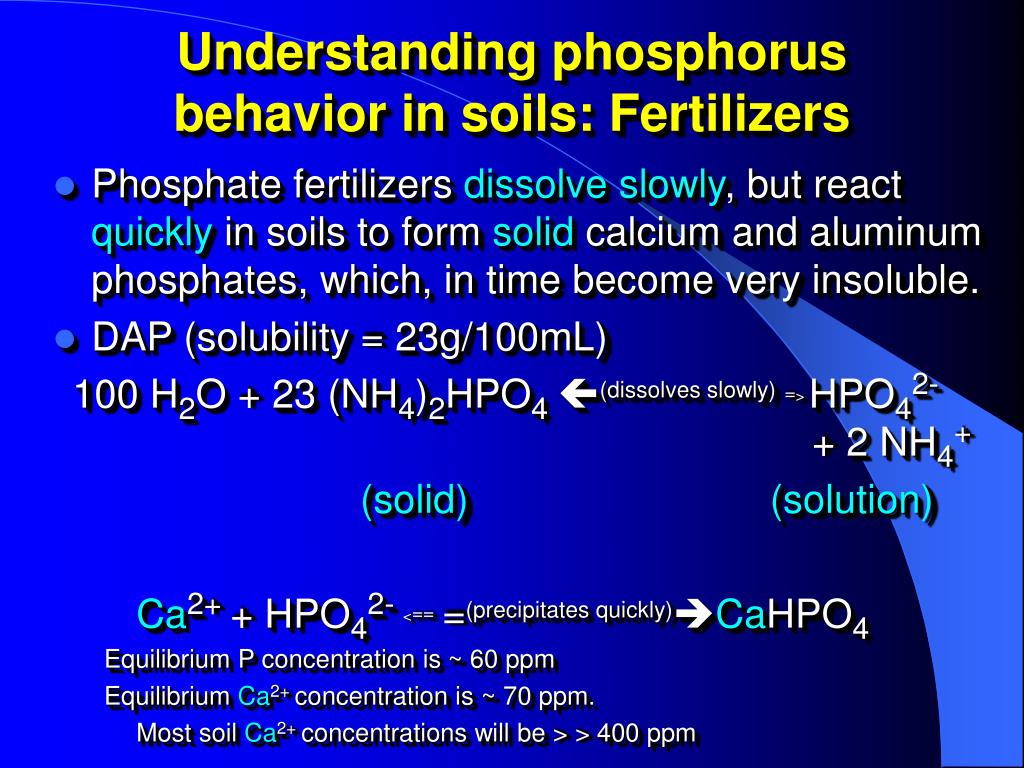

  23. Understanding phosphorus behavior in soils: Fertilizers • Phosphate fertilizers dissolve slowly, but react quickly in soils to form solid calcium and aluminum phosphates, which, in time become very insoluble. • DAP (solubility = 23g/100mL) 100 H2O + 23 (NH4)2HPO4 (dissolves slowly)=> HPO42-+ 2 NH4+ (solid) (solution) Ca2+ + HPO42-<===(precipitates quickly)CaHPO4 Equilibrium P concentration is ~ 60 ppm Equilibrium Ca2+ concentration is ~ 70 ppm. Most soil Ca2+ concentrations will be > > 400 ppm

  24. Understanding phosphorus behavior in soils: Fertilizers • Phosphate fertilizers dissolve slowly, but reactquickly in soils to form solid calcium and aluminum phosphates, which, in time become very insoluble.
