Driver Loses Finger Tip While Cleaning Rotary Valve: A Safety Lesson

zahir-davenport avatar
1 diapositives · 143 Views · Dec 01, 2014

A driver faced a severe injury after losing a fingertip while cleaning a rotary valve. The incident occurred when he attempted to dislodge pellets using his hand, having removed the safety grid. The rotary valve unexpectedly turned due to a malfunctioning control switch, resulting in his injury. The driver was unaware that the valve was not fully de-energized. This incident highlights the critical importance of adhering to safety protocols, including keeping safety grids in place and reporting equipment malfunctions to prevent similar accidents in the future.

Driver Loses Finger Tip While Cleaning Rotary Valve: A Safety Lesson - slide 1
01 / 1Driver Loses Finger Tip While Cleaning Rotary Valve: A Safety Lesson
1 / 17

Télécharger la présentation

Driver Loses Finger Tip While Cleaning Rotary Valve: A Safety Lesson
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

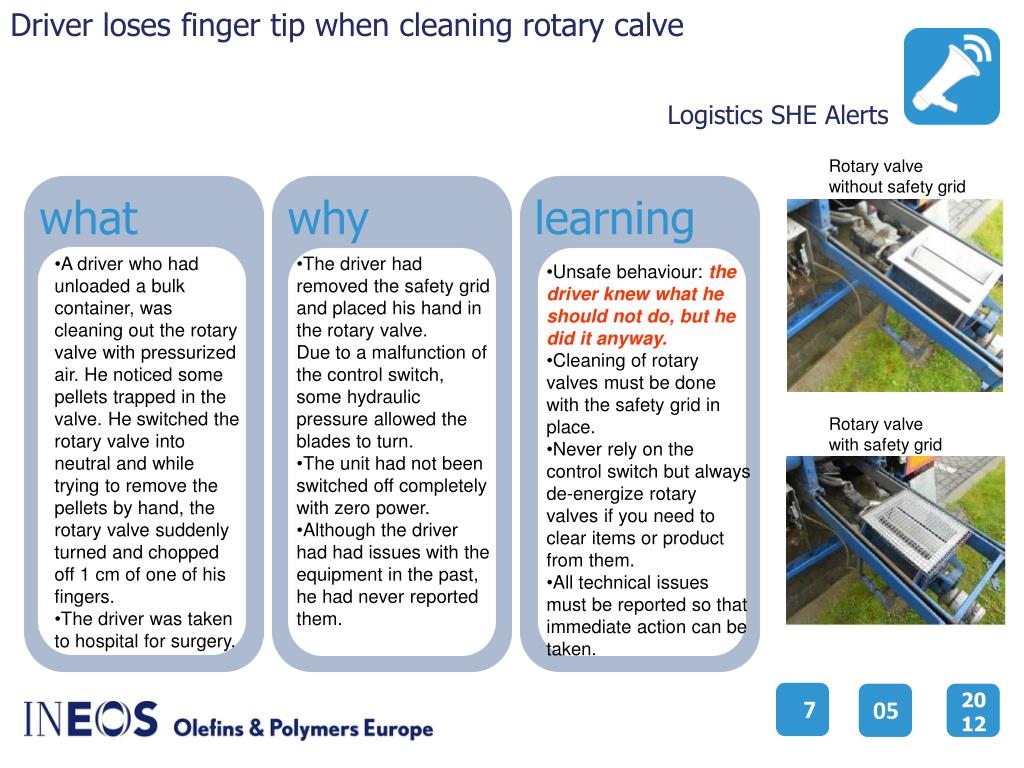

  1. Driver loses finger tip when cleaning rotary calve Logistics SHE Alerts Rotary valve without safety grid what why learning • A driver who had unloaded a bulk container, was cleaning out the rotary valve with pressurized air. He noticed some pellets trapped in the valve. He switched the rotary valve into neutral and while trying to remove the pellets by hand, the rotary valve suddenly turned and chopped off 1 cm of one of his fingers. • The driver was taken to hospital for surgery. • The driver had removed the safety grid and placed his hand in the rotary valve. • Due to a malfunction of the control switch, some hydraulic pressure allowed the blades to turn. • The unit had not been switched off completely with zero power. • Although the driver had had issues with the equipment in the past, he had never reported them. • Unsafe behaviour: the driver knew what he should not do, but he did it anyway. • Cleaning of rotary valves must be done with the safety grid in place. • Never rely on the control switch but always de-energize rotary valves if you need to clear items or product from them. • All technical issues must be reported so that immediate action can be taken. Rotary valve with safety grid 20 12 7 05
