1. Top Pair Production Cross Section with the ATLAS Detector A. Bangert, N. Ghodbane, T. Goettfert, R. Haertel, A. Macchiolo, R. Nisius, S. Pataraia Max Planck Institute, Munich

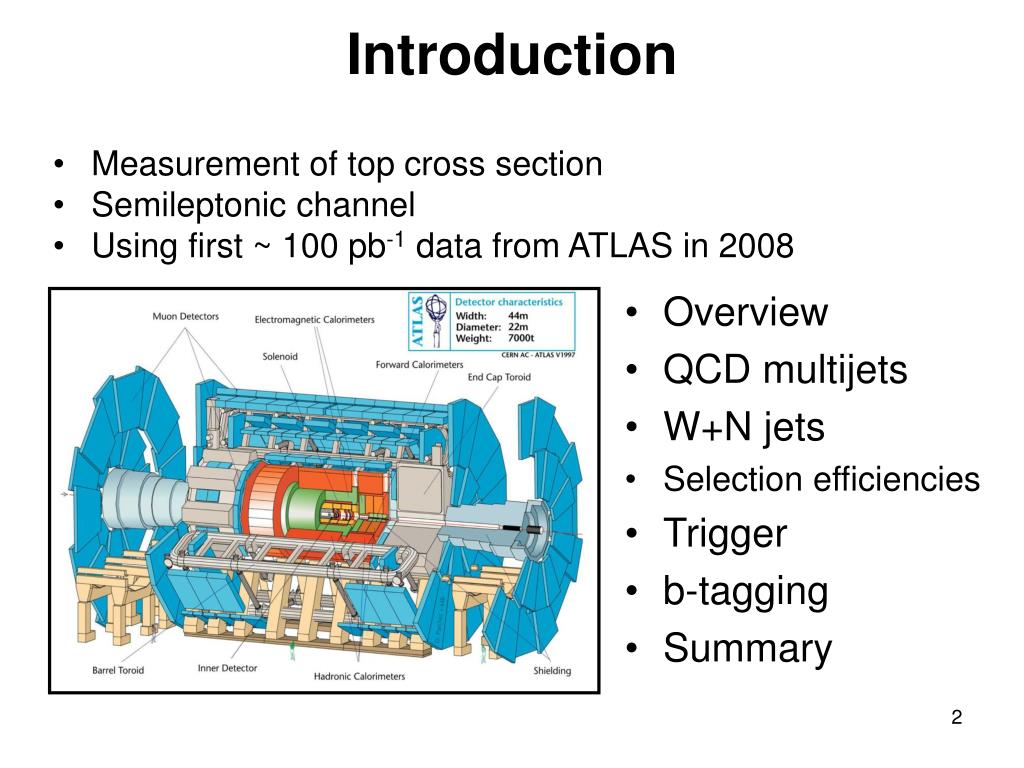

2. Introduction • Measurement of top cross section • Semileptonic channel • Using first ~ 100 pb-1 data from ATLAS in 2008 • Overview • QCD multijets • W+N jets • Selection efficiencies • Trigger • b-tagging • Summary

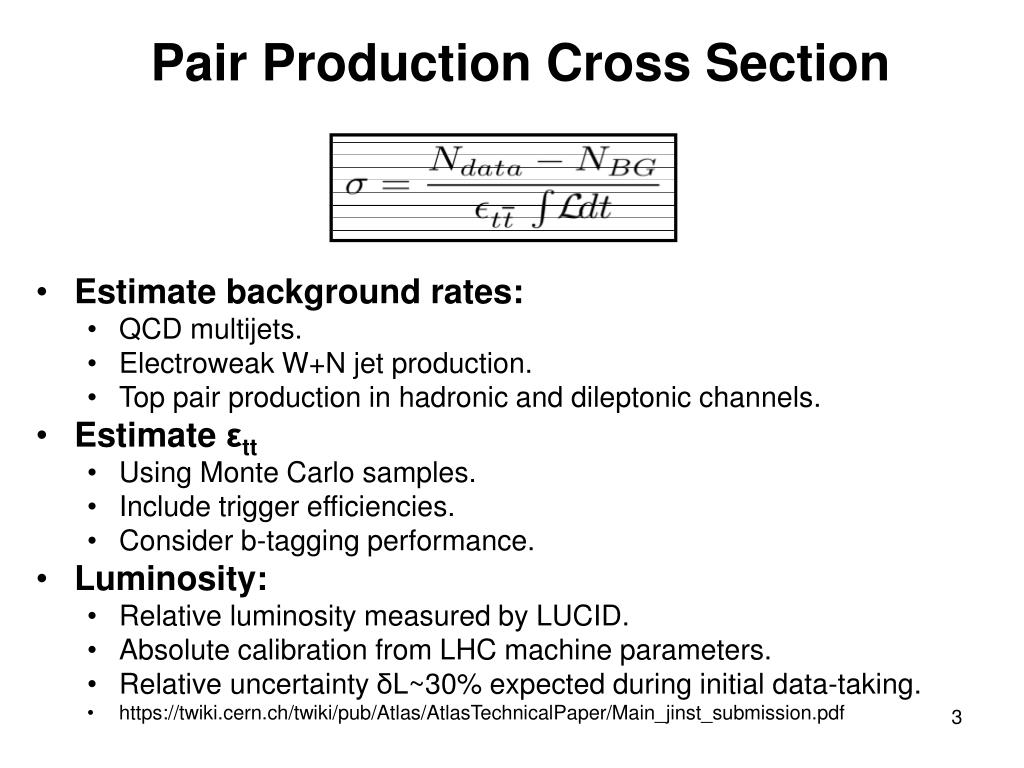

3. Pair Production Cross Section • Estimate background rates: • QCD multijets. • Electroweak W+N jet production. • Top pair production in hadronic and dileptonic channels. • Estimate εtt • Using Monte Carlo samples. • Include trigger efficiencies. • Consider b-tagging performance. • Luminosity: • Relative luminosity measured by LUCID. • Absolute calibration from LHC machine parameters. • Relative uncertainty δL~30% expected during initial data-taking. • https://twiki.cern.ch/twiki/pub/Atlas/AtlasTechnicalPaper/Main_jinst_submission.pdf

4. QCD Multijets • Reducible BG • MET is due to • b→Wc→lνc • Mismeasurement • Leptons are • Non-prompt • ‘Fake’ • Fake Rate R~10-5 (ATLAS TDR) • R = R(pT, η) Reconstruction: Athena 12.0.6 MET Light Jet Fake Rate Electron Isolation ttbar: 5200 W+N jets (W→lν): 8240 – 8251 QCD: 5061 – 5064 A. Doxiadis, M. Kayl, NIKHEF Cuts placed only on jet quantities. (See backup slides.)

5. W+N Jets Background • Most dangerous background to analysis. • Use MC samples to determine selection efficiency εW+Njets. • Nexpected = σW+Njets ∫L dt. • Theoretical uncertainty on σW+Njets is large. • Uncertainty on background rate will be large. • Effective cuts are therefore needed to reduce background rate. Systematic Uncertainty on σ(W+)+Njets εtt→evbjjb=25.4 ± 0.001 (stat) % εtt→μvbjjb=28.4 ± 0.001 (stat) % kT D=0.4 No b-tagging. ttbar: MC@NLO.W+Njets: Alpgen.Analysis cuts: see backup slides. CERN-PH-TH/2007-066

6. Trigger • e25i and mu20 • Plots contain • ttbar events (sample 5200) • Analysis cuts (see backup slides) • pT(l)>10 GeV • L1 Trigger, Event Filter (EF) • Efficiency for e25i to observe an electron in tt→evbjjb is84%. • Efficiency for mu20 to observe a muon in tt→μvbjjb is78%. A. Macchiolo

7. b-tagging • Implement b-tagging to increase S/B. • Decrease uncertainty on W+N Jets. • IP3D+SV1 is recommended b-tagger. • Defining weight cut gives εb-tag, flight, purity. • Highly sample dependent. • w>6.25: εb-tag=50%, flight=656, P=0.99. kT, D=0.4 kT, D=0.7 Sample 5200 S. Pataraia

8. b-tagging performance • Weights are chosen such that • εb-tag = 50% for all algorithms. • ‘Purification’: • Removal of true light flavor quarks within ∆R < 0.8 of true heavy flavor quarks or taus. If found, identify and discard reconstructed light flavor jet within ∆R < 0.4 of true light flavor quark. • IP3D+SV1 is optimized for use on Cone4 jets. • Good performance for • Cone4 jets. • kT, D=0.4 jets. • Performance is poor for • Cone7 jets. • kT, D=0.7 jets. S. Pataraia

9. Summary and Outlook • Measurement of σtt • in semileptonic channel • using 100 pb-1 of first data. • Background rates • Selection efficiencies • Trigger performance • B-tagging • Full Dress Rehearsal • LHC comes online… Invariant Top Mass for t→Wb→jjb

10. Backup Slides

11. Samples • Semileptonic and dileptonic ttbar events • MC@NLO and Herwig. • Sample 5200, TID 8037. • no 1mm bug; bug in e isolation. • Filter requires prompt lepton. • Hadronic ttbar events • MC@NLO and Herwig. • Sample 5204, TID 6015. • 1mm bug. • Filter forbids prompt lepton. • W+Njets events • Alpgen and Herwig. • Samples 8240-8250, TID 6551-6561. • 1 mm bug. • TruthJetFilter requires 3 jets with pT>30 GeV, |eta|<5. • QCD multijet events • Alpgen and Herwig. • Samples 5061, 5062, 5063, 5064. • Generated in 11.0.42, reconstructed in 12.0.6. • Filter requires 4 jets with |η|<6. • Lead jet must have pT(j1)>80 GeV. • 3 subsequent jets must have pT>40 GeV.

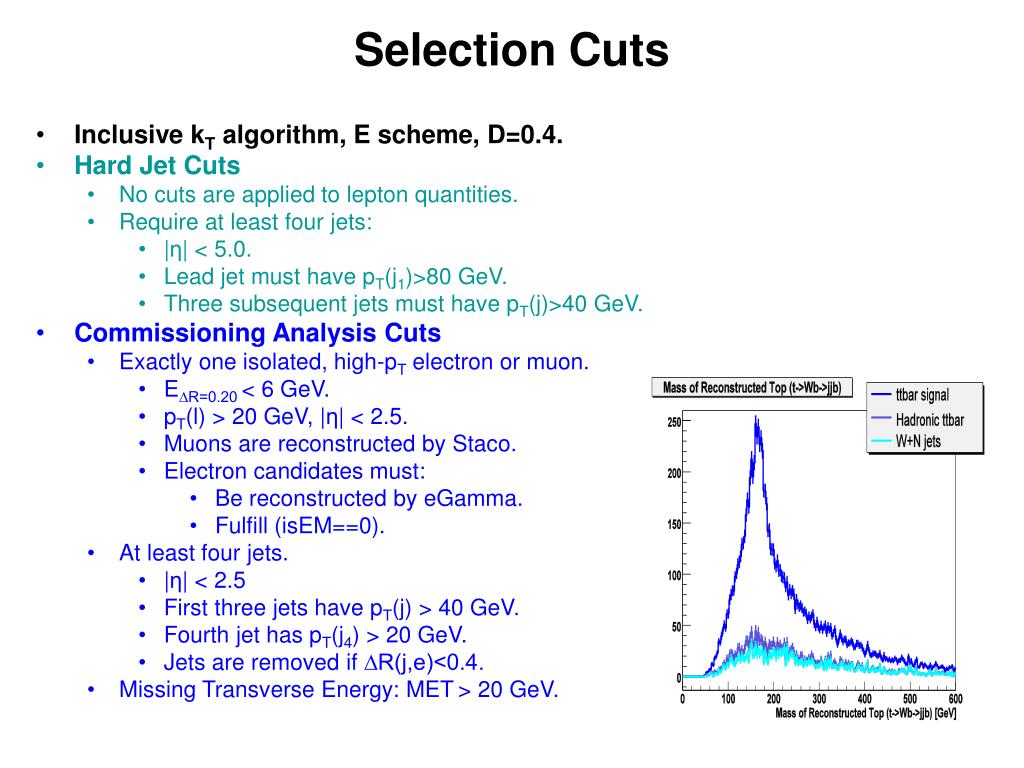

12. Selection Cuts • Inclusive kT algorithm, E scheme, D=0.4. • Hard Jet Cuts • No cuts are applied to lepton quantities. • Require at least four jets: • |η| < 5.0. • Lead jet must have pT(j1)>80 GeV. • Three subsequent jets must have pT(j)>40 GeV. • Commissioning Analysis Cuts • Exactly one isolated, high-pT electron or muon. • E∆R=0.20 < 6 GeV. • pT(l) > 20 GeV, |η| < 2.5. • Muons are reconstructed by Staco. • Electron candidates must: • Be reconstructed by eGamma. • Fulfill (isEM==0). • At least four jets. • |η| < 2.5 • First three jets have pT(j) > 40 GeV. • Fourth jet has pT(j4) > 20 GeV. • Jets are removed if ∆R(j,e)<0.4. • Missing Transverse Energy: MET> 20 GeV.

13. Lepton Fake Rate A. Doxiadis, M. Kayl, Nikhef, ATL-COM-PHYS-2008-04

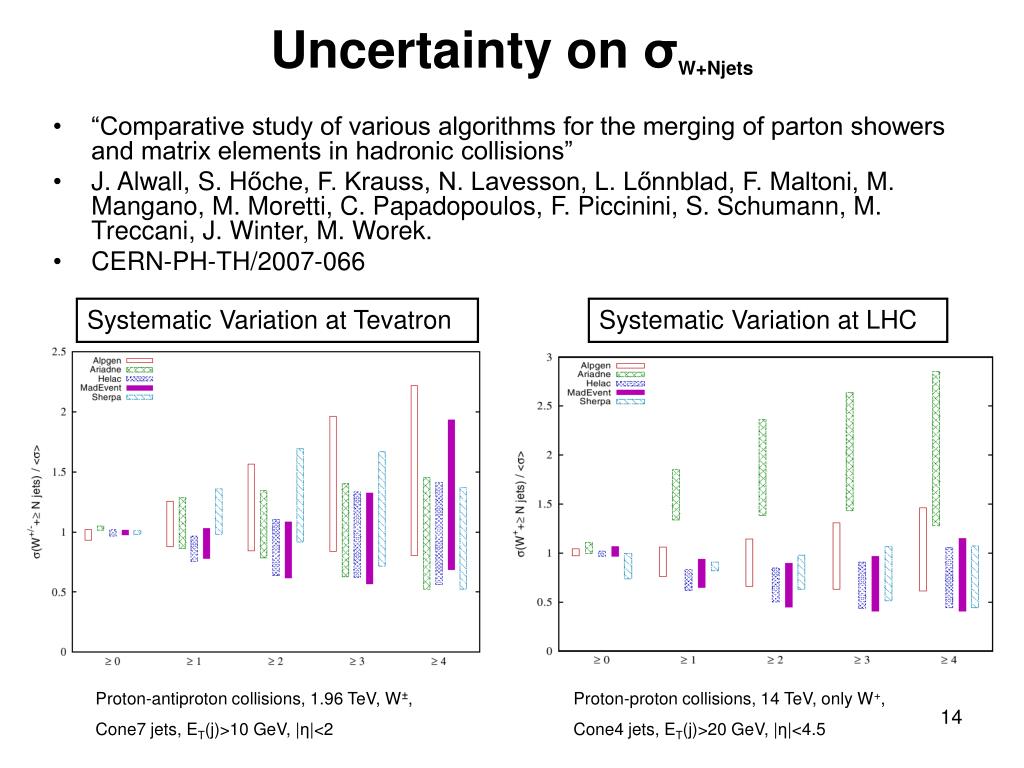

14. Uncertainty on σW+Njets • “Comparative study of various algorithms for the merging of parton showers and matrix elements in hadronic collisions” • J. Alwall, S. Hőche, F. Krauss, N. Lavesson, L. Lőnnblad, F. Maltoni, M. Mangano, M. Moretti, C. Papadopoulos, F. Piccinini, S. Schumann, M. Treccani, J. Winter, M. Worek. • CERN-PH-TH/2007-066 Systematic Variation at Tevatron Systematic Variation at LHC Proton-antiproton collisions, 1.96 TeV, W±, Cone7 jets, ET(j)>10 GeV, |η|<2 Proton-proton collisions, 14 TeV, only W+, Cone4 jets, ET(j)>20 GeV, |η|<4.5

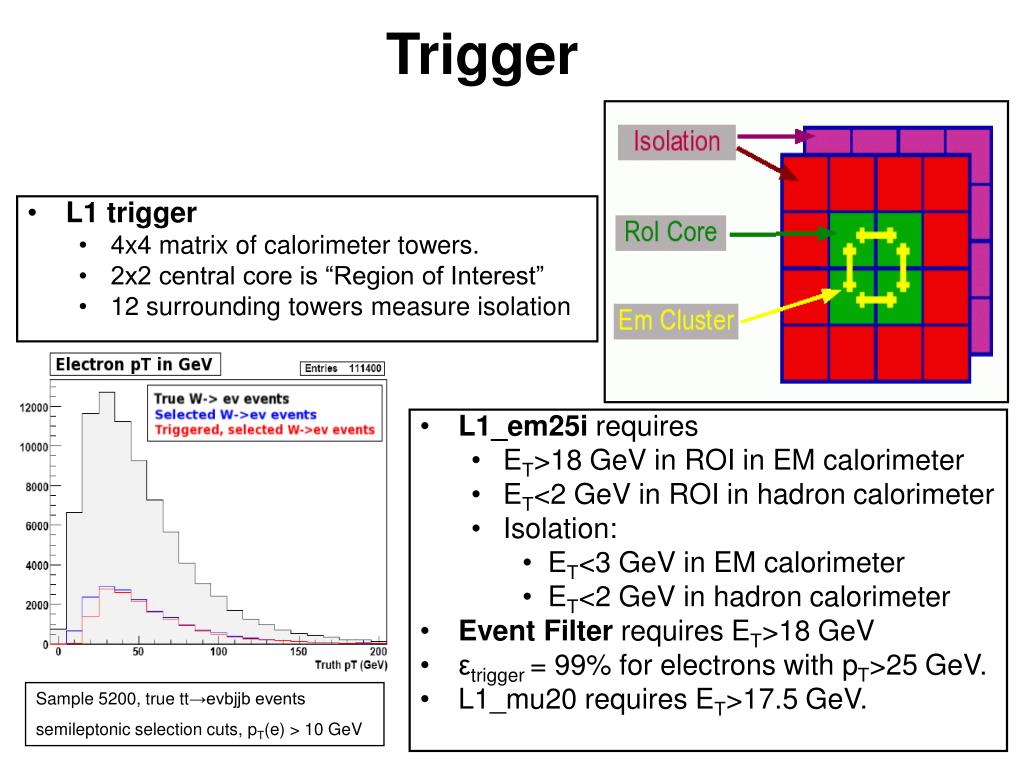

16. Trigger • L1 trigger • 4x4 matrix of calorimeter towers. • 2x2 central core is “Region of Interest” • 12 surrounding towers measure isolation • L1_em25i requires • ET>18 GeV in ROI in EM calorimeter • ET<2 GeV in ROI in hadron calorimeter • Isolation: • ET<3 GeV in EM calorimeter • ET<2 GeV in hadron calorimeter • Event Filter requires ET>18 GeV • εtrigger = 99% for electrons with pT>25 GeV. • L1_mu20 requires ET>17.5 GeV. Sample 5200, true tt→evbjjb events semileptonic selection cuts, pT(e) > 10 GeV
