  1. Top Quark Pair Production Cross Section using the ATLAS Detector at the LHC • P. Skubic • (On behalf of the ATLAS collaboration) • April 29, 2014 P. Skubic - OU , ATLAS

  2. Outline • Introduction: • Top Production and decay • Production Cross section • inclusive cross sections • 7 TeV • 8 TeV • differential cross section at 7 TeV • Summary P. Skubic - OU , ATLAS

  3. Top quark pair production at LHC Theory: Full NNLO+NNLL with contributions from: Baernreuther, Czakon, Mitov arXiv:1204.5201 Czakon, Mitov arXiv:1207.0236 Czakon, Mitov arXiv:1210.6832 Czakon, Fiedler, Mitov arXiv:1303.6254 ≈ 15/13/10% @ 7/8/14 TeV The large mass of the top quark results in large coupling to the Higgs and possibly to new physics processes. ≈ 85/87/90% @ 7/8/14 TeV P. Skubic - OU , ATLAS

  4. Finding top quark pairevents • Decay: weak interaction : t  wb (~ 100 %) • Final state: from the W decays • b-tagging performance : characterized by b-tagging efficiency (probability to identify a b-jet as such) and rejection of non-b-jets. A typical working point at 70% efficiency using the MV1 tagger has a rejection factor of about 140. All jets 46% τ’s 14% e/μ jets 34% Dilepton (e/μ) 6% • Gives several handles for identification • e/μ/τ from W decays • b-jets • Missing transverse energy from neutrino Each must be understood with high precision P. Skubic - OU , ATLAS

  5. Typical top pair e-µ dilepton candidate with two b-jets Typical event selection Requirements: pTe> 25 GeV pTµ> 25 GeV Etmiss> 45 GeV |ηcl|< 2.47 P. Skubic - OU , ATLAS

  6. 7 TeVdilepton cross section • Measurement with/with • out b-tagging • JHEP 1205 (2012) 059 • Simple counting analysis • Since comparatively clean signal • Stat. Error: ~3% • Sys. Error: ~8% (JES, lepton SF, fakes) • Lumi. Error: ~5% P. Skubic - OU , ATLAS

  7. 8 TeV single lepton crosssection 8 TeV Lepton(e/μ) + jets ATLAS-CONF-2012-149 Multivariate technique used with b-tagging to separate tt signal from backgrounds Variables used in Likelihood are lepton ηand aplanarity transform (exp(-8A)) Dominant systematics include: MC modeling of signal (11%) and Jet/MET reconstruction and calibration (~6%) Good agreement with theory. P. Skubic - OU , ATLAS

  8. Inclusive dilepton cross section 8 TeV ATLAS-CONF-2013-097 Require opposite sign (OS) eµ with exactly 1 or 2 b-tagged jets Events with at least two jets P. Skubic - OU , ATLAS 8 tt purity: 89% 96%

  9. Inclusive dilepton cross section (con’t) Bkg: Single top (Wt) (from simul.), Data-driven fake leptons (extrapolated from same sign lepton sample), Z + jets (extrapolated from Z µµ sample) Good data-MC agreement and signal/background ratio e µ η pT P. Skubic - OU , ATLAS

  10. Inclusive dilepton cross section (con’t) Simultaneous fit for cross section and efficiency to select, reconstruct, and b-tag a jet in 1-b-tag and 2-b-tag samples in order tominimize jet and b-tag syst Primary systematic errors: Lumi~3.1%, Ebeam~ 1.7%, ttmodelling~ 1.5%, Electron ID/isol~ 1.4% Good agreement with theory. P. Skubic - OU , ATLAS

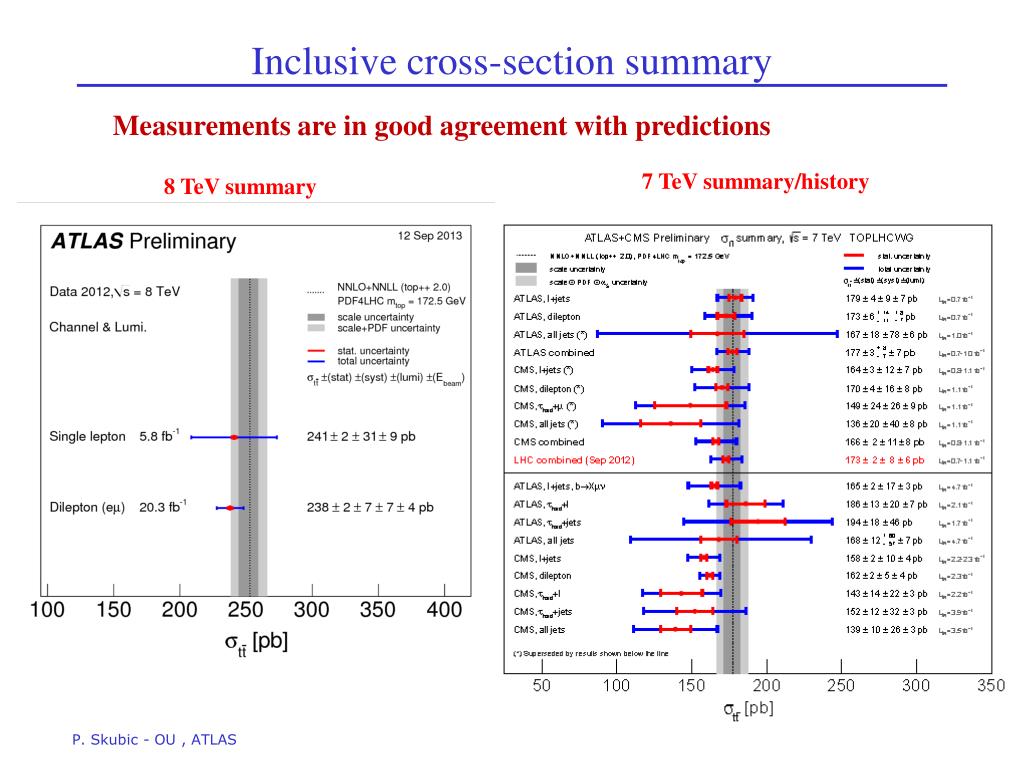

  11. Inclusive cross-section summary Measurements are in good agreement with predictions 7 TeV summary/history 8 TeV summary P. Skubic - OU , ATLAS

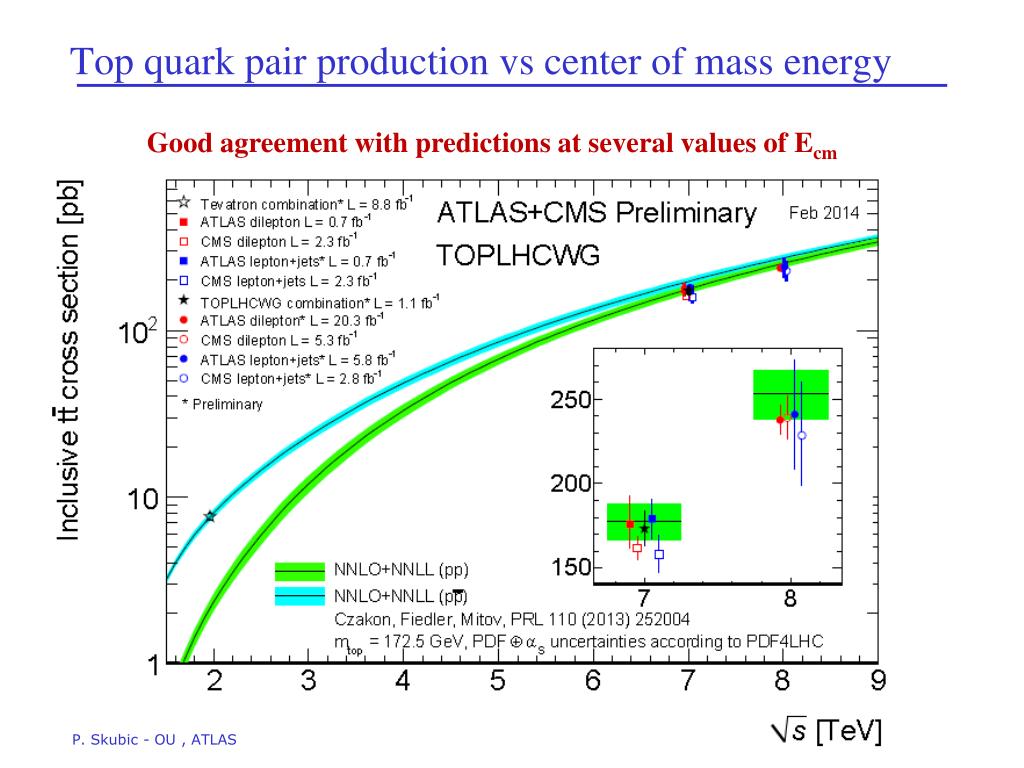

  12. Top quark pair production vs center of mass energy Good agreement with predictions at several values of Ecm P. Skubic - OU , ATLAS

  13. Top quark pair production – differential cross-section • Require 1 isolated e, µ; ETmiss > 30 GeV, mTW > 35 GeV, ≥4 jets, ≥ 1 b-tag • Reconstruct with kinematic likelihood fit: (mt, mW constraint) with cut on quality of fit • Unfold d(N-Nbkg)/dX to full phase space: (regularized unfolding, linearity tests), scale with L and ATLAS-CONF-2013-099 Combine (e,µ) + jets channels with minimal covariance estimator including correlations Propagate syst. Uncertainties through unfolding: Modify migration matrix and acceptances, correct data Compare to MC simulations and selected theoretical calculations. P. Skubic - OU , ATLAS

  14. (con’t) • Backgrounds: W + jets ( data-driven: normalize pre-tag with W+/W- asymmetry;extrapolate b-tag prob. from 2-jet-bin); fake leptons (data-driven method); Single top, dibosons (from MC) ATLAS-CONF-2013-099 dN/dpT,top P. Skubic - OU , ATLAS

  15. (con’t) Compare with MC, NLO & approx NNLO pT,top spectrum is softer than most predictions for pT,top > 200 GeV ATLAS-CONF-2013-099 P. Skubic - OU , ATLAS

  16. (con’t) Compare data with NLO QCD using FCFM with different PDF sets Data show sensitivity to PDF with Some preference for HeraPDF P. Skubic - OU , ATLAS

  17. Summary • Top productionmeasurements are in precision era - Pair production cross section uncertainty O(5%) level at LHC compared to ~4% prediction uncertainty (NNLO+NNLL) - Differential cross-sections now measured with 10%-20% relative uncertainties • Most top physics measurements systematics dominated - Work is on going for full run-1 LHC samples • Run 2 @:new kinematic phase space to be explored with ~ factor 3 enhanced cross section • Higher statistics inclusive, exclusive, and differential cross section measurements • Fiducial measurements • New physics decaying into top quark (pairs) not yet seen -Large machinery developed looking into many signatures, reusable in 2015 - P. Skubic - OU , ATLAS

  18. Backup Slides P. Skubic - OU , ATLAS

  19. Lepton + Jets: Analysis (No Btag) • Variables chosen (based on the • optimization w.r.t. stat+JES error) : • lepton η: ttbar more central • lepton q : ttbar symmetric, • W+jets asymmetric • aplanarity : ttbar more isotropictransformed to e-8xAfor uniformity; • Aplanarity defined: 1.5x smallest eigenvalue of momentum tensor P. Skubic - OU , ATLAS

  20. Lepton + Jets: Analysis Strategy • Measurement strategy (multivariate) : • exploits the difference in kinematic distributions of signal and background events. • Projective Likelihood (LH) is used: • to separate signal from bkg(both • analysis with and without b-tag) • Discriminant constructed from • multiple variables • MC signal and background models these • variables for building LH discriminant • Fit the likelihood discriminant distribution in data by sum of two “templates”, signal and bkg, and get the 20 P. Skubic - OU , ATLAS

  21. Lepton + Jets: Background Estimate • Backgrounds: • W+jets backgrounds • Shape is determined by MC • Normalization from fit • Small Bkgd (Z+jets , diboson , single top) • Shape from MC • Normalization from NLO calculation • QCD multijet (Fake lepton) • Due to mis-ID of lepton, not well modeled in simulation • Used (for example) matrix method for μ channel • anti-electron for e channel P. Skubic - OU , ATLAS 21

  22. QCD MULTIJET : MUON CHANNEL • Dominated by b-jets or c-jets producing muons • Background in signal region can be estimated by using matrix method : • : from data – Z decay • : Control regions (loose the standard criteria) • These are applied to the signal region • Uncertainty : 30 % Isolated muons from W decays QCD muon from jets εreal εfake εreal εfake Standard muon selection • Apply b-tagging to get the estimate after b-tagging P.Skubic – OU, ATLAS P. Skubic - OU , ATLAS

  23. Top pair production cross-section – 35 pb-1 • Measurement without use of b-tag [Phys. Lett. B711(2012) 244-263] • Multivariate analysis in e/μ + 3,≥4 jets • Background: W+ jets, Multijet, WW/WZ/ZZ, single top • Lepton charge, lepton η, aplanarity • Stat. Error ~10 % • Syst Error ~11% (JES 5%, bkgmodelling ~ 4.0%, IFSR 6%) P. Skubic - OU , ATLAS

  24. Top pair production cross-section – 35 pb-1 • Measurement with use of b-tag [Phys. Lett. B711(2012) 244-263] • Multivariate analysis in e/μ + 3,4,≥5 jets • Lepton charge, lepton η, aplanarity transform (exp(-8A)), b-tag weight • Stat. Error ~6 % • Syst Error ~9.7% (JES 4%, bkg modeling ~ 4.0%, IFSR 5%) P. Skubic - OU , ATLAS

  25. Top pair production cross-section – 0.70 fb-1 • Measurementwithout use of b-tag [ATLAS-CONF-2011-121] • Multivariate analysis in e/μ + 3,4,≥5 jets • Background: W+ jets, Multijet, WW/WZ/ZZ, single top • lepton η, aplanarity transform (exp(-8A)), leading jet pT, and HT,3p transform (exp(-4HT,3p) • Stat. Error ~4 % • Syst Error ~9.0% (JES 4%, signal modeling ~ 5.0%, IFSR 3.0%) P. Skubic - OU , ATLAS

  26. Top quark pair production –  lepton channels  + jets 7 TeV  + lepton 7 TeV EPJC 73 3 (2012) 2328 Phys. Lett. B 717 (2012) 89-108 signal ntrackfor τhad candidates after all selection cuts P. Skubic - OU , ATLAS

  27. LHC: A Top producer ~23 fb-1 @ 8 TeV Cumulative LumiVs time 5.6 fb-1 @7 TeV 0.048 fb-1 @7 TeV • Run (2010 – 2011) • 2x1032 cm-2 sec-1(instantaneous lumi) • 3.6x1033 cm-2 sec-1 • Run (2012) • 7.7x1033cm-2 sec-1 P. Skubic - OU , ATLAS

  28. THE ATLAS EXPERIMENT Tile Calorimeter LAr Calorimeter Muon Detector Vertex & Tracker Toroid Magnets Trigger system to record online interesting events(collisions every 25/50 ns) P. Skubic - OU , ATLAS

  29. PIXEL DETECTOR This is high-granularity silicon detector Layout (Oklahoma group was involved in the Pixel detector construction) : 1744 modules located on 3 layers with both barrel and end cap disk geometry 80 million channels Low occupancy (1,000 trk/event at LHC design luminosity) Pixel is close to the intense LHC collision, it is radiation hard, and has an excellent spatial resolution (10 μm * 115 μm ) Because of its fantastic spatial resolution, pixel detector plays a unique role in the identification of b-quark jets or b-tagging. b-quark jet identification plays a central role in many searches of new physics and top quark physics Commissioning : Large testing activity during Integration : Connectivity test : Last chance to repair before Installation inside ATLAS ! P. Skubic - OU , ATLAS

  30. B-TAGGING PRINCIPLES • b-tagging : identification of b-jets (jets originating from b-quarks) • crucial for many physics channels (top quarks, SM and MSSM Higgs, SUSY) • b-tagging algorithms in ATLAS : two main approaches • SV based : search for a secondary vertex inside the jet: • signed decay length significance : S(Lxy) = Lxy/s(Lxy). • IP based : count tracks with large impact parameter significance (IPS): Impact parameter significance : S(IP) = d0/(d0) • (complimentary) : look for soft leptons inside the jet • JetFitter: takes into account track & vertex info, energy fraction of charged tracks, S(Lxy) in a neural net • MV1: combination of all above methods (default) • b-tagging performance : characterized by b-tagging efficiency (probability to identify a b-jet as such) and rejection of non-b-jets. A typical working point at 70% efficiency using the MV1 tagger has a rejection factor of about 140. P. Skubic - OU , ATLAS
