  1. Inner Source Diffuse Helium Observations Elena Moise1, Jeff Kuhn1, and John Raymond2 1 Institute for Astronomy, University of Hawai’i 2 Harvard-Smithsonian Center for Astrophysics 22 septembrie 2010, Bucuresti

  2. Abstract • Sensitive SOLARC imagining spectropolarimetric observations from Haleakala reveal a diffuse coronal surface brightness in the He I 1083nm line. A series of observations suggests that this signal originates from an “inner source” of neutral helium atoms in the solar corona. Here we explore the possibility that this cold coronal component originates from helium ions that are neutralized by the near-sun dust and subsequently excited to the metastable 1s2s 3S state, which then scatters photons from the solar disk. We find a strong correlation between the polarized He brightness and coronal white light brightness that supports the argument that electronic collisional excitation of the metastable helium triplet level is responsible for our polarization signal.

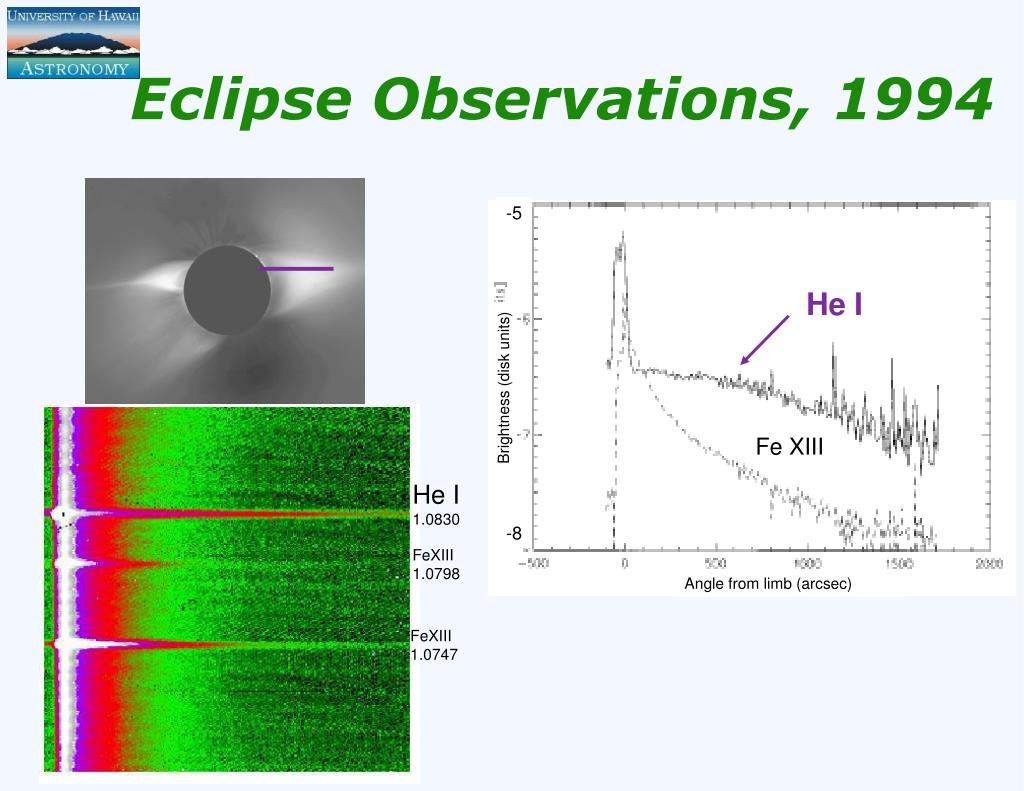

  3. -5 He I 1.0830 He I FeXIII 1.0798 Brightness (disk units) FeXIII 1.0747 Fe XIII -8 Angle from limb (arcsec) Eclipse Observations, 1994

  4. Detection of Neutral Helium (He I) • He I 58.4nm • 1s2p 1P - ground level • SOHO/UVCS, ~ 9 RΘ • He I 1083nm • 1s2p 3P - metastable 1s2s 3S • SOLARC + IR spectropolarimetry

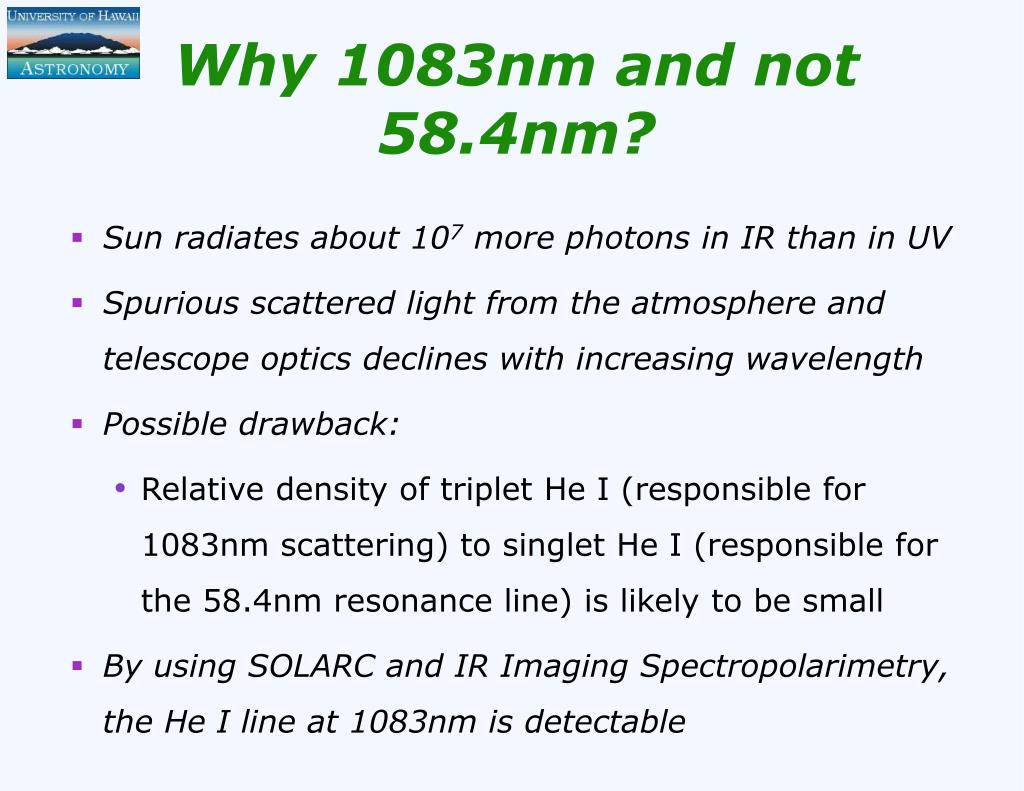

  5. Why 1083nm and not 58.4nm? • Sun radiates about 107 more photons in IR than in UV • Spurious scattered light from the atmosphere and telescope optics declines with increasing wavelength • Possible drawback: • Relative density of triplet He I (responsible for 1083nm scattering) to singlet He I (responsible for the 58.4nm resonance line) is likely to be small • By using SOLARC and IR Imaging Spectropolarimetry, the He I line at 1083nm is detectable

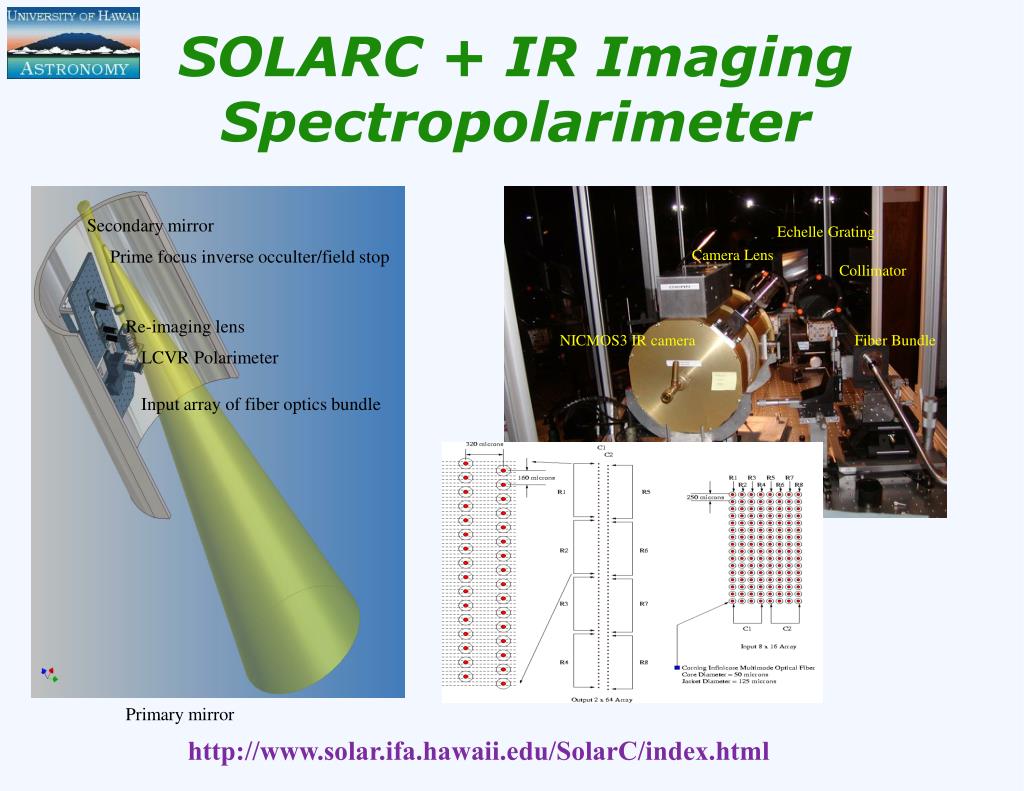

  6. Echelle Grating Camera Lens Collimator NICMOS3 IR camera Fiber Bundle SOLARC + IR Imaging Spectropolarimeter Secondary mirror Prime focus inverse occulter/field stop Re-imaging lens LCVR Polarimeter Input array of fiber optics bundle Primary mirror http://www.solar.ifa.hawaii.edu/SolarC/index.html

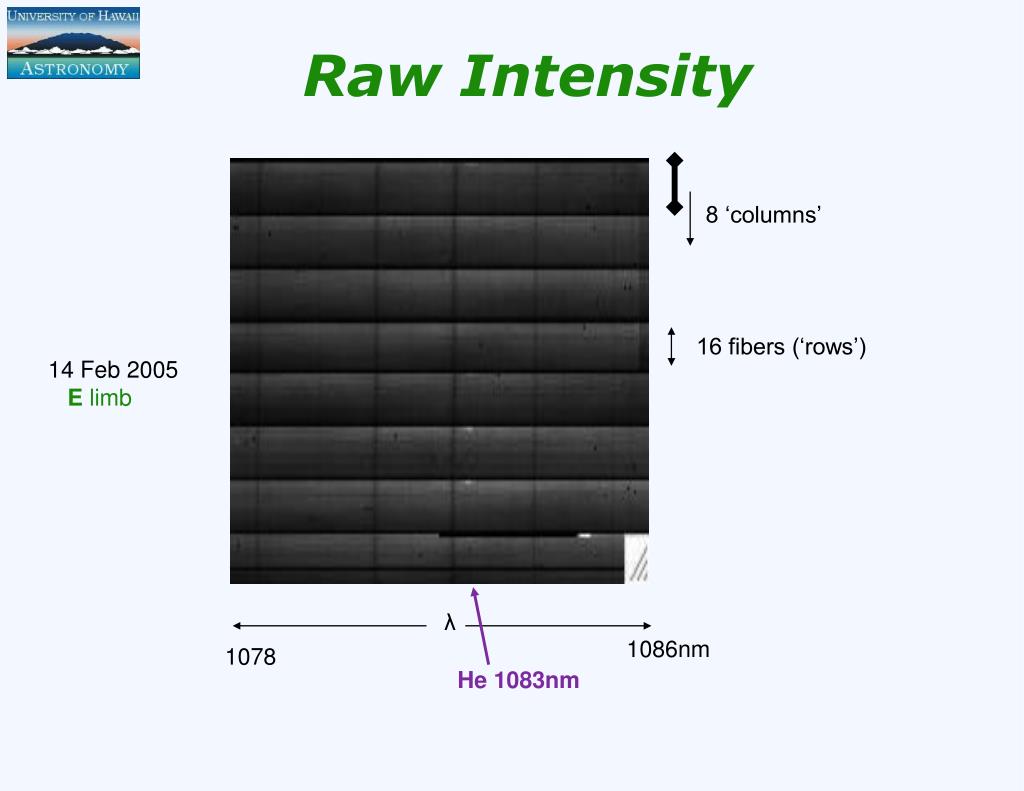

  7. Raw Intensity 8 ‘columns’ 16 fibers (‘rows’) 14 Feb 2005 Elimb λ 1086nm 1078 He 1083nm

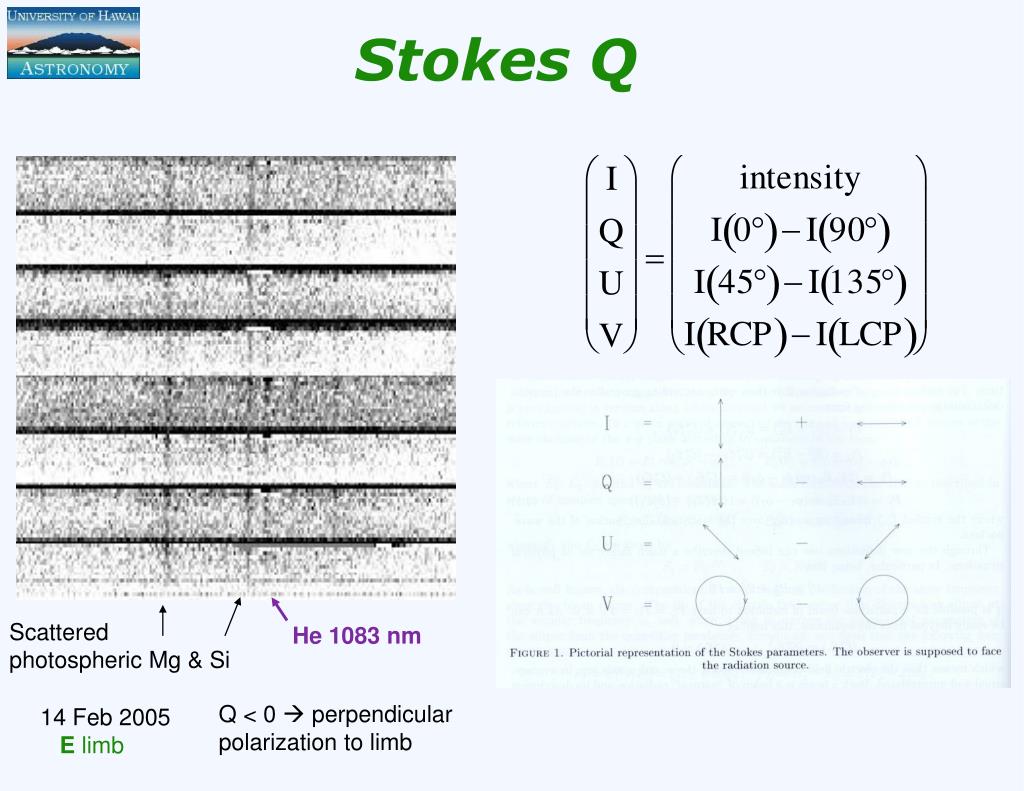

  8. Stokes Q Scattered photospheric Mg & Si He 1083 nm Q < 0  perpendicular polarization to limb 14 Feb 2005 E limb

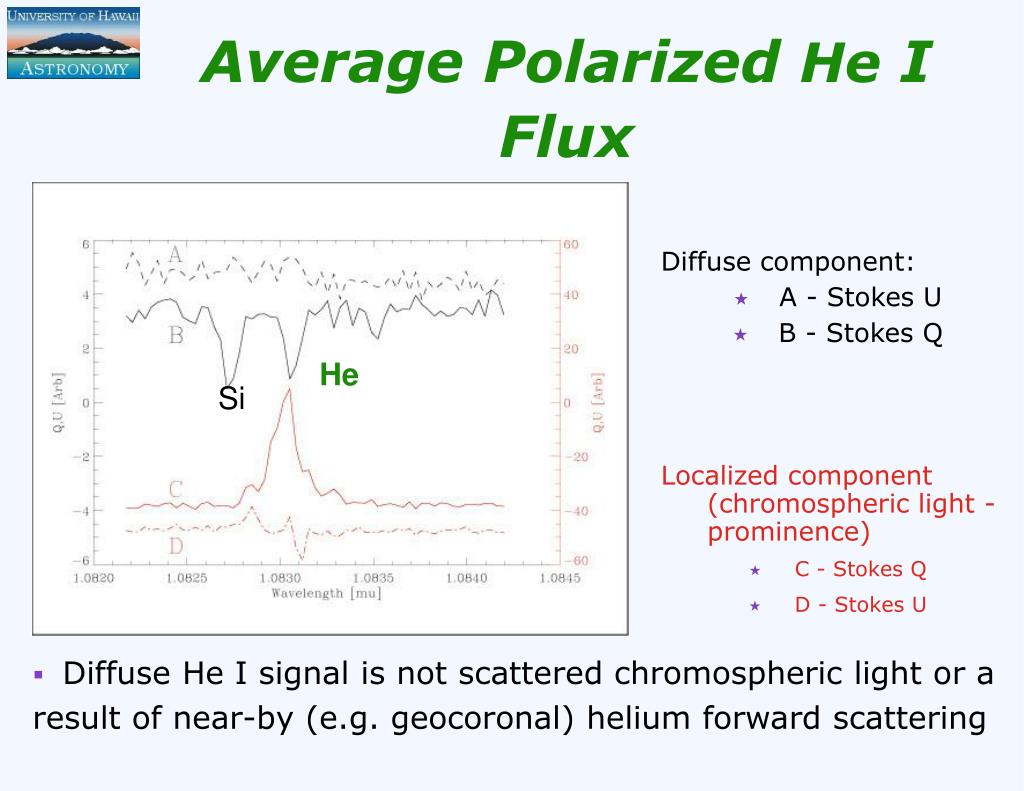

  9. Average Polarized He I Flux Diffuse component: • A - Stokes U • B - Stokes Q Localized component(chromospheric light - prominence) • C - Stokes Q • D - Stokes U He Si • Diffuse He I signal is not scattered chromospheric light or a result of near-by (e.g. geocoronal) helium forward scattering

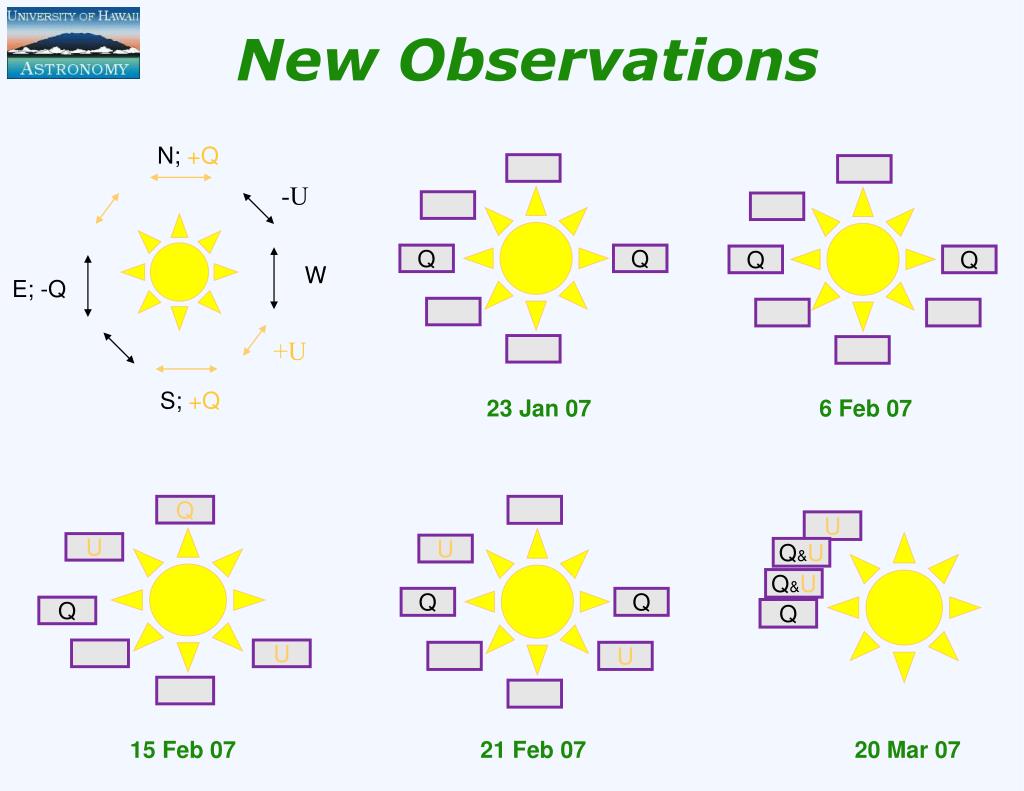

  10. New Observations N; +Q -U Q Q Q Q E; -Q +U S; +Q 6 Feb 07 23 Jan 07 Q U U U Q&U Q Q Q&U Q Q U U 15 Feb 07 21 Feb 07 20 Mar 07 W

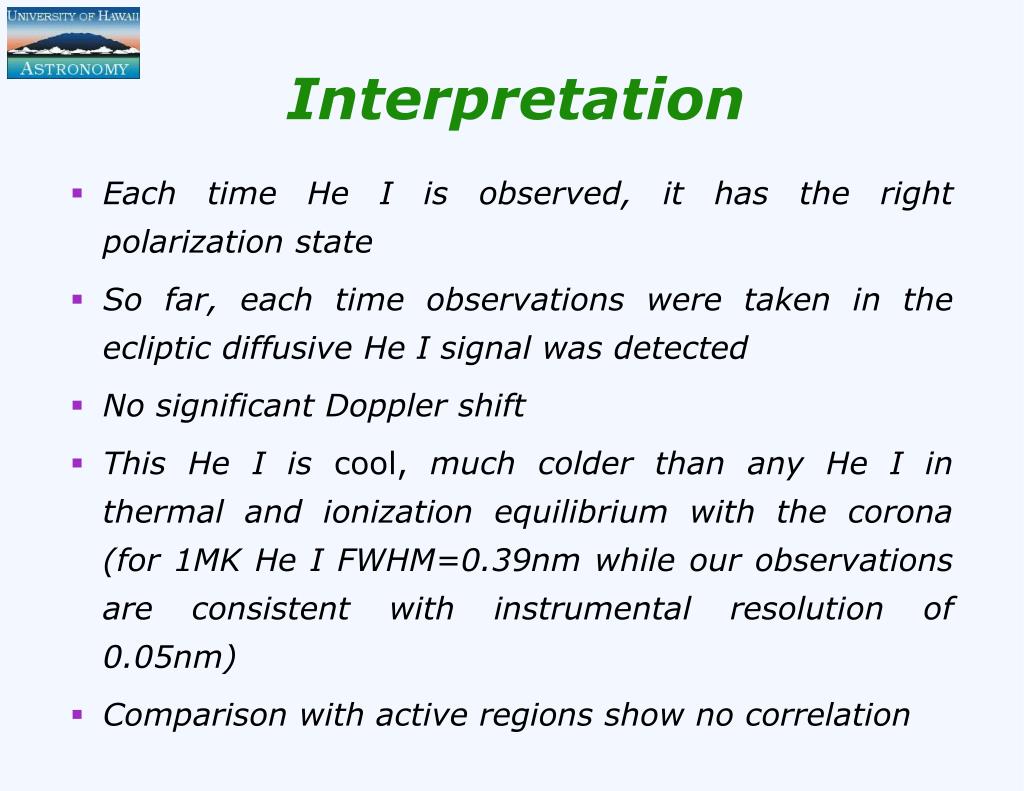

  11. Interpretation • Each time He I is observed, it has the right polarization state • So far, each time observations were taken in the ecliptic diffusive He I signal was detected • No significant Doppler shift • This He I is cool, much colder than any He I in thermal and ionization equilibrium with the corona (for 1MK He I FWHM=0.39nm while our observations are consistent with instrumental resolution of 0.05nm) • Comparison with active regions show no correlation

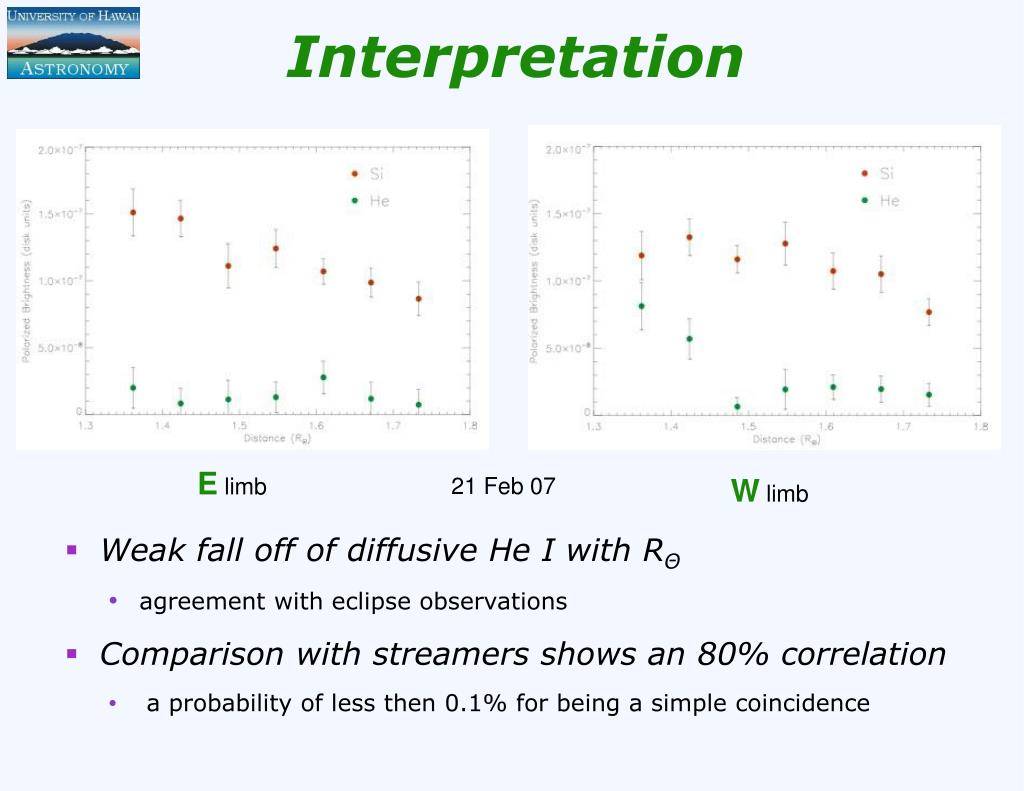

  12. Interpretation • Weak fall off of diffusive He I with RΘ • agreement with eclipse observations • Comparison with streamers shows an 80% correlation • a probability of less then 0.1% for being a simple coincidence E limb 21 Feb 07 W limb

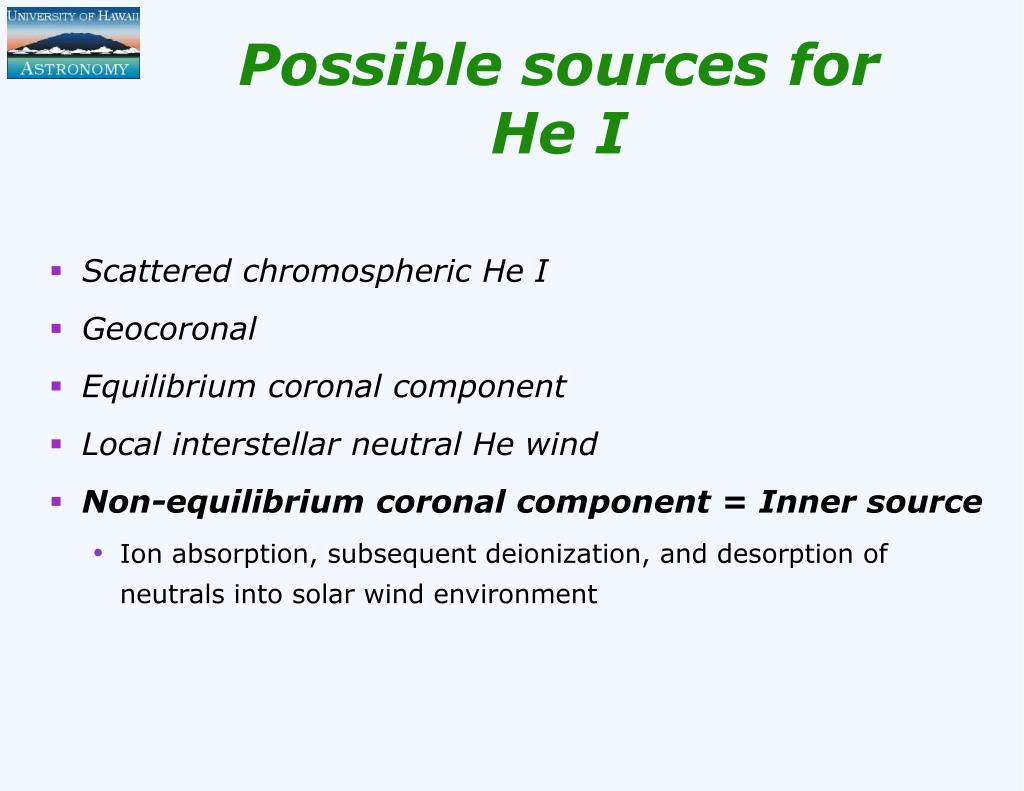

  13. Possible sources for He I • Scattered chromospheric He I • Geocoronal • Equilibrium coronal component • Local interstellar neutral He wind • Non-equilibrium coronal component = Inner source • Ion absorption, subsequent deionization, and desorption of neutrals into solar wind environment

  14. Interstellar Neutral He in the Heliosphere • Neutrals are ionized by charge exchange, photoionization, and electron impact • Interstellar neutrals are ionized  pickup ions(PUI) • PUI are accelerated at TS  anomalous cosmic rays (ACR) • He is focused by the Sun’s gravitational field on the downwind side 26km/s

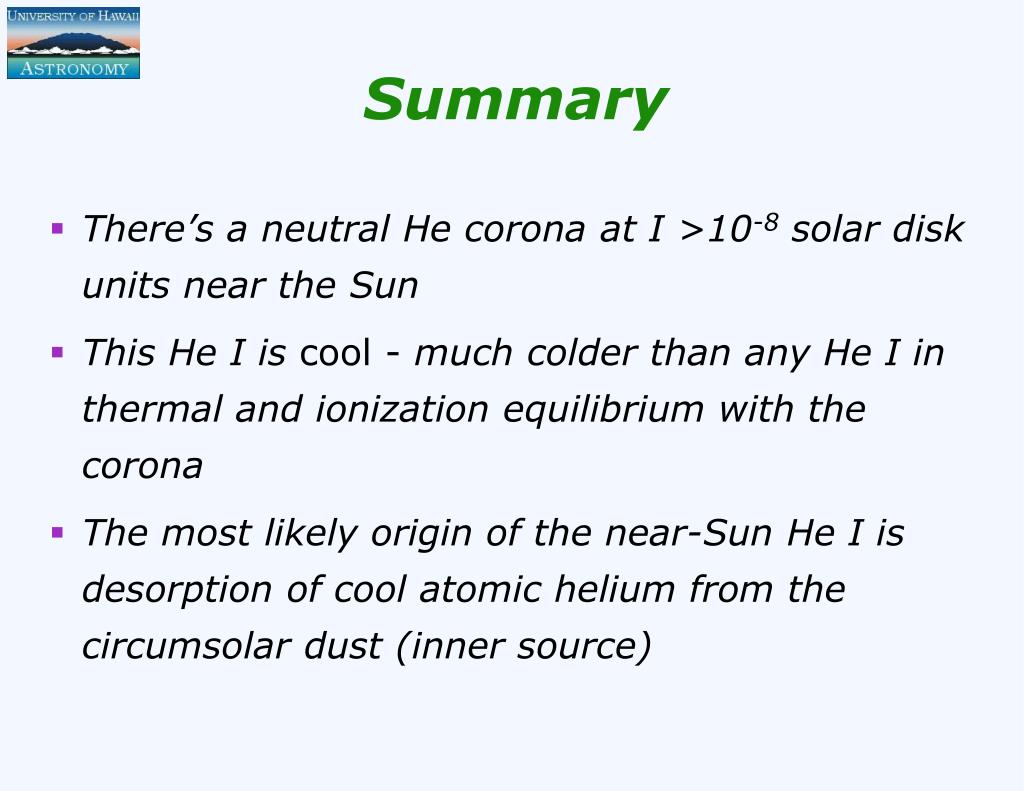

  15. Summary • There’s a neutral He corona at I >10-8 solar disk units near the Sun • This He I is cool - much colder than any He I in thermal and ionization equilibrium with the corona • The most likely origin of the near-Sun He I is desorption of cool atomic helium from the circumsolar dust (inner source)

  16. Mahalo!

  17. NW limb SE limb He Si Average Polarized He I Flux: SE vs. NW If He were 100% polarized Q=1dn -> I~10-8 Disk brightness units 10% polarization -> I~10-7 He Intensity at R~1.3RΘ SE limb: 4x10-7 NW limb: 2x10-7
