  1. APPLICATION on NOTEBOOK ADVANCED POWER ELECTRONICS CORP. Power Electronic Solutions Company

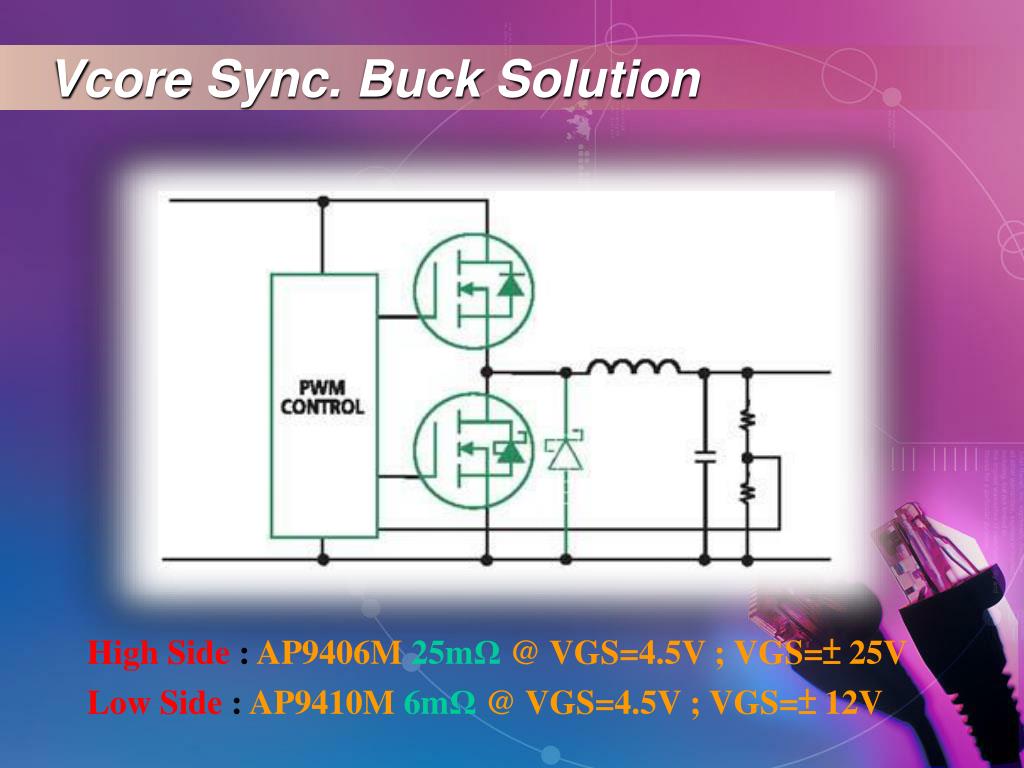

  2. Vcore Sync. Buck Solution High Side : AP9406M25mΩ@ VGS=4.5V ; VGS=± 25V Low Side : AP9410M6mΩ@ VGS=4.5V ; VGS=± 12V

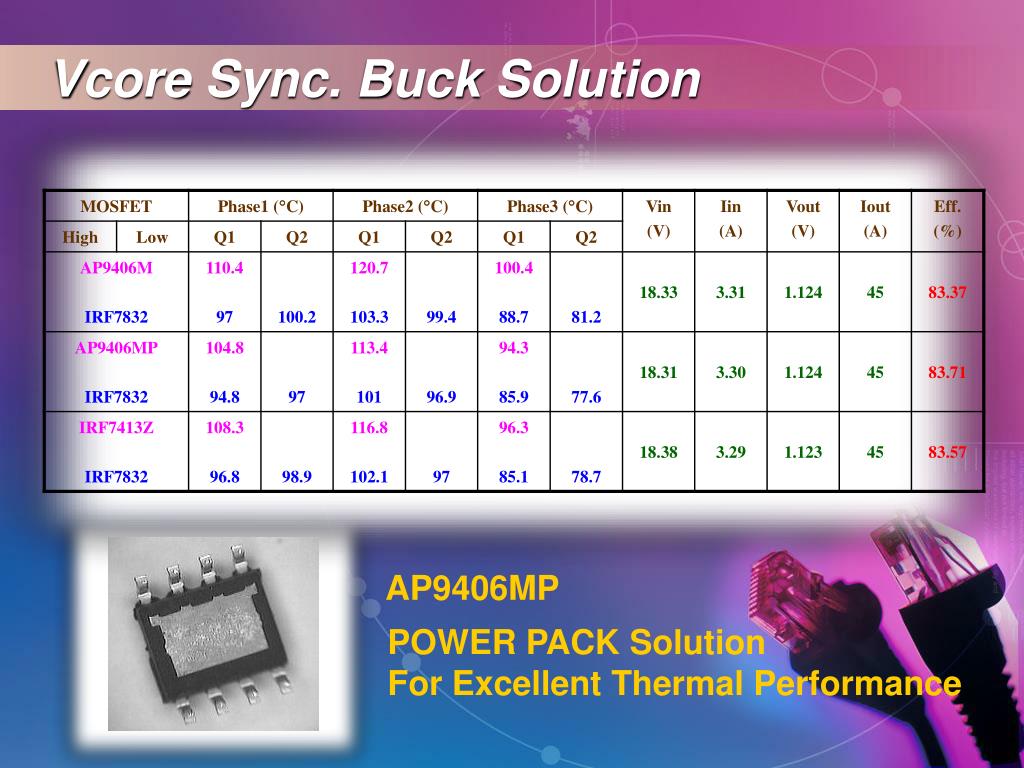

  3. Vcore Sync. Buck Solution AP9406MP POWER PACK Solution For Excellent Thermal Performance

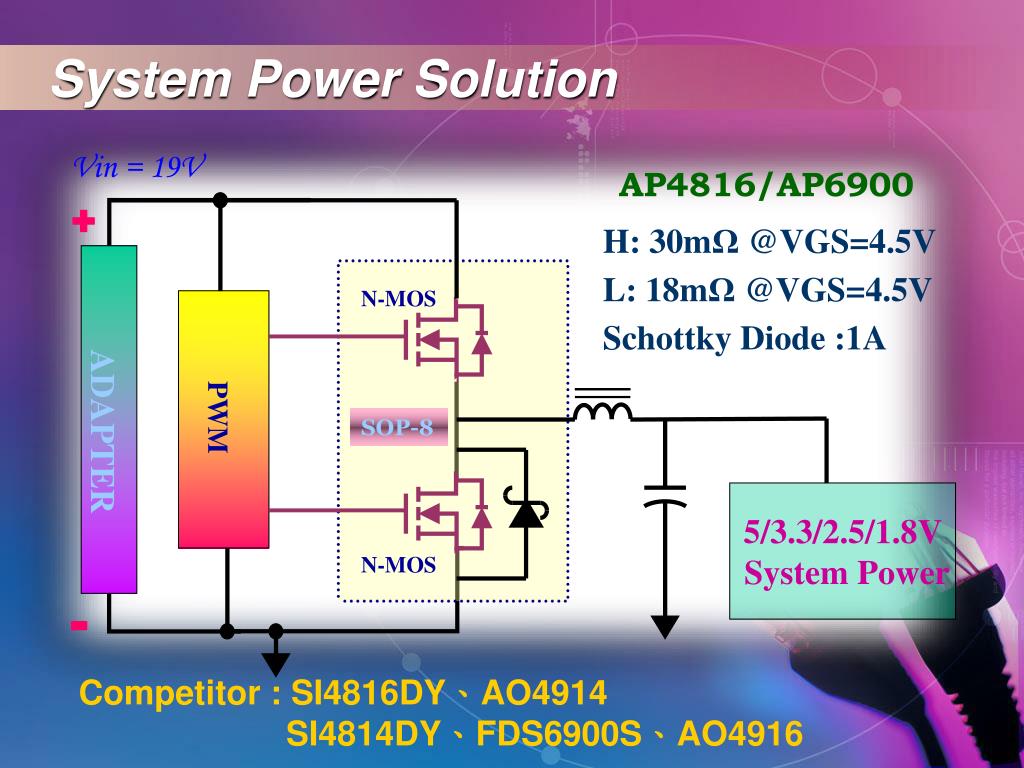

  4. Vin = 19V + N-MOS ADAPTER PWM SOP-8 5/3.3/2.5/1.8V System Power N-MOS - System Power Solution AP4816/AP6900 H: 30mΩ @VGS=4.5V L: 18mΩ @VGS=4.5V Schottky Diode :1A Competitor : SI4816DY、AO4914 SI4814DY、FDS6900S、AO4916

  5. AP6900SM Performance Application : 19V -> 3.3V Vin:19V ; VGS,high=5V ; VGS,Low=5V ; f=280KHz PWM: FDS5235

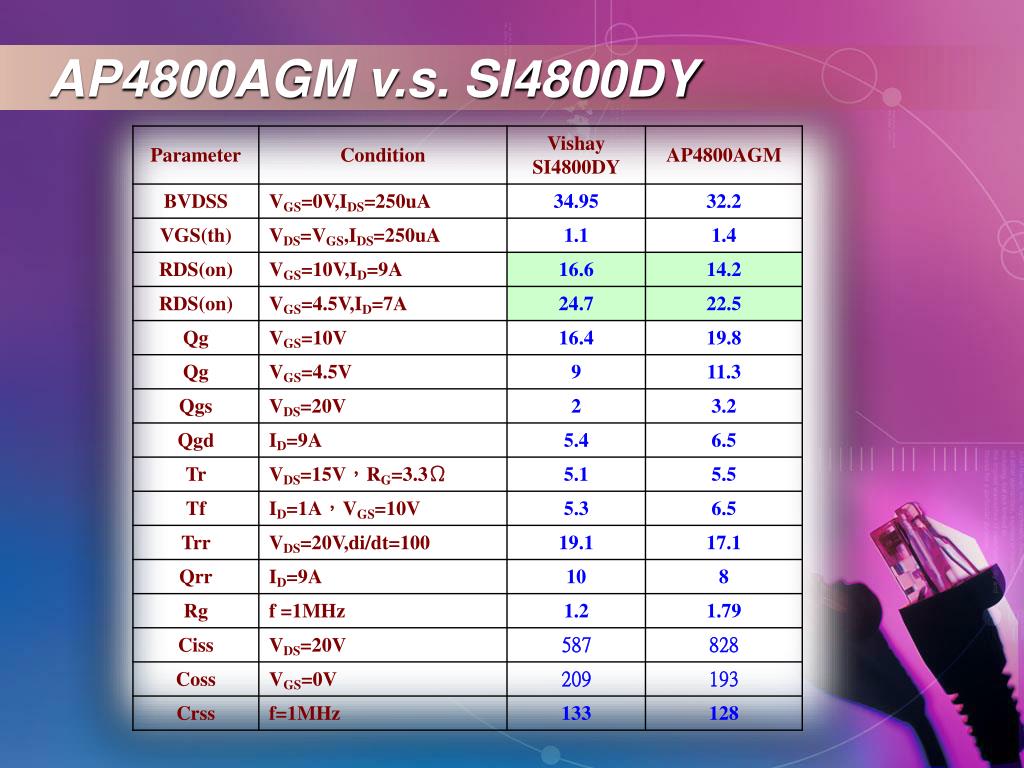

  6. AP4800AGM v.s. SI4800DY

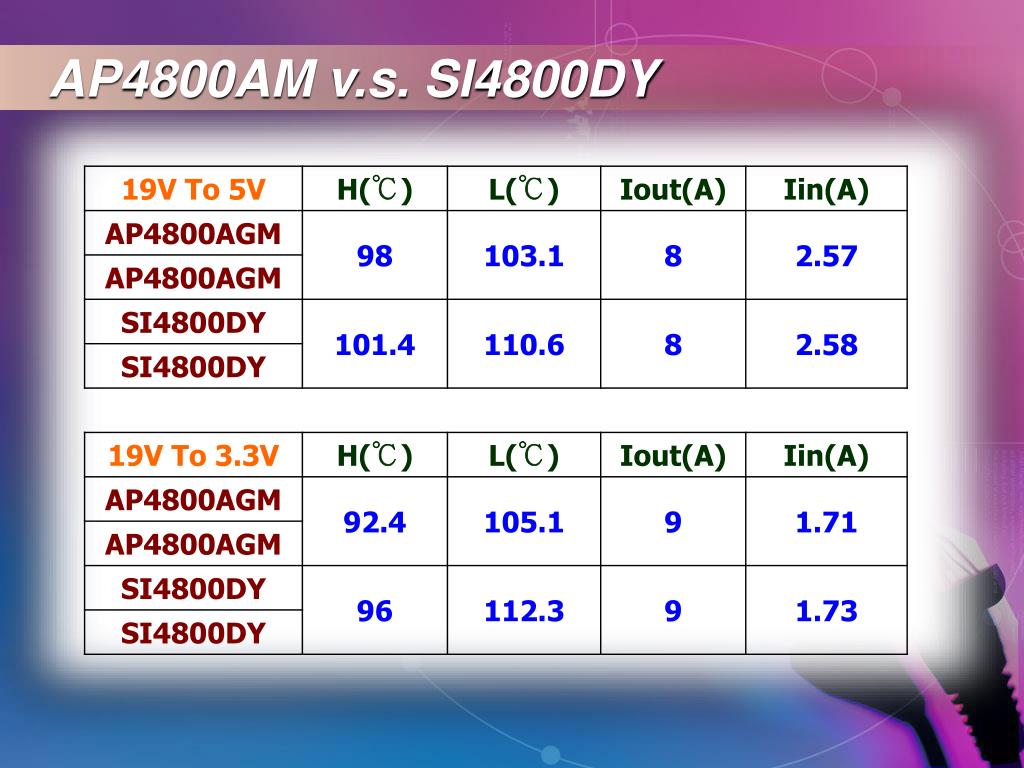

  7. AP4800AM v.s. SI4800DY

  8. 6.2 5.1 D D D D D 7. 4 6. 2 S S S G APAK S S S G System Power Solution SOP-8 ♠ Super Low Resistance ♣ Same Frame Pitch with SOP-8 ♥ Excellent Thermal Performance ♦ Suitable for NB & Desktop VRM

  9. Smart Charger & Battery Pack ADVANCED POWER ELECTRONICS CORP. Power Electronic Solutions Company

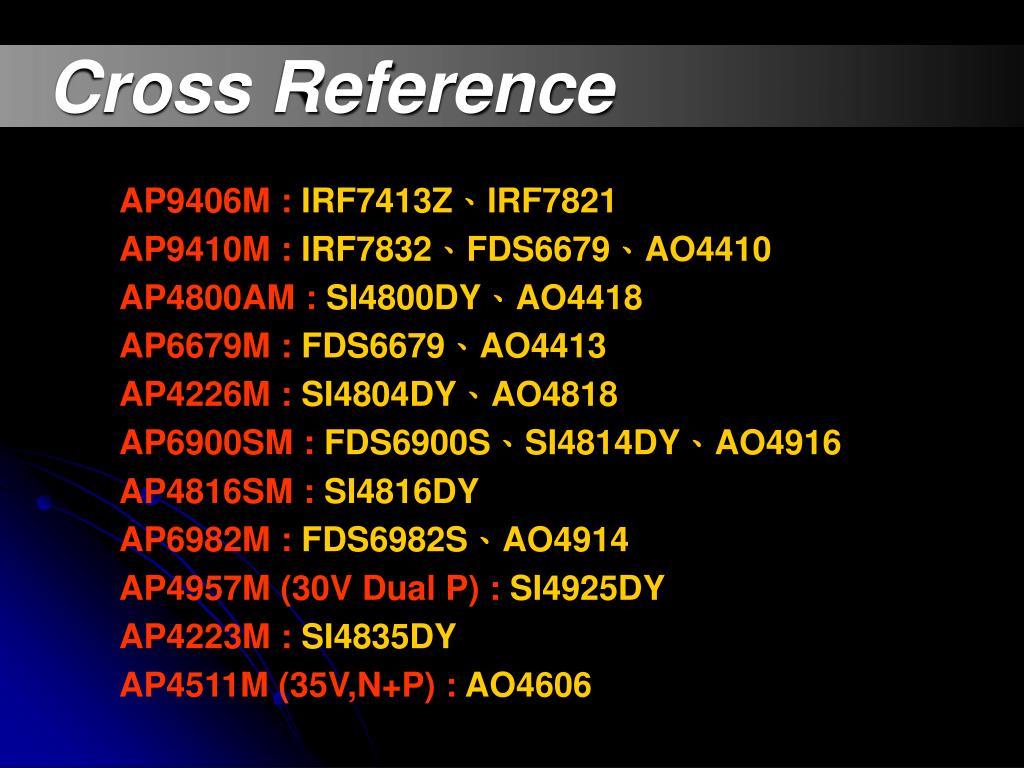

  10. Cross Reference AP9406M : IRF7413Z、IRF7821 AP9410M : IRF7832、FDS6679、AO4410 AP4800AM : SI4800DY、AO4418 AP6679M : FDS6679、AO4413 AP4226M : SI4804DY、AO4818 AP6900SM : FDS6900S、SI4814DY、AO4916 AP4816SM : SI4816DY AP6982M : FDS6982S、AO4914 AP4957M (30V Dual P) : SI4925DY AP4223M : SI4835DY AP4511M (35V,N+P) : AO4606
