The Triangle Midsegment Theorem

zandra avatar
zandra
21 diapositives · 961 Views · Sep 17, 2014

The Triangle Midsegment Theorem. Warm Up. Lesson Presentation. Lesson Quiz. Holt McDougal Geometry. Holt Geometry. Warm Up Use the points A (2, 2), B (12, 2) and C (4, 8) for Exercises 1–5. 1. Find X and Y , the midpoints of AC and CB . 2. Find XY . 3. Find AB .

#the triangle midsegment theorem #the triangle midsegment theorem ppt #powerpoint #presentation
The Triangle Midsegment Theorem - slide 1
01 / 21The Triangle Midsegment Theorem
1 / 17

Télécharger la présentation

The Triangle Midsegment Theorem
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

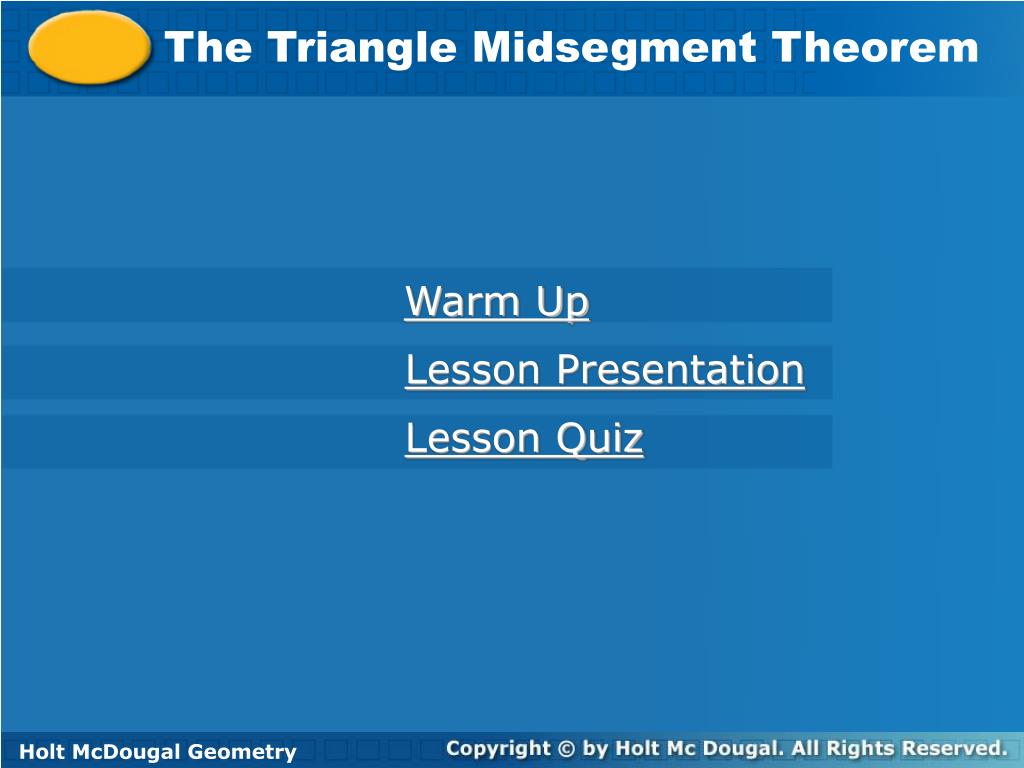

  1. The Triangle Midsegment Theorem Warm Up Lesson Presentation Lesson Quiz Holt McDougal Geometry Holt Geometry

  2. Warm Up Use the points A(2, 2), B(12, 2) and C(4, 8) for Exercises 1–5. 1.Find X and Y, the midpoints of AC and CB. 2. Find XY. 3. Find AB. 4. Find the slope of AB. 5. Find the slope of XY. 6. What is the slope of a line parallel to 3x + 2y = 12? (3, 5), (8, 5) 5 10 0 0

  3. Objective Prove and use properties of triangle midsegments.

  4. Vocabulary midsegment of a triangle

  5. A midsegment of a triangleis a segment that joins the midpoints of two sides of the triangle. Every triangle has three midsegments, which form the midsegment triangle.

  6. The vertices of ∆XYZ are X(–1, 8), Y(9, 2), and Z(3, –4). M and N are the midpoints of XZ and YZ. Show that and . Example 1: Examining Midsegments in the Coordinate Plane Step 1 Find the coordinates of M and N.

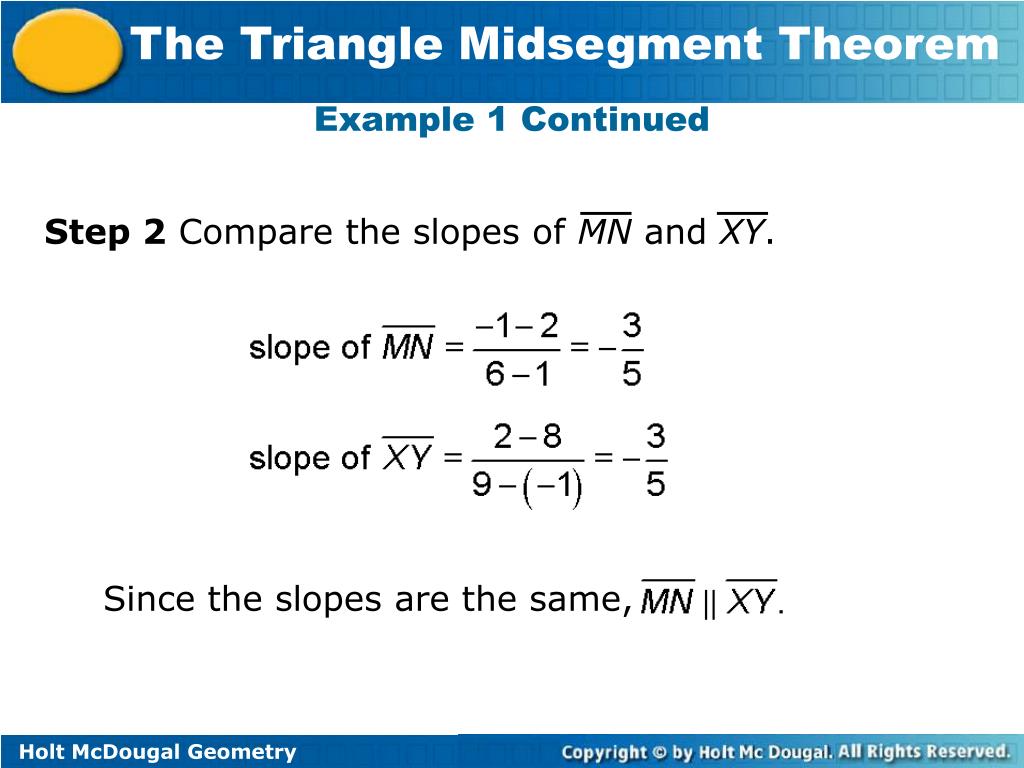

  7. Step 2 Compare the slopes of MN and XY. Since the slopes are the same, Example 1 Continued

  8. Step 3 Compare the heights of MN and XY. Example 1 Continued

  9. The vertices of ΔRST are R(–7, 0), S(–3, 6), and T(9, 2). M is the midpoint of RT, and N is the midpoint of ST. Show that and Check It Out! Example 1 Step 1 Find the coordinates of M and N.

  10. Step 2 Compare the slopes of MN and RS. Since the slopes are equal . Check It Out! Example 1 Continued

  11. Step 3 Compare the heights of MN and RS. The length of MN is half the length of RS. Check It Out! Example 1 Continued

  12. The relationship shown in Example 1 is true for the three midsegments of every triangle.

  13. Example 2A: Using the Triangle Midsegment Theorem Find each measure. BD ∆ Midsegment Thm. Substitute 17 for AE. BD = 8.5 Simplify.

  14. Example 2B: Using the Triangle Midsegment Theorem Find each measure. mCBD ∆ Midsegment Thm. mCBD = mBDF Alt. Int. s Thm. mCBD = 26° Substitute 26° for mBDF.

  15. Check It Out! Example 2a Find each measure. JL ∆ Midsegment Thm. Substitute 36 for PN and multiply both sides by 2. 2(36) = JL 72 = JL Simplify.

  16. Check It Out! Example 2b Find each measure. PM ∆ Midsegment Thm. Substitute 97 for LK. PM = 48.5 Simplify.

  17. Check It Out! Example 2c Find each measure. mMLK ∆ Midsegment Thm. mMLK = mJMP Similar triangles mMLK = 102° Substitute.

  18. Example 3: Indirect Measurement Application In an A-frame support, the distance PQ is 46 inches. What is the length of the support ST if S and T are at the midpoints of the sides? ∆ Midsegment Thm. Substitute 46 for PQ. ST= 23 Simplify. The length of the support ST is 23 inches.

  19. Check It Out! Example 3 What if…? Suppose Anna’s result in Example 3 (p. 323) is correct. To check it, she measures a second triangle. How many meters will she measure between H and F? ∆ Midsegment Thm. Substitute 1550 for AE. HF= 775 m Simplify.

  20. Lesson Quiz: Part I Use the diagram for Items 1–3. Find each measure. 1.ED 2.AB 3. mBFE 10 14 44°

  21. Lesson Quiz: Part II 4. Find the value of n. 5.∆XYZ is the midsegment triangle of∆WUV. What is the perimeter of∆XYZ? 16 11.5
