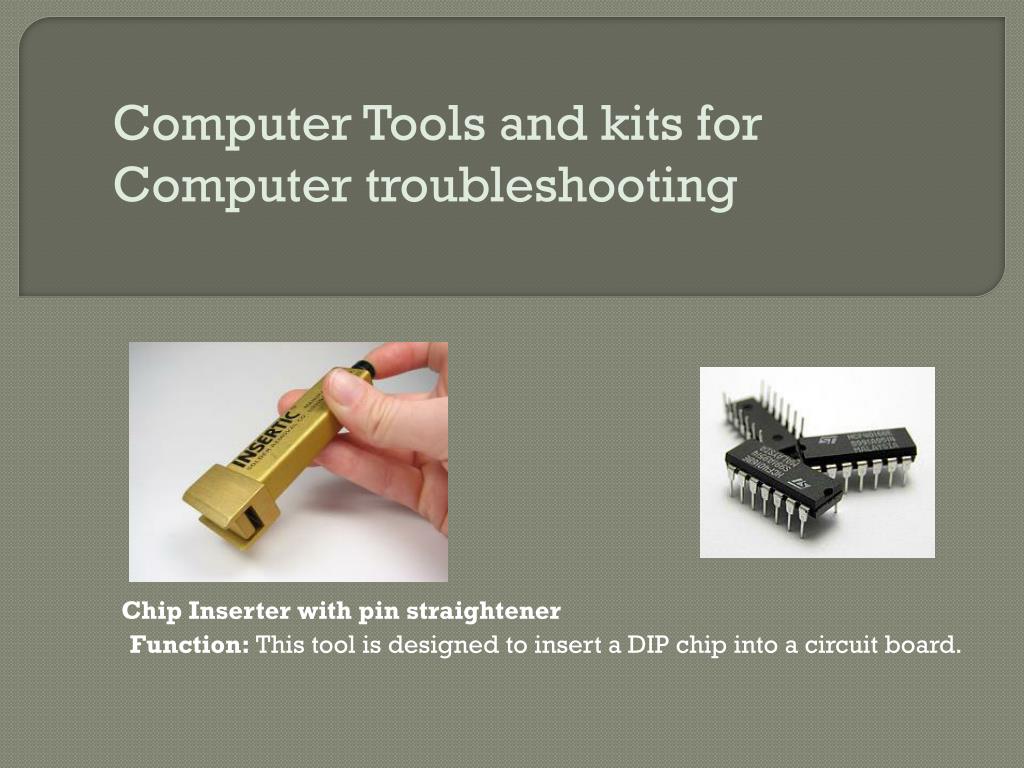

  1. Computer Tools and kits for Computer troubleshooting Chip Inserter with pin straightener Function: This tool is designed to insert a DIP chip into a circuit board.

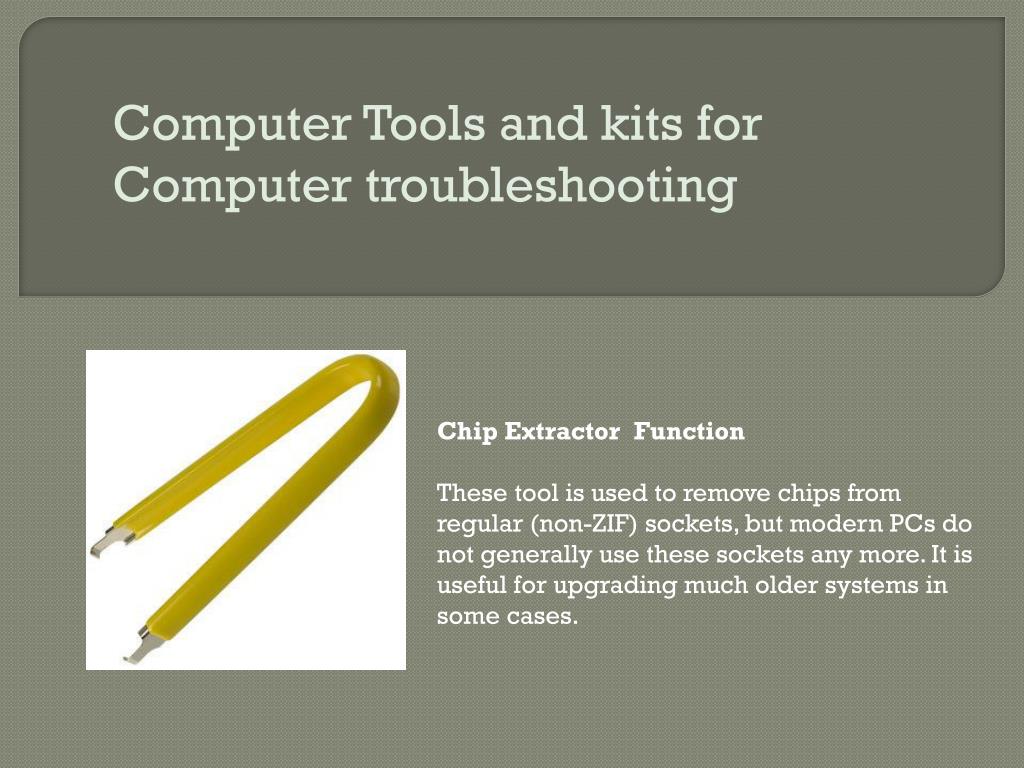

  2. Computer Tools and kits for Computer troubleshooting Chip Extractor  Function These tool is used to remove chips from regular (non-ZIF) sockets, but modern PCs do not generally use these sockets any more. It is useful for upgrading much older systems in some cases.

  3. Computer Tools and kits for Computer troubleshooting Three Prong Parts Retriever Function: This tool is mainly used to retrieve screws, although is also helpful in retrieving jammed bits in the motherboard.

  4. Computer Tools and kits for Computer troubleshooting Assembly Tweezers Function: It is a tools used for picking up and manipulating objects too small to be easily handled with human hand.

  5. Computer Tools and kits for Computer troubleshooting Slotted Screwdriver – 1/8″, 3/16″, 1/4″, #1,#2 & #0 Function: It is a good screwdriver with magnetic, interchangeable bits and a comfortable handle. The magnetic tip will prevent screws falling into the PC, and will let you get access to drives mounted deep in your system case.

  6. Computer Tools and kits for Computer troubleshooting Nut Driver 3/16″ Function: It is the really important one because this is the size of nut most commonly used on PCs. These hexagonal nuts are used as mounting hardware for motherboards and serial and parallel ports.

  7. Computer Tools and kits for Computer troubleshooting Nut Driver 1/4″ Function:  It allows one to use a single handle with a number of sizes instead of having a separate nut driver for each size.

  8. Computer Tools and kits for Computer troubleshooting Torx Screwdriver or Bits Function: These are the star-shaped screwdriver heads that are used to make equipment “tamper-proof”.

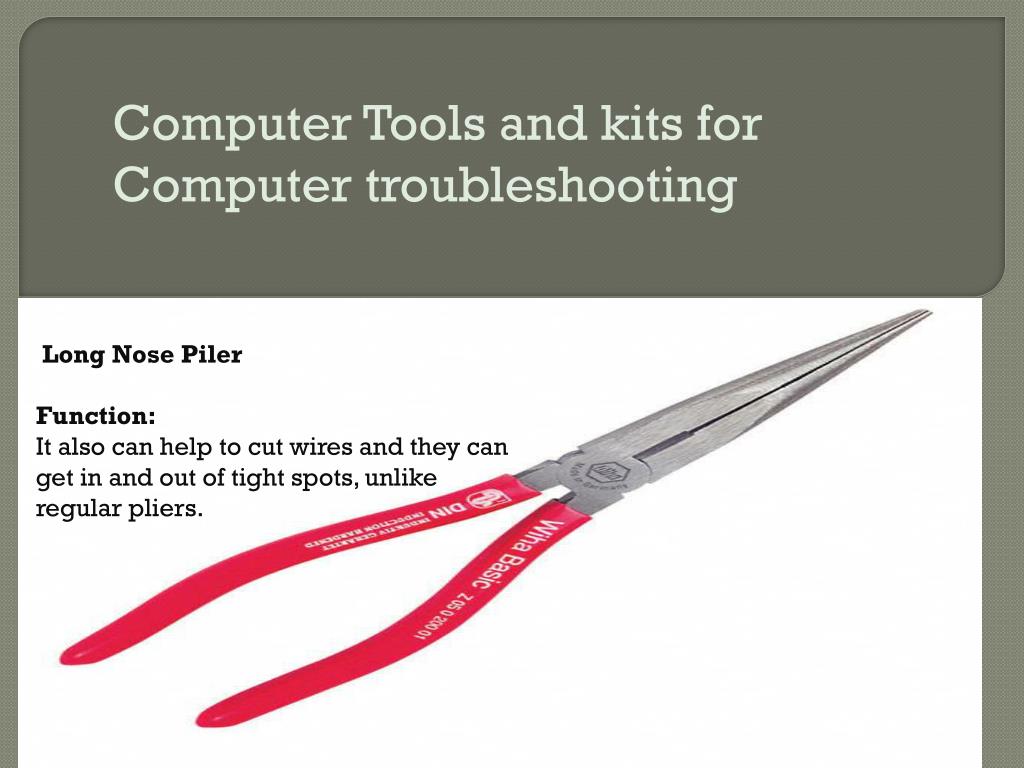

  9. Computer Tools and kits for Computer troubleshooting Long Nose Piler Function: It also can help to cut wires and they can get in and out of tight spots, unlike regular pliers.

  10. Computer Tools and kits for Computer troubleshooting Needle Nose Tweezer Function:These are useful for grasping small items and for removing and replacing jumpers on circuit boards.

  11. Computer Tools and kits for Computer troubleshooting Spare Part Tube  Function: These handy parts tubes is use to hold extra computer screws, nuts and washers.

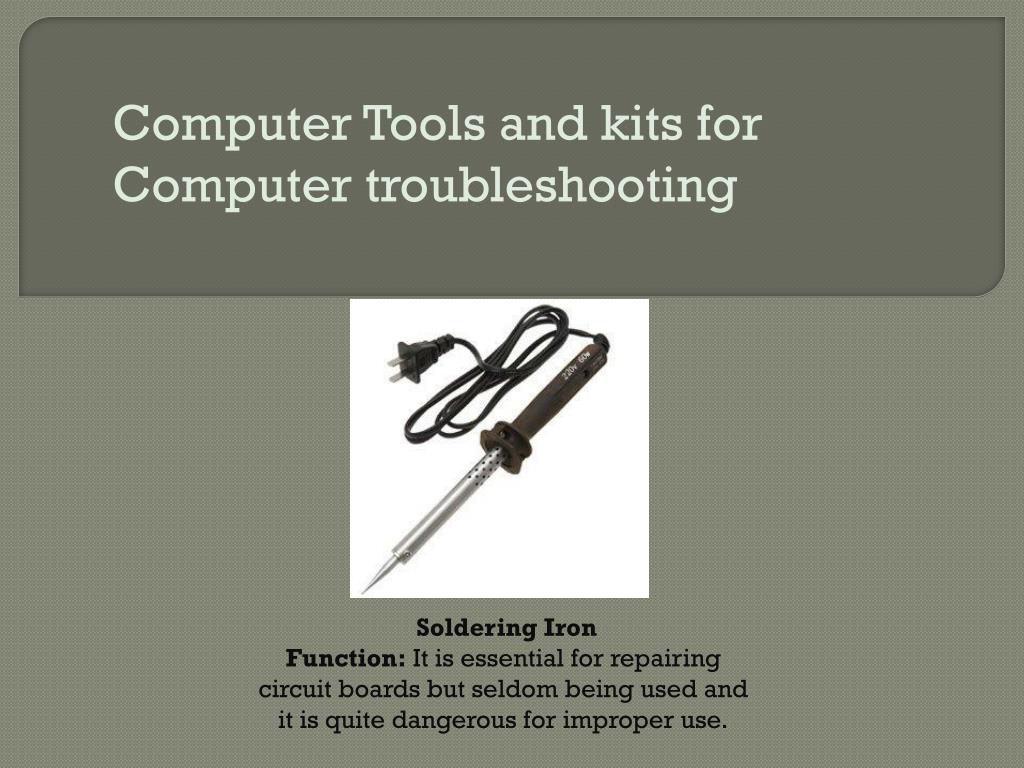

  12. Computer Tools and kits for Computer troubleshooting Soldering Iron Function: It is essential for repairing circuit boards but seldom being used and it is quite dangerous for improper use.

  13. Computer Tools and kits for Computer troubleshooting 8″ Wire Cutter/Stripper Function: It is for wire cutting and stripping insulation on single, multiple and fine stranded wire cables with plastic or rubber insulation.

  14. Computer Tools and kits for Computer troubleshooting Crimper A tool that looks like a set of pliers that "crimps" (squeezes) electrical/cable connections together.

  15. Computer Tools and kits for Computer troubleshooting An antistatic wrist strap, ESD wrist strap, or ground bracelet is an antistatic device used to safely ground a person working on very sensitive electronic equipment, to prevent the buildup of static electricity on their body, which can result in electrostatic discharge (ESD). Wikipedia

  16. Computer Tools and kits for Computer troubleshooting A cable tester is a device that is used to test the strength and connectivity of a particular type of cable or other wired assemblies. The cable tester can test whether a cable or wire is set up properly, connected to the appropriate source points, and if the communication strength between the source and destination is strong enough to serve its intended purpose.

  17. Computer Tools and kits for Computer troubleshooting Cable Organizer cable management and wire management use to organize, protect and hide wiring at home, in the office, and at school

  18. Computer Tools and kits for Computer troubleshooting

  19. Computer Tools and kits for Computer troubleshooting

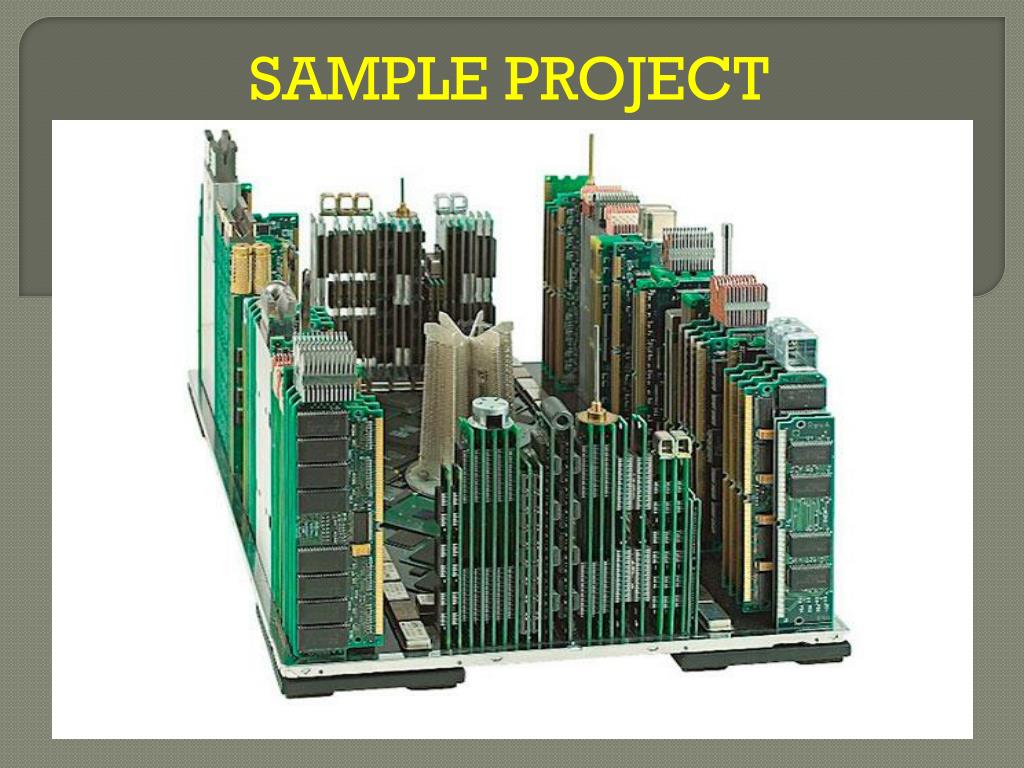

  20. SAMPLE PROJECT
