  1. Distributing materials Key understanding: To discuss features of effective transport systems and give examples of transport systems in multicellular organisms

  2. Why do we have transport systems? • What needs to be transported? • What are the features of effective transport systems?

  3. Circulatory systems Open circulatory systems • Open ended vessels • Fluid flows freely between cells of the body • Very low pressure and long circuit times Closed circulatory systems • Fluid (blood) is entirely enclosed within system of vessels and pumped around body by muscular heart • High blood pressure • Blood is separated from interstitial fluidby vessel walls which allows it to have greater specialisation • (page 165)

  4. Blood circulation in mammals • 2 sequential pathways involved: • Pulmonary vessels to and from the lungs • Systemic vessels to and from the rest of the body • Arteries carry blood AWAY from the heart • Veins carry blood TO the heart

  5. Transport systems in multicellular organisms http://www.teachersdomain.org/asset/tdc02_vid_circulator/

  6. Label diagrams

  7. Heart dissection Heart dissection (see page 173 of biozone) http://www.youtube.com/watch?v=z3UHpvEJMns&feature=related • Try to identify: • Left and right atria • Left and right ventricles • The atrioventricular valves • Pulmonary artery and vein • Aorta • Vena cava • Coronary arteries

  8. Identify the flow of blood on your diagrams(p167) • Deoxygenated blood FROM body flows into RIGHT ATRIUM via the VENA CAVA • When atria contract it then flows into RIGHT VENTRICLE • When RIGHT VENTRICLE contracts blood flows into PULMONARY ARTERY • Blood becomes oxygenated • Re-enters the heart through PULMONARY VEIN into LEFT ATRIUM, then into LEFT VENTRICLE • When LEFT VENTRICLE contracts blood flows to rest of the body via the AORTA • Use different colours for oxygenated and deoxygenated blood • http://www.nhlbi.nih.gov/health/dci/Diseases/hhw/hhw_pumping.html

  9. Blood pressure • Pressure can be felt as a pulse when the heart contracts • A persons blood pressure is usually measured by systolic pressure and diastolic pressure e.g. 120/80 • See pages 1743-174 • Diastole (minimum blood pressure) • Ventricles relax and fill with blood • Arterial valves close • Systole (maximum blood pressure) • Ventricles contract and push blood into the arteries • Atrioventricular valves close • Gives a ‘lub-dub’ sound – this is the sound of the valves closing shut

  10. Blood vessels 1) Arteries (page 168) • Muscular walls • High blood pressure 2) Veins (page 171) • More easily stretched 3) Capillaries (page 171) • Very thin walls made of only single layer of epithelial cells • To enable exchange of substances between blood plasma and interstitial fluid

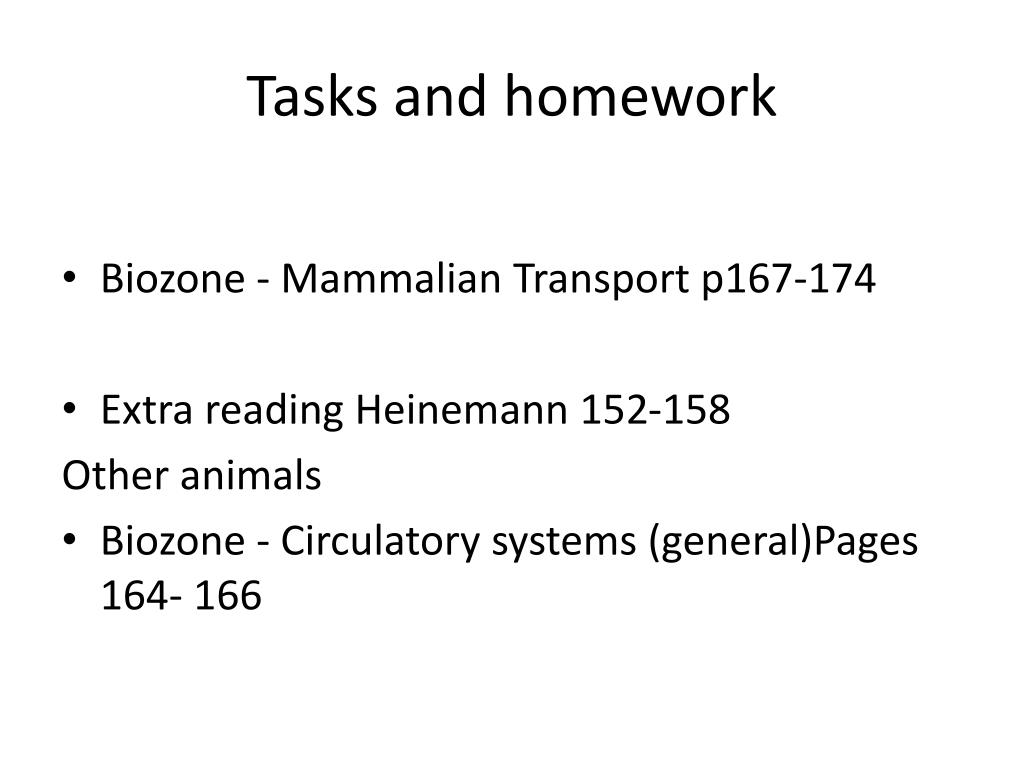

  11. Tasks and homework • Biozone - Mammalian Transport p167-174 • Extra reading Heinemann 152-158 Other animals • Biozone - Circulatory systems (general)Pages 164- 166
