  1. SWE Components Andreas Wytzisk

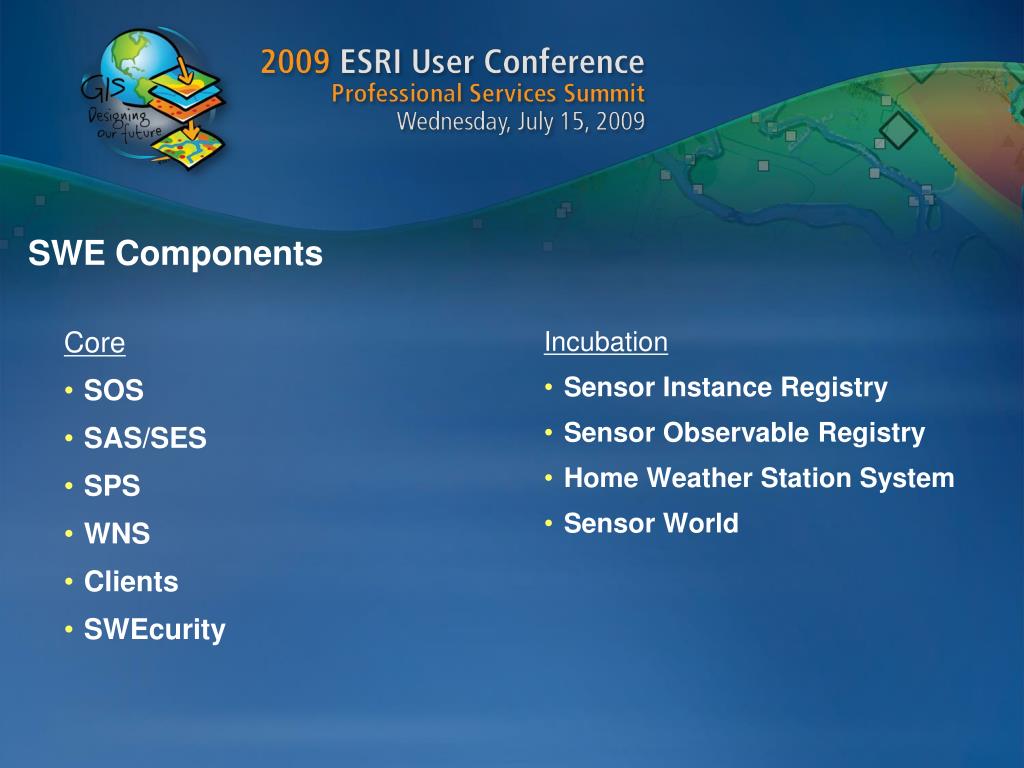

  2. SWE Components Incubation Sensor Instance Registry Sensor Observable Registry Home Weather Station System Sensor World Core SOS SAS/SES SPS WNS Clients SWEcurity

  3. SOS

  4. SOS SOS SOS-Feeder SOS Insert Application Video On Demand SOS

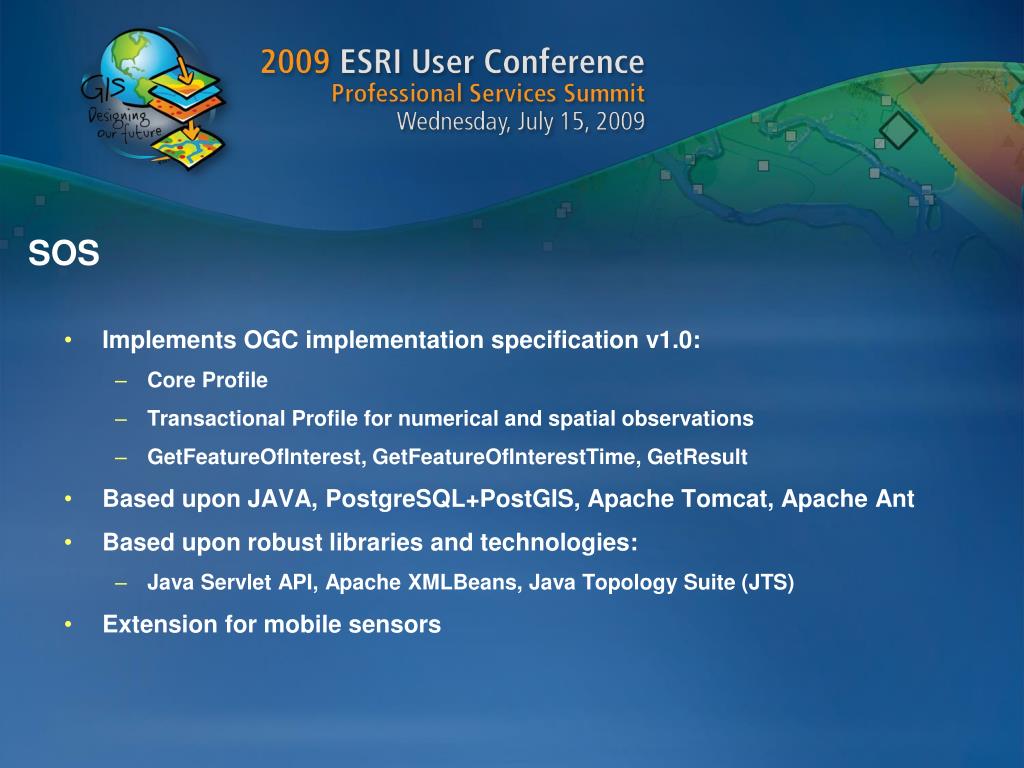

  5. SOS Implements OGC implementation specification v1.0: Core Profile Transactional Profile for numerical and spatial observations GetFeatureOfInterest, GetFeatureOfInterestTime, GetResult Based upon JAVA, PostgreSQL+PostGIS, Apache Tomcat, Apache Ant Based upon robust libraries and technologies: Java Servlet API, Apache XMLBeans, Java Topology Suite (JTS) Extension for mobile sensors

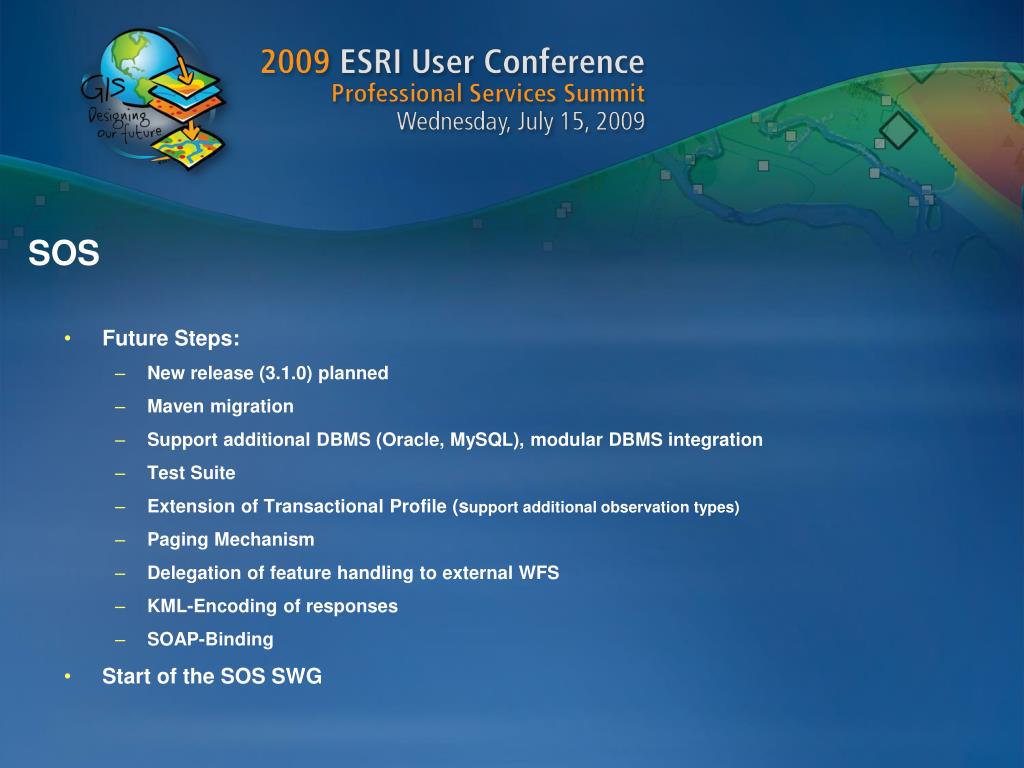

  6. SOS Future Steps: New release (3.1.0) planned Maven migration Support additional DBMS (Oracle, MySQL), modular DBMS integration Test Suite Extension of Transactional Profile (support additional observation types) Paging Mechanism Delegation of feature handling to external WFS KML-Encoding of responses SOAP-Binding Start of the SOS SWG

  7. SOS-Feeder Web service for feeding data into the SOS data base Supports the current SOS version including the mobile extension Future steps: Synchronization with new SOS release Decide about the future: Feeder vs. SOS-T

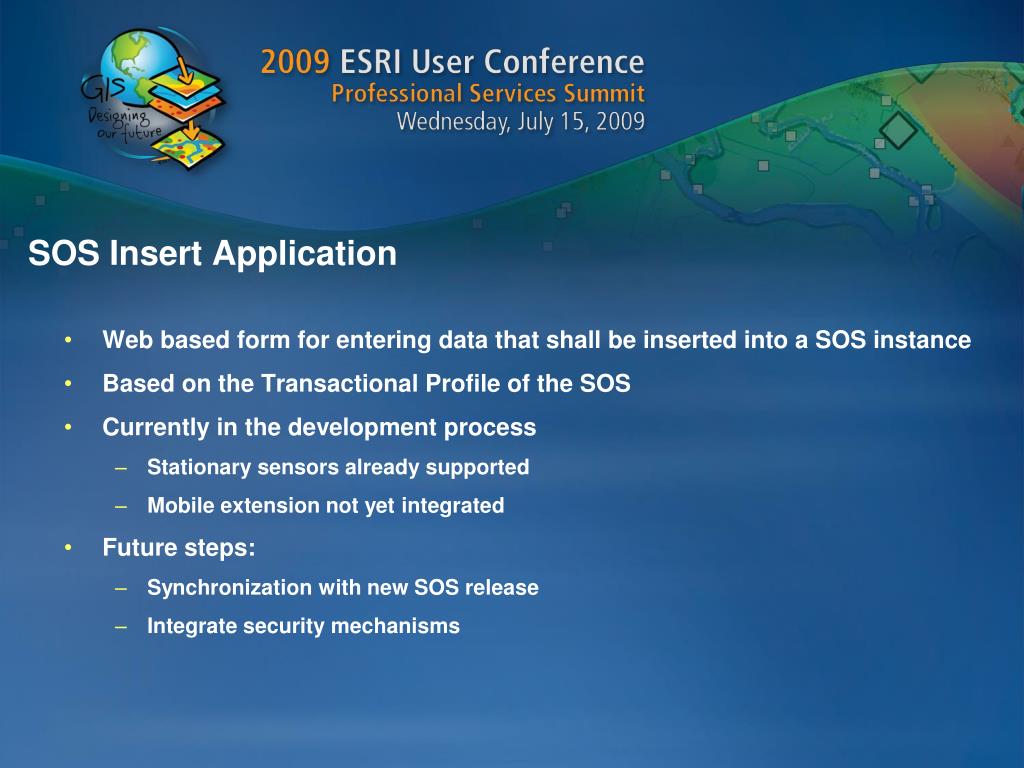

  8. SOS Insert Application Web based form for entering data that shall be inserted into a SOS instance Based on the Transactional Profile of the SOS Currently in the development process Stationary sensors already supported Mobile extension not yet integrated Future steps: Synchronization with new SOS release Integrate security mechanisms

  9. Video On Demand SOS Special SOS implementation for delivering video data Allows retrieving video for certain time periods Video is streamed to the client Developed as a prototype within the OSIRIS project Future steps: Advance to a release Flexible video format support

  10. SAS/SES

  11. SAS/SES SAS Subscription to user defined alert conditions Dispatch alerts via XMPP (extensible messaging and presence protocol) Support of other communication protocols though gateway services like WNS Compliant to OGC SAS specification 0.9.0 RFC Future steps  see SES (Sensor Event Service)

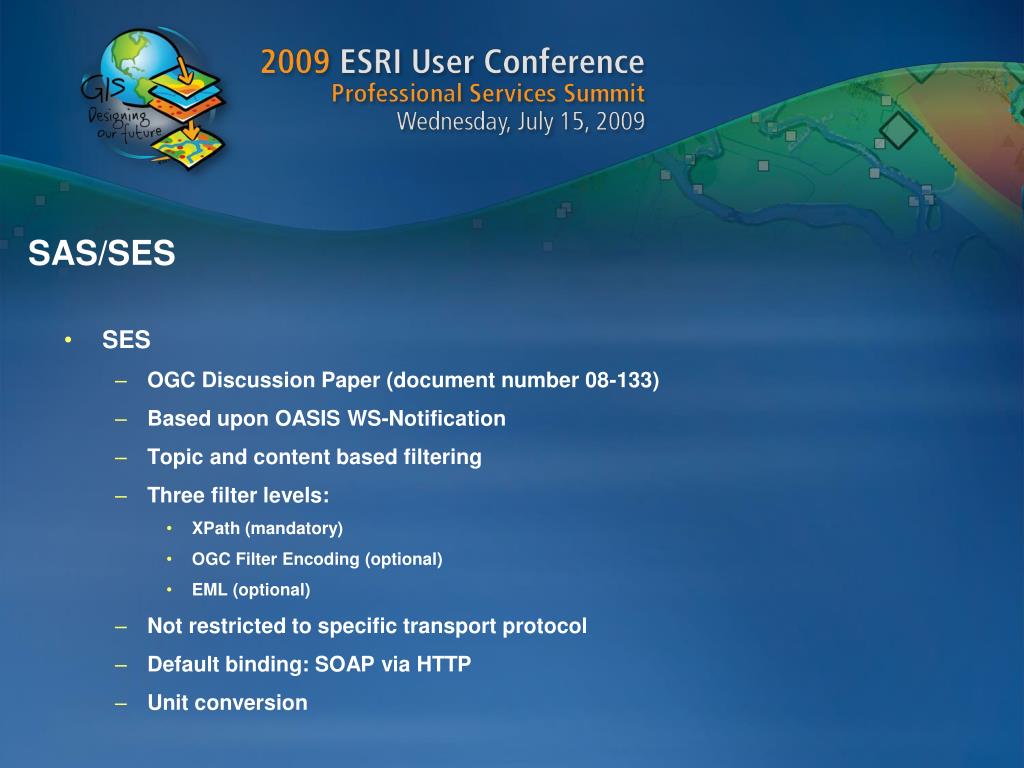

  12. SAS/SES SES OGC Discussion Paper (document number 08-133) Based upon OASIS WS-Notification Topic and content based filtering Three filter levels: XPath (mandatory) OGC Filter Encoding (optional) EML (optional) Not restricted to specific transport protocol Default binding: SOAP via HTTP Unit conversion

  13. SAS vs. SES

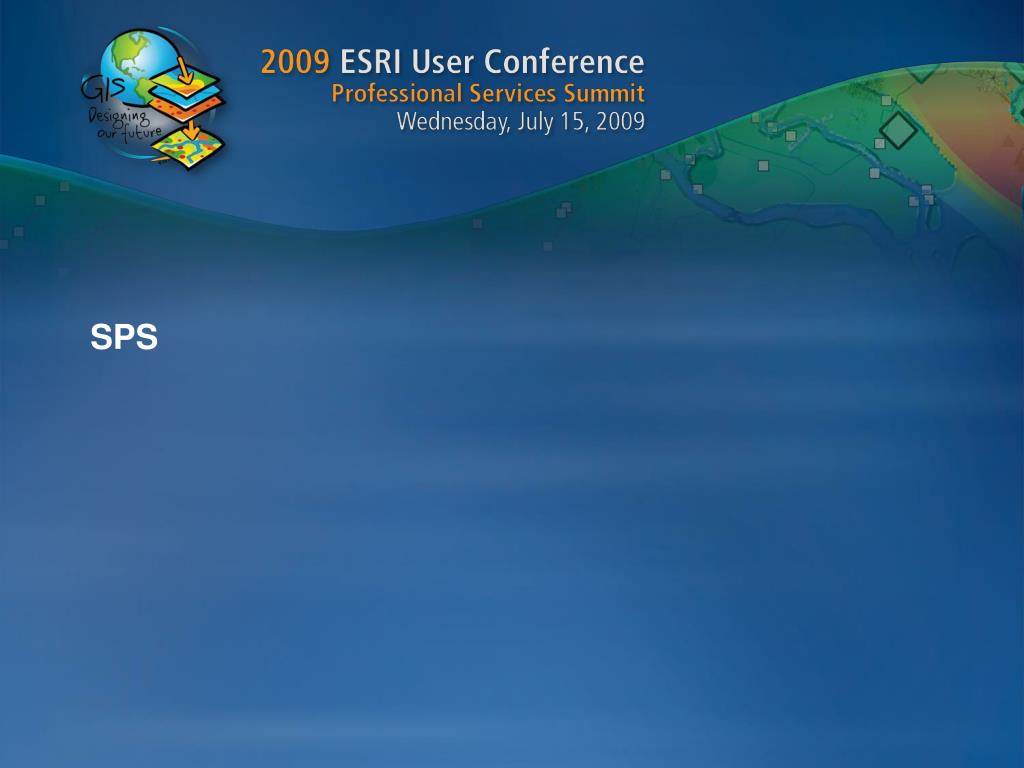

  14. SPS

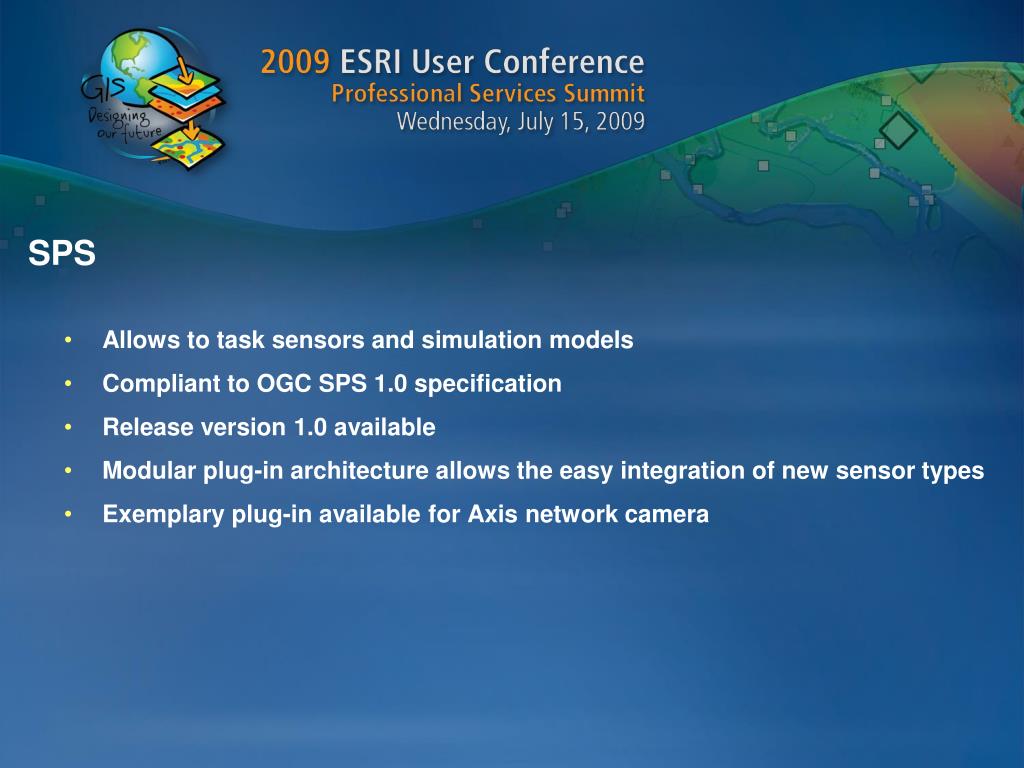

  15. SPS Allows to task sensors and simulation models Compliant to OGC SPS 1.0 specification Release version 1.0 available Modular plug-in architecture allows the easy integration of new sensor types Exemplary plug-in available for Axis network camera

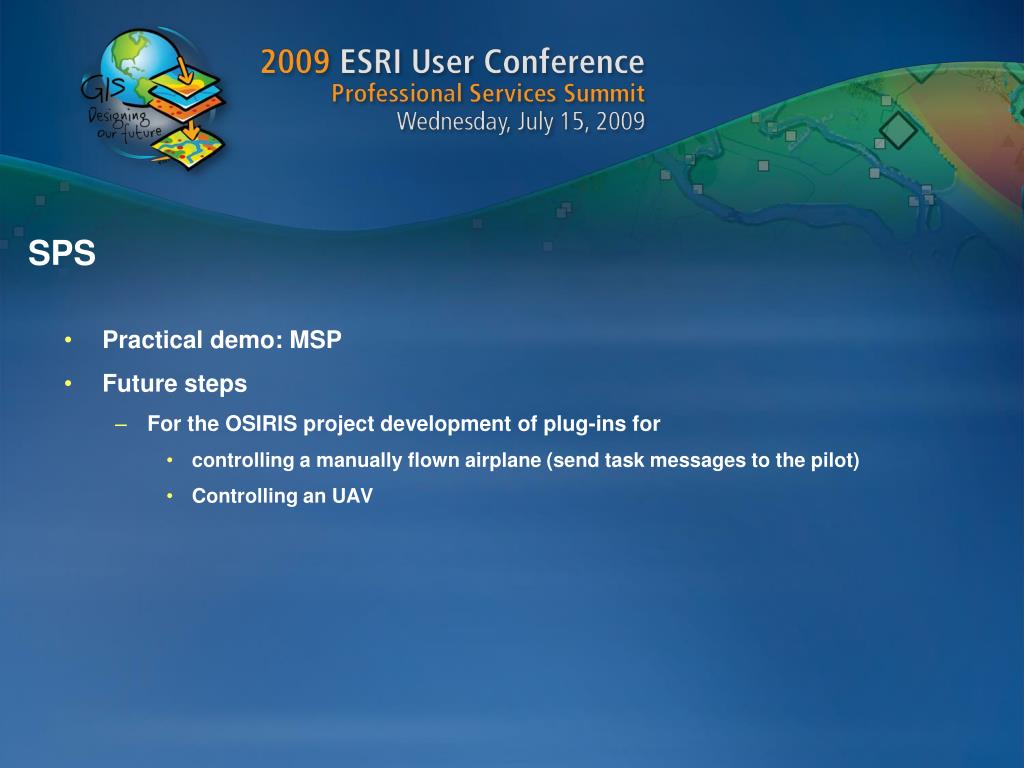

  16. SPS Practical demo: MSP Future steps For the OSIRIS project development of plug-ins for controlling a manually flown airplane (send task messages to the pilot) Controlling an UAV

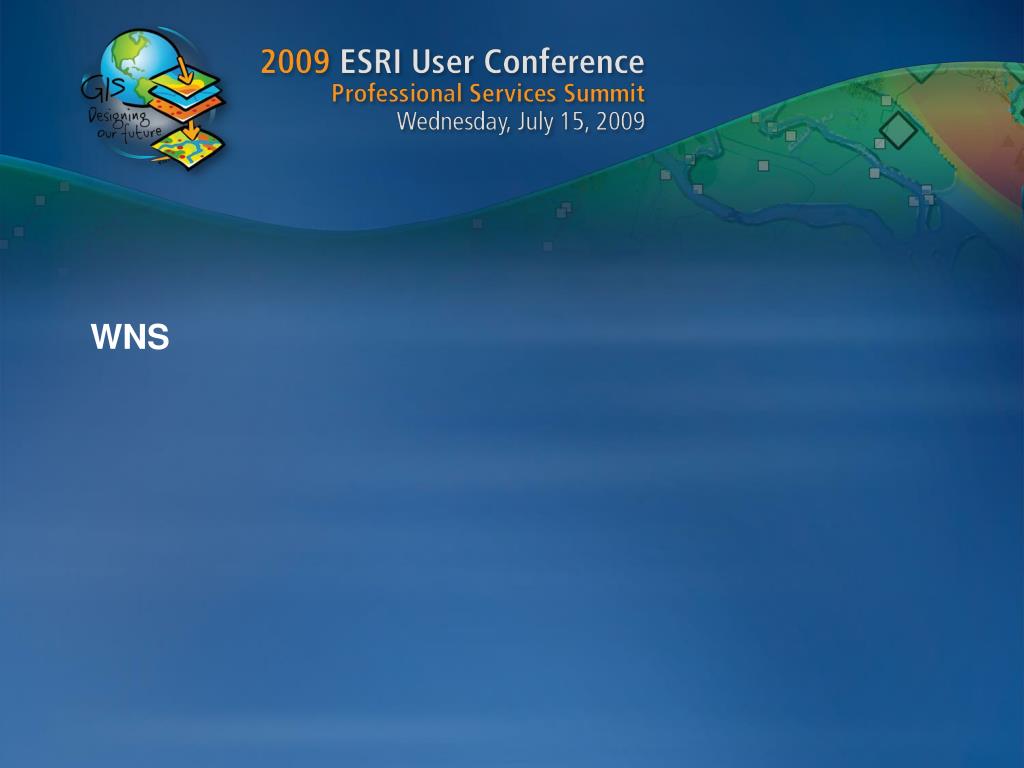

  17. WNS

  18. WNS Functionality for supporting asynchronous communication processes between services and clients (e.g. between SPS and user) Based on OGC best practice paper (OGC 06-095) version 0.0.9 Supports SMTP (E-Mail) XMPP SMS Fax Phone Future steps: Follow OGC developments (e.g. within OWS-6)

  19. Clients

  20. Clients OX-F Rich Client Thin-Clients ArcGIS Adapter uDig Plug-In Google Maps Display

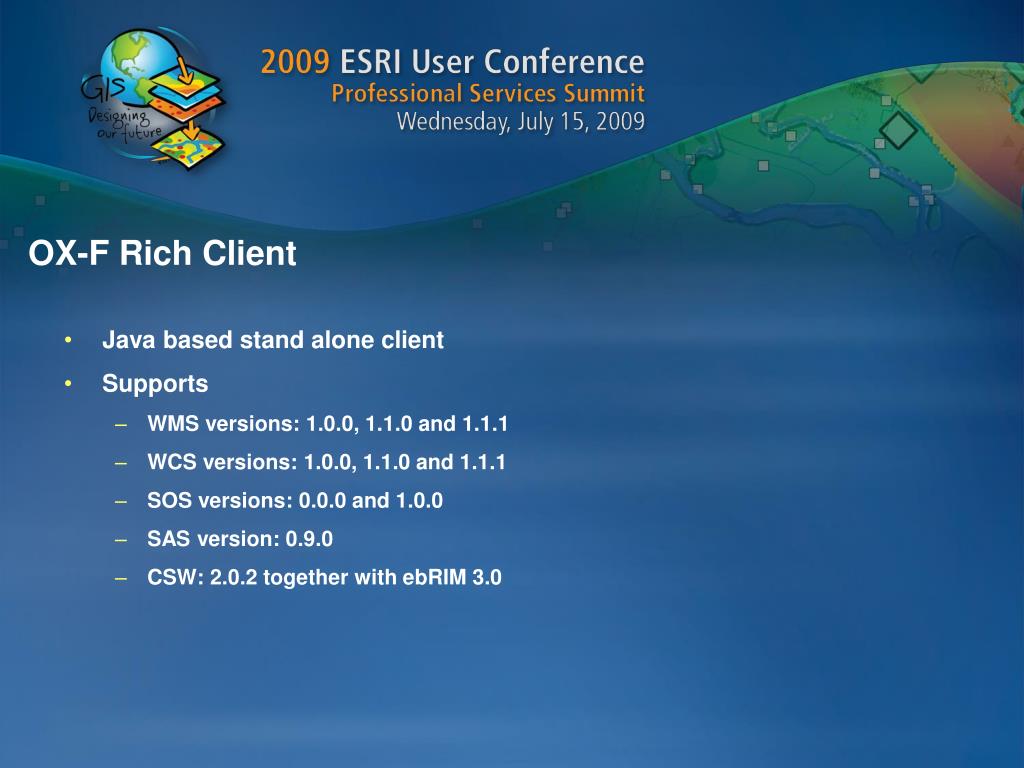

  21. OX-F Rich Client Java based stand alone client Supports WMS versions: 1.0.0, 1.1.0 and 1.1.1 WCS versions: 1.0.0, 1.1.0 and 1.1.1 SOS versions: 0.0.0 and 1.0.0 SAS version: 0.9.0 CSW: 2.0.2 together with ebRIM 3.0

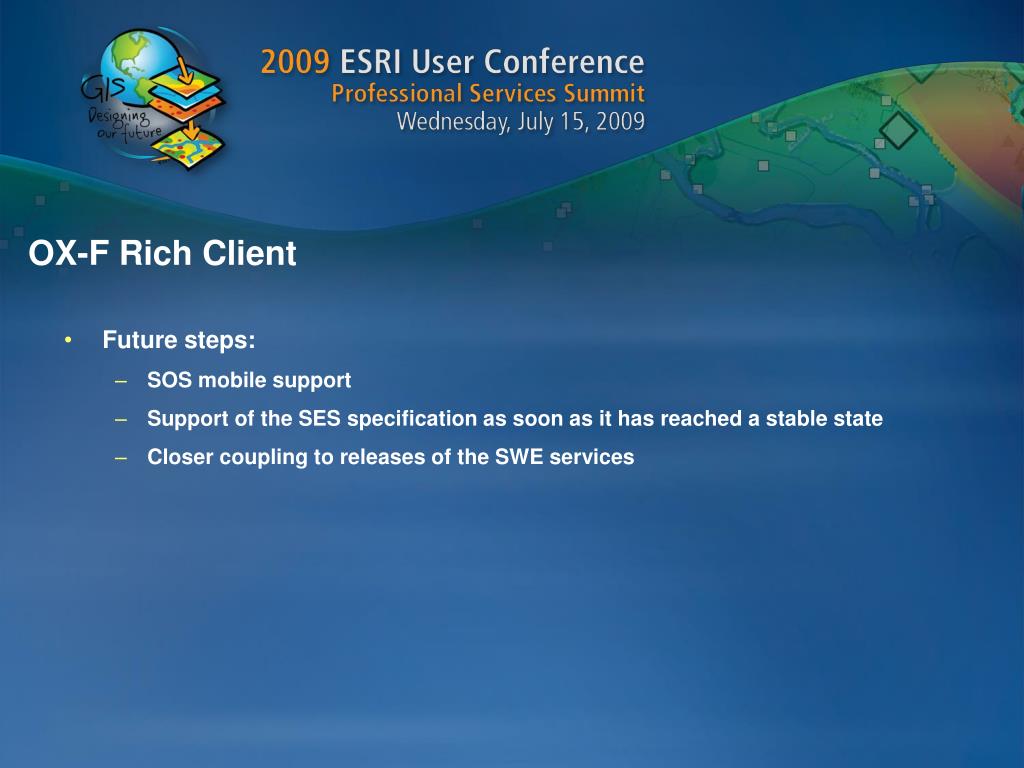

  22. OX-F Rich Client Future steps: SOS mobile support Support of the SES specification as soon as it has reached a stable state Closer coupling to releases of the SWE services

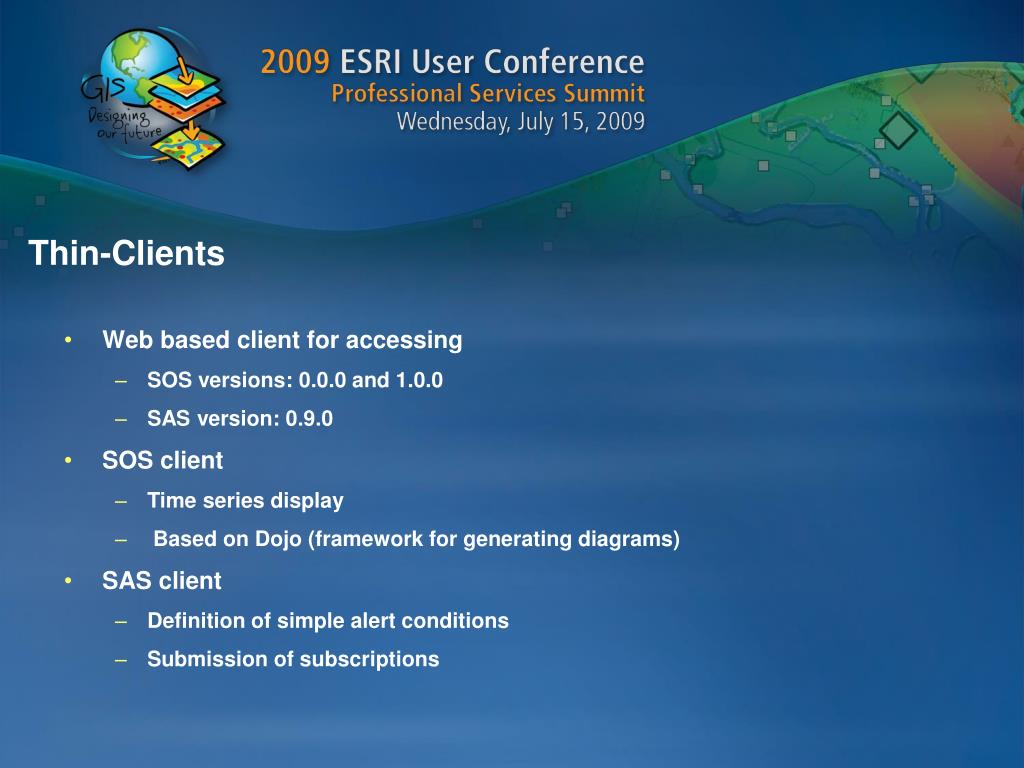

  23. Thin-Clients Web based client for accessing SOS versions: 0.0.0 and 1.0.0 SAS version: 0.9.0 SOS client Time series display Based on Dojo (framework for generating diagrams) SAS client Definition of simple alert conditions Submission of subscriptions

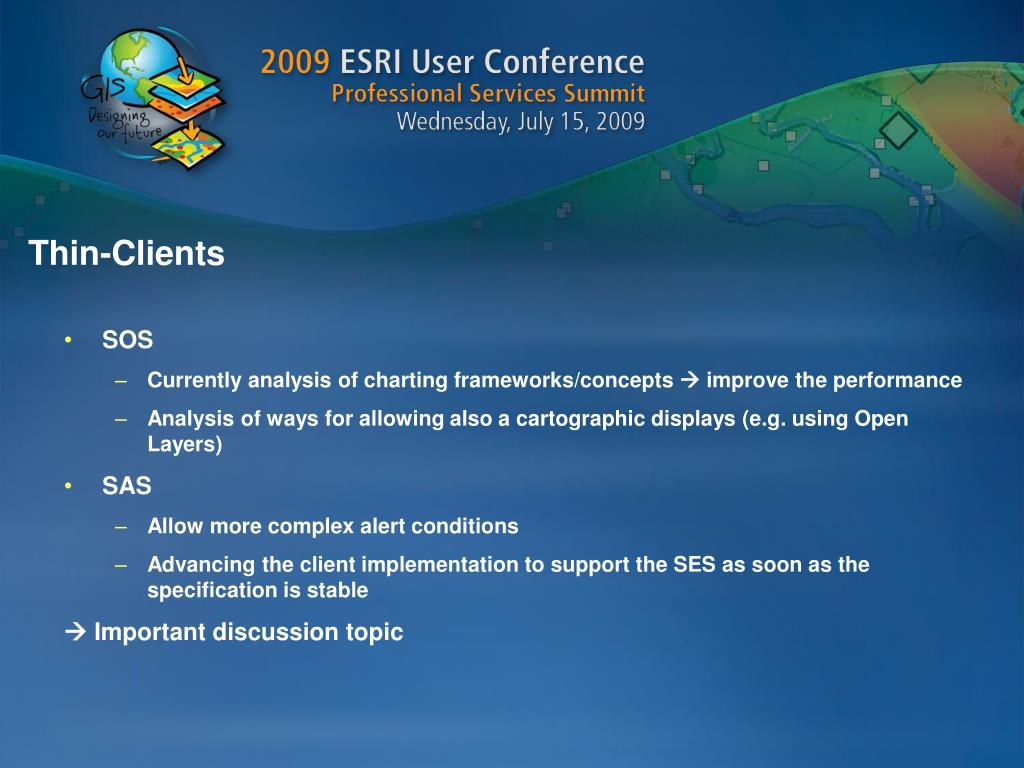

  24. Thin-Clients SOS Currently analysis of charting frameworks/concepts  improve the performance Analysis of ways for allowing also a cartographic displays (e.g. using Open Layers) SAS Allow more complex alert conditions Advancing the client implementation to support the SES as soon as the specification is stable  Important discussion topic

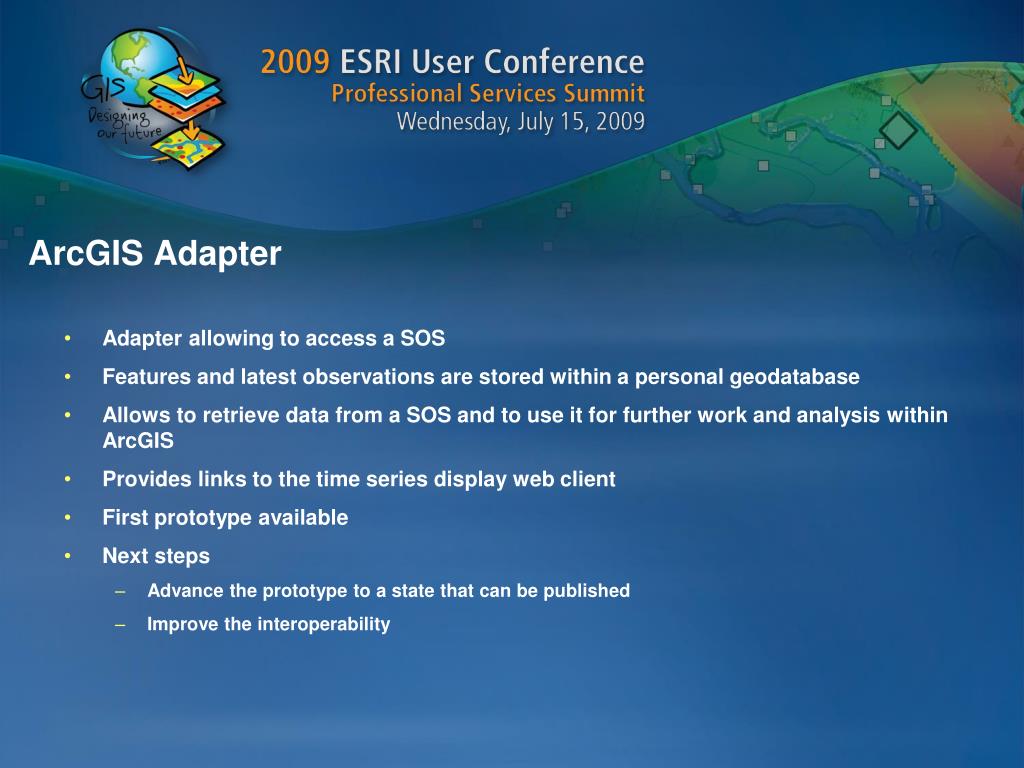

  25. ArcGIS Adapter Adapter allowing to access a SOS Features and latest observations are stored within a personal geodatabase Allows to retrieve data from a SOS and to use it for further work and analysis within ArcGIS Provides links to the time series display web client First prototype available Next steps Advance the prototype to a state that can be published Improve the interoperability

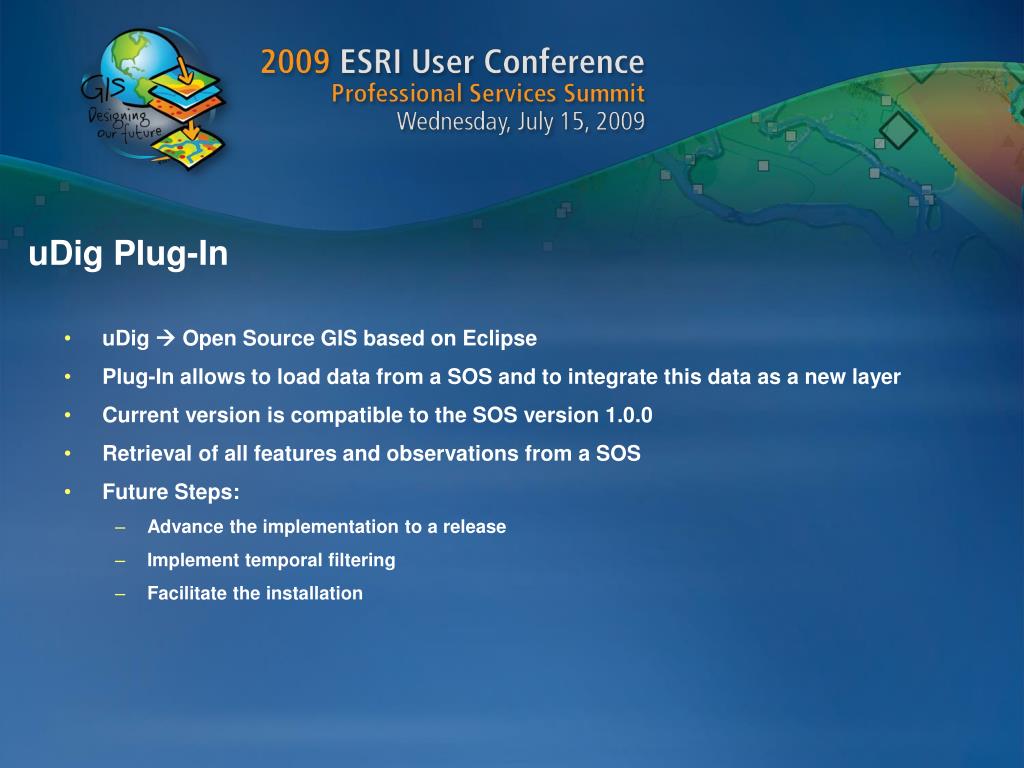

  26. uDig Plug-In uDig  Open Source GIS based on Eclipse Plug-In allows to load data from a SOS and to integrate this data as a new layer Current version is compatible to the SOS version 1.0.0 Retrieval of all features and observations from a SOS Future Steps: Advance the implementation to a release Implement temporal filtering Facilitate the installation

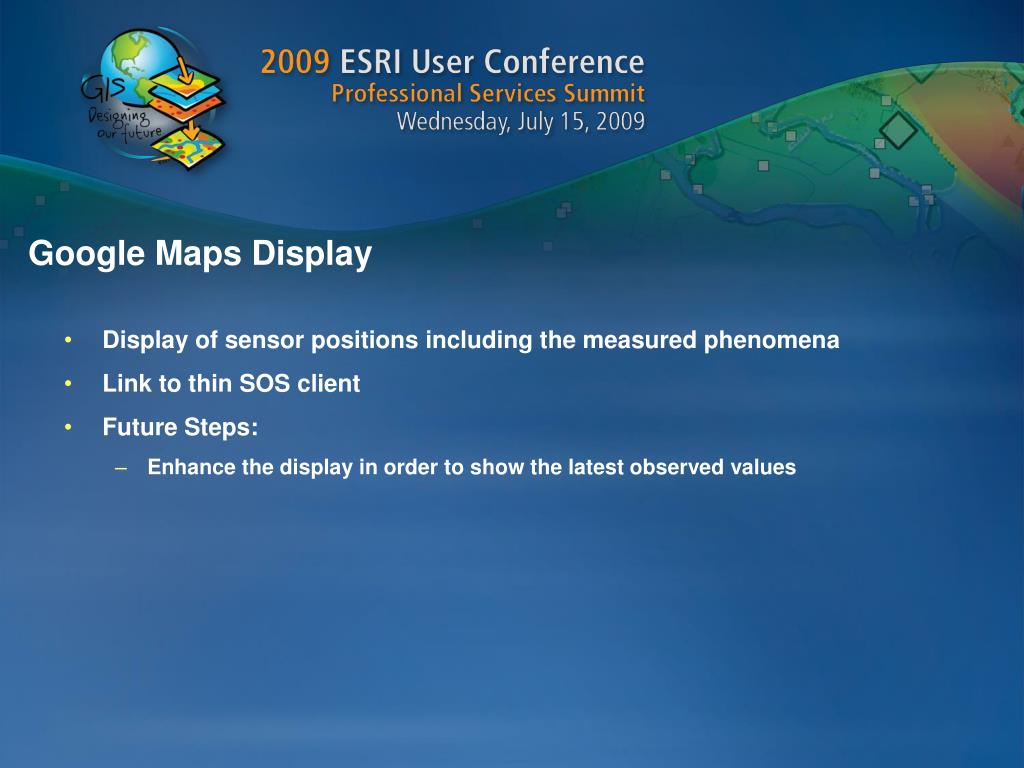

  27. Google Maps Display Display of sensor positions including the measured phenomena Link to thin SOS client Future Steps: Enhance the display in order to show the latest observed values

  28. SWEcurity

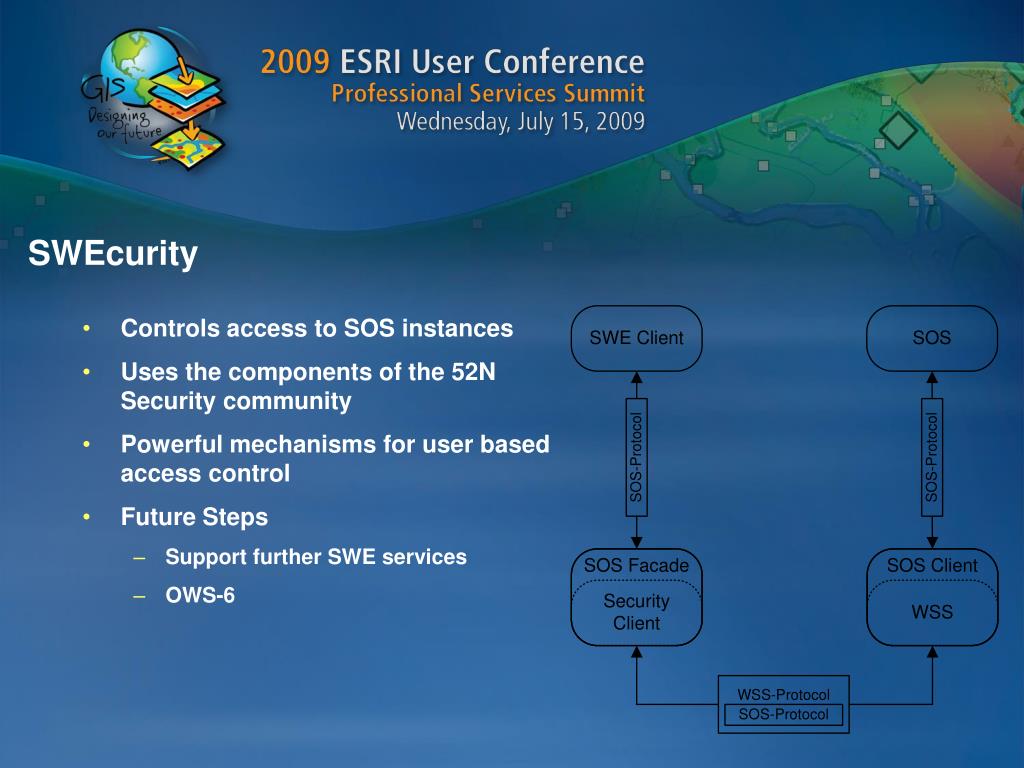

  29. SWEcurity Controls access to SOS instances Uses the components of the 52N Security community Powerful mechanisms for user based access control Future Steps Support further SWE services OWS-6

  30. Incubation

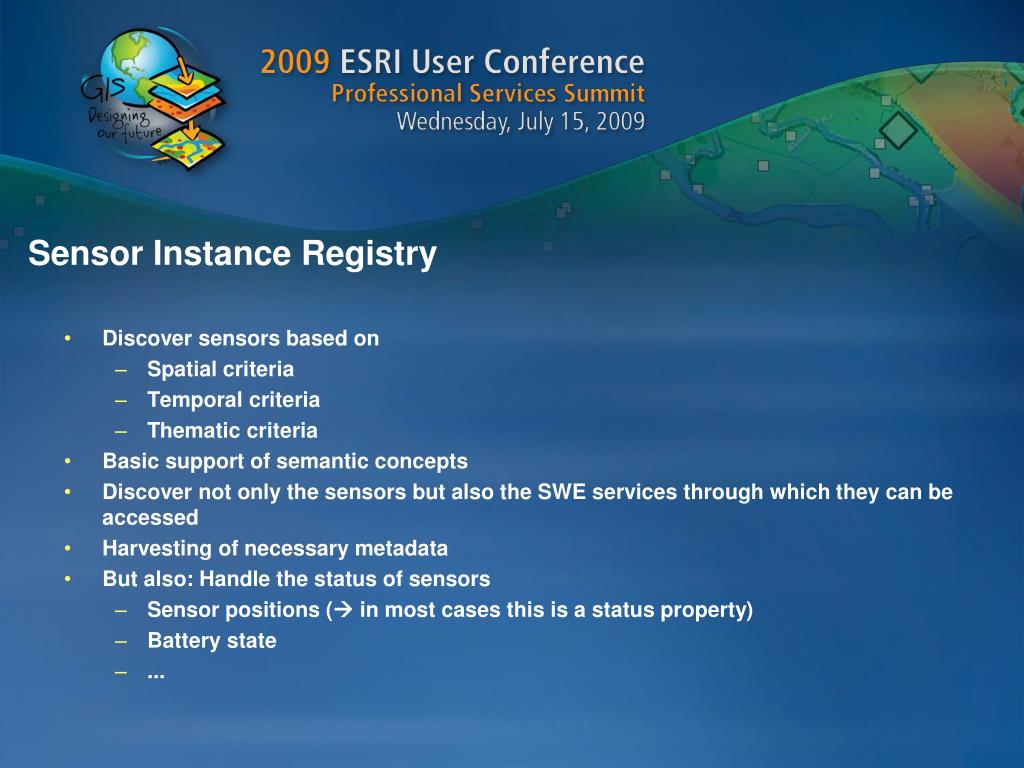

  31. Sensor Instance Registry Discover sensors based on Spatial criteria Temporal criteria Thematic criteria Basic support of semantic concepts Discover not only the sensors but also the SWE services through which they can be accessed Harvesting of necessary metadata But also: Handle the status of sensors Sensor positions ( in most cases this is a status property) Battery state ...

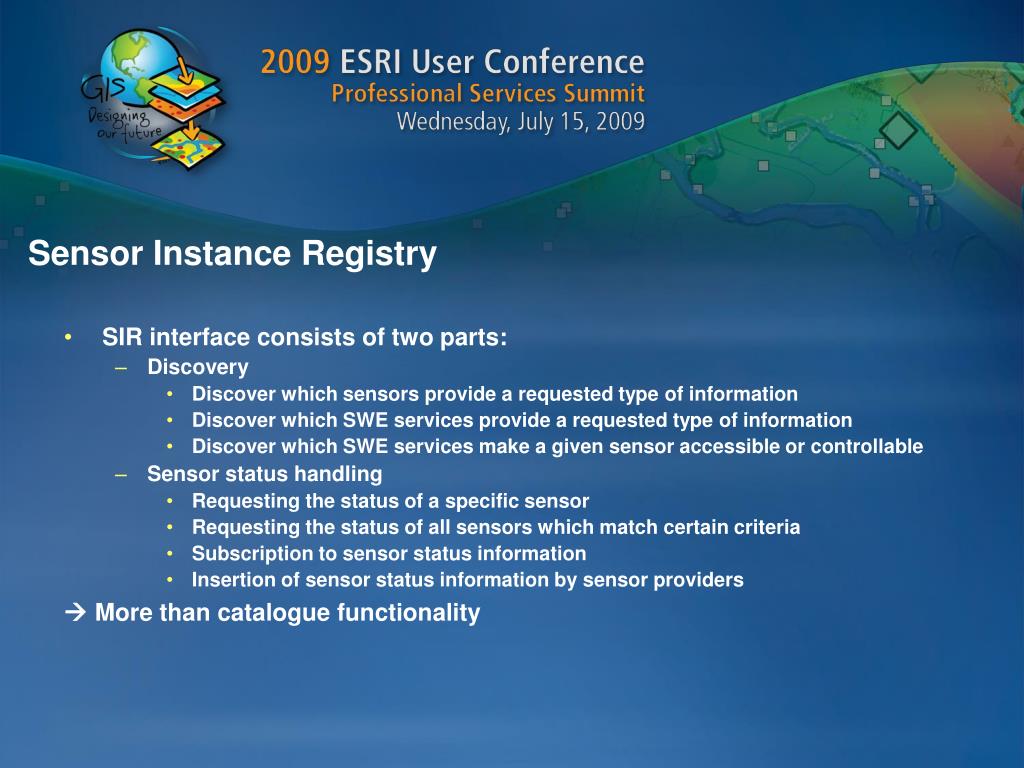

  32. Sensor Instance Registry SIR interface consists of two parts: Discovery Discover which sensors provide a requested type of information Discover which SWE services provide a requested type of information Discover which SWE services make a given sensor accessible or controllable Sensor status handling Requesting the status of a specific sensor Requesting the status of all sensors which match certain criteria Subscription to sensor status information Insertion of sensor status information by sensor providers More than catalogue functionality

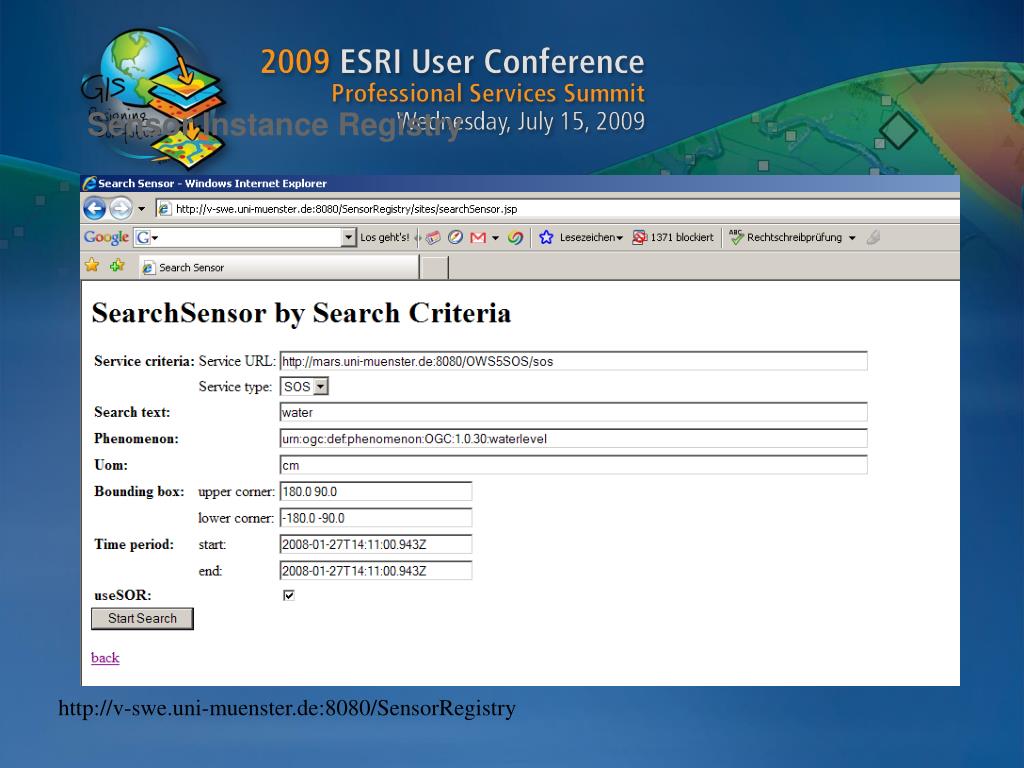

  33. Sensor Instance Registry http://v-swe.uni-muenster.de:8080/SensorRegistry

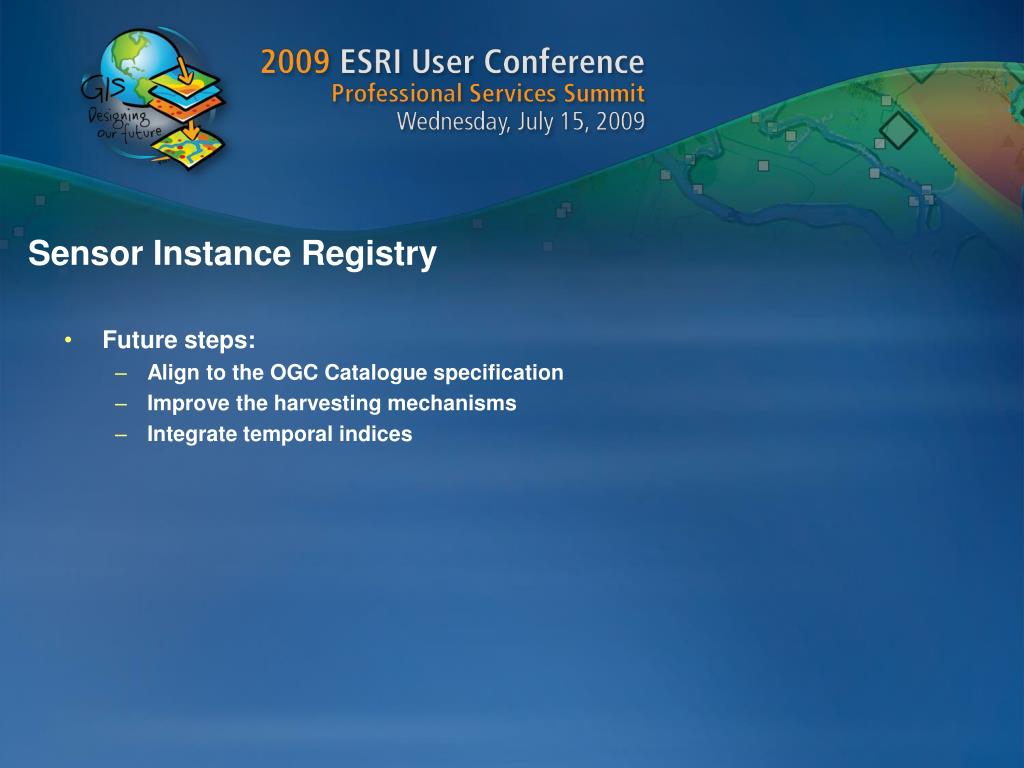

  34. Sensor Instance Registry Future steps: Align to the OGC Catalogue specification Improve the harvesting mechanisms Integrate temporal indices

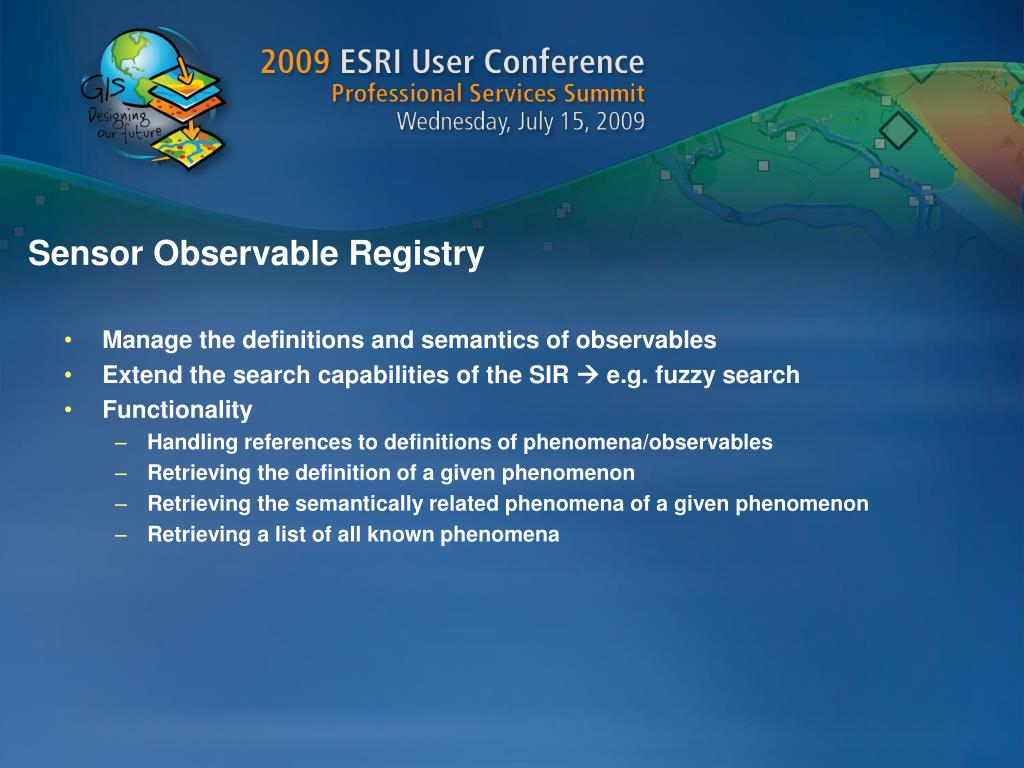

  35. Sensor Observable Registry Manage the definitions and semantics of observables Extend the search capabilities of the SIR  e.g. fuzzy search Functionality Handling references to definitions of phenomena/observables Retrieving the definition of a given phenomenon Retrieving the semantically related phenomena of a given phenomenon Retrieving a list of all known phenomena

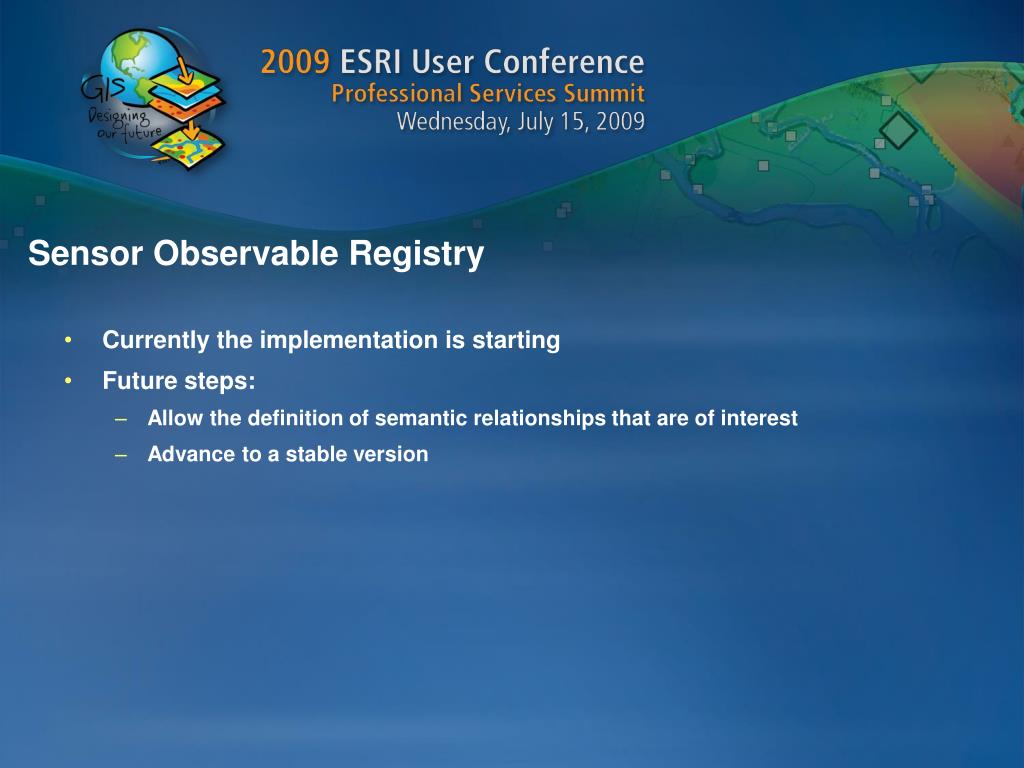

  36. Sensor Observable Registry Currently the implementation is starting Future steps: Allow the definition of semantic relationships that are of interest Advance to a stable version

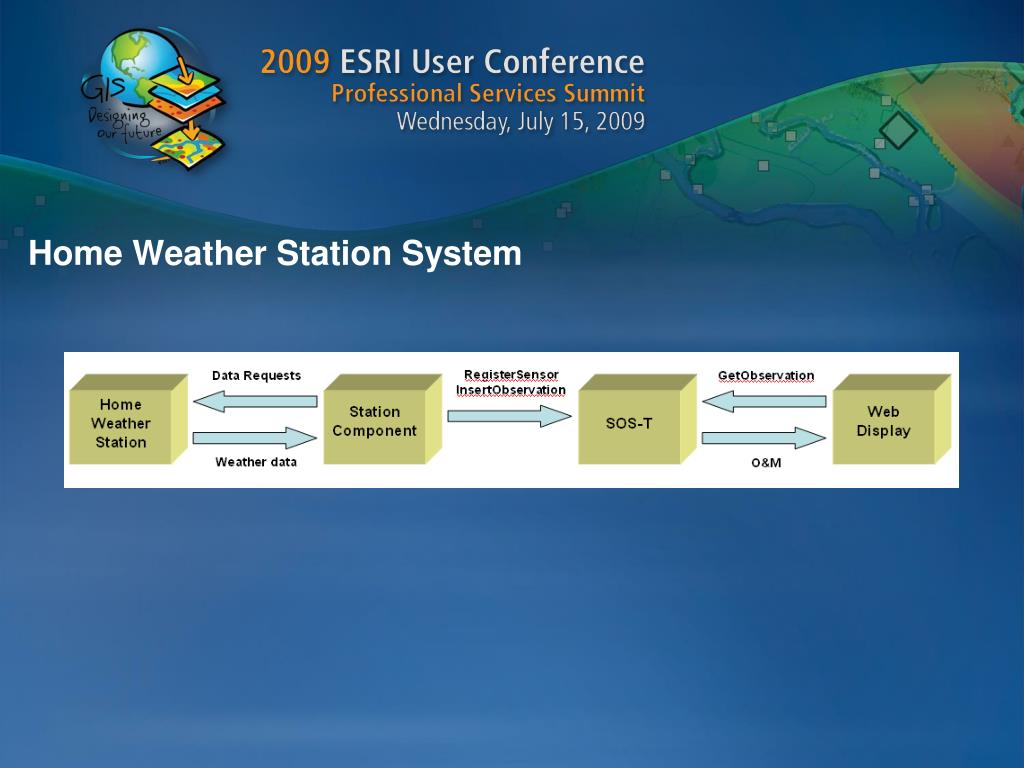

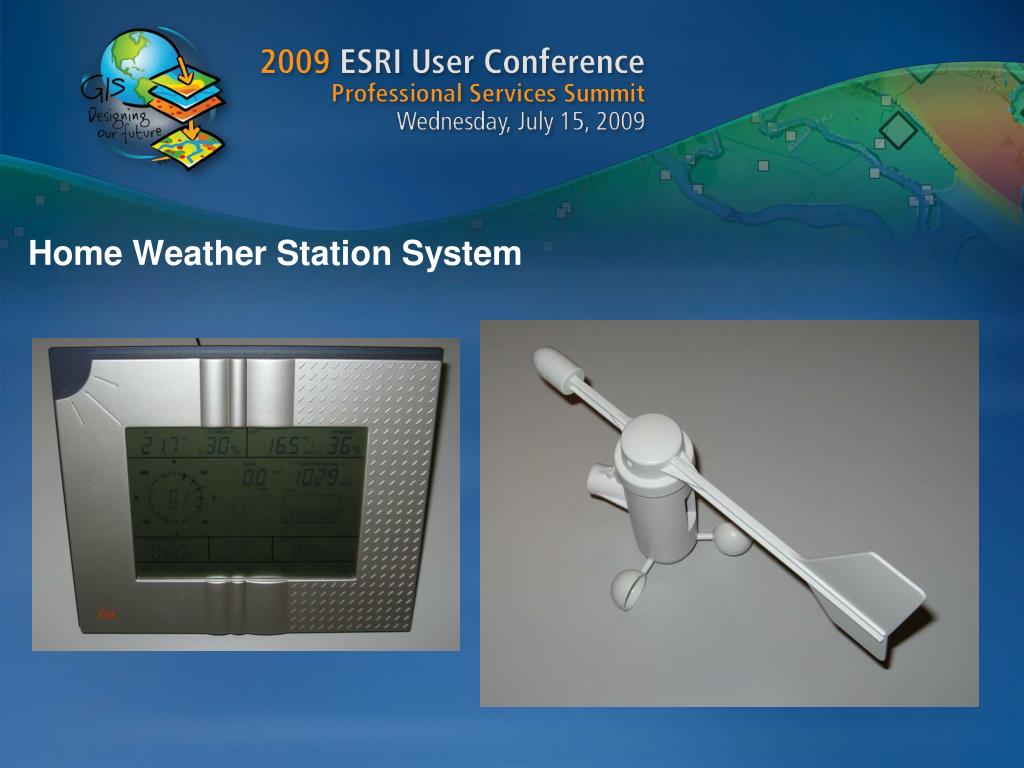

  37. Home Weather Station System

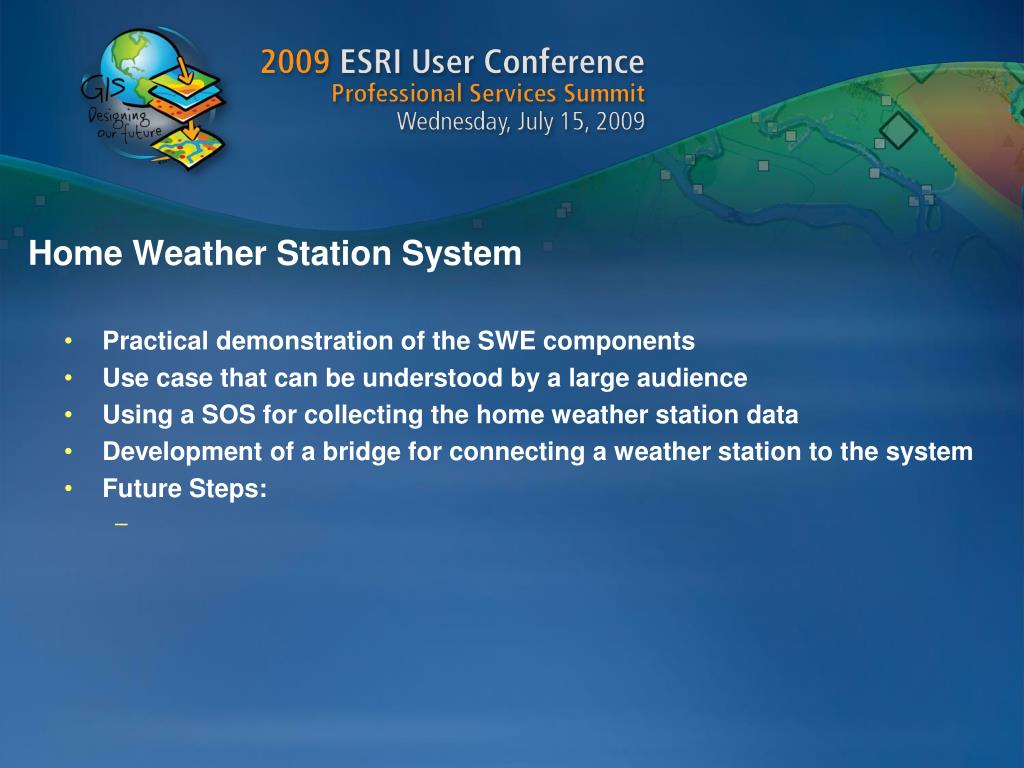

  38. Home Weather Station System Practical demonstration of the SWE components Use case that can be understood by a large audience Using a SOS for collecting the home weather station data Development of a bridge for connecting a weather station to the system Future Steps:

  39. Home Weather Station System

  40. Home Weather Station System Web based client: http://v-swe.uni-muenster.de:8080/WeatherSweClient/index.html

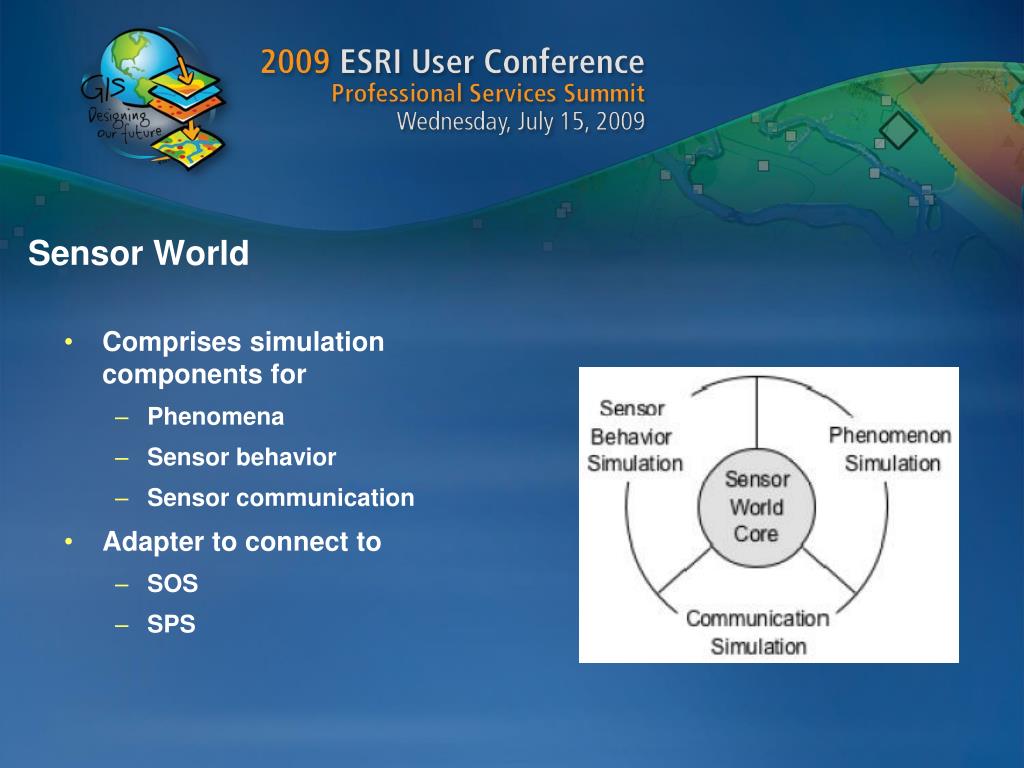

  41. Sensor World Framework for simulating sensor networks Developed within OSIRIS Aims at Testing of SWE services in connection with complex, potentially autonomous sensor networks Evaluating sensor network organization models Message based architecture (JMS)

  42. Sensor World Comprises simulation components for Phenomena Sensor behavior Sensor communication Adapter to connect to SOS SPS
