FORCES. Which vehicle exerts a greater force ― the tow truck or the car?. What is a force?. A push or a pull When one object pushes or pulls another object, you say that the first object exerts a force on the second object. Let’s practice. What forces are at play around you?.

Télécharger la présentation
## FORCES

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

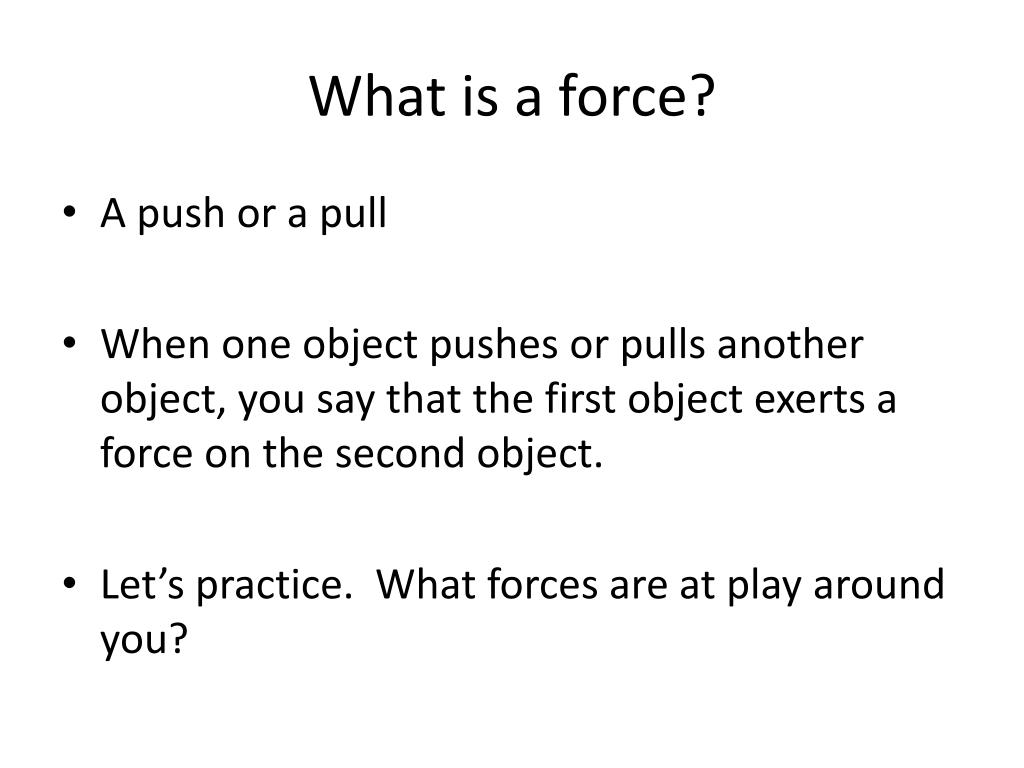

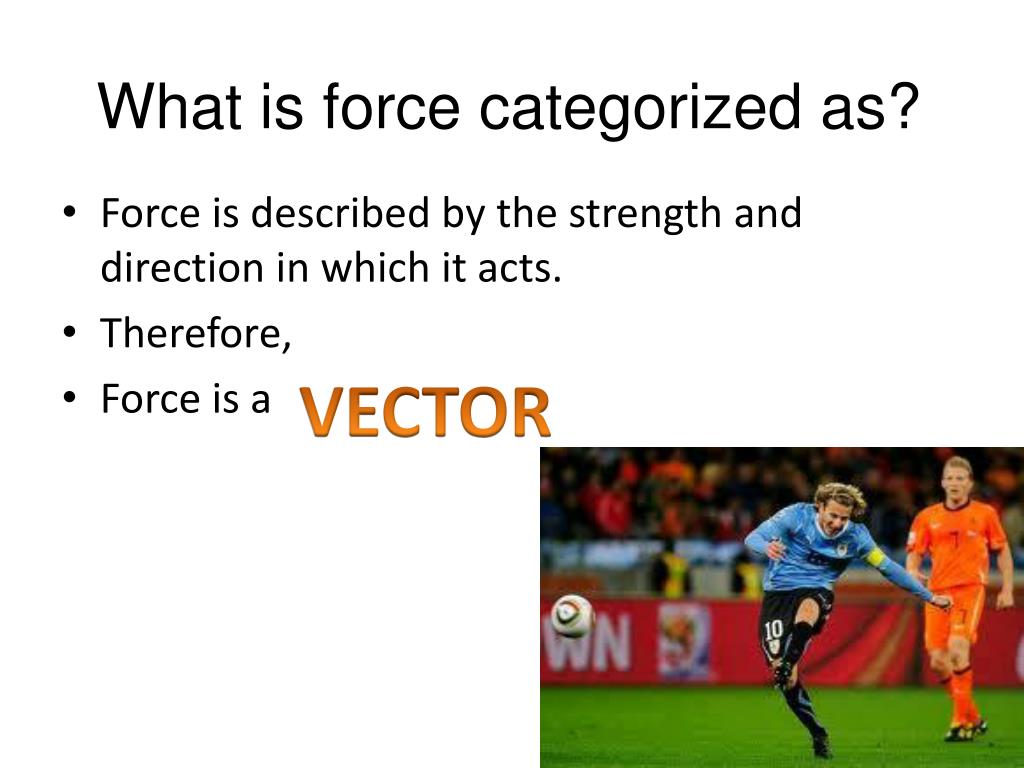

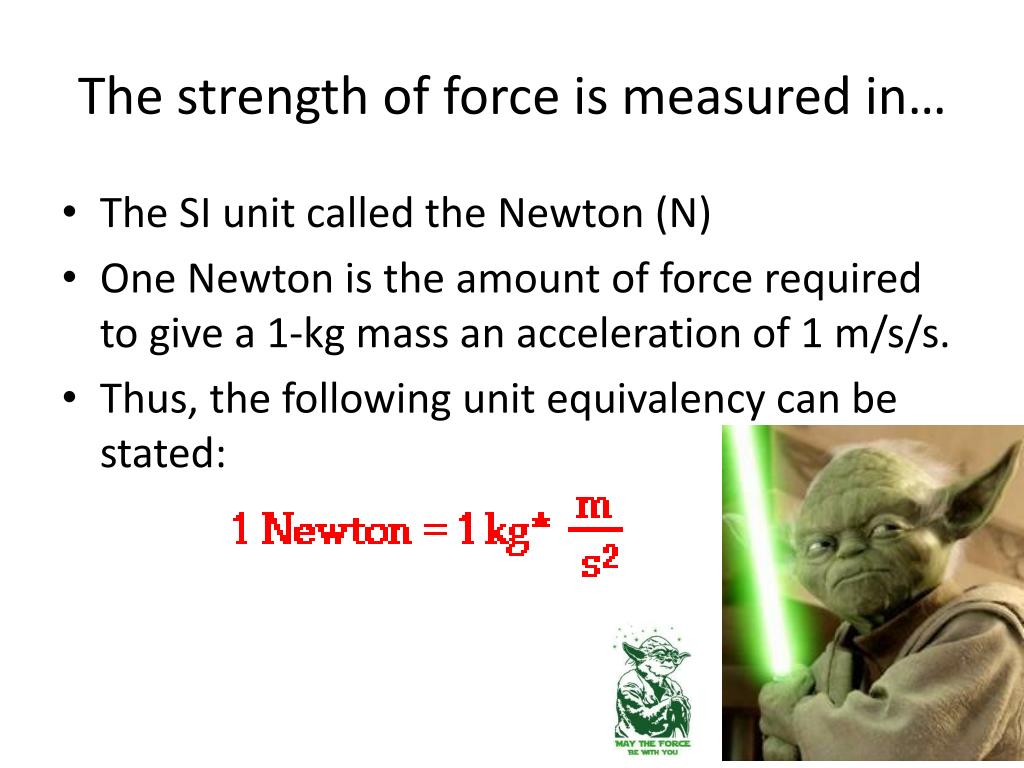

**Which vehicle exerts a greater force ― the tow truck or**the car? ISP 209 - 2B**What is a force?**• A push or a pull • When one object pushes or pulls another object, you say that the first object exerts a force on the second object. • Let’s practice. What forces are at play around you?**What forces are exerted?**Playing catch with a medicine ball**Playing catch with a medicine ball**A B A throws the ball and B catches it. four forces When A throws the ball he exerts a force on the ball (toward the right) and the ball exerts a force on him so he recoils (toward the left). When B catches the ball he exerts a force on the ball (toward the left to stop it) and the ball exerts a force on him so he is knocked back (toward the right). ISP 209 - 2B**Let’s take a minute to discuss….**Scalars and Vectors • Are both quantities • BUT….. • Scalars are fully described by magnitude (magnitude= number) • Vectors are fully described by both magnitude(number) and direction**What is force categorized as?**• Force is described by the strength and direction in which it acts. • Therefore, • Force is a VECTOR**The strength of force is measured in…**• The SI unit called the Newton (N) • One Newton is the amount of force required to give a 1-kg mass an acceleration of 1 m/s/s. • Thus, the following unit equivalency can be stated:**Combining Forces**• Often, more than one force acts on an object at a time. • Net force is the combination of all forces acting on the object • What does the net force determine? • Motion • direction**Net force Practice**• For each diagram, write the net force and direction. HINT: The net force always acts in the direction of the greater force.**Balanced forces**• Equal forces acting on one object in opposite directions.**Balanced Forces**• Balanced forces result in equilibrium • How can I make this box in equilibrium?**Unbalanced Forces**• Unbalanced forces result when the forces exerted on an object are not equal. • Unbalanced forces acting on an object result in a net force and cause a change in the object’s motion.**Free-Body Diagrams**• Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation.**Draw a free body diagram**• A physics book is sitting on a table and is pushed 10 N to the right. The opposing frictional force is 7 N.**The horse pulls the cart with a force A (to the right).**According to Newton, the cart pulls the horse with a force –A (to the left). A puzzle Horse and Cart So how can they start moving, or accelerate? Resolution: Consider each part separately, and don’t forget that there are other forces acting. ISP 209 - 2B**Homework**• Read Introduction of Forces notes • Give 3 examples of force for each of the following: (YOUR OWN EXAMPLES!) • Gravity • Tension • Friction • Drag/Air resistance
