Auger Project Computing Needs

DESCRIPTION

Auger Project Computing Needs. The Pierre Auger Observatory Auger data and processing Auger data collection and storage Rates and needs Conclusion. The Pierre Auger Observatory. Auger is a “ Ultra High Energy Cosmic Ray ” experiment (for E CR >10 18 eV ) 2 sites, to cover the whole sky:

1 / 8

Télécharger la présentation

Auger Project Computing Needs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

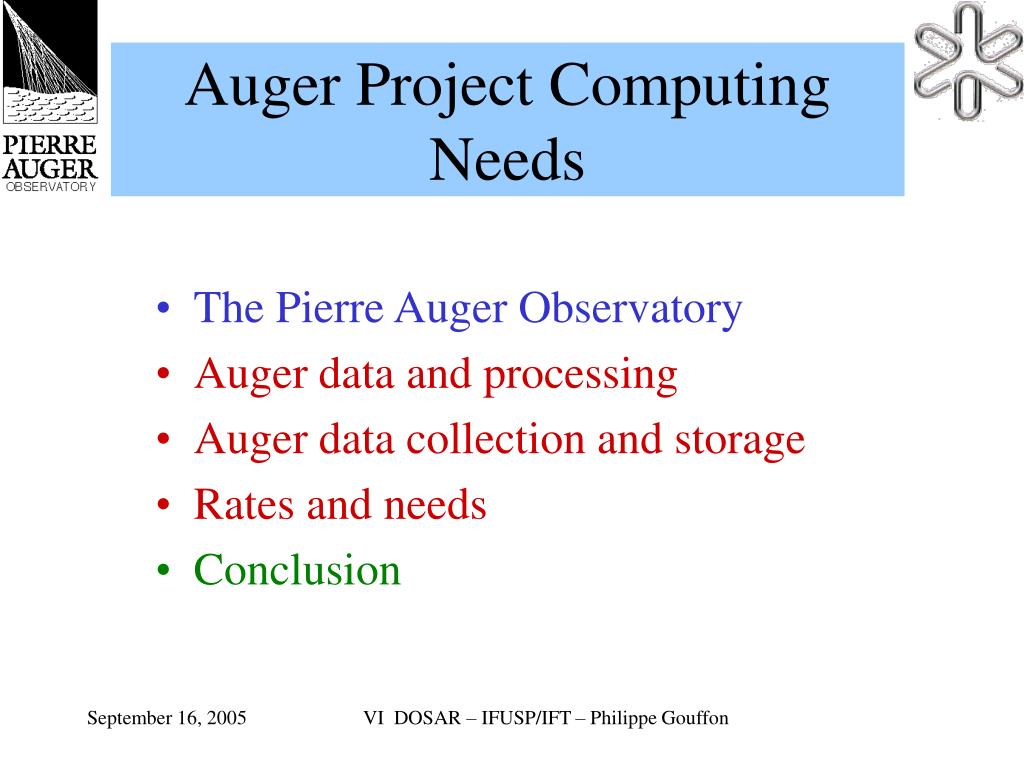

  1. Auger Project Computing Needs • The Pierre Auger Observatory • Auger data and processing • Auger data collection and storage • Rates and needs • Conclusion VI DOSAR – IFUSP/IFT – Philippe Gouffon

  2. The Pierre Auger Observatory • Auger is a “Ultra High Energy Cosmic Ray” experiment (for ECR>1018eV) • 2 sites, to cover the whole sky: • South (Malargüe, Argentina) to be completed in 2006 • North (Colorado, USA), being designed • Uses 2 types of detectors to measure the extended air showers. • Čerenkov water tanks (,  and electrons density and direction) • atmospheric fluorescence telescopes (track the core) VI DOSAR – IFUSP/IFT – Philippe Gouffon

  3. Surface Detector Fuorescence Detector VI DOSAR – IFUSP/IFT – Philippe Gouffon

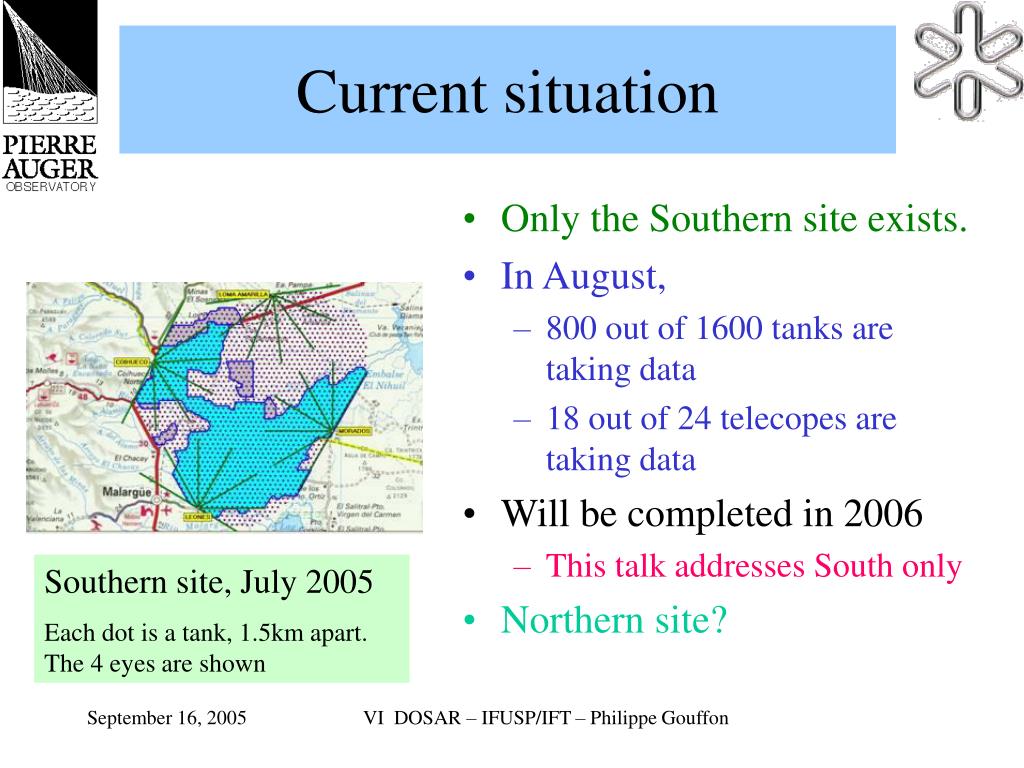

  4. Current situation • Only the Southern site exists. • In August, • 800 out of 1600 tanks are taking data • 18 out of 24 telecopes are taking data • Will be completed in 2006 • This talk addresses South only • Northern site? Southern site, July 2005 Each dot is a tank, 1.5km apart. The 4 eyes are shown VI DOSAR – IFUSP/IFT – Philippe Gouffon

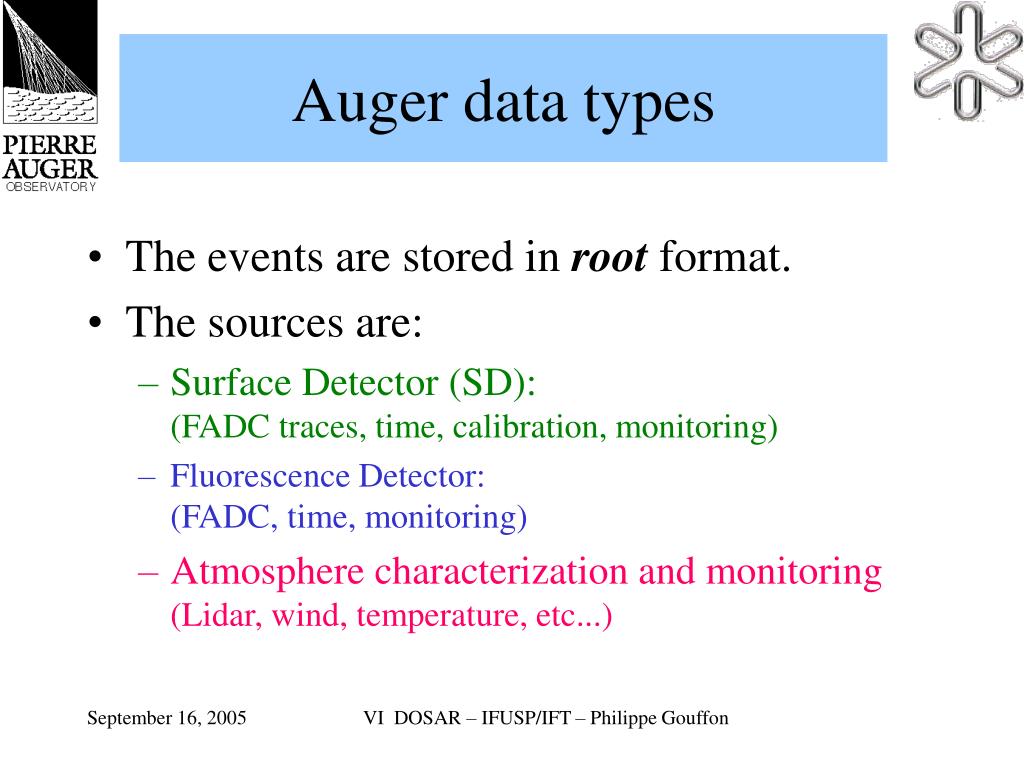

  5. Auger data types • The events are stored in root format. • The sources are: • Surface Detector (SD):(FADC traces, time, calibration, monitoring) • Fluorescence Detector:(FADC, time, monitoring) • Atmosphere characterization and monitoring(Lidar, wind, temperature, etc...) VI DOSAR – IFUSP/IFT – Philippe Gouffon

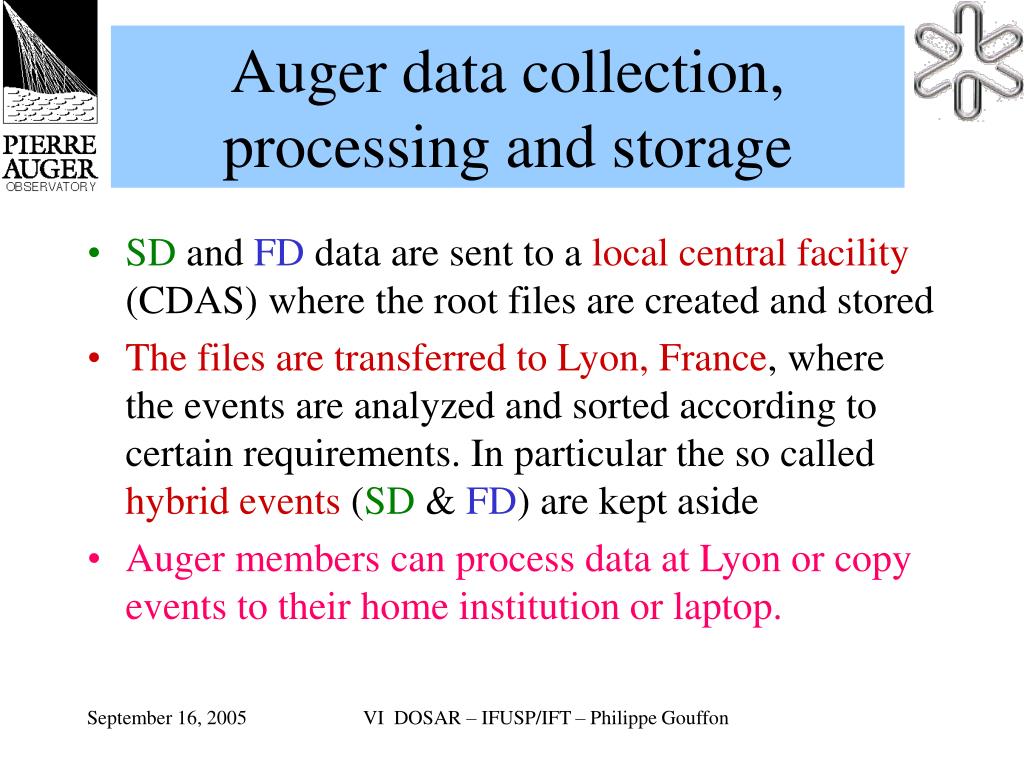

  6. Auger data collection, processing and storage • SD and FD data are sent to a local central facility (CDAS) where the root files are created and stored • The files are transferred to Lyon, France, where the events are analyzed and sorted according to certain requirements. In particular the so called hybrid events (SD & FD) are kept aside • Auger members can process data at Lyon or copy events to their home institution or laptop. VI DOSAR – IFUSP/IFT – Philippe Gouffon

  7. Rates and needs The values presented here are based on August and September (800 tanks, 18 telescopes). • SD raw data: 174kB/day/tank • for 1600 tanks : 280MB/day or 102GB/year • FD raw data: 175MB/night/eye • For 4 eyes (24 tel.): 143GB/year • Processed data • For 1600 tanks, 4 eyes: ~500GB/year • Monitoring: • SD=144GB/y, Atmosphere 80MB/y • Total: 890 GB/year VI DOSAR – IFUSP/IFT – Philippe Gouffon

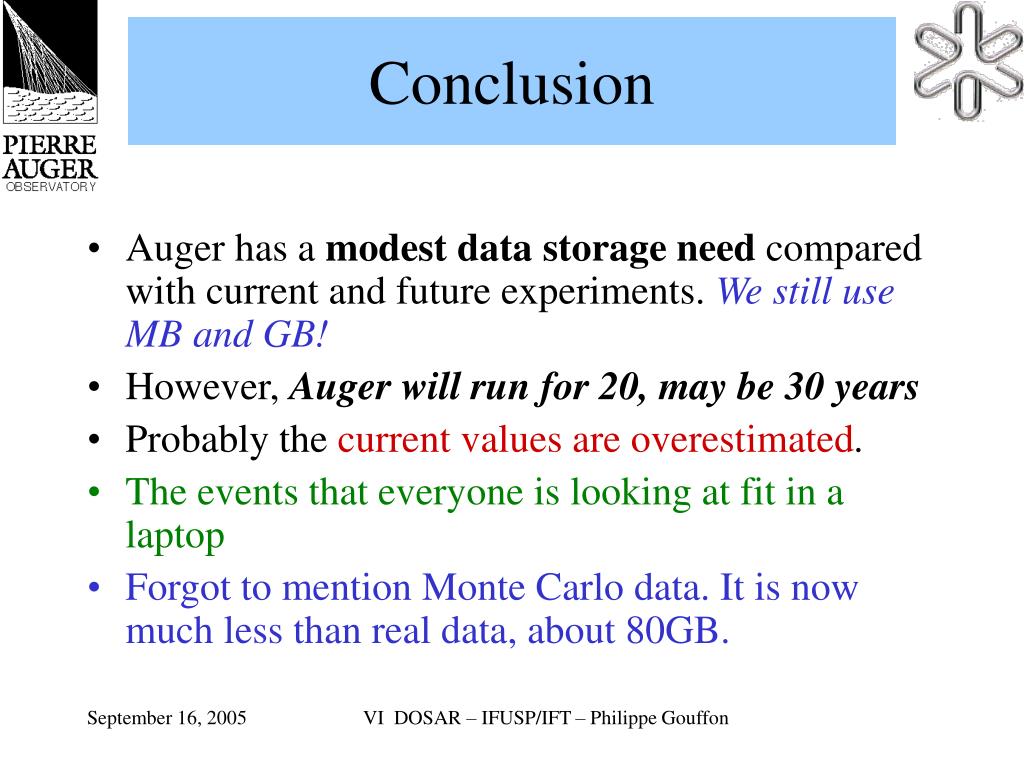

  8. Conclusion • Auger has a modest data storage need compared with current and future experiments. We still use MB and GB! • However, Auger will run for 20, may be 30 years • Probably the current values are overestimated. • The events that everyone is looking at fit in a laptop • Forgot to mention Monte Carlo data. It is now much less than real data, about 80GB. VI DOSAR – IFUSP/IFT – Philippe Gouffon
