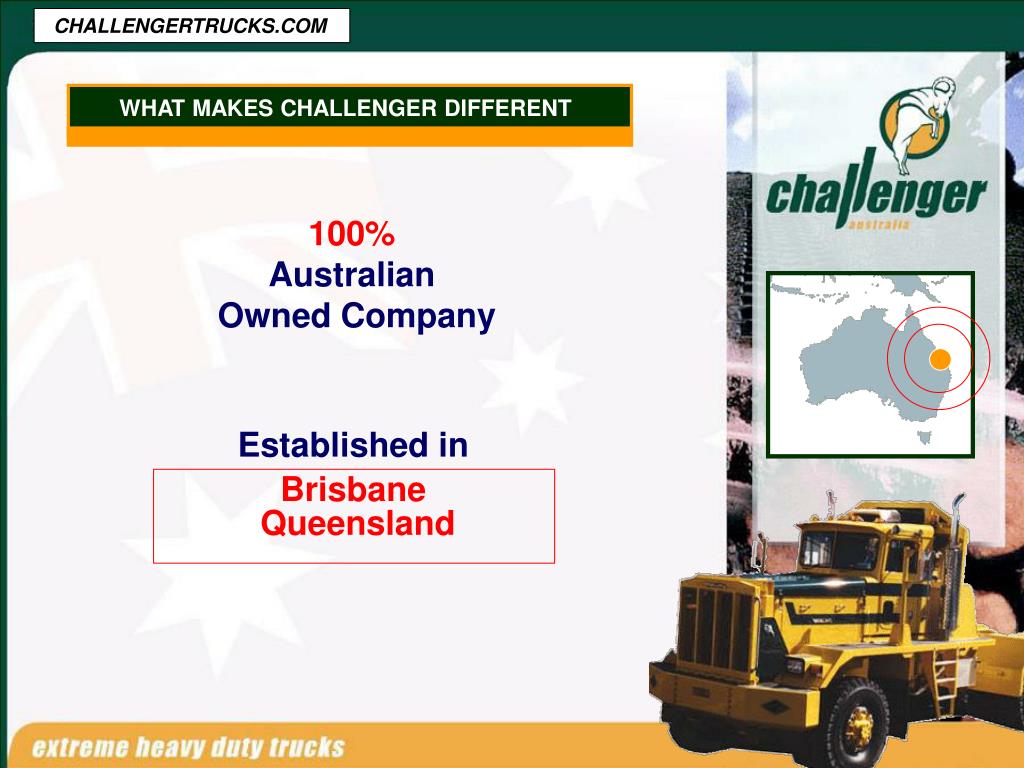

  1. WHAT MAKES CHALLENGER DIFFERENT • 100% • Australian • Owned Company • Established in • Brisbane • Queensland

  2.   WHAT MAKES OUR PRODUCT DIFFERENT • CHALLENGER TRUCKS: • Improve operational productivity • Are TRUE off road trucks • UNIQUE OFF-ROAD • HEAVY HAULAGE • VEHICLE • DESIGNED FOR THE HARSHEST • CONDITIONS • Have 12 years proven experience in the harshest conditions • MODULAR DESIGN • TECHNOLOGY • REDUCES COSTS • Have a revolutionary modular design improving access and maintenance • Faster access to engine for ease of service • Reduce labour and service overheads by up to 20% • Lowers ownership costs over the life of the vehicle • Reduces operating costs through quicker service turnaround

  3.   WHAT MAKES OUR PRODUCT DIFFERENT • In excess of 50% Australian manufactured components • The design of our vehicles is innovative and unique in Australia • A NEW AUSTRALIAN INNOVATIVE PRODUCT • UNIQUE CONFIGURATION • AND DESIGN • OPTIONAL FEATURES

  4.   MARKET FLEXIBILITY AND EXPORT CAPABLE • Providing an Australian owned and built market alternative • Quality local alternative to imported off-road heavy haulage vehicles • AUSTRALIAN OWNED, BUILT AND MAINTAINED • COMPETITIVE IN BOTH THE LOCAL AND GLOBAL MARKETPLACE • Globally Competitive • LOCAL INDUSTRY SPECIFIC DESIGN • Technology designed specifically for mining, logging, oil & mining exploration related industries and applications • Highest quality equipment and service

  5. 1 • COMPONENT EXCHANGE 2 • EASE OF MAINTENANCE THIS IS WHAT CHALLENGER TRUCKS ARE ALL ABOUT THE CHALLENGER ADVANTAGE All components can be individually engineered intoCHALLENGER trucks. Our clients know what they want from a CHALLENGER truck Engine Transmission Axles etc… The CHALLENGER team is always on-hand to provide expert advice and solutions if required CHALLENGERS unique modular design system has been specifically engineered to allow instant on-site access to all components. The CHALLENGER design system ensures significantly less down-time in the field & during scheduled maintenance.

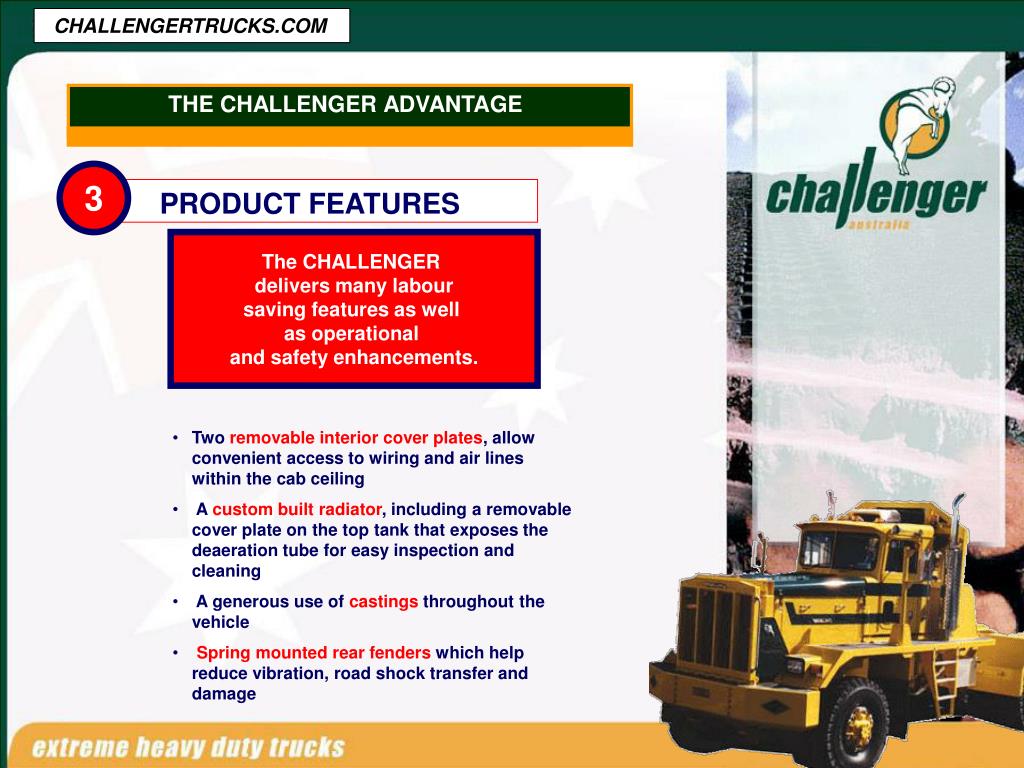

  6. 3 • PRODUCT FEATURES THE CHALLENGER ADVANTAGE The CHALLENGER delivers many laboursaving features as well as operational and safety enhancements. • Two removable interior cover plates, allow convenient access to wiring and air lines within the cab ceiling • A custom built radiator, including a removable cover plate on the top tank that exposes the deaeration tube for easy inspection and cleaning • A generous use of castings throughout the vehicle • Spring mounted rear fenders which help reduce vibration, road shock transfer and damage

  7. 4 • INNOVATIONS THE CHALLENGER ADVANTAGE CHALLENGER’s innovative design makes it tougher than anything else on the road. • Integrated Heavy Duty Air Conditioner • Suspension smooth cab ride • Fabricated flex frame • Removable front end, bumper, grill guard & fenders (in one lift) • Proven six rod suspension • Engine slides out on inner frame complete with radiator (Optional) • Automatic transmission designed into frame for easy accessibility & removal • Larger quieter cab. • Intermittent synchronised air wipers • Air starter motor • Dash panels hinge down for easy access to gauges & wiring

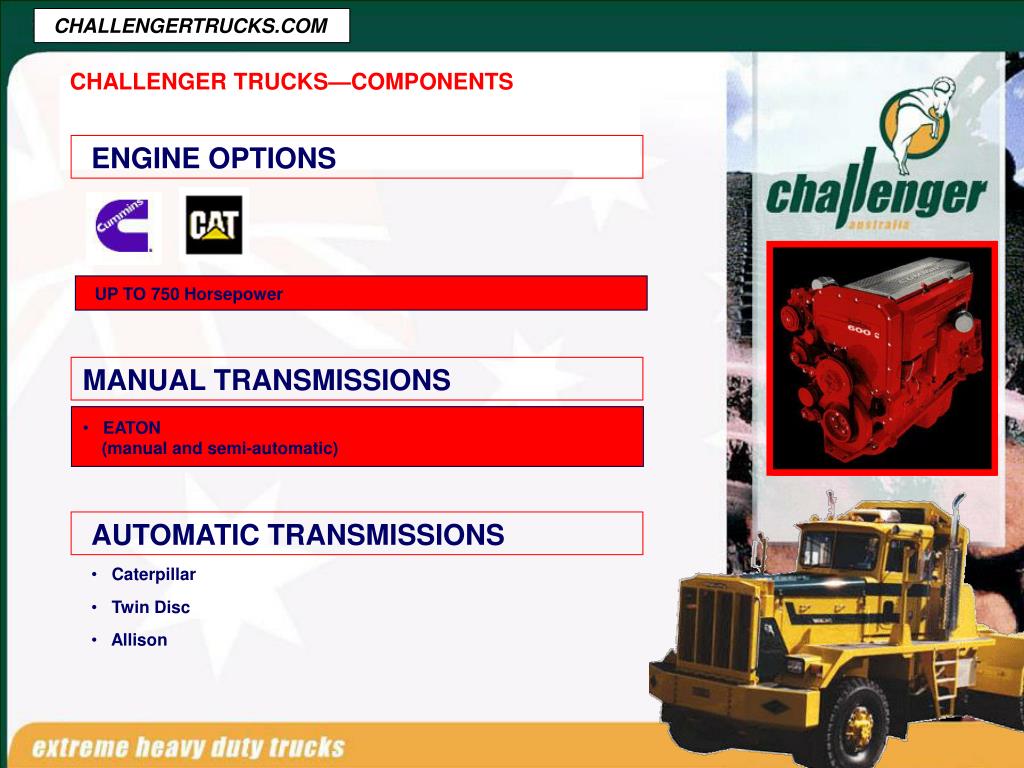

  8. UP TO 750 Horsepower CHALLENGER TRUCKS—COMPONENTS • ENGINE OPTIONS • MANUAL TRANSMISSIONS • EATON (manual and semi-automatic) • AUTOMATIC TRANSMISSIONS • Caterpillar • Twin Disc • Allison

  9. CHALLENGER TRUCKS—COMPONENTS • FRONT AXLE • 14,000 kg and 18,000 kg • FRONT STEEL DRIVE AXLE • 14,000 kg and 18,000 kg • REAR AXLE • 36,000 kg PER AXLE IN EXCESS OF 300 TON DEPENDING ON APPLICATION • Up to 360 ton gross combination mass pending on application • REAR SUSPENSION • PROVEN CHALLENGER 6 ROD UP TO 80,000kg • CHALLENGER CAN ENGINEER ADDITIONAL COMPONENTS AND PROVIDE DESIGN RECOMMENDATIONS IF REQUESTED

  10. CHALLENGER INNOVATIONS • ONE PIECE HINGED HOOD QUICK RELEASE LATCHES ENABLE EASY ACCESS. ONE-PIECE HOOD FOR GREATER ENGINE ACCESSIBILITY

  11. CHALLENGER INNOVATIONS • REMOVABLE SIDE PANELS TWO STEP REMOVABLE OF SIDE PANELS UNRESTRICTED ACCES TO ENGINE COMPARTMENT

  12. CHALLENGER INNOVATIONS • WHEEL GUARDS WHEEL GUARDS LIFT FOR INCREASED ACCESS TO ENGINE AND FRONT WHEEL ASSEMBLY

  13. CHALLENGER INNOVATIONS • FRONT GRILL PROTECTOR GRILL GUARD ASSEMBLY DROPS FORWARD EXPOSING THE RADITOR FOR MAINTANENCE GRILL GUARD ALSO PROVIDES A STURDY WORKING PLATFORM

  14. PRODUCT TYPES—CHALLENGER FLEXIBILITY • COAL HAULER ABLE TO HAUL 145 CUBIC METRES OF COAL/150 TON PAYLOADS FOR UP TO 10% GRADES ALSO AVAILABLE 250 TON PAYLOAD HAULER FOR UP TO 3% GRADES 145 cmtr 150 ton

  15. Special stainless steel body air conditioner with sealed long life motors. Mounted inside of cab roof. Pressurised system with air filtration optional. Stainless steel composite cab panels bonded over stainless steel frame Composite bonnet Rear rubber fenders Composite fenders with anti slip surfaces and tilt up for ease of maintenance Composite walkways with anti slip surfaces Cooling system - twin loop system intercooler and water radiator solder dipped with stainless steel tanks side bands and components, composite fan shroud with integral hydraulic driven fan. Fans composite material. Water pipes stainless. PRODUCT TYPES—CHALLENGER FLEXIBILITY • OPTIONAL CORROSION MODEL CHASSIS FRAME IS A SINGLE ELEMENT, FULLY WELDED ASSEMBLY WITH A SPECIAL 2 PACK EPOXY PROTECTION

  16. PRODUCT TYPES—CHALLENGER FLEXIBILITY • TYPICAL HEAVY DUTY SERVICE VEHICLE OR WATER TRUCK UP TO 60 TON PAYLOAD AVAILABLE IN 6 X 6 OR 6 X 4 525 TO 600 HP 1400 X 25 TO 1800 x 25 TYRES MANUAL OR AUTO

  17. PRODUCT TYPES—CHALLENGER FLEXIBILITY • LOW LOADER TRUCK UP TO 300 TON GROSS AVAILABLE IN 6 X 4 OR 6 X 6 600 TO 800 HP 1400 X 25 TO 1800 X 25 TYRES MANUAL OR AUTO

  18. PRODUCT TYPES—CHALLENGER FLEXIBILITY • 60 TON DUMP TRUCK UP TO 60 CMT BODY AVAILABLE IN 6 X 4 OR 6 X 6 525 TO 600 HP 1400 X 25 TO 1800 X 25 TYRES MANUAL OR AUTO

  19. PRODUCT TYPES—CHALLENGER FLEXIBILITY • LOGGING TRUCK AND PRE-LOAD TRAILER UP TO 125 TONPAYLOAD AVAILABLE IN 6 X 4 OR 6 X 6 525 TO 650 HP MANUAL OR AUTO

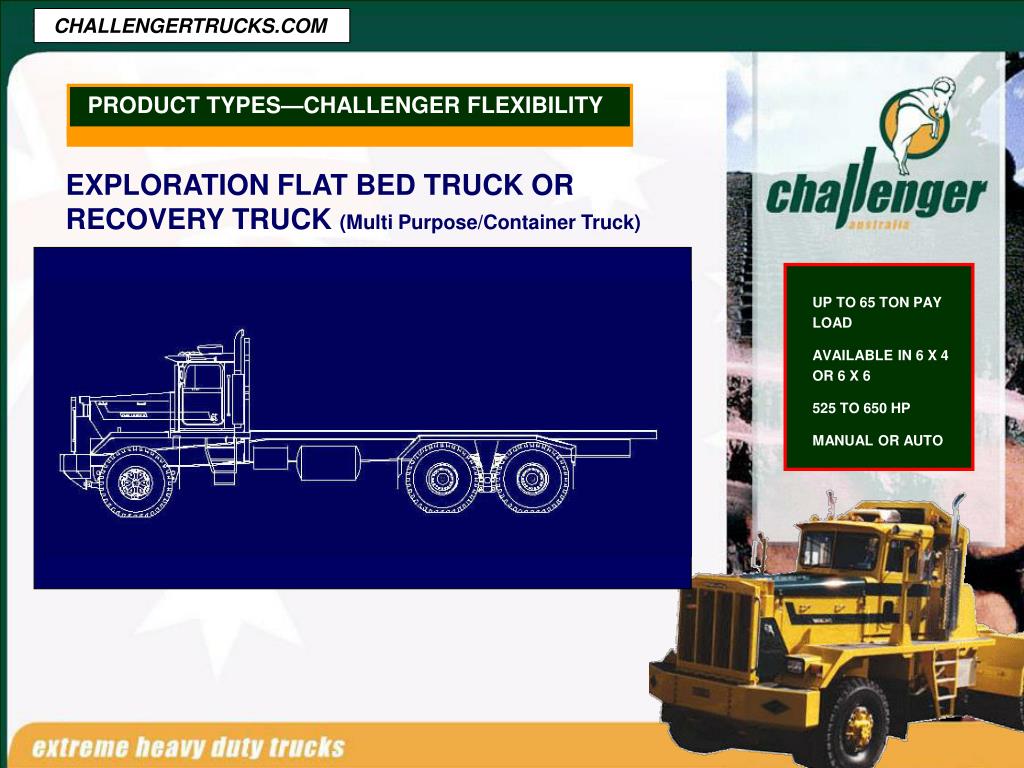

  20. PRODUCT TYPES—CHALLENGER FLEXIBILITY • EXPLORATION FLAT BED TRUCK OR RECOVERY TRUCK (Multi Purpose/Container Truck) UP TO 65 TON PAY LOAD AVAILABLE IN 6 X 4 OR 6 X 6 525 TO 650 HP MANUAL OR AUTO

  21. PRODUCT TYPES—CHALLENGER FLEXIBILITY • SUPER TIPPER UP TO 150 TON PAY LOAD AVAILABLE IN 6 X 4 OR 6 X 6 600 TO 750 HP MANUAL OR AUTO

  22. ENTIRE CONFIGURATION PRODUCT TYPES—CHALLENGER FLEXIBILITY • ROAD TRAIN UP TO 300 TON GROSS COMBINATION AVAILABLE IN 6 X 4 OR 6 X 6 600 TO 750 HP MANUAL OR AUTO

  23. WHAT STANDSCHALLENGERAPART FROM ITS COMPETITORS? • CHALLENGERPROVIDES INNOVATION AND A TOTAL MAINTENANCE & SUPPORT • SOLUTION • TAILORED TO YOUR • OPERATING REQUIREMENTS

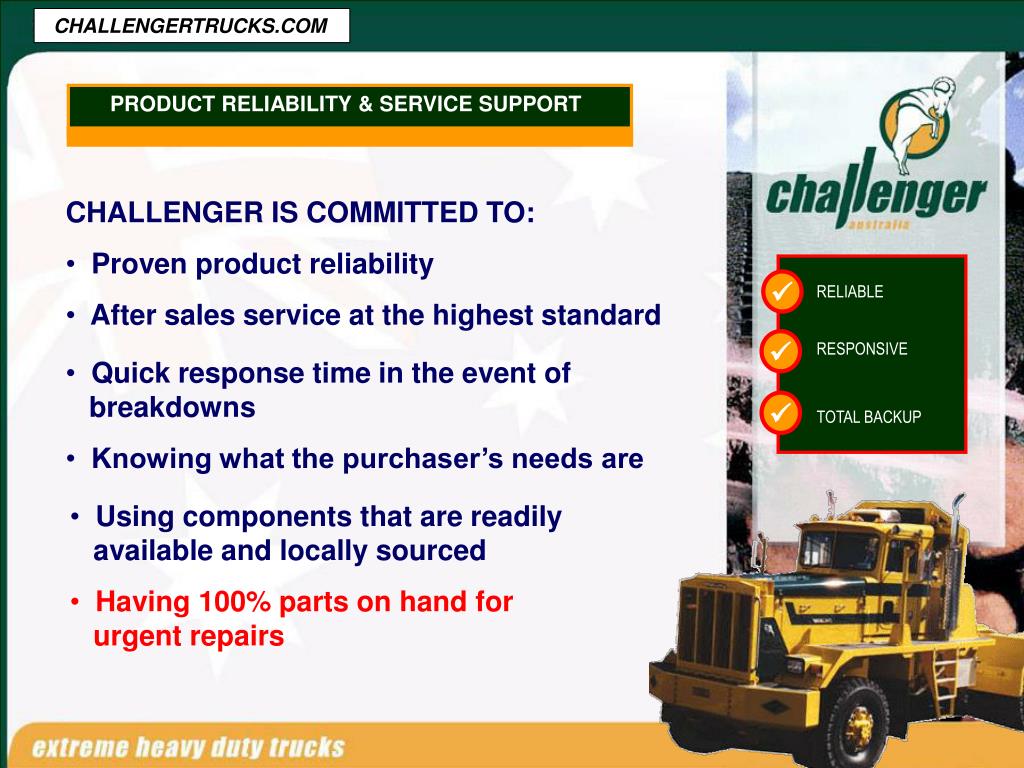

  24.   PRODUCT RELIABILITY & SERVICE SUPPORT • CHALLENGER IS COMMITTED TO: • Proven product reliability • After sales service at the highest standard • RELIABLE • RESPONSIVE • Quick response time in the event of breakdowns • Knowing what the purchaser’s needs are • TOTAL BACKUP • Using components that are readily available and locally sourced • Having 100% parts on hand for urgent repairs

  25. Thank you. • To visit the Challenger website, please click here: www.challangertrucks.com
