Runway Safety Improvements for Air Operators

Runway Safety Improvements for Air Operators. Capt. Bertrand de Courville ICAO Runway Safety Seminar Amsterdam - 2012. Monitoring & Managing Safety Defenses. ?. Operations. Accidents. CFIT Runway collision Loss of control Mid air collision Runway Excursion …. Taxi, Take off.

Télécharger la présentation

Runway Safety Improvements for Air Operators

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

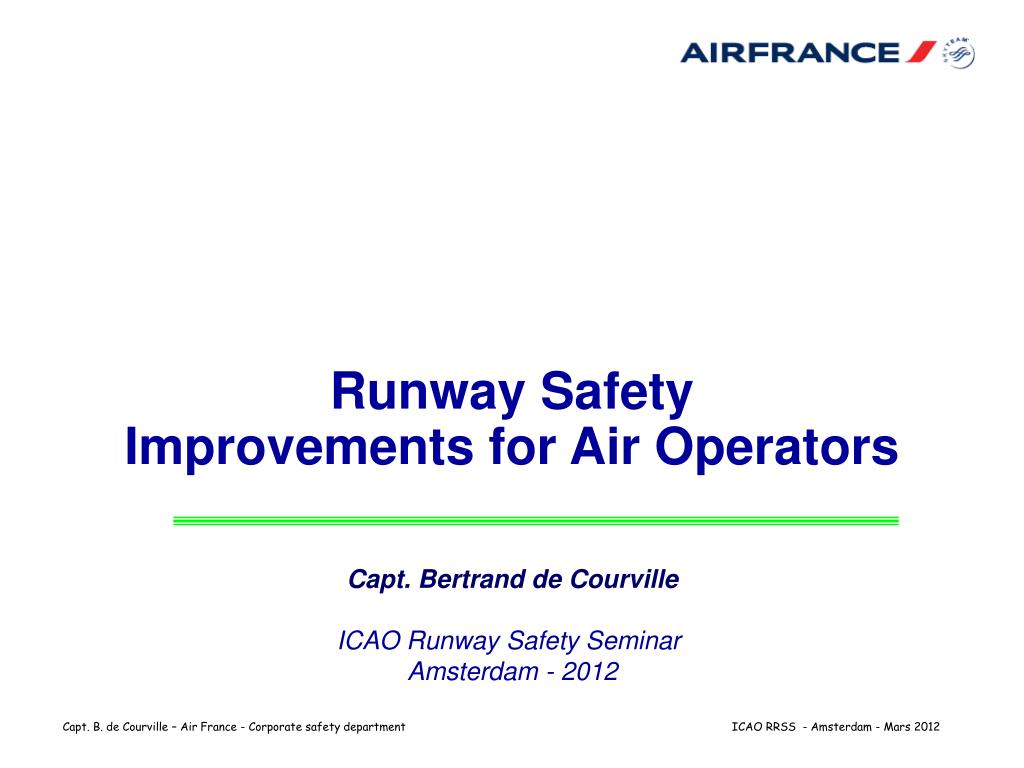

  1. Runway Safety Improvements for Air Operators Capt. Bertrand de Courville ICAO Runway Safety Seminar Amsterdam - 2012

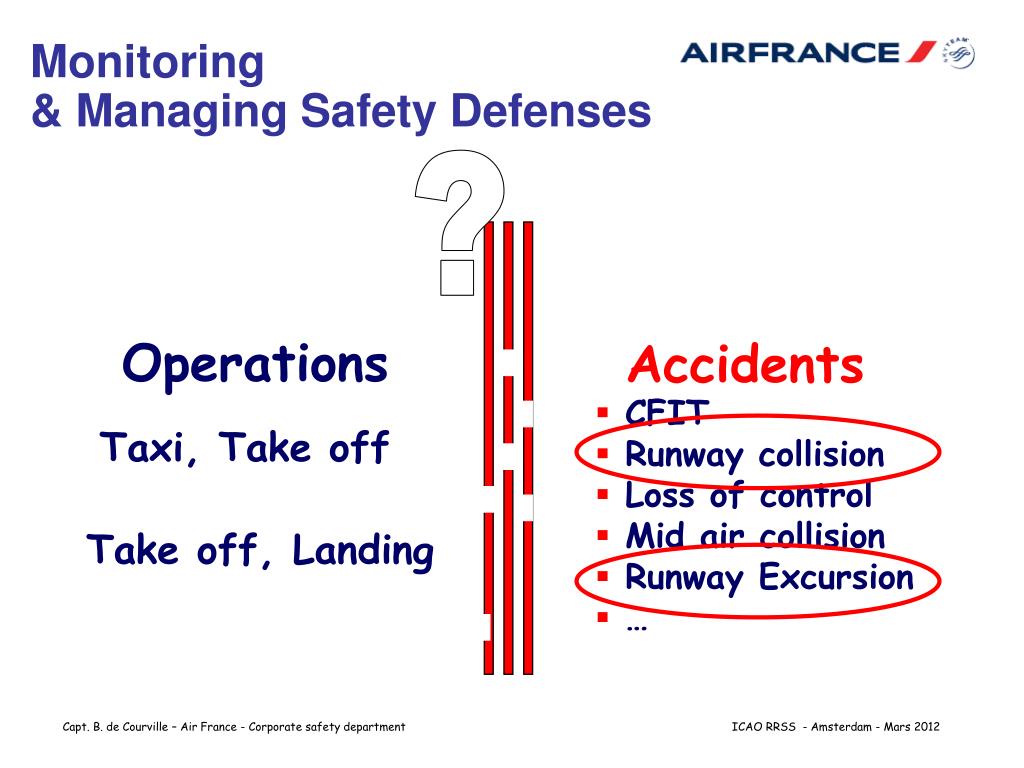

  2. Monitoring & Managing Safety Defenses ? Operations Accidents • CFIT • Runway collision • Loss of control • Mid air collision • Runway Excursion • … Taxi, Take off Take off, Landing

  3. Defenses What we manage What we manage LOC Reporting channels Control Recovery CFIT What we collect Undesired events Runway Collision Mid-Air collision Runway Excursion Other Damages (Flight) Other Damages (Ground) Monitoring & Managing Safety Defenses Altitude bust Runway Incursion, W&B error Aircraft system malfunction, Loss of separation, EGPWS, etc.

  4. Check Your Taxi Policy Preventing runway collision « Taxi speed should be limited to 30 kts »

  5. Documented taxi policy (extracts) The taxi phase is a “critical phase of flight” which requires a high level coordination and attention from all cockpit crew • Taxi briefing for departure AND for arrival • All cockpit crew members must listen to ATC messages • Departure briefing performed at the gate • No routine company communications or cabin commercial announcements by pilot while the aircraft is moving • Pilot taxiing must comment position and intention to other crew members at every significant intersections • Before entering any runway, always perform a positive identification of the correct taxiway and runway namesby using mandatory visual references to signs and markings • …

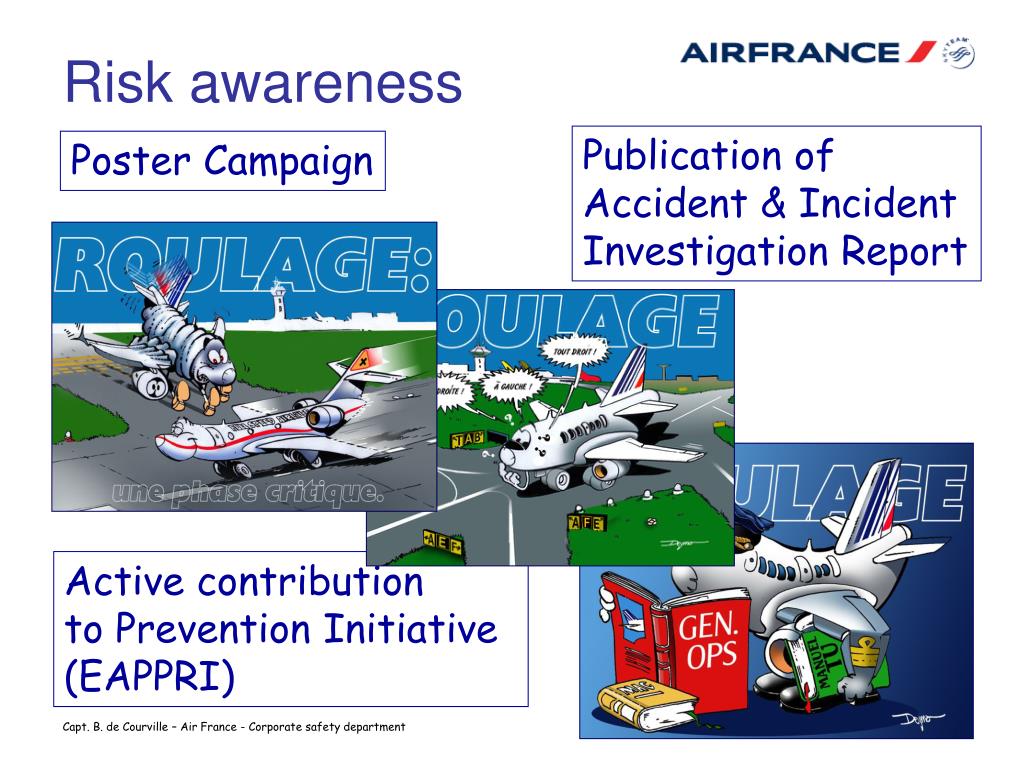

  6. Risk awareness Publication of Accident & Incident Investigation Report Poster Campaign Active contribution to Prevention Initiative (EAPPRI)

  7. “On runway 34L” 16R 34L “Approaching 34L” On board equipmentPosition AwarenessRAAS : Runway Awareness & Advisory System “On taxiway, on taxiway”

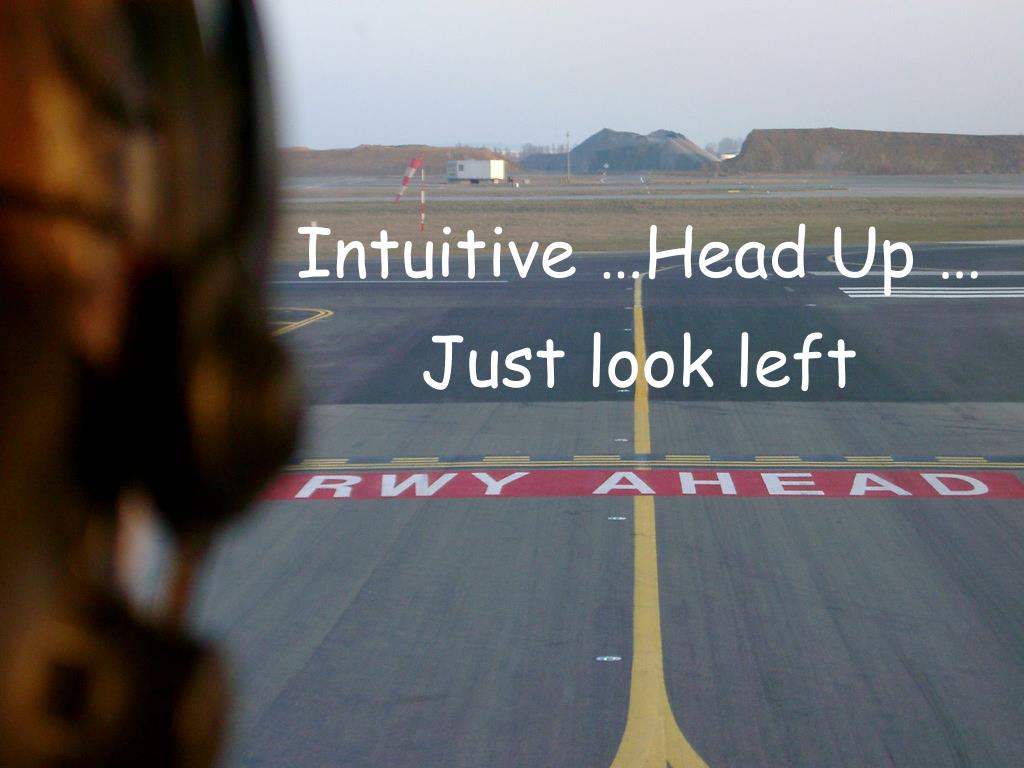

  8. Look Ahead … Intuitive …Head Up … Just look left

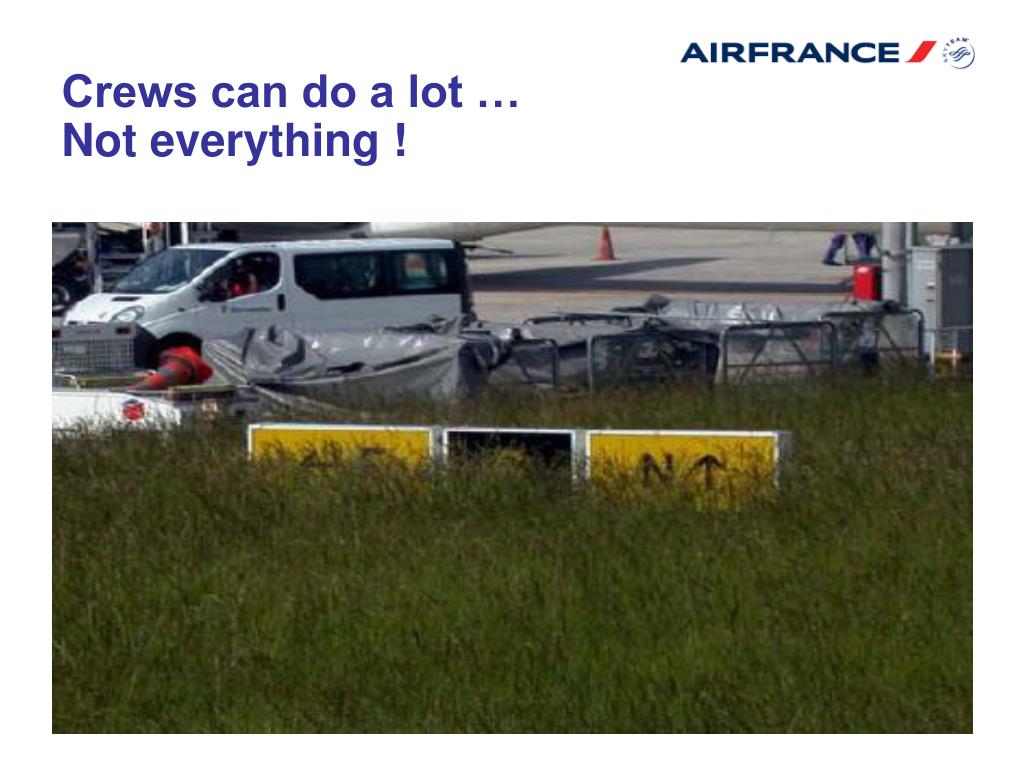

  9. Crews can do a lot …Not everything !

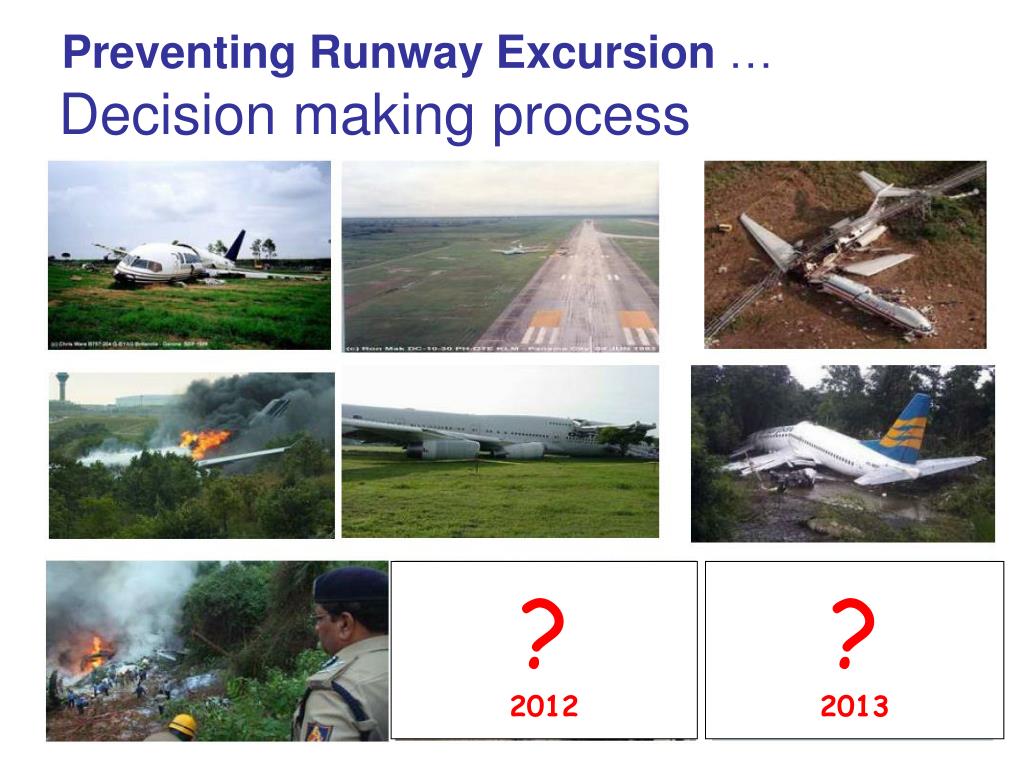

  10. ? 2012 ? 2013 Preventing Runway Excursion … Decision making process

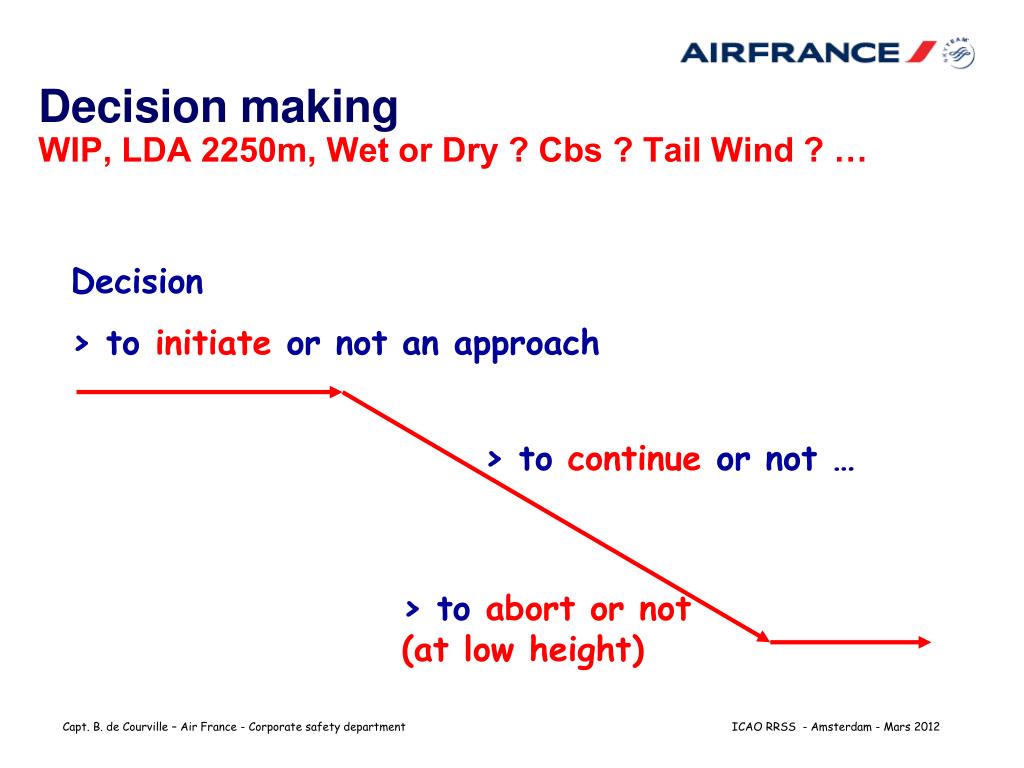

  11. Decision making WIP, LDA 2250m, Wet or Dry ? Cbs ? Tail Wind ? … Decision > to initiate or not an approach > to continue or not … > to abort or not (at low height)

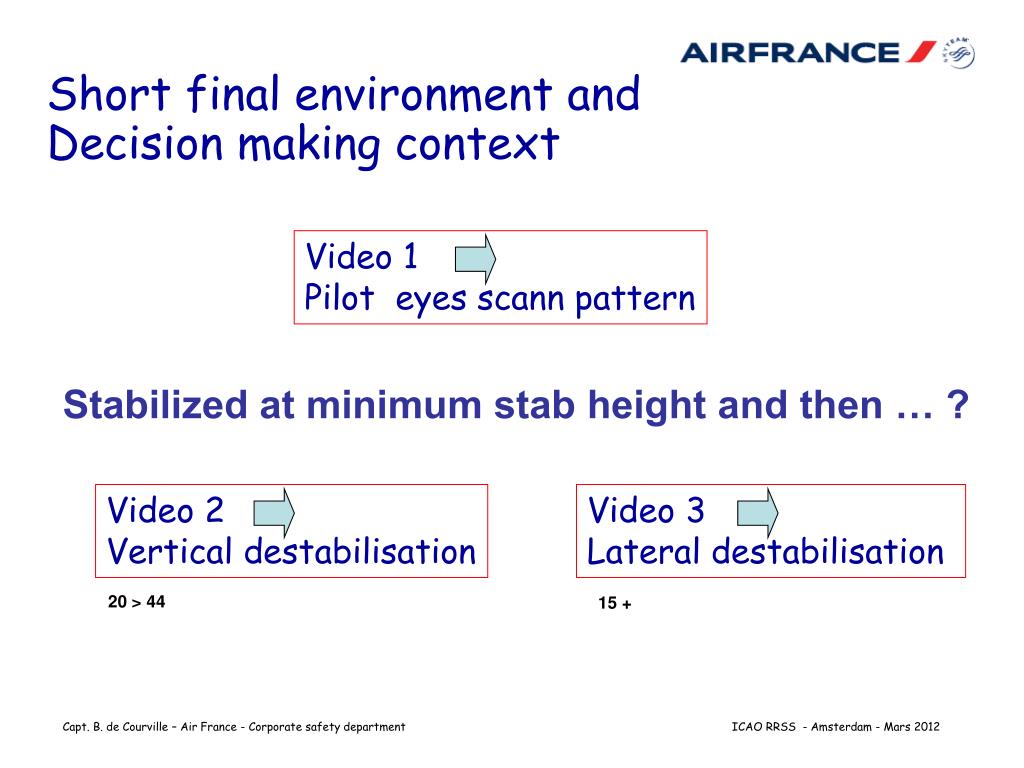

  12. Stabilized at minimum stab height and then … ? Short final environment and Decision making context Video 1 Pilot eyes scann pattern Video 2 Vertical destabilisation Video 3 Lateral destabilisation 20 > 44 15 +

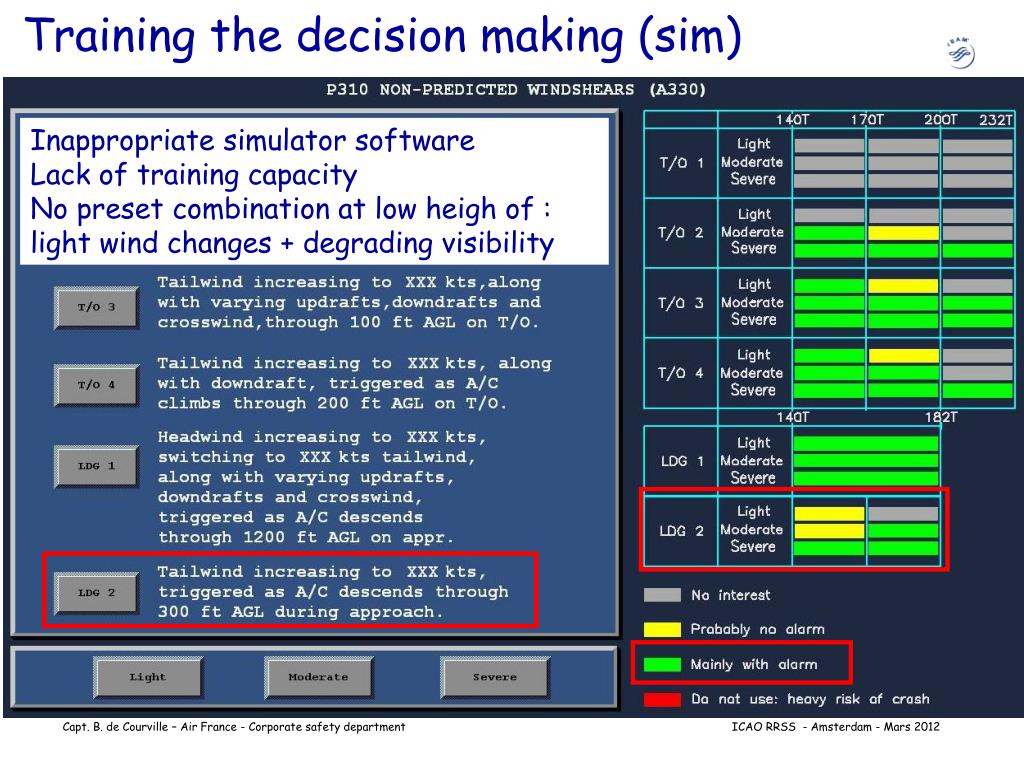

  13. Training the decision making (sim) Inappropriate simulator software Lack of training capacity No preset combination at low heigh of : light wind changes + degrading visibility

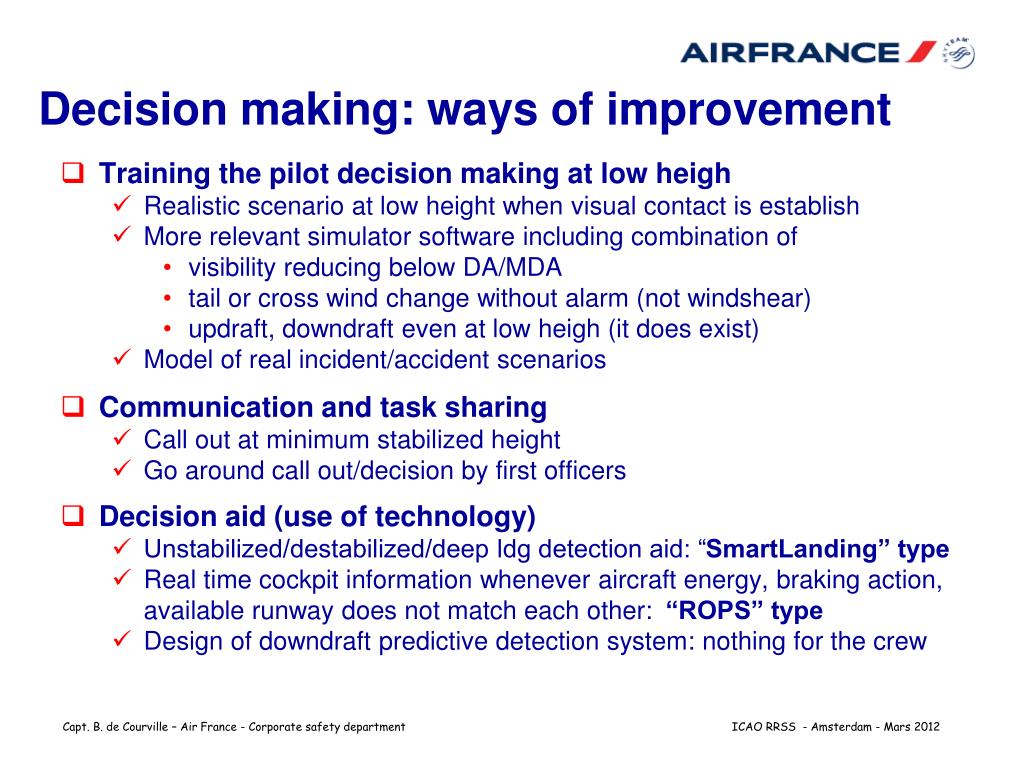

  14. Decision making: ways of improvement • Training the pilot decision making at low heigh • Realistic scenario at low height when visual contact is establish • More relevant simulator software including combination of • visibility reducing below DA/MDA • tail or cross wind change without alarm (not windshear) • updraft, downdraft even at low heigh (it does exist) • Model of real incident/accident scenarios • Communication and task sharing • Call out at minimum stabilized height • Go around call out/decision by first officers • Decision aid (use of technology) • Unstabilized/destabilized/deep ldg detection aid: “SmartLanding” type • Real time cockpit information whenever aircraft energy, braking action, available runway does not match each other: “ROPS” type • Design of downdraft predictive detection system: nothing for the crew

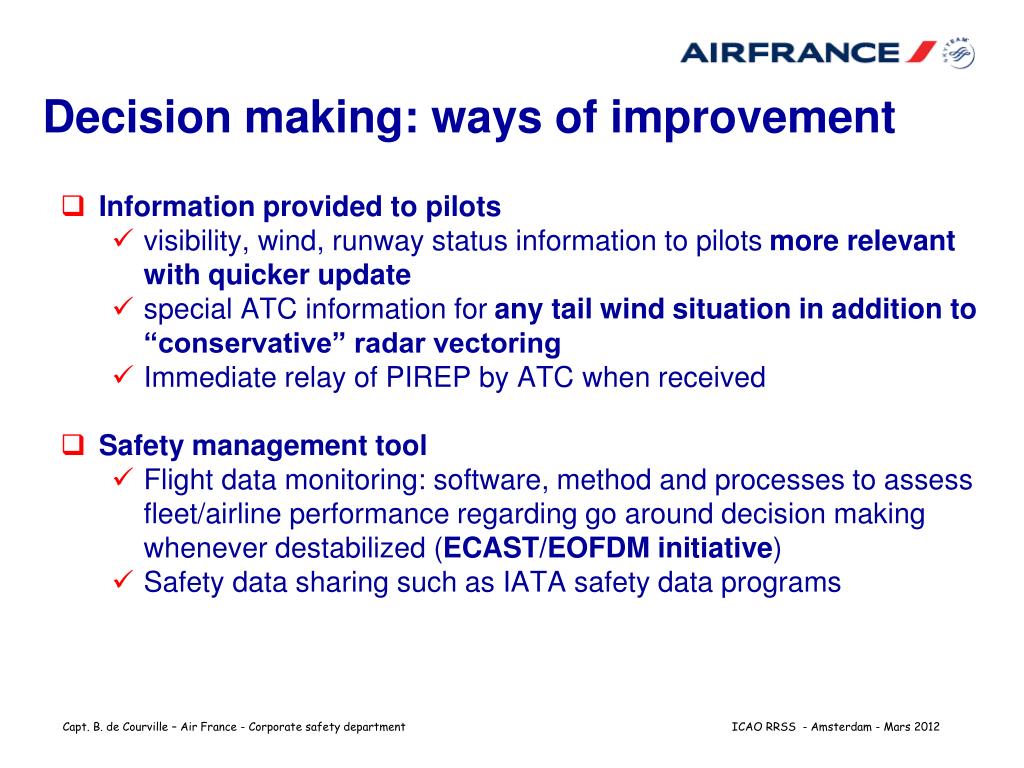

  15. Decision making: ways of improvement • Information provided to pilots • visibility, wind, runway status information to pilots more relevant with quicker update • special ATC information for any tail wind situation in addition to “conservative” radar vectoring • Immediate relay of PIREP by ATC when received • Safety management tool • Flight data monitoring: software, method and processes to assess fleet/airline performance regarding go around decision making whenever destabilized (ECAST/EOFDM initiative) • Safety data sharing such as IATA safety data programs

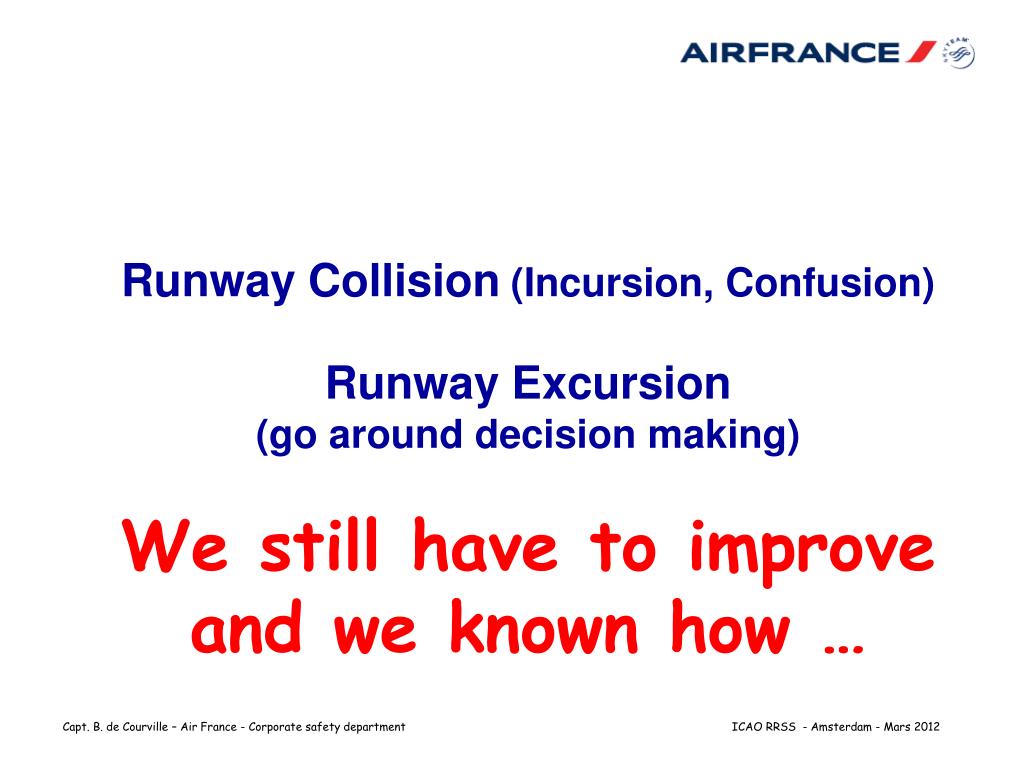

  16. Runway Collision (Incursion, Confusion) Runway Excursion (go around decision making) We still have to improve and we known how …
