1 / 18

Peer-to-Peer Based Multimedia Distribution Service

This paper presents a framework for a peer-to-peer (P2P) based multimedia distribution service, eliminating the need for dedicated servers and relying on peer cooperation for data sharing. The authors introduce a topology-aware overlay architecture, along with innovative replication strategies to optimize content delivery and enhance robustness. Simulation results emphasize effective methods for data replication across peer groups, accounting for factors such as inter-group and intra-group dynamics. This work contributes significantly to the design and efficiency of multimedia distribution in P2P networks.

zeki
Télécharger la présentation

Peer-to-Peer Based Multimedia Distribution Service

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Peer-to-Peer Based Multimedia Distribution Service Zhe Xiang, Qian Zhang, Wenwu Zhu, Zhensheng Zhang, and Ya-Qin Zhang IEEE TRANSACTIONS ON MULTIMEDIA, April, 2004

  2. Outline • Introduction • P2p based multimedia distribution service architecture • Design of the system • Topology-aware overlay • Replication strategies • Simulation results • Conclusion

  3. Characteristics of multimedia distribution service in p2p system • A peer shares data with other peers • A peer searches data from other peers • Dedicated server is not needed • Replica is allowed

  4. P2p based multimedia distribution service architecture

  5. How does a new node join

  6. Content Delivery • Node A of group G requests for content C • If C is in group G: transfer directly • If C is not in group G: transfer C to G first • Replication • G may make a replication for delay concern (inter-group replication strategy) • A may make a replication for robust concern (intra-group replication strategy)

  7. Inter-group replication strategy • Peer pj in group Gr requests content ci • Find nearest group Gp that contains ci • Calculate avg. distance d between neighbors • If d(Gp,Gr)<d: end • If (free space>size of ci): replicate ci in local storage, end • Else: remove stored contents according to availability (or maybe LRU, LFU,…etc.) • Replicate content ci into local storage

  8. Problem formulation • Seed replication matrix X={xij}: • xij=1 if Gj holds seed for content ci • xij=0 otherwise • Access matrix Y={yij} • yij=k: k≠j, d(Gj,Gk)=min{d(Gj,Gs), xis=1} • Inter-group replication: minimize subject to

  9. Theoretical analysis • Only consider total capacity: • Avg. distance between neighbors:

  10. Popularity factor • Assume popularity follows a Zipf distribution • Suppose M contents are ordered in a descending order of popularity ri: • Normally, skew factor(α) is chosen as 0.271 • The authors vary skew factor from 0.1 to 0.5

  11. Intra-group replication strategy • Peer pj requests content cr within its group • Calculate A(cr) • Calculate A’(ci) for any content ci in pj’s storage • Create list {c1,c2…ck} in a descending order of A’(ci) • If (FreeStorage+total size of contents in list)<sr: end • Find j in list such that • Delete contents c1,…cj • Replicate content cr

  12. Problem formulation • Replica replication matrix X{xij} • xij=1 if per pj holds a replica of content ci • Xij=0 otherwise • Availability A(ci) of content ci:

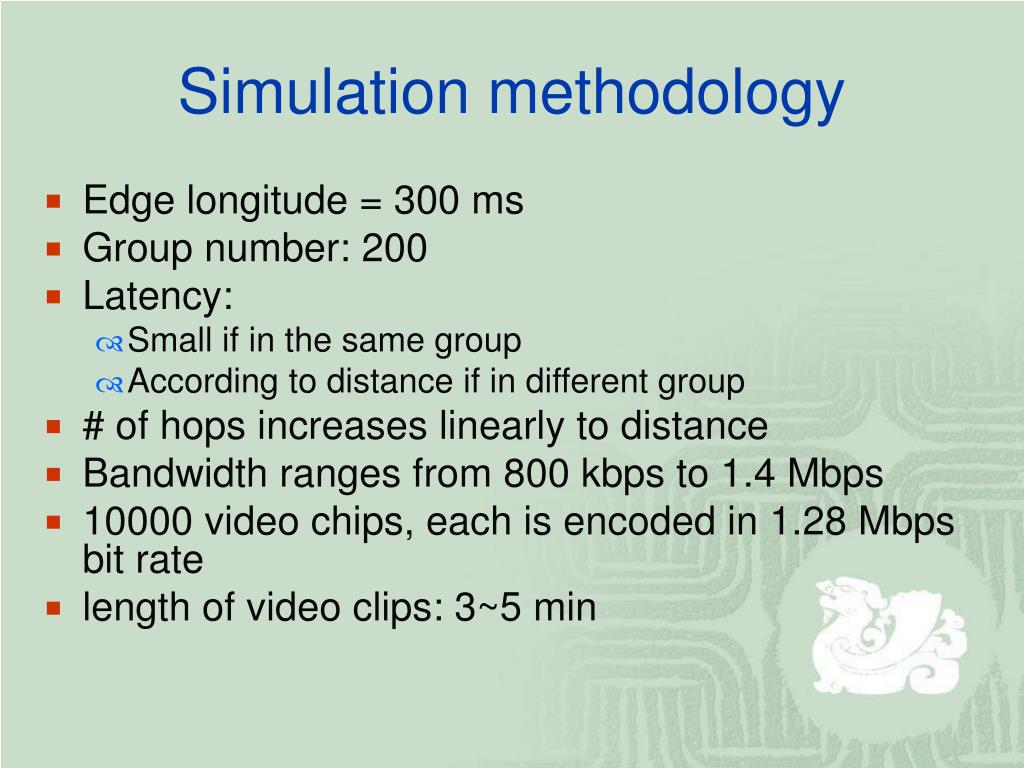

  13. Simulation methodology • Edge longitude = 300 ms • Group number: 200 • Latency: • Small if in the same group • According to distance if in different group • # of hops increases linearly to distance • Bandwidth ranges from 800 kbps to 1.4 Mbps • 10000 video chips, each is encoded in 1.28 Mbps bit rate • length of video clips: 3~5 min

  14. Simulation results

  15. Simulation results (cont’)

  16. Simulation results (cont’)

  17. Simulation results (cont’)

  18. Conclusion • Proposed a framework for multimedia distribution based on p2p network • Hosts are self-organized into groups • Proposed heuristic method to make replica in the system
