NG9-1-1 Core Functions

Understanding the System of Systems. NG9-1-1 Core Functions. NG9-1-1 Ecosystem. NG9-1-1 Core Services. ESInet. Next Generation 9-1-1. GIS. Originating Networks. GIS Data Management. GIS. CIDB. LIS. GIS. ECRF. LVF. VoIP. Discrepancies. SIF. ESInet. BCF. Access Control.

Télécharger la présentation

NG9-1-1 Core Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

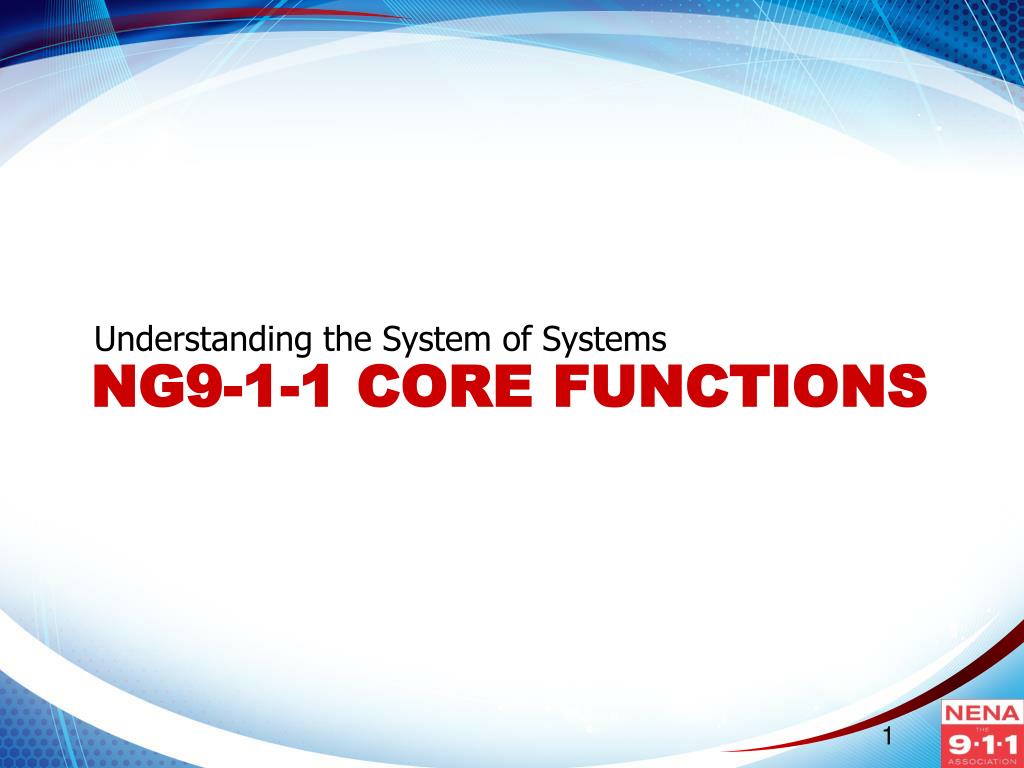

  1. Understanding the System of Systems NG9-1-1 Core Functions

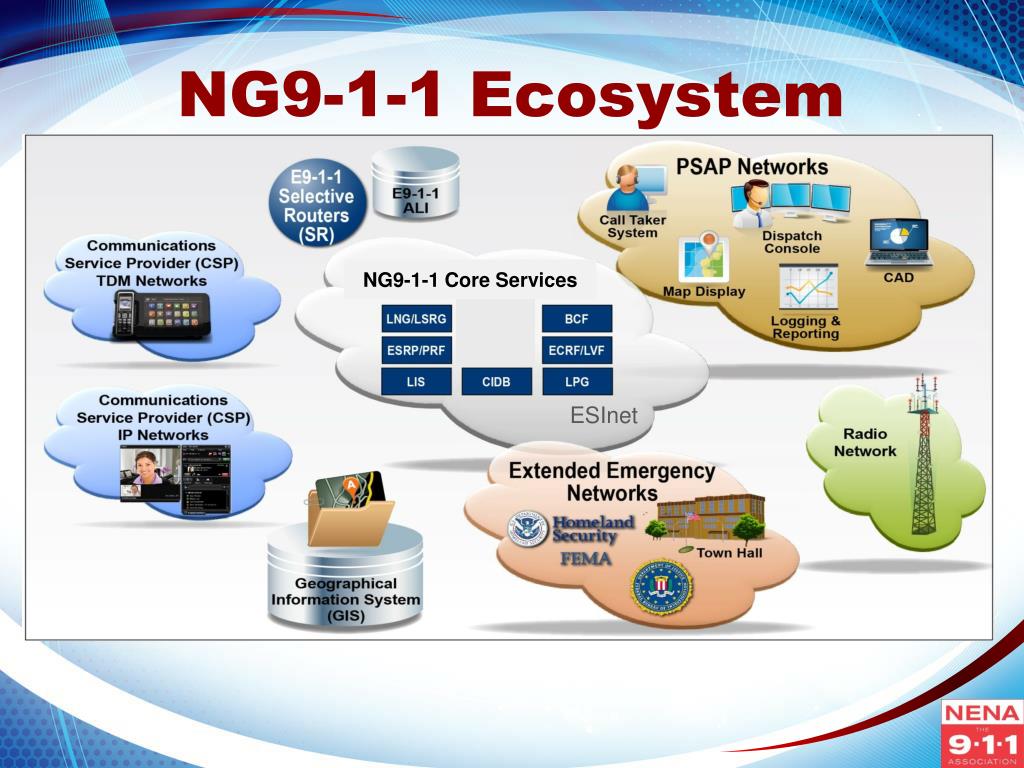

  2. NG9-1-1 Ecosystem NG9-1-1 Core Services ESInet

  3. Next Generation 9-1-1 GIS Originating Networks GIS Data Management GIS CIDB LIS GIS ECRF LVF VoIP Discrepancies SIF ESInet BCF Access Control Enterprise BCF Admin PRF Cellular BCF Legacy Network Gateway NG9-1-1 PSAP ESRP Legacy SR Gateway Legacy PSAP Gateway PSTN Legacy PSAPs System Logging Legacy Selective Router Legacy E9-1-1 Networks This diagram is simplified for illustrative purposes.

  4. How NG9-1-1 Operates Build Me First! County A and 17 PSAPs Wireline COs Core NG9-1-1 System ECRF, ESRP, LVF, GIS, Policy Mgmt, Process Mgmt Wireless MSCs County B and 5 PSAPs VoIP Future Multimedia County C and X PSAPs Initial Deployment: Transitional LNGs Later: Direct IP interfaces Could be any combination of state, regional or county PSAPs

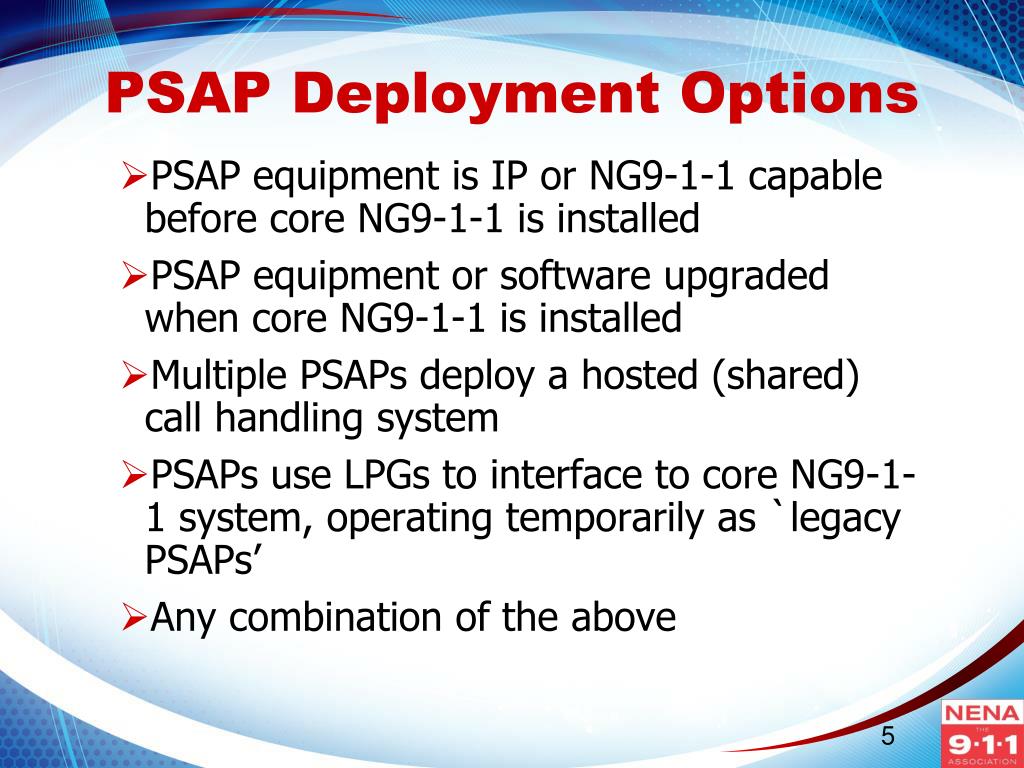

  5. PSAP Deployment Options • PSAP equipment is IP or NG9-1-1 capable before core NG9-1-1 is installed • PSAP equipment or software upgraded when core NG9-1-1 is installed • Multiple PSAPs deploy a hosted (shared) call handling system • PSAPs use LPGs to interface to core NG9-1-1 system, operating temporarily as `legacy PSAPs’ • Any combination of the above

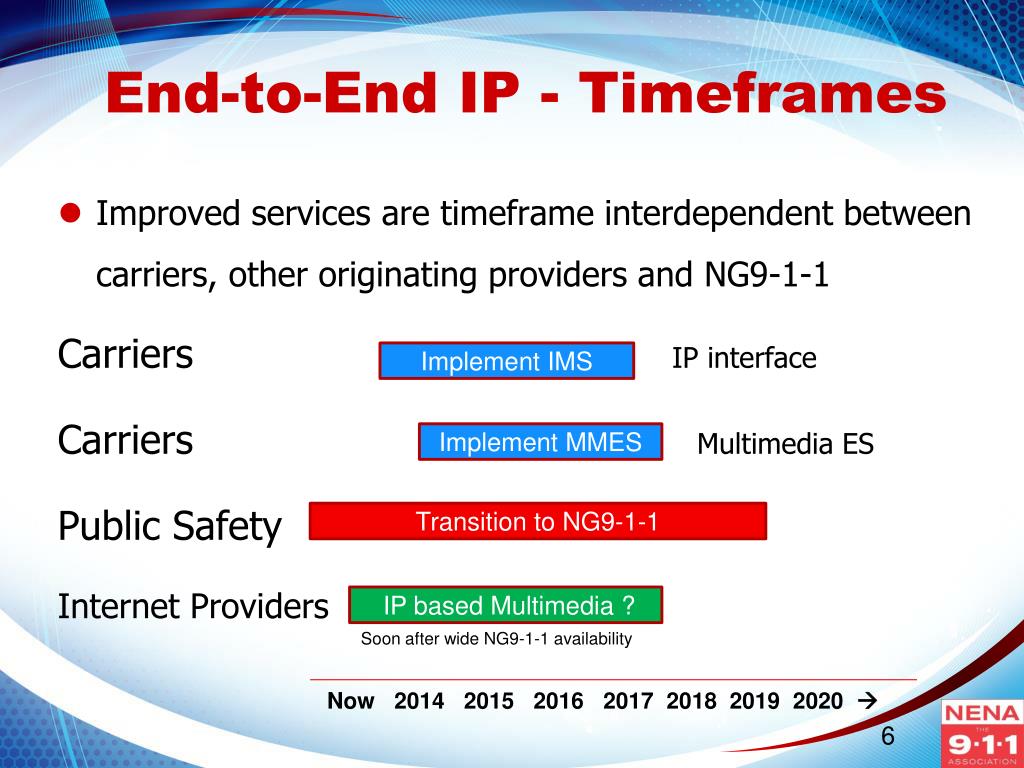

  6. End-to-End IP - Timeframes • Improved services are timeframe interdependent between carriers, other originating providers and NG9-1-1 Carriers IP interface Carriers Multimedia ES Public Safety Internet Providers Implement IMS Implement MMES Transition to NG9-1-1 IP based Multimedia ? Soon after wide NG9-1-1 availability Now 2014 2015 2016 2017 2018 2019 2020 
