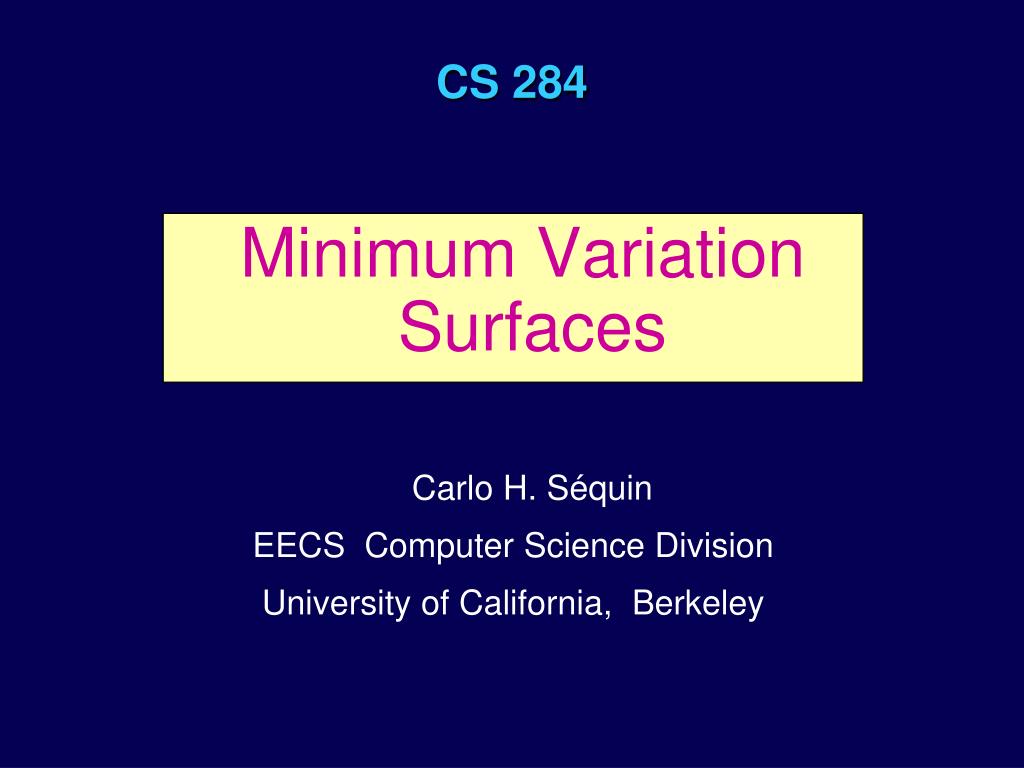

  1. CS 284 Minimum Variation SurfacesCarlo H. Séquin EECS Computer Science Division University of California, Berkeley

  2. Smooth Surfaces and CAD Smooth surfaces play an important role in engineering. • Some are defined almost entirely by their functions • Ships hulls • Airplane wings • Others have a mix of function and aesthetic concerns • Car bodies • Flower vases • In some cases, aesthetic concerns dominate • Abstract mathematical sculpture • Geometrical models TODAY’S FOCUS

  3. “Beauty” ? Fairness” ? What is a “ beautiful” or “fair” geometrical surface or line ? • Smoothness  geometric continuity, at least G2, better yet G3. • No unnecessary undulations. • Symmetry in constraints are maintained. • Inspiration, … Examples ?

  4. Inspiration from Nature Soap films in wire frames: • Minimal area • Balanced curvature: k1 = –k2; mean curvature = 0 Natural beauty functional: • MinimumLength / Area:rubber bands, soap films polygons, minimal surfaces ds = min dA = min

  5. “Volution” Surfaces (Séquin, 2003) “Volution 0” --- “Volution 5”Minimal surfaces of different genus.

  6. Brakke’s Surface Evolver • For creating constrained optimized shapes Start with a crude polyhedral object Subdivide triangles Optimize vertices Repeat theprocess

  7. Limitations of “Minimal Surfaces” • “Minimal Surface” - functional works well forlarge-area, open-edge surfaces. • But what should we do for closed manifolds ? • Spheres, tori, higher genus manifolds … cannot be modeled by minimal surfaces.  We need another functional !

  8. For Closed Manifold Surfaces Use thin-plate (Bernoulli) “Elastica” • Minimize bending energy: •  k2 dsk12 + k22 dA Splines; Minimum Energy Surfaces. Closely related to minimal area functional: • (k1+ k2)2 = k12 + k22+ 2k1k2 • 4H2= Bending Energy + 2G • Integral over Gauss curvature is constant:2k1k2 dA = 4p * (1-genus) • Minimizing “Area” minimizes “Bending Energy”

  9. Minimum Energy Surfaces (MES) • Lawson surfaces of absolute minimal energy: 12littlelegs Genus 3 Genus 5 Genus 11 Shapes get worse for MES as we go to higher genus …

  10. Other Optimization Functionals • Penalize change in curvature ! • Minimize Curvature Variation:(no natural model ?)Minimum Variation Curves (MVC): (dk /ds)2 ds Circles. Minimum Variation Surfaces (MVS): (dk1/de1)2 + (dk2/de2)2 dA  Cyclides: Spheres, Cones, Various Tori …

  11. Minimum-Variation Surfaces (MVS) • The most pleasing smooth surfaces… • Constrained only by topology, symmetry, size. D4h Oh Genus 3 Genus 5

  12. Comparison: MES   MVS(genus 4 surfaces)  

  13. Comparison MES  MVS Things get worse for MES as we go to higher genus: pinch off 3 holes Genus-5 MES MVSkeep nice toroidal arms

  14. MVS: 1st Implementation • Thesis work by Henry Moreton in 1993: • Used quintic Hermite splines for curves • Used bi-quintic Bézier patches for surfaces • Global optimization of all DoF’s (many!) • Triply nested optimization loop • Penalty functions forcing G1 and G2 continuity •  SLOW ! (hours, days!) • But results look very good …
