11.1 BASIC PATTERNS OF HUMAN INHERITANCE

11.1 BASIC PATTERNS OF HUMAN INHERITANCE. WHAT YOU WILL LEARN -How to determine if an inherited trait is dom/rec -Examples of DOMINANT/RECESSIVE disorders -Construct / Interpret PEDIGREES. READING Q ’ s. 1-IDENTIFY

zev
Télécharger la présentation

11.1 BASIC PATTERNS OF HUMAN INHERITANCE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 11.1 BASIC PATTERNS OF HUMAN INHERITANCE WHAT YOU WILL LEARN -How to determine if an inherited trait is dom/rec -Examples of DOMINANT/RECESSIVE disorders -Construct / Interpret PEDIGREES

  2. READING Q’s 1-IDENTIFY -Check the term that describes the genotype of a person who expresses a recessive trait -HOMOZYGOUS: organism with 2 of the same alleles for a particlular trait -aa

  3. READING Q’s 2-CATEGORIZE: The following genetic disorders as RECESSIVE or DOMINANT a-albinism recessive dominant b-Huntington's recessive dominant c-cystic fibrosis recessive dominant

  4. READING Q’s 3-EXPLAIN -For what purpose is a genetic pedigree used? -study genetic relationships -trace inheritance of a trait generation to generation

  5. READING Q’s 4-DRAW The symbols that are used to represent a male AND female in a pedigree MALE- FEMALE-

  6. READING Q’s 5-EVALUATE -Circle the carriers in the second generation

  7. READING Q’s 6-CALCULATE -What percentage of the children in this family inherited Tay-Sachs disease? -1/4=25%

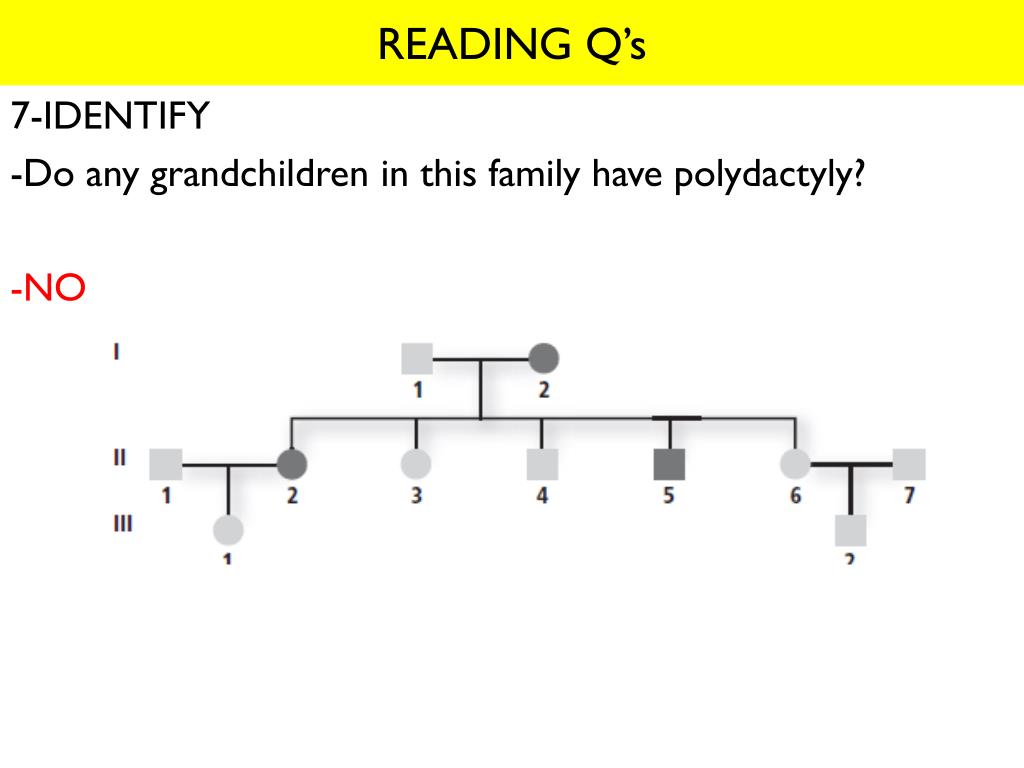

  8. READING Q’s 7-IDENTIFY -Do any grandchildren in this family have polydactyly? -NO

  9. READING Q’s 8-EXPLAIN -Why are recessive traits difficult to study? -Not all people who carry the recessive allele have the trait

  10. GROUP WORK: APPLICATION NOTES -As a group complete the areas below using your knowledge from the reading/discussion. MAIN IDEA REVIEW VOCAB RECESSIVE / DOMINANT GENETIC DISORDERS VOCAB -carrier -pedigree

  11. MAIN IDEA -PEDIGREESinheritance of traits over several generations

  12. REVIEW VOCAB DEFINE: gene -segment of DNA on chromosome DEFINE: homozygous -2 identical alleles [TT / tt] DEFINE: heterozygous -2 different alleles [Tt]

  13. RECESSIVE/DOMINANT GENETIC DISORDERS COMPARE/CONTRAST: recessive and dominant genetic disorders RECESSIVE -expressed when indv HOMO recessive [tt] DOMINANT -expressed when indv HOMO dominant [TT] or HETERO [Tt]

  14. RECESSIVE/DOMINANT GENETIC DISORDERS EXPLAIN why recessive disorders are more common than dominant disorders. -DOMINANT: only one allele must be inherited to be affected -if DOM trait interferes w/ survival- no pass on -RECESSIVE: carriers do NOT display the disorder -many carriers are unaware they carry an affected gene

  15. RECESSIVE/DOMINANT GENETIC DISORDERS IDENTIFY: the disease for each dominant/recessive disorders -caused by altered genes; results in lack of skin pigmentation -ALBINISM -RECESSIVE -characterized by body’s inability to tolerate galactose -GALATOSEMIA -RECESSIVE -gene found on chromosome 15;characterized by lack of enzyme that breaks down fatty acids -TAY SACHS -RECESSIVE

  16. RECESSIVE/DOMINANT GENETIC DISORDERS IDENTIFY: the disease for each dominant/recessive disorders -affects the nervous system; no treatment; breaks down part of brain -HUNINGTON’S -DOMINANT -affects mucus-producing glands, digestive enzymes, sweat glands -CYCTIC FIBROSIS -RECESSIVE -affects height and body size -ACHONDROPLASIA -DOMINANT

  17. F f RECESSIVE/DOMINANT GENETIC DISORDERS F f FF Ff PREDICT: what are the chances of 2 carriers of cystic fibrosis having a child with cystic fibrosis? ¼= 25% Ff ff

  18. RECESSIVE/DOMINANT GENETIC DISORDERS Positive Exposure Positive exposure video clip Rick Guidotti - PART 2 Positive Exposure Inside Edition Part I - YouTube

  19. PEDIGREE BASICS [the FAMILY TREE of genetics] WHAT is it: -diagram explaining genetic history WHO uses it: -scientist -genetic counselors WHY use it: -probability of child having disorder/condition -determine disorder/condition as autosomal/sex linked

  20. MALE -sqaure - FEMALE -circle - AFFECTED MALE -shaded square - AFFECTED FEMALE -shaded circle - CARRIER -half shaded symbol - / PARENTS/OFFSPRING -line down from parent, circles/squares on second row PARENTS -circle joined to square - GENERATIONS -I, II , III, IV, V PEDIGREES SUMMARIZE: pedigree symbols

  21. STEPS for INTERPRETING PEDIGREES 1- DETERMINE if the pedigree chart is showing: AUTOSOMAL or X-LINKED disorder -autosomal: -If it is a 50/50 ratio between men and women -x-linked: -If most of the males in the pedigree are affected 2- DETERMINE if disorder is DOMINANT or RECESSIVE -dominant: -one of the parents must have the disorder. -recessive -neither parent has to have the disorder because they can be heterozygous.

  22. Connecting Pedigree Symbols • Married Couple • Siblings

  23. EX- PEDIGREE CHART

  24. PRACTICE INTERPRETING • Determine if the pedigree chart shows an autosomal or X-linked disease. -If most of the males in the pedigree are affected the disorder is X-linked -If it is a 50/50 ratio between men and women the disorder is autosomal.

  25. PRACTICE: Interpreting • Is it Autosomal or X-linked?

  26. Answer • Autosomal

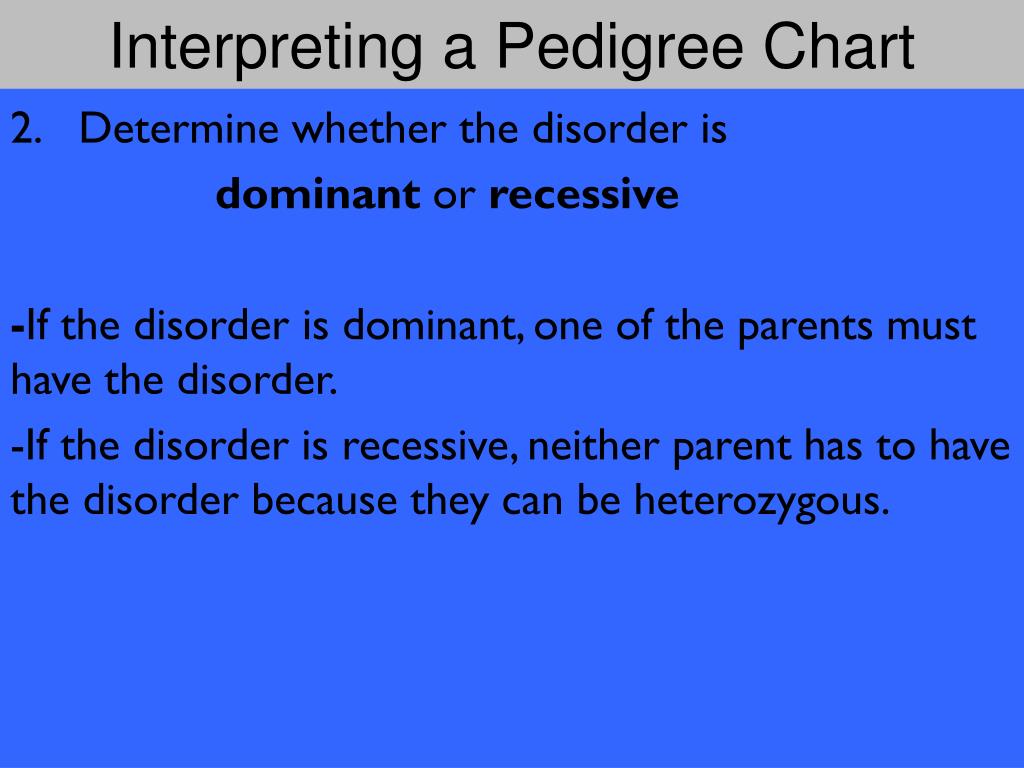

  27. Interpreting a Pedigree Chart • Determine whether the disorder is dominant or recessive -If the disorder is dominant, one of the parents must have the disorder. -If the disorder is recessive, neither parent has to have the disorder because they can be heterozygous.

  28. PRACTICE: Interpreting • Dominant or Recessive?

  29. Answer • Dominant

  30. PRACTICE: Interpreting • Dominant or Recessive?

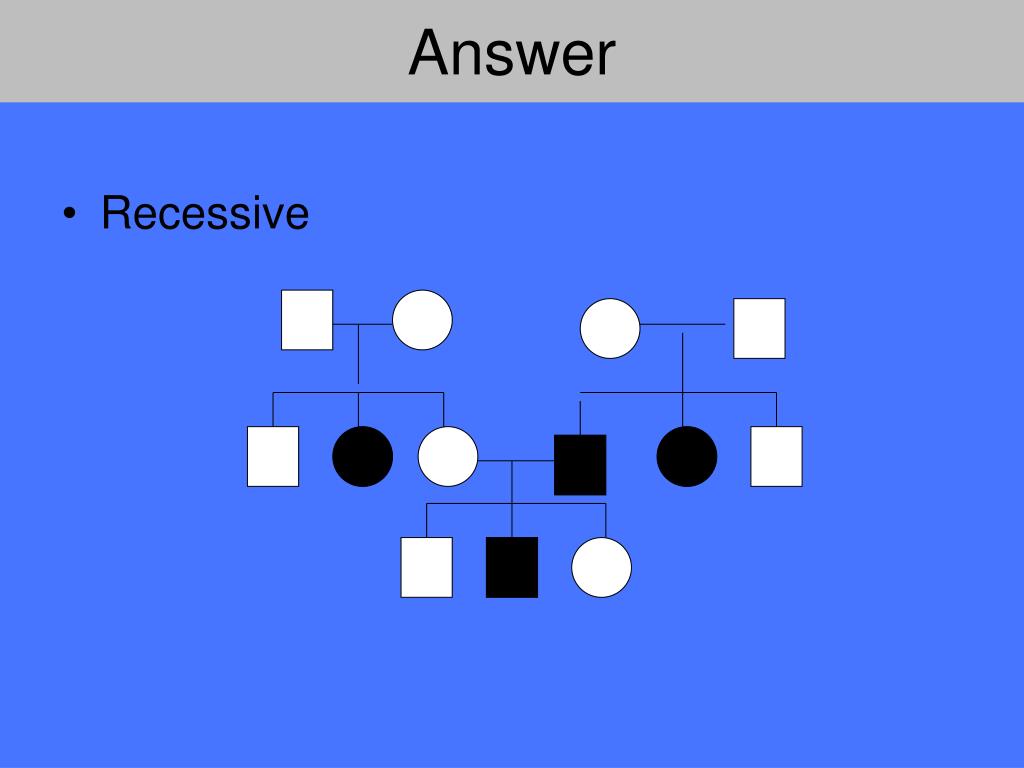

  31. Answer • Recessive

  32. ANALYZING PEDIGREES EVALUATE: the inheritance of achondroplasia shown in the pedigree -parent w/ disorder -father -#children with disorder -1 / 1st born son -genotype of younger son -homozygous recessive / aa

  33. ANALYZING PEDIGREES X ANALYZE and RESPOND: -RECALL if the trait is rec or dom based on the following information: -individuals I-1 and I-2 are unaffected but have affected child RECESSIVE DOMINANT -SPECIFIY if parents II-1 and II-2, who have an affected child, are carriers of that trait CARRIER NOT A CARRIER -TELL whether there is a dominant gene in the genotype of II-4 NONE A LEAST ONE -Individual II-1is in generation 2 TRUE FALSE X X X

  34. X ANALYZING PEDIGREES MANY X THINK BACK and RESPOND: -A scientist uses a pedigree to study family history TRUE FALSE -A pedigree traces the inheritance of a particular trait through only two generations TRUE FALSE -In a pedigree, one who does not express the trait is represented by a darkened circle/square TRUE FALSE -In a pedigree, a horizontal like between 2 symbols shows that these individuals are the parents of the offspring TRUE FALSE X X

  35. ANALYZING PEDIGREES DIAGRAM: Suppose both parents can roll their tongues but their son cannot. [TONGUE ROLLING = DOMINANT / T] DRAW a pedigree showing this trait LABEL each symbol with the appropriate genotype What was the probability that they would have a non-tongue roller offspring? (hint: punnet square) -both parents carry recessive gene -parent genotype Tt -son genotype tt -probability of child tt= 25%

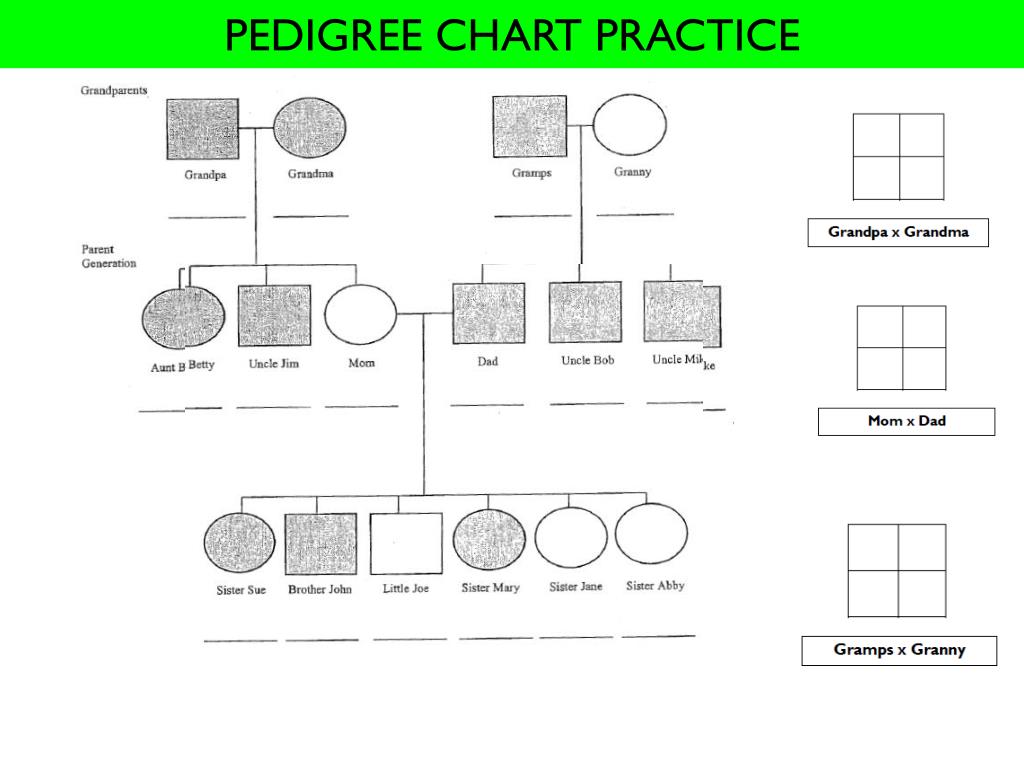

  36. PEDIGREE CHART PRACTICE

  37. PEDIGREE PRACTICE A

  38. PEDIGREE PRACTICE B

  39. PEDIGREE PRACTICE C

  40. PEDIGREE PRACTICE D

  41. INVESTIGATING HUMAN PEDIGREES -USE the information provided in the transcript to construct a pedigree showing hairy earlobes* in a family *HE -DETERMINE the oldest couple in the family -DRAW their pedigree symbols—include names -CONTINUE with other members in the family -DETERMINE genotypes as you gather enough information
