視訊通訊project2 曾仁甫

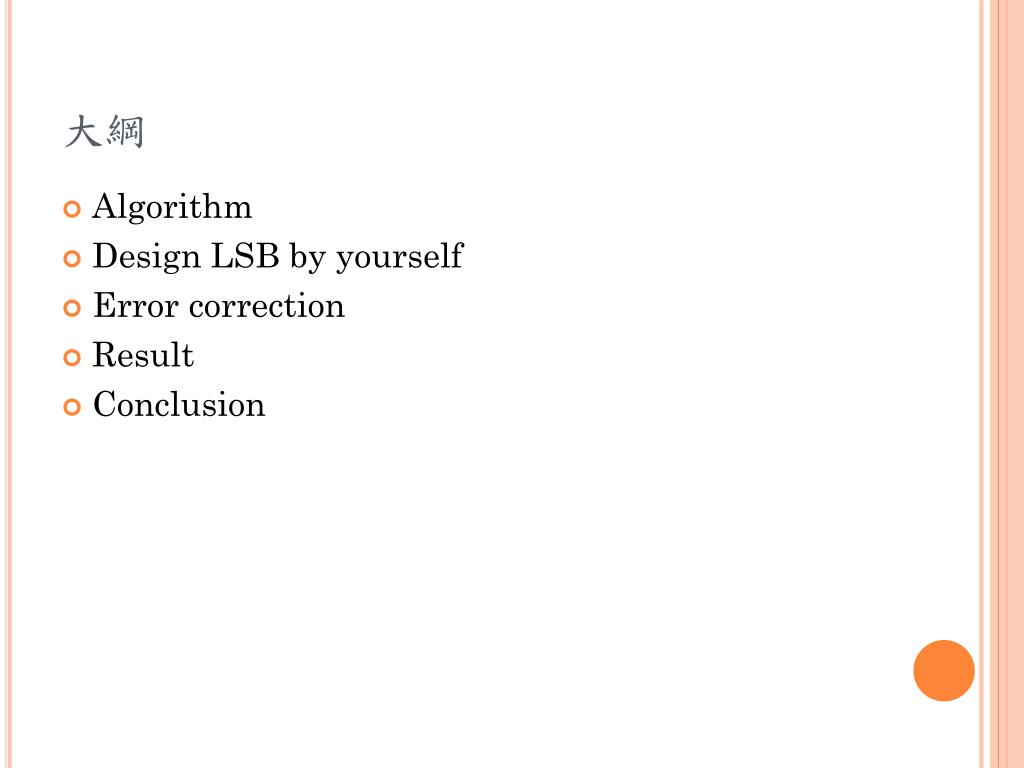

大綱 • Algorithm • Design LSB by yourself • Error correction • Result • Conclusion
Algorithm Error correction IGS Transmission error Image 補滿LSB Output image
Design LSB by yourself IGS:1 0 1 0 1 0 1 0 0 xor 1xor 0 1 xor 1 xor 0 1 xor 0 xor 0 1xor 0 xor 1

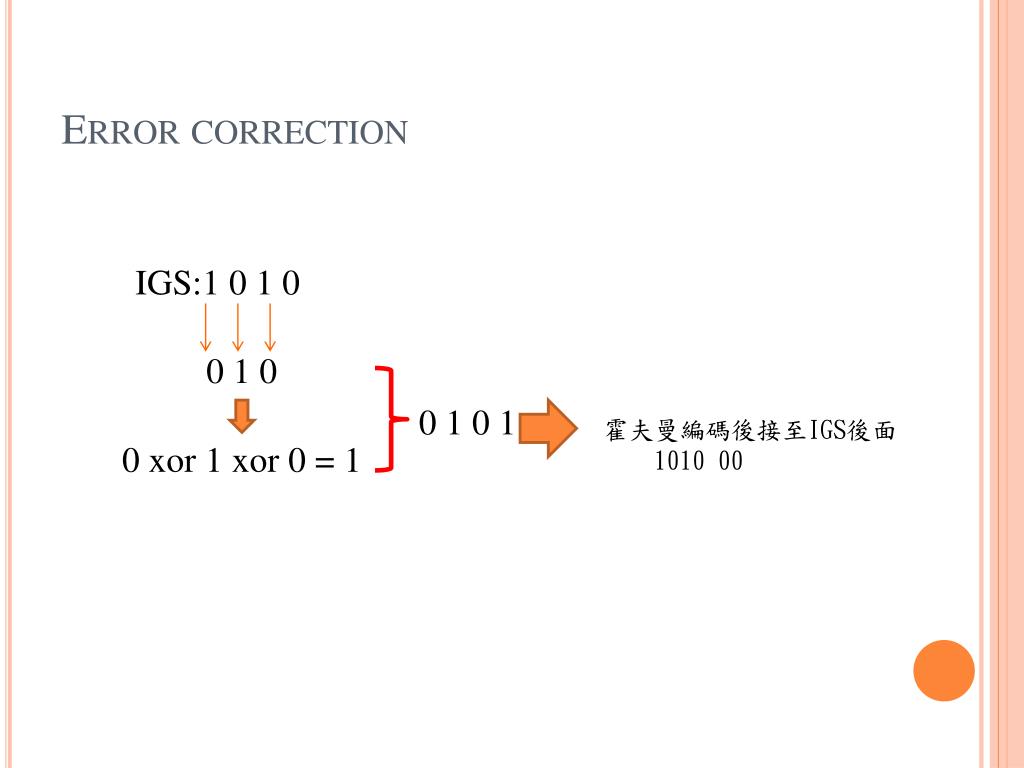

Error correction IGS:1 0 1 0 01 0 01 0 1 霍夫曼編碼後接至IGS後面 1010 00 0xor 1 xor 0 = 1

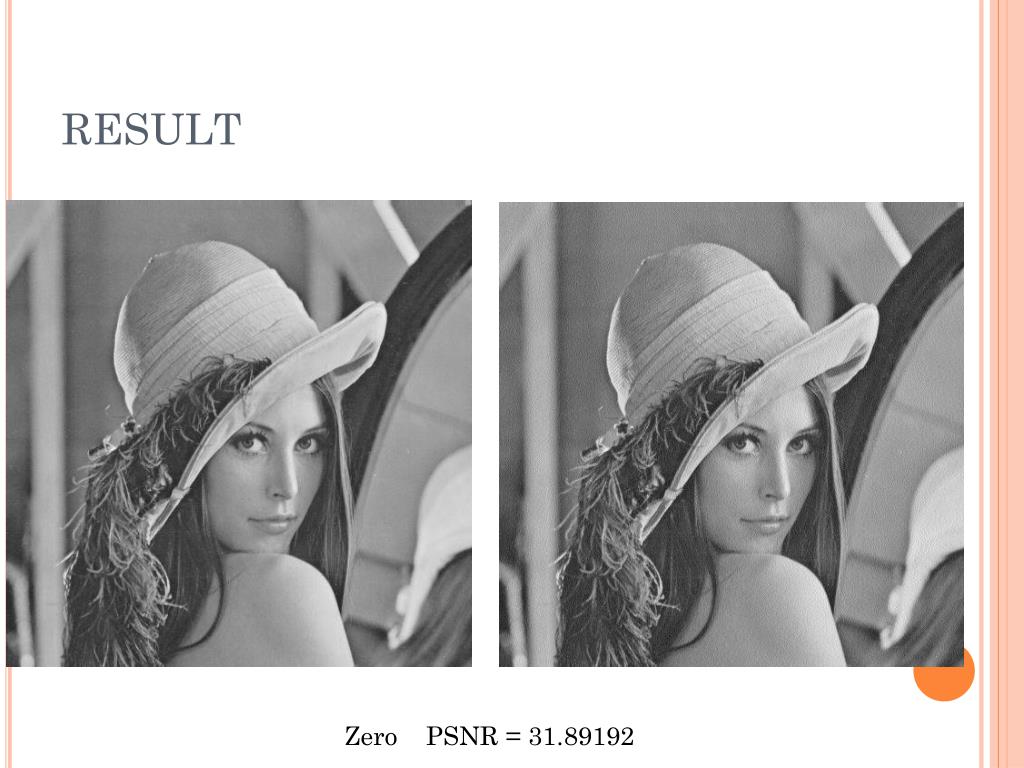

RESULT Zero PSNR = 31.89192
RESULT Random PSNR = 30.55128
RESULT Myself PSNR = 26.3056

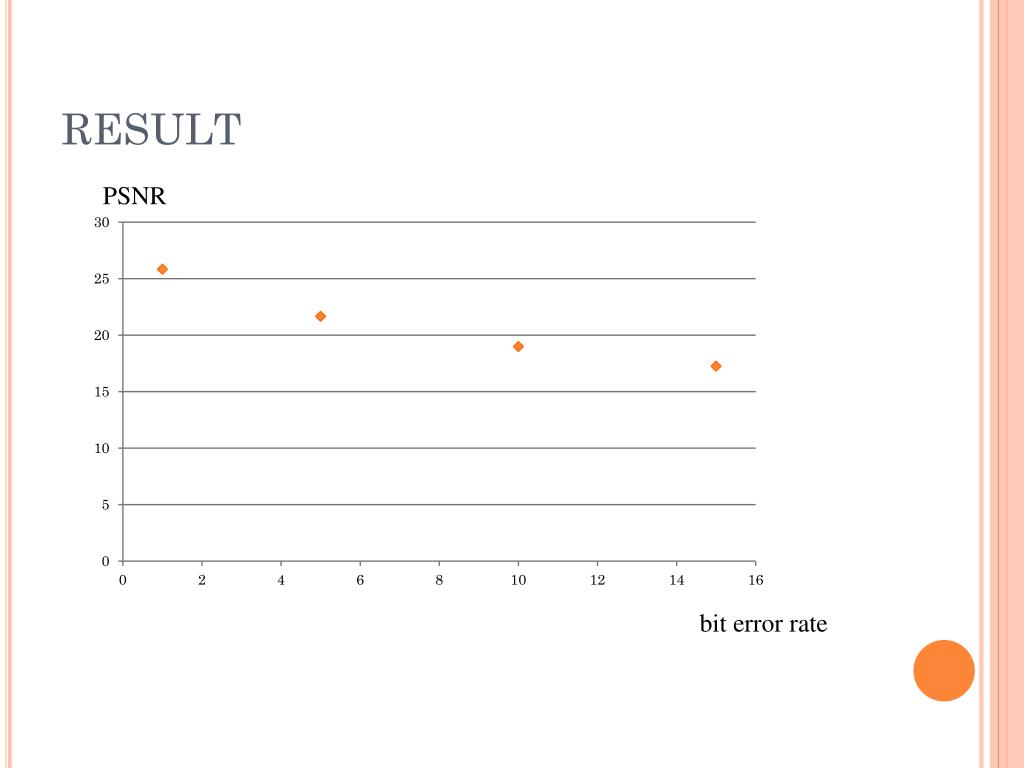

RESULT PSNR bit error rate
RESULT Erorr bit rate 1% PSNR = 25.83181
RESULT Erorr bit rate 5% PSNR = 21.66792
RESULT Erorr bit rate 10% PSNR = 18.98761

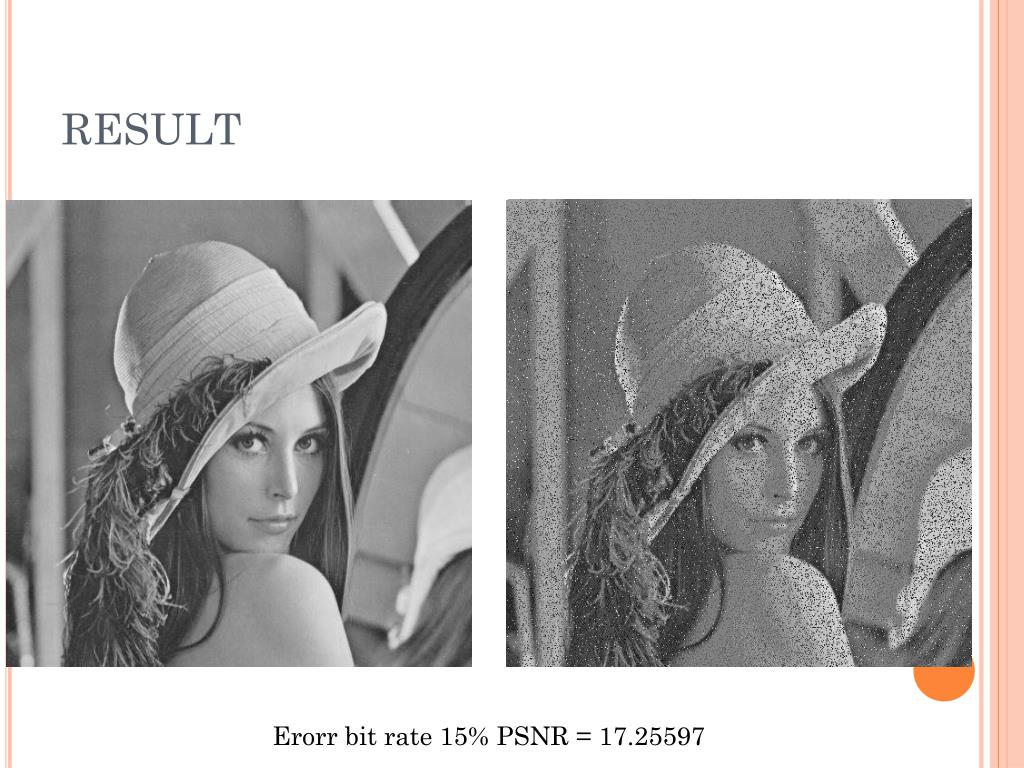

RESULT Erorr bit rate 15% PSNR = 17.25597

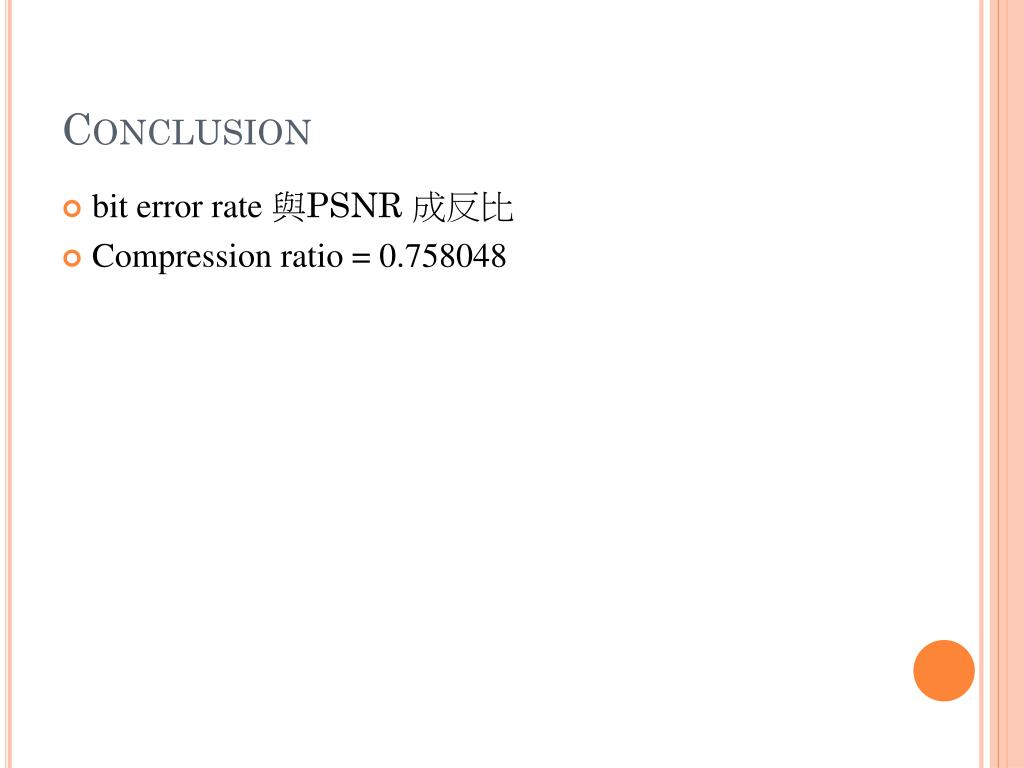

Conclusion • bit error rate 與PSNR 成反比 • Compression ratio = 0.758048
