  1. Central Dogma & PCR B91901070 Wang Yu-Hsin

  2. Central Dogma • What is Central Dogma? DNA RNA Protein transcription translation All cells express their genetic information in this way. • Cells must control the amount of protein according to their demand. • How do they regulate the efficiency ?

  3. Transcription (from DNA to RNA) • They use the same language, nucleotide, to store information. • Differences between DNA and RNA • Deoxyribonucleotide v.s ribonucleotide • Base pairs: A = T & C≡G in DNA; T is replaced by U in RNA. • Structure in a cell: DNA: Double-stranded helix RNA: Single-stranded with folded shape.

  4. Transcription (from DNA to RNA. Cont’d) 1. Open and unwind a small portion of the DNA double-stranded helix. Choose one strand as the template. 2. Produce RNA, with elongating one nucleotide at a time from 5’end to 3’ end and have the sequence exactly complementary to the template.

  5. Transcription (from DNA to RNA. Cont’d) • There are some differences between RNA transcription and DNA replication. • Size of nucleotide sequence. • RNA strand does not remain H bond to the DNA template and quickly releases from the DNA as it synthesize for efficient RNA production. • RNA polymerase can catalyze the formation of phosphodiester bond( RNA’s sugar-phosphate backbone). But it dose not check the correctness of previous base-pair, which means that RNA transcript can tolerate high error rate. • How do they find the site to start or to finish?

  6. Transcription (RNA Polymerase) • RNA polymerase has to recognize the start of the gene. The initiation of transcription is very important, for it regulates which protein to be produced. • Sigma factor in RNA polymerase takes the responsibility of recognizing promoter DNA. • After RNA polymerase latches on the DNA and synthesizes about ten nucleotides, sigma factor releases from it. • After transcription stops, RNA polymerase leaves and reassociate with a free sigma factor. • Then polymerase finds a new promoter…

  7. Transcription (in a procaryotic cell) - RNA polymerase first weakly sticks to DNA when it meet the DNA. - Then, polymerase slides along the DNA… - Polymerase finds promoter and latch on the DNA tightly. - Open DNA double-stranded helix and choose one strand as the template. Transcribe RNA by base paring. - When the polymerase encounters the terminal, transcription stop. - Release both the DNA template and newly made RNA. • How do eucaryotes work?

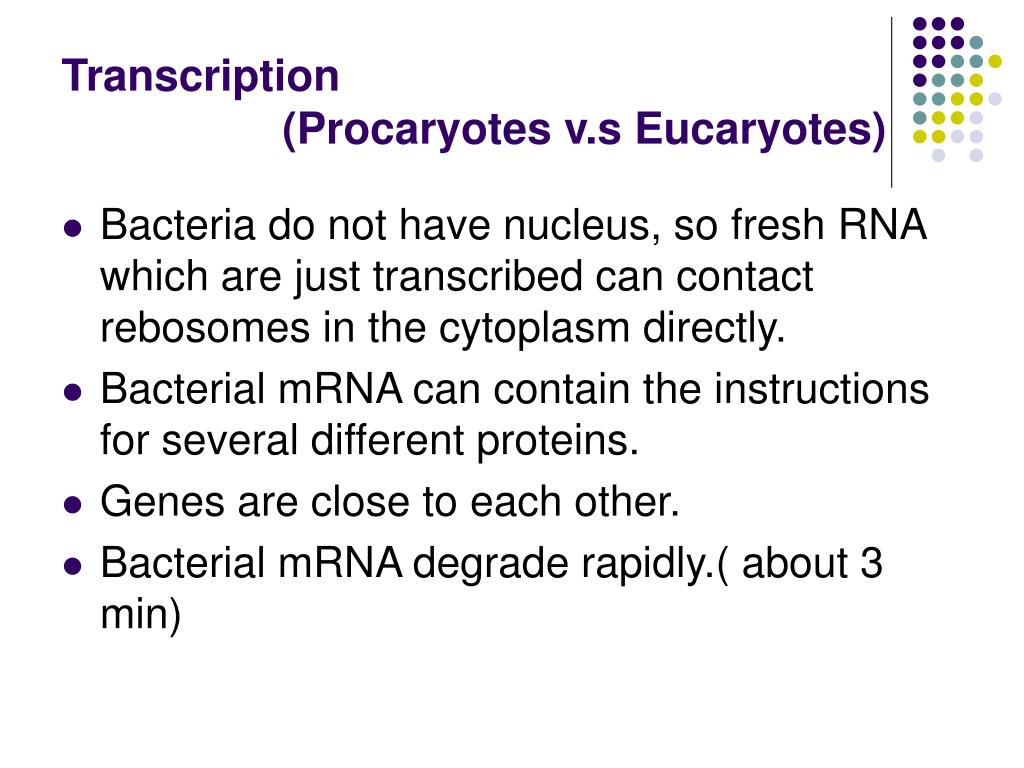

  8. Transcription (Procaryotes v.s Eucaryotes) • Bacteria do not have nucleus, so fresh RNA which are just transcribed can contact rebosomes in the cytoplasm directly. • Bacterial mRNA can contain the instructions for several different proteins. • Genes are close to each other. • Bacterial mRNA degrade rapidly.( about 3 min)

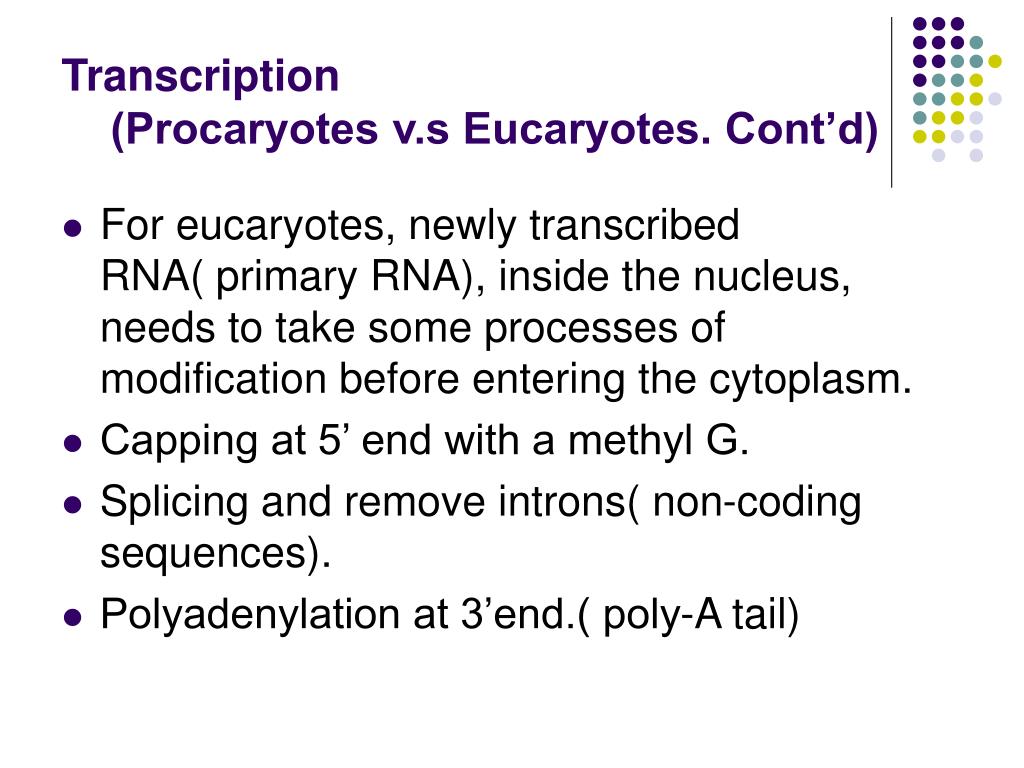

  9. Transcription (Procaryotes v.s Eucaryotes. Cont’d) • For eucaryotes, newly transcribed RNA( primary RNA), inside the nucleus, needs to take some processes of modification before entering the cytoplasm. • Capping at 5’ end with a methyl G. • Splicing and remove introns( non-coding sequences). • Polyadenylation at 3’end.( poly-A tail)

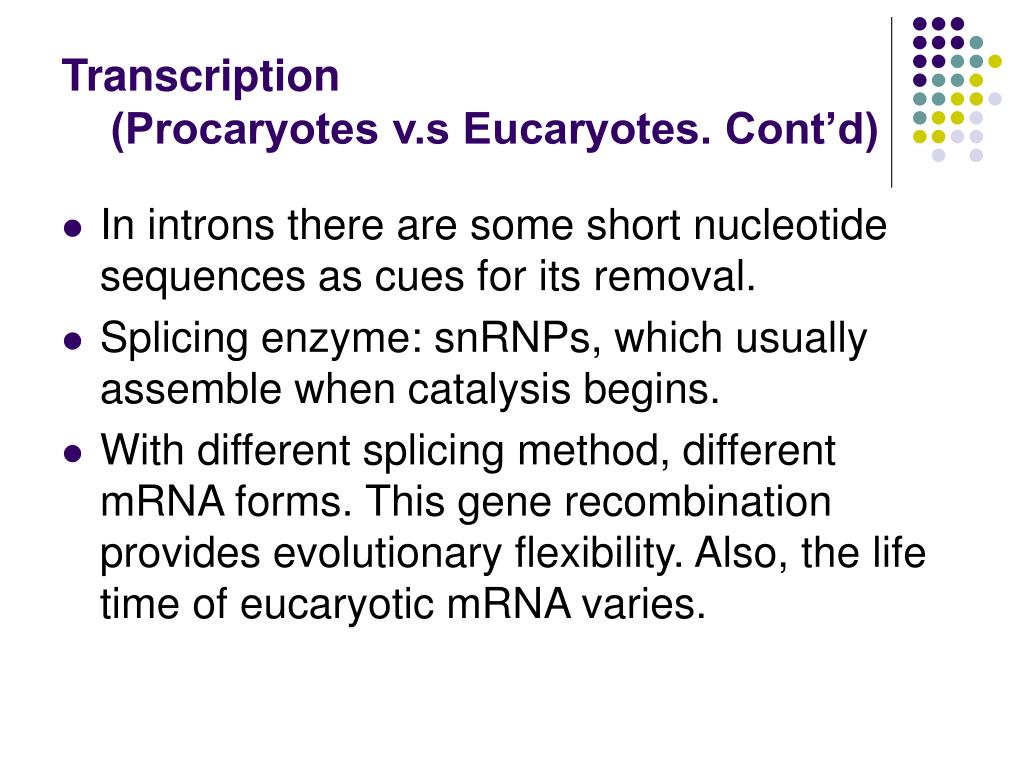

  10. Transcription (Procaryotes v.s Eucaryotes. Cont’d) • In introns there are some short nucleotide sequences as cues for its removal. • Splicing enzyme: snRNPs, which usually assemble when catalysis begins. • With different splicing method, different mRNA forms. This gene recombination provides evolutionary flexibility. Also, the life time of eucaryotic mRNA varies.

  11. Translation (from RNA to Protein) • They use different languages. mRNA is made up of nucleotides, whereas protein is sequences of amino acid. • There are four types of nucleotides; however, there are 20 types of a.a. • Three consecutive nucleotides in mRNA as codon. => 64 combinations • Genetic codes are general rules for the present-day organism.

  12. Translation (tRNA with amino acid) • tRNA, transfer RNA • About 80 nucleotides long, with 3D structure. Amino acid attaches to 3’ end.

  13. Translation (tRNA with amino acid. Cont’d) • Redundancy. There are 61 types of codon, 31 types of tRNA, 20 types of amino acid. • Different tRNAs can carry the same type of a.a. • tRNA can do base-pairing with different mRNA codons. This depends on constructure and means that tRNA can tolerate mismatch (wobble). - Wobbles are alternative codons for a.a, different only in their third nucleotide.

  14. Translation (tRNA with amino acid. Cont’d) • Aminoacyl-tRNA synthetases: for recognition and attachment of the correct a.a, covalently couple each a.a to its appropriate set on tRNA with high energy bond. • Each kind of amino acid has the specific synthetases of its own. • To synthesize protein, a cell still needs some place for manufacture...

  15. Translation (Ribosomes for protein making) • Ribosome: The protein manufacturing machine. • Made up of proteins and rRNA. • Combination of the large subunit and the small subunit, both made in the nucleus and then sent back to the cytoplasm. • Most found in cytosol and ER. • Three binding site for tRNA: E, P, and A site. During the process of protein synthesis, no more than two sites contain tRNA mocules at a time.

  16. If needed, two subunits come together on mRNA. After protein synthesis complete, they separate.

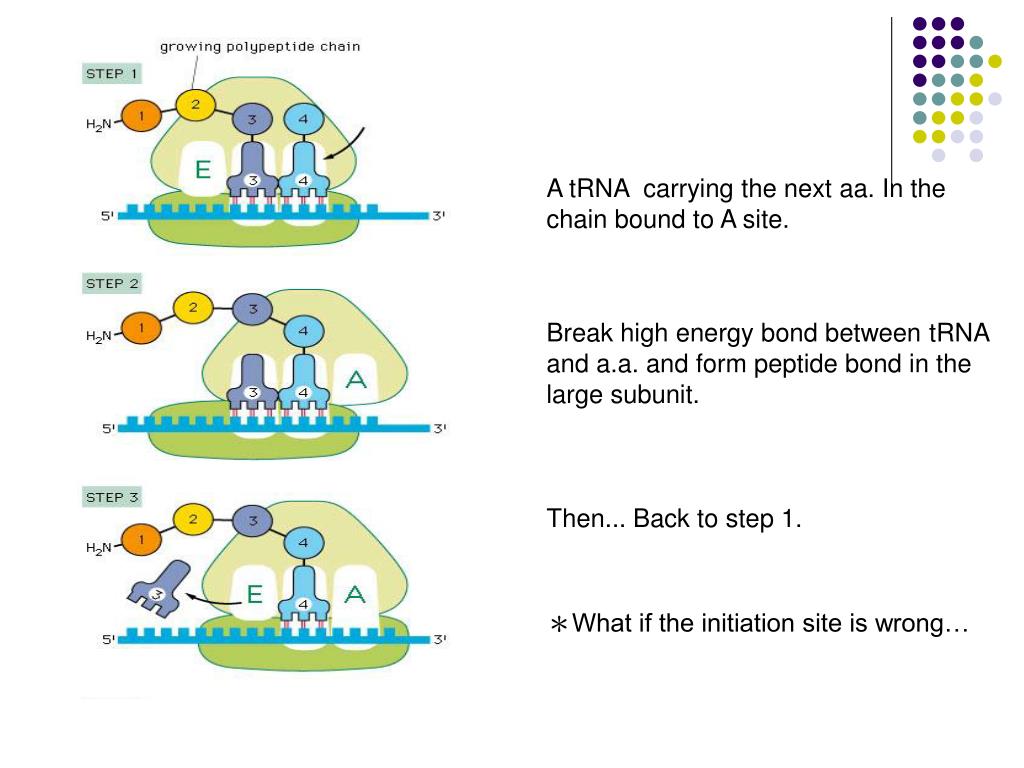

  17. A tRNA carrying the next aa. In the chain bound to A site. Break high energy bond between tRNA and a.a. and form peptide bond in the large subunit. Then... Back to step 1. *What if the initiation site is wrong…

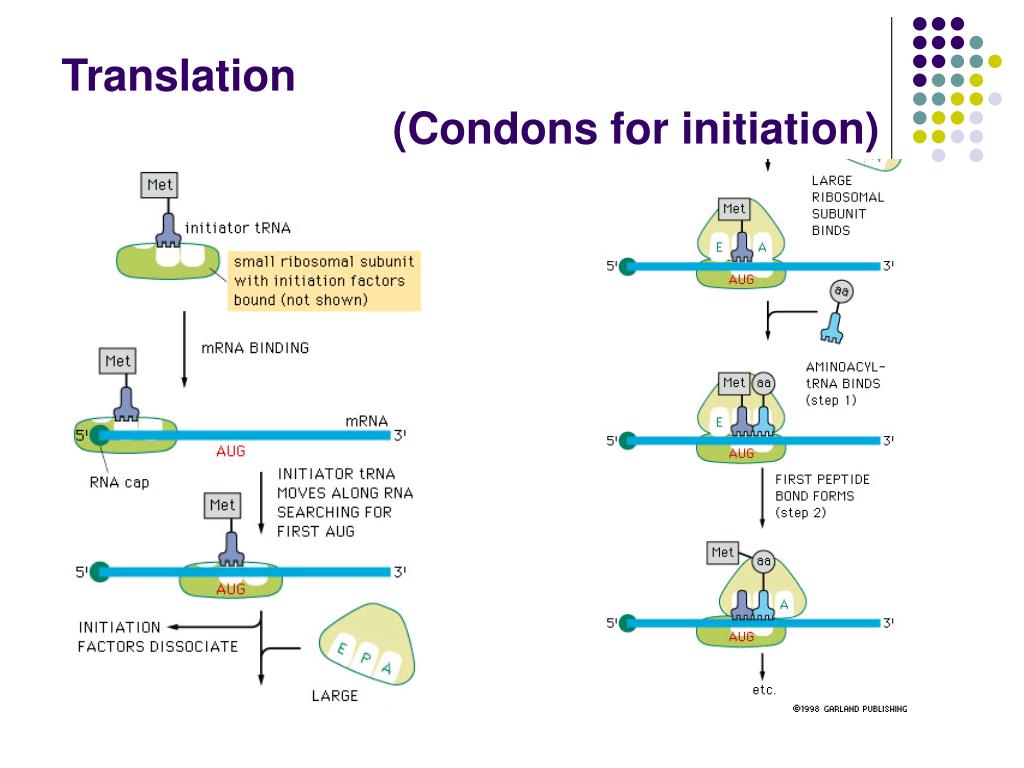

  18. Translation (Condons for initiation)

  19. Translation (Condons for terminal & others) • UAA, UAG, and UGA don’t specify any amino acid. • Release factor protein bind to A-site, no more peptidyl transfer but addition of H2O. • Free carboxyl end of the growing polypeptide chain. • Folding. • Polyribosmes.

  20. PCR (Polymerase Chain Reaction) • Amplify selected DNA or mRNA sequence of small amount. • Entirely in vitro. • Based on the use of DNA polymerase to copy a DNA template in repeated rounds of replication. • High sensitivity. • Polymerase is guide to the sequence to be copied by short primer oligonucleotides. • PCR can be used only to clone DNA whose beginning and end are known.

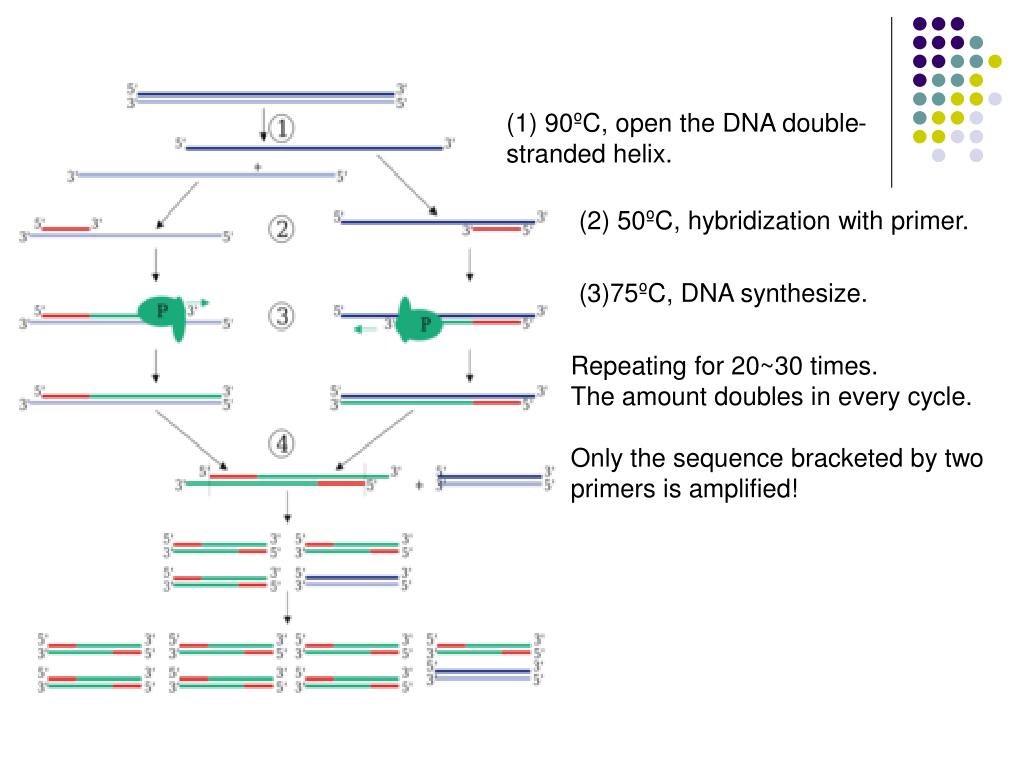

  21. (1) 90ºC, open the DNA double-stranded helix. (2) 50ºC, hybridization with primer. (3)75ºC, DNA synthesize. Repeating for 20~30 times. The amount doubles in every cycle. Only the sequence bracketed by two primers is amplified!

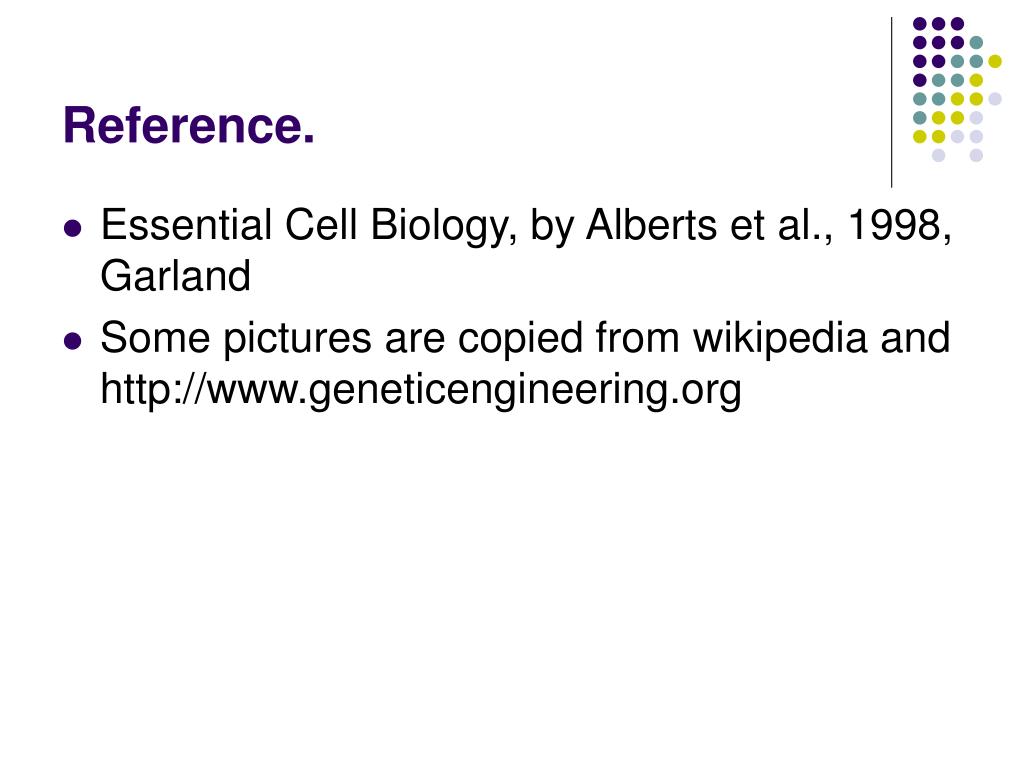

  22. Reference. • Essential Cell Biology, by Alberts et al., 1998, Garland • Some pictures are copied from wikipedia and http://www.geneticengineering.org

  23. THE END Thanks for your attention
