Basic Concepts of a Computer Network

zilya avatar
zilya
15 diapositives · 661 Views · Oct 08, 2014

Basic Concepts of a Computer Network. Content. The Need for a Computer Network LANs and WANs LANs Peer-to-Peer Server-Client Connecting to a computer Network network interface card (NIC) Connecting Device … switch, hub, router Network cables … coaxial cable, UTP, optical fibre

Basic Concepts of a Computer Network - slide 1
01 / 15Basic Concepts of a Computer Network
1 / 17

Télécharger la présentation

Basic Concepts of a Computer Network
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Basic Concepts of a Computer Network

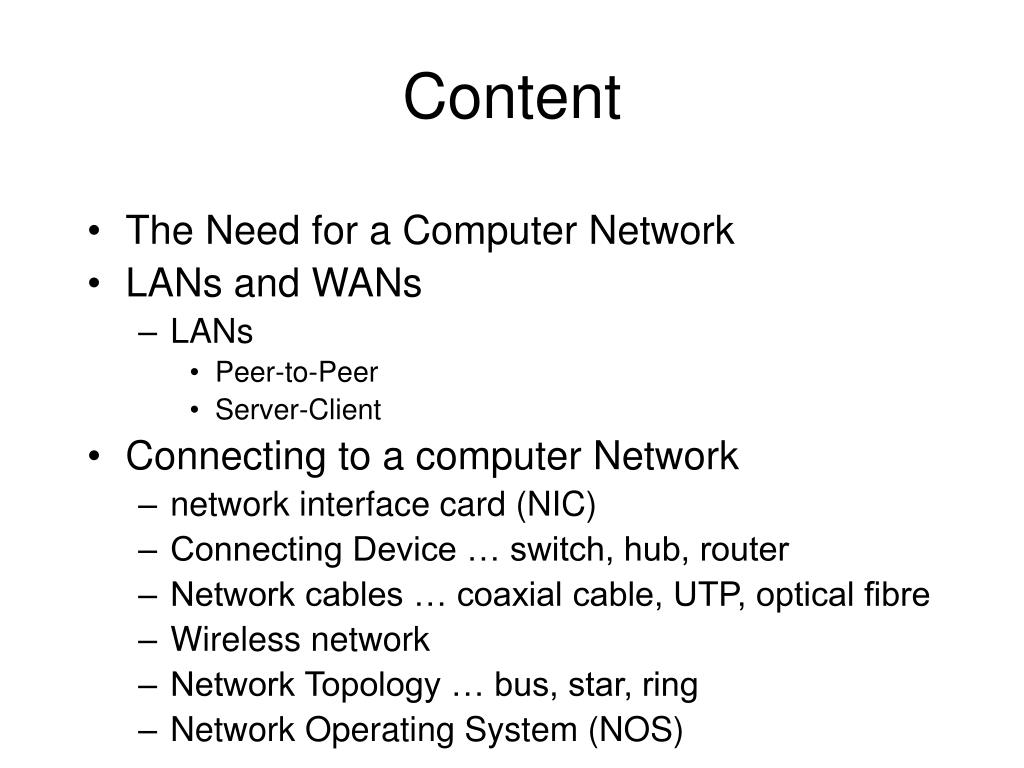

  2. Content • The Need for a Computer Network • LANs and WANs • LANs • Peer-to-Peer • Server-Client • Connecting to a computer Network • network interface card (NIC) • Connecting Device … switch, hub, router • Network cables … coaxial cable, UTP, optical fibre • Wireless network • Network Topology … bus, star, ring • Network Operating System (NOS)

  3. Common Services in a network • File Server • Print Server • Application Server • ……

  4. What is a computer network • A computer network is a system • of interconnected computers • that can exchange information and • share resources • resources • files / data / information / document • software • Hardware (device : harddisk drive, floppy disk drive, CD-ROM drive, printer, scanner)

  5. Uses of network • governmental departments • corporation / business sector • educational institutions • private apartments • home • hotel • entertainment

  6. Standalone computer • Powerful, valuable tools for individual use • But during …. File transfer • by file copying, then give the disk to the other • Adv : • Allow us to socialize with a friend while we exchange and merge data • low cost, more secure, low technique required • Disadv : • far too slow • inefficient to meet the the need and expectation today • depends on distances we want the data to travel

  7. When networked • values increase greatly • Adv : • Reduce the need of paper communication • increase efficiency • nearly all type of data can be available simultaneously to every user • Disadv : • Less secure • much more technique required

  8. The Need for a Computer Network • Advantage • Communication • Resources Sharing • Centralized Data Management • Software Sharing • Backup • Centralized Administration

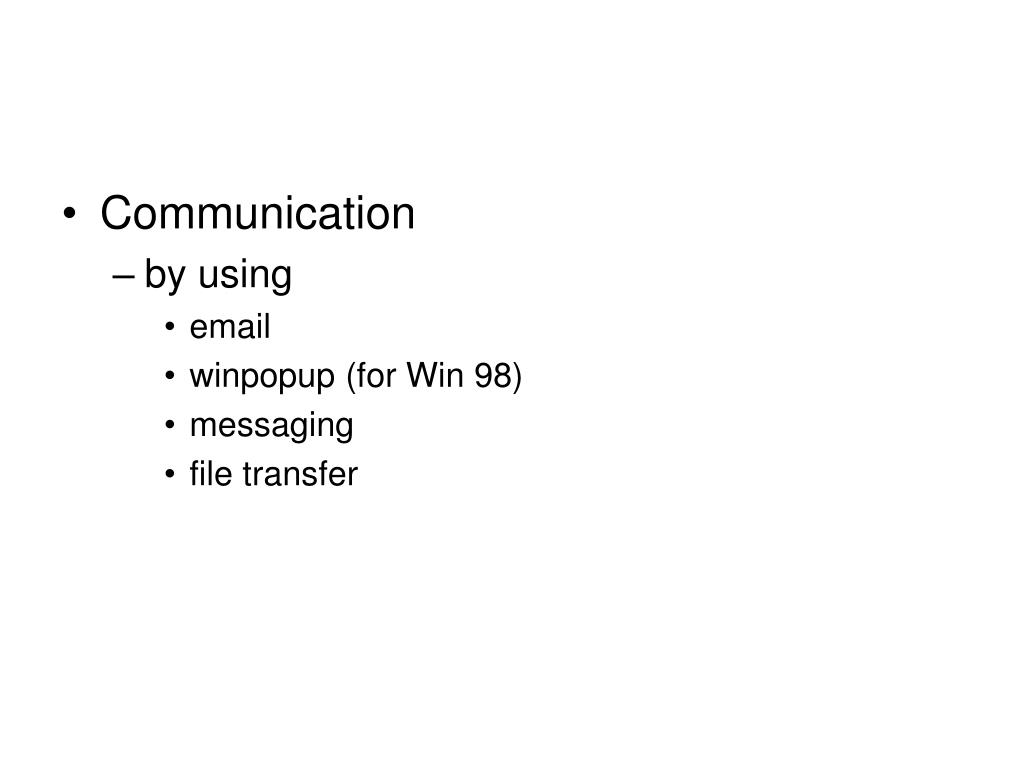

  9. Communication • by using • email • winpopup (for Win 98) • messaging • file transfer

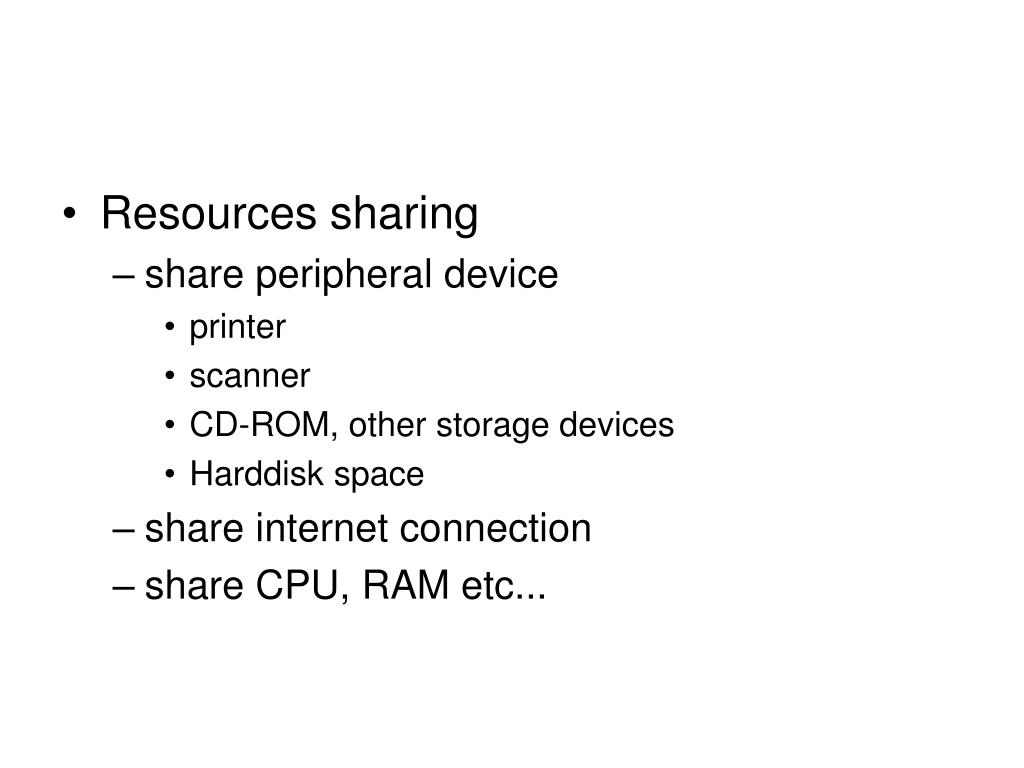

  10. Resources sharing • share peripheral device • printer • scanner • CD-ROM, other storage devices • Harddisk space • share internet connection • share CPU, RAM etc...

  11. Centralized Data Management • users can work separately in different place • but sharing the same database file • no need to update PC by PC

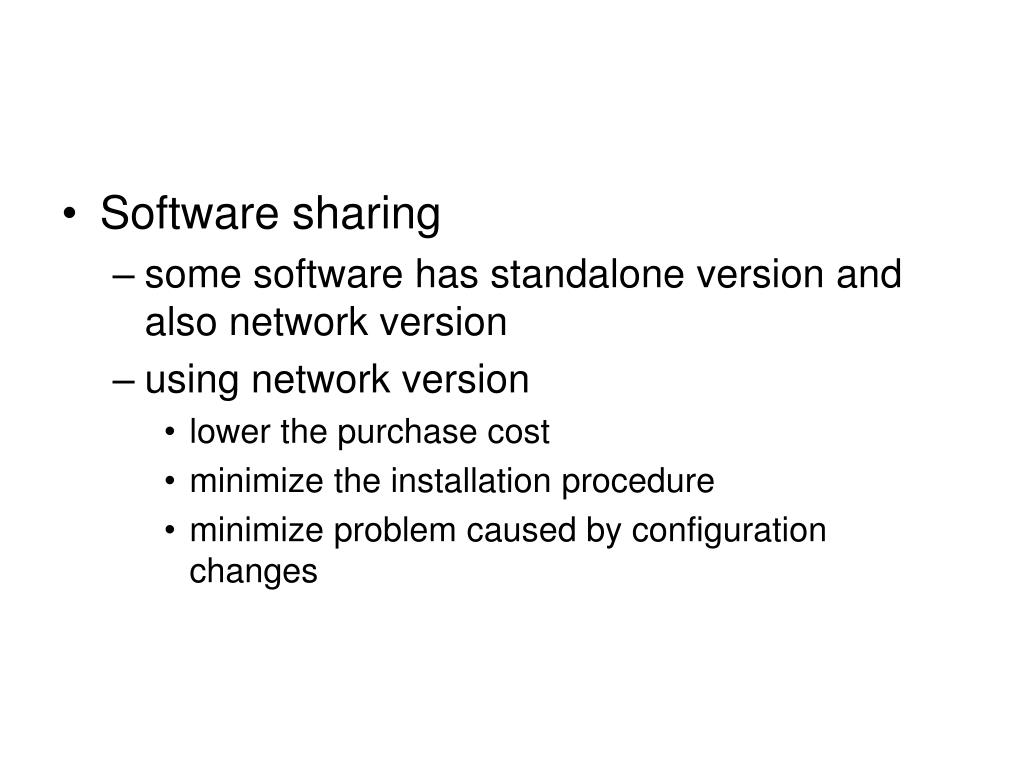

  12. Software sharing • some software has standalone version and also network version • using network version • lower the purchase cost • minimize the installation procedure • minimize problem caused by configuration changes

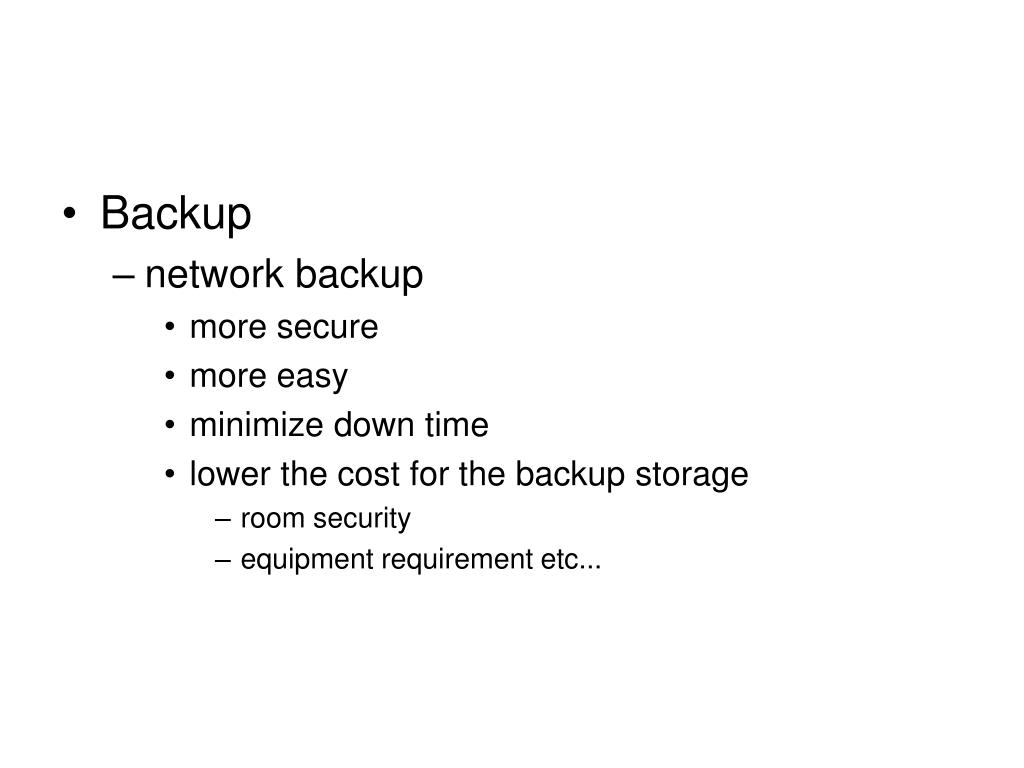

  13. Backup • network backup • more secure • more easy • minimize down time • lower the cost for the backup storage • room security • equipment requirement etc...

  14. Centralized Administration • in terms of user management • add user • edit user • delete user • inactivate user • in terms of security setting • full control • read only • write • execute

  15. Networking Classification • By geographical limit / size • LANs / WANs • By computer relationship • server-client / peer-to-peer • By wiring layout / method • topology (bus / star / ring / mesh)
