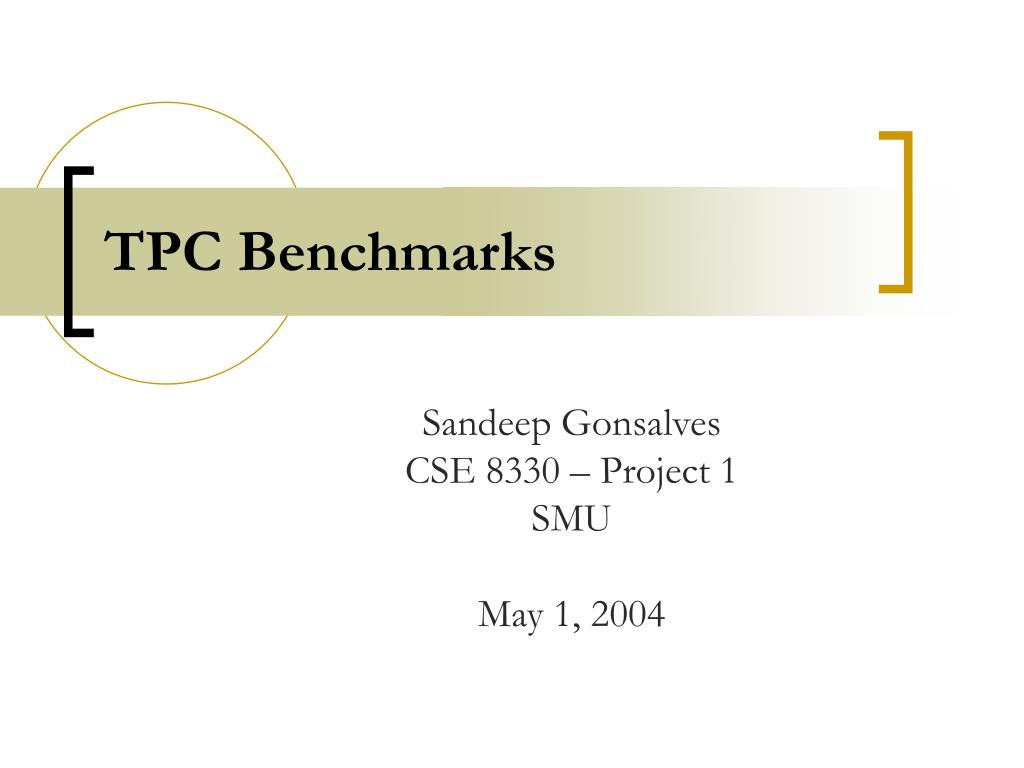

  1. TPC Benchmarks Sandeep Gonsalves CSE 8330 – Project 1 SMU May 1, 2004

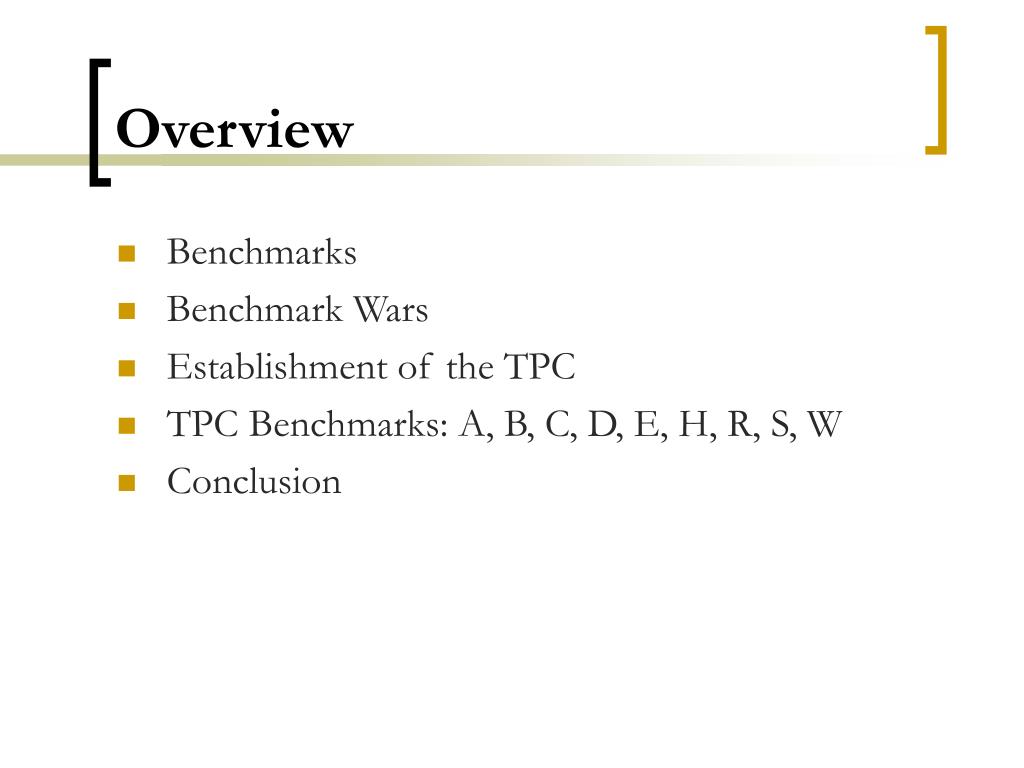

  2. Overview • Benchmarks • Benchmark Wars • Establishment of the TPC • TPC Benchmarks: A, B, C, D, E, H, R, S, W • Conclusion

  3. Benchmarks • Standard for comparison of various systems performing similar operations • Set of programs that simulate a typical workload on a given system • Used to measure system performance • Metrics such as speed, performance, price etc. are recorded • Used to determine the optimal system

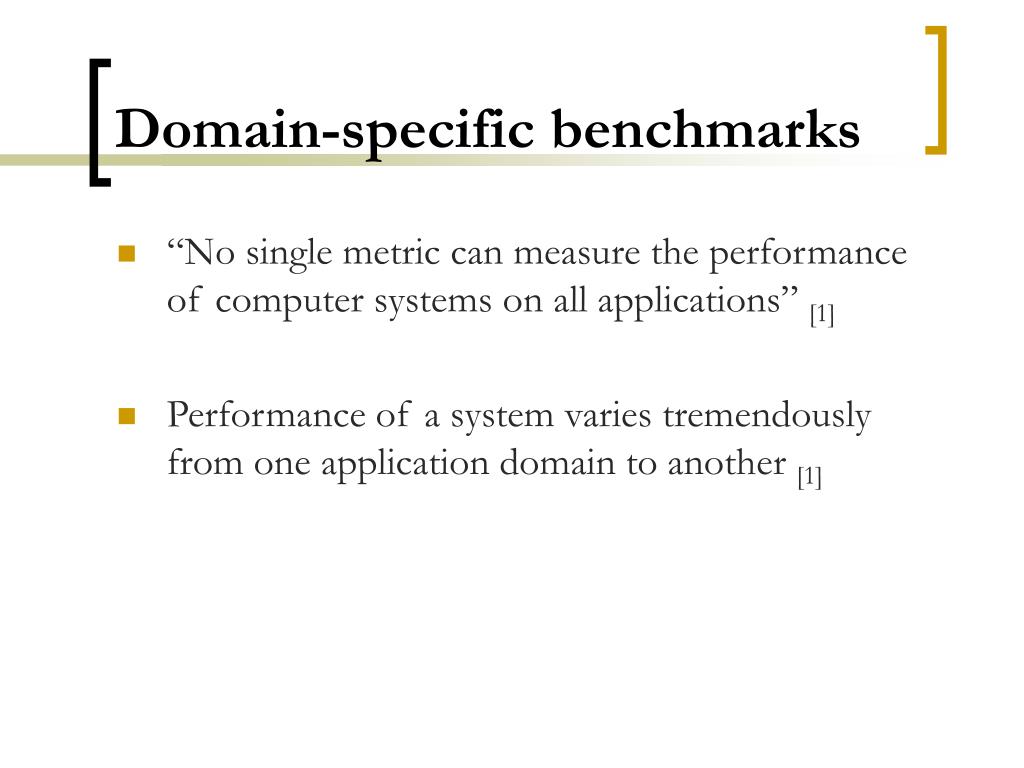

  4. Domain-specific benchmarks • “No single metric can measure the performance of computer systems on all applications” [1] • Performance of a system varies tremendously from one application domain to another [1]

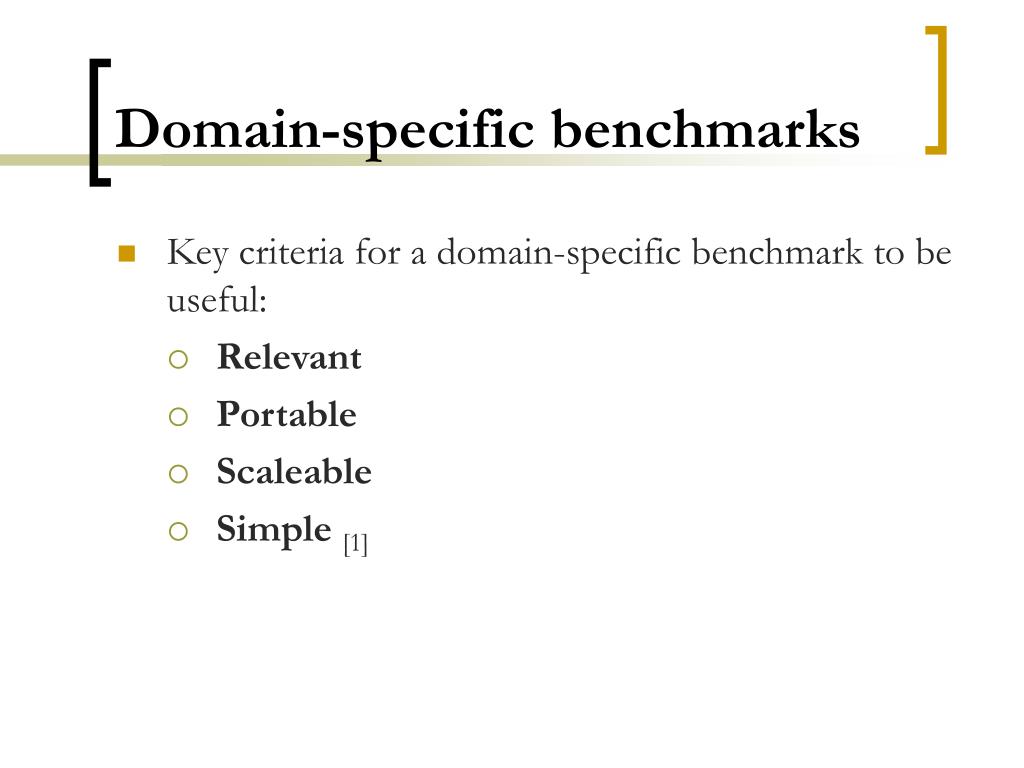

  5. Domain-specific benchmarks • Key criteria for a domain-specific benchmark to be useful: • Relevant • Portable • Scaleable • Simple[1]

  6. Early Benchmarks • TP1 benchmark • Wisconsin benchmark

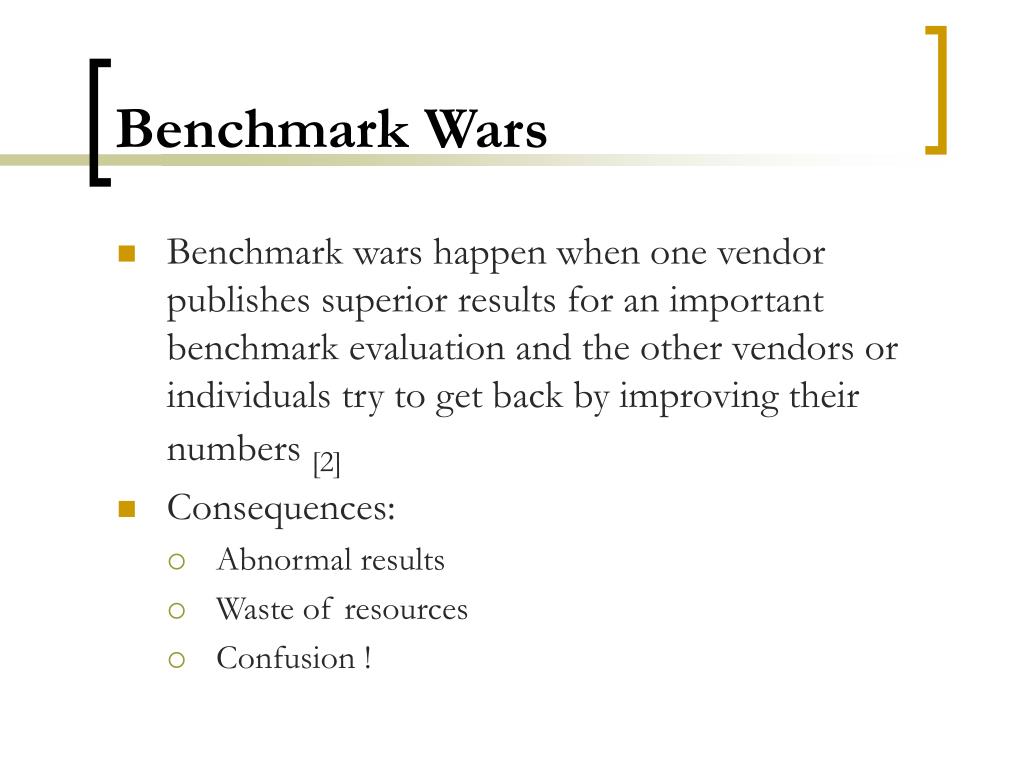

  7. Benchmark Wars • Benchmark wars happen when one vendor publishes superior results for an important benchmark evaluation and the other vendors or individuals try to get back by improving their numbers [2] • Consequences: • Abnormal results • Waste of resources • Confusion !

  8. Initial Efforts • Working Group on Performance Measurement Standards (WG-PMS) [2] • Anon et.al. 1985 • Three standard performance tests for OLTP systems • Most popular – DebitCredit [2]

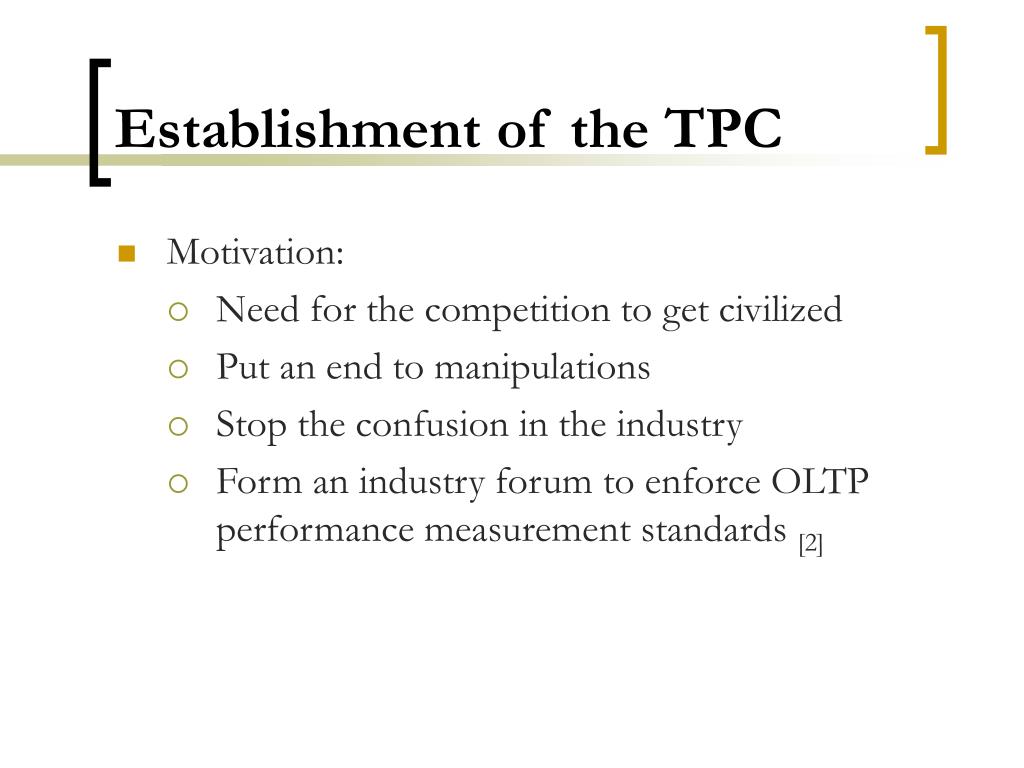

  9. Establishment of the TPC • Motivation: • Need for the competition to get civilized • Put an end to manipulations • Stop the confusion in the industry • Form an industry forum to enforce OLTP performance measurement standards [2]

  10. TPC • TPC is the acronym for the Transaction Processing Performance Council • Established on 10th August, 1988 • Founder: Omri Serlin • Co-founder: Tom Sawyer • Initial 8 members: Control Data Corp, Digital Equipment Corp, ICL, Pyramid Technology, Stratus Computer, Sybase, Tandem Computers and Wang Laboratories [2]

  11. TPC • First standard TPC-A published in November, 1989 • TPC-A – Council’s version of the DebitCredit benchmark test [2] • Published the second standard TPC-B in August 1990 • TPC-B – Council’s version of the TP1 benchmark test [2]

  12. TPC • Major changes brought about by the TPC: [2] • Submission of a Full Disclosure Report (FDR) • Results must be audited by a TPC certified individual

  13. TPC Members - 2004

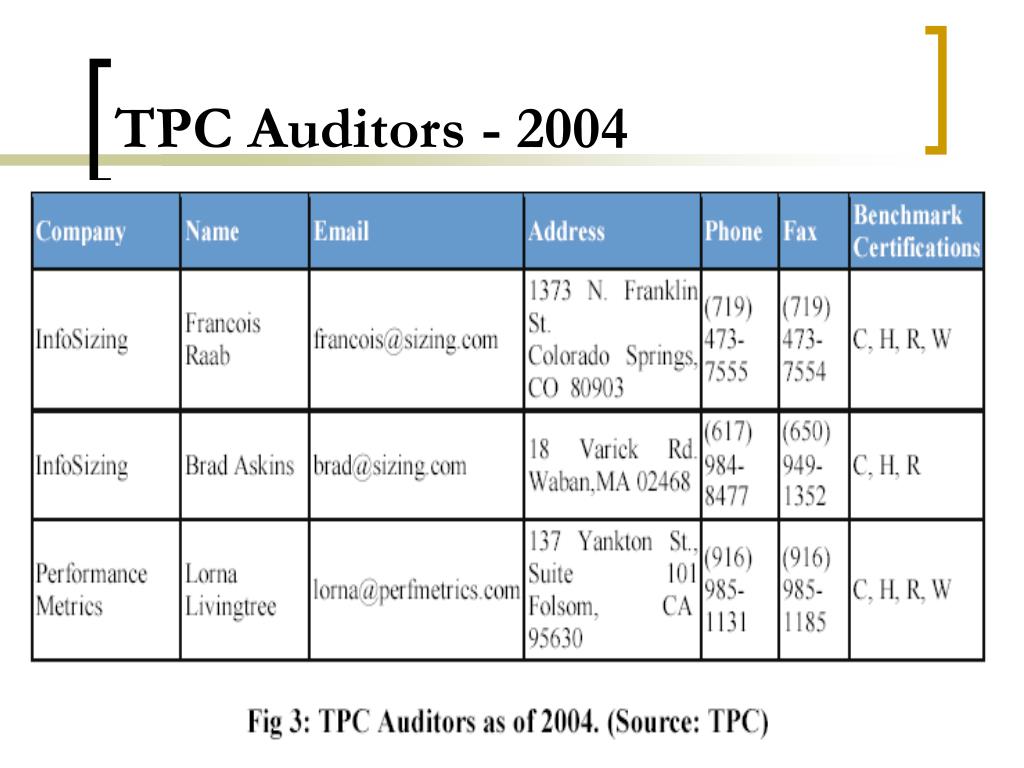

  14. TPC Auditors - 2004

  15. TPC Benchmark™ A • Issued in November 1989 • Obsolete as of 6th June, 1995 • Measure performance of update-intensive database environments [5] • e.g.. OLTP applications with characteristics like: • “Multiple on-line terminal sessions • Significant disk input/output • Moderate system and application execution time • Transaction integrity” [5]

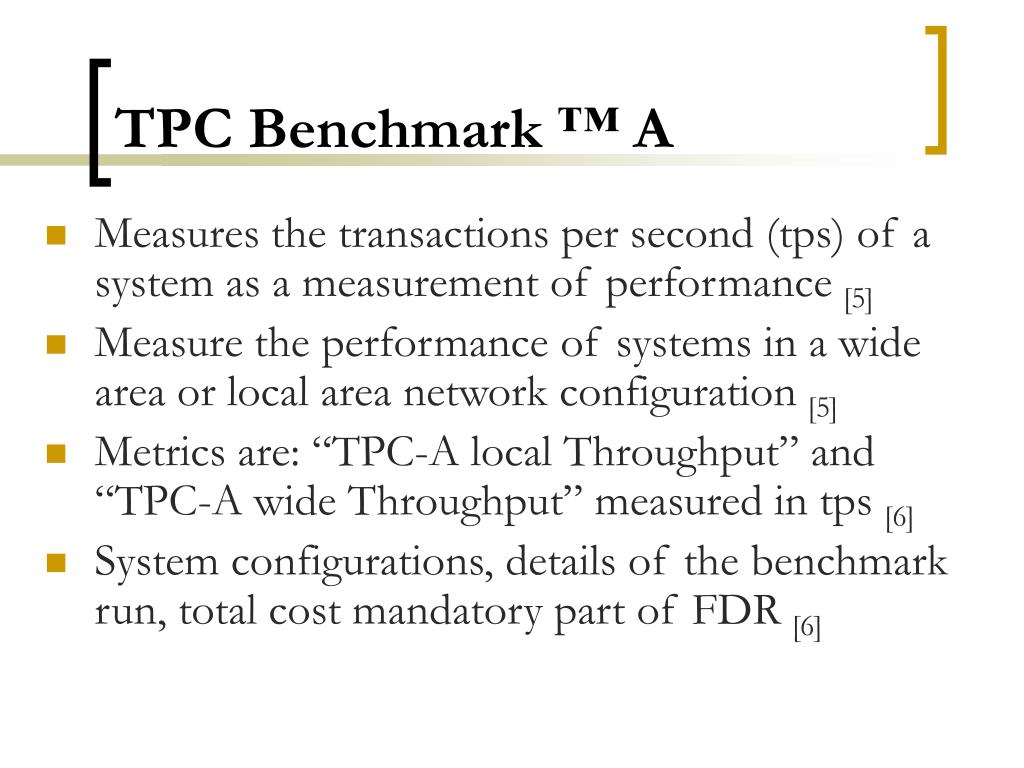

  16. TPC Benchmark™ A • Measures the transactions per second (tps) of a system as a measurement of performance [5] • Measure the performance of systems in a wide area or local area network configuration [5] • Metrics are: “TPC-A local Throughput” and “TPC-A wide Throughput” measured in tps [6] • System configurations, details of the benchmark run, total cost mandatory part of FDR [6]

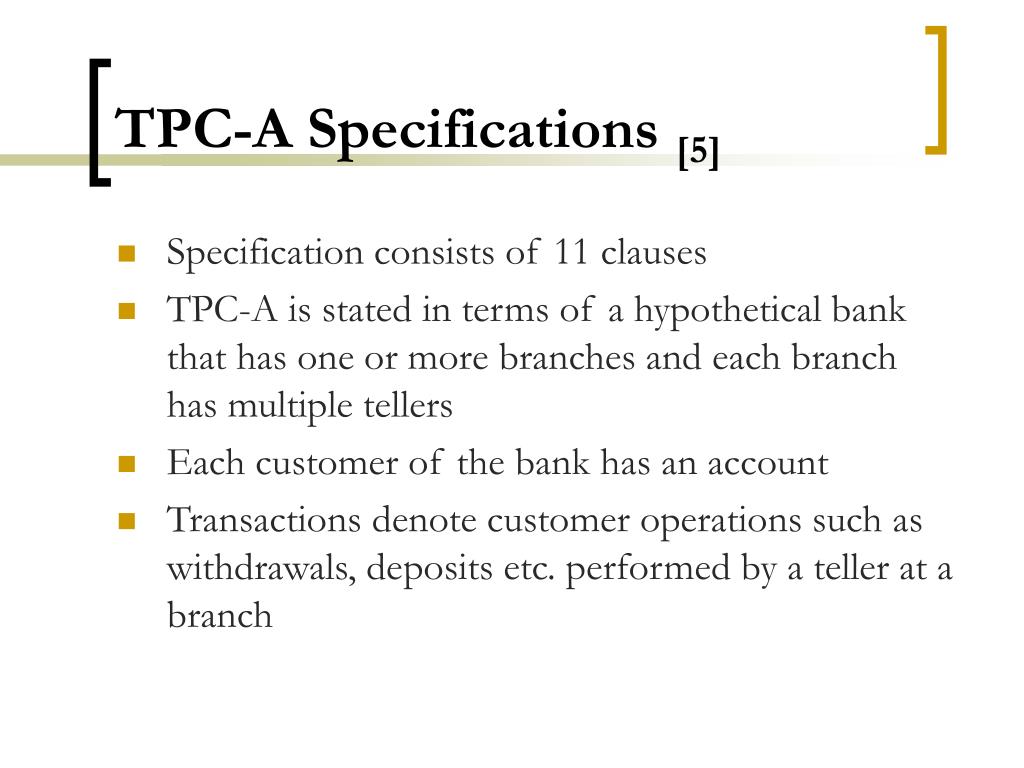

  17. TPC-A Specifications [5] • Specification consists of 11 clauses • TPC-A is stated in terms of a hypothetical bank that has one or more branches and each branch has multiple tellers • Each customer of the bank has an account • Transactions denote customer operations such as withdrawals, deposits etc. performed by a teller at a branch

  18. TPC-A Specifications • Fig 4: ER Diagram of the components of the TPC Benchmark™ A database[5]

  19. TPC-A Specifications [5] • Any commercially available database management system (DBMS), database server, file system, etc can be used to implement the database • The system under test must support the ACID properties of transaction processing systems • Horizontal partitioning of files/tables is permitted • Vertical partitioning of files/tables is not permitted

  20. TPC-A Results [5] • Throughput of the system in units of transactions per second is: • “tpsA-Local” - local area networks • “tpsA-Wide” - wide area networks • Cost is given as price/tpsA • “ what is tested and/or emulated is priced and what is priced is tested and/or emulated ” • 5 year maintenance pricing must be included

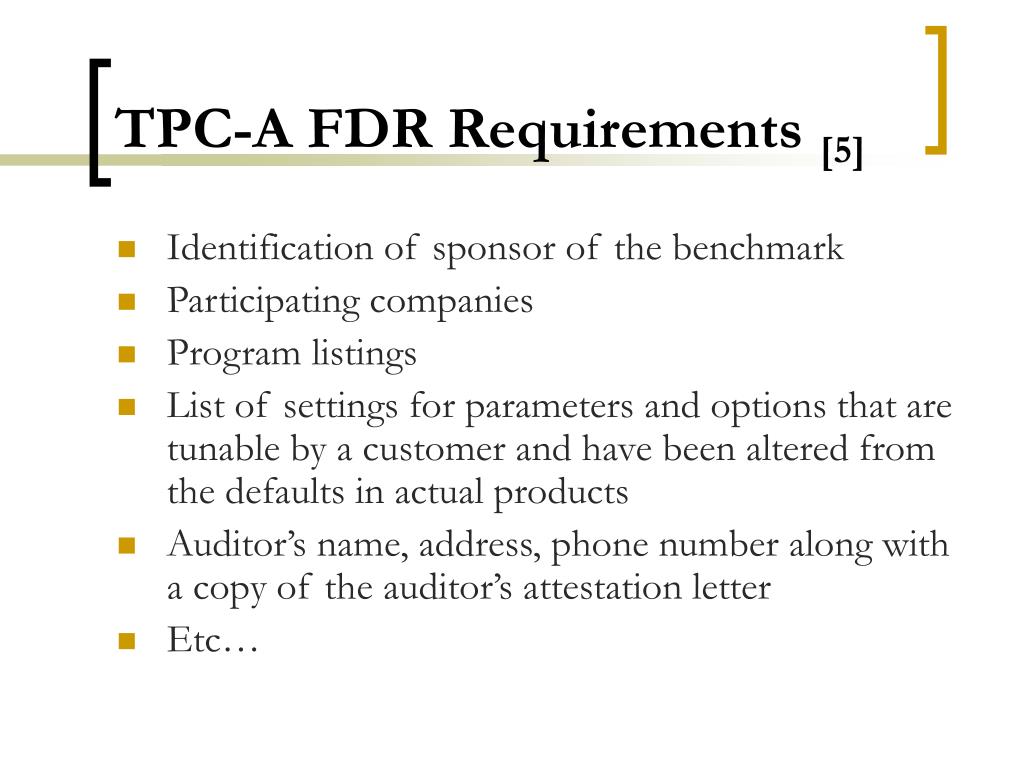

  21. TPC-A FDR Requirements [5] • Identification of sponsor of the benchmark • Participating companies • Program listings • List of settings for parameters and options that are tunable by a customer and have been altered from the defaults in actual products • Auditor’s name, address, phone number along with a copy of the auditor’s attestation letter • Etc…

  22. TPC-A FDR Requirements [5] • In short: All that a customer would need to replicate the results ! • The FDR document must be available to the public at a reasonable cost • Official language is English

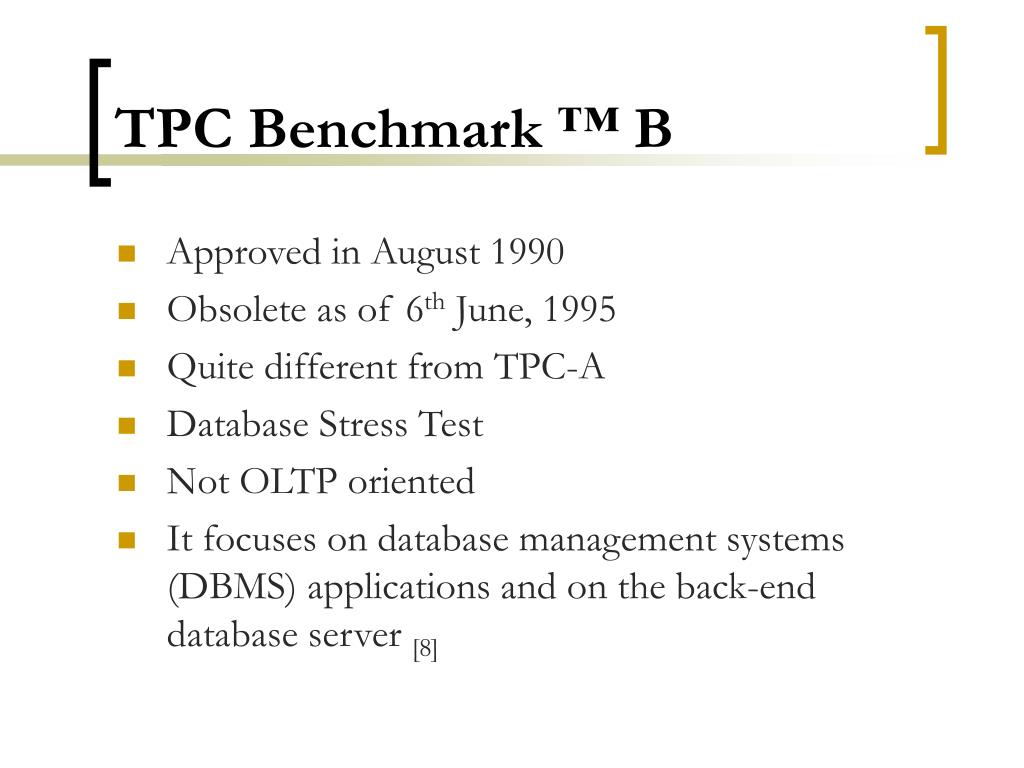

  23. TPC Benchmark™ B • Approved in August 1990 • Obsolete as of 6th June, 1995 • Quite different from TPC-A • Database Stress Test • Not OLTP oriented • It focuses on database management systems (DBMS) applications and on the back-end database server [8]

  24. TPC-B Specifications [8] • Specified in terms of a hypothetical bank • Measures the total number of simultaneous transactions that a system can carry out • No users, communication lines or terminals used • Equivalent to electronic data processing (EDP) batch processing applications • Metrics –Throughput: “tpsB” and the associated price-per-TPS

  25. TPC Benchmark™ C • Approved on July 23, 1992 • Currently in use with its latest version 5.2 • It is an OLTP benchmark • It is centered on the transactions of a wholesale supplier managing orders which is an order-entry environment [14] • TPC-C metrics are new-order txn rate (tpmC) and price/performance ($/tpmC) [14]

  26. TPC Benchmark™ C • It measures the entire business operation and is a more extensive and complex yardstick for measuring the performance of an OLTP system [14] • Current version is the 20th revision since 1992 [12]

  27. TPC Benchmark™ D • Approved on April 5, 1995 • Obsolete as of April 6, 1999 • Decision support benchmark • Metrics are: • TPC-D Composite Query-per-Hour Metric (QphD@Size) • TPC-D Price/Performance ($/QphD@Size) • Systems Availability Date [18]

  28. TPC Benchmark™ D • “It illustrates decision support systems that: • Examine large volumes of data; • Execute queries with a high degree of complexity; • Give answers to critical, frequently-asked business questions [18] ” • It’s successors are TPC-H and TPC-R

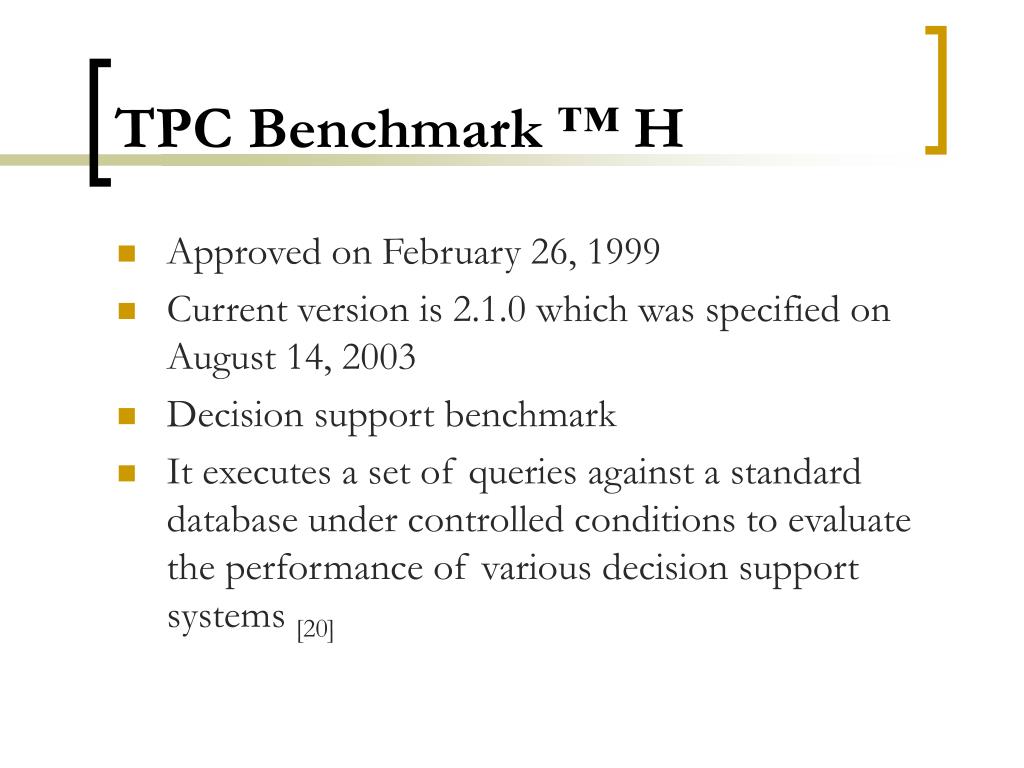

  29. TPC Benchmark™ H • Approved on February 26, 1999 • Current version is 2.1.0 which was specified on August 14, 2003 • Decision support benchmark • It executes a set of queries against a standard database under controlled conditions to evaluate the performance of various decision support systems [20]

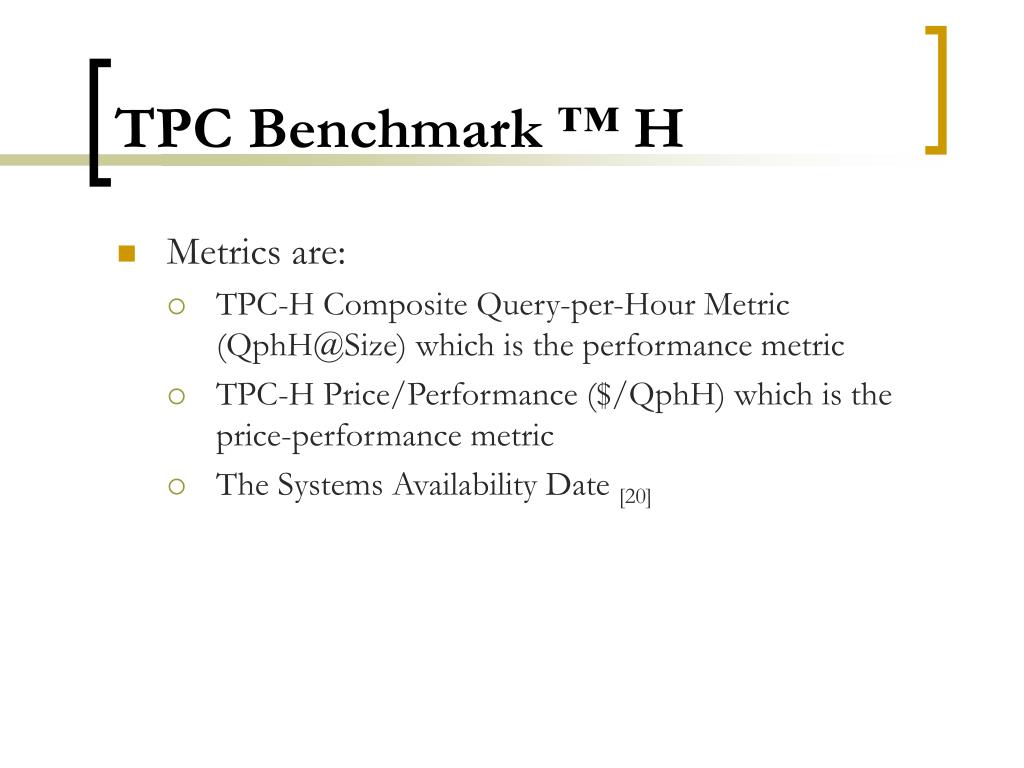

  30. TPC Benchmark™ H • Metrics are: • TPC-H Composite Query-per-Hour Metric (QphH@Size) which is the performance metric • TPC-H Price/Performance ($/QphH) which is the price-performance metric • The Systems Availability Date [20]

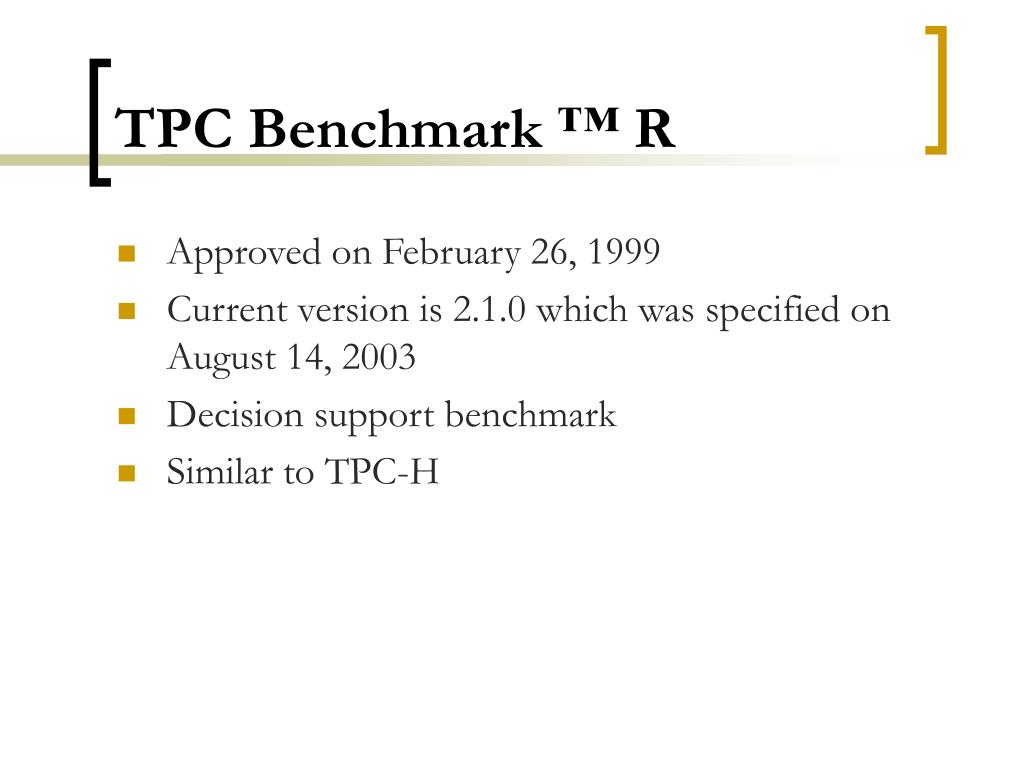

  31. TPC Benchmark™ R • Approved on February 26, 1999 • Current version is 2.1.0 which was specified on August 14, 2003 • Decision support benchmark • Similar to TPC-H

  32. TPC Benchmark™ R • The TPC-R metrics are: • TPC-R Composite Query-per-Hour Metric (QphR@Size) which is the performance metric • TPC-R Price/Performance ($/QphR) which is the price-performance metric • System Availability date [23]

  33. TPC Benchmark™ W • TPC’s latest benchmark • First version 1.0 was approved on December 9, 1999 • Transactional web e-Commerce benchmark that models a retail store on the internet like an online bookstore. [24] • TPC-W enables the testing of environments where a host of servers perform different functions [25]

  34. TPC Benchmark™ W • TPC-W metrics are: • Number of web interactions processed per second (WIPS) which is the performance metric. • The associated price per WIPS ($/WIPS) • The availability date of the priced configuration [26] • It can verify the performance measurements of a variety of e-commerce servers in a real world internet environment [25]

  35. Aborted benchmark efforts • TPC – S • Server version of the TPC-C • Did not receive sufficient Council support • Potential for abnormally high performance ratings [22]

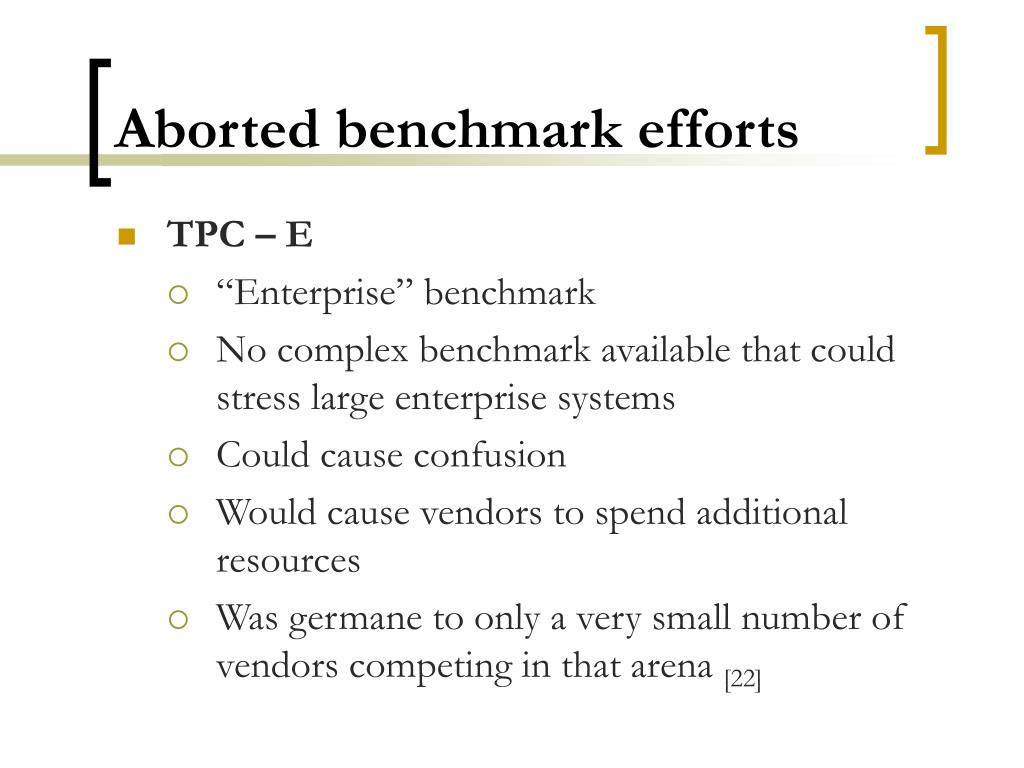

  36. Aborted benchmark efforts • TPC – E • “Enterprise” benchmark • No complex benchmark available that could stress large enterprise systems • Could cause confusion • Would cause vendors to spend additional resources • Was germane to only a very small number of vendors competing in that arena [22]

  37. What's up with the TPC • As of March 2004: • Working on a new TPC-E specification • Working on a new decision support benchmark: TPC-DS • Carrying out revisions on the TPC-H, TPC-R, TPC-W

  38. Conclusion - TPC • Fair-competition in the industry • End to bench marketing wars • Widely used by all vendors • Continuous evolution of its benchmarks

  39. Conclusion - TPC Log

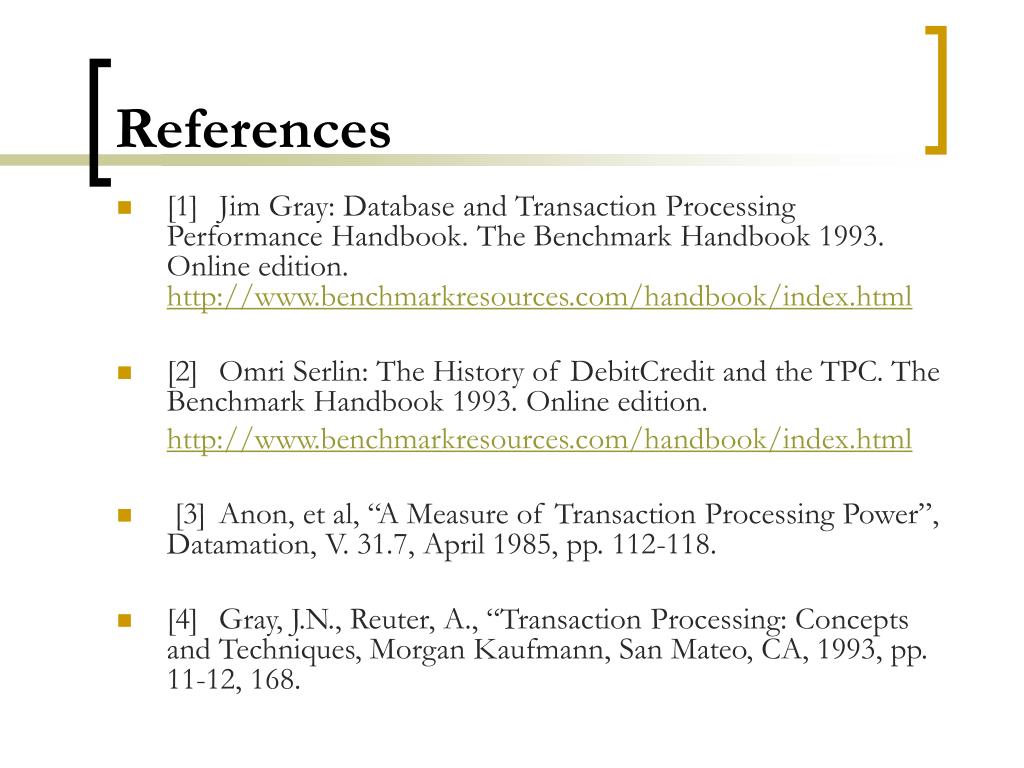

  40. References • [1] Jim Gray: Database and Transaction Processing Performance Handbook. The Benchmark Handbook 1993. Online edition. http://www.benchmarkresources.com/handbook/index.html • [2] Omri Serlin: The History of DebitCredit and the TPC. The Benchmark Handbook 1993. Online edition. http://www.benchmarkresources.com/handbook/index.html • [3] Anon, et al, “A Measure of Transaction Processing Power”, Datamation, V. 31.7, April 1985, pp. 112-118. • [4] Gray, J.N., Reuter, A., “Transaction Processing: Concepts and Techniques, Morgan Kaufmann, San Mateo, CA, 1993, pp. 11-12, 168.

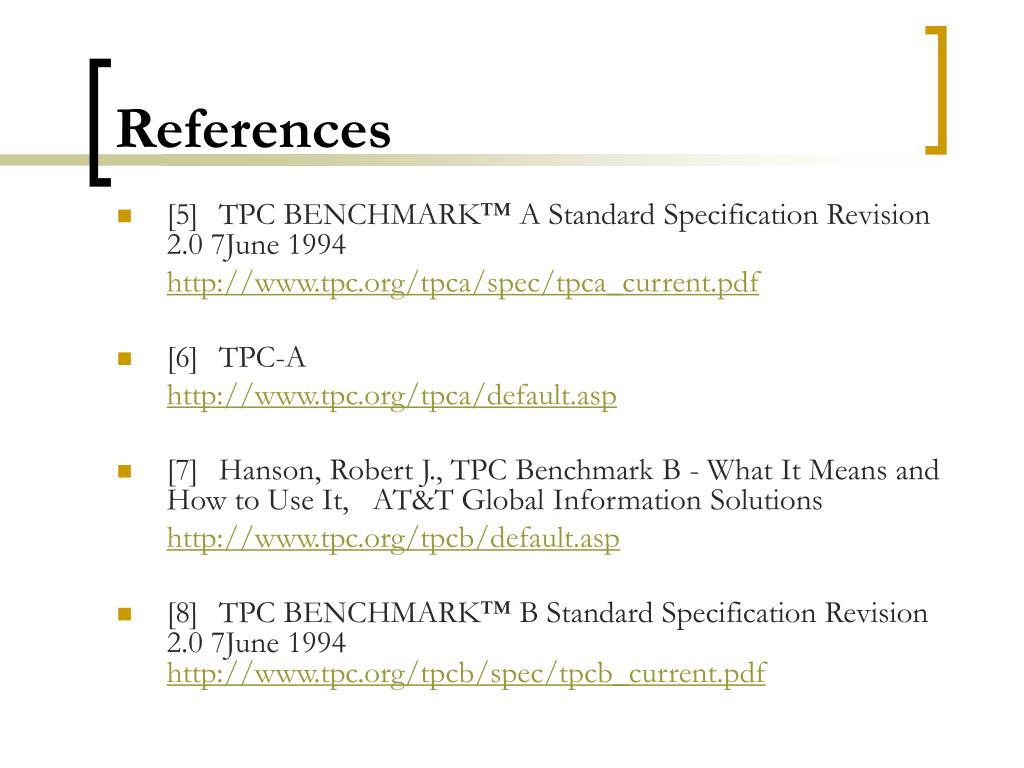

  41. References • [5] TPC BENCHMARK™ A Standard Specification Revision 2.0 7June 1994 http://www.tpc.org/tpca/spec/tpca_current.pdf • [6] TPC-A http://www.tpc.org/tpca/default.asp • [7] Hanson, Robert J., TPC Benchmark B - What It Means and How to Use It, AT&T Global Information Solutions http://www.tpc.org/tpcb/default.asp • [8] TPC BENCHMARK™ B Standard Specification Revision 2.0 7June 1994 http://www.tpc.org/tpcb/spec/tpcb_current.pdf

  42. References • [9] Bramer, Brian. System benchmarks, DeMontfort University, UK. http://www.cse.dmu.ac.uk/~bb/Teaching/ComputerSystems/SystemBenchmarks/BenchMarks.html#introduction • [10] Levine, Charles.,SIGMOD '97 Industrial Session 5 - 5/29/97. http://www.tpc.org/information/sessions/sigmod/indexc.htm • [11] Ozsu, T., P. Valderez’s, Principles of Distributed Database Systems, Second Edition. Prentice Hall, Englewood Cliffs, NJ., 1999. • [12] TPC BENCHMARK™ C Standard Specification Revision 5.2 December 2003 http://www.tpc.org/tpcc/spec/tpcc_current.pdf

  43. References • [13] Patterson, D. A., J. L. Hennessy, Computer Architecture, a Quantitative Approach, Morgan Kaufmann, San Mateo, CA, 1990. Chapter 1. • [14] Raab, Francois et.al. Overview of the TPC Benchmark C: The Order-Entry Benchmark. http://www.tpc.org/tpcc/detail.asp • [15] TPC-C http://www.tpc.org/tpcc/default.asp • [16] TPC-D http://www.tpc.org/tpcd/default.asp

  44. References • [17] Stephens, Jack. TPC-D. The Industry Standard Decision Support Benchmark http://www.tpc.org/information/sessions/sigmod/indexc.htm • [18] TPC BENCHMARKTM D (Decision Support) Standard Specification Revision 2.1 http://www.tpc.org/tpcd/spec/tpcd_current.pdf • [19] TPC-D http://www.tpc.org/tpcd/default.asp • [20] TPC BENCHMARK™ H (Decision Support) Standard Specification Revision 2.1.0 http://www.tpc.org/tpch/spec/tpch2.1.0.pdf

  45. References • [21] Levine, Charles. TPC Benchmarks, Microsoft. http://research.microsoft.com/~gray/WICS_96_TP/ • [22] Draft White Paper. August 2, 1999. Object Management Group www.omg.org/docs/bench/99-08-02.ps • [23] TPC-R http://www.tpc.org/tpcr/default.asp • [24] TPC Benchmark™ W (Web Commerce) SpecificationVersion 1.8. Feb 19, 2002. http://www.tpc.org/tpcw/spec/tpcw_V1.8.pdf

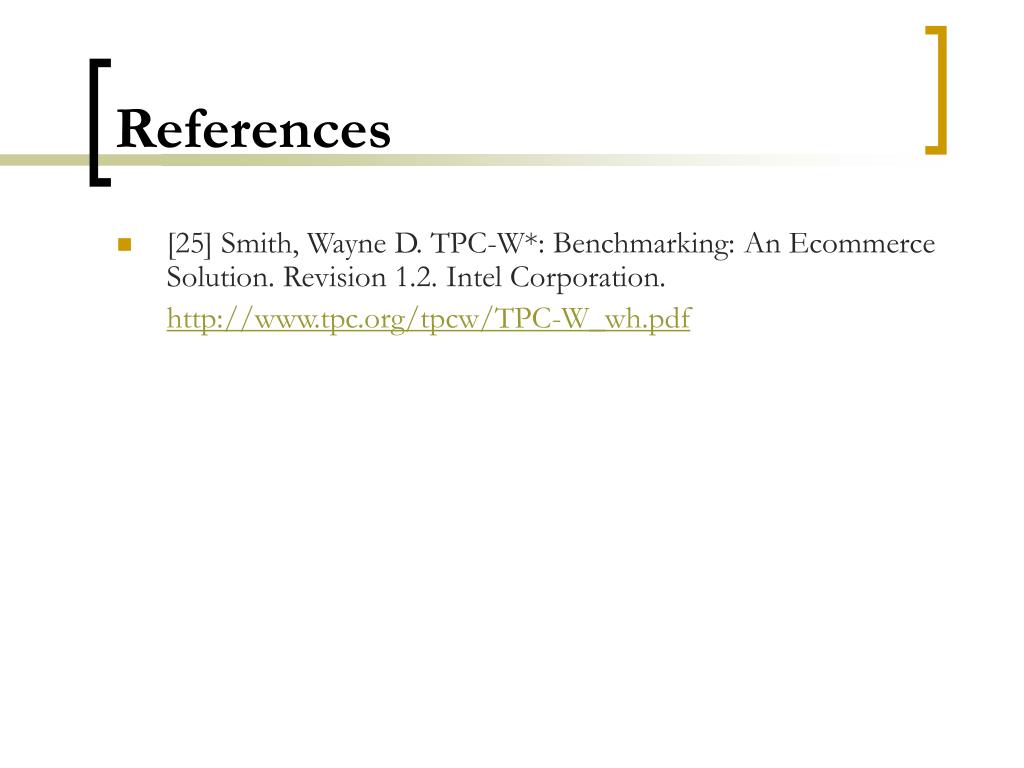

  46. References • [25] Smith, Wayne D. TPC-W*: Benchmarking: An Ecommerce Solution. Revision 1.2. Intel Corporation. http://www.tpc.org/tpcw/TPC-W_wh.pdf
