  1. Fiber Distribution Point Fiber Distribution Point for Underground VSOF-CS403A-SD Connector type

  2. Specifications Fiber Distribution Point for Underground VSOF-BS403A-SD (connector type) VISSEM’s VSOF-CS403A-SD (connector type) protects fiber optic splicing point in various installation conditions such as wires, manholes, ducts and direct buried. It is specially designed for accommodates a plenty of Patch cord and applicable to multi branching installation and complying with the requirements in each point of network. The flat type gasket ensures reliable sealing performance by preventing air and water leak and the corn type sealing socket provides easy and reliable installation. This closure has high mechanical strength against any environmental conditions. With VISSEM’s VSOF-CS403A-SD (connector type) , you can improve your network system to the higher level. www.opticube.co.kr VSI-C403A Page 2

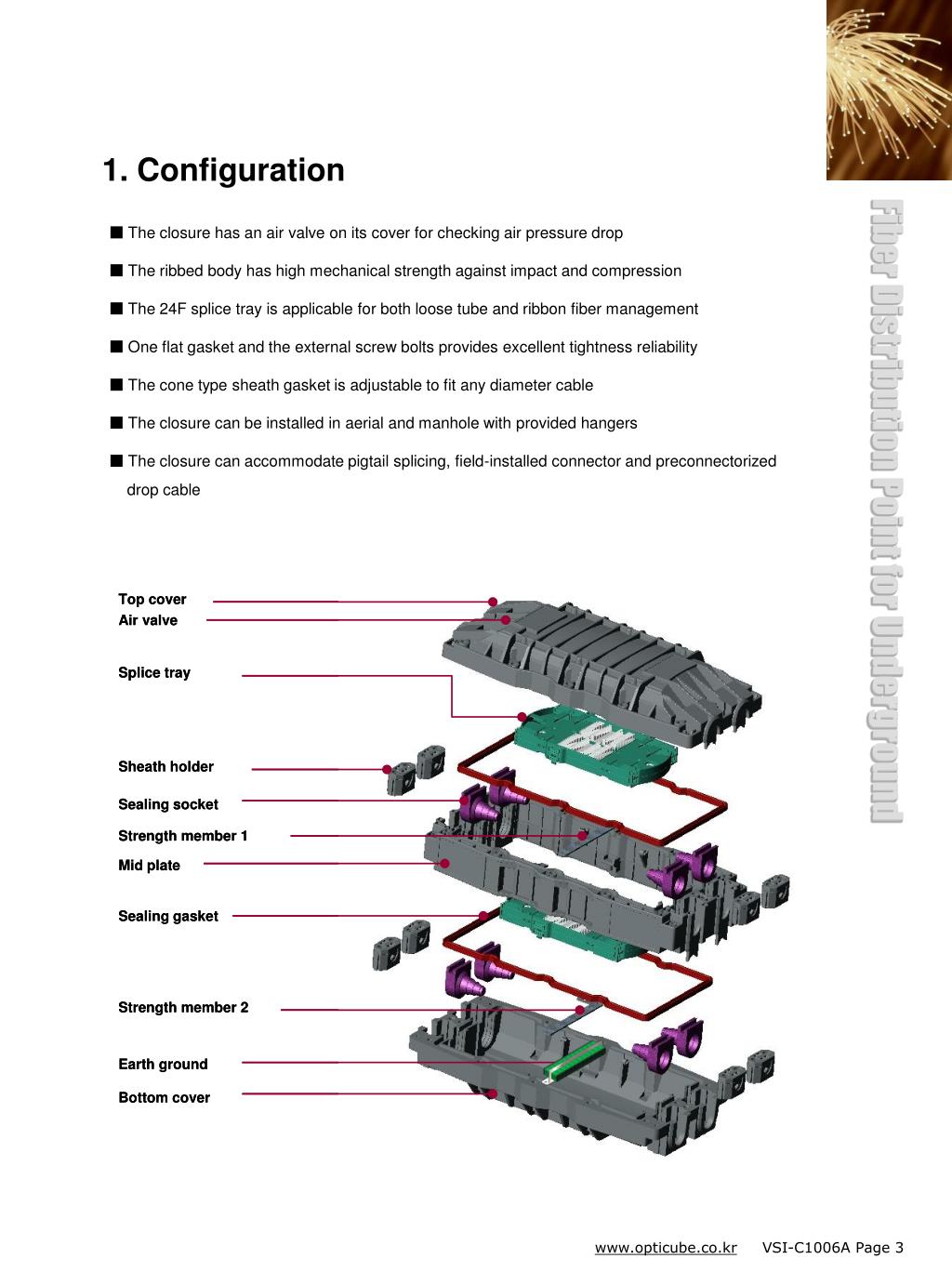

  3. Top cover Air valve Splice tray Sheath holder Sealing socket Strength member 1 Mid plate Sealing gasket Strength member 2 Earth ground Bottom cover 1. Configuration Fiber Distribution Point for Underground • The closure has an air valve on its cover for checking air pressure drop • The ribbed body has high mechanical strength against impact and compression • The 24F splice tray is applicable for both loose tube and ribbon fiber management • One flat gasket and the external screw bolts provides excellent tightness reliability • The cone type sheath gasket is adjustable to fit any diameter cable • The closure can be installed in aerial and manhole with provided hangers • The closure can accommodate pigtail splicing, field-installed connector and preconnectorized drop cable Top cover Air valve Splice tray Sheath holder Sealing socket Strength member 1 Mid plate Sealing gasket Strength member 2 Earth ground Bottom cover www.opticube.co.kr VSI-C1006A Page 3

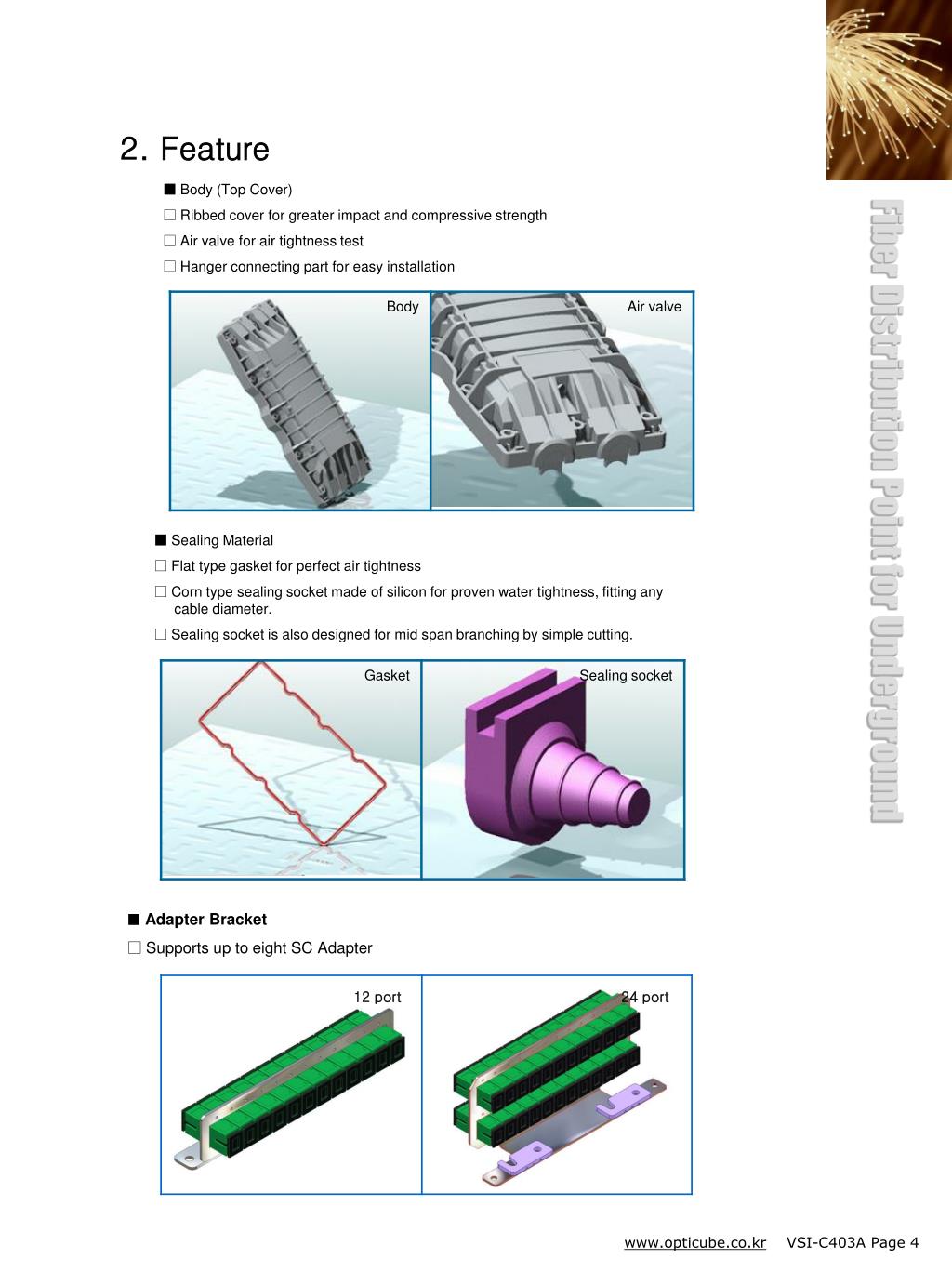

  4. 2. Feature • Body (Top Cover) • Ribbed cover for greater impact and compressive strength • Air valve for air tightness test • Hanger connecting part for easy installation Fiber Distribution Point for Underground • Sealing Material • Flat type gasket for perfect air tightness • Corn type sealing socket made of silicon for proven water tightness, fitting any cable diameter. • Sealing socket is also designed for mid span branching by simple cutting. • Adapter Bracket • Supports up to eight SC Adapter 12 port 24 port www.opticube.co.kr VSI-C403A Page 4

  5. Cable Clamping • Mechanical cable clamping • Firm cable gripping by stacking the same size sheath holder adapter. • Convenient installation and maintenance with the divided structure Fiber Distribution Point for Underground • Splicing Part • 4 inlet parts in the tray, available to meet the requirements for FTTH network • Double layered storage (maximum 48 fibers by inserting two sleeves in one slit) • Loose tube, ribbon fiber and mechanical splice are applicable. • Tension member gripping • Tension member gripping supporter connected by grounding bolt • No interference with splice tray and cable routing and storage • Separate T/M gripper is provided in case of using more Mid plate www.opticube.co.kr VSI-C4036A Page 5

  6. Web: http://www.opticube.co.kr Email: djkang@vissem Tel: 82-31-288-3481 Fax: 82-31-283-7844 Specifications published here are current as of the date of publication of this document. Because we are continuously improving our products, VISSEM reserves the right to change specifications without prior notice. At any time, you may verify product specifications by contacting our R & D division, views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features contained herein may be covered by one or more Korea or foreign patents.
