Advanced UT Camera Scan of Composite Laminate Defect Standards with Teflon Wafers

DESCRIPTION

This document outlines the results of ultrasonic testing (UT) using a camera scan on a graphite/epoxy laminate that incorporates embedded Teflon wafers. The study employs a stitching algorithm and features a scan increment of 0.3 inches. The testing utilizes a conventional immersion scan method at a frequency of 2.25 MHz with a 0.25-inch diameter transducer and a 0.075-inch scan increment. This research contributes to improved defect detection in large composite structures, as demonstrated in collaboration with ATK Thiokol.

Download

1 / 3

Dec 27, 2025

Télécharger la présentation

Advanced UT Camera Scan of Composite Laminate Defect Standards with Teflon Wafers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Scanning Results Hex nut and paper clip placed on surface Graphite/epoxy laminate defect standard with embedded Teflon wafers
UT camera scan with stitching algorithm applied - 0.3” scan increment Conventional immersion scan - 2.25 MHz, 0.25” diameter transducer - 0.075 scan increment Courtesy: ATK Thiokol

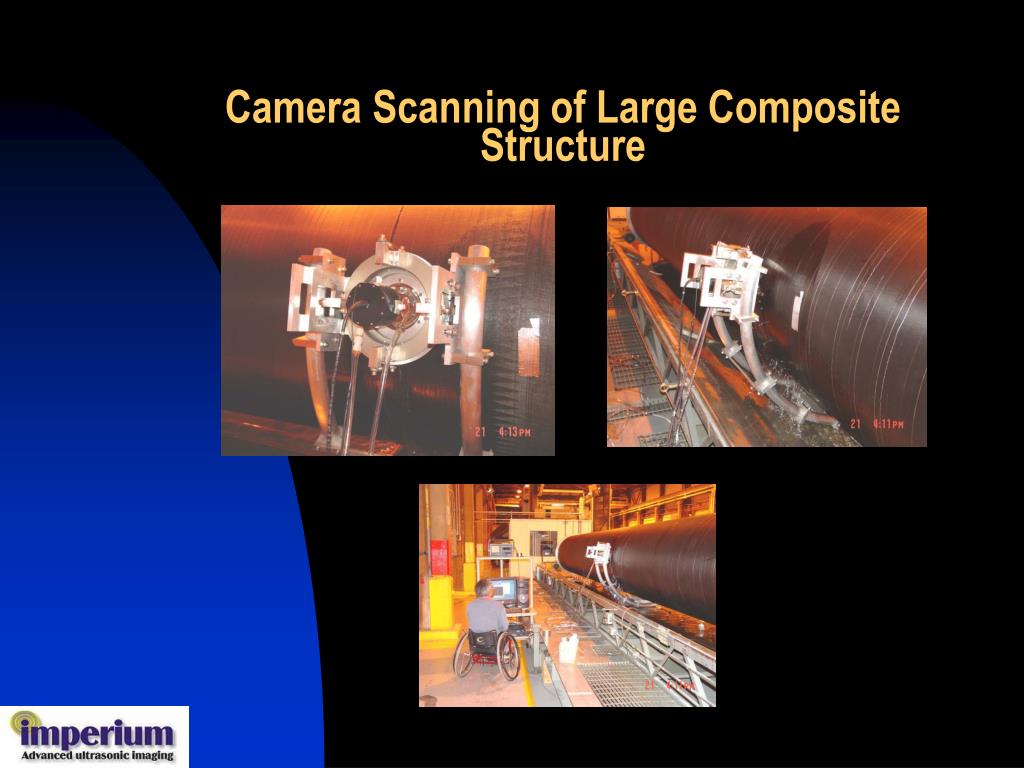

Camera Scanning of Large Composite Structure
