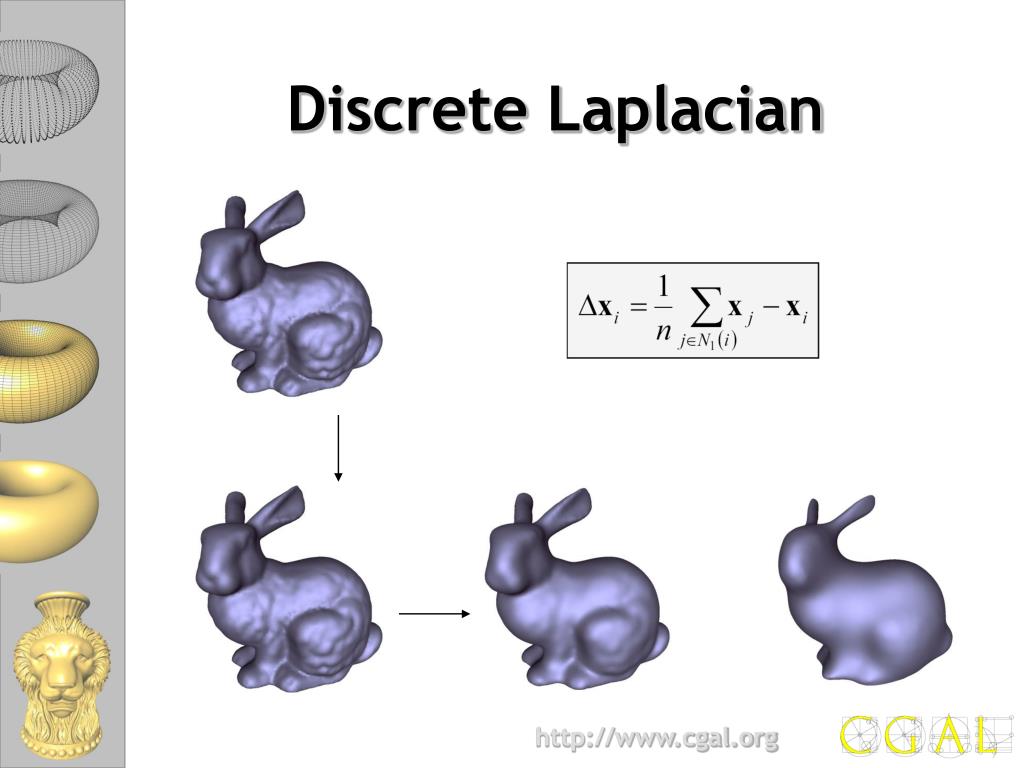

  1. Discrete Laplacian

  2. Premiere Version (echauffement) • Laplacien avec poids uniformes (formule slide suivant) • Implanter un menu/raccourci avec une iteration, 10 ou 100 iterations. • Des modeles (format off) se trouvent ici

  3. valence(vertex)

  4. (implementation hint) int nbv = size_of_vertices(); std::vector<Vector_3> dx(nbv); iterate on vertices dx[i] = Vector_3(0,0,0); // init circulate around current vertex ... // (compute displacements) iterate on vertices apply displacements

  5. Seconde Version Poids non uniforme (meilleure discretisation, cf lien) αij αji

  6. Filtrage bilateral • Implanter un algorithme similaire a cet article, cf http://people.csail.mit.edu/thouis/ • Tester sur d’autres modeles du repository
