Heat and Temperature Change

Heat and Temperature Change. Definitions Heat and Temperature Change Examples Heat and Phase Change Examples Mechanisms of Heat Flow Conduction Convection Radiation. Heat - Definition. Energy Transfer by non-mechanical means Heating water on stove (chemical/electrical)

zoey
Télécharger la présentation

Heat and Temperature Change

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Heat and Temperature Change • Definitions • Heat and Temperature Change • Examples • Heat and Phase Change • Examples • Mechanisms of Heat Flow • Conduction • Convection • Radiation

  2. Heat - Definition • Energy Transfer by non-mechanical means • Heating water on stove (chemical/electrical) • Burning gasoline in engine (chemical) • Touching a hot/cold object (conduction) • Losing heat through glass window (conduction) • Feeling heat from sun (electromagnetic) • Heating food in microwave (electromagnetic) • Each involves energy transfer by non-mechanical means and raising/lowering of temperature • Heat flows from “hot” to “cold”

  3. Heat - Definitions • Units of Heat. • Calorie - heat required to raise 1 g water 1°C • Kilocalorie - 1000 calories • Calorie (food) • Actually uses kilocalories • Heat given off by incinerating • Mechanical Equivalent • 1 cal = 4.186 J 1 kcal = 4.186 kJ • Mechanical equivalent – Friction - > Heat • Electrical equivalent – Electrical Energy - > Heat

  4. Heat and Internal Energy • Internal Energy • Total thermal energy contained. • Heat • Non-mechanical input or output Q U U Q

  5. Heat and Temperature Change • Adding heat to object causes temperature change. Q – Quantity of Heat (J) (cal) m – Mass (kg) c – Specific Heat ( J/kg C°) ΔT – Temperature change (C°)

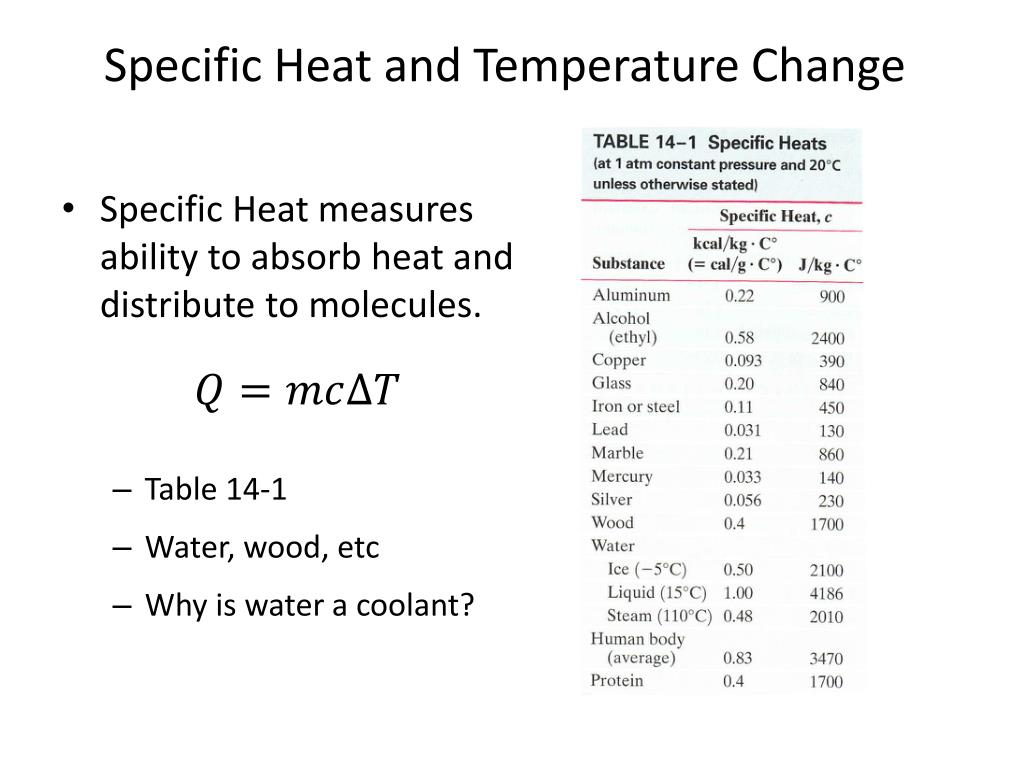

  6. Specific Heat and Temperature Change • Specific Heat measures ability to absorb heat and distribute to molecules. • Table 14-1 • Water, wood, etc • Why is water a coolant?

  7. Example 14-2 • (a) How much heat is required to raise the temperature of an empty 20 kg vat made of iron from 10°C to 90°C? (b) What if the vat is filled with 20 kg water? • Empty • Filled with 20 kg water

  8. Example 14-3 – Hot pan in the sink - 1 • 5 kg skillet at 200°C placed in sink with 40x50x10 cm water at 20°C. What is final temperature? • Mass of water • Requirement for equilibrium • Heat lost by skillet = heat gained by water. • Final temperature same. • Heat exchange equation: Heat lost by skillet = heat gained by water. Now just solve..

  9. Example 14-3 – Hot pan in the sink - 2 • 5 kg skillet at 200°C placed in sink with 20 kg water at 20°C. What is final temperature? • Heat exchange equation • Fill in (make each temperature change positive) Pan cools more than water heats!

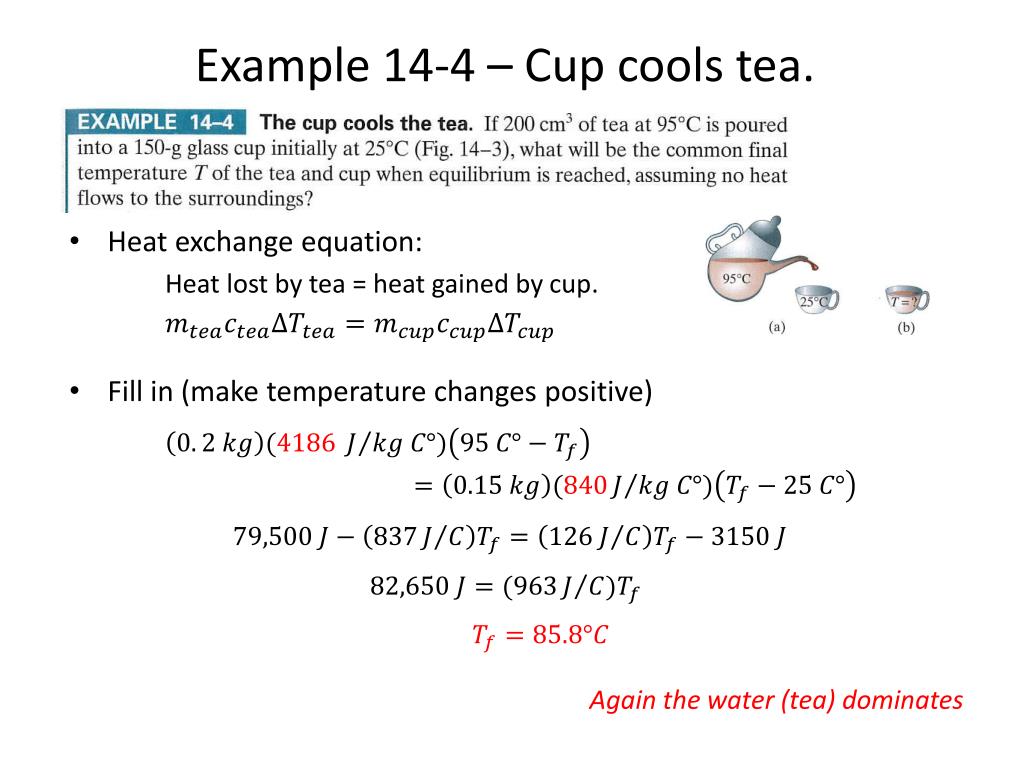

  10. Example 14-4 – Cup cools tea. • Heat exchange equation: Heat lost by tea = heat gained by cup. • Fill in (make temperature changes positive) Again the water (tea) dominates

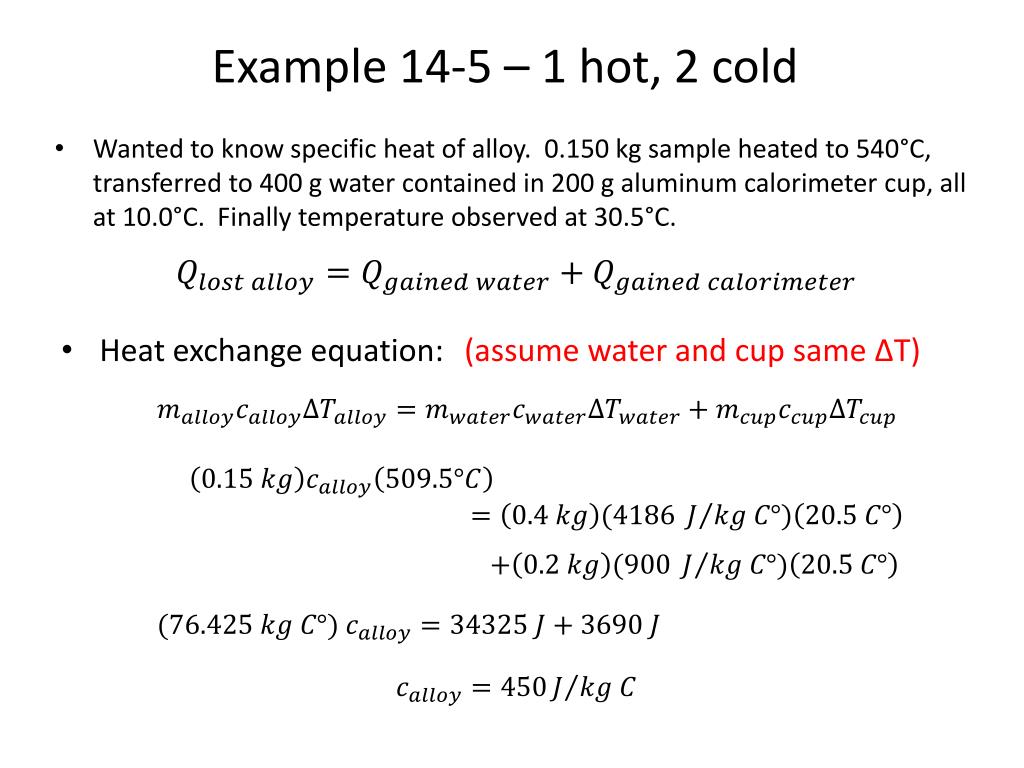

  11. Example 14-5 – 1 hot, 2 cold • Wanted to know specific heat of alloy. 0.150 kg sample heated to 540°C, transferred to 400 g water contained in 200 g aluminum calorimeter cup, all at 10.0°C. Finally temperature observed at 30.5°C. • Heat exchange equation: (assume water and cup same ΔT)

  12. Problem 11 – cold thermometer in hot water • Heat exchange equation: Heat lost by water = heat gained by thermometer • Fill in numbers:

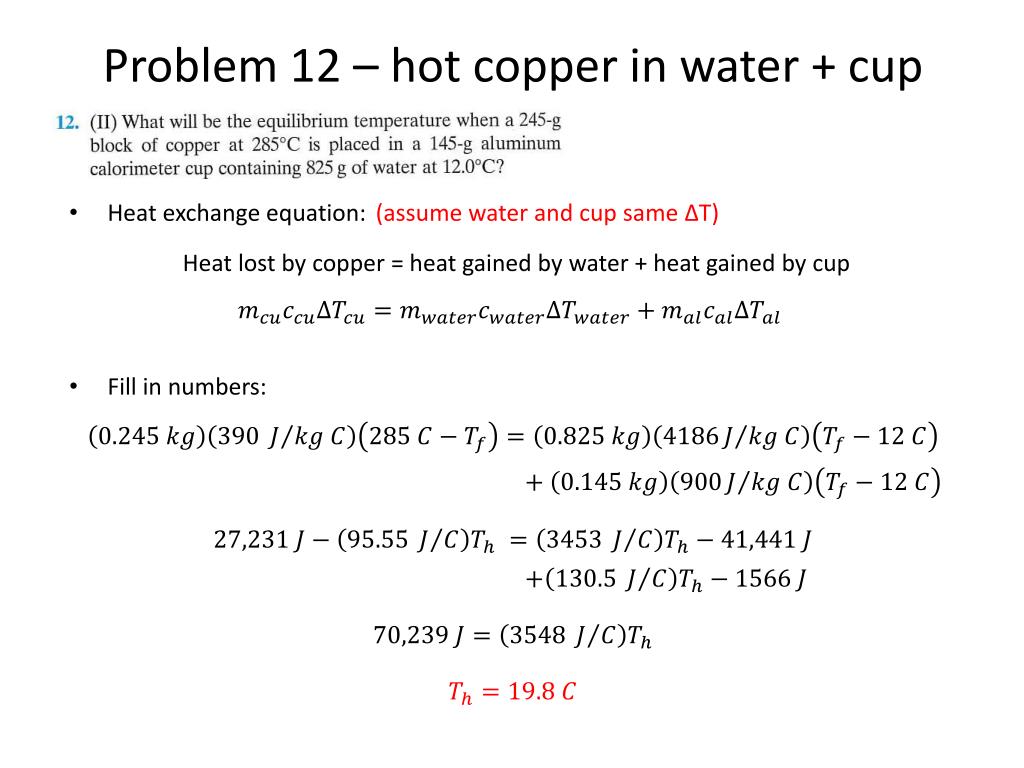

  13. Problem 12 – hot copper in water + cup • Heat exchange equation: (assume water and cup same ΔT) Heat lost by copper = heat gained by water + heat gained by cup • Fill in numbers:

  14. Problem 13 - hot iron in water + vat • Heat exchange equation: (assume water and vat same ΔT) Heat lost by horseshoe = heat gained by water + heat gained by vat • Fill in numbers:

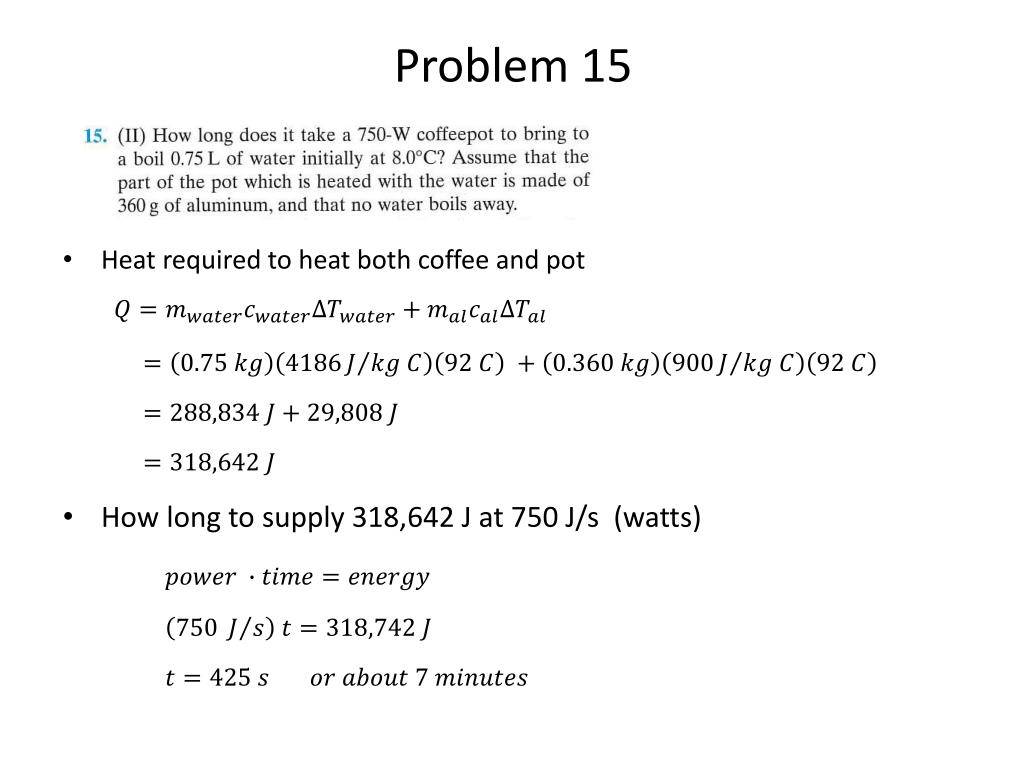

  15. Problem 15 • Heat required to heat both coffee and pot • How long to supply 318,642 J at 750 J/s (watts)
