Daemon Processes

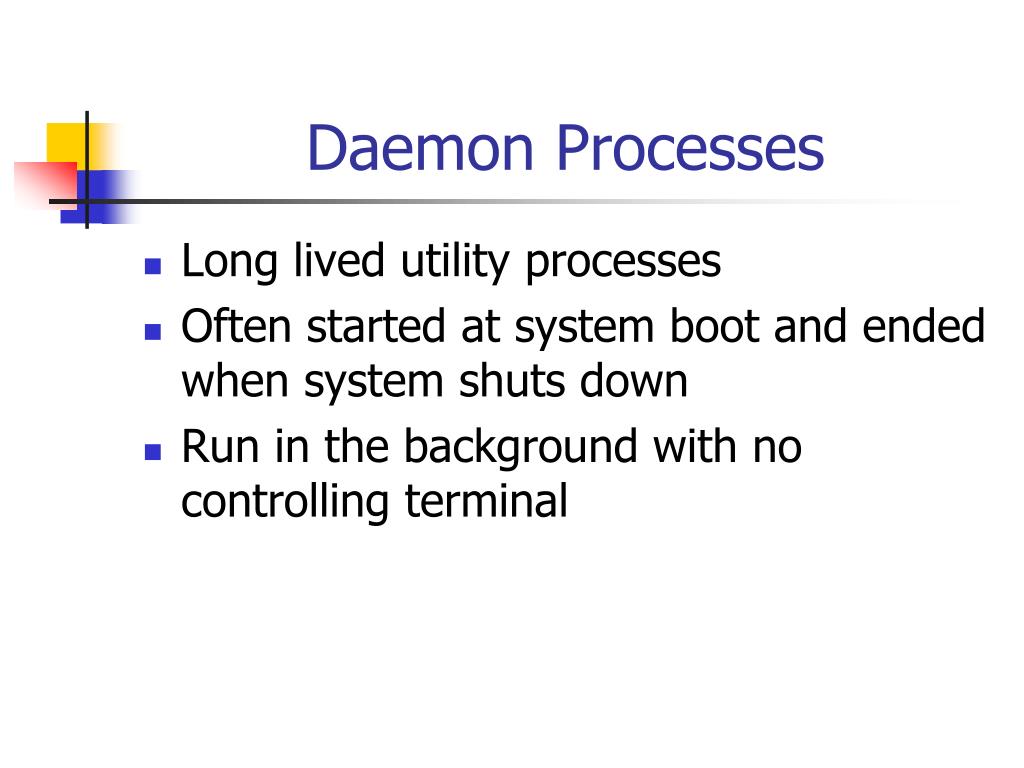

Daemon Processes • Long lived utility processes • Often started at system boot and ended when system shuts down • Run in the background with no controlling terminal

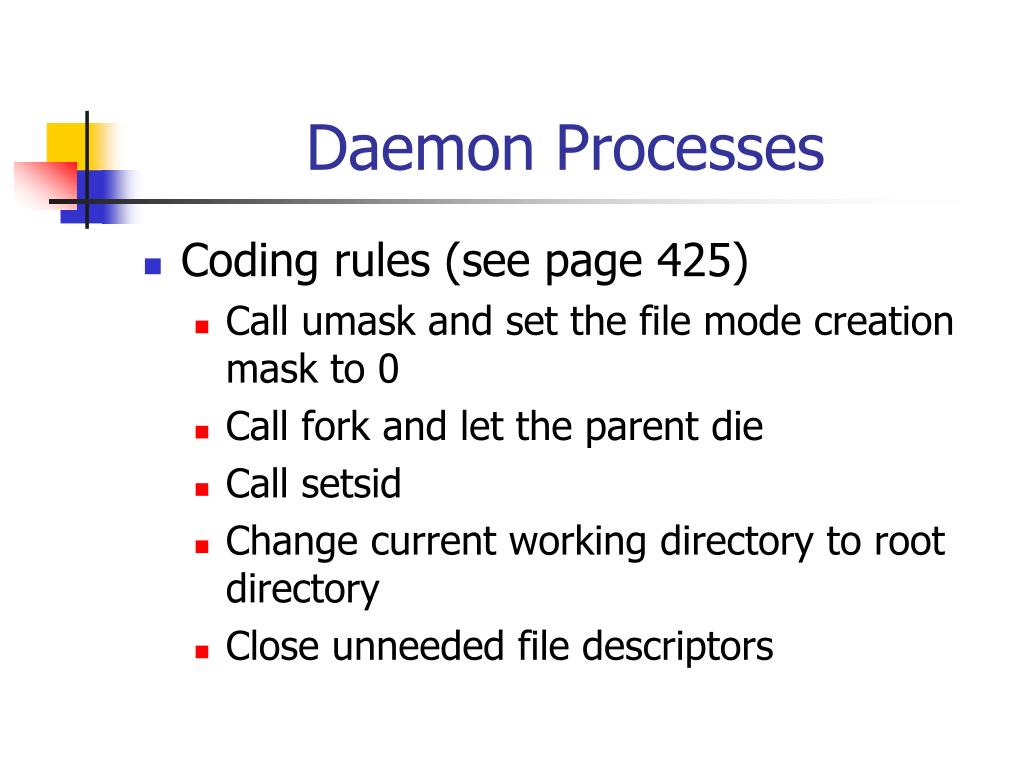

Daemon Processes • Coding rules (see page 425) • Call umask and set the file mode creation mask to 0 • Call fork and let the parent die • Call setsid • Change current working directory to root directory • Close unneeded file descriptors

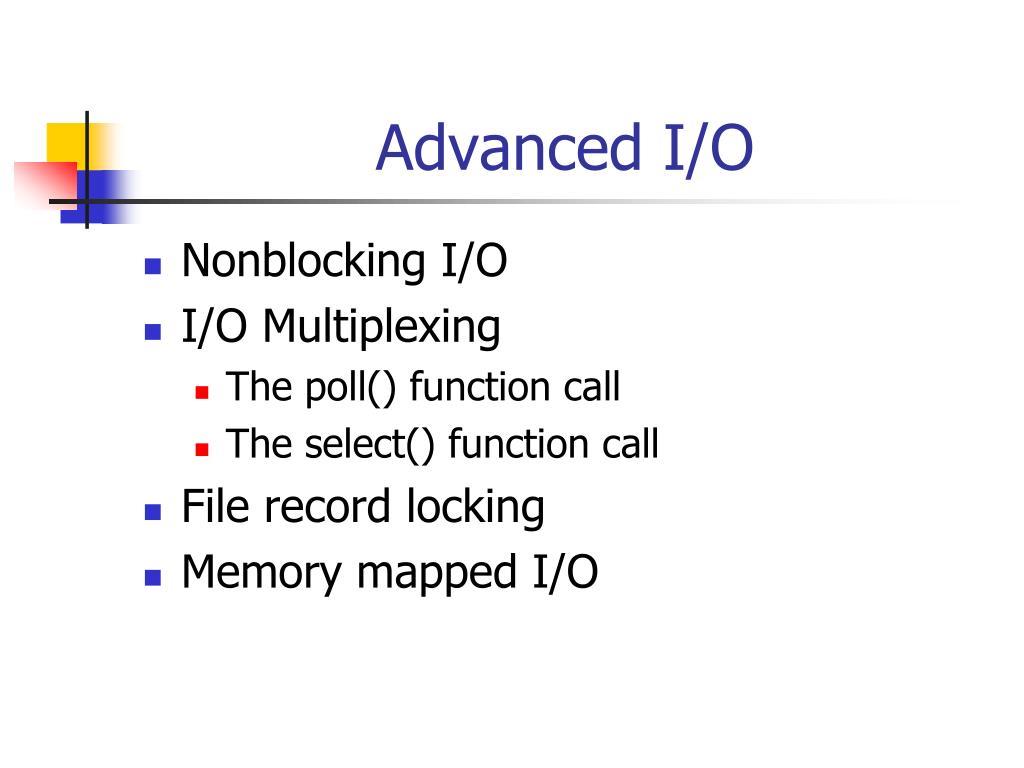

Advanced I/O • Nonblocking I/O • I/O Multiplexing • The poll() function call • The select() function call • File record locking • Memory mapped I/O

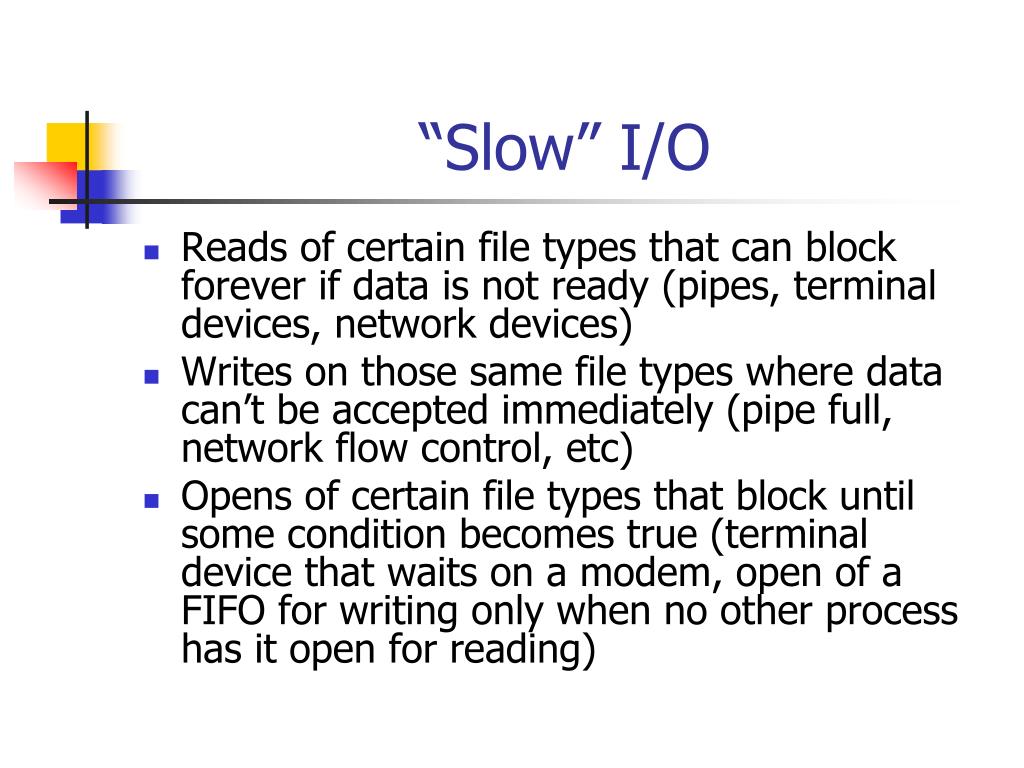

“Slow” I/O • Reads of certain file types that can block forever if data is not ready (pipes, terminal devices, network devices) • Writes on those same file types where data can’t be accepted immediately (pipe full, network flow control, etc) • Opens of certain file types that block until some condition becomes true (terminal device that waits on a modem, open of a FIFO for writing only when no other process has it open for reading)

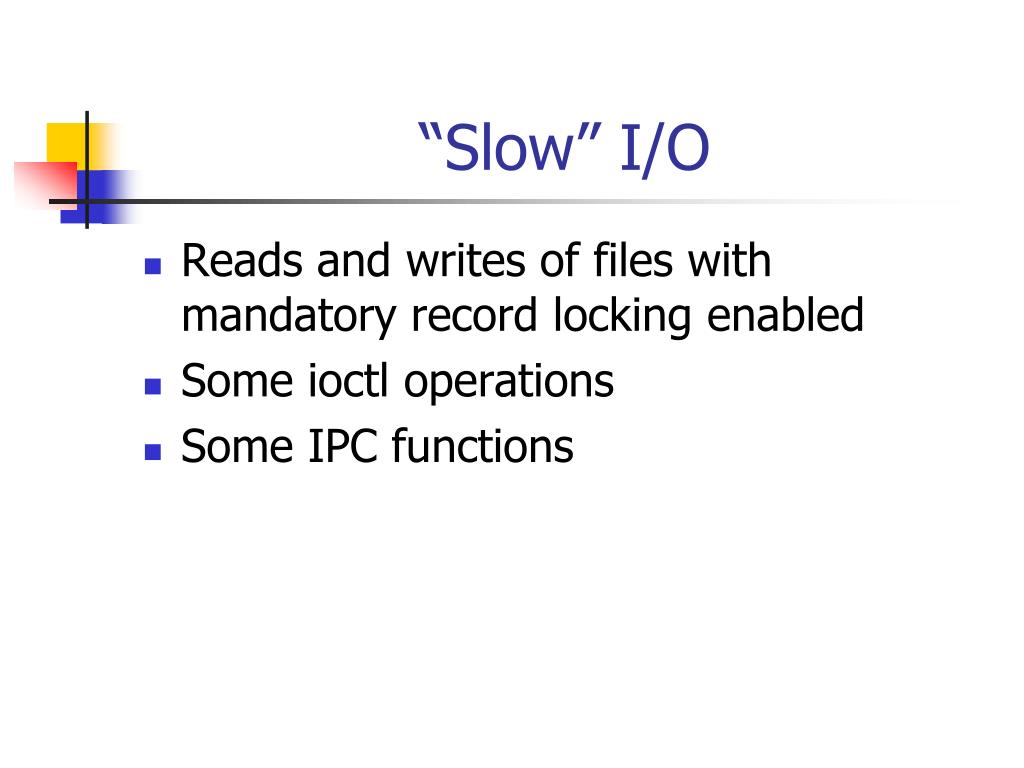

“Slow” I/O • Reads and writes of files with mandatory record locking enabled • Some ioctl operations • Some IPC functions

Nonblocking I/O • We can specify nonblocking I/O when we open a file by providing the O_NONBLOCK flagopen(file,O_RDONLY | O_NONBLOCK); • If the file is already open, we can use fcntl to set the O_NONBLOCK flag

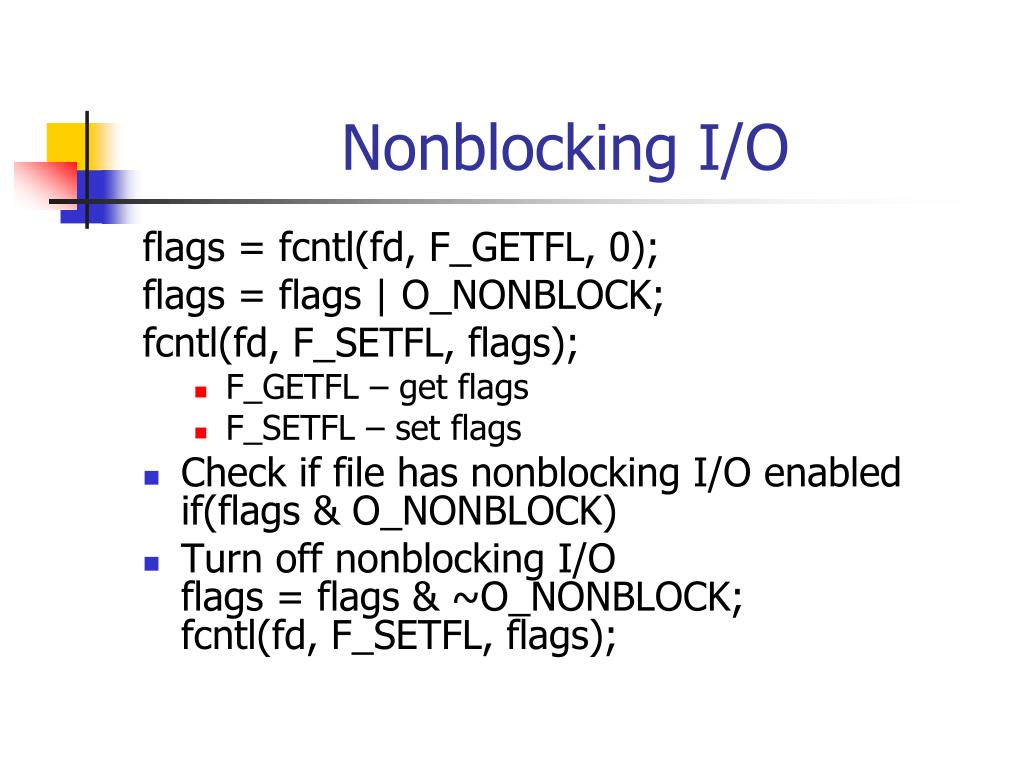

Nonblocking I/O flags = fcntl(fd, F_GETFL, 0); flags = flags | O_NONBLOCK; fcntl(fd, F_SETFL, flags); • F_GETFL – get flags • F_SETFL – set flags • Check if file has nonblocking I/O enabledif(flags & O_NONBLOCK) • Turn off nonblocking I/Oflags = flags & ~O_NONBLOCK;fcntl(fd, F_SETFL, flags);

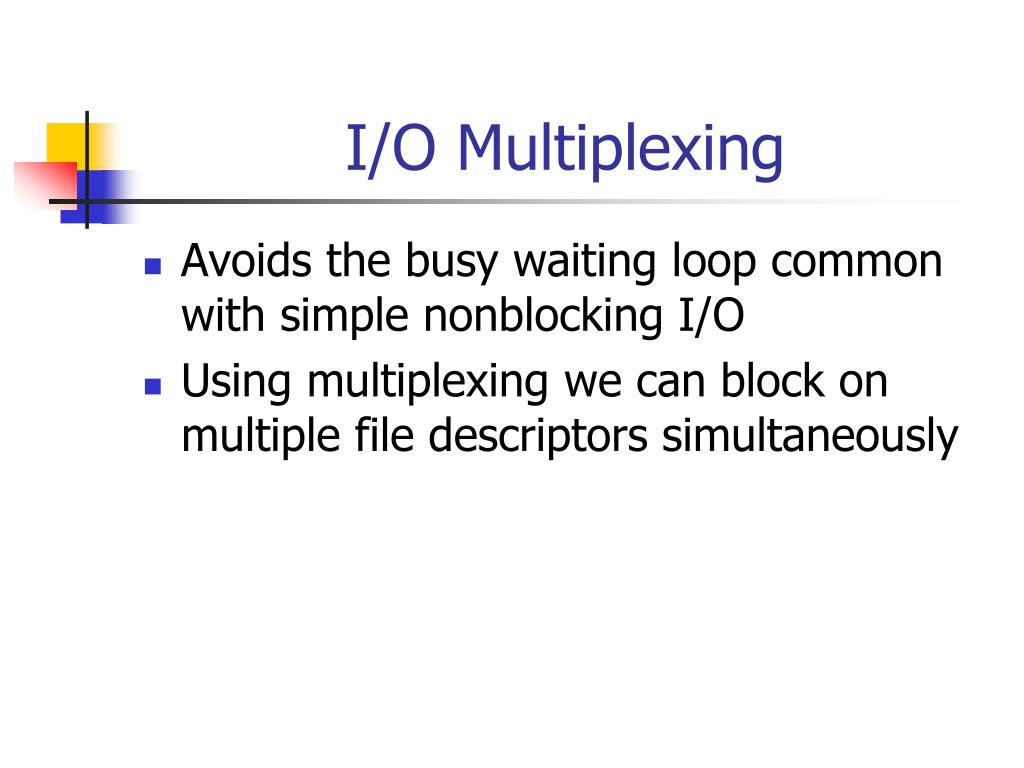

I/O Multiplexing • Avoids the busy waiting loop common with simple nonblocking I/O • Using multiplexing we can block on multiple file descriptors simultaneously

poll function int poll(struct pollfd *fds, nfds_t nfds, int timeout); struct pollfd { int fd; /* file descriptor */ short events; /* requested events */ short revents; /* returned events */ }; • fds is an array of pollfd elements • nfds is the number of elements in the array • timeout specifies how long the function should block • timeout = 0 – don’t block • timeout = -1 - wait forever • timeout > 0 - wait timeout miliseconds

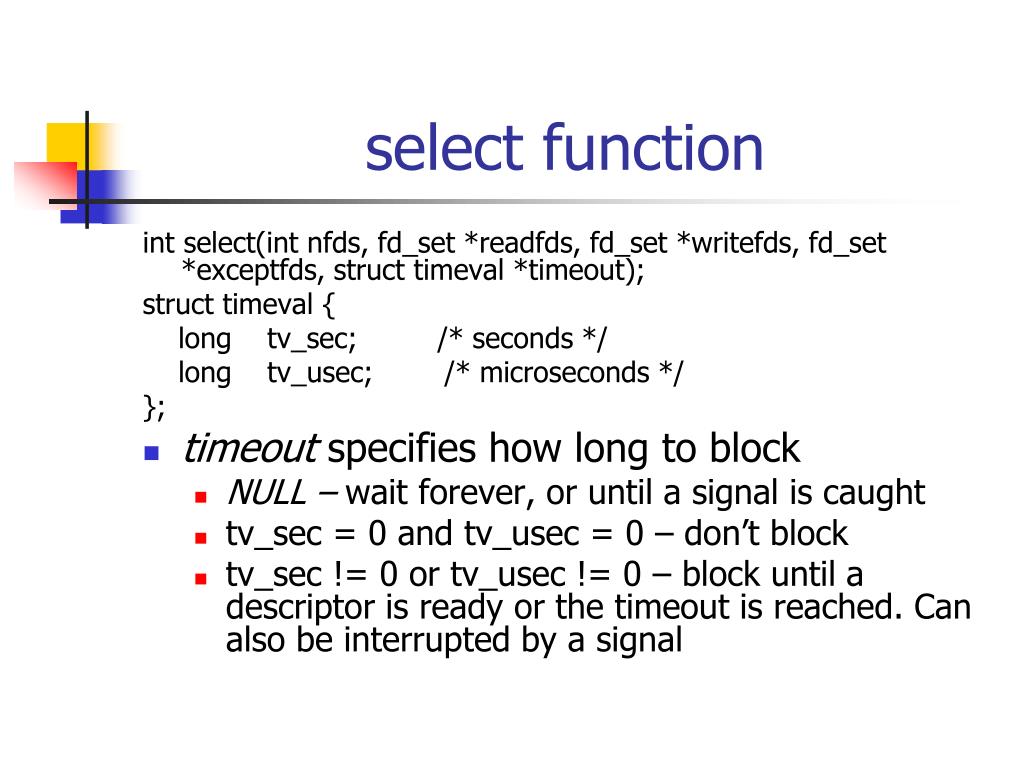

select function int select(int nfds, fd_set *readfds, fd_set *writefds, fd_set *exceptfds, struct timeval *timeout); struct timeval { long tv_sec; /* seconds */ long tv_usec; /* microseconds */ }; • timeout specifies how long to block • NULL – wait forever, or until a signal is caught • tv_sec = 0 and tv_usec = 0 – don’t block • tv_sec != 0 or tv_usec != 0 – block until a descriptor is ready or the timeout is reached. Can also be interrupted by a signal

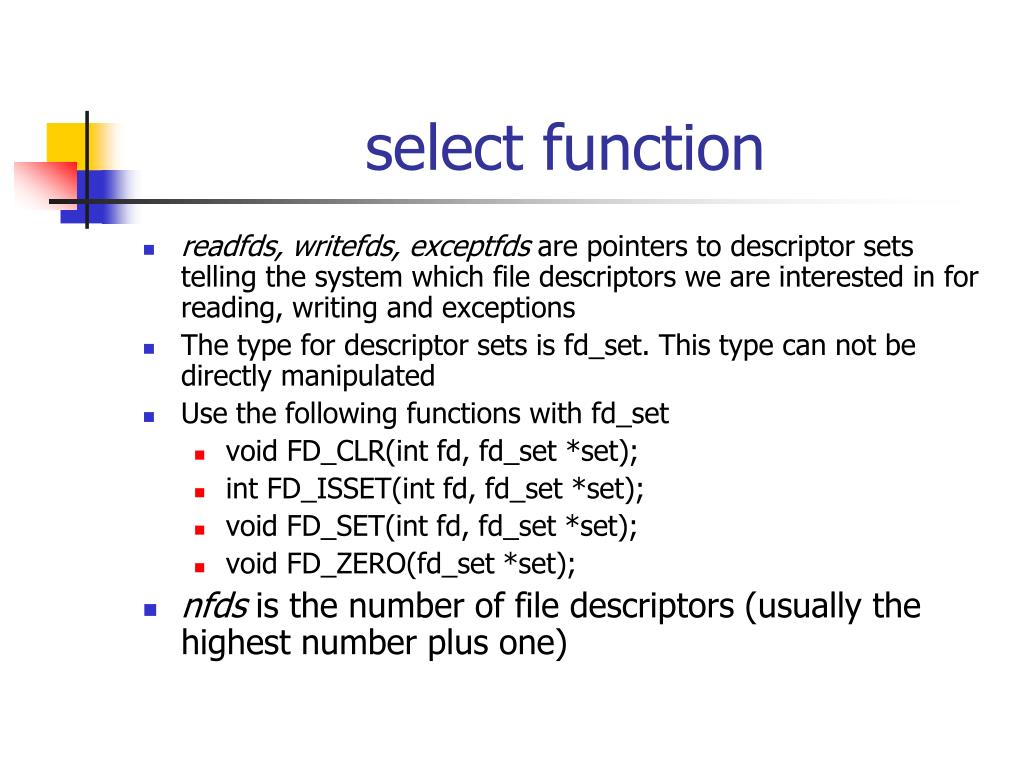

select function • readfds, writefds, exceptfds are pointers to descriptor sets telling the system which file descriptors we are interested in for reading, writing and exceptions • The type for descriptor sets is fd_set. This type can not be directly manipulated • Use the following functions with fd_set • void FD_CLR(int fd, fd_set *set); • int FD_ISSET(int fd, fd_set *set); • void FD_SET(int fd, fd_set *set); • void FD_ZERO(fd_set *set); • nfds is the number of file descriptors (usually the highest number plus one)

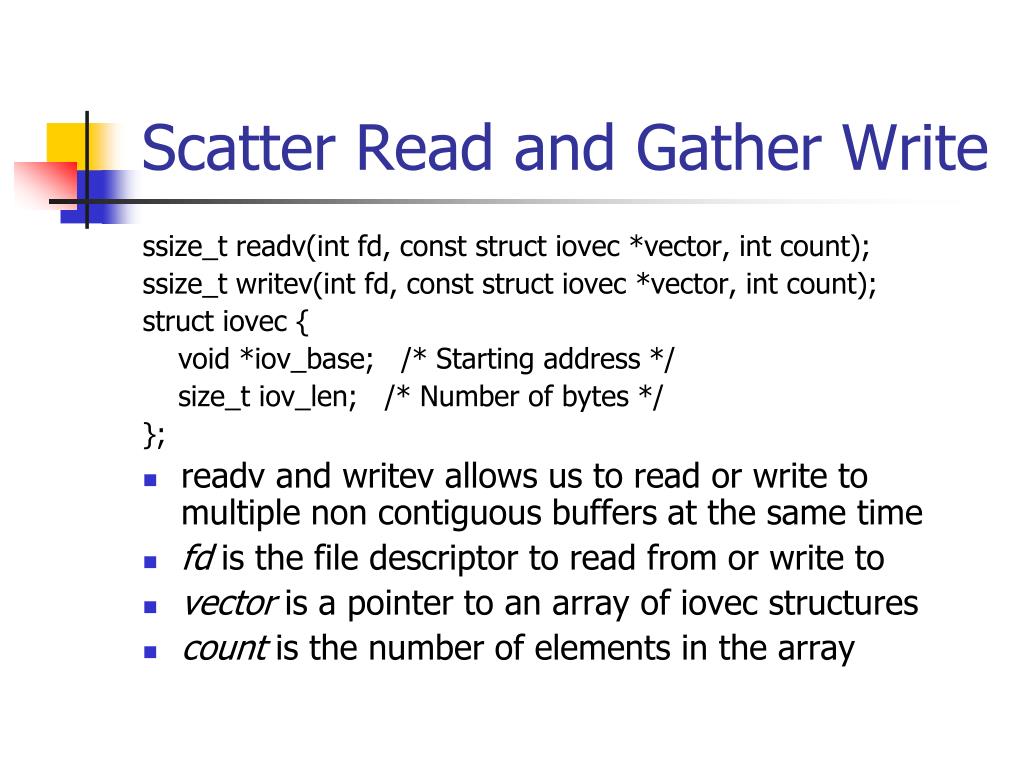

Scatter Read and Gather Write ssize_t readv(int fd, const struct iovec *vector, int count); ssize_t writev(int fd, const struct iovec *vector, int count); struct iovec { void *iov_base; /* Starting address */ size_t iov_len; /* Number of bytes */ }; • readv and writev allows us to read or write to multiple non contiguous buffers at the same time • fd is the file descriptor to read from or write to • vector is a pointer to an array of iovec structures • count is the number of elements in the array

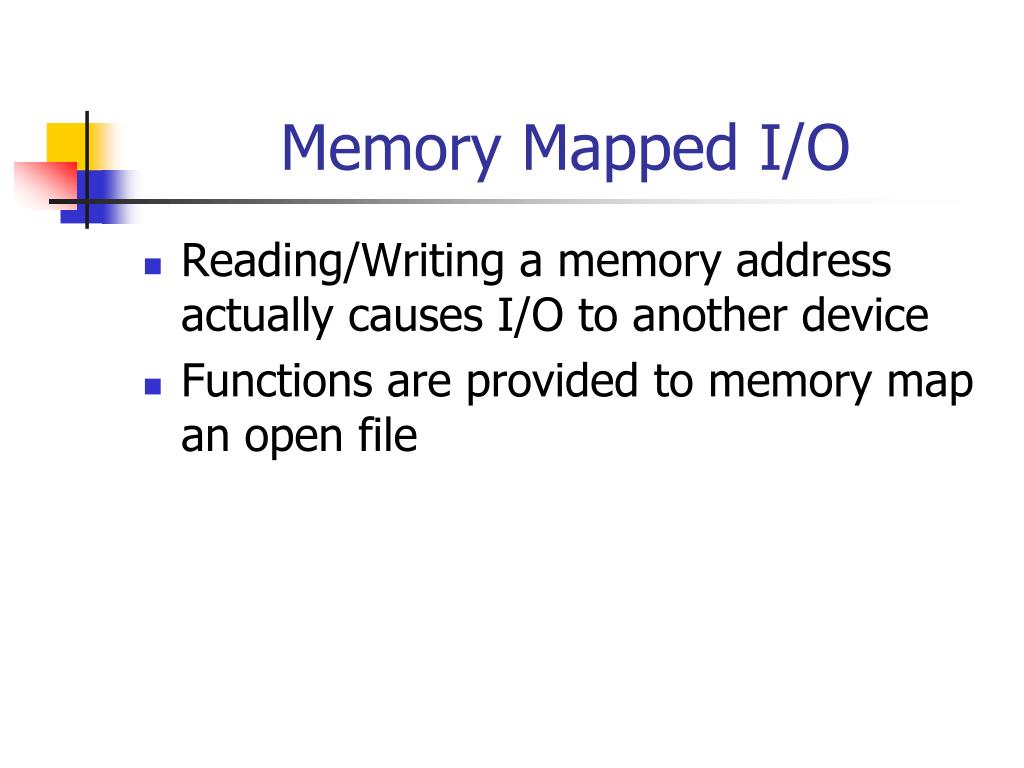

Memory Mapped I/O • Reading/Writing a memory address actually causes I/O to another device • Functions are provided to memory map an open file

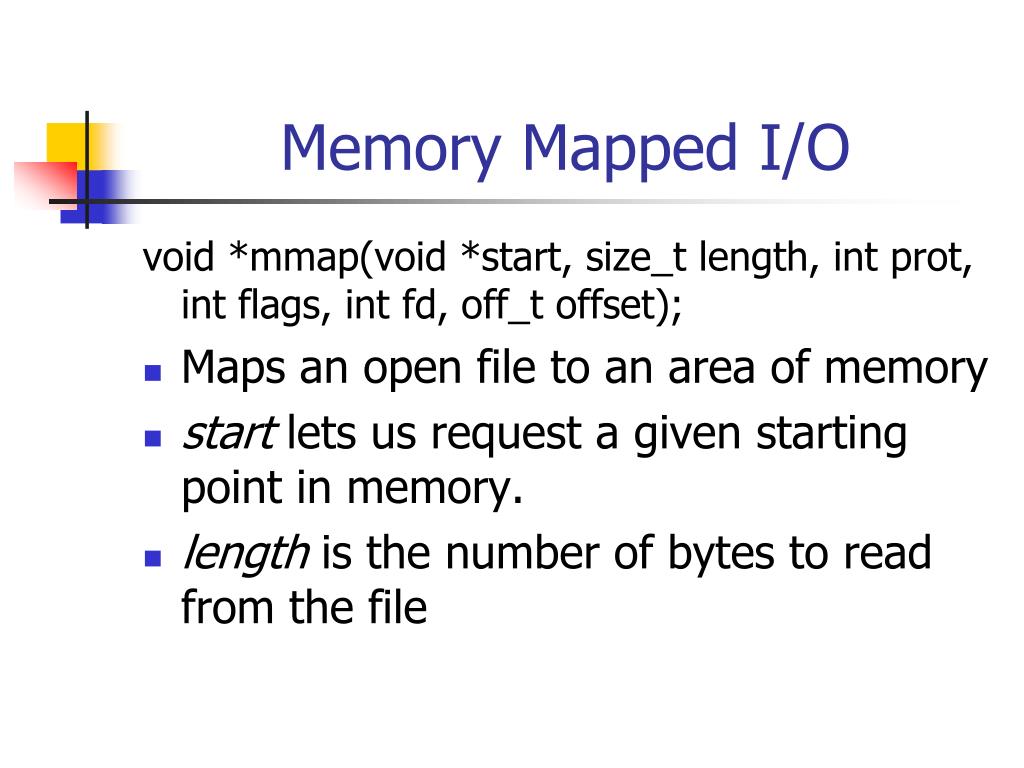

Memory Mapped I/O void *mmap(void *start, size_t length, int prot, int flags, int fd, off_t offset); • Maps an open file to an area of memory • start lets us request a given starting point in memory. • length is the number of bytes to read from the file

Memory Mapped I/O • offset is the location within the file to begin • fd is the file descriptor to be mapped • prot specifies the protection of the mapped region • PROT_READ - region can be read • PROT_WRITE – region can be written • PROT_EXEC – region can be executed • PROT_NONE – region cannot be accessed • flags – sets attributes of the mapped region. See page 488 for values and descriptions

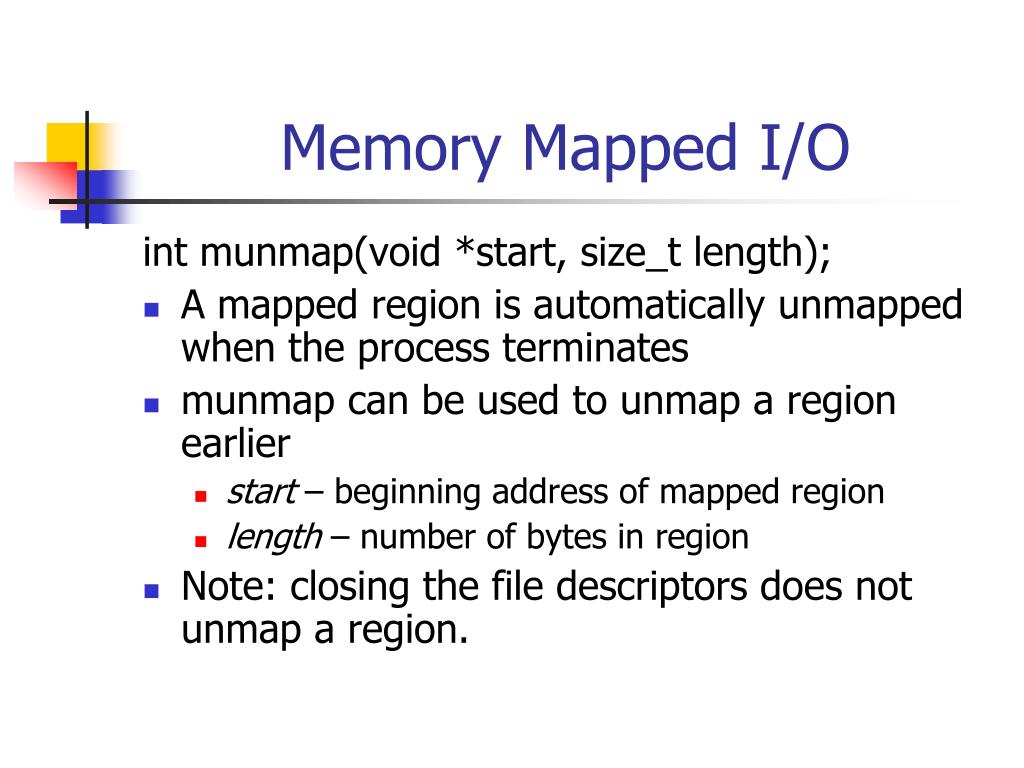

Memory Mapped I/O int munmap(void *start, size_t length); • A mapped region is automatically unmapped when the process terminates • munmap can be used to unmap a region earlier • start – beginning address of mapped region • length – number of bytes in region • Note: closing the file descriptors does not unmap a region.

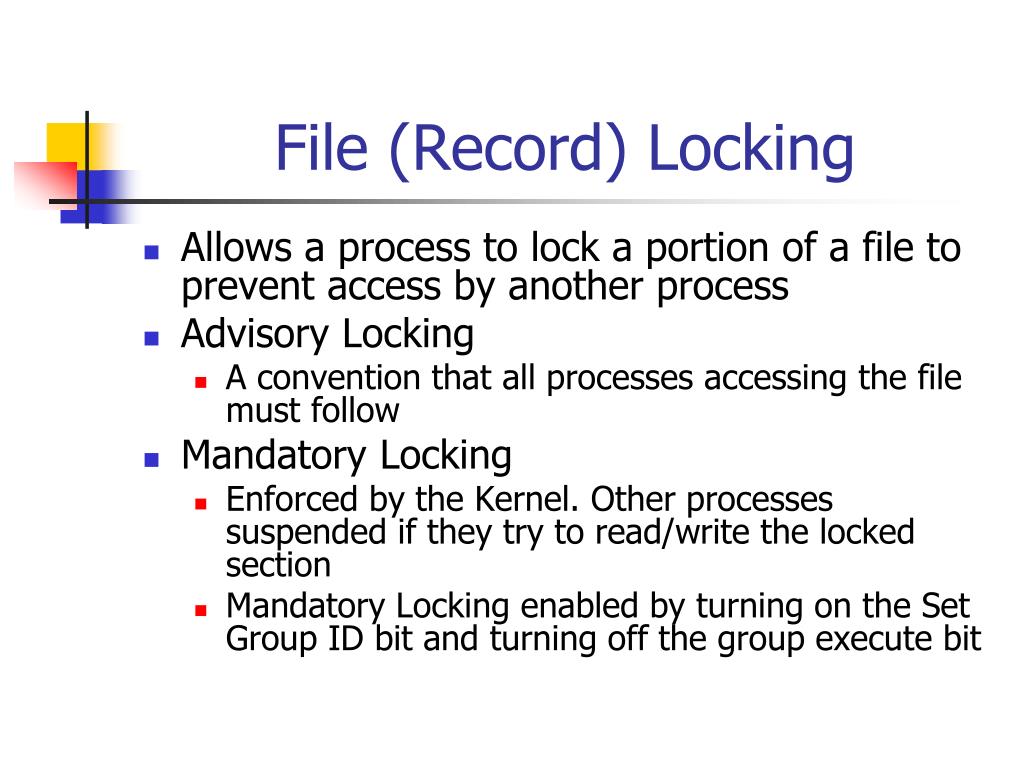

File (Record) Locking • Allows a process to lock a portion of a file to prevent access by another process • Advisory Locking • A convention that all processes accessing the file must follow • Mandatory Locking • Enforced by the Kernel. Other processes suspended if they try to read/write the locked section • Mandatory Locking enabled by turning on the Set Group ID bit and turning off the group execute bit

File (Record) Locking • Locking Functions • lockf - System V • flock – BSD • fcntl - POSIX

fcntl Record Locking int fcntl(int fd, int cmd, struct flock *lock); struct flock { short l_type; short l_whence; off_t l_start; off_t l_len; pid_t l_pid; }; • fd an open file descriptor

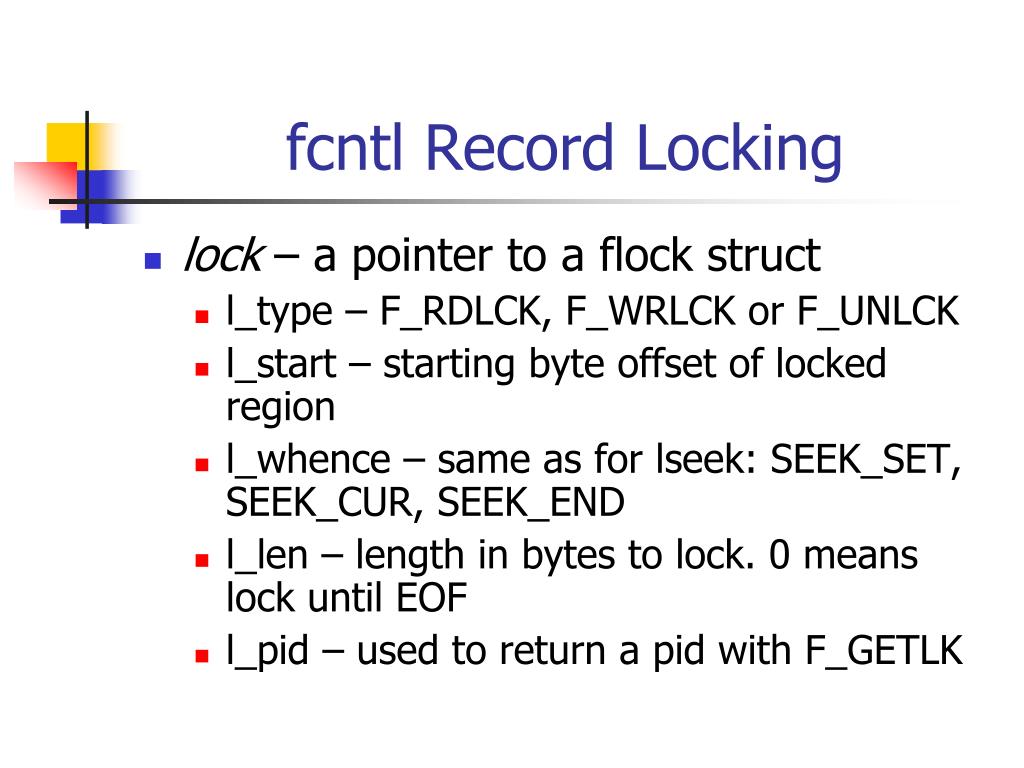

fcntl Record Locking • lock – a pointer to a flock struct • l_type – F_RDLCK, F_WRLCK or F_UNLCK • l_start – starting byte offset of locked region • l_whence – same as for lseek: SEEK_SET, SEEK_CUR, SEEK_END • l_len – length in bytes to lock. 0 means lock until EOF • l_pid – used to return a pid with F_GETLK

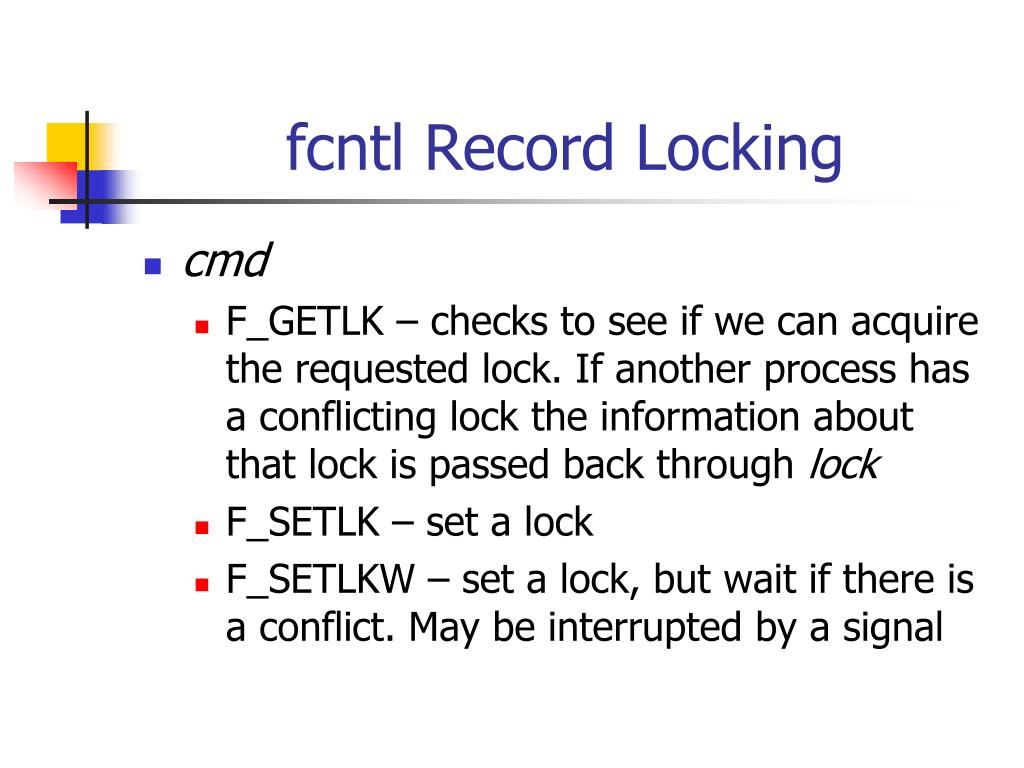

fcntl Record Locking • cmd • F_GETLK – checks to see if we can acquire the requested lock. If another process has a conflicting lock the information about that lock is passed back through lock • F_SETLK – set a lock • F_SETLKW – set a lock, but wait if there is a conflict. May be interrupted by a signal

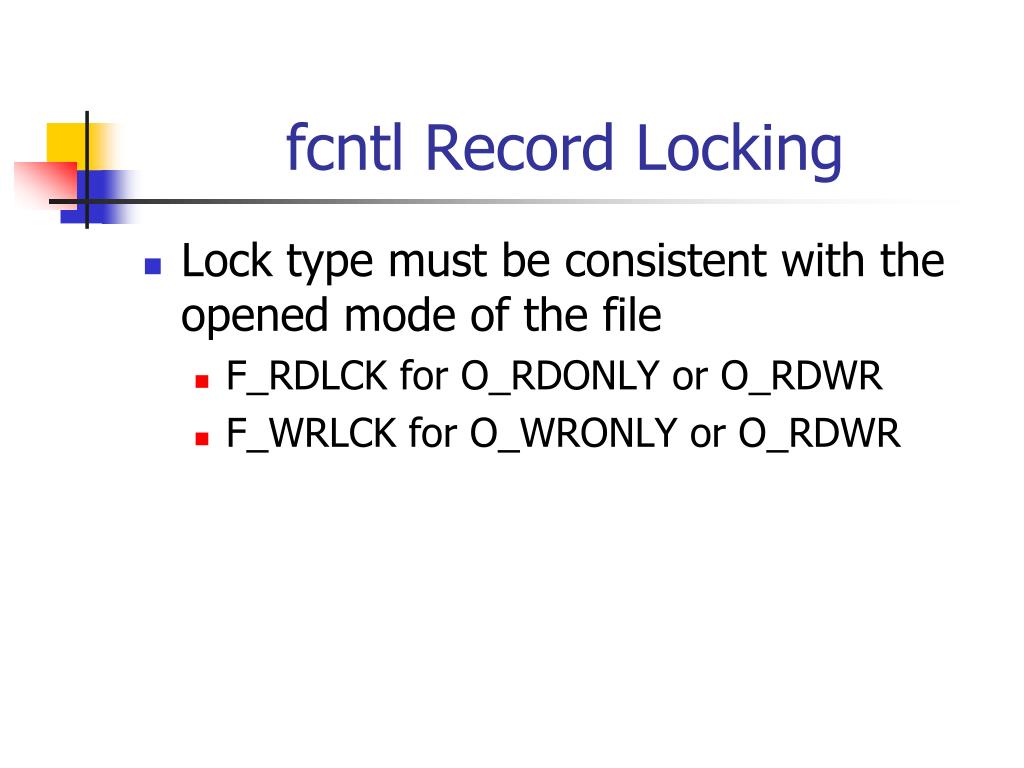

fcntl Record Locking • Lock type must be consistent with the opened mode of the file • F_RDLCK for O_RDONLY or O_RDWR • F_WRLCK for O_WRONLY or O_RDWR

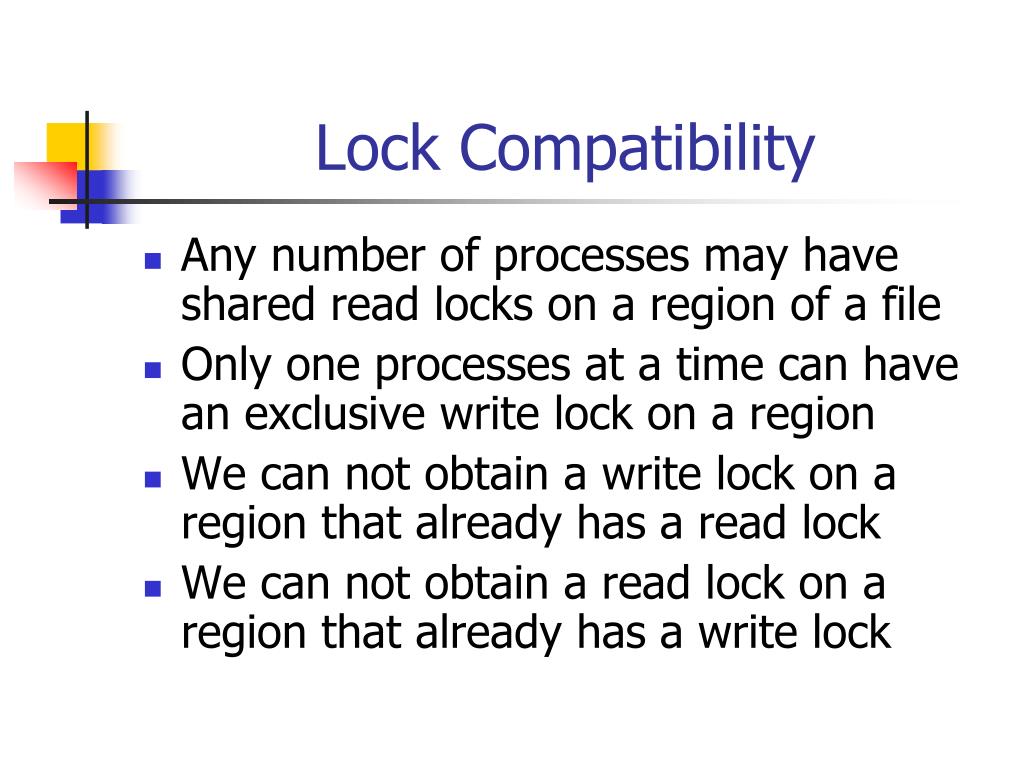

Lock Compatibility • Any number of processes may have shared read locks on a region of a file • Only one processes at a time can have an exclusive write lock on a region • We can not obtain a write lock on a region that already has a read lock • We can not obtain a read lock on a region that already has a write lock

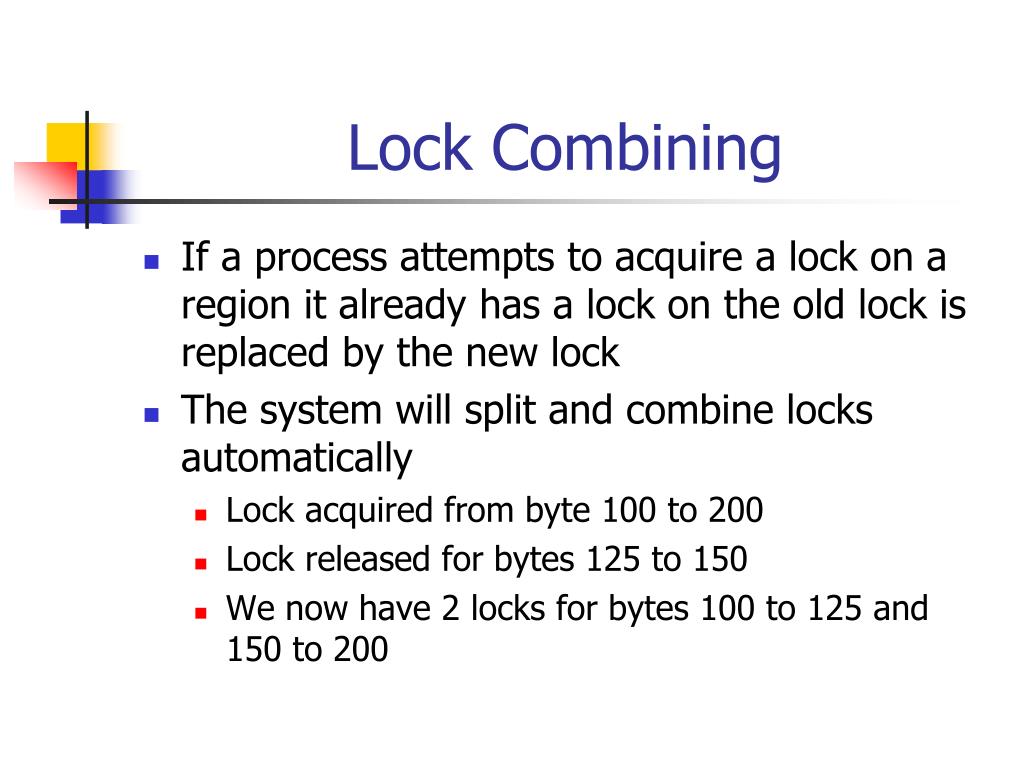

Lock Combining • If a process attempts to acquire a lock on a region it already has a lock on the old lock is replaced by the new lock • The system will split and combine locks automatically • Lock acquired from byte 100 to 200 • Lock released for bytes 125 to 150 • We now have 2 locks for bytes 100 to 125 and 150 to 200

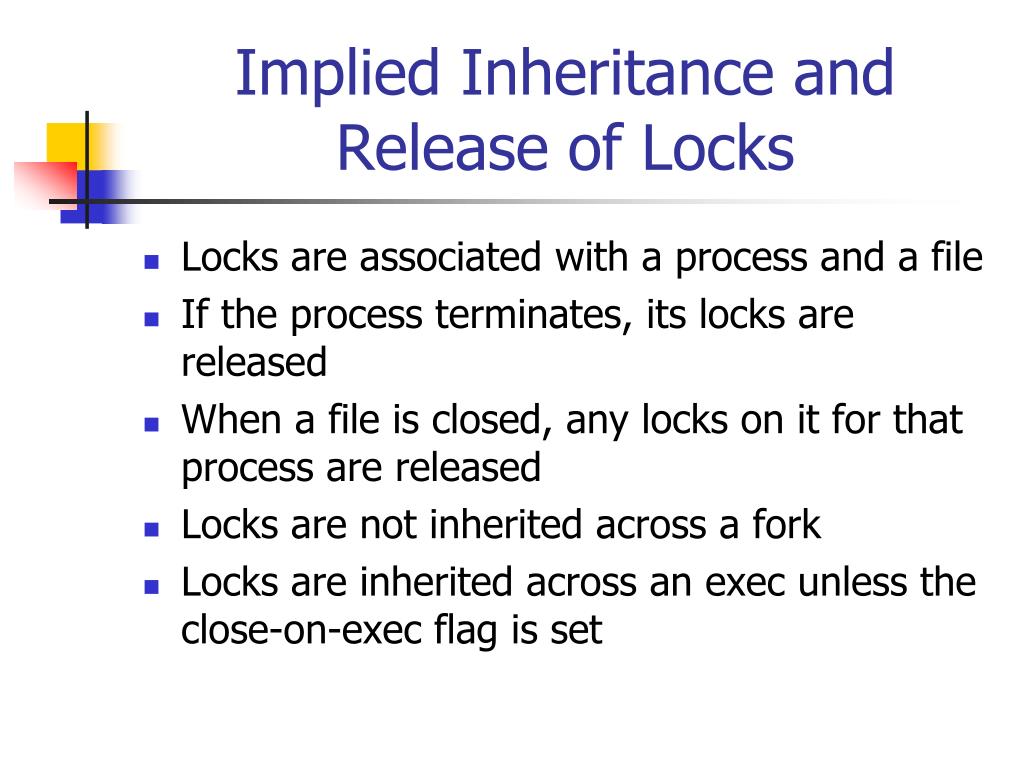

Implied Inheritance and Release of Locks • Locks are associated with a process and a file • If the process terminates, its locks are released • When a file is closed, any locks on it for that process are released • Locks are not inherited across a fork • Locks are inherited across an exec unless the close-on-exec flag is set
