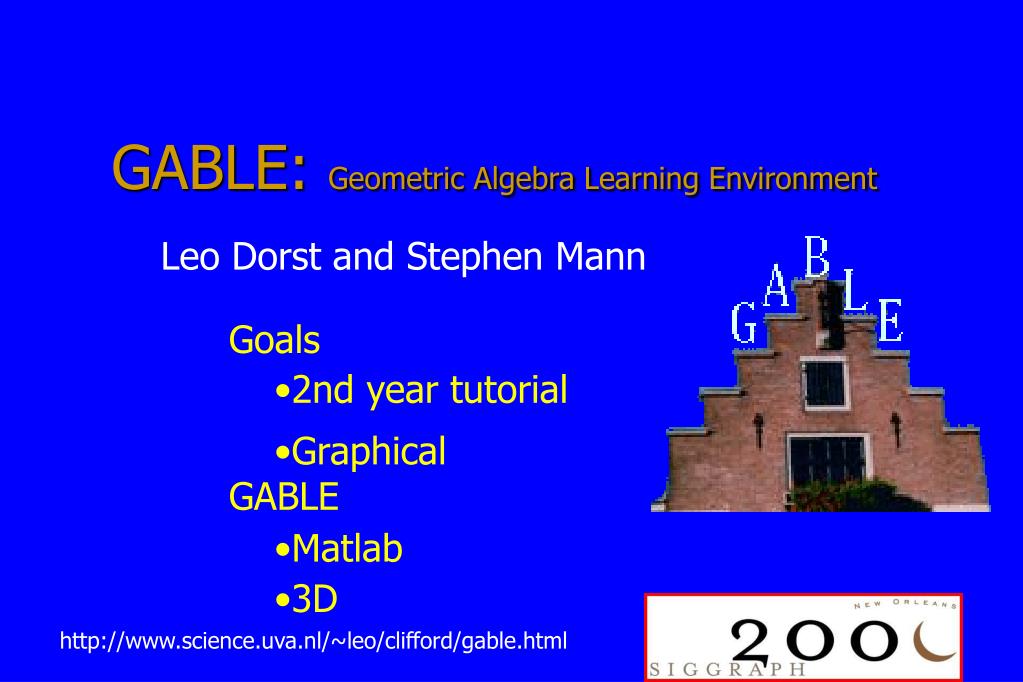

  1. GABLE: Geometric Algebra Learning Environment Leo Dorst and Stephen Mann Goals • 2nd year tutorial • Graphical GABLE • Matlab • 3D http://www.science.uva.nl/~leo/clifford/gable.html

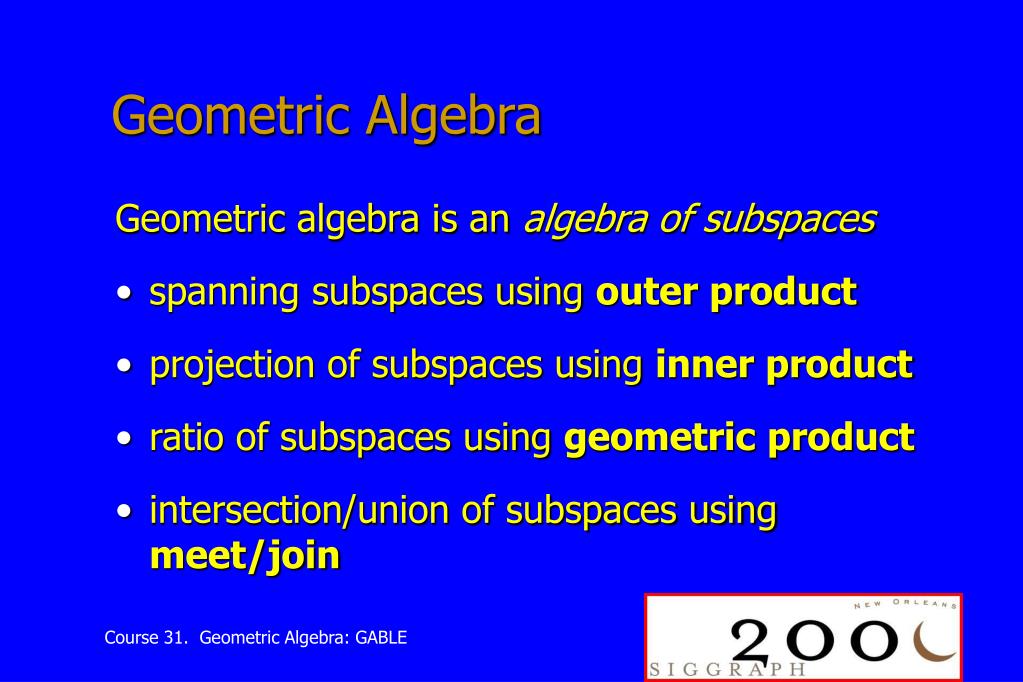

  2. Geometric Algebra Geometric algebra is an algebra of subspaces • spanning subspaces using outer product • projection of subspaces using inner product • ratio of subspaces using geometric product • intersection/union of subspaces using meet/join Course 31. Geometric Algebra: GABLE

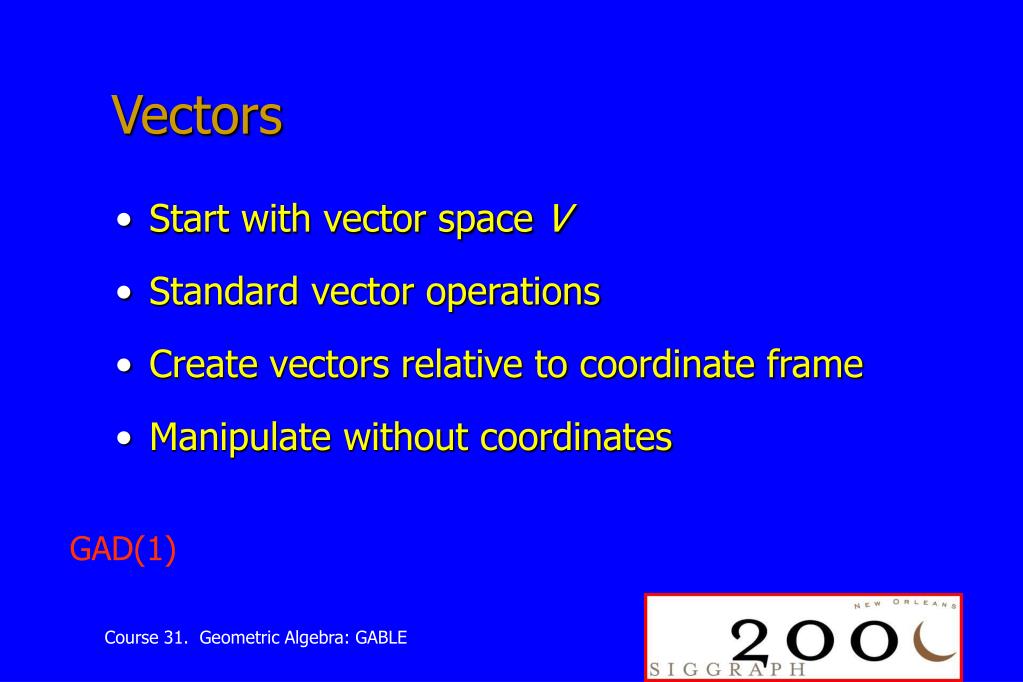

  3. Vectors • Start with vector space V • Standard vector operations • Create vectors relative to coordinate frame • Manipulate without coordinates GAD(1) Course 31. Geometric Algebra: GABLE

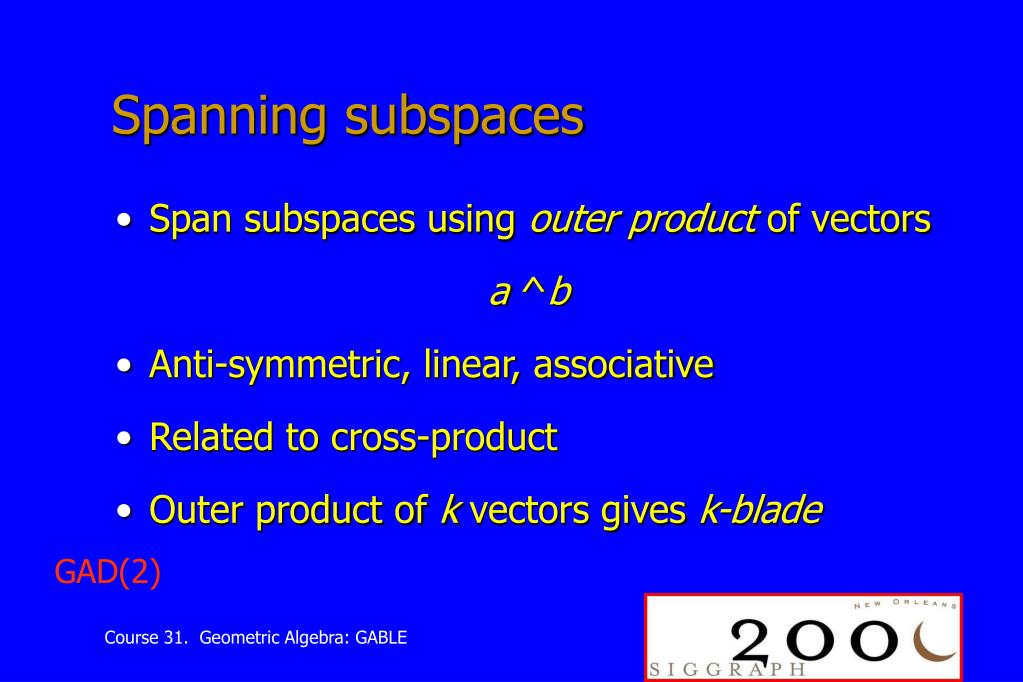

  4. Spanning subspaces • Span subspaces using outer product of vectors a ^b • Anti-symmetric, linear, associative • Related to cross-product • Outer product of k vectors gives k-blade GAD(2) Course 31. Geometric Algebra: GABLE

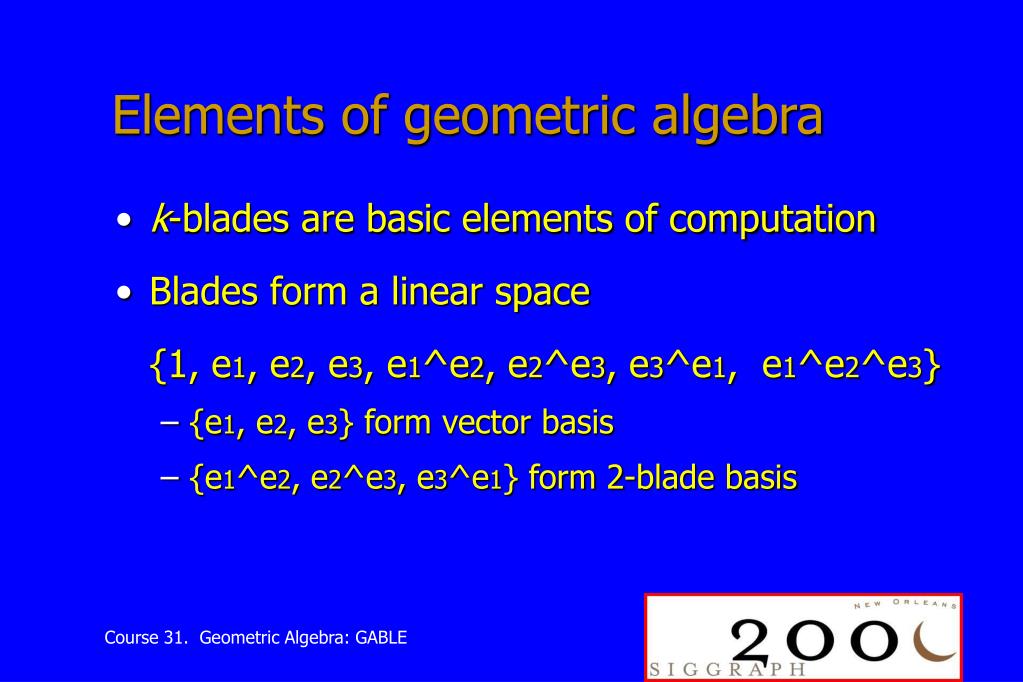

  5. Elements of geometric algebra • k-blades are basic elements of computation • Blades form a linear space • {1, e1, e2, e3, e1^e2, e2^e3, e3^e1, e1^e2^e3} • {e1, e2, e3} form vector basis • {e1^e2, e2^e3, e3^e1} form 2-blade basis Course 31. Geometric Algebra: GABLE

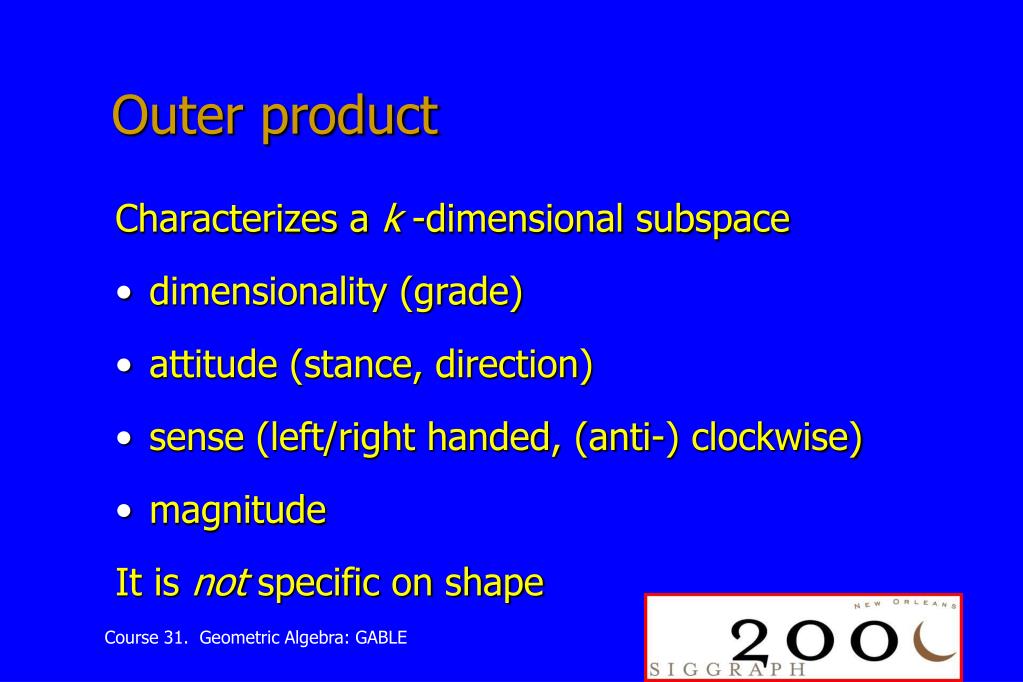

  6. Outer product Characterizes a k -dimensional subspace • dimensionality (grade) • attitude (stance, direction) • sense (left/right handed, (anti-) clockwise) • magnitude It is not specific on shape Course 31. Geometric Algebra: GABLE

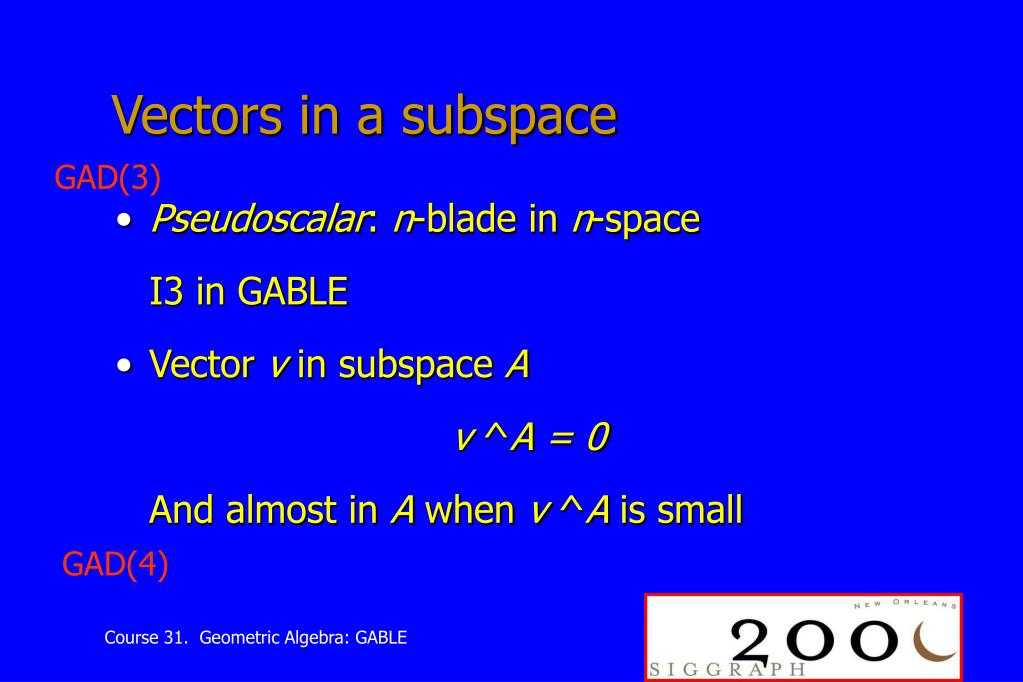

  7. Vectors in a subspace GAD(3) • Pseudoscalar: n-blade in n-space • I3 in GABLE • Vector v in subspace A v ^A = 0 • And almost in A when v ^A is small GAD(4) Course 31. Geometric Algebra: GABLE

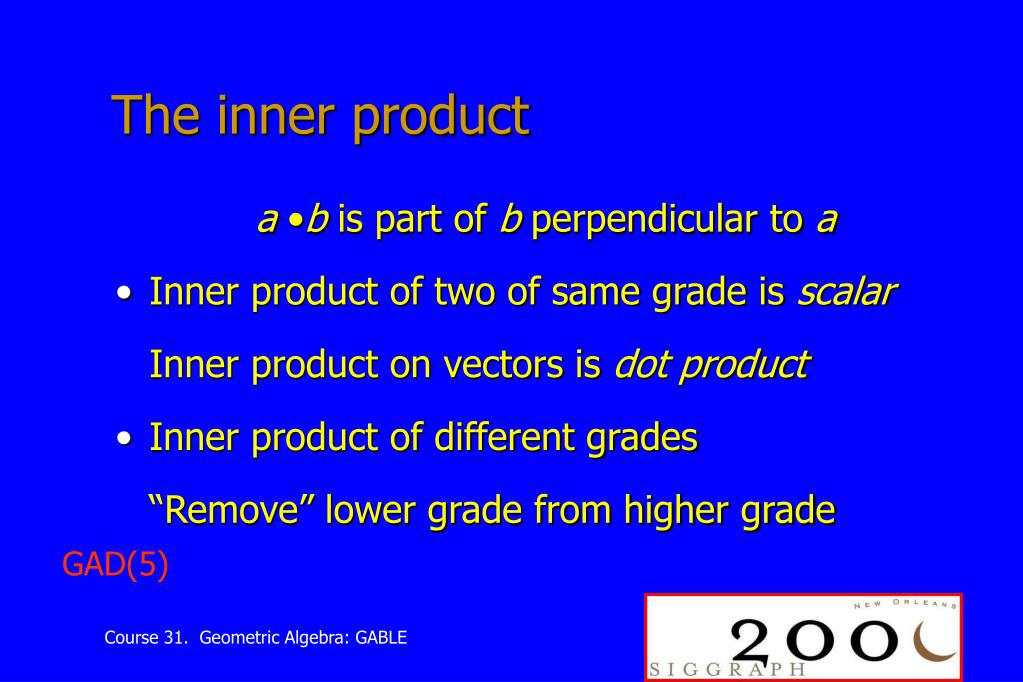

  8. The inner product • a •b is part of b perpendicular to a • Inner product of two of same grade is scalar • Inner product on vectors is dot product • Inner product of different grades • “Remove” lower grade from higher grade GAD(5) Course 31. Geometric Algebra: GABLE

  9. Duality • All elements have duals • Dual(b): b •I3 • Tangent plane • 2-blade vs normal vector: duals GAD(6) Course 31. Geometric Algebra: GABLE

  10. Inner and outer products • Given: a, x •a, x ^a • Compute x a x ^a x •a Course 31. Geometric Algebra: GABLE

  11. The geometric product • Geometric product of vectors a,b : ab = a •b + a ^b • a,b vectors is a scalar+bivector (!) • Can be extended to bivectors, etc. • Linear, associative GAD(7) Course 31. Geometric Algebra: GABLE

  12. Division • Non-null geometric elements have inverses • In expression ab, can multiply by inverse of b to get a • Will use ‘/’ to denote right multiplication by inverse Course 31. Geometric Algebra: GABLE

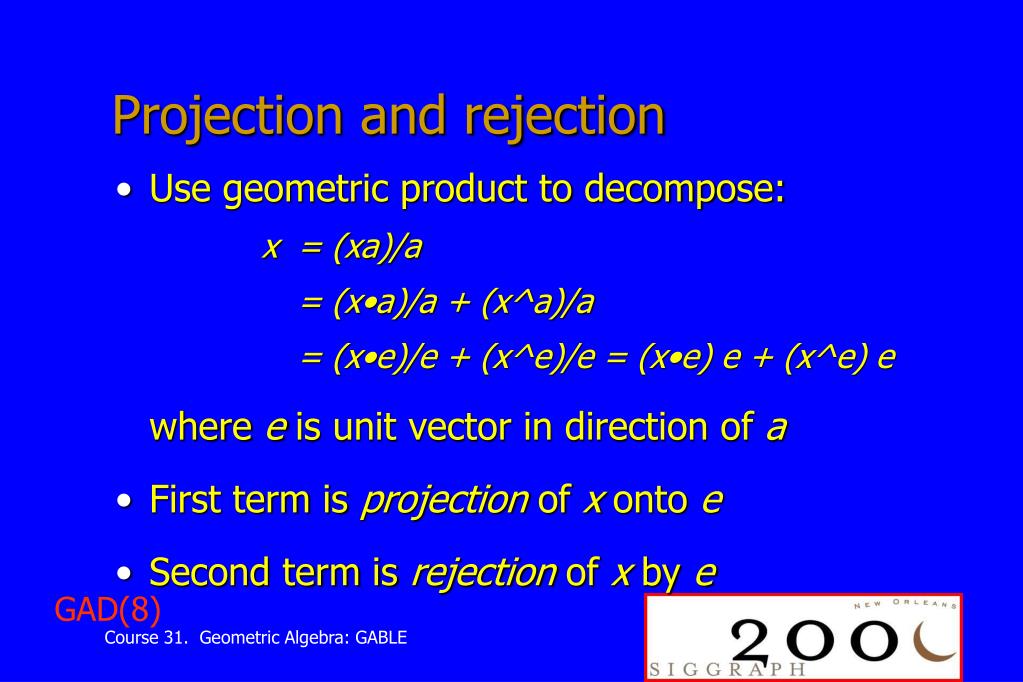

  13. Projection and rejection • Use geometric product to decompose: • x = (xa)/a • = (x•a)/a + (x^a)/a • = (x•e)/e + (x^e)/e = (x•e) e + (x^e) e • where e is unit vector in direction of a • First term is projection of x onto e • Second term is rejection of x by e GAD(8) Course 31. Geometric Algebra: GABLE

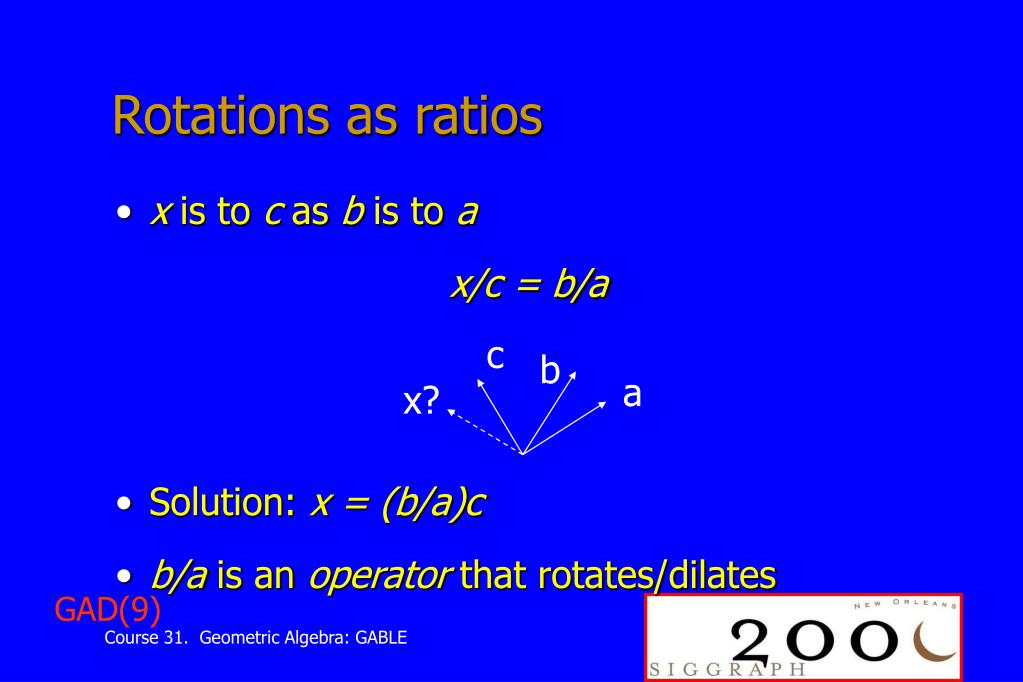

  14. c b a x? Rotations as ratios • x is to c as b is to a x/c = b/a • Solution: x = (b/a)c • b/a is an operator that rotates/dilates GAD(9) Course 31. Geometric Algebra: GABLE

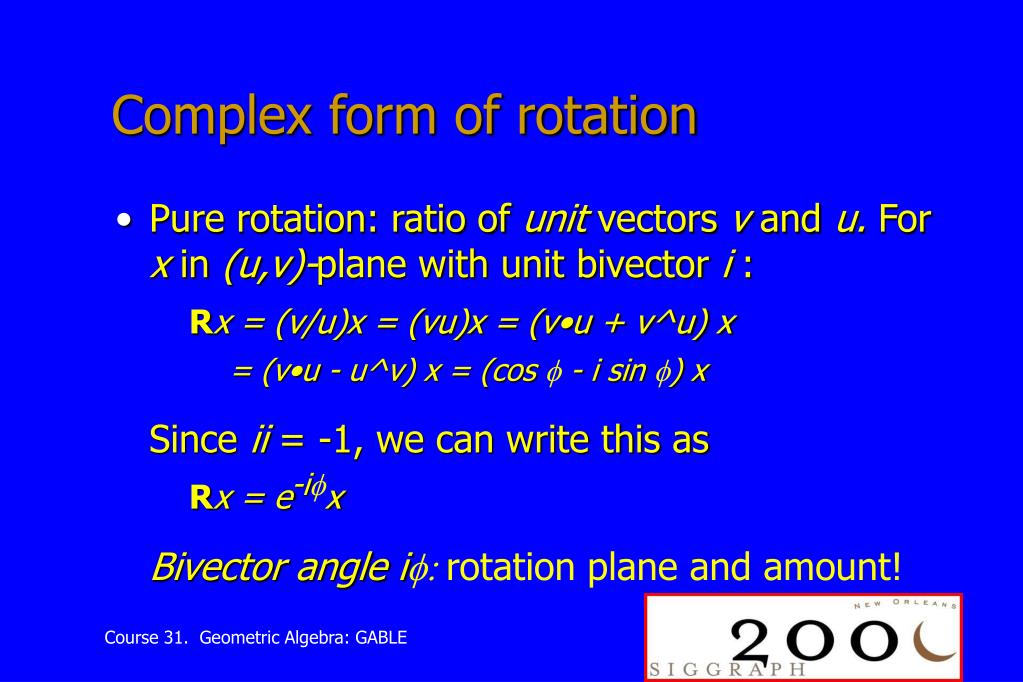

  15. Complex form of rotation • Pure rotation: ratio of unit vectors v and u. For x in (u,v)-plane with unit bivector i : • Rx = (v/u)x = (vu)x = (v•u + v^u) x • = (v•u - u^v) x = (cos f - i sin f) x • Since ii = -1, we can write this as • Rx = e-ifx • Bivector angle if: rotation plane and amount! Course 31. Geometric Algebra: GABLE

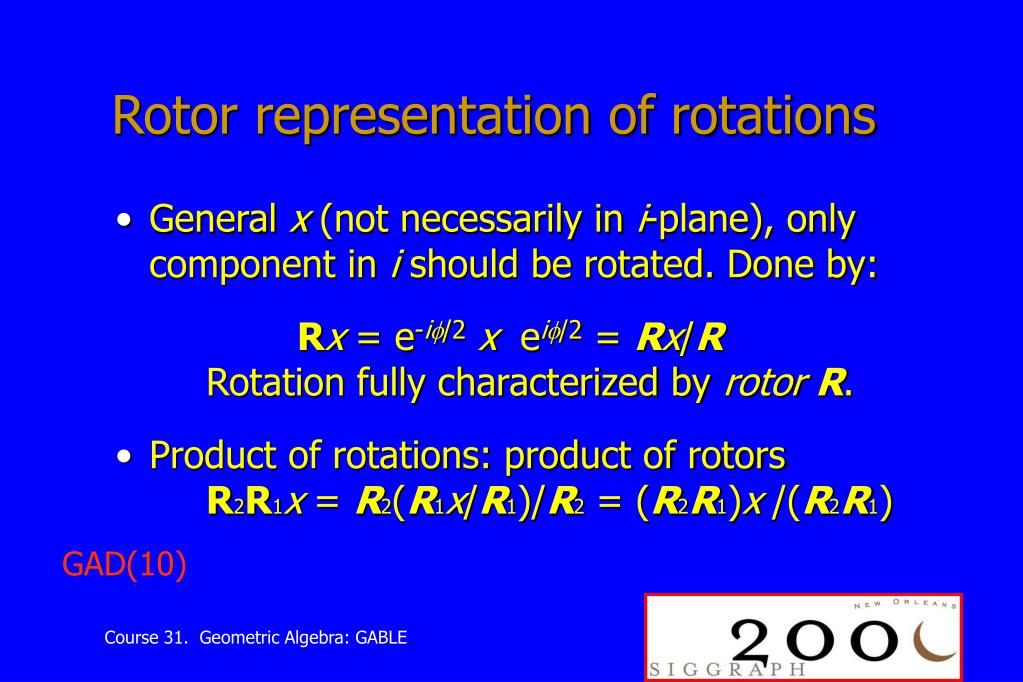

  16. Rotor representation of rotations • General x (not necessarily in i-plane), only component in i should be rotated. Done by: Rx = e-if/2x eif/2 = Rx/R Rotation fully characterized by rotorR. • Product of rotations: product of rotors R2R1x = R2(R1x/R1)/R2 = (R2R1)x /(R2R1) GAD(10) Course 31. Geometric Algebra: GABLE

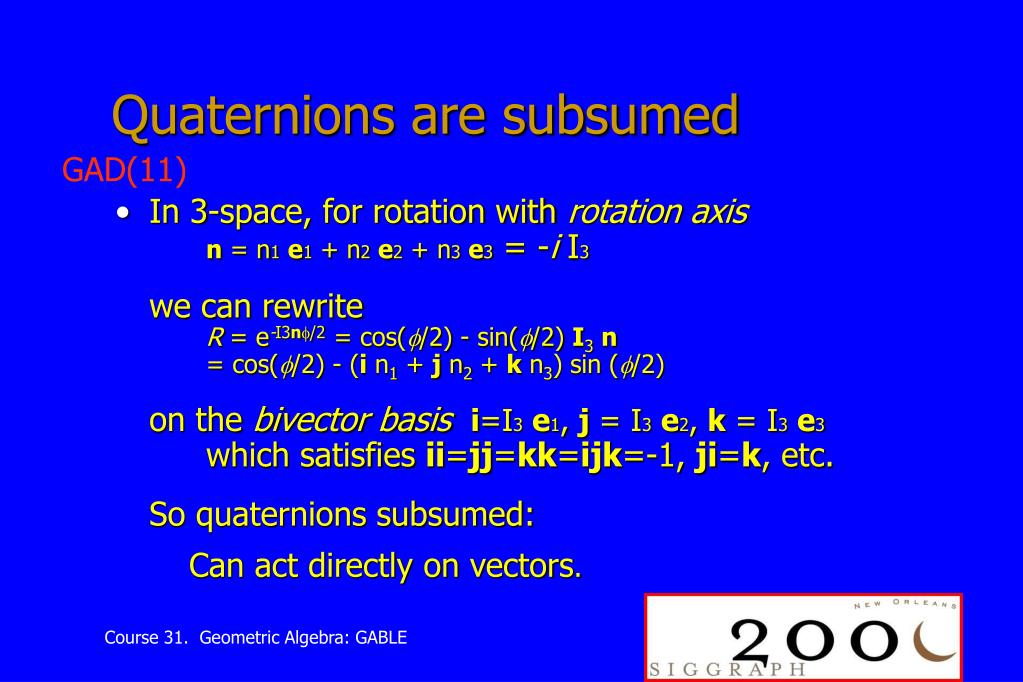

  17. Quaternions are subsumed GAD(11) • In 3-space, for rotation with rotation axisn = n1e1 + n2e2 + n3e3 = -i I3 • we can rewrite R =e-I3nf/2= cos(f/2) - sin(f/2) I3n = cos(f/2) - (i n1 + j n2 + k n3) sin (f/2) • on the bivector basisi=I3e1, j = I3e2, k = I3e3which satisfies ii=jj=kk=ijk=-1, ji=k, etc. • So quaternions subsumed: • Can act directly on vectors. Course 31. Geometric Algebra: GABLE

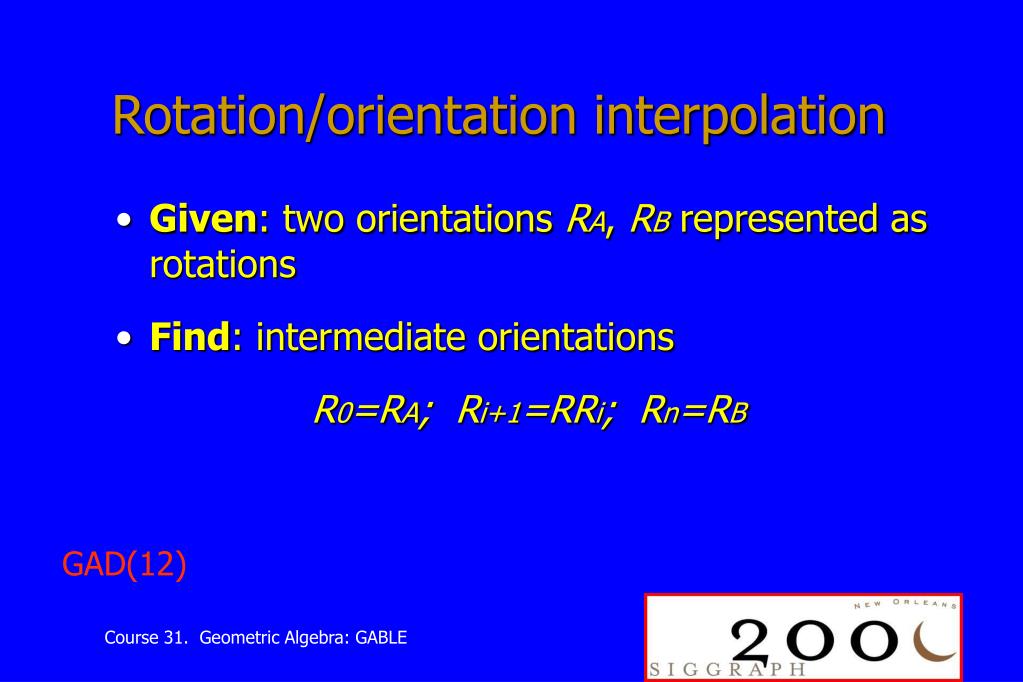

  18. Rotation/orientation interpolation • Given: two orientations RA, RB represented as rotations • Find: intermediate orientations R0=RA; Ri+1=RRi; Rn=RB GAD(12) Course 31. Geometric Algebra: GABLE

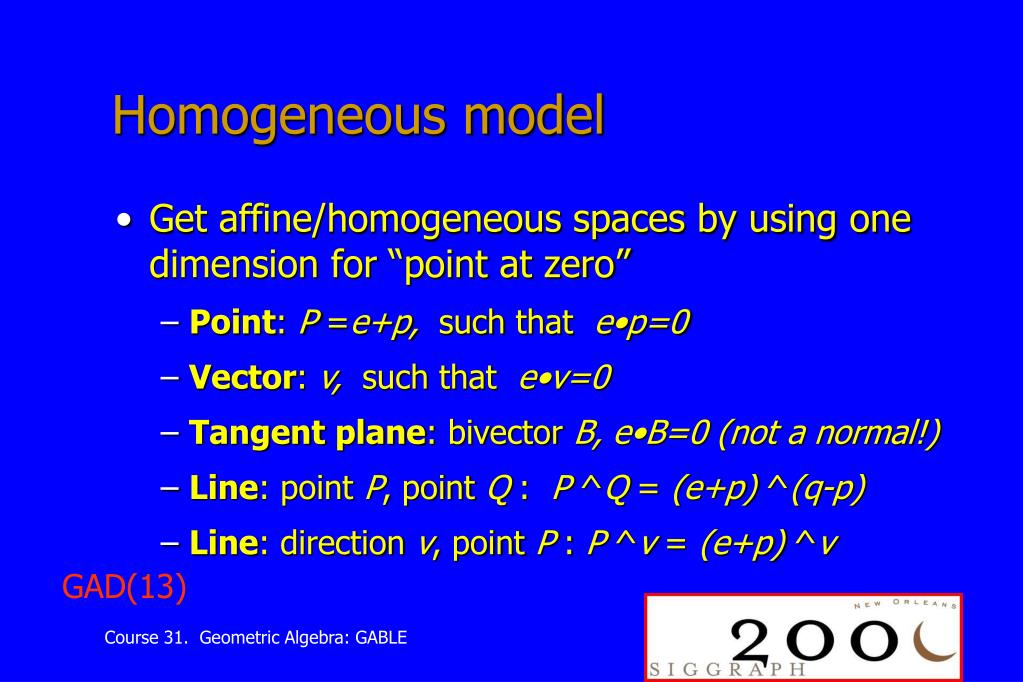

  19. Homogeneous model • Get affine/homogeneous spaces by using one dimension for “point at zero” • Point: P =e+p, suchthat e•p=0 • Vector: v, suchthat e•v=0 • Tangentplane: bivector B, e•B=0 (not a normal!) • Line: point P, point Q : P ^Q = (e+p) ^(q-p) • Line: direction v, point P : P ^v = (e+p) ^v GAD(13) Course 31. Geometric Algebra: GABLE

  20. Meet and join • Homogeneous line intersection requires blade intersection: meet(A,B) • Dual operations, join(A,B), spans lowest grade superspace of A and B GAD(14) Course 31. Geometric Algebra: GABLE

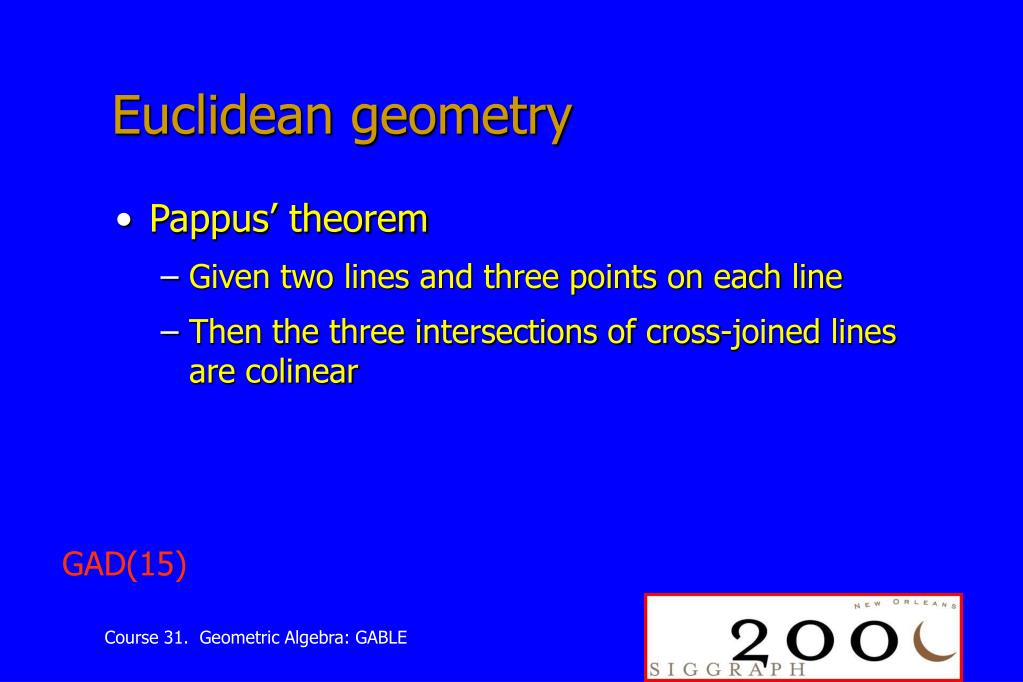

  21. Euclidean geometry • Pappus’ theorem • Given two lines and three points on each line • Then the three intersections of cross-joined lines are colinear GAD(15) Course 31. Geometric Algebra: GABLE

  22. Summary • Higher dimensional subspaces are basic elements of computation • Geometric product • Inverses • Extends homogeneous coordinates http://www.science.uva.nl/~leo/clifford/gable.html http://www.cgl.uwaterloo.ca/~smann/GABLE/ Course 31. Geometric Algebra: GABLE
