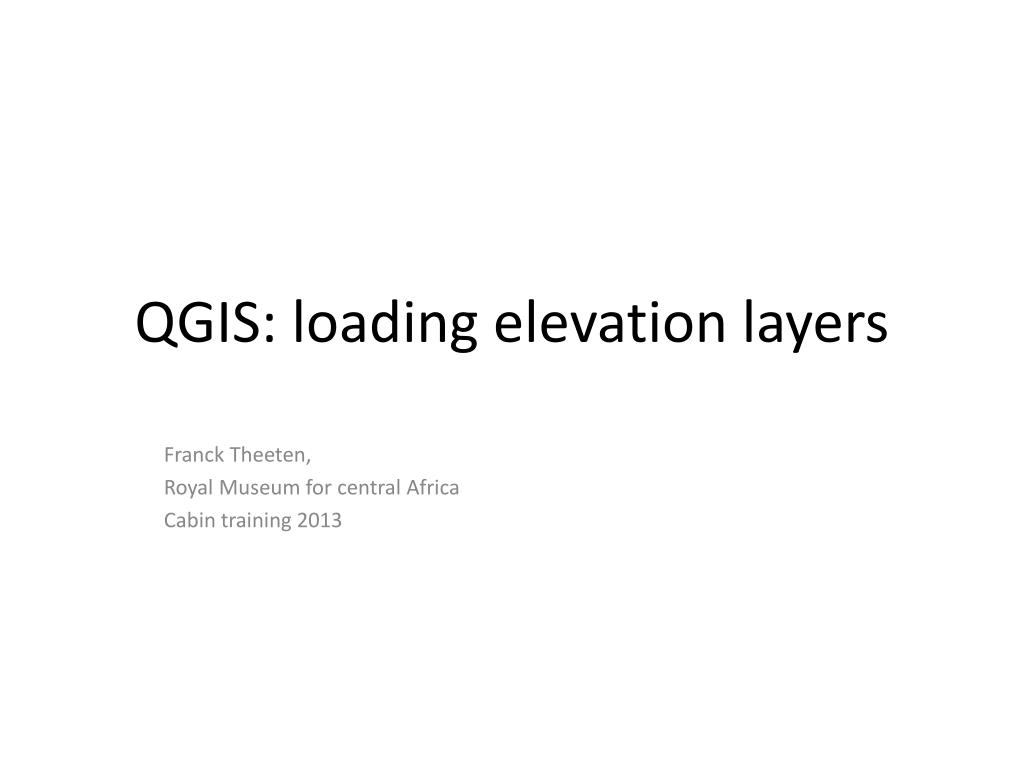

  1. QGIS: loadingelevationlayers Franck Theeten, Royal Museum for central Africa Cabin training 2013

  2. Data format • Elevation data are usually raster data available in 2 formats • GRID • GeoTIFF (TIff images file associated to a metadata file giving the position of the image)

  3. Accessing files • Free elevation data are availablefrom the STRM (Shuttle Radar Topography Mission) project of the American USGS • 90M data GeoTIFFcanbedownloaded on the website of CGIAR : • http://www.cgiar-csi.org/data/srtm-90m-digital-elevation-database-v4-1

  4. Importing the DEM • Import the (unzipped) DEM GeoTIFF as raster layer (select the tif file):

  5. Importing the DEM • You shouldsee a grey zone thatstillrequires the application fo a colorscheme

  6. Colorscheme • Right click the properties of the layer

  7. ColorScheme • Create 20 Classification zones and click classify:

  8. Colorscheme • Bu double-clicking on the threecolumns, change the value, color and label to the following values (for the exercise)

  9. Colorscheme • Resulting image:

  10. Get information • To get the information about a specific point, select the active layer in the left menu and click on the button • (alsowork for shapefile)

  11. Get information Altitude value in meters
