  1. Hair Evidence

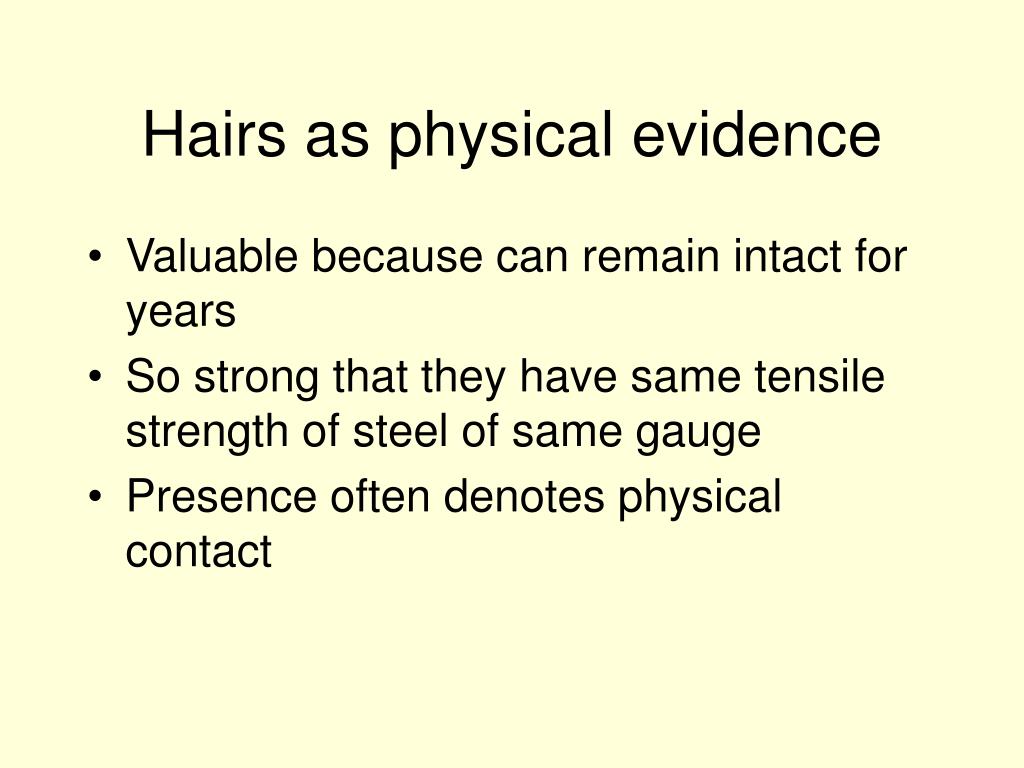

  2. Hairs as physical evidence • Valuable because can remain intact for years • So strong that they have same tensile strength of steel of same gauge • Presence often denotes physical contact

  3. Morphology (Structure) of Hair • Made of keratin -- a protein • Consists of: • Root (bulb) • Shaft • Tip http://www.hshairclinic.co.uk/_images/hair_structure.jpg

  4. Root • When pulled from head, some translucent tissue surrounding the hair shaft near the root may be found • Called “follicular tag” http://www.fbi.gov/about-us/lab/forensic-science-communications/fsc/jan2004/research/images/fig58.jpg

  5. Follicular Tags: Can be used for DNA analysis http://hannahc12.files.wordpress.com/2010/04/picture-92.png

  6. Hair Shaft Structure: Cuticle, Cortex and Medulla • 3 sections to a hair shaft • Medulla (interior) • Cortex (main section) • Cuticle (exterior) http://3.bp.blogspot.com/_xvklWrDLexk/S8txNTzoVbI/AAAAAAAACAg/Kbk03aJ5u64/s320/hair-cross-section.gif

  7. Cuticle: scale structure covering the exterior of hair • Formed from overlapping scales that always point towards the tip end • Useful in species identification • 3 basic patterns: • Coronal • Spinous • Imbricate Coronal Spinous Imbricate

  8. Cuticle: scale structure covering the exterior of hair • Coronal: crown-like pattern; like stacked cups • Rodent • Spinous: triangular, petal-like scales • Cat • Imbricate: flattened scales with narrpw margins • Human Coronal Spinous Imbricate

  9. Hair Cortex • Main body of hair shaft • Embedded with pigment granules that give hair color • Can be used to compare hairs of different persons http://www.ecobyte.com.au/a_Basic_Hair_struc_Xsec.jpg

  10. Hair Medulla • Cellular column running through the center of the hair • Can be continuous, interrupted or fragmented http://intro.chem.okstate.edu/chemsource/Forensic/forechem11.gif

  11. Hair Medulla • Presence and appearance varies among individuals • Most human hairs have no or fragmented medulla • Asian hairs may have continuous medulla. http://www.bfro.net/images/whatis/figures/Fig.%203%20with%20caption.jpg

  12. Shape of the medulla • Shape varies by species • Humans: medulla is nearly cylindrical • Animals: • Cat: bead-like • Deer: spherical cells http://www.personal.psu.edu/users/c/l/clv14/sci101/images/standardhair%20copy.jpg

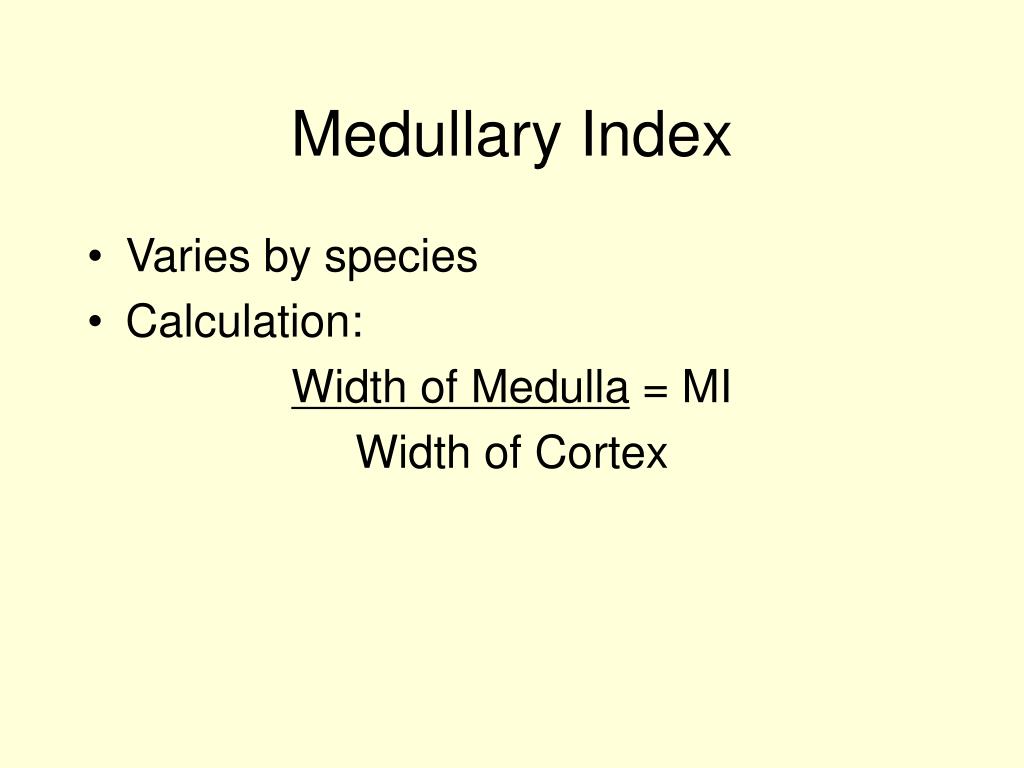

  13. Medullary Index • Varies by species • Calculation: Width of Medulla = MI Width of Cortex

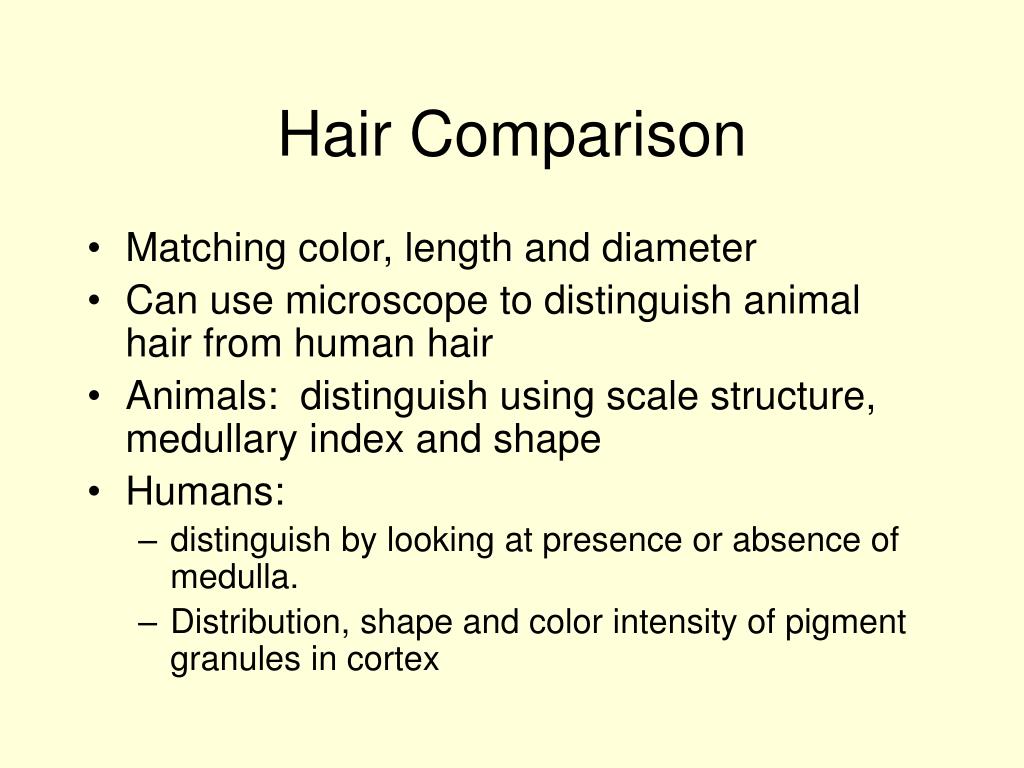

  14. Hair Comparison • Matching color, length and diameter • Can use microscope to distinguish animal hair from human hair • Animals: distinguish using scale structure, medullary index and shape • Humans: • distinguish by looking at presence or absence of medulla. • Distribution, shape and color intensity of pigment granules in cortex

  15. Hair and DNA • Mitochondrial DNA can be extracted from the hair shaft • Inherited only from mother • The root contains nuclear DNA • Only present if hair is forcibly removed
