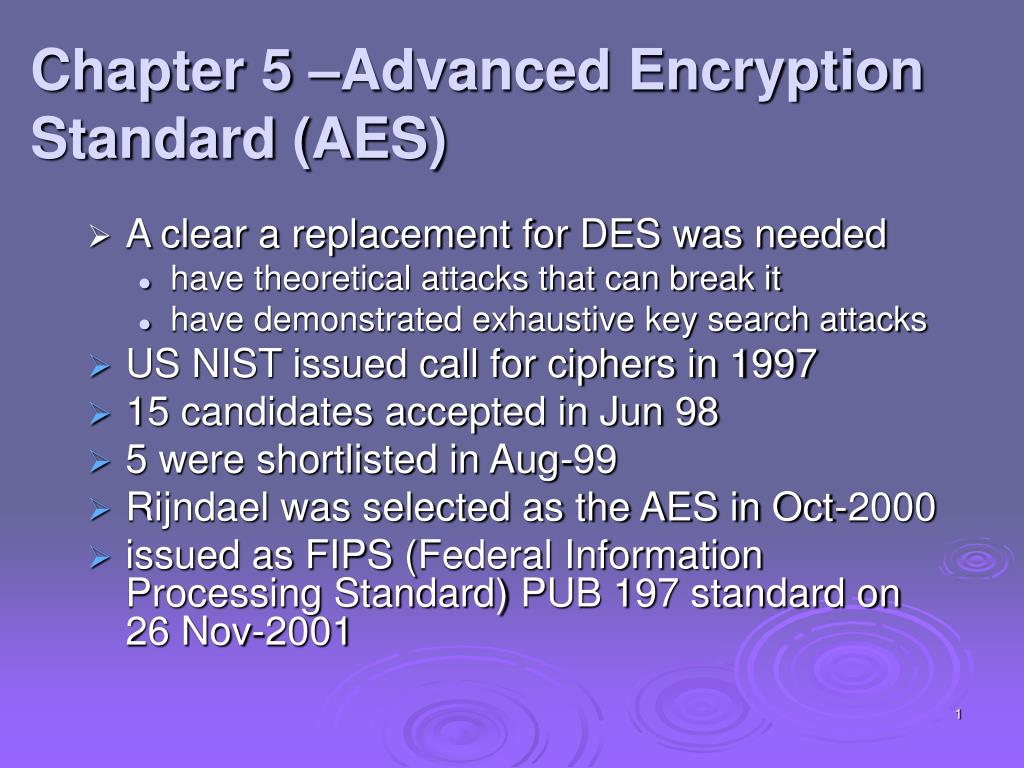

  1. Chapter 5 –Advanced Encryption Standard (AES) • A clear a replacement for DES was needed • have theoretical attacks that can break it • have demonstrated exhaustive key search attacks • US NIST issued call for ciphers in 1997 • 15 candidates accepted in Jun 98 • 5 were shortlisted in Aug-99 • Rijndael was selected as the AES in Oct-2000 • issued as FIPS (Federal Information Processing Standard) PUB 197 standard on 26 Nov-2001

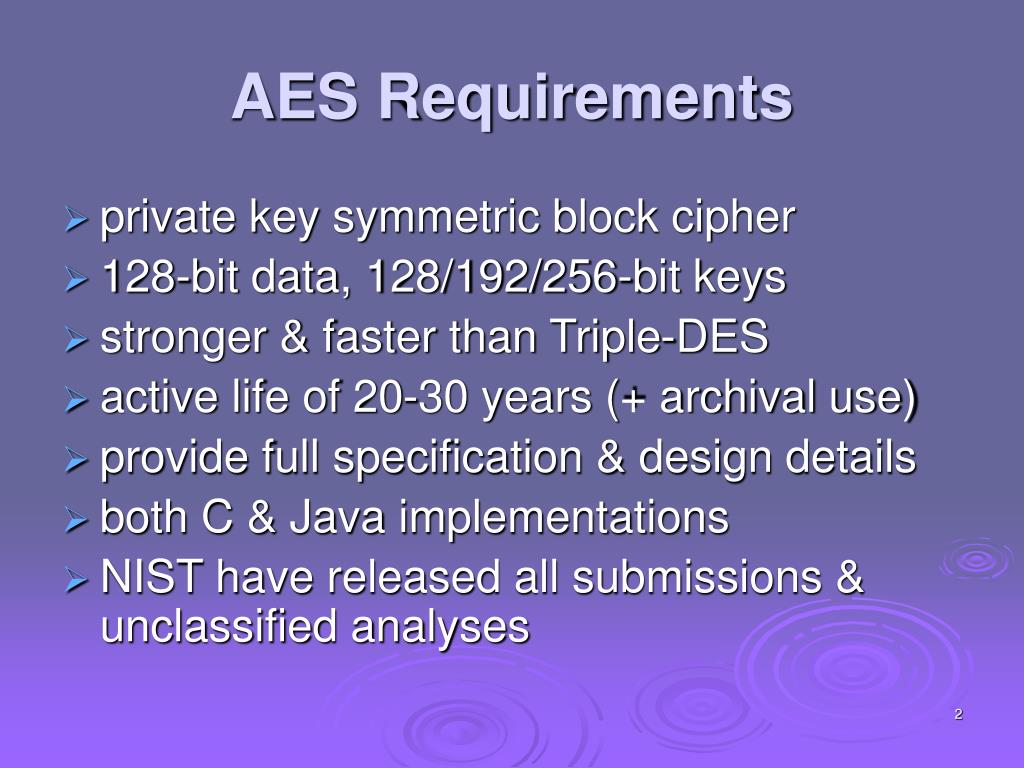

  2. AES Requirements • private key symmetric block cipher • 128-bit data, 128/192/256-bit keys • stronger & faster than Triple-DES • active life of 20-30 years (+ archival use) • provide full specification & design details • both C & Java implementations • NIST have released all submissions & unclassified analyses

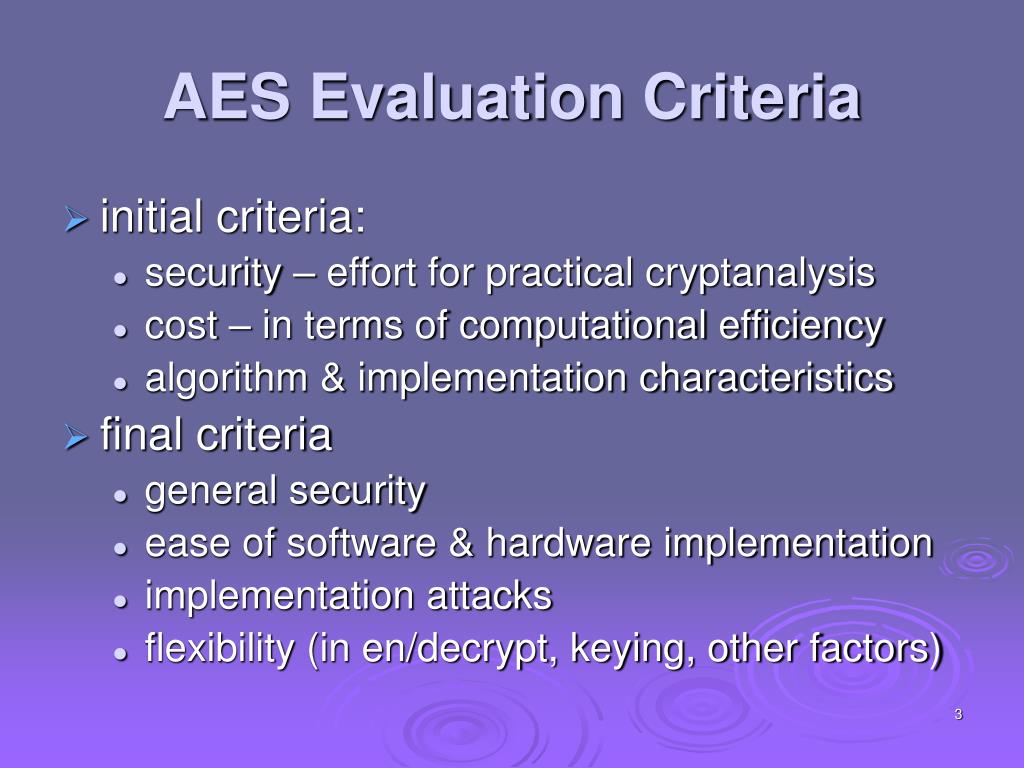

  3. AES Evaluation Criteria • initial criteria: • security – effort for practical cryptanalysis • cost – in terms of computational efficiency • algorithm & implementation characteristics • final criteria • general security • ease of software & hardware implementation • implementation attacks • flexibility (in en/decrypt, keying, other factors)

  4. AES Shortlist • after testing and evaluation, shortlist in Aug-99: • MARS (IBM) - complex, fast, high security margin • RC6 (USA) - v. simple, v. fast, low security margin • Rijndael (Belgium) - clean, fast, good security margin • Serpent (Euro) - slow, clean, v. high security margin • Twofish (USA) - complex, v. fast, high security margin • then subject to further analysis & comment • saw contrast between algorithms with • few complex rounds verses many simple rounds • which refined existing ciphers verses new proposals

  5. The Rijndael Cipher Algorithm

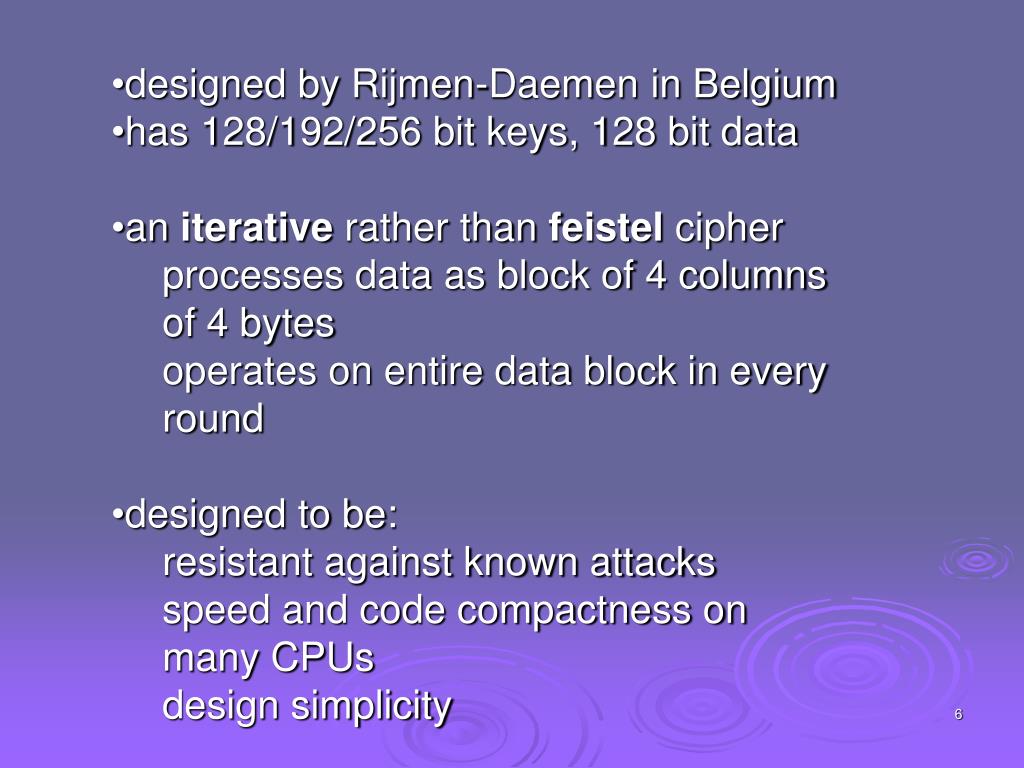

  6. designed by Rijmen-Daemen in Belgium • has 128/192/256 bit keys, 128 bit data • an iterative rather than feistel cipher • processes data as block of 4 columns of 4 bytes • operates on entire data block in every round • designed to be: • resistant against known attacks • speed and code compactness on many CPUs • design simplicity

  7. Rijndael • data block of 4 columns of 4 bytes is state • key is expanded to array of words • has 9/11/13 rounds in which state undergoes: • byte substitution (1 S-box used on every byte) • shift rows (permute bytes between groups/columns) • mix columns (subs using matrix multipy of groups) • add round key (XOR state with key material) • view as alternating XOR key & scramble data bytes • initial XOR key material & incomplete last round • with fast XOR & table lookup implementation

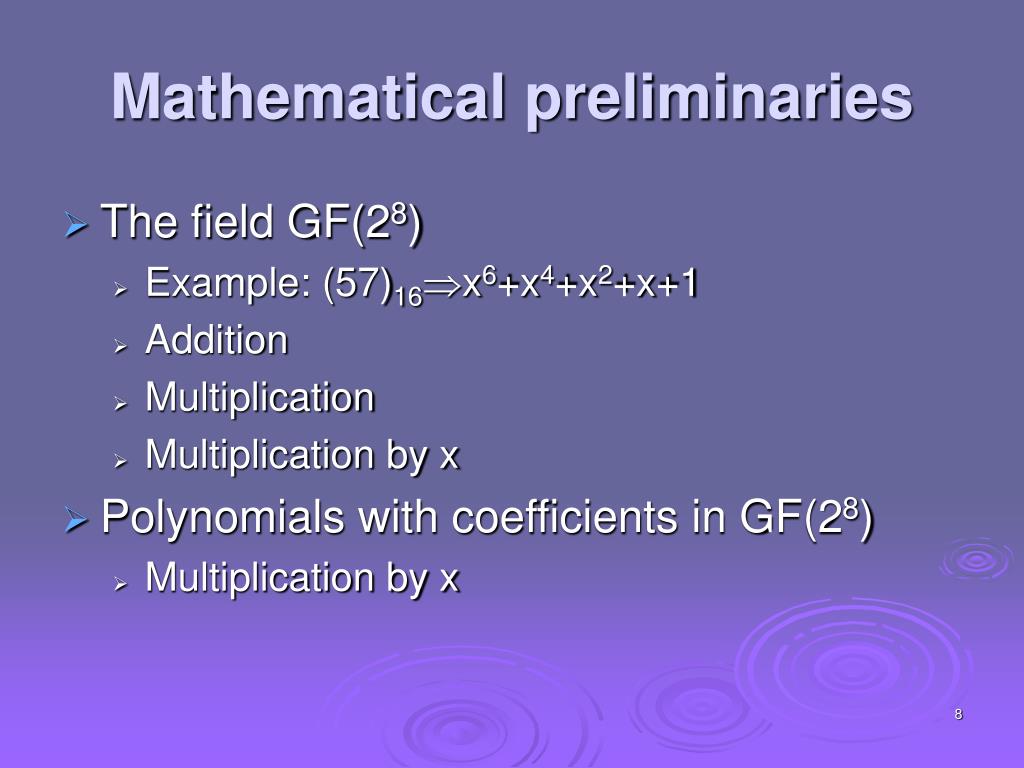

  8. Mathematical preliminaries • The field GF(28) • Example: (57)16x6+x4+x2+x+1 • Addition • Multiplication • Multiplication by x • Polynomials with coefficients in GF(28) • Multiplication by x

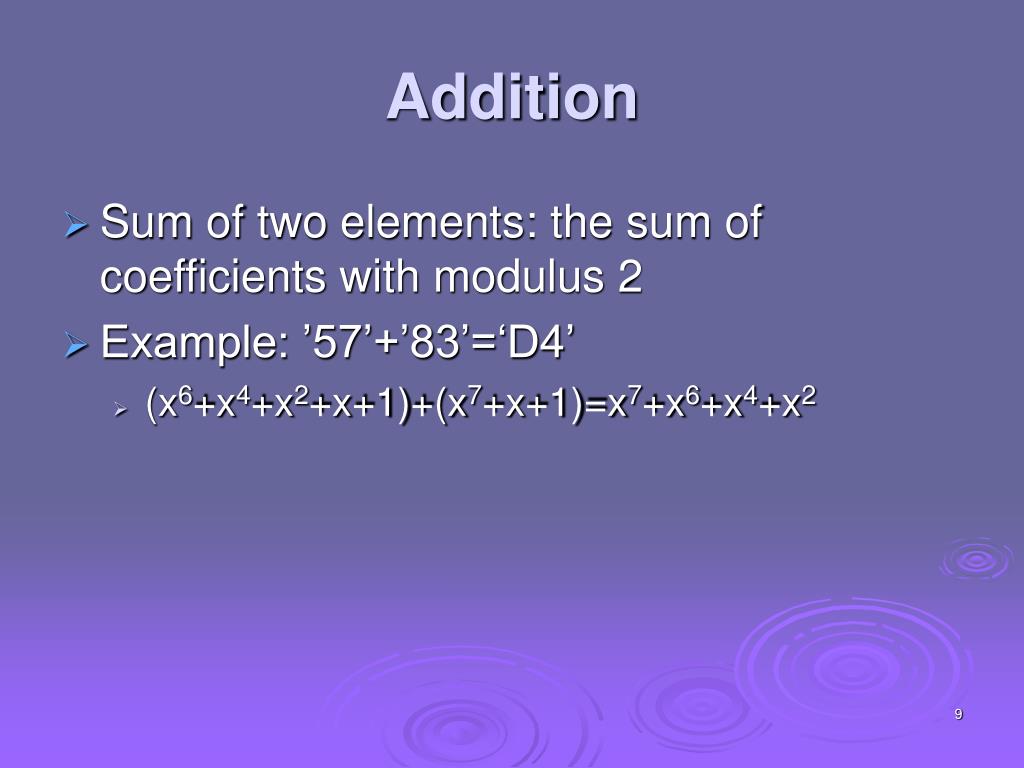

  9. Addition • Sum of two elements: the sum of coefficients with modulus 2 • Example: ’57’+’83’=‘D4’ • (x6+x4+x2+x+1)+(x7+x+1)=x7+x6+x4+x2

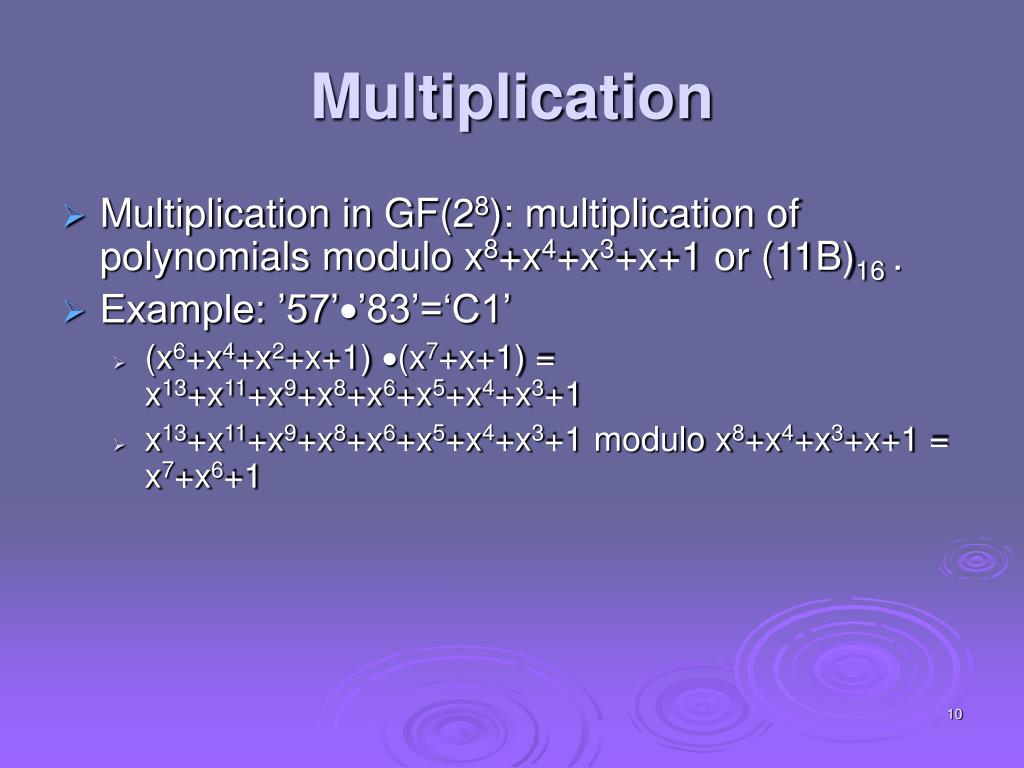

  10. Multiplication • Multiplication in GF(28): multiplication of polynomials modulo x8+x4+x3+x+1 or (11B)16 . • Example: ’57’’83’=‘C1’ • (x6+x4+x2+x+1) (x7+x+1) = x13+x11+x9+x8+x6+x5+x4+x3+1 • x13+x11+x9+x8+x6+x5+x4+x3+1 modulo x8+x4+x3+x+1 = x7+x6+1

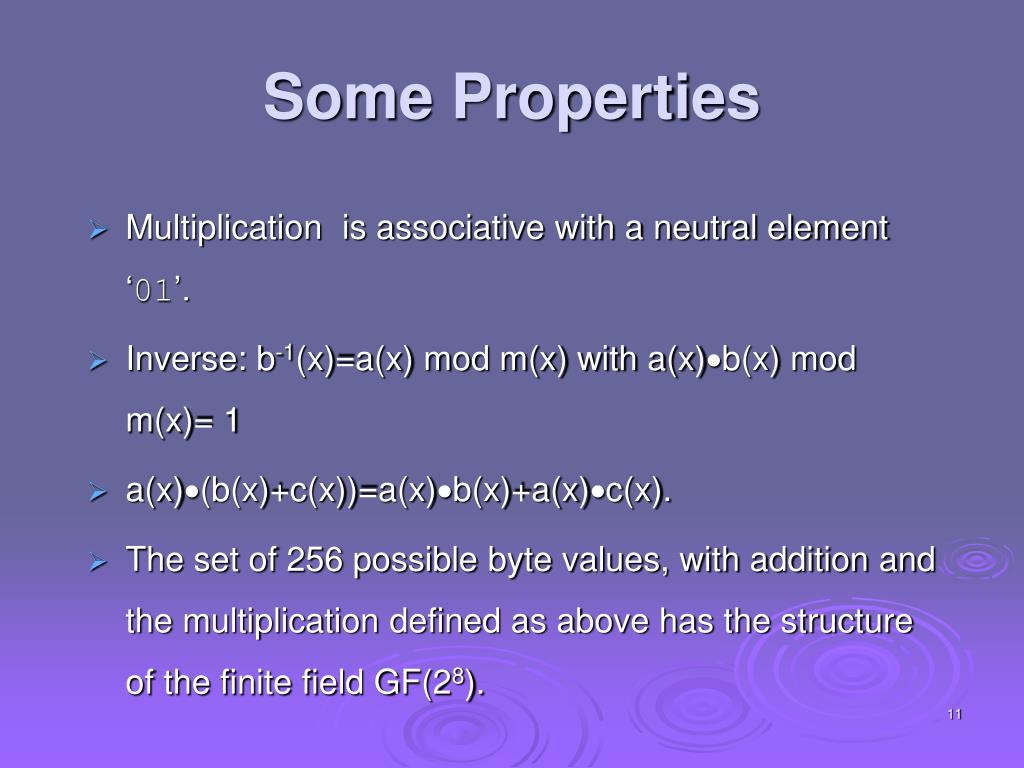

  11. Some Properties • Multiplication is associative with a neutral element ‘01’. • Inverse: b-1(x)=a(x) mod m(x) with a(x)·b(x) mod m(x)= 1 • a(x)·(b(x)+c(x))=a(x)·b(x)+a(x)·c(x). • The set of 256 possible byte values, with addition and the multiplication defined as above has the structure of the finite field GF(28).

  12. Multiplication by x • Multiply b(x) with the polynomial x: b7x8+b6x7+b5x6+b4x5+b3x4+b2x3+b1x2+b0x • If b7=0, the reduction is identity operation; if b7=1, m(x) must be subtracted (i.e. EXORed). • That is, multiplication by x (‘02’) can be implemented by a left shift and a conditional EXOR with’1B’.

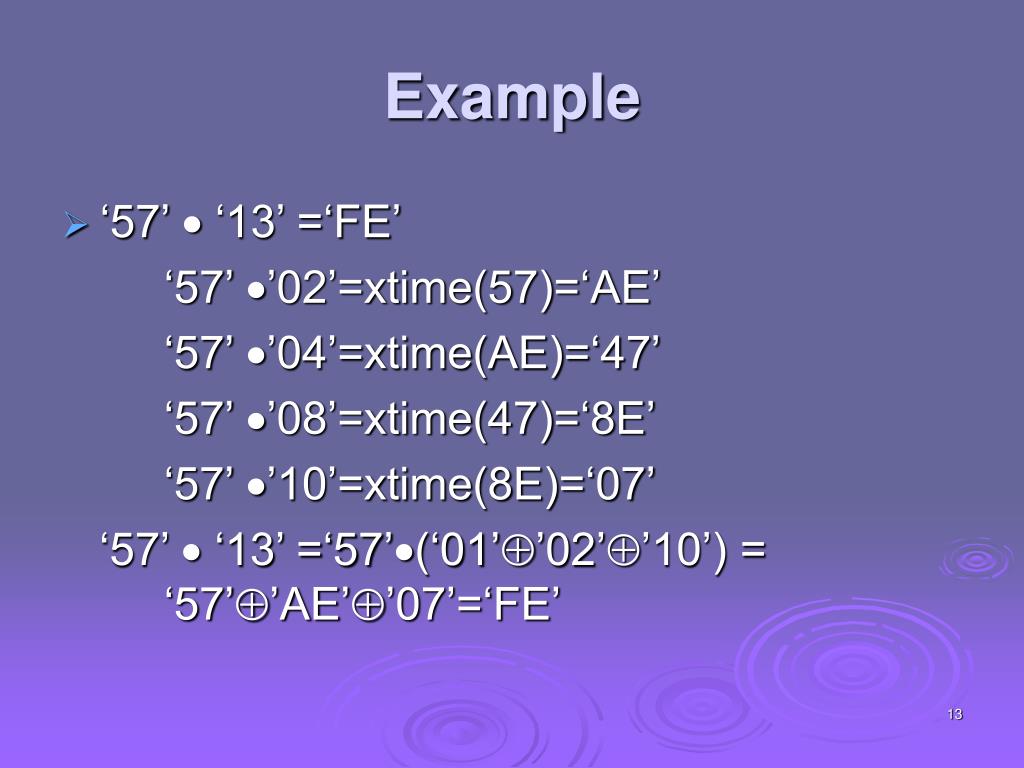

  13. Example • ‘57’  ‘13’ =‘FE’ ‘57’ ’02’=xtime(57)=‘AE’ ‘57’ ’04’=xtime(AE)=‘47’ ‘57’ ’08’=xtime(47)=‘8E’ ‘57’ ’10’=xtime(8E)=‘07’ ‘57’  ‘13’ =‘57’(‘01’’02’’10’) = ‘57’’AE’’07’=‘FE’

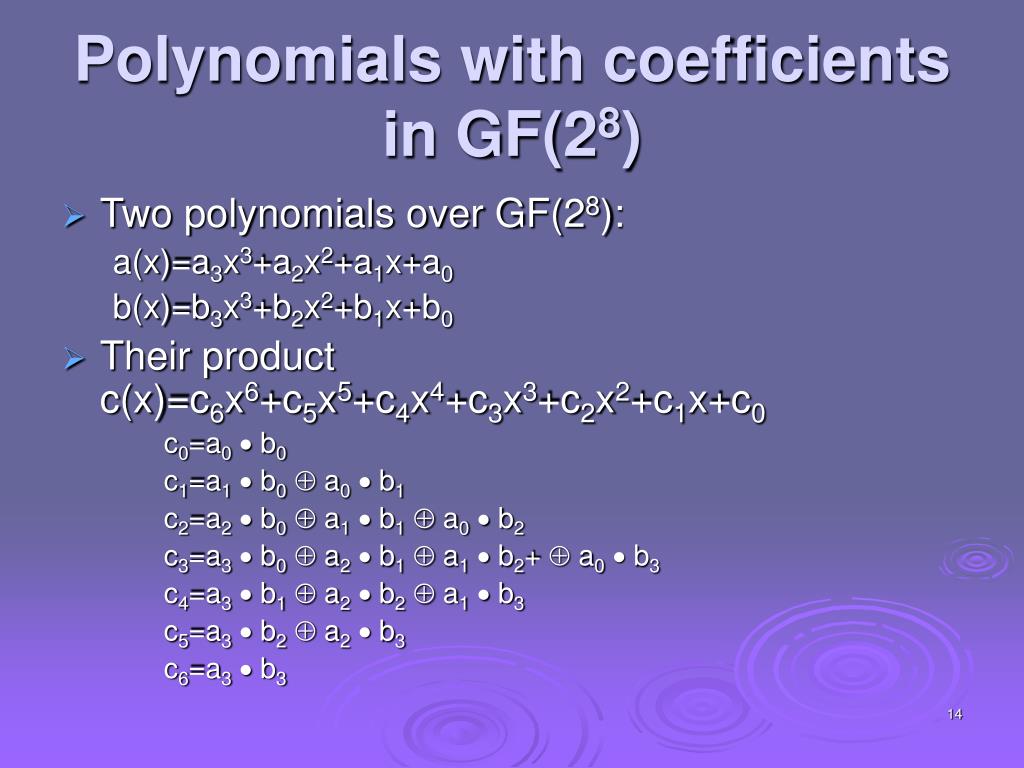

  14. Polynomials with coefficients in GF(28) • Two polynomials over GF(28): a(x)=a3x3+a2x2+a1x+a0 b(x)=b3x3+b2x2+b1x+b0 • Their product c(x)=c6x6+c5x5+c4x4+c3x3+c2x2+c1x+c0 c0=a0 b0 c1=a1 b0 a0 b1 c2=a2 b0 a1 b1 a0 b2 c3=a3 b0 a2 b1 a1 b2+  a0 b3 c4=a3 b1 a2 b2 a1 b3 c5=a3 b2 a2 b3 c6=a3 b3

  15. Polynomials with coefficients in GF(28) • By reducing c(x) modulo a polynomial of degree 4, the result can be reduced to a polynomial of degree below 4. • M(x)=x4+1 and xi mod x4+1=xi mod 4.

  16. Polynomials with coefficients in GF(28) • Product of a( x ) and b( x ): d( x ) = a( x ) Ä b( x )= d3x3+d2x2+d1x+d0 d0 = a0· b0Å a3· b1Å a2· b2Å a1· b3 d1 = a1· b0Å a0· b1Å a3· b2Å a2· b3 d2 = a2· b0Å a1· b1Å a0· b2Å a3· b3 d3 = a3· b0Å a2· b1Å a1· b2Å a0· b3

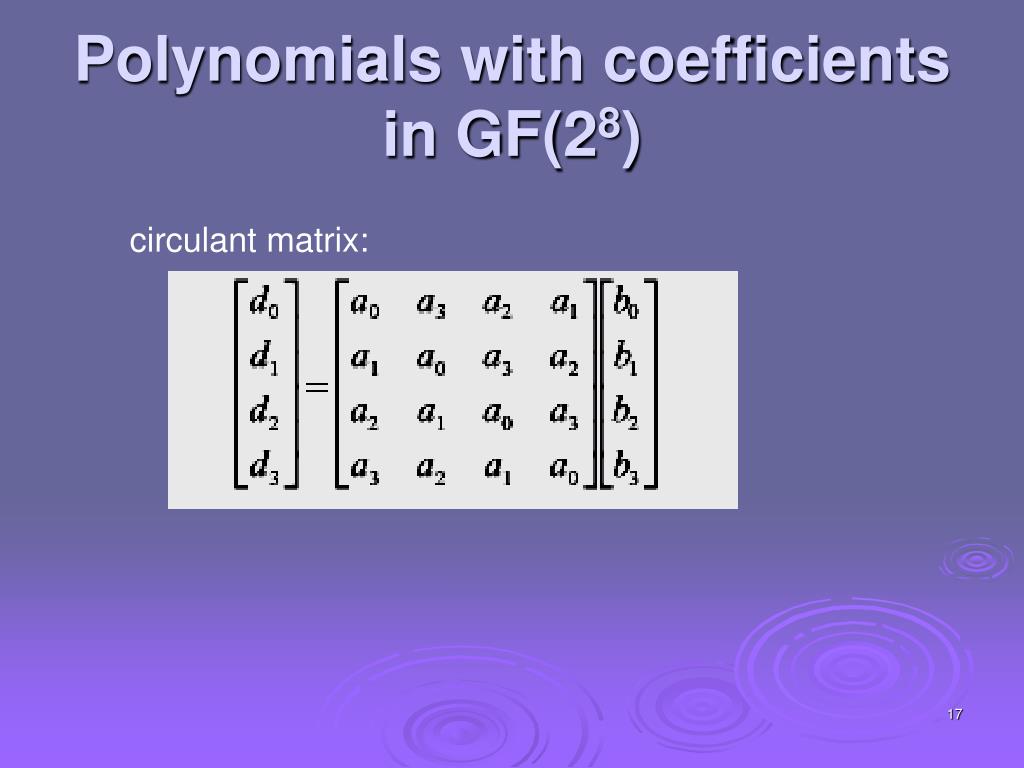

  17. Polynomials with coefficients in GF(28) circulant matrix:

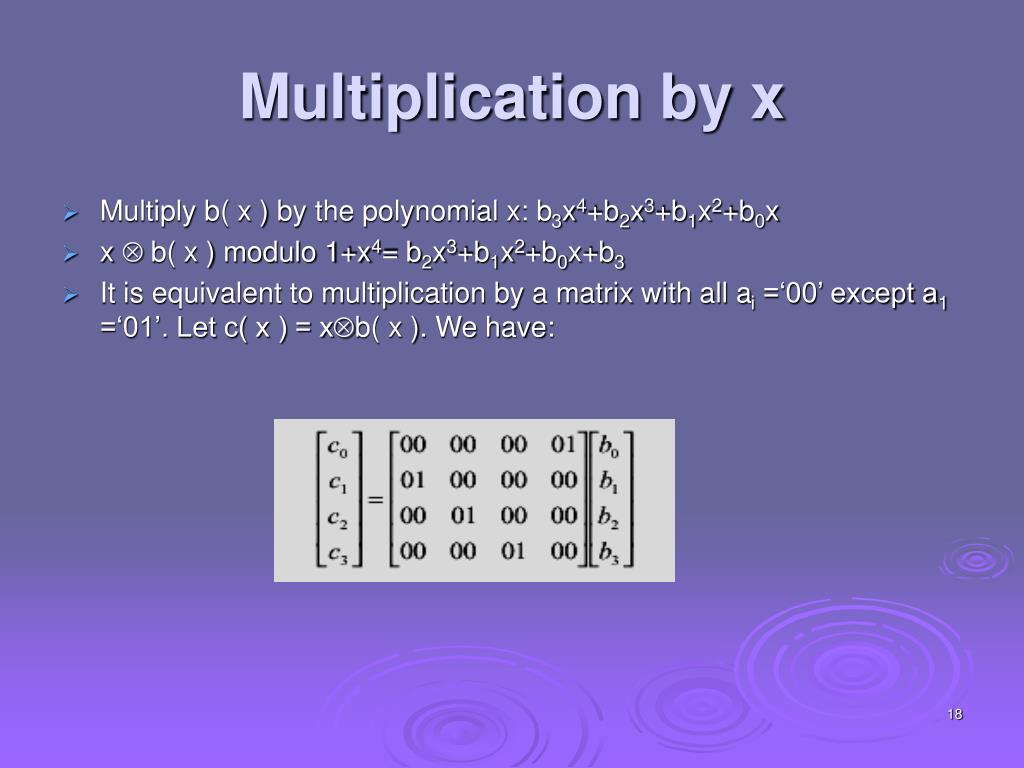

  18. Multiplication by x • Multiply b( x ) by the polynomial x: b3x4+b2x3+b1x2+b0x • x Ä b( x ) modulo 1+x4= b2x3+b1x2+b0x+b3 • It is equivalent to multiplication by a matrix with all ai =‘00’ except a1 =‘01’. Let c( x ) = xb( x ). We have:

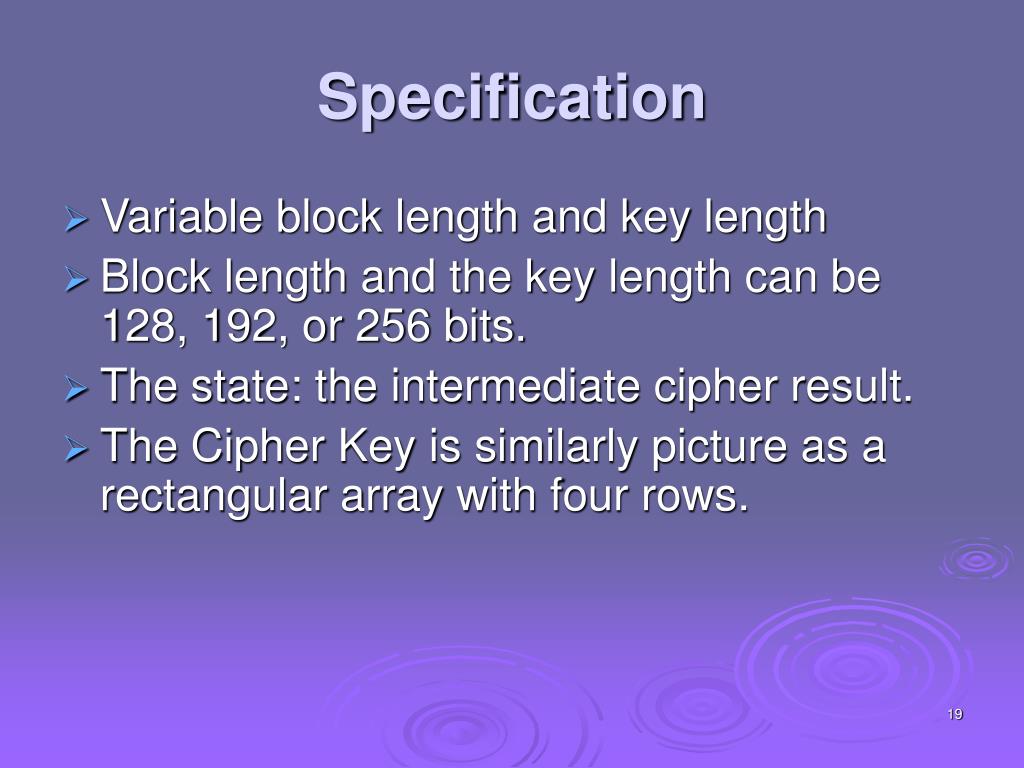

  19. Specification • Variable block length and key length • Block length and the key length can be 128, 192, or 256 bits. • The state: the intermediate cipher result. • The Cipher Key is similarly picture as a rectangular array with four rows.

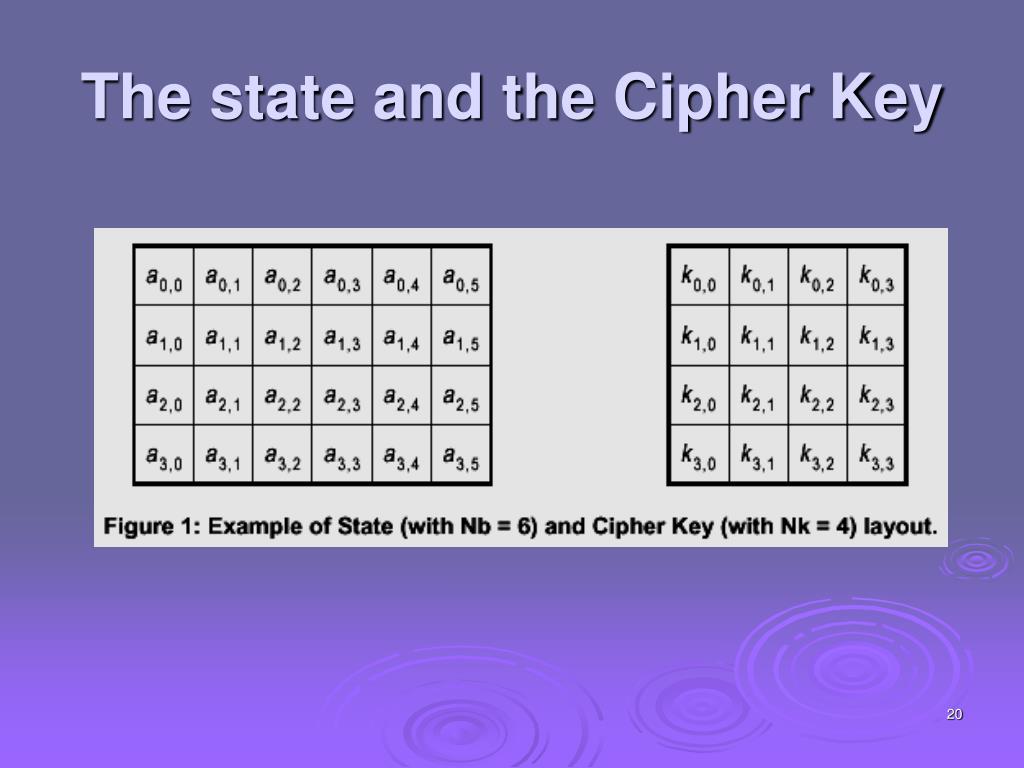

  20. The state and the Cipher Key

  21. The rounds • The number of rounds is denoted by Nr and depends on the values Nb and Nk. It is given in Table 1.

  22. The cipher • The cipher Rijndael consists of • An initial Round Key addition; • Nr-1 Rounds; • A final round. • In pseudo C code, Rijndael(State,CipherKey) { KeyExpansion(CipherKey,ExpandedKey) ; AddRoundKey(State,ExpandedKey); For( i=1 ; i<Nr ; i++ ) Round(State,ExpandedKey + Nb*i) ; FinalRound(State,ExpandedKey + Nb*Nr); }

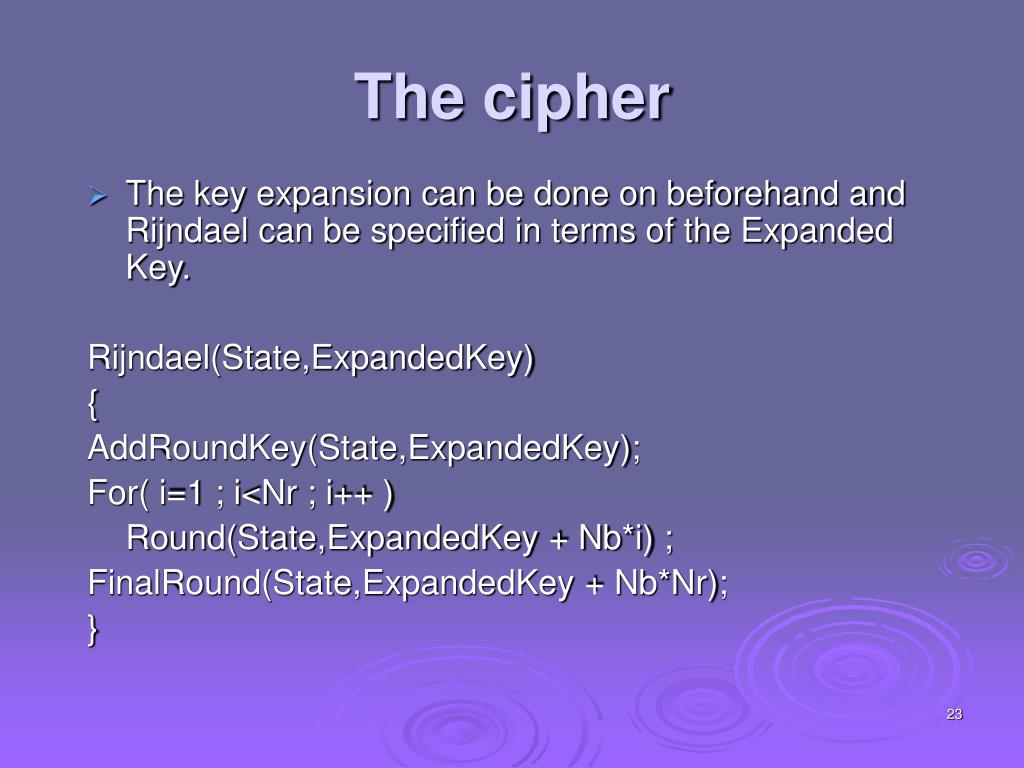

  23. The cipher • The key expansion can be done on beforehand and Rijndael can be specified in terms of the Expanded Key. Rijndael(State,ExpandedKey) { AddRoundKey(State,ExpandedKey); For( i=1 ; i<Nr ; i++ ) Round(State,ExpandedKey + Nb*i) ; FinalRound(State,ExpandedKey + Nb*Nr); }

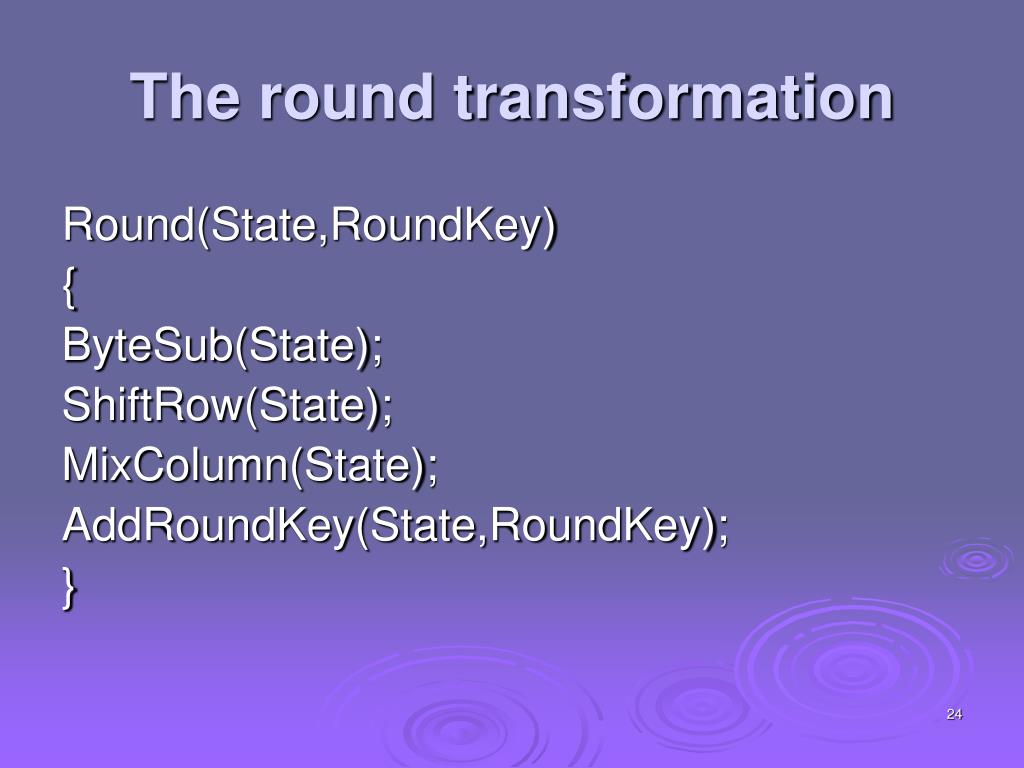

  24. The round transformation Round(State,RoundKey) { ByteSub(State); ShiftRow(State); MixColumn(State); AddRoundKey(State,RoundKey); }

  25. The final round FinalRound(State,RoundKey) { ByteSub(State) ; ShiftRow(State) ; AddRoundKey(State,RoundKey); }

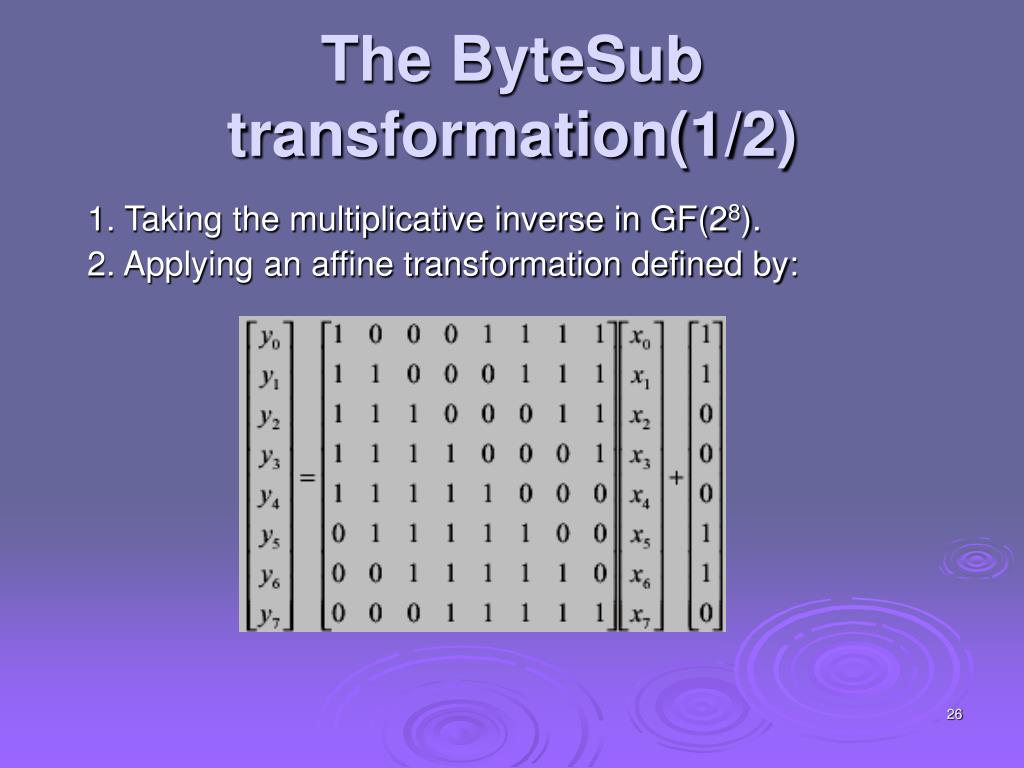

  26. The ByteSub transformation(1/2) 1. Taking the multiplicative inverse in GF(28). 2. Applying an affine transformation defined by:

  27. The ByteSub transformation(2/2)

  28. The ShiftRow transformation(1/2)

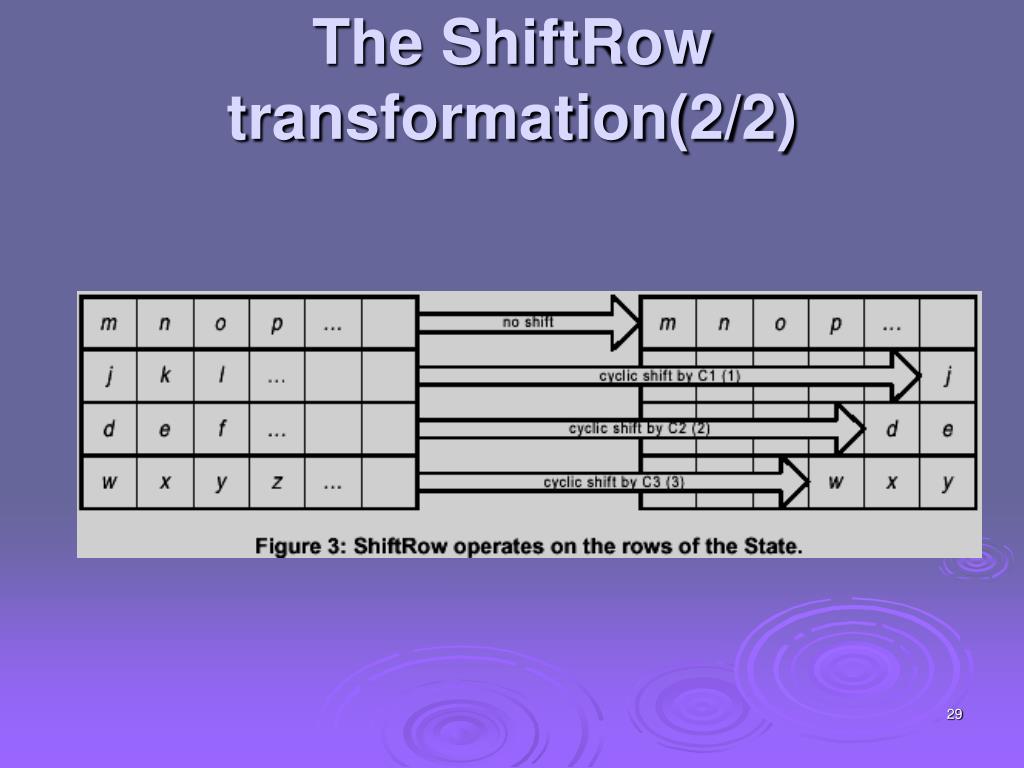

  29. The ShiftRow transformation(2/2)

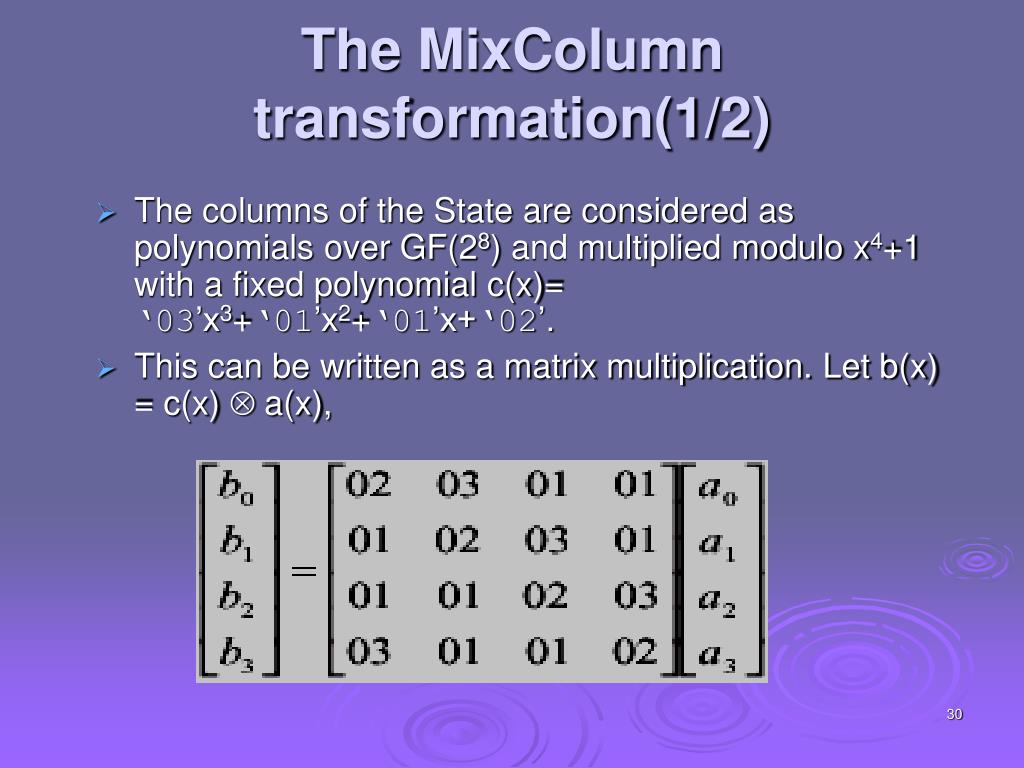

  30. The MixColumn transformation(1/2) • The columns of the State are considered as polynomials over GF(28) and multiplied modulo x4+1 with a fixed polynomial c(x)= ‘03’x3+‘01’x2+‘01’x+‘02’. • This can be written as a matrix multiplication. Let b(x) = c(x) Ä a(x),

  31. The MixColumn transformation(2/2)

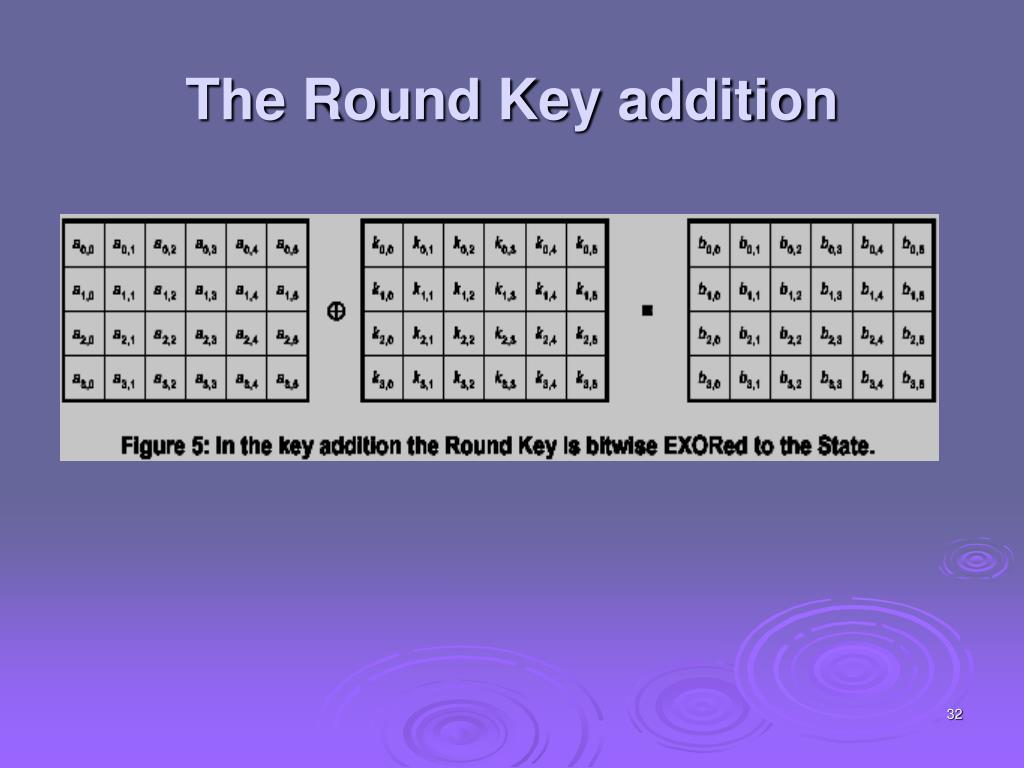

  32. The Round Key addition

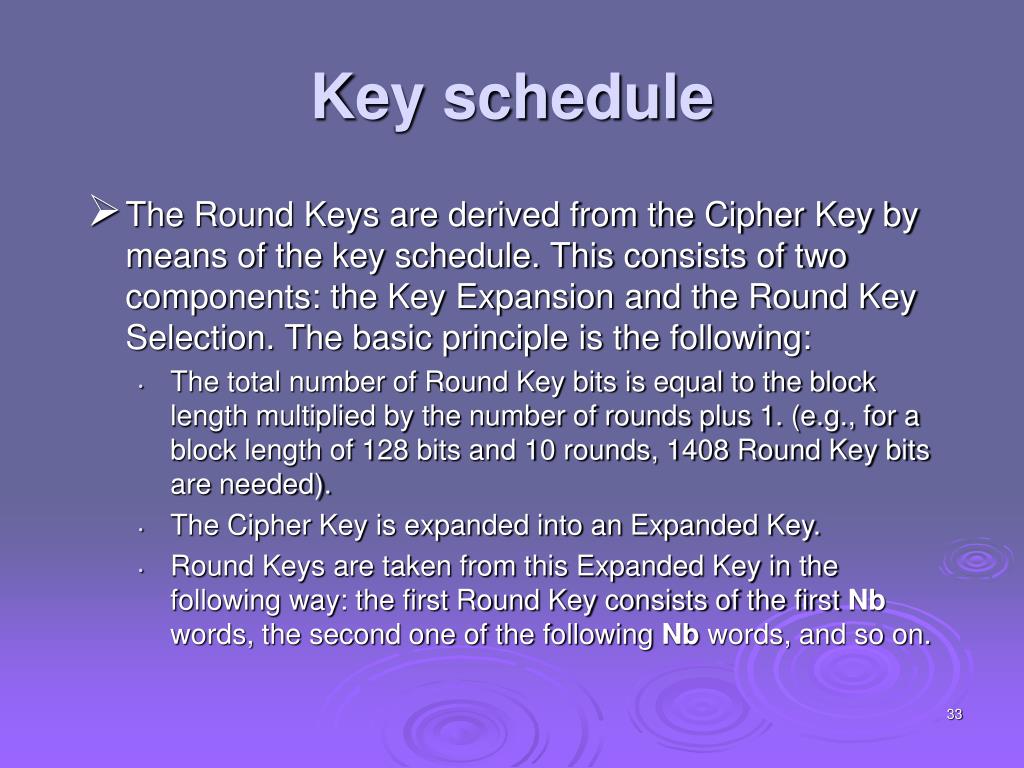

  33. Key schedule • The Round Keys are derived from the Cipher Key by means of the key schedule. This consists of two components: the Key Expansion and the Round Key Selection. The basic principle is the following: • The total number of Round Key bits is equal to the block length multiplied by the number of rounds plus 1. (e.g., for a block length of 128 bits and 10 rounds, 1408 Round Key bits are needed). • The Cipher Key is expanded into an Expanded Key. • Round Keys are taken from this Expanded Key in the following way: the first Round Key consists of the first Nb words, the second one of the following Nb words, and so on.

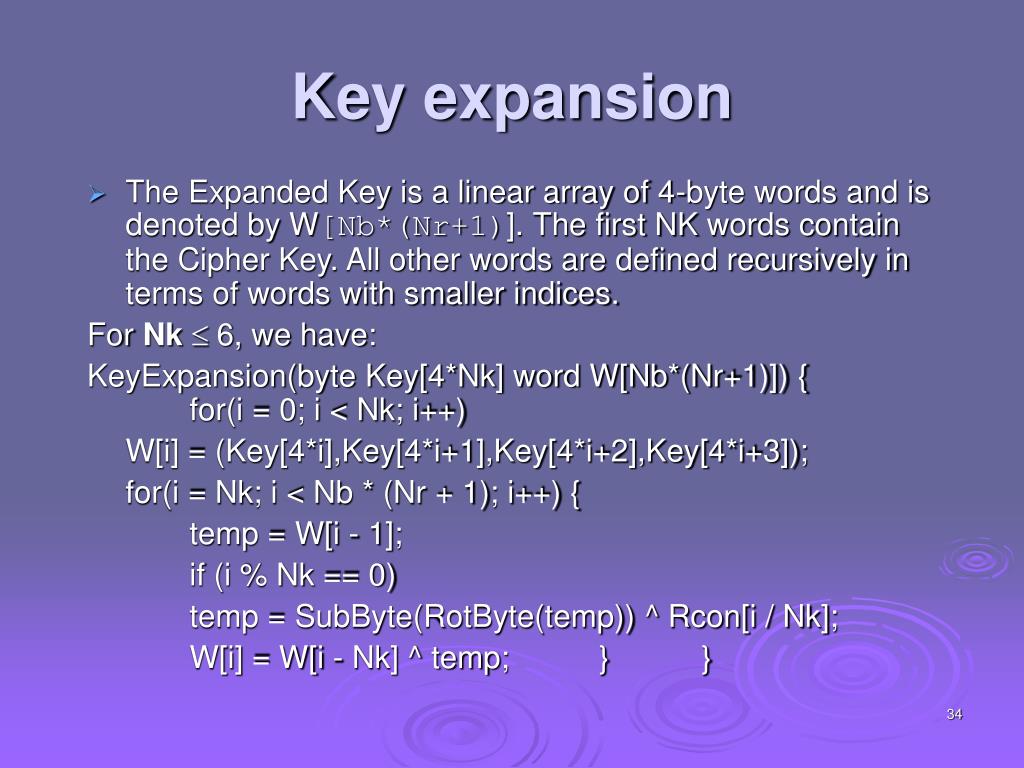

  34. Key expansion • The Expanded Key is a linear array of 4-byte words and is denoted by W[Nb*(Nr+1)]. The first NKwords contain the Cipher Key. All other words are defined recursively in terms of words with smaller indices. For Nk £ 6, we have: KeyExpansion(byte Key[4*Nk] word W[Nb*(Nr+1)]) { for(i = 0; i < Nk; i++) W[i] = (Key[4*i],Key[4*i+1],Key[4*i+2],Key[4*i+3]); for(i = Nk; i < Nb * (Nr + 1); i++) { temp = W[i - 1]; if (i % Nk == 0) temp = SubByte(RotByte(temp)) ^ Rcon[i / Nk]; W[i] = W[i - Nk] ^ temp; } }

  35. Key expansion For Nk > 6, we have: KeyExpansion(byte Key[4*Nk] word W[Nb*(Nr+1)]) { for(i = 0; i < Nk; i++) W[i] = (key[4*i],key[4*i+1],key[4*i+2],key[4*i+3]); for(i = Nk; i < Nb * (Nr + 1); i++) { temp = W[i - 1]; if (i % Nk == 0) temp = SubByte(RotByte(temp)) ^ Rcon[i / Nk]; else if (i % Nk == 4) temp = SubByte(temp); W[i] = W[i - Nk] ^ temp; } }

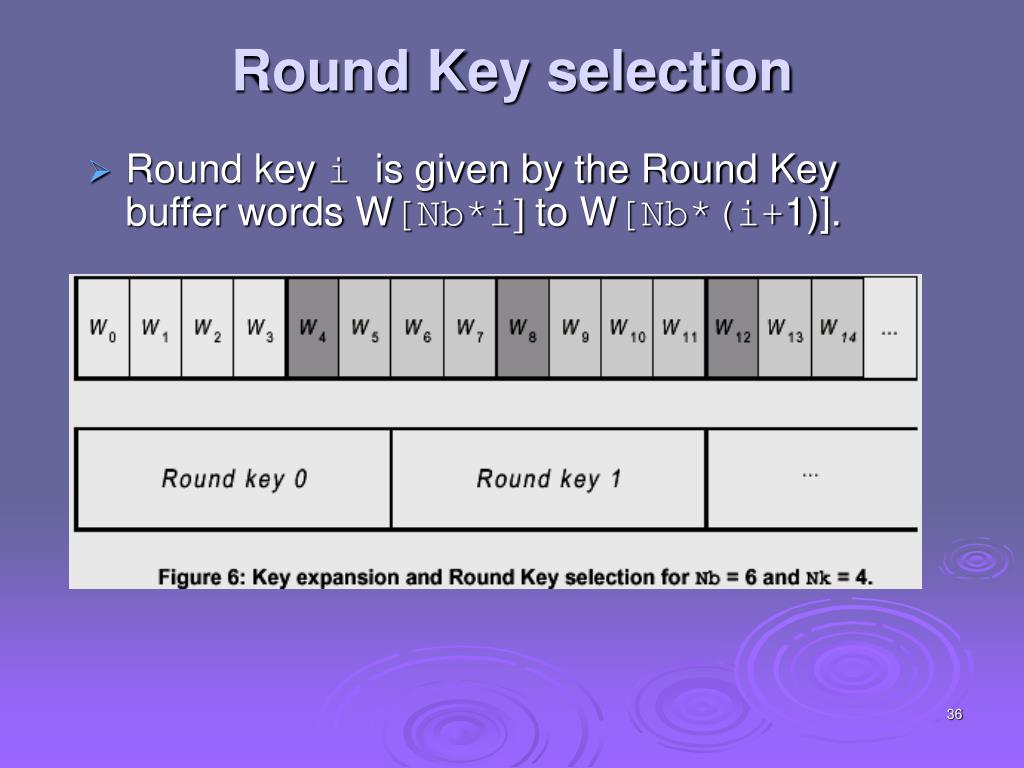

  36. Round Key selection • Round key i is given by the Round Key buffer words W[Nb*i] to W[Nb*(i+1)].

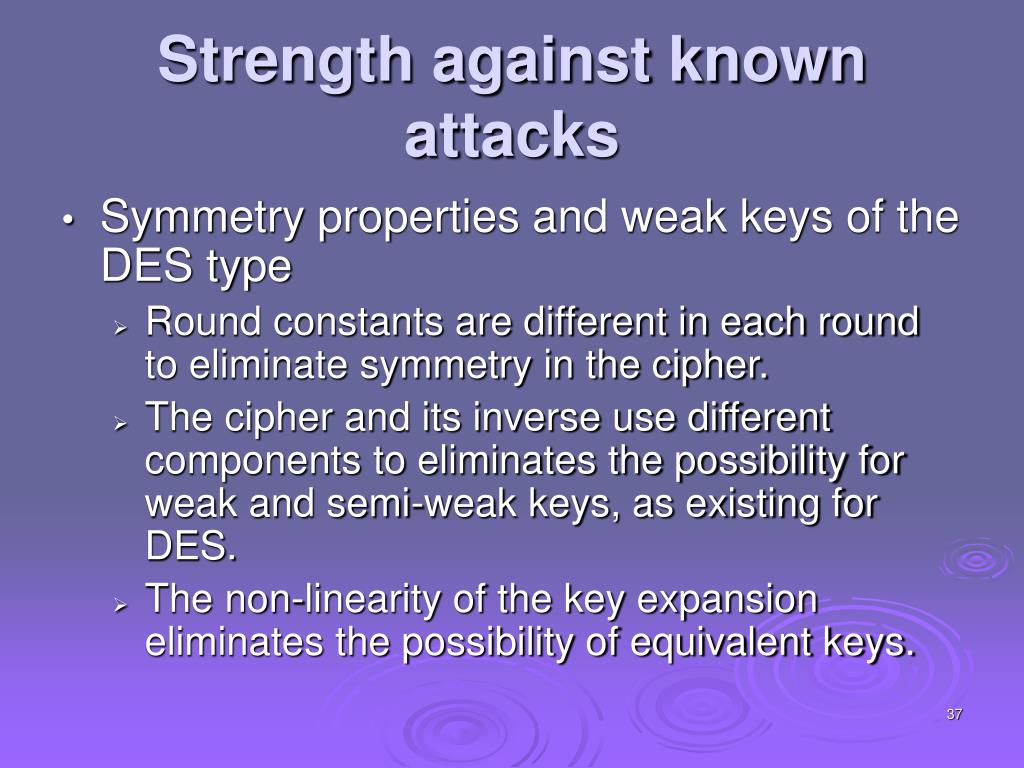

  37. Strength against known attacks • Symmetry properties and weak keys of the DES type • Round constants are different in each round to eliminate symmetry in the cipher. • The cipher and its inverse use different components to eliminates the possibility for weak and semi-weak keys, as existing for DES. • The non-linearity of the key expansion eliminates the possibility of equivalent keys.

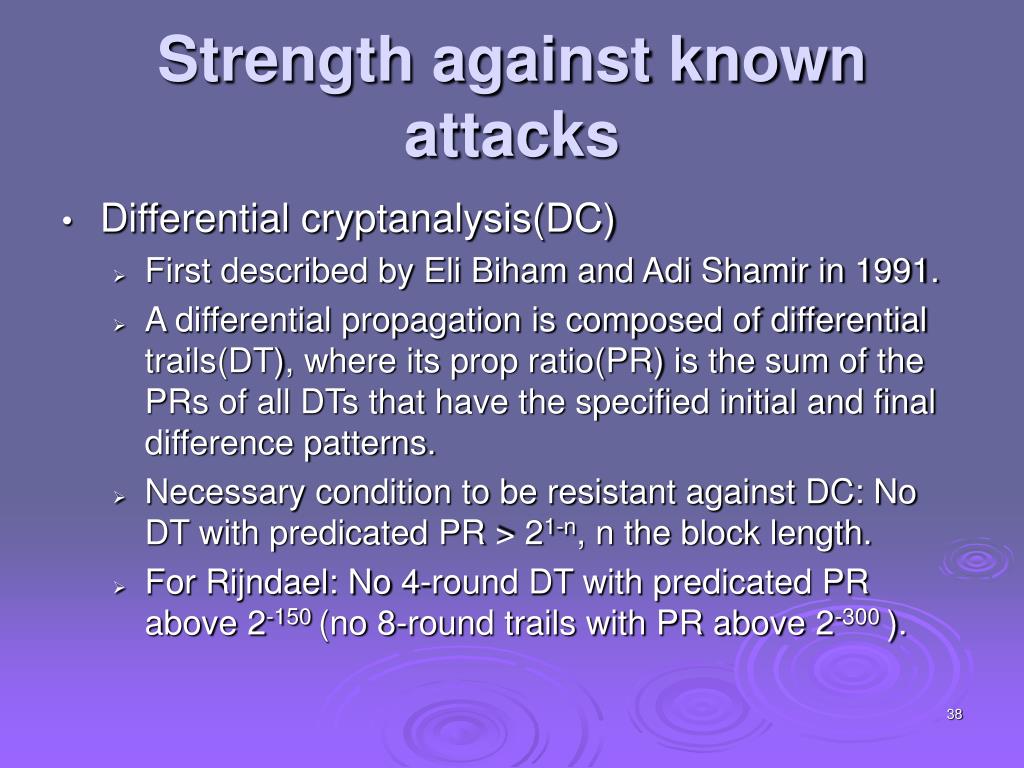

  38. Strength against known attacks • Differential cryptanalysis(DC) • First described by Eli Biham and Adi Shamir in 1991. • A differential propagation is composed of differential trails(DT), where its prop ratio(PR) is the sum of the PRs of all DTs that have the specified initial and final difference patterns. • Necessary condition to be resistant against DC: No DT with predicated PR > 21-n, n the block length. • For Rijndael: No 4-round DT with predicated PR above 2-150 (no 8-round trails with PR above 2-300 ).

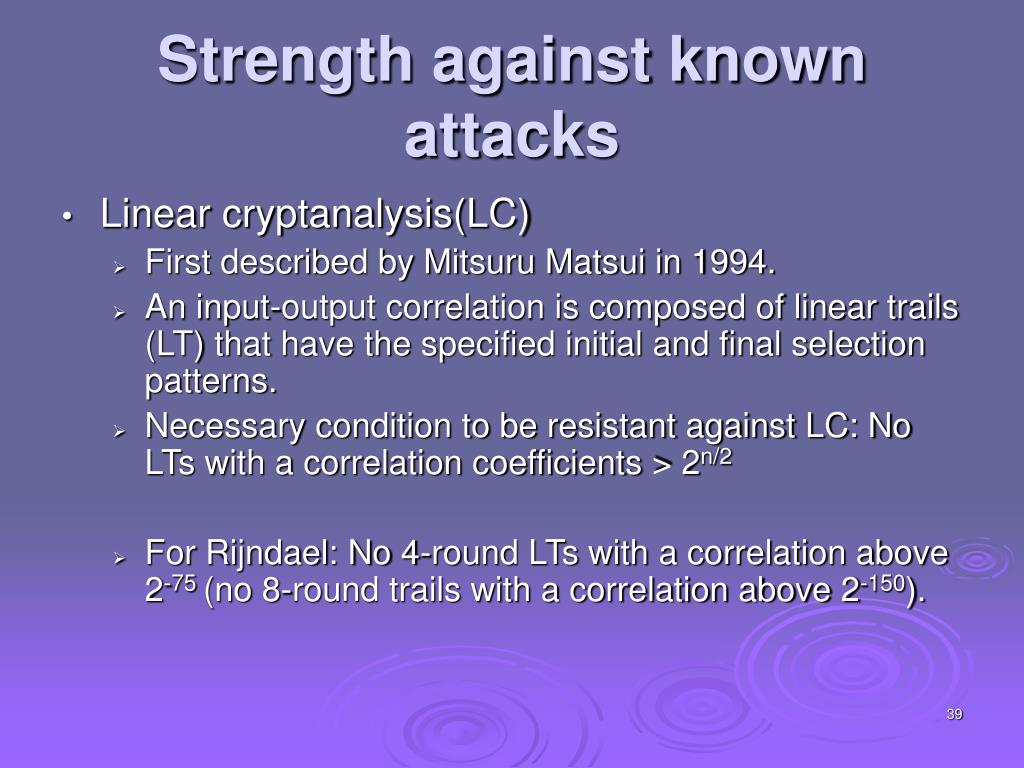

  39. Strength against known attacks • Linear cryptanalysis(LC) • First described by Mitsuru Matsui in 1994. • An input-output correlation is composed of linear trails (LT) that have the specified initial and final selection patterns. • Necessary condition to be resistant against LC: No LTs with a correlation coefficients > 2n/2 • For Rijndael: No 4-round LTs with a correlation above 2-75 (no 8-round trails with a correlation above 2-150).

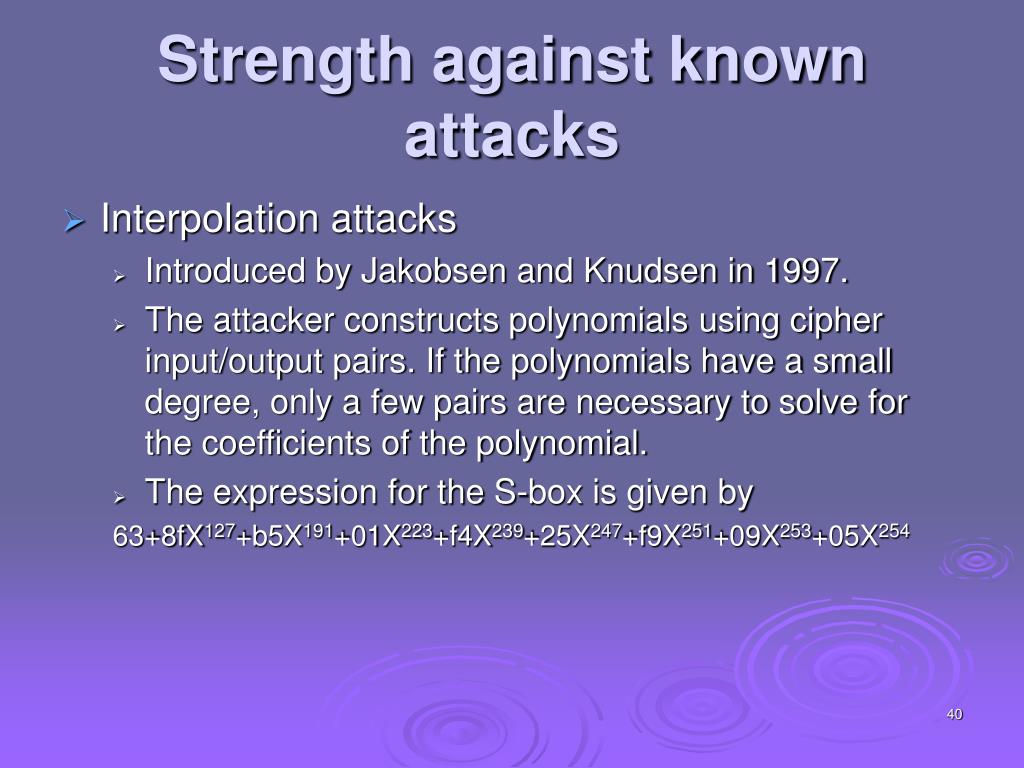

  40. Strength against known attacks • Interpolation attacks • Introduced by Jakobsen and Knudsen in 1997. • The attacker constructs polynomials using cipher input/output pairs. If the polynomials have a small degree, only a few pairs are necessary to solve for the coefficients of the polynomial. • The expression for the S-box is given by 63+8fX127+b5X191+01X223+f4X239+25X247+f9X251+09X253+05X254

  41. Strength against known attacks • Other attacks considered: • Truncated differentials • The Square attack • Related-key attacks • Weak keys as in IDEA

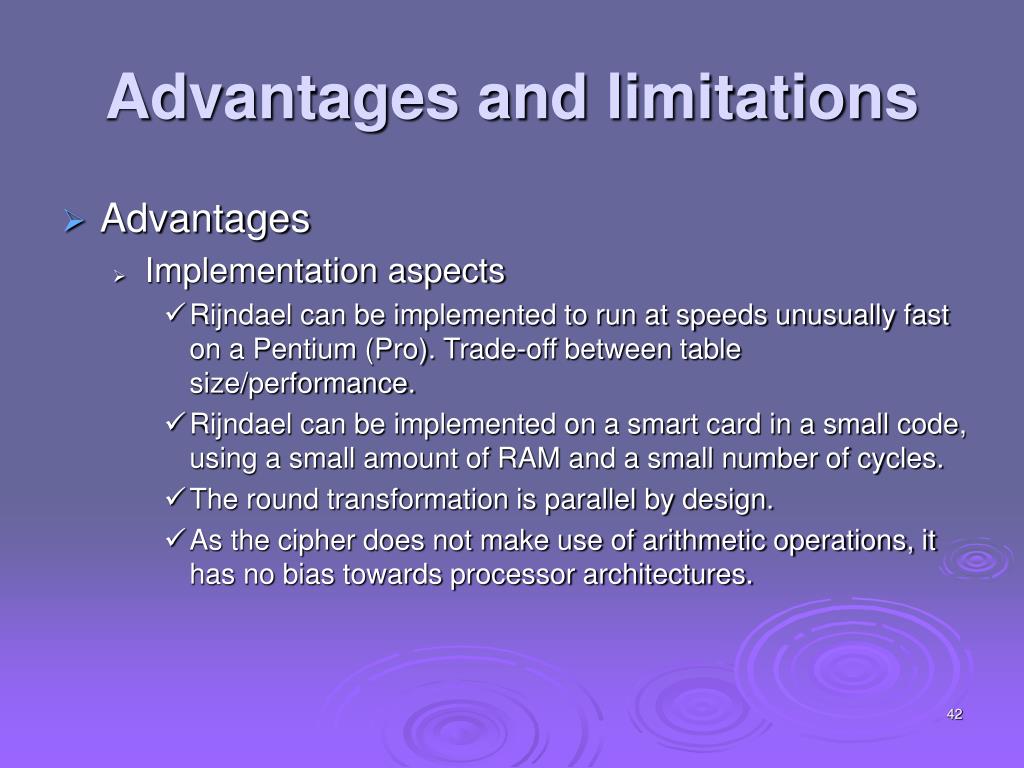

  42. Advantages and limitations • Advantages • Implementation aspects • Rijndael can be implemented to run at speeds unusually fast on a Pentium (Pro). Trade-off between table size/performance. • Rijndael can be implemented on a smart card in a small code, using a small amount of RAM and a small number of cycles. • The round transformation is parallel by design. • As the cipher does not make use of arithmetic operations, it has no bias towards processor architectures.

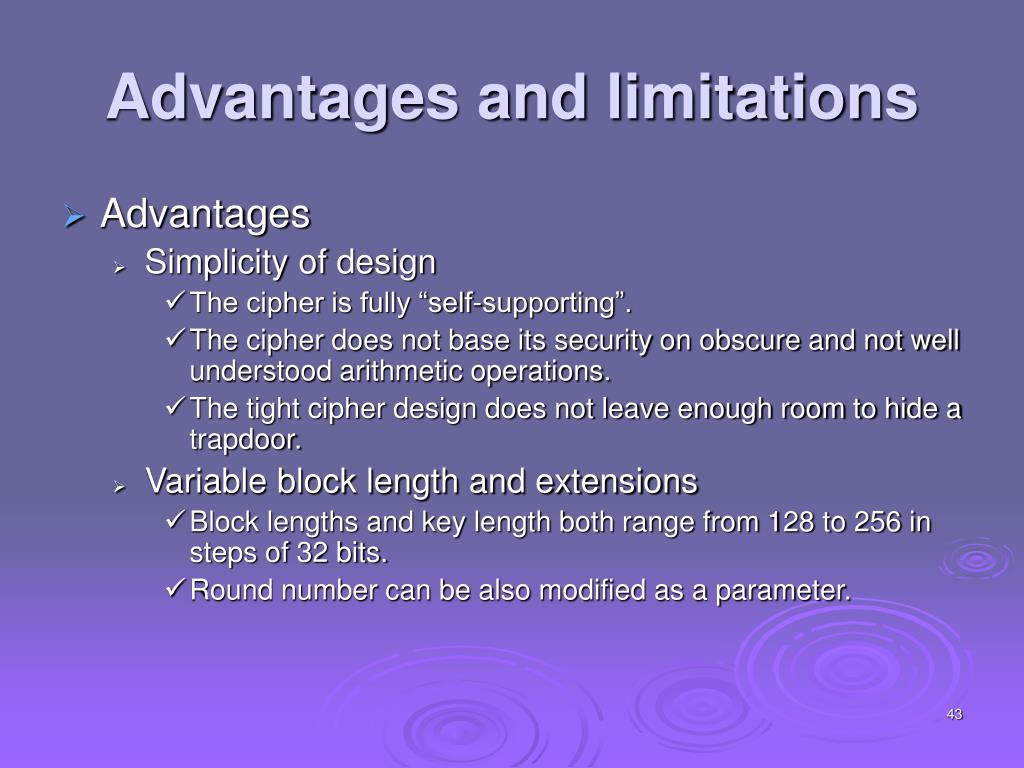

  43. Advantages and limitations • Advantages • Simplicity of design • The cipher is fully “self-supporting”. • The cipher does not base its security on obscure and not well understood arithmetic operations. • The tight cipher design does not leave enough room to hide a trapdoor. • Variable block length and extensions • Block lengths and key length both range from 128 to 256 in steps of 32 bits. • Round number can be also modified as a parameter.

  44. Advantages and limitations • Limitations • The inverse cipher is less suited to be implemented on a smart card than the cipher itself: it takes more code and cycles. • In software, the cipher and its inverse make use of different code and/or tables. • In hardware, the inverse cipher can only partially re-use the circuitry that implements the cipher.
